USER MANUAL RSB 2005 ALPATEC

SOLUTIONS CLIMATIQUES

RSB 2005

RADIATEUR SOUFFLANT

FAN

HEATER

MODED'EMPLOI

USERMANUAL

WEB

FRANÇAIS

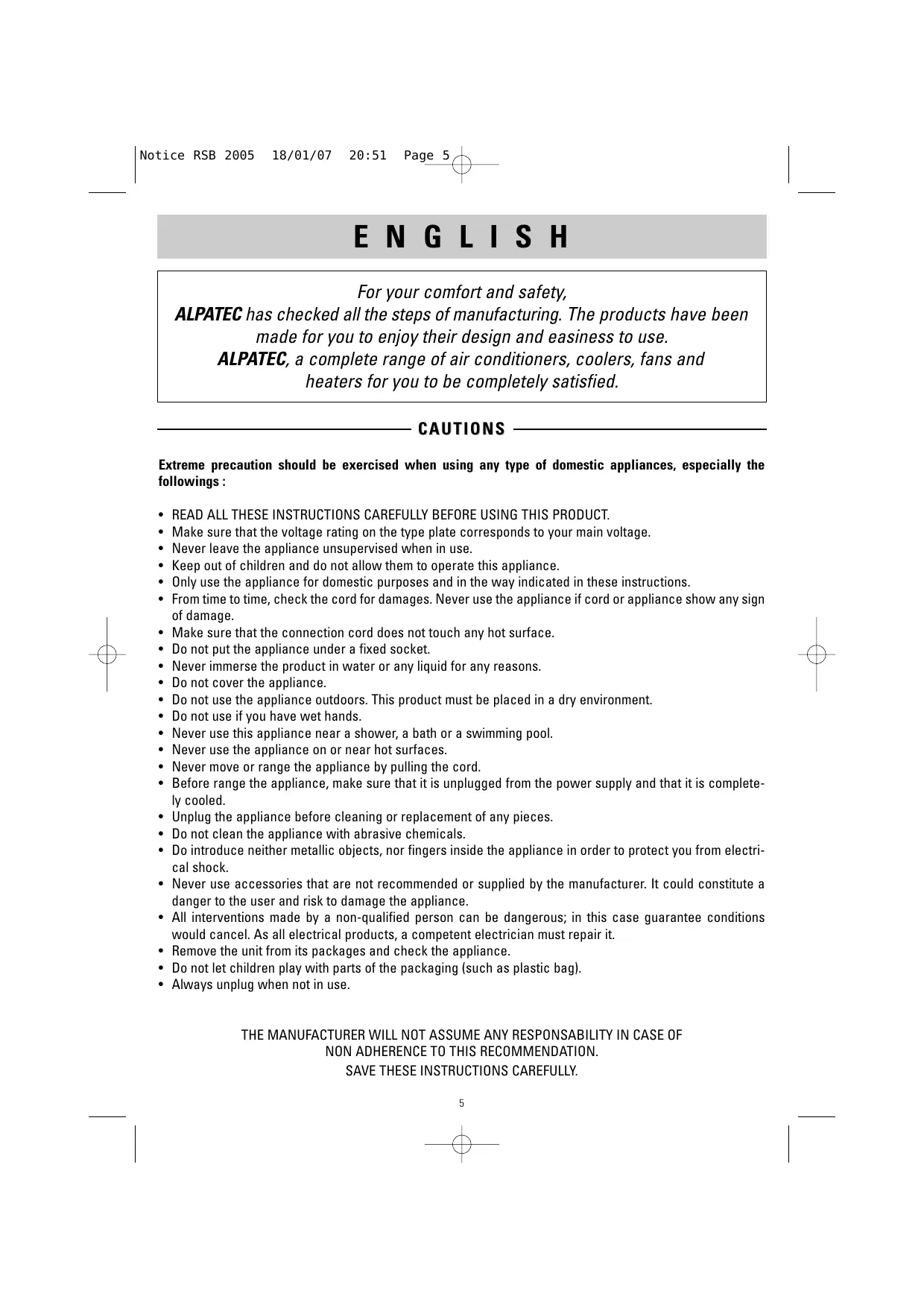

For your comfort and safety, ALPATEC has checked all the steps of manufacturing. The products have been made for you to enjoy their design and easiness to use.

ALPATEC, a complete range of air conditioners, coolers, fans and heaters for you to be completely satisfied.

CAUTIONS

Extreme precaution should be exercised when using any type of domestic appliances, especially the followings :

• READ ALL THESE INSTRUCTIONS CAREFULLY BEFORE USING THIS PRODUCT.
• Make sure that the voltage rating on the type plate corresponds to your main voltage.
• Never leave the appliance unsupervised when in use.
• Keep out of children and do not allow them to operate this appliance.
• Only use the appliance for domestic purposes and in the way indicated in these instructions.
• From time to time, check the cord for damages. Never use the appliance if cord or appliance show any sign of damage.
• Make sure that the connection cord does not touch any hot surface.
• Do not put the appliance under a fixed socket.
• Never immerse the product in water or any liquid for any reasons.
• Do not cover the appliance.
• Do not use the appliance outdoors. This product must be placed in a dry environment.
• Do not use if you have wet hands.
• Never use this appliance near a shower, a bath or a swimming pool.
• Never use the appliance on or near hot surfaces.
• Never move or range the appliance by pulling the cord.
• Before range the appliance, make sure that it is unplugged from the power supply and that it is completely cooled.
• Unplug the appliance before cleaning or replacement of any pieces.
• Do not clean the appliance with abrasive chemicals.
• Do introduce neither metallic objects, nor fingers inside the appliance in order to protect you from electrical shock.
• Never use accessories that are not recommended or supplied by the manufacturer. It could constitute a danger to the user and risk to damage the appliance.
• All interventions made by a non-qualified person can be dangerous; in this case guarantee conditions would cancel. As all electrical products, a competent electrician must repair it.
• Remove the unit from its packages and check the appliance.
• Do not let children play with parts of the packaging (such as plastic bag).
  Always unplug when not in use.

THE MANUFACTURER WILL NOT ASSUME ANY RESPONSABILITY IN CASE OF NON ADHERENCE TO THIS RECOMMENDATION. SAVE THESE INSTRUCTIONS CAREFULLY.

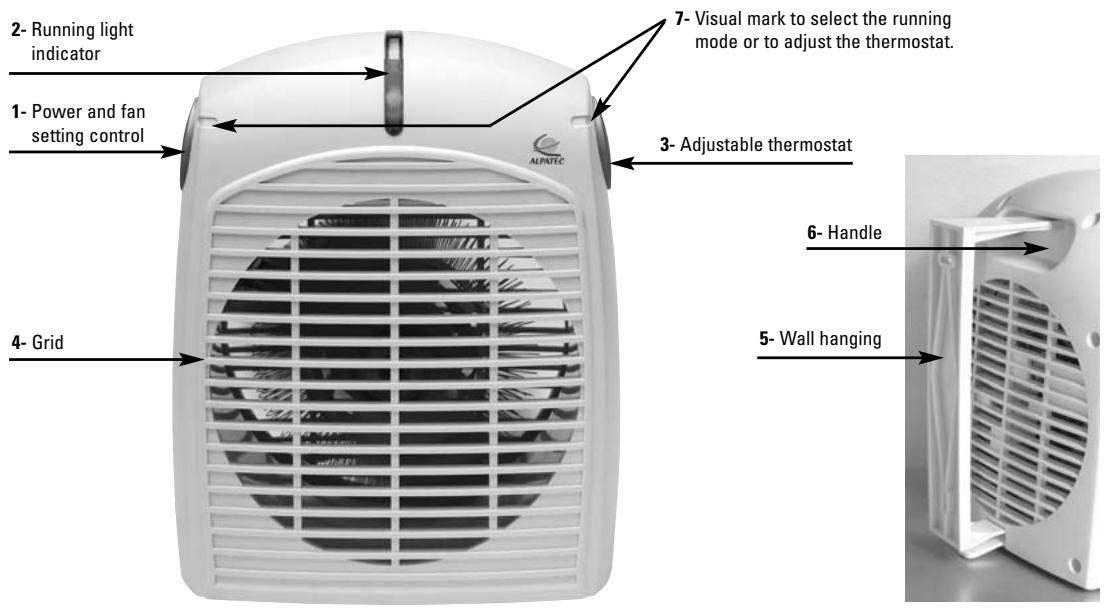

MAIN ELEMENT

SPECIFICATIONS

Voltage	230 V
Power	1000-2000 W
Frequency	50 Hz

USE

• Place the appliance on a level surface.
• Plug the appliance.
• Turn the selector (1) clockwise and use the visual mark to select the desired running mode. Set the desired power: function “ ” (only the fan function works), power I (1000 W) or power II (2000 W).
• To set the heating power of your appliance, turn the thermostat clockwise. Use the visual mark to select the desired temperature.
• The operating light indicator lights when the appliance is in use.
• To switch off the appliance, turn the power control switch on O position.

Ex: The power II is selected

Ex:Lethermostat is on minimum position

THERMOSTAT SETTING

Set the thermostat maximum. The lighting indicator comes on. When the room is at the required temperature, carefully turn the thermostat anticlockwise until the fan goes off. The appliance will now switch on and off to keep the room at the right temperature.

WALL INSTALLATION

Fix the wall support with the screws.
- Clip the lower hook of the wall support on the bottom of appliance. And clip the upper hook of the wall support in the carrying handle of appliance.

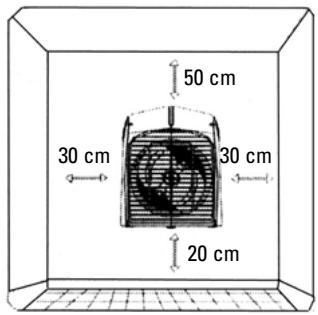

- Install the appliance according to the referenced distances (as show on figure A).

Note : The appliance shall not be installed higher than 1,8m.

To remove the appliance, maintain a solid grip on the unit and push down upon the lower tongue of the wall bracket.

SAFETY CUT-OFF WHEN OVERHEATING

This appliance is equipped of an automatic cut-off device in case of overheating. This device allows to stop the appliance when the heat inside the appliance's body becomes too high.

This cut-off stops the heating element.

If the appliances stops, ensure you that the opening does not be obstructed.

CLEANING

Before cleaning, ensure that the appliance is switched off and unplugged.

Clean the outside with a dry cloth.

From time to time, clean the inside with a vacuum cleaner on a low setting.

After each season's use, we suggest that the appliance be cleaned with a cloth.

ALPATEC

RSB 2005 - 06/05 - V1
