USER MANUAL MG 1 ALPATEC

ALPATEC thanks you for buying this product and hope you will be totally satisfy with it. For your comfort and security all the steps of the manufacturing have been checked and the product succeeded in all our quality tests. ALPATEC's products : their design and facility of use make you like them.

CAUTIONS

When using an electrical domestic appliance, basic precautions are to be respected. PLEASE, READ CAREFULLY THIS MANUAL BEFORE THE FIRST USE OF THE PRODUCT.

• Make sure that the voltage rating on the type plate corresponds to your main voltage. Any error in connecting the appliance invalidates the guarantee.
• Keep out of reach of children.
• Only use this appliance for domestic purposes and in the way indicated in these instructions. Never use for any other purposes.
• Never leave the appliance unsupervised when in use.
• If you have to go out unplug the appliance every time.
• From time to time, check the cord. Never use the appliance if cord plug or appliance show any sign of damage.
• The cord length of this product has been selected to reduce the possibility of tangling in or tripping over a longer cord. Necer use any extension cord.
• Do not place directly in front of heater or in direct sunlight as this could damage the appliance.
• Do not use the appliance outside.
• Never pull the cord to unplug or move the appliance.
• Unplug the appliance before cleaning or changing any pieces.
• Do never introduce metallic objects to avoid any risks of electrical shocks.
• Never use accessories that are not recommended or supplied by the manufacturer. It could constitute a danger for the user and could damage the appliance.
• Never repair the appliance yourself. All interventions made by a non-qualified person can be dangerous; in this case guarantee conditions would cancel. As all electrical products, a qualified electrician must repair it, as well as the power cord must be changed by an electrician.

SPECIAL RECOMMENDATIONS

• Do not place any object onto the air outlet (on the back side of appliance).
• The rear of the unit can go quite close to the wall but leave at least 20~cm gap.
• Do note place the appliance on soft or uneven ground in order to prevent it from leaking of making noise.
• Place the appliance in order to open easily the front door (without moving the appliance).
• Switch off and unplug the appliance when is not used for a long time.
• Do not the touch the evaporator.

THE MANUFACTURER WILL NOT ASSUME ANY RESPONSABILITY IN CASE OF NON ADHERENCE TO THIS RECOMMENDATION. SAVE THESE INSTRUCTIONS CAREFULLY.

DESCRIPTION OF APPLIANCE

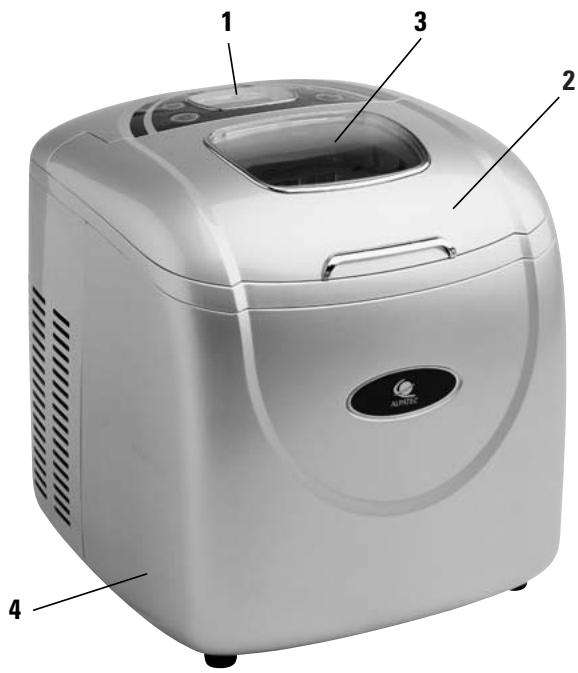

1. Panel control
2. Front door
3. Control window
4. Water tank
5. Ice cube tank

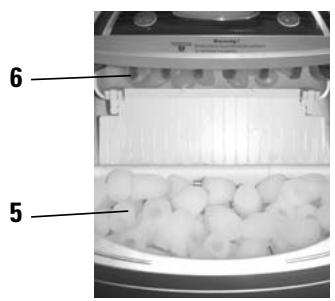

6. Ice making chamber

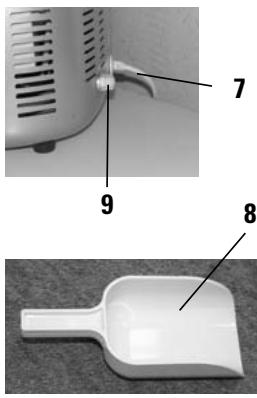

7. Power cord
8. Ice cube's spoon
9. Drainage knob

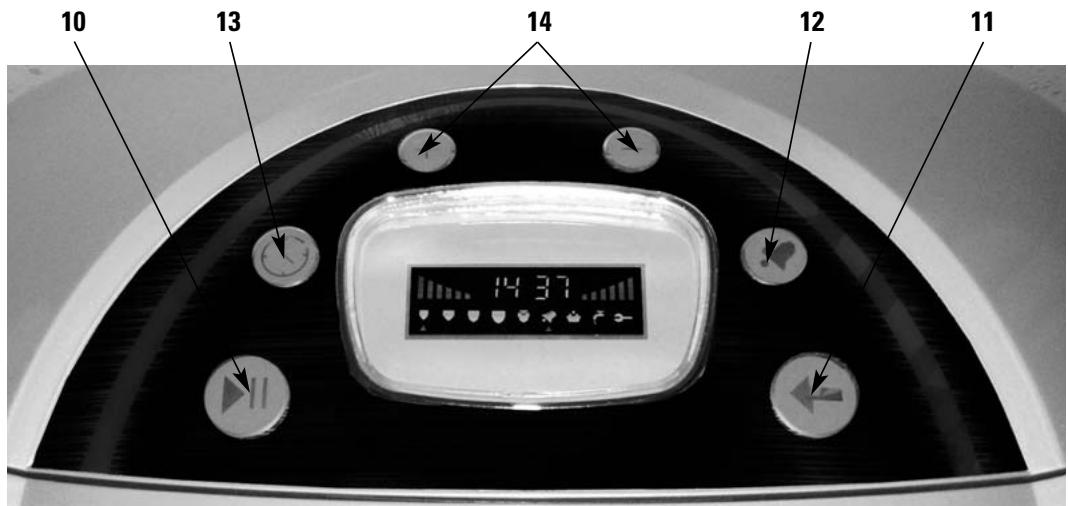

DESCRIPTION OF PANEL CONTROL

1. Start/Stop
2. Ice size selection
3. Timer
4. Hour
5. Time adjust

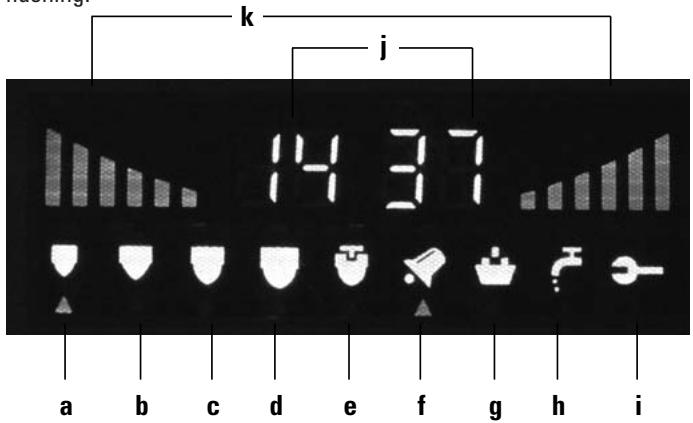

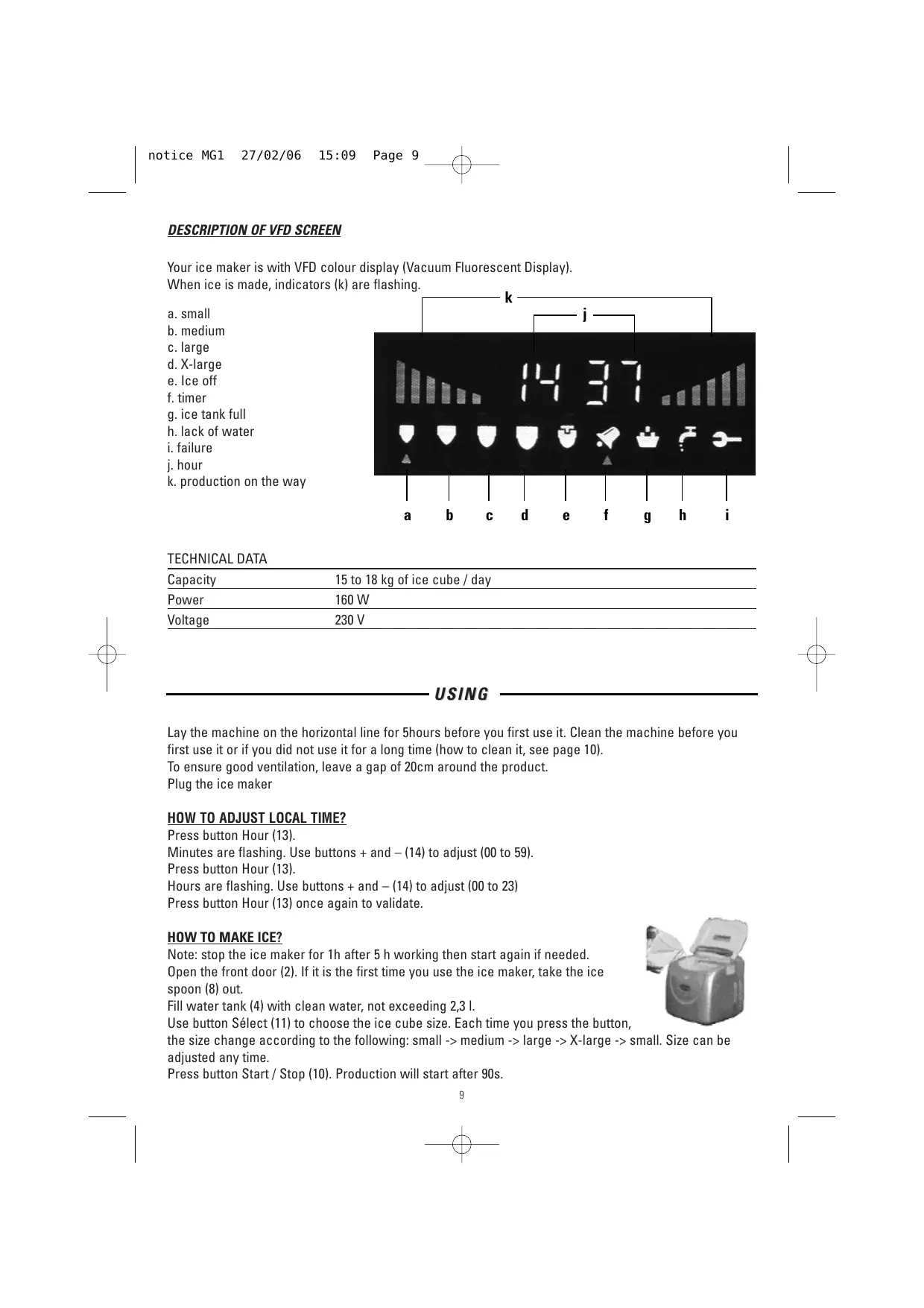

DESCRIPTION OF VFD SCREEN

Your ice maker is with VFD colour display (Vacuum Fluorescent Display). When ice is made, indicators (k) are flashing.

a. small
b. medium
c. large
d. X-large
e. Ice off
f.timer
g. ice tank full
h. lack of water
i. failure
j. hour
k. production on the way

TECHNICAL DATA

Capacity	15 to 18 kg of ice cube / day
Power	160 W
Voltage	230 V

USING

Lay the machine on the horizontal line for 5 hours before you first use it. Clean the machine before you first use it or if you did not use it for a long time (how to clean it, see page 10).

To ensure good ventilation, leave a gap of 20cm around the product.

Plug the ice maker

Minutes are flashing. Use buttons + and - (14) to adjust (00 to 59).

Press button Hour (13).

Hours are flashing. Use buttons + and - (14) to adjust (00 to 23)

Press button Hour (13) once again to validate.

HOW TO MAKE ICE?

Note: stop the ice maker for 1h after 5 h working then start again if needed.

Open the front door (2). If it is the first time you use the ice maker, take the ice

spoon (8) out.

Fill water tank (4) with clean water, not exceeding 2,3 l.

Use button Select (11) to choose the ice cube size. Each time you press the button,

the size change according to the following: small -> medium -> large -> X-large -> small. Size can be adjusted any time.

Press button Start / Stop (10). Production will start after 90s.

The time for ice making is 7 minutes for small cubes, 9 for medium, 11 for large and 13 for X-large. First rounds may be longer and with different ice cube size because the compressor need to warm up. The size of the ice cubes is related to the room temperature, which is why we ask you to conform to the following table:

Room temperature	<= 10°C	10 to 15°C	15 to 20°C	20 to 25°C	25 to 32°C	>= 32°C
Recommended size	STOP	Small and Medium	Small, Medium and Large	Medium and Large	X-Large	STOP

HOW TO USE THE TIMER?

Your ice maker can start automatically in the next 24 hours. First, make sure that the appliance is plugged, the water tank is filled with clean water and the time is correctly adjusted. Press button Timer (12). The timer indicator (f) is activated.

Here for example, timer is on and Small size is selected.

Adjust the starting time (same as local time adjustment) and use press

button Start / Stop (10) to validate.

Note: Do not forget to select the ice size (this can be done any time). Timer can be cancel. Press button Timer (12). Timer indicator (f) is off

HOW TO STOP THE ICE MAKER?

If you want to stop ice production, Press button Start / Stop (10). Note: when the production will start again, the appliance will start with an ice off round in order to take out all the remaining ice in the ice making chamber (6). Note: when the production will start again, the appliance will start with an ice off round in order to take out all the remaining ice in the ice making chamber (6).

CLEANING

First, unplug the appliance.

Warning: do not touch the evaporator. Take out all the remaining cubes in the appliance (ice cube tank (5) and ice making chamber (6) if needed). Take out the ice tank, clean it with soft soap and rinse it with clear drinking water.

Take out the Drainage knob (9), remaining water will flow out.
To completely drain the machine, smoothly tilt it (do not exceed an angle of 45^ -
Use a soft damp cloth to wipe the inside and outside of the ice maker.
Never use any abrasive or chemical product.
Rinse several time with clean drinking water to flush out any dirt or soap residue. Wipe over with a dry cloth. Put back the water tank.
Put back the Drainage knob (9).

TROUBLESHOOTING

IF YOU DISCOVER THAT YOUR APPLIANCE HAS UNUSUAL SYMPTOMS PLEASE CHECK THE FOLLOWING FIRST :

PROBLÉMES	CAUSES POSSIBLES	SUGGESTIONS DE SOLUTIONS
There is a thundering noise	The voltage is lower than the required one	Turn off the ice maker and restart when the voltage is normal
Lack of water (h) indicator is activated but water level is right	Water pump is damaged	Contact a qualified electrician
Failure (i) indicator is activated	There is remaining ice in ice making chamber (6)	Remove the ice and start again the ice maker
	There is stucked cubes in ice making chamber (6)	Stop the ice maker and remove the stucked cubes
	the shovel is shifted	Stop the ice maker, re-place the shovel and start again the ice maker
	Other	Contact a qualified electrician
Compressor works but no ice is produced	Refrigerant is leaked	Contact a qualified electrician
	Electromagnetic valve is leaked	Contact a qualified electrician
Ice cannot be pulled off	Electromagnetic valve is damaged	Contact a qualified electrician
	Power cord is damaged	Contact a qualified electrician
Ice maker stops during ice making process	Temperature is too high	Stop ice maker and restart one hour later
Bips can be heard and lack of water (h) indicator is activated	Water level is too low	Fill with clean drinking water
Bips can be heard and ice tank full (g) indicator is activated	Ice tank is full	Remove ice cubes
