US102 - Expansion card SWEEX - Free user manual and instructions

Product type	PCI USB 2.0 expansion card
Brand	Sweex
Model	US102
Number of USB ports	4 USB 2.0 ports
Interface	PCI
Dimensions (estimated)	120 mm x 70 mm
Weight (estimated)	50 g
Power supply	Via PCI bus (5 V)
Supported operating systems	Windows 98SE, 2000, XP, Vista
Main features	Adds 4 high-speed USB 2.0 ports to a PC
Installation	Insert into a free PCI slot, secure with a screw, close the case
Maintenance and cleaning	Clean with a dry, lint-free cloth. Do not use liquids.
Safety	Unplug the computer before installation. Discharge static electricity by touching a grounded metal surface.
Spare parts and repairability	No spare parts available. In case of failure, replace the card.
Warranty	3 years (excluding software and batteries)
Package contents	PCI card, driver CD (Windows 98SE), manual

Frequently Asked Questions - US102 SWEEX

How to install the Sweex US102 card under Windows 98SE?

Before installing the card, insert the provided CD and click 'Driver Windows 98SE' to install the drivers. Restart the computer, then install the card into a free PCI slot. Upon reboot, follow the prompts to complete the installation.

Does the Sweex US102 card require drivers under Windows XP?

No, under Windows 2000, XP and Vista, the drivers are built into the operating system. The card is recognized automatically.

How to avoid damage from static electricity during installation?

Before touching the card, touch an unpainted heating pipe or a grounded metal surface to discharge yourself. Avoid touching the gold contacts of the card.

What to do if the card does not insert easily into the PCI slot?

Do not force it. Try another free PCI slot. Ensure the slot is aligned and no obstacle blocks insertion.

Is the Sweex US102 card compatible with Windows 10?

The official manual mentions compatibility up to Windows Vista. Under Windows 10, generic drivers may work, but compatibility is not guaranteed.

How to clean the Sweex US102 card?

Use a dry, lint-free cloth to remove dust. Never use liquids or chemical cleaners.

What is the warranty of the Sweex US102 card?

The warranty is 3 years. Included software and batteries are not covered. Claims must be made through the retailer.

Can I use the card to power high-power USB devices?

No, the card draws power from the PCI bus (5V, 500 mA per port max). For high-power devices, use self-powered peripherals.

What to do if the computer does not detect the card?

Check that the card is fully inserted into the PCI slot. Under Windows 98SE, ensure you installed the drivers before insertion. Under XP/Vista, restart the computer.

Does the card work with USB 1.1?

Yes, the card is backward compatible with USB 1.1. USB 1.1 devices will operate at their native speed.

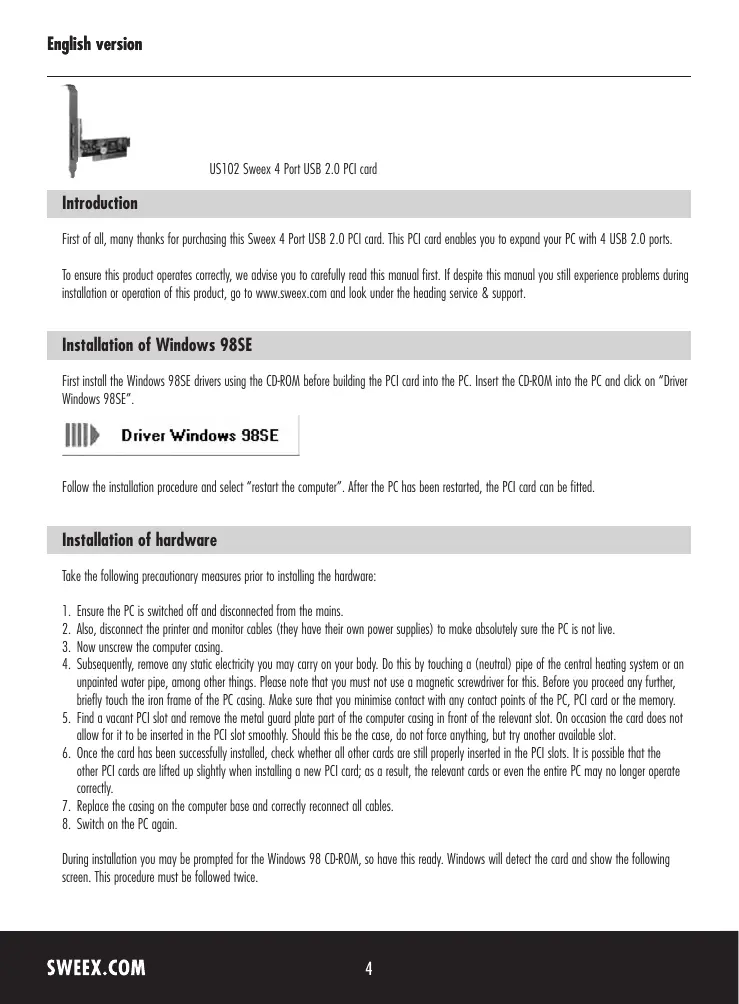

USER MANUAL US102 SWEEX

US102 Sweex 4 Port USB 2.0 PCI card

Introduction

First of all, many thanks for purchasing this Sweex 4 Port USB 2.0 PCI card. This PCI card enables you to expand your PC with 4 USB 2.0 ports.

To ensure this product operates correctly, we advise you to carefully read this manual first. If despite this manual you still experience problems during installation or operation of this product, go to www.sweex.com and look under the heading service & support.

Installation of Windows 98SE

First install the Windows 98SE drivers using the CD-ROM before building the PCI card into the PC. Insert the CD-ROM into the PC and click on "Driver Windows 98SE".

Driver Windows 98SE

Follow the installation procedure and select "restart the computer". After the PC has been restarted, the PCI card can be fitted.

Installation of hardware

Take the following precautionary measures prior to installing the hardware:

1. Ensure the PC is switched off and disconnected from the mains.
2. Also, disconnect the printer and monitor cables (they have their own power supplies) to make absolutely sure the PC is not live.
3. Now unscrew the computer casing.
4. Subsequently, remove any static electricity you may carry on your body. Do this by touching a (neutral) pipe of the central heating system or an unpainted water pipe, among other things. Please note that you must not use a magnetic screwdriver for this. Before you begin any further, briefly touch the iron frame of the PC casing. Make sure that you minimise contact with any contact points of the PC, PCI card or the memory.
5. Find a vacant PCI slot and remove the metal guard plate part of the computer casing in front of the relevant slot. On occasion the card does not allow for it to be inserted in the PCI slot smoothly. Should this be the case, do not force anything, but try another available slot.
6. Once the card has been successfully installed, check whether all other cards are still properly inserted in the PCI slots. It is possible that the other PCI cards are lifted up slightly when installing a new PCI card; as a result, the relevant cards or even the entire PC may no longer operate correctly.
7. Replace the casing on the computer base and correctly reconnect all cables.
8. Switch on the PC again.

During installation you may be prompted for the Windows 98 CD-ROM, so have this ready. Windows will detect the card and show the following screen. This procedure must be followed twice.

Here click "Next".

Select the option "Search for the best driver" and click "Next".

Remove all ticks and click "Next". Windows will install a built-in driver.

Follow the subsequent steps to complete installation. You may be prompted for the Windows 98 CD-ROM.

Installation under Windows 2000, XP and Vista

No drivers are required for installation under Windows 2000, Windows XP and Vista, because they are all incorporated in the operating system and the 4 Port USB 2.0 PCI card will be installed automatically.

Warranty

All products under the Sweex brand are warranted for a period of three years. We do not grant support or warranties for any software and/or (rechargeable) batteries included. Warranty claims are only settled via the dealer where the product concerned was purchased.

The rightful owner has and retains title to all brand names and related rights mentioned in this manual.
