ST031V2 - External hard drive SWEEX - Free user manual and instructions

Brand	SWEEX
Model	ST031V2
Category	External hard drive
Internal interface	SATA
Connectivity	USB 2.0
Form factor	3.5 inches
Power supply	External power adapter included
Compatible operating systems	Windows 2000, Windows XP, Windows Vista
Backup function	PCCloneEX software included
Hard drive installation	Requires opening the case (side tabs)
Formatting required	Yes for new disk (via Disk Management)
Backup button	Present on the case
Warranty	3 years (excluding software and battery)
Maintenance and cleaning	Clean with a soft, dry cloth. Avoid solvents.
Usage precautions	Avoid shocks, extreme temperatures, humidity, dust
Box contents	External hard drive, power adapter, USB cable, software CD-ROM

Frequently Asked Questions - ST031V2 SWEEX

How to install a hard drive in the SWEEX ST031V2 case?

Press the side tabs to remove the cover, screw in the drive, connect the IDE cable and power, then close the case by snapping the tabs back in place.

How to connect the external hard drive to the computer?

Turn on the computer, connect the USB cable to the drive and to a free USB port, then connect the power adapter. Windows automatically detects and installs the drive.

Why doesn't my new hard drive appear in My Computer?

A new disk must be initialized and formatted. Go to Control Panel > Administrative Tools > Computer Management > Disk Management. Initialize the disk and then format it.

How to use the provided backup software?

Insert the CD-ROM, install the PCCloneEx software. Launch it via Start > Programs > PCCloneEx. Select the folders to backup and the SWEEX drive letter as destination, then click Backup.

How to restore files from a backup?

In PCCloneEx, the right window shows previous backups. Select the files or folders to restore and click Restore. The files return to their original location.

Where to find the backed up files on the drive?

The files are stored in a folder structure identical to the original, but hidden. To view them, enable hidden files display in Windows: Tools > Folder Options > View > Show hidden files and folders.

What is the warranty procedure for this hard drive?

The Sweex warranty is 3 years. It is handled exclusively through the reseller. Software and batteries are not covered.

How to maintain and clean the external hard drive?

Use a soft, dry cloth to clean the case. Avoid solvents, water, and excessive humidity.

What usage precautions should be observed?

Do not expose the device to extreme temperatures, direct sunlight, dust, or humidity. Avoid strong shocks that could damage the internal electronics.

Is the hard drive compatible with Mac or Linux?

The manual only mentions Windows 2000, XP, and Vista. Compatibility with other systems is not guaranteed.

USER MANUAL ST031V2 SWEEX

ST031 SweeX External 3.5" SATA Storage Solution USB 2.0

Introduction

In order to fully enjoy the Sweex External 3.5" Storage Solution, it is important to observe a number of things:

• Do not expose the Sweex External 3.5" Storage Solution to extreme temperatures. Do not place the device in direct sunlight or in the direct vicinity of heating elements.
• Do not use the Sweex External 3.5" Storage Solution in extremely dusty or moist surroundings.
• Protect the device against powerful shocks or jolts - they may damage the internal electronics.

Hardware installation of the hard disk

1. Push the tabs on the side of the casing inwards in order to remove the top.
2. Tighten to secure the hard disk.
3. Connect the IDE cable and power supply plug to the hard disk.
4. Close the casing by clicking the tabs back into place. The hard disk has now been built in.

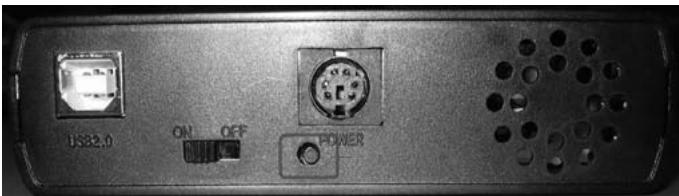

Connecting the Sweex External 3.5'' Storage Solution SATA USB 2.0

1. Start up the computer and wait until Windows has started up fully.
2. Connect the USB cable to the Sweex External 3.5" Storage Solution and to a free USB port on the computer.
3. Connect the external power adaptor and plug it into the mains socket. Windows will detect and install the hard disk automatically.
4. Click on "My Computer" (My Computer) to access the new hard disk.

Activating a hard disk by initiating and formatting under Windows 2000, Windows XP, Windows Vista

If a new hard disk does not show up under "My Computer" (My Computer), it has probably not been formatted yet. This is often the case with new hard disks.

1. Go to the "Control Panel" (Control Panel) and then go to "Administrative Tools" (Administrative Tools).
2. Go to "Computer management" (Computer management) and "Disk Management" (Disk management).
3. A window to start up the procedure to format the disk will automatically appear. If it does not, right-click the new disk in the window. Please be aware that your new disk may have a number that is different from the one in the picture.

1. Right-click in the grey area on the left to initialise the disk. If this is not required, you can start formatting the disk by right-clicking in the white area. After this procedure, the disk is ready for use.

Backup software

If you wish to use the backup function, put the Sweex CD-ROM in the CD-ROM player and click the button to install "Backup Software".

Backup Software

You can start the software via "Start -> Programmes -> PCCLoneEx -> PCCLoneEx" (Start -> Programmes -> PCCLoneEx -> PCCLoneEx).

PCCloneEX

Alternatively, click the icon on your desktop.

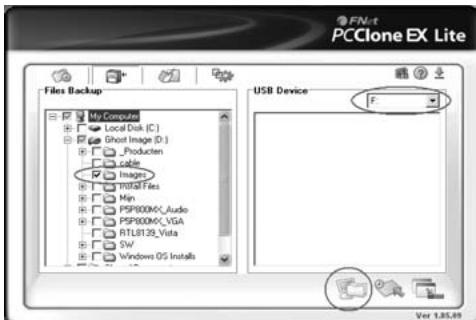

Starting a backup

1. Under "Files Backup", select the folders or files you wish to add to the backup procedure.
2. Under "USB Device", select the location where the files will be stored. Select the drive letter of the Sweex External 3.5" Storage Solution.
3. Click on "Backup" to start the process.

Files Backup

The files will be saved on the "USB Device" using the same folder structure.

Note! The folders and files on the "USB device" are hidden.

In Windows Explorer, via "Tools Folder Options View" (Tools Folder Options View), you can select "Show hidden files and folders" (Show hidden files and folders).

You can also use the backup button on the Sweex External 3.5^ Storage Solution in order to start the backup.

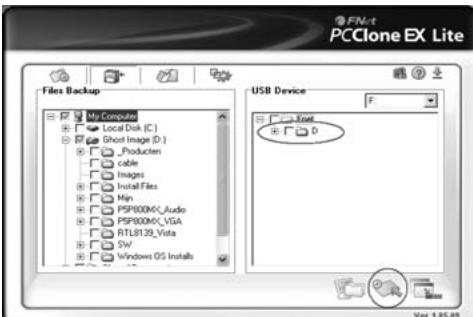

Restore

1. The window on the right shows any previous backups made. Here you can select the required folders or files in order to restore.

1. Click on "Restore" to restore the files from the backup location to the original location on the computer.

Warranty

All products under the Sweex brand are warranted for a period of three years. We do not grant support or warranties for any software and/or (rechargeable) batteries included. Settlement of guarantee only takes place via the dealer where you have purchased the product in question.

The rightful owner has and retains title to all brand names and related rights mentioned in this manual.
