USER MANUAL CP432J5 CONSTRUCTA

Instructions for use

en Index Safety instructions ............. Getting to know your appliance .. Water softener ... Filling in the Salt Filling the rinse-aid container .... Not suitable for the dishwasher .… Arranging crockery, glasses, etc. in the dishwasher . Detergents Programme overview Washing the dishes .. Maintenance and care Faultfinding .. Customer Service Information . Installation . Waste disposal

Safety instructions Delivery — immediately check the packaging and dishwasher for any damage which may have been caused in transit. Do not use a damaged appliance, but consult your supplier. — Please dispose of packaging material properly: Installation — Install and connect the appliance according to the installation and assembly instructions. — The dishwasher must NOT be connected to the power supply during installation — Ensure thatthe protective conductor system of the domestic electricity supply has been installed correctly. — Electrical connection conditions must correspond with the specifications on the rating plate of the dishwasher. — lfthe dishwasher is to be installed in a high-sided unit, ensure that the unit is attached properly and also atthe rear. — Built-under and built-in appliances should always be installed under a continuous work surface which is attached to the adjacent cupboards, in order to ensure that the appliance is entirely stable. — After the appliance has been installed, the mains plug should still be easily accessible. — Noton all models: The plastic housing on the water input contains an electrically operated valve. The connecting wires are inside the inlet hose. Do not cut through this hose and do not immerse the plastic housing in water. VAN Warning For safety reasons, if the appliance is not fitted in a recess, thereby making a side wall accessible, the door hinge area should be covered at the side. {Risk of injury) Covers are available as optional accessories from customer services or specialist stores. In daily use VAN Warning Knives and other utensils with sharp points must be placed in the baskets either flat or with the points downwards. — Use the dishwasher only in the household and only for its designed purpose, i.e. for washing domestic dishes — Do notlean or sit on the open door. The appliance could tip. — Please note that free-standing appliances may tip over if the baskets are overloaded. — The waterin the appliance is not drinking water. — Do not add any solvents to the washing chamber. Danger of explosion! — Open the door carefully when the programme is still running. Water could spray out of the appliance. — To prevent injuries, e.g. caused by stumbling, open the dishwasher only briefly in order to load and unload the dishwasher. — Read and observe the safety information and instructions for use on the packaging for cleaning and rinsing agents.

Children in the household — Do notletinfants play or operate the dishwasher. — Keep cleaning and rinsing agents out of the reach ofinfants. These may cause chemical burns in the mouth, throat and eyes or asphyxiation. — Keep infants away from the open dishwasher. lt could contain residue of the cleaning agent. — lfthe appliance is installed at eye-level, ensure when opening and closing the door that children are not caught or crushed between the appliance door and the cupboard door situated below. Child-proof lock* *some models Comply with the drawings in the back of the envelope. Switch on the child-proof lock Open the door with child-proof lock switched on Switch off the child-proof lock When the door is open, the child-proof lock offers no protection.

If a fault occurs — Repairs or other work on the dishwasher should only be carried out by a qualified specialist. — The dishwasher must be disconnected from the electricity supply before any repairs or other work are started. Pull the mains plug out of the wall socket or switch off at the fuse box. Grasp the plug to remove it from the socket; do not tug on the cable. Turn the water off atthe tap. When disposing of old appliances — Appliances that have reached the end of their service life should be rendered inoperable in order to exclude the possibility of subsequent accidents. Pull the mains plug out ofthe wall socket, cut through the connecting cable and disable the door lock. — Take the appliance to a designated waste disposal centre. VAN Warning Children could get locked in the appliance {risk of suffocation) or get stuck in other positions. Therefore: Remove the mains plug, cut the mains wire and set aside. Damage the door lock so that the door can no longer be closed.

Getting to know your appliance Diagrams of the control panel and the interior of the appliance can be found in the envelope at the front. Individual positions are referred to in the text. Control panel Programme selector Start position Programme sequence indicator Door handle Main switch (ON/OFF) Programme overview Indicator light *

• on applicable models Appliance interior Upper basket with 2-tiered cup rack Additional cutlery basket for the top basket * Upper spray arm Lower spray arm Container for special salt with level indicator * Switch for setting water hardness Filters Cutlery basket Lower basket Lock for detergent dispenser Container for rinse-aid, with level indicator Detergent compartiment Nameplate

• noton all models You will need to purchase the following before using the dishwasher for the first time: - special salt for use in dishwashers - detergent - rinse-aid Only use products, which are suitable for dishwashers.

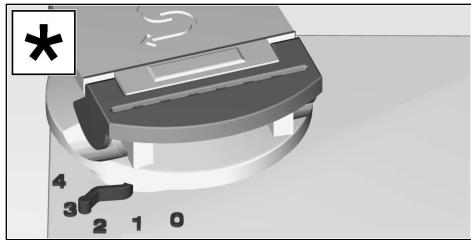

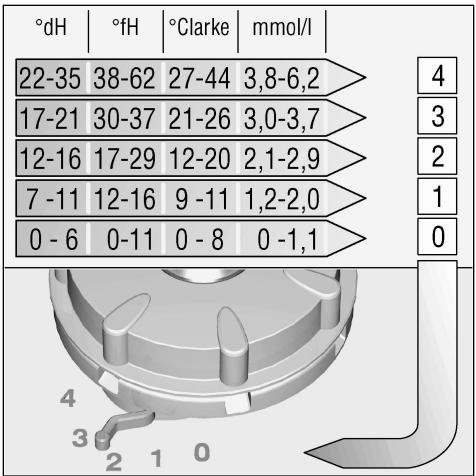

Water softener In order to rinse dishes and glasses satisfactorily, the dishwasher requires soft water, i.e. containing little or no lime, otherwise water stains will be left behind on crockery and glasses, etc. Ifthe tap water exceeds a certain level of hardness, it must be softened, i.e. decalcified, so that it can be used in the dishwasher. This is achieved by adding a special salt to the water softener inside the dishwasher. The water softener, that is the required amount of salt, is set up according to how hard the tap water is. Setting up the water softener — Determine the level of hardness of your tap water. Your local water company or service agent can help you with this. — Identify setting from the following water hardness table. Water hardness table °dH | °#H “carte | rmmol | Css 243862 > [4] (7-21 80-37 21-26 8087 > (2-16 17-29 12-20 2,1 É (rot ere

• not included with all models

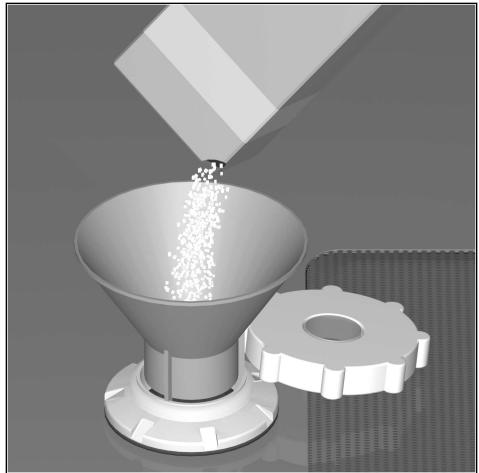

Filling in the Salt ÂA Warning — Open the screwr ÿpe cap ofthe Do not pour detergent into the container for special salt. This would destroy the À water softener. Warning en LOW SALT indicator Before switching on the appliance for ï ji Salt should be added as soon as the APRES lire of water coloured dot in the lid on the salt container — Then refill with salt (not cooking salt) 5 no longer visible. until the salt container is full Depending on the washing frequency and (max. 1.5 kg). When you refill the salt, the hardness setting, the regeneration salt water is being displaced and drains off. mar por have to be topped up for several Refill with salt always just before switching on the appliance in order to prevent corrosion. As a result, any salt solution which has run over will be immediately diluted and flushed out. — Then clean the filling area of salt residues and screw the compartment lid back on without tilting the lid. Ifthe switch is set to "0", itis notnecessary to add any salt, as none is consumed while the dishwasher is operating. Ifthe switch is set between "1” and "4", then salt must be added.

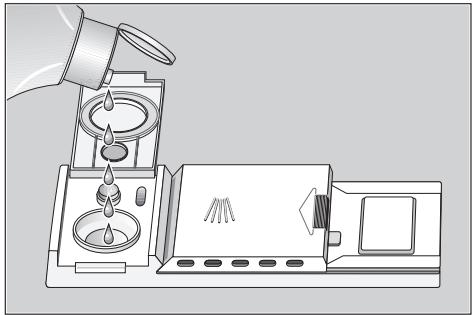

Filling the rinse-aid container The purpose of a rinse-aid is to prevent the formation of water marks on tableware and utensils, and to ensure that glasses are clean and sparkling. The rinse-aid is consumed during the washing process. — Fold back the lid on the rinse-aid container [30 ]. To open the lid, press the mark (1) on the rinse-aid lid and simultaneously lift the lid off the lug (2). — Pour the rinse-aid into the filler hole until the level indicator turns dark. — Close the lid, ensuring that you hear it snap closed. Use only rinse aid for domestic dishwashers. Spilt rinse aid may result in excessive foam formation in the next rinse cycle. Therefore, remove any spilt rinse aid with a cloth.

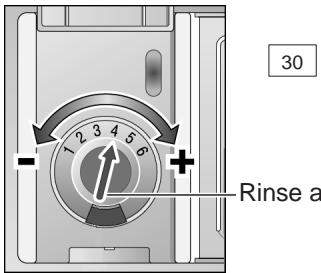

Adjusting the amount of rinse-aid The amount of rinse-aid added to the water can be varied by adjusting the stepless control. The rinse-aid control has been set to "4" in the factory. Do not alter the setting of the rinse-aid control unless streaks (turn knob towards "-") or water marks (turn knob towards "+") are left on the dishes. Es | |

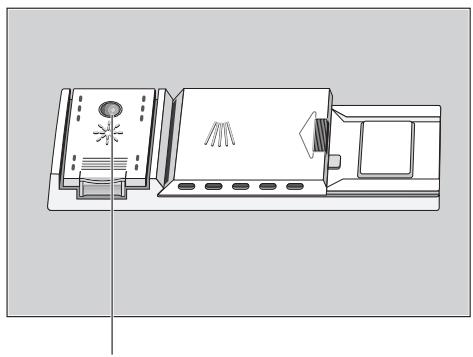

LOW RINSE-AID indicator As long as the LOW RINSE-AID indicator on the dispenser is dark, there is sufficient rinse-aid in the dishwasher. Rinse aid controller LOW RINSE-AID indicator

Not suitable for the dishwasher The following should not be cleaned in the dishwasher: — Wooden cutlery and utensils - these will leach out and become unsightly; even the utilised stickers are not suitable for the temperatures which occur. — Sensitive ornamental glasses, craft utensil and vases, special antique orirretrievable utensils. These ornaments are not dishwasher-proof. — Plastic parts sensitive to hot water. — Copper and tin utensils. — Utensils which are soiled with ash, wax, lubricating grease or ink. — Absorbent materials such as sponges and cloths. Aluminium and silver parts have a tendency to discolour and fade during the wash cycle. Even some types of glass (e.g. crystal glass objects) may turn cloudy after many wash cycles. Recommendation: In future buy utensils which are identified as dishwasher-proof. Damage to glassware and other dishes Possible causes: — type of glass or manufacturing process — chemical composition of detergent — water temperature and duration of dishwasher programme. Suggested remedy: — Use glassware or porcelain dishes that have been marked ‘dishwasher-proof' by the manufacturer. — Use a mild detergent that is described as ‘kind to dishes’. Ifnecessary, seek further information from detergent manufacturers. — Selecta programme with as low a temperature and as short a duration as possible. — To prevent damage, take glass and cutlery out of the dishwasher as soon as possible after the programme has ended.

Arranging crockery, glasses, etc. in the dishwasher Loading the dishwasher — Scrape off any large amounts of left-over food. Itis not necessary to rinse the dishes under running water. — Place objects in the dishwasher in such a way that ®_items such as cups, glasses, pots/pans, etc. are stood upside down,

• curved items, or those with recesses, should be at a slantso that water can run off, ® they are stacked securely and cannot tip over, ® they do not prevent the spray arms from rotating while washing takes place. Very small items should not be washed in the dishwasher as they could easily fall out ofthe baskets. Removing the dishes To prevent water dripping from the top basket onto the dishes in the lower basket, we recommend that you empty the lower basket first and then the top basket.

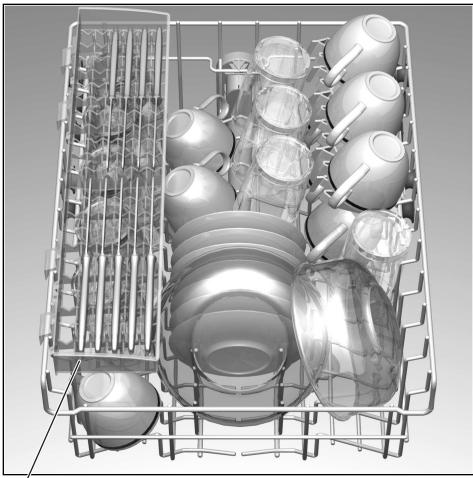

Cups and glasses Upper basket[20 ]

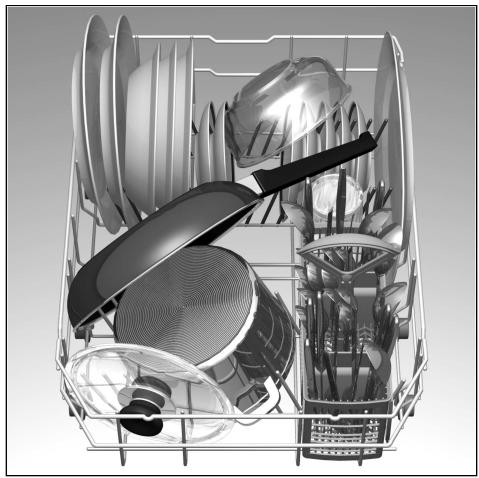

• not included with all models Pots and pans Lower basket

Cutlery Cutlery should be placed in the dishwasher always unsorted and with the eating surface pointing downwards. The spray jet is then better able to reach the individual parts. To prevent injuries, place long, pointed accessories and knives on the étagère (some models) or on the knife shelf (available as an accessory). Folding spikes * *on applicable models To improve stacking of pots and pans, the Spikes can be folded down. K Nip

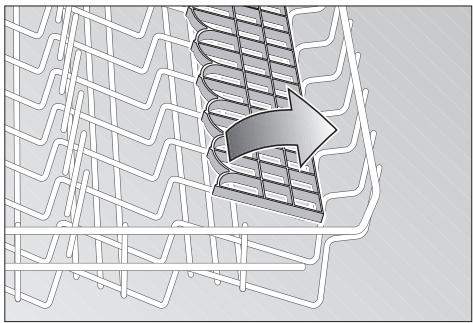

• noton all models Lean tall glasses and those with long stems against the shelf - not against other items to be washed. Place glasses, cups and small bowis on the additional cup rack. The additional cup rack can be swivelled in or out as required.

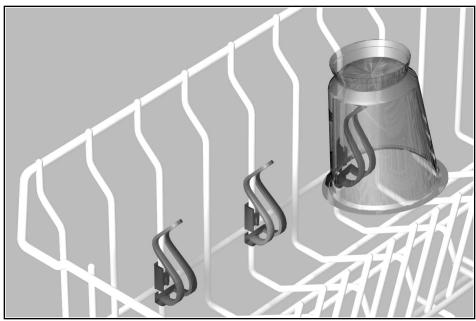

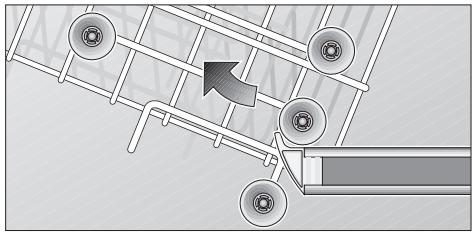

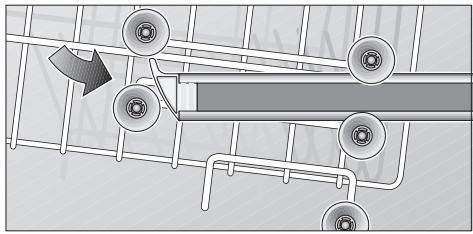

Small accessories holder* Top basket with upper *some models and lower roller pairs Light-weight plastic accessories, e.g. cups, — Pull outthe top basket. lids, etc. can be held securely in the small — Remove the top basket and re-attach it accessories holder. to the upper or lower rollers.

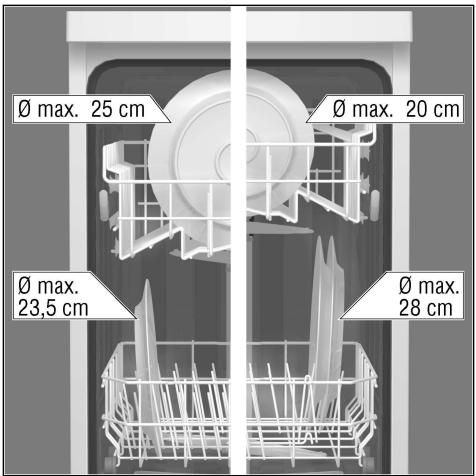

Adjusting position of basket *

• not on all models The top basket can be inserted on either its upper or lower rollers, according to requirement. This enables more height to be gained for bigger dishes in either the top or bottom basket. Select one of the two following procedures according to the design of the top basket for your appliance model:

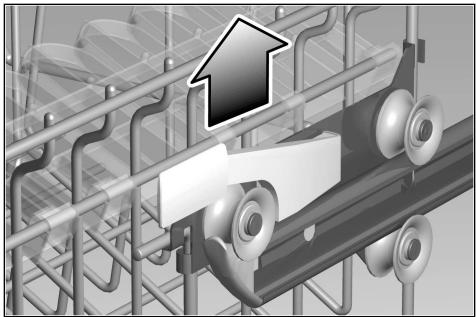

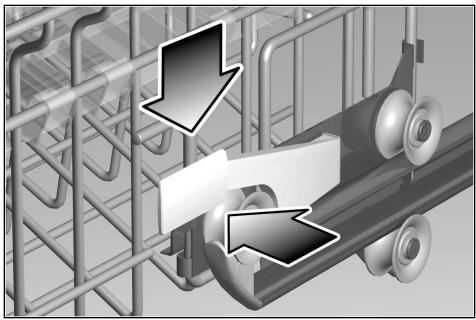

Top basket with side levers (Rackmatic) — Pull outthe top basket. ee _ | “1 — To lower the basket, press in succession the two levers on the left and right sides of the basket. Always take hold of the side of the basket on the upper edge, otherwise the basket will not drop smoothly (and may damage the utensils). — To raise the basket, take hold ofthe basket on the upper edge and pull upwards. — Before you re-insertthe basket, ensure thatitis atthe same height on both sides. Otherwise, the appliance door cannot be closed and the upper spray arm will not connect to the water circuit.

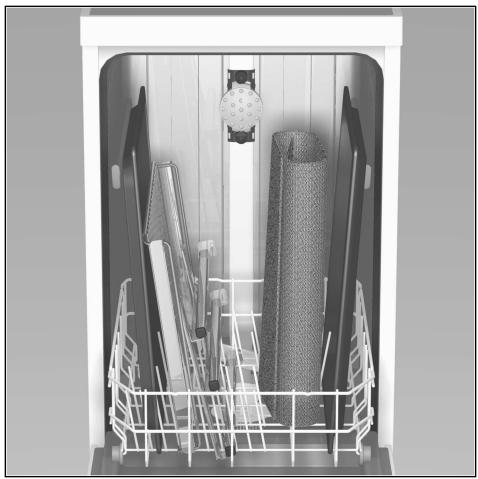

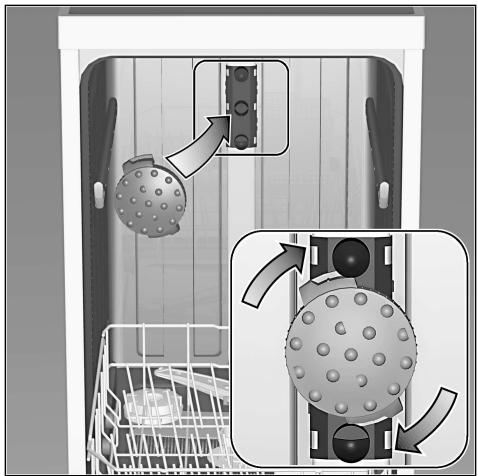

Baking sheet spray head * *some models You can clean large baking sheets or grilles with the baking sheet spray head. To do this, remove the top basket and insert the spray head as illustrated in the diagram. To ensure that the spray jet can reach all parts, arrange the baking sheets as illustrated (max. 2 baking sheets and 2 grilles).

Detergents Information about detergents You can use any brand of liquid or powder detergent, as well as tablets, that have been specifically designed for use in domestic dishwashers. (Do not use normal washing-up liquid!) Nowadays there are three types of dishwasher detergent available:

1. those containing phosphates and

2. those containing phosphates but no

3. those containing neither phosphates

nor chlorine. When a phosphate-free detergent is used in conjunction with hard water, there is a greater possibility that white marks will be left behind on crockery and glasses, etc. These can be avoided by pouring an increased amount of detergent into the dispenser. Chlorine-free detergents have a reduced bleaching effect. This can mean thattea stains are not completely removed or plastic items become discoloured. This can be resolved by: © selecting a higher temperature programme, or ® increasing the amount of detergent, *_using a detergent that contains chlorine. Check the label on the detergent packaging to determine whether a particular product is suitable for use with silverware. If you have any further questions, we recommend that you contact the customer advice departments of the various detergent manufacturers.

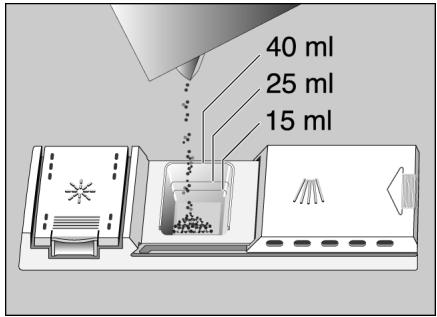

Detergent compartment with measuring marks The side ofthe detergent compartment is marked with lines to help you determine how much powder to add. The capacity of the detergent container is 15 ml up to the bottom line and 25 ml up to the middle line. When the compartment is full it contains 40 ml. Ifthe detergent dispense: closed, press the lock detergent dispenser. Adding detergent — Fillthe dispenser Please observe the manufacturer's instructions printed on the detergent packaging when determining the correct dosage. VAN Important Due to the different solvency properties of the detergent tablets supplied by various manufacturers, the cleaning efficiency of the detergent may not be fully utilised by short programmes. It is recommended to use washing powder for these programmes. — lfusing the “Intensive” programme (some models), also pour approx. 10-15 ml of detergent onto the appliance door. If using tablets, also place a tablet on the appliance door.

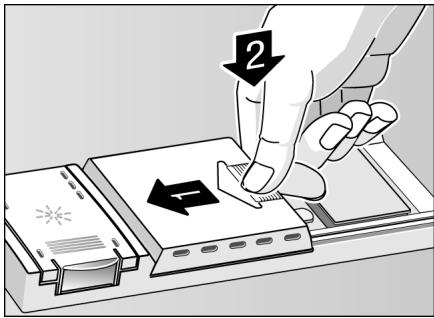

*# Reduce costs! If your dishes are only moderately dirty, you may be able to use less detergent than recommended. — Close the lid on the detergent compartment. Press down the lid (1) until it clicks shut (2). — If you are using detergent in tablet form, read the manufacturer's recommendations on the packaging in order to determine where the tablets should be placed inside the dishwasher (e.g. in cutlery basket, detergent compartment, etc.). Make sure that the lid on the detergent compartment is closed, even if you are using tablets.

COMBINED CLEANING PRODUCTS Please note the following when using "combined cleaning products” which eliminate the need for a rinsing agent or salt, for example: — Some products with a built-in rinsing agent are only used to their full effect in certain programmes. — This type of product does not generally produce the desired effect with automatic programmes. — Products which eliminate the need for regeneration salt can only be used Within a certain water hardness range. — lfyou wish to use these combined products, please read the instructions carefully and heed any notes on the packaging. Contact the manufacturer of the cleaning agent if you have any questions, particularly if: — the crockery is very wet once the programme has finished. — limescale deposits are formed. Any problems which arise as a direct result of the use ofthese products are not covered by our warranty.

Programme overview This overview lists the max. possible number of programmes. The programmes supplied with your appliance are indicated on the fascia. Type of crocken e.g.china, pots/pans, Mixed cutlery, | lasses, NT NN Es DA Type of food CR Soups, casseroles, Soups, potatoes, Soak with water if sauces, potatoes, pasta, rice, dishes have been left pasta, rice, eggs, egos, roast or inside dishwasher for roast or fried food fried food several days before — they are washed Amount of food remains alot a lot a lite ne = GE Stuck on hard loosely atached Wash = y RERO intensive Normal Eco Pre-rinse 65° 65° 65° mt Le) HD C E Lœ cd ETS Pre-rinse | Pre-inse = 65 DU | Preinse Pre-rinse | Wash Wah | Wash =. 65° 65° © 65° Înteriédiate Intermédiate Intermédiate) ns 7 Dtinse rss [uses mou | Rinse-aid 65° ) 65° 65° Nu NS NY Dé] Dofe_] Lo Programme selection The most appropriate programme can be identified by comparing the type of crockery, cutlery, etc., as well as the amount and condition of food remains, with the details contained in the programme overview.

*# Reduce costs! If only a small number of dishes have been loaded into the dishwasher, selecting a programme that operates atthe next lowest temperature will usually suffice. Programme data The programme data (duration, energy and water consumption) can be found in the summary of instructions and refers to standard conditions. Greater deviations may be caused by: — different quantities of utensils — inlet temperature ofthe water — water pressure ambient temperature mains voltage tolerances — and appliance-specific tolerances (e.g. temperature, water flow rate, etc.) The water consumption values refer to water hardness value 2.

Washing the dishes Switching on the appliance — Turn on the tap fully. — Check once again thatthe spray arms can rotate freely. — Select a programme with the programme selector (rotate in a clockwise direction only). — Press the main switch The indicator light [7 The programme starts. Programme sequence indicator While the dishes are being washed, the programme selector rotates in a clockwise direction and indicates how far the programme has progressed. End of programme The programme has ended when the pump noise is no longer audible and the programme selector has reached its initial position (12 o'clock position). Switching the dishwasher OFF Several minutes after the programme has ended: — Setthe main switc to OFF. The indicator light extinguishes. — Turn the water tap off. (Does not apply when Aqua-Stop unit has been fitted) Itis not necessary to reset the programme selector. — Remove dishes, etc. when they have cooled down. illuminates.

Interrupting the programme — Setthe main switch[ 5 ] to OFF. — Indicator lights extinguish. Ifthe hot water was switched ON or the appliance has already heated up and then the appliance door opened, leave the door ajar for several minutes and then close. Otherwise, the appliance door may fly open due to expansion. — In order to resume the programme, set the main switch to ON again. Changing the programme — Switch offthe main switch[5 ]. — Setthe programme selector the new programme (rotate in a clockwise direction only!). — Switch on the main switch [5 ] again. Check whether the detergent dispenser is still closed. Otherwise, refill with detergent. À nos Ifthe power supply is disconnected while the appliance is operating, e.g. by switching off the appliance or due to a power failure, all settings remain stored. Operation continues automatically as soon as the power supply is restored.

Maintenance and care A regular inspection and maintenance of your machine will help to prevent faults. This saves time and prevents problems. Therefore you should occasionally have a careful look inside your dishwasher. Overall condition of the machine — Check spray arm for grease and limescale deposits. If you find such deposits: — Fillthe detergent dispenser with detergent, start the appliance without utensils in the programme which has the highest wash temperature. Clean the appliance with detergents/ appliance cleaners which are particularly suitable for use with dishwashers. — Regularly wipe the door seal with a damp cloth to remove deposits. Never use a steam cleaner to clean your dishwasher. The manufacturer is not liable for any consequential damage. Regularly wipe the front of the appliance and panel with a damp cloth; water and a litle washing-up liquid will suffice. Do not use sponges with a rough surface or abrasive detergents, as these could scratch the surfaces. VAN Attention! Never use other chlorinated household detergents! Health hazard! Dishwasher salt Check the LOW SALT indicator up with salt, if required. Top Rinse-aid Check the level of liquid in the rinse-aid container Top up with rinse-aid, if required.

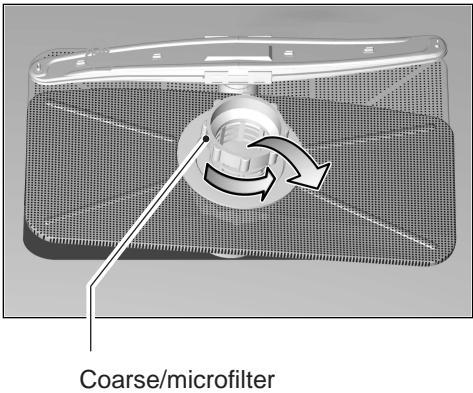

Filters The filters prevent large particles of food in the water from reaching the pump. These particles may occasionally block the filters. — When the appliance has finished washing, check the filters for particles of food and, if required, clean. — After undoing the coarse micro-filter, the filter unit can be removed. Remove any particles of food and rinse the filters under running water. — Insertthe filter unit and tighten the coarse micro-filter. Coarse/microfilter

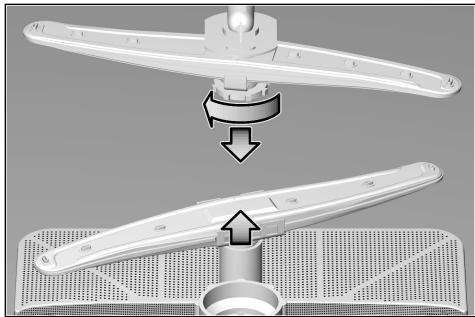

Spray arms Lime and remnants of food in the washing water can block the nozzles in the spray and and the arm mountings . — Inspectthe nozzles in the spray arms for blocked holes due to remnants of food. — lfnecessary, pull the lower arm upwards and lift it off. — Unscrew the upper spray arm : — Clean both spray arms under running water. — Refitthe spray arms. Ensure thatthe lower arm has locked into place and the upper one is screwed tight.

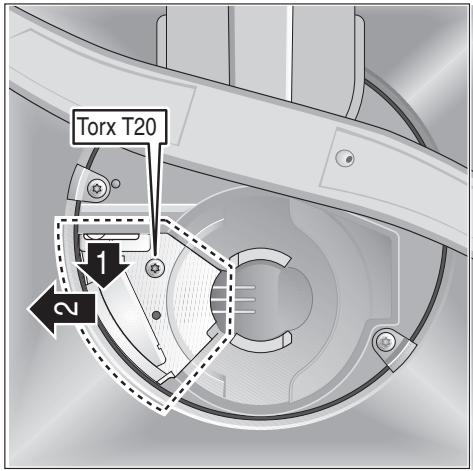

• on applicable models Larger remnants of food that have not been trapped by the filters and have been left in the water can cause a blockage in the pump. The water is no longer pumped out of the dishwasher and it can be seen covering the filter. Proceed as follows: — First, always disconnect the appliance from the power supply. — Ladie out as much water as possible. — Remove the filters [2 — Undo the screw in the cover (Torx T 20) and remove the cover. — Inspect the inside and remove any obstructions that you find. — Re-insertthe cover and screw down. — Re-insertthe filters and screw down.

Fault finding Resolving minor problems yourself Experience has shown that you can resolve most problems that arise during normal daily usage yourself, without having to call out a service engineer. Not only does this save costs, but it also means that the appliance is available for use again that much sooner. The following list of common occurrences and their remedies should help you identify the causes of most problems. Problems … VAN Attention Remember: Repairs may be carried out by a technician only. If a component has to be replaced, ensure that only original spare parts are used. Improper repairs or use of non-original spare parts may cause considerable damage and putthe user at considerable risk. .… when the appliance is switched on © The appliance does not start. — The mains fuse has tripped. — The appliance plug has not been inserted. — The appliance door has not been shut properly. — The tap has not been turned on. — The filter on the water supply hose is blocked. Switch off the appliance and pull outthe mains plug. Turn off the tap. Then clean the filter which is situated at the connection of the supply hose. Finally, restore the power, turn on the tap and switch on the appliance.

.… With the appliance itself Lower spray arm rotates with difficulty — Spray armis blocked by small items or food remains. Lid in detergent compartment cannot be closed — Detergent compartment has been overfilled — Mechanism is clogged with remnants of detergent. Indicator lamps do not extinguish after washing has finished. Remnants of detergent stuck inside dispenser — Compartment was damp when it was filed up with detergent. Compartment must be dry before detergent is added. Water remains inside appliance after programme has ended — Blockage or kink in drainage hose. — Pumpis jammed. — Filters are blocked. _- The programme is still running. Wait for the programme to end. .… during washing Unusual amount of foam is created — Normal washing up liquid has been poured into the rinse-aid container. — Remove any spilled rinse aid with a cloth as it could otherwise lead to excessive foaming during the next washing cycle.

Appliance stops suddenly while washing is taking place — Cutin electricity supply to appliance. — Water supply has been interrupted Knocking sound can be heard while washing is taking place — À spray arm is knocking against the dishes inside the appliance. Rattling sound can be heard while washing is taking place — Crockery has not been stacked properly inside the appliance. Knocking sound coming from inlet valves — This is caused by the way the water pipes have been laid and it has no effect upon the way the appliance functions. There is no remedy for this. … With the dishes, cutlery, etc. © Remnants of food are stuck to the dishes, cutlery, etc. — Dishwasher was not loaded properly. J ets of water could not reach all parts of the dishes, etc. — Too many items in the rack. — Items in the rack were touching each other. — Notenough detergent was added to dispenser. — Selected wash programme was not intensive enough. — Rotation of spray arm was obstructed by dish, etc. — Nozzles in spray arm are blocked by remnants of food. — Filters are blocked. — Filters have been incorrectly fitted. _- Waste-water pump is jammed. Plastic items are discoloured — Not enough detergent was added to dispenser.

© White stains are left on crockery, glasses have a milky appearance — Notenough detergent was added to input compartment. — Amount of rinse-aid was set too low. — Although water is quite hard, no salt has been putin appliance. — Water softener was set too low. — _Lid on salt container is not screwed tight. — _lfyou used a phosphate-free detergent, try a detergent containing phosphates and compare results. © Dishes, cutlery, etc. have not been dried — Selected programme did not include drying function. — Amount of rinse-aid was set too low. — Items were removed from dishwasher too soon. © Glasses have a dull appearance — Amount of rinse-aid was set too low. © Tea stains or traces of lipstick have not been completely removed — Detergent does not have a sufficient bleaching effect. © Traces of ruston cutlery — Cutlery is not sufficiently rustproof. — Saltcontentin washing water is too high. — _Lid on salt container is not screwed tight. — Too much salt was spilt while filling container. © Glasses become clouded and discoloured; coating cannot be wiped off — Unsuitable detergent was used. — Glasses are not dishwasher-proof. © Smears left behind on glasses and cutlery; glasses have acquired a metallic appearance _- Amountofrinse-aid set too high.

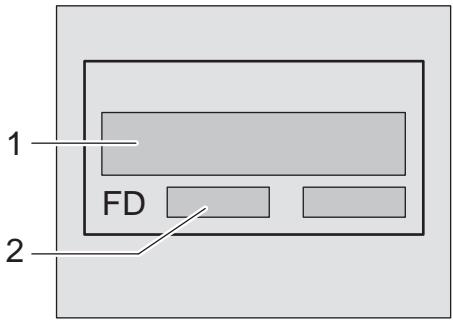

Customer Service Please call your local service agent, if you are not able to resolve any problem yourself. The name of your nearest service agent is shown in the Customer Service address list When you call, please provide details of the model number (1) and the production (FD) number (2) which are shown on the nameplate onthe appliance door. VAN Attention Please note that a visit by the customer service technician in the event of a fault or one of the problems previously discussed is not free of charge even during the warranty period.

Information Disposal Old appliances are not worthless rubbish. Valuable raw materials can be reclaimed by recycling old appliances. Pull out the mains plug of the redundant appliance. Cut off the power cord and discard with mains plug. To prevent children from locking themselves in the appliance and suffocating, destroy the door lock and childproof lock (if fitted). You received your new appliance in a protective shipping carton. All packaging materials are environmentally friendly and recyclable. Please contribute to a better environment by disposing of packaging materials in an environmentally-friendly manner. All plastic parts of the appliance are identified by internationally standardised symbols (e.g. >PS < polystyrene). When the appliance is being disposed of, the plastic waste can be sorted for environmentally-friendiy recycling. Please ask your dealer or inquire at your local authority about current means of disposal. Keep children away from shipping carton and packaging components. Danger of suffocation from folding cartons and plastic film.

Notes on comparison tests You will find details of the conditions for the comparison tests on the additional "Notes on comparison tests” sheet. The consumption values for the relevant programmes are given in the introduction. General — Built-under and integrated appliances which are subsequently installed as free-standing appliances must be secured to prevent them from falling over, e.g. by screwing them to the wall or by installing them under a continuous worktop which is screwed to the adjoining units. — For Swiss version only: The appliance can be installed without difficulty between wooden and plastic walls in a kitchen range. Ifthe appliance is not connected via a plug, the installation side must feature an all-pole disconnector with a contact gap of at least 3 mm in order to satisfy the relevant safety regulations.

Installation The dishwasher must be connected by a qualified technician to ensure correct operation. The specifications for supply, drainage and connected load must fulfil the required criteria as stated in the following paragraphs or in the installation instructions. Install the appliance in the following sequence: - Check the delivery - Install the appliance - Connect the waste water - Connectthe fresh water - Connect the power supply Delivery Your dishwasher was checked at the factory to ensure that it was in perfect working order. This may have left some small water stains in the dishwasher. These will disappear after the first rinse cycle. Installation The required installation dimensions can be found in the installation instructions. Using the height-adjustable feet, adjust the appliance until it is level. Ensure that the appliance is standing firmly. Waste water connection See the installation instructions for the required connection steps. If required, attach a siphon with drainage spigot. Using the enclosed parts, connect the waste water hose to the drainage spigot of the siphon. Ensure that the drainage hose is not kinked, crushed or twisted (ensure that there is no sealing cover which prevents the waster water from flowing away!).

Fresh water connection Using the enclosed parts, connect the fresh water connection to the tap according to the installation instructions. Ensure that the fresh water connection is not kinked, crushed or twisted. When replacing the appliance, always connect a new water supply hose to the water supply. The old supply hose must not be re-used. Water pressure: Minimum 0,05 MPa (0,5 bar) - maximum 1 MPa (10 bar). Ifthe water pressure is higher, install a pressure reducing valve. Flow rate: Minimum of 10 litres per minute. Water temperature: We recommend that you use cold water. If you do use hot water, the temperature should not exceed 60 °C Electrical connection Connectthe appliance only to 230 V alternating current via a correctly installed socket with protective conductor. See rating plate for required fusing . The socket must be attached near the dishwasher and be freely accessible. The connection may be modified by an electrician only. Use only a residual-current-operated circuit-breaker which features the EX] symbol. Only this circuit breaker guarantees compliance with the currently valid regulations.

Removing the appliance Itis essential, when removing the appliance, to observe the following sequence: First, disconnect the appliance from the power supply. Pull outthe mains plug. Turn off the water supply. Disconnect the waste water and fresh water connections. Loosen the fastening screws under the worktop. If fitted, remove the base panel. Pull out the appliance, carefully pulling the hose behind. Transporting the dishwasher Drain water from the dishwasher. Secure all loose parts. The appliance should only be transported in an upright position. — lfthe appliance is not kept upright during transport, any water left inside may seep into the control module and cause subsequent errors with programme functions. Protection from freezing temperatures Ifthe appliance is installed in a location where there is a risk of freezing temperatures (e.g. in a holiday home), all water must be completely drained out of the interior. Turn OFF the tap, disconnect the supply hose and allow to drain.

Waste disposal Disposal Old appliances are not worthless rubbish. Valuable raw materials can be reclaimed by recycling old appliances. Pull out the mains plug of the redundant appliance. Cut off the power cord and discard with mains plug. To prevent children from locking themselves in the appliance and suffocating, destroy the door lock and childproof lock (if fitted). You received your new appliance in a protective shipping carton. All packaging materials are environmentally friendly and recyclable. Please contribute to a better environment by disposing of packaging materials in an environmentally-friendly manner. All plastic parts of the appliance are identified by internationally standardised symbols (e.g. >PS< polystyrene). When the appliance is being disposed of, the plastic waste can be sorted for environmentally-friendly recycling. Please ask your dealer or inquire at your local authority about current means of disposal. Disposal of the packaging — Please dispose of the packaging material in an environmentally friendly manner. Keep children away from shipping carton and packaging components. Danger of suffocation from folding cartons and plastic film. ® Corrugated cardboard consists mainly of wastepaper. ° The moulded polystyrene parts do not contain any chlorofluorohydrocarbons ° The polyethylene film (PE) consists partly of secondary raw materials. + The wooden frames (if fitted) are made of untreated residual wood. ® The hoops (if fitted) consist of polypropylene (PP).

Disposal of redundant appliances — Make redundant appliances unusable to prevent subsequent accidents. — Dispose of the appliance in an environmentally friendly manner. VAN Warning Children could become locked in the appliance (risk of suffocation) or find themselves in other dangerous situations. Therefore: Pull out the mains plug, sever and dispose of the power cord. Destroy the door lock so that the door can no longer be closed. This appliance is labelled in accordance with European Directive 2002/96/E G concerning used electrical and electronic appliances (waste electrical and electronic equipment - WEEE). The guideline determines the framework for the return and recycling of used appliances as applicable throughout the EU.

AQUA-STOP Warranty. {not applicable to appliances without Aqua-Stop) In addition to warranty claims against the seller based on the sales agreement and in addition to our appliance warranty we shall replace the appliance under the following conditions:

1. If damage is caused by water due to a malfunction of our Aqua-Stop system, we shall

make good the damage in the case of private consumers.

2. This liability warranty is valid for the service life of the appliance.

3. The warranty claim is subject to correct installation and connection of the appliance in

accordance with our instructions. “This also includes correct installation of the Aqua-Stop extension (original accessory)." Our warranty does not cover defective supply lines or fittings up to the Aqua-Stop connection on the tap.

4. In principle, it is not necessary to monitor an appliance fitted with Aqua-Stop during

operation or to secure it afterwards by turning off the tap. You should only turn off the tap if you are absent from home for a prolonged period, e.g. on holiday for several weeks. Constructa GmbH Carl-Wery-Stra$e 34 81739 München To book an engineer visit and product advice Please find the contact data of all countries in the enclosed customer service list. CONSTRUCTA-NEFF VERTRIEBS-GMBH Postfach 100 250 9000 137 936 en (8511-1) 80076 München 450R
