USER MANUAL ACCESS 2-WAY KIT FOCAL

Congratulations on choosing Focal automobile speakers.

Focal speakers remain high quality products, due to the multitude of advanced materials used. Detailed research and development in the laboratory, from dedicated engineers and technicians, played a major role in producing such high performing products.

To gain the best results from your speakers, please ensure you follow these recommendations. If not followed correctly any fault observed, may not be covered by the guarantee.

Technical advances, included in the Polyglass range

• Braided glass fiber cone woofer
• Aluminum inverted dome tweeter
• Separate crossover, fully optimised with adjustable level control. High quality components used throughout.
  Strong rigid chassis made from ABS filled 20% glass fiber.
• Butyl surround, for long live.

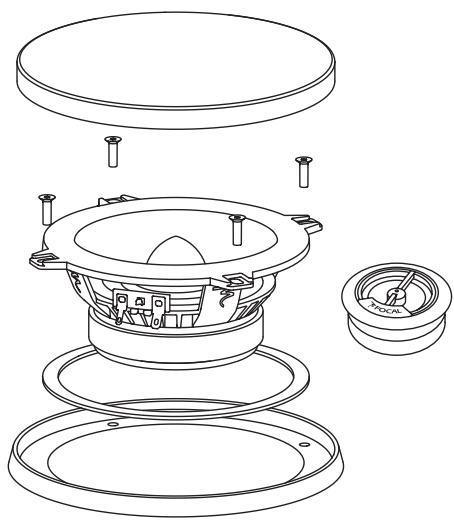

Included

• 2 x woofer / midrange
• 2 x tweeters
• 2 x gaskets
• 2 x crossovers
  fixing screws
• 2×grilles
• 2 x lock washers

THE FOCAL GUARantee ONLY APPLIES IF PAGE 15 IS RETURNED TO US WITHIN 10 DAYS OF PURCHASE.

2

Access 2-Way Kit Manual

Important recommendations

Before attempting any installation work, it is very important to verify how much space is available to fit the speakers into the vehicle.

Key points:

• For direct replacement of original speakers, please check there is enough space for your new Focal speakers and grilles.
• Ensure the speaker is clean from debris and metallic particles that maybe attached (especially after drilling)
• Use the foam gasket supplied (inside the grille), for airtight placement of the speaker into the panel.
• Do not touch the tweeter cone.

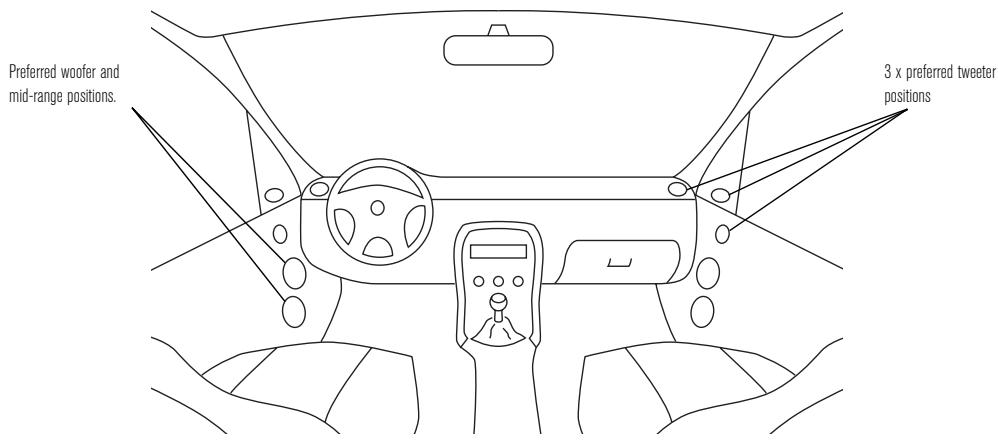

Choice of installation and positioning the tweeter

To achieve best results for your installation, please follow these simple guidelines

• Use a variety of speakers to achieve a large bandwidth, the most central possible.
• Speakers positioned in the most forward location possible, for correct staging
• Tweeters positioned preferably high in the doors or in the dash (if space permitting), to obtain un-muddled high and midrange frequencies. These being directive to the listener.
• To position the tweeters direct in-line to the listeners ears, for improved imaging.

3

Access 2-Way Kit Manual

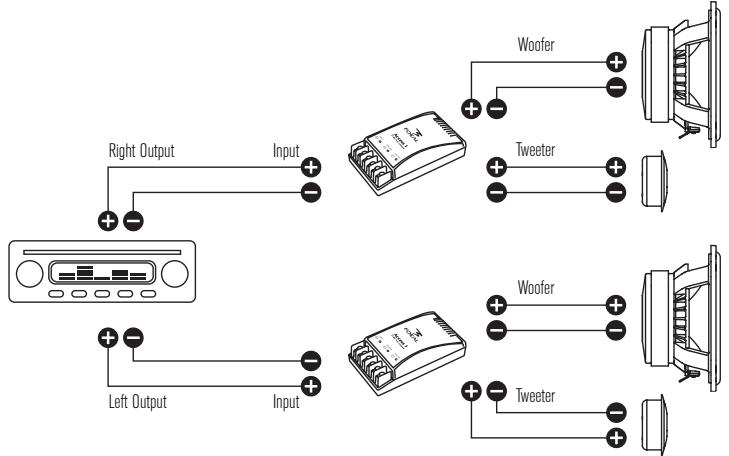

Cables and connections

• For best results with your Access speakers, we recommend you include the use of Focal cables.
• Alternatively, other high quality cable can be used, if sufficient section thickness is available (minimum thickness = 1mm^2 ). This is particularly important for long lengths of cable to ensure a strong efficient signal is maintained.
• Always ensure the polarity is respected, (+ is connected to +) and (- is connected to -).
• Maintain correct connections, from principal source radio/amplifier (left/right/front and rear), and crossover to speakers (tweeter to tweeter), (mid to mid), (woofer to woofer), is always observed.
• If the woofer is located at the bottom on the door, connect the woofer directly on the amplifier in order to have more dynamic midrange.

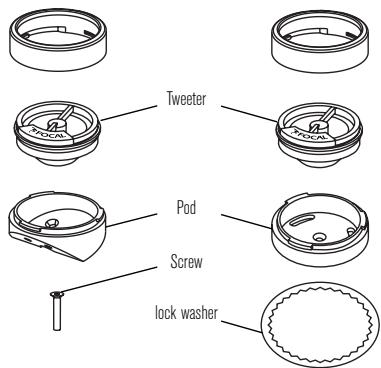

Fitting the tweeter

There are two mounting possibilities available: surface or flush mount. To easily install the tweeter, you have to turn the pod round, then release the tweeter.

Surface mounting (dashboard): choose the angle that best suits your installation (10^ or 30^) and mount the pod firmly using the screws supplied. Feed the wire through the hole in the pod and re-fit the tweeter in place.

Flush mounting: cut a neat 45mm diameter hole in the panel where you want to place the tweeter. Then, insert the tweeter in the front panel. In the same time, put the lock washer in the rear panel. Feed the wire through the hole and push simultaneously on the pod and the washer to lock the pod on the panel. Feed the wire through the hole in the pod and re-fit the tweeter in place.

Access 2-Way Kit Manual

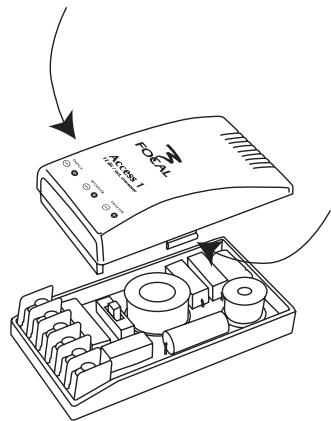

Fitting the crossover

Locate the crossovers in a dry, preferably ventilated area, using either the screws supplied or double-sided tape.

To open the box, squeeze the middle on the side, and remove the cover.

In some cases, depending on your installation and the space available, it may be easier to route the cables and connect to the crossover, before securing the crossover to the vehicle.

Please check before.

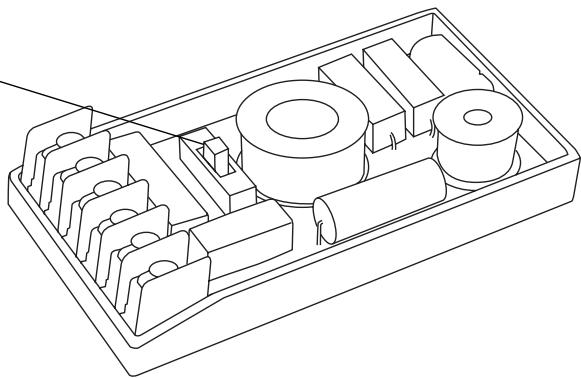

Level adjustment of tweet and midrange

The toggle switch found inside the crossover, allows the user to adjust the tweeter level. This user-friendly option allows effective adjustments to be made, to your own personal listening pleasure, plus optimising the infinite amount of speaker installation locations available.

This allows the system to be "tailor made" to your vehicle, effectively ensuring the best acoustics are possible. Remember too much treble and your system may sound aggressive, thus suffer a lose of dynamics, resulting in poor definition.

Level position 0 or -3dB, if the tweeter is located very close to woofer-midrange.

Level position -3 or -6dB, if the tweeter is located high in the vehicle (in the dash or high in the doors) with the woofer positioned comparatively low.

Level position 0 or -3dB, if the tweeter is located in kick panel.

Tweeter level adjustment

-6dB, -3dB and 0dB

5

Access 2-Way Kit Manual

Specifications

	130 A1	165 A1
Type	2-way kit	2-way kit
Diameter	5" (130mm)	6-1/2" (165mm)
Maximum power	100W	120W
Nominal power	50W	60W
Sensitivity (2.8V/1m)	91dB	92dB
Frequency response	65Hz – 20kHz	60Hz – 20kHz
Impedance	4 ohms	4 ohms
Fitting diameter	4-5/8" (117mm)	5-9/16" (141mm)
Mounting depth	2-3/16" (56mm)	2-5/8" (66mm)

How can you improve the sound quality of your speakers?

Easy. To improve the sound quality of your speakers notably those installed into the doors, Focal has the answer.

Known as "Plain-Chant", this material acts as a sound absorber, to effectively reduce unwanted resonances and ensure your speakers produce a more full sound. No-fuss installation ensures this accessory, provesto be a real asset for your Focal speakers/installation. Consult your Focal retailer for further information.

6

Access 2-Way Kit Manual

What is the power for your amplifier?

Access speakers are already highly efficient, with improved sensitivity. Therefore, their use with a high power head unit will provide comfortable listening pleasure.

However used in a more high-end system, with separate amplification, the audio quality will be greatly improved. It is very important to know the rated power of the amplifier is suitable for the speakers used. Otherwise your speakers may distort, or possible damage could occur.

Always consult the owners manual of the principal source (head unit/amplifier), to ensure the power rating is compatible. A safe guide is to ensure the maximum power of the amplifier is not greater than the nominal power of the speakers.

Installation upgrade (with the help of a subwoofer)

If you want your system to have bass, with real punch and power, we recommend the inclusion of a subwoofer. This will greatly improve your listening pleasure and give your system, some real physical dimension.

Focal has therefore developed a range of subwoofer drivers and complete subwoofer systems, to compliment your Access speakers.

Consult your local dealer, or check out these exciting products on the Focal Internet site: www.focal-fr.com

Guarantee

All Focal loudspeakers are covered by guarantee drawn up by the official Focal distributor in your country.

Your distributor can provide all details concerning the conditions of guarantee. Guarantee cover extends at least to that granted by the legal guarantee in force in the country where the original purchase invoice was issued.

In addition to Car hi-fi systems, Focal offers personalized solutions for the equipment of your house. Enjoy at home the hi-fi and home cinema sensations provided by the Focal sound. Four product lines by the French leading loudspeaker manufacturer, are at your disposal to share with you our passion : the Spirit of Sound / www.focal-fr.com
