USER MANUAL ICE40BCE, ICE40 CUISINART

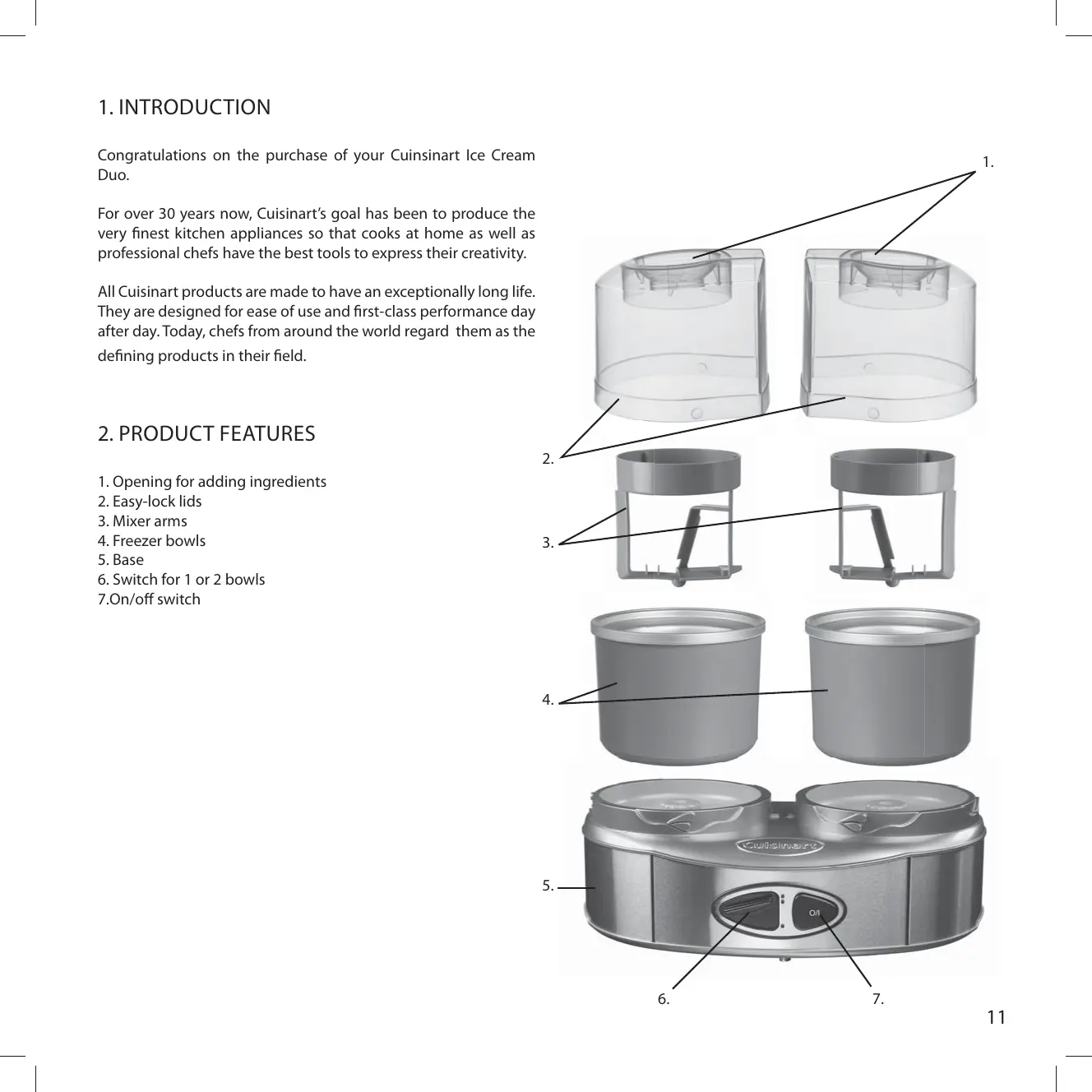

Congratulations on the purchase of your Cuinsinart Ice Cream Duo.

For over 30 years now, Cuisinart’s goal has been to produce the very finest kitchen appliances so that cooks at home as well as professional chefs have the best tools to express their creativity. All Cuisinart products are made to have an exceptionally long life. They are designed for ease of use and first-class performance day after day. Today, chefs from around the world regard them as the defining products in their field.

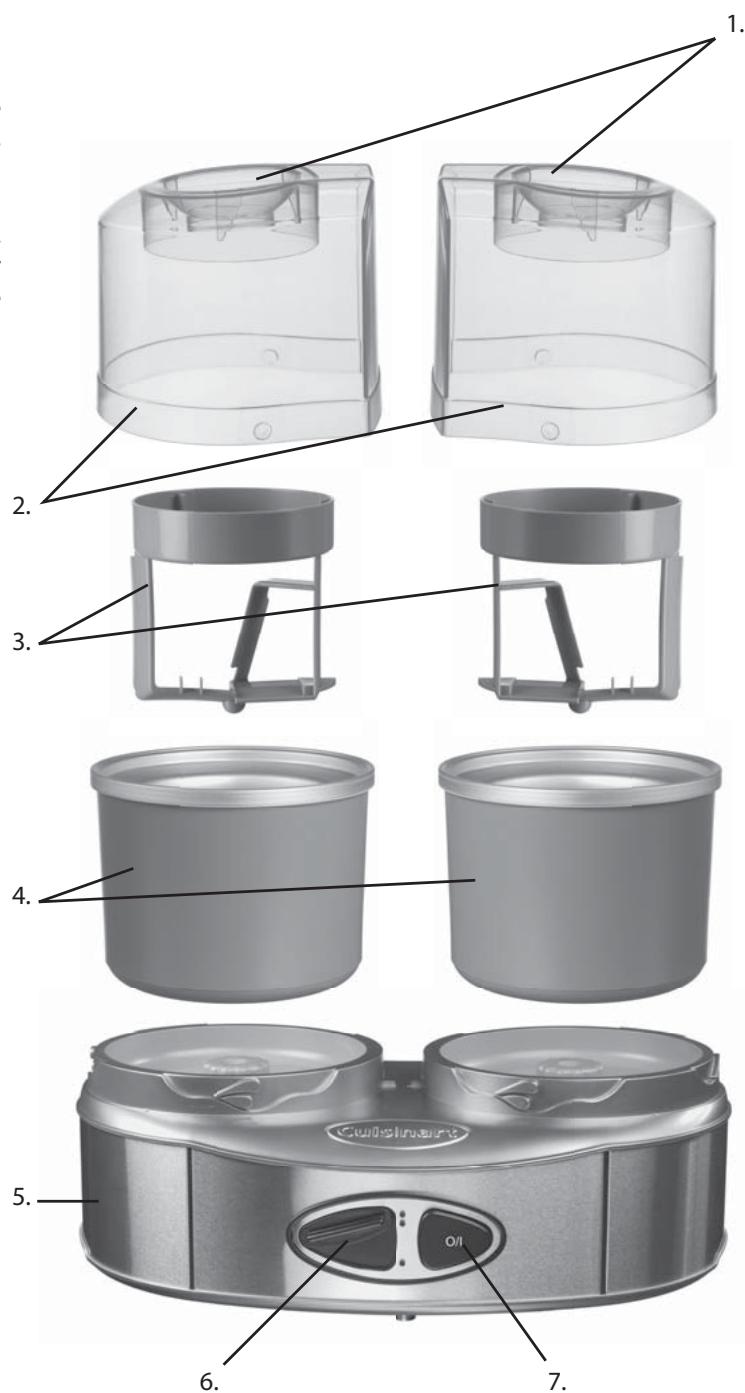

6. Switch for 1 or 2 bowls

A. Preparing the freezer bowls

• Wash and dry the freezer bowls before placing them in the freezer.
• Wrap the bowls in plastic bags to prevent freezer burn.
• The time required to freeze will depend on the temperature of your freezer (approximately 24hrs).
• To determine whether the bowls are completely frozen, shake them. If you don’t hear the liquid moving, they are completely frozen.
• We recommend placing the freezer bowls in the back of your freezer compartment where it is coldest.

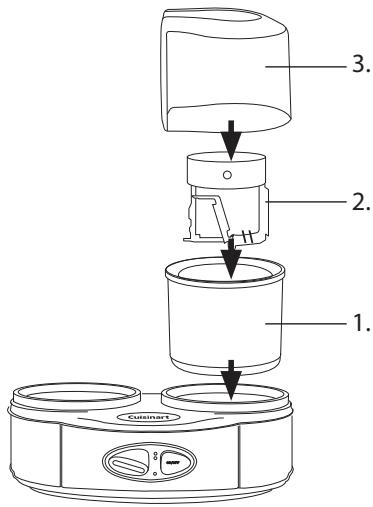

• Place the freezer bowls on a level surface in the upright position so that it freezes evenly. NB: For convenience, leave the freezer bowls in the freezer at all times. That way they’ll always be ready to use. The freezer bowls should be completely frozen before use. B. Assembling the ice cream maker
• Remove the freezer bowl(s) from the freezer and remove from their plastic bag(s).
• Place the freezer bowls on the centre of the base (1).
• The bowls should be used as soon as they are removed from the freezer.
• You should have your ingredients ready before you assemble the ice cream maker.
• Place the mixer arm(s) in the freezer bowl(s) (2). It should just rest in the middle of the bowl with the circle side facing up.
• Place the lid(s) on the base (3). Place the lid(s) slightly off centre and turn clockwise to lock in place.

C. Making Frozen Desserts or Drinks

• For best results, place the ingredients in a container from which they can easily be poured.
• Decide whether to use one or two bowls. If you decide to use just one bowl, use the right side of the unit. Always make this selection before turning on the ice cream maker.
• Press the ON/OFF button, the freezer bowl(s) will begin to turn.
• Immediately pour the ingredients through the spout(s). Do not fill the freezer bowl(s) to higher than 2cm from the rim as the freezing process will increase the volume of the ingredients.
• Ice cream, sorbets or frozen drinks will be ready in 20 to 30 minutes. The time of the preparation will depend on the recipe, the temperature and the volume you are making. For a firmer consistency, transfer the preparation to an airtight container and place in the freezer for at least 2 hours.
• If ice cream sticks to the arm, stop the machine briefly and, using a spatula, scrape the mixture from the arm and put it back in the freezer bowl. NB: Do not store frozen desserts or drinks in the freezer bowls. These will stick to the sides of the bowls and may damage it. Always transfer the mixture to a plastic airtight container.

D. Dismantling the Ice Cream Maker

• Remove the lid(s) from the base by turning slightly to unlock and lifting up.
• Gently lift the mixer arms to remove any excess mixture.
• Remove the freezer bowls from the base.
• Serve the preparation. For a firmer texture, transfer the mixture to an airtight container and place in the freezer.

4. ADVICE FROM THE CHEFS

• Your recipe should not be more than 0.5 litres of liquid per bowl because a larger volume will increase the risk your mixture will spill over the edge.
• Preparation time depends on the recipe, the amount being made and the temperature of the ingredients used.
• Before freezing the preparation, the mixture may be kept in the refrigerator for a maximum of 3 days (depending on the use-by dates of the ingredients used).
• Some recipes use pre-cooked ingredients. For best results, the mixture should be chilled overnight before using.
• Your Ice Cream Duo makes ice cream using pure, fresh ingredients, that is, without the preservatives and so on that you’d find in commercially produced ice creams. Therefore, they won’t have the same firm and creamy consistency. If you would like a firmer consistency, transfer the ice cream to an airtight container and place in the refrigerator for at least two hours before serving.

• For many recipes, you may substitute lower-fat creams and milks for the heavy cream and whole milk called for in the recipe.
• However, the higher the fat content of the ingredients, the richer and creamier the ice cream will be. Using light ingredients might affect the taste, consistency and texture of your frozen dessert or drink. When substituting ingredients, make sure you use the same quantity of the substitute as you would have used of the original ingredient.
• You may also substitute artificial sweeteners for sugar. If your recipe is to be precooked, add the sweetener after the ingredients are heated (after having cooked them). Mix thoroughly to dissolve the sweetener.
• When making a sorbet, check the ripeness and sweetness of the fruit before starting the recipe. The freezing process will reduce the sugar content of the fruit. So it won’t be as sweet once it is prepared. If the fruit is sour, add sugar to your mixture. If the fruit is very ripe or very sweet, reduce the amount of sugar called for in the recipe.
• Fill the freezer bowls to a maximum of 2cm below the rim. Bear this in mind when you add other ingredients.
• Well-chilled ingredients need a shorter mixing time.
• Mixing time may vary depending on the ingredients and the kind of recipe.
• Ingredients like chocolate chips and nuts should be added during the last 5 minutes of the mixing.
• As soon as the dessert or drink begins to thicken, add the ingredients through the spout.
• Nuts and other similar ingredients should be no bigger than chocolate chips.

5. CLEANING & MAINTENANCE

• Always unplug the unit before cleaning it.
• Use a damp cloth to clean the base. Then dry. Never use abrasive cleaners and never immerse in water.
• To clean the freezer bowls, the lids and the mixer arms, use warm, soapy water. Dry all parts thoroughly before storing. Do not put these parts in the dishwasher. Never use abrasive cleansers or hard implements as these may damage the parts.
• Do not place the freezer bowls in the freezer if they are wet. Do not store the lids, the mixer arms or the base in the freezer. You may store the freezer bowls in the freezer, in the upright position for convenient, immediate use when you want them. Before placing the bowls in the freezer, wrap them in plastic

bags to prevent freezer burn.

• Do not store frozen desserts in the freezer bowls. To keep them in the freezer for longer periods, transfer the desserts to an airtight container.

6. SAFETY PRECAUTIONS

Always follow the safety precautions when using this appliance. You will avoid injuring yourself and damaging your ice cream maker. This unit should only be used according to the instructions in this manual.

• ATTENTION: The plastic bags in which the unit is wrapped or which are used for the packaging may be dangerous. To avoid all risk of suffocation, keep these bags out of the reach of babies and children. The bags are not toys.
• Never immerse the base of the appliance in water or any other liquid. Do not place in the dishwasher. Unplug the base from the mains and clean it using a damp cloth. Allow to dry thoroughly before using again.
• Always unplug your appliance after use.
• Always unplug the appliance when it is not in use, before putting on or taking off parts, and before cleaning it.
• Always unplug by pulling on the plug, never the cord. Make sure your hands are dry before removing the plug from the mains.
• Avoid contact with moving parts. When you turn on your ice cream maker, keep you hands, clothing, spatulas and other utensils clear of the appliance to avoid the risk of injury to persons and/or damage to the appliance.
• Never use scouring pads to clean your appliance. Use a cloth dampened with warm water.
• Do not let the cord hang over the edge of the table or counter.
• Do not use the appliance if the cord is damaged. The cord must be replaced by the manufacturer, its after-sales service or a similarly qualified person to avoid all risk to the user.
• Do not use this appliance if it has been dropped or if it appears damaged. Stop using it immediately.
• This appliance should only be used according to the instructions in this manual. Save these instructions for future reference.
• This appliance is intended for indoor use only.
• For household use only.
• This appliance should not be used by persons (including

children) with reduced physical, sensory or mental capacities, or by persons who lack experience or who do not know the appliance, unless they are adequately supervised or they have been given instructions beforehand by someone responsible for their safety. Children should be supervised to make sure they don’t use the appliance as a toy.

• This unit meets the basic requirements of Directives 04/108/ EEC (electromagnetic compatibility) and 06/95/EEC (safety of domestic electrical equipment).
• Only use parts that are recommended or sold by Cuisinart.
• CAUTION: A cut-off plug inserted into a 13-amp socket is a serious safety hazard. Ensure the cut-off plug is removed from the socket and disposed of safely.
• CAUTION: The polythene bags over the unit or packaging may be dangerous. To avoid danger of suffocation, keep away from children and babies. These bags are not toys.
• Do not use the freezer bowl(s) on flames, on hot plates or in ovens. Do not expose to heat sources. Do not wash the freezer bowl(s) in the dishwasher; doing so may cause risk of fire, electric shock or injury. displayed on the product or on its The symbol packaging indicates that the appliance may not be treated as household waste. It should be taken to a collection point for recycling electrical and electronic equipment. By ensuring that this appliance is disposed of correctly, you will help prevent consequences that are potentially harmful to the environment and to human health which could otherwise be caused by inappropriate waste handling of this appliance. For more detailed information on recycling this appliance, please contact your local council office or your household waste disposal service.
