USER MANUAL CWC600E CUISINART

Close-up of a stainless steel Cuisinart oven with wavy glass panels and a digital display (no visible text or symbols on the main subject)

Cuisinart®

Exterior view of a modern stainless steel milk refrigerator with open lid and wavy glass interior (no visible text or symbols)

Wine cellar Cellier

INSTRUCTIONS - HINWEISE - INSTRUCTIES - ISTRUZIONI - INSTRUCCIONES

CWC600E

SOMMAIRE

A. Installing 13
B. Use 13
C. Temperature Control....13
D. Storing wine 14

1. Advice from Chefs....15
2. Questions/Answers......16
3. Cleaning and storage ....17
4. Safety cautions....17

2

INHALTSVERZEICHNIS

2. CARACTERISTIQUES PRODUIT

1 2 3 5 6 8

You have just purchased a Cuisinart® wine cellar.

This wine cellar is perfect for storing wines at different temperatures. Once selected, the temperature remains stable. Moreover, this wine cellar is energy efficient.

Finally, you can install it anywhere because it is elegant, compact, light and easy to move.

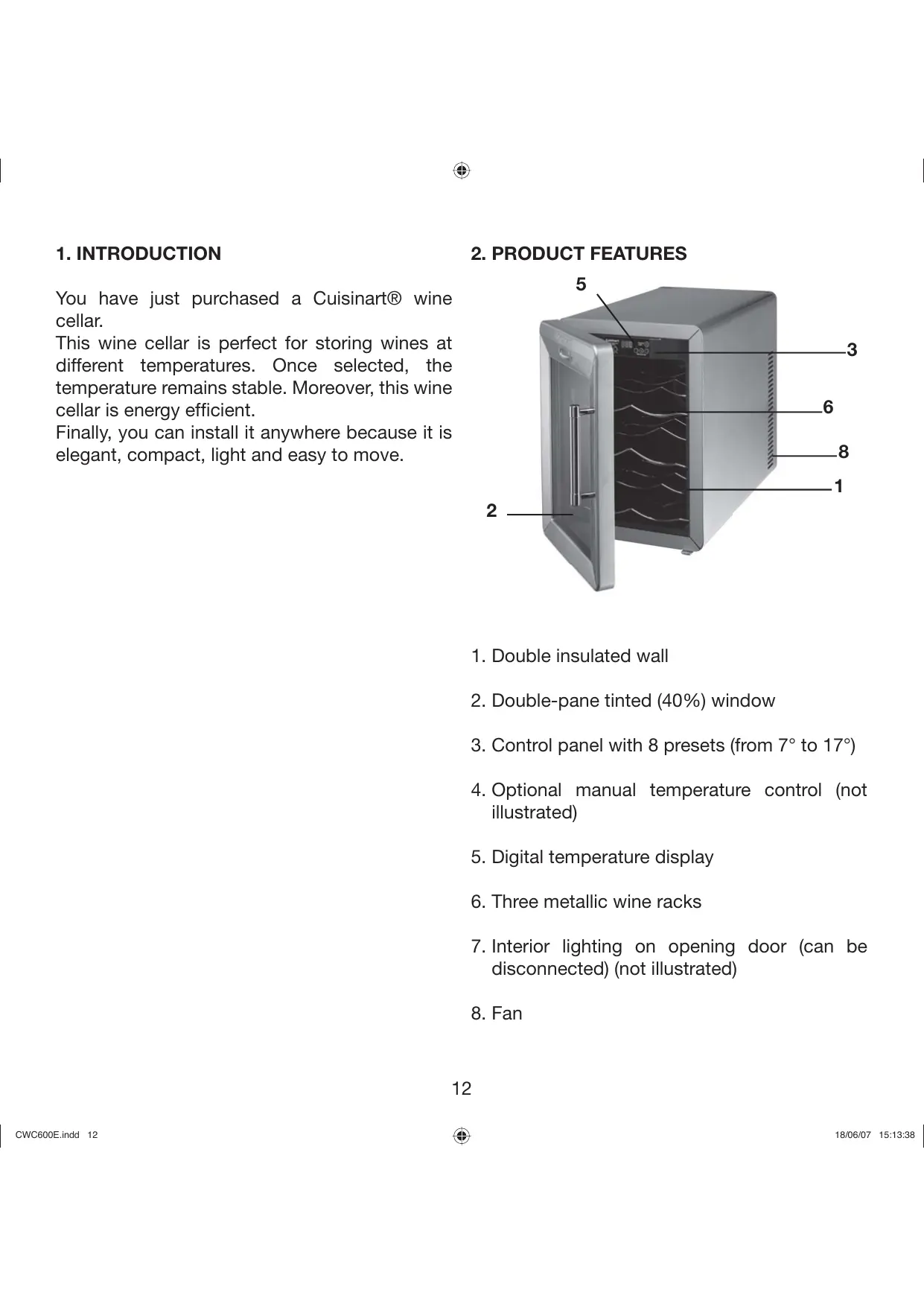

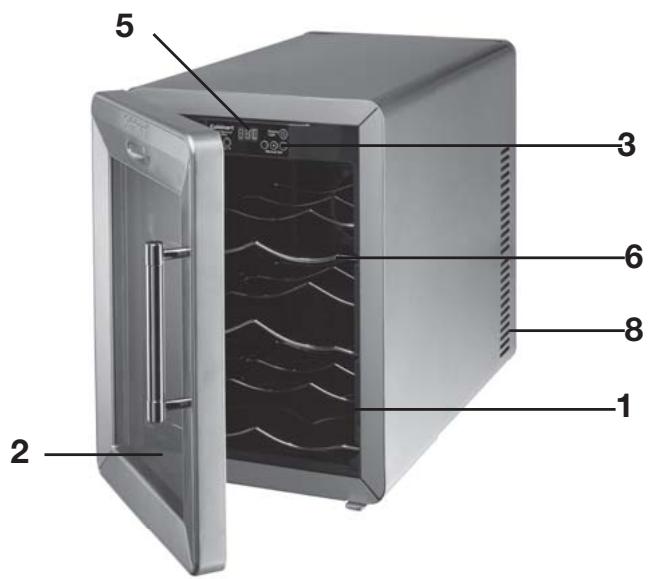

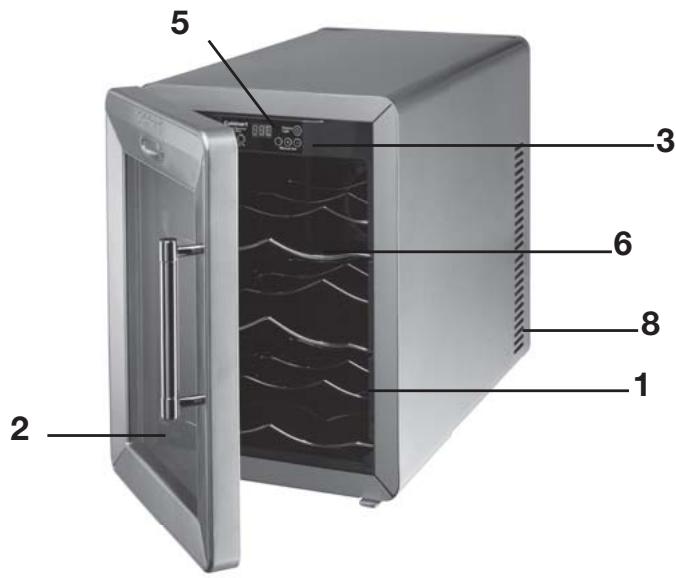

1. PRODUCT FEATURES


1 2 3 5 6 8

1. Double insulated wall
2. Double-pane tinted (40%) window
3. Control panel with 8 presets (from 7° to 17°)
4. Optional manual temperature control (not illustrated)
5. Digital temperature display
6. Three metallic wine racks
7. Interior lighting on opening door (can be disconnected) (not illustrated)
8. Fan

3. USE

A. INSTALLING THE WINE CELLAR

1. Before using the Cuisinart® wine cellar for the first time, wipe the housing and internal chamber with a damp cloth.
2. Read the «Cleaning and storage» section for more information.
3. Place the wine cellar on an even and level surface, solid enough to support the weight of the unit when it is full.
4. Allow at least 15 cm on both sides and at the rear of the unit for proper ventilation. This unit is not designed to be fully recessed in another piece of furniture.
5. The unit operates most efficiently with an ambient temperature of less than 21^ C.
6. Read the «Safety precautions» section for more information.

B. USE OF THE APPLIANCE

IMPORTANT! When using the wine cellar for the first time, wait at least 24 hours for the internal temperature to adjust properly. Make sure there are at least 3 bottles in the wine cellar.

C. TEMPERATURE CONTROL

Important: to operate properly, thermoelectric appliances should be in an environment where the ambient temperature is less than 21^ C. The minimum temperature of the unit is 7^ C and its maximum temperature is 20^ C.

Using Celsius or Fahrenheit units

For manual adjustment of the temperature, the unit of measure can be changed from Celsius to Fahrenheit and vice versa.

Adjusting the temperature using the presets

For your convenience, the Cuisinart® wine cellar has been programmed with eight temperature presets, each corresponding to a type of wine. To change the temperature settings, simply press the «Preset» button on the control panel located on the inside of the unit until the desired preset (1 to 8) appears. The preset will blink a few seconds, then disappear and the pre-selected temperature will reappear on the screen and flash until it is reached. You will need to wait a moment for the temperature of the wine cellar to reach the pre-selected temperature.

Manual temperature adjustment

It is also possible to adjust the temperature of the Cuisinart ^® wine cellar manually. First, press the manual adjustment button, then simply press the «-» button on the control panel to lower the temperature or the «+» button to raise it. The desired temperature will then flash on the screen until it is reached. You will need to wait a moment for the unit to reach the selected temperature.

Presets	Temperatures	Wine type	Notes
1	7 °C	Light dry whites, sweet and mellow wines, effervescent wines	To bring to serving temperature (ready to drink)
2	8 °C	Rose wines, champagnes, aromatic white wines, soft natural wines	To bring to serving temperature (ready to drink)
3	10 °C	Light red wines and rose champagnes	To bring to serving temperature (ready to drink)
4	12 °C	Burgundies and white Bordeaux. Nouveau wines	To store the wine
5	13 °C	Vintage sweet wines, Loire and Beaujolais wines	To store the wine
6	14 °C	Yellow wines, Alsace wines, Loire wines	To store the wine
7	15 °C	Young red Burgundies and Rhone wines, old Bordeaux	To store the wine
8	17 °C	Old Burgundies, Bordeaux and young and tannic red Rhone wines	To bring to room temperature

D. Storing wine

It is essential that wine be stored at the right temperature. Wine stored at a temperature that is too low will lose its fragrance and flavour. Wine stored at a temperature that is too high will taste too harsh or lose its taste, or its alcohol content.

4. ADVICE FROM CHEFS

Cuisinart

1. When the cellar is full of different types of wine (white, rose, red), it is preferable to set the temperature at 16^ C, which is suitable for all types of wine, and then to chill bottles of white or rose before serving them.
2. No wine can withstand temperatures higher than 19^ C or 20^ C.
3. A wine brought to room temperature (chambréd) means it is served at a temperature between 15^ C and 17^ C.
4. To serve a vintage red wine, wrap it in a cool, damp towel.
5. Place your wine cellar in the kitchen away from direct sunlight. This will prevent altering the filter qualities of the tinted panes and will prolong the life of the wines.
6. Many professionals believe that there is no advantage to opening a bottle of wine long before serving. The surface area of the wine in the bottleneck that will be in contact with the air is far too small to improve the taste.
7. Decanting may be useful to air a young or robust wine that still contains traces of gas or to separate the wine from the deposit that has fallen to the bottom of the bottle. It could also begin the oxidation process that will

improve the taste. An old wine should be decanted as close to serving as possible to limit the oxidation that results when the wine is exposed to air after many years in the bottle.

1. Always cut the bottle capsule under the glass ring of the bottle, and not above, to prevent the wine from coming into contact with the metal.

2. Wine is said to be corked when it has taken the mouldy taste of the cork because of the presence of an insect in the cork.

3. QUESTIONS/ANSWERS

What to do if:	Answers:
the unit vibrates	Make sure the unit is on a level surface.
the door doesn’t close properly	Make sure the unit is on a level surface.Make sure the wine racks are in good position.Make sure the bottles do not block the door.
the fan runs continuously	This is normal for the unit. The lower the storage temperature, the more the fan needs to run. If room temperature is higher than 21°C, the fan will also run constantly.The unit is designed to run continuously when set to the lowest temperature.
the internal temperature doesn’t seem correct	Make sure the cooling vents on the right side of the unit are not obstructed in any way.Also make sure that there is at least 15cm between these vents and any wall.Make sure the room is not too hot.
the unit does not operate	Check that the unit is plugged in and also that the socket into which it is plugged is functioning properly.

the unit runs normally, but doesn’t cool

When using the cellar for the first time, it may take 24 hours to reach the desired temperature.Make sure there are at least 3 bottles in the cellar.Allow 24 hours for the unit to reach the right temperature.Check the room temperature and do not use the unit under the following conditions:- in a sunny spot-in a room with poor air circulation (e.g., a garage)- near another heat-generating electrical appliance (oven, microwave, dishwasher, etc.)- on an outlet shared with a refrigerator (this could drain power from the wine cellar)- in an enclosed and restricted space.

6. CLEANING AND STORAGE

• Make sure the wine cellar is unplugged before cleaning it.
• Use only non-abrasive sponges and cleaning products so as not to damage the unit's surfaces.
• Use a damp cloth and a little mild detergent to clean the exterior of the wine cellar.
• Wash the inside surface using a cloth and soapy water.

Always dry all the parts of the unit well before plugging it in again.

7. SAFETY CAUTIONS

Always follow the safety precautions to avoid injuring yourself or damaging the unit. Use this appliance only according to the instructions in this manual.

- Use this appliance only for the use described in this manual and following all instructions.

- Do not use outdoors.

- For household use only.

- CAUTION! Always remove all bottles before moving the wine cellar.

- Do not recess the wine cellar in another piece of furniture.

- Do not expose the unit to direct sunlight or to any other direct sources of heat.

- Do not place the unit in damp conditions.

- Do not place the wine cellar next to another appliance that produces heat, like a dishwasher, a microwave oven, an oven, a barbecue, etc.

• Do not place the unit on or near a heating element.
• Do not use on heat-sensitive surfaces or near inflammable materials.
• Do not place heavy objects on top of the appliance.
• Do not plug the unit into the same outlet as that of a refrigerator or a microwave oven.
• Do not let the cord hang over the work surface, and do not let it touch hot surfaces.
• Always unplug the unit when it is not in use, when it has to be moved or before cleaning. To unplug, grasp the plug and pull it from the socket. Never pull by the cord.
• Be particularly careful if the appliance is used near children. Store the unit out of the reach of children. Never allow children to use the wine cellar.
• Do not use the unit if it has fallen or if it appears to be damaged.
• Stop using the unit immediately if the cord is damaged. The cord can only be replaced by a professional.
• The user may not repair the unit.
• Do not use any accessories not recommended or sold by Cuisinart® as this could result in fire, electric shock and injury.
• This appliance meets the essential requirements of Directives 89/336/EEC (electromagnetic compatibility) and 73/23/EEC (safety of domestic electrical equipment), as amended by Directive 93/68/EEC (CE marking).

Electrical and electronic equipment at the end of life.

In everybody's interest and to participate actively in protecting the environment:

• Do not discard these products with your household waste.
• Use return and collection systems available in your country.

Some materials can in this way be recycled or recovered.
