Product type	Floor and carpet dryer, auxiliary fan for indoor use
Brand	Truvox
Model	HybridBlower 3400 (HB3400 / HB3400/EURO)
Power supply	220-240 V ~ 50 Hz
Rated power	320 W
Maximum air flow	2722 FPM
Number of speeds	3
Thermal protection	Yes (thermal overload)
Stabilizer stand	Yes
Dimensions (L × W × H)	56 × 42 × 29 cm
Weight	8 kg
Power cord length	6 m
Main functions	Fast drying of carpets, hard floors and indoor surfaces; ventilation and cooling of rooms
Intended use	Indoor only: hotels, schools, hospitals, factories, shops, offices, rental companies or domestic use
Maintenance and cleaning	Regular cleaning of the machine, periodic inspection of the cable and the switch; use only approved original parts
Safety	Do not use outdoors, in the presence of hazardous dust or flammable liquids, nor in areas at risk of explosion
Spare parts and repairability	Only Truvox original accessories and spare parts; repairs entrusted to an agent approved by the manufacturer
Compliance and standards	Directives 2006/42/EC and 2004/108/EC; standards EN60335-1, EN60335-2-80, EN55014-1, EN55014-2, EN610003-2, EN610003-3, EN62233
Warranty	1 year
Transport and storage	Use the provided handle; store in a dry place, protected from rain and humidity

Frequently Asked Questions - HB3400 / HB3400/EURO Truvox

What are the intended uses of the HybridBlower 3400?

The HybridBlower 3400 is designed to dry carpets, hard floors and other indoor surfaces. It can also be used to ventilate or cool rooms. It must not be used outdoors.

What is the power and supply of this device?

The device operates on a voltage of 220-240 V with a frequency of 50 Hz. Its rated power is 320 W.

What are the dimensions and weight of the dryer?

The HybridBlower 3400 measures 56 × 42 × 29 cm and weighs 8 kg. It is equipped with a handle for easy transport.

Is the air flow adjustable?

Yes, the dryer has 3 speeds to adapt the maximum air flow of 2722 FPM to your needs.

What safety instructions must I follow?

Do not use the device outdoors, nor in the presence of hazardous dust or flammable liquids. Do not keep it near combustible objects or heat sources. Do not insert objects into the openings and do not obstruct the air flow. The plug must be disconnected before any maintenance operation.

How do I maintain the HybridBlower 3400?

You must clean the machine regularly, check the condition of the power cable and the switch. Any defective part must be replaced with an approved Truvox original part.

Can I use an extension cord?

Yes, but the total length of the cable and the extension must not exceed 30 m. The extension must have a minimum cross-section of 2.5 mm² to avoid voltage drops.

What are the compliance standards of this device?

The HybridBlower 3400 complies with European directives 2006/42/EC (machinery) and 2004/108/EC (electromagnetic compatibility). It complies with standards EN60335-1, EN60335-2-80, EN55014-1, EN55014-2, EN610003-2, EN610003-3 and EN62233.

How to transport and store the device?

Lift the device by the handle provided for this purpose. Store the power cord properly and store the dryer in a dry place, protected from rain and humidity. Never expose it to humid conditions.

What is the product warranty?

The HybridBlower 3400 benefits from a 1 year warranty from the manufacturer. For any repair, contact an agent approved by Truvox and use original spare parts.

USER MANUAL HB3400 / HB3400/EURO Truvox

ORIGINAL INSTRUCTIONS

CAUTION – READ THESE INSTRUCTIONS BEFORE USING THE MACHINE

HybridBlower 3400

Commercial Carpet & Floor Dryer

USER MANUAL EN

MANUEL D'UTILISATION FR

Introduction

The following instructions contain important information about the machine and safety advice for the operator. Equipment must be operated, serviced and maintained in accordance with the manufacturer's instructions. If in doubt contact the supplier of your machine.

Read all instructions before using the machine

Product information

This machines is designed for drying carpets, hard floors and other indoor areas. It can be used to ventilate and cool areas. This machine is for indoor use only. The machine is intended for commercial use, for example in hotels, schools, hospitals, factories, shops, offices, rental businesses and other than normal housekeeping purposes.

Technical Specifications

Model		HB3400, HB3400/EURO
Voltage AC (~)/ Frequency	V/ Hz	220-240/50
Motor power	W	320
Airflow rate	FPM	2722
Speeds		3
Thermal overload		√
Kickstand		√
Dimensions (L x W x H)	Cm	56 x 42 x 29
Weight	kg	8
Cable length	m	6
Warranty	1 year

EC DECLARATION OF CONFORMITY

Machine Type: Commercial carpet & floor dryer

Model: HB3400..., HB3400/EURO...

This machine is in conformity with the following EU directives:

• Machinery Directive: 2006/42/EC
  • The EMC Directive: 2004/108/EC

Applied harmonised standards:

EN60335-1, EN60335-2-80, EN55014-1, EN55014-2,

EN610003-2, EN610003-3, EN62233

Truvox International Limited

Unit C (East), Hamilton Business Park

Manaton Way, Botley Road,

Hedge End, Southampton,

SO30 2JR, UK

Malcolm Eneas

Operations Manager

Southampton, 30/07/2014

Waste Electrical & Electronic

Equipment (WEEE)

Do not dispose of this device with unsorted waste. Improper disposal may be harmful to the environment and human health. Please refer to your local waste authority for information on return and collection systems in your area.

IMPORTANT SAFETY ADVICE

The safety information described in this manual provides basic precautions and supplements standards in force in the country where the machine is used.

This symbol warns the operator of hazards and unsafe practices which could result in severe personal injury or death.

WARNING – to reduce the risk of injury, electric shock or fire.

1. This machine must only be used for the manufacturer's approved application as described in this manual.
2. Operators must be fully trained in the use of the machine in accordance with these instructions, able to perform regular user maintenance and the correct selection of accessories.
3. Only genuine accessories and spare parts provided with the machine or those approved by the manufacturer should be used. All repairs must be performed by a qualified service agent.
4. Do not modify the machine from its original design.
5. This machine is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the machine by a person responsible for their safety.
6. Keep children and unauthorised persons away from the machine when in use. Do not use as a toy.
7. The machine must be kept clean and in good condition with regular inspections of the power supply cord and plug for signs of any damage. If any parts are damaged they shall only be replaced by an approved part by the manufacturer, its service agent

or a similar qualified person in order to avoid a hazard. Do not operate the machine with a damaged supply cord or plug.

1. CAUTION - This machine is for dry indoor use only and should not be used or stored outdoors in wet conditions.

2. Do not use where hazardous dust is present.

3. Do not use in an explosive atmosphere.

4. Do not pick up or use near flammable or combustible fluids, dusts or vapours.

5. Do not use to clean up any burning or lighted materials such as cigarettes, matches, ashes or other combustible objects.

6. Take care when using a machine near the top of stairs to avoid overbalancing.

7. Do not put any object into openings. Do not use with any opening blocked; keep free of dust, debris and anything that may reduce airflow.

8. Keep hair, loose clothing, hands, feet and all other parts of the body away from openings and moving parts.

9. This machine should always be connected to a fully earthed power supply of the right voltage and frequency.

10. Do not leave the machine connected to the electricity supply when not in use; always remove the plug from the socket outlet. Do not leave machine running unattended.

11. Switch off the machine before removing the plug.

12. When unplugging, pull the plug, not the supply cord.

13. The plug of the power supply cord must be removed from the socket-outlet when not in use and before

commencing cleaning of the machine or undertaking maintenance operations.

1. Do not pull or carry by the supply cord. Do not use cord as a handle, close door on cord or pull cord around sharp edges or corners.
2. Do not kink or twist the power cord and keep cord away from heated surfaces.
3. Do not operate switches or touch the mains plug with wet hands as this may cause electric shock.
4. The power supply cord plus any extension leads should not exceed 30 metres in total. The cross section of an extension lead wiring must be at least 2.5mm² .
5. Do not cover machine when in use

Transporting the machine

Incorrect lifting techniques may result in personal injury. We advise that the manual handling regulations are followed. Carefully wrap the power cord and store in dry indoor location. Do not expose the machine to rain or moisture. Lift the machine by the carrying handle to transport.

UK Model only

The cord is equipped with a 13 amp fuse. If replacing fuse, use a 13 amp fuse confirming to BS1362. Do not use the machine if fuse cover is missing.

After sales service

Truvox machines are high quality machines that have been tested for safety by authorised technicians. It is always apparent that after longer working periods, electrical and mechanical components will show signs of wear and tear or ageing. To maintain operational safety and reliability the following service interval has been defined: Every year or after 250 hours. Under extreme or specialised conditions and/or insufficient maintenance, shorter maintenance intervals are necessary. Use only original Truvox spare parts. Use of other spare parts will invalidate all warranty and liability claims. Should you require after sales service please contact the supplier from whom you purchased the machine, who will arrange service. Repairs and servicing of Truvox products should only be performed by trained staff. Improper repairs can cause considerable danger to the user.

Guarantee

Your product is guaranteed for one year from the date of original purchase, or hire purchase, against defects in materials or workmanship during manufacture. Within the guarantee period we undertake at our discretion, to repair or replace free of charge to the purchaser, any part found to be defective, subject to the following conditions:

CONDITIONS

1. Claims made under the terms of the guarantee must be supported by the original invoice/bill of sale issued at the time of sale, or the machine Serial No.

2. For claims under this guarantee contact the supplier from whom you purchased the product who will arrange the appropriate action. Do not initially return the product as this could result in transit damage.

3. Neither Truvox nor its distributor shall be liable for any incidental or consequential loss.

4. This guarantee is governed by the laws of England.

5. This guarantee does not cover any of the following:

- Periodic maintenance, and repair or replacement of parts due to normal wear and tear.

- Damage caused by accident, misuse or neglect, or the fitting of other than genuine Truvox parts.

- Defects in other than genuine Truvox parts, or repairs, modifications or adjustments performed by other than a Truvox service engineer or authorised service agent.

- Costs and risks of transport relating directly or indirectly to the guarantee of this product.

- Consumable items such as, brushes, drive discs, filters and vacuum skirts.

This guarantee does not affect your statutory rights, or your rights against the supplier arising from their sales or purchase contract. Truvox International Limited policy is one of continual product development and we reserve the right to alter specifications without prior notice.

Maintenance

WARNING - Before undertaking maintenance operations or adjustments switch off machine and unplug from the electricity supply.

The machine requires minimum maintenance apart from the following checks by the operator.

• Supply cord - Regularly inspect sheath, plug and cord anchorage for damage or loose connection.
• Body of the machine - Clean with a damp cloth.
- Air vents - Check for dust accumulation around the air inlet and outlet vents and clean if necessary. Blocked vents will cause the motor to overheat, and may lead to premature failure. Warranty claims for this type of damage will not be accepted
- Motor overload cut-out - All machines are fitted with an automatic reset motor overload cut-out. The cut-out will operate to protect the motor from overheating by switching the machine off. Should the cut-out operate it will reset automatically when the motor has cooled sufficiently, usually after 15 - 30 mins.

Fault diagnosis

The following simple checks may be performed by the operator:

Trouble	Reason	Remedy
Machine not working	· Lack of voltage/electrical supply	· Check fuse *, supply cord, plug and socket outlet

* If the fuse blows several times, the machine should be checked by an authorises Service Agent

Truvox International Limited

Unit C (East), Hamilton Business Park,

Manaton Way, Botley Road,

Hedge End, Southampton,

SO30 2JR, UK

Malcolm Eneas

Operations Manager

Southampton, 30/07/2014

1

2

3

4

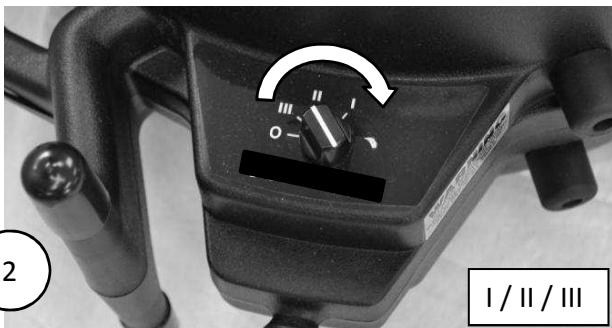

2

1

3

STORAGE & TRANSPORTION ONLY
