USER MANUAL OBS38130/G Truvox

ORIGINAL INSTRUCTIONS

CAUTION – READ THESE INSTRUCTIONS BEFORE USING THE MACHINE

Orbis Battery Scrubber II

Commercial Floor Cleaning Machine

USER MANUAL EN

The following instructions contain important information about the machine and safety advice for the operator. Equipment must be operated, serviced and maintained in accordance with the manufacturer's instructions. If in doubt contact the supplier of your machine.

Read all instructions before using the machine

PRODUCT INFORMATION

These commercial floor treatment machines are designed for the scrubbing of hard floors in indoor areas. This machine is for indoor use only. The machine is intended for commercial use, for example in hotels, schools, hospitals, factories, shops, offices, rental businesses and other than normal housekeeping purposes.

TECHNICAL SPECIFICATIONS

Model		Orbis Battery Scrubber II
Product Code		OBS38130/G
Charging Voltage AC (~)/ Frequency	V/Hz	220 - 240 /50-60
Battery Voltage DC	V	24 (2 x 12V)
Battery Details	Ah	25 (C5)
Construction Class		1
Vacuum Motor Power	W	250
Brush Motor Power	W	260
Run Time	mins	80
Charge Time	hrs	10
Airflow Rate	l/s	28
Vacuum / Water lift	kPa / mmwg	7.0 / 714
Solution tank capacity	litres	17
Recovery tank capacity	litres	26
Productivity Rate	m2/h	1100
Pad / brush speed	rpm	130
Pad / brush pressure	g/cm2	35
Pad / brush diameter	cm	38
Drying width	cm	45
Sound pressure level	dB(A)	65
Dimensions (L x W x H) with handle	cm	90 x 40 x 110
Dimensions (L x W x H) without handle	cm	90 x 40 x 75
Weight with batteries	kg	62
Weight without batteries	kg	43
Ingress Protection Rating		IPX3
Warranty		1 year subject to conditions

- Handle vibration does not exceed 2.5 m/s² when operating on a smooth hard surface.

- Noise levels measured at a distance of 1 metre from machine and 1.6 metres above floor, when operating on a hard floor. Measurements recorded using a hand held meter.

- Above dimensions are approx. Since the company's policy is to continuously improve the product, there could be changes without prior notice.

EC Declaration of Conformity

Machine Type: Floor cleaning machine

Model: OBS38130/G...,

This machine is in conformity with the following EU directives:

- Machinery Directive

• The EMC Directive

2006/42/EC

2014/30/EU

Applied harmonised standards:

EN60335-1, EN60335-2-72, EN55014-1, EN55014-2, EN62233,

EN61000-3-2, EN61000-3-3,

Truvox International Limited

Unit C (East), Hamilton Business Park,

Manaton Way, Botley Road,

Hedge End, Southampton,

SO30 2JR, UK

Malcolm Eneas

Operations Manager

Southampton, 21/08/2018

WASTE ELECTRICAL & ELECTRONIC EQUIPMENT (WEEE)

DO NOT dispose of this device with unsorted waste. Improper disposal may be harmful to the environment and human health. Please refer to your local waste authority for information on return and collection systems in your area.

IMPORTANT SAFETY ADVICE

The safety information described in this manual provides basic precautions and supplements standards in force in the country where the machine is used.

This symbol warns the operator of hazards and unsafe practices which could result in severe personal injury or death.

WARNING - to reduce the risk of injury, electric shock or fire.

1. This machine must only be used for the manufacturer's approved application as described in this manual.
2. The machine must be unpacked and assembled in accordance with these instructions before connecting to the electrical supply.
3. Only genuine accessories and spare parts provided with the machine or those approved by the manufacturer should be used. The use of other accessories may impair the safety of the machine. All repairs must be performed by a qualified service agent.
4. DO NOT modify the machine from its original design.
5. Operators must be fully trained in the use of the machine in accordance with these instructions, able to perform regular user maintenance and the correct selection of accessories.
6. Operators should be physically capable to manoeuvre, transport and operate the machine.
7. Operators should be able to recognise unusual operation of the machine and report any problems.
8. This machine is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the machine by a person responsible for their safety.

9. Keep children and unauthorised persons away from the machine when in use. DO NOT use as a toy.

10. DO NOT use if it has been damaged, left outdoors or dropped in water.

II. DO NOT use where hazardous dust is present.

1. DO NOT use in an explosive atmosphere.

2. DO NOT pick up or use near flammable or combustible fluids, hazardous dusts or vapours.

3. CAUTION - If it is suspected that there is hazardous dust or flammable/corrosive material, stop cleaning the area immediately and consult your superior.

4. DO NOT use to clean up any burning or lighted materials such as cigarettes, matches, ashes or other combustible objects.

5. Only use the machine on firm level surfaces. DO NOT use on a gradient or slope of more than 2%.

6. DO NOT use on rough uneven surfaces e.g. industrial or coarse concrete surfaces.

7. DO NOT use outdoors e.g. on patios, decks or rough surfaces.

8. CAUTION - This machine is for dry indoor use only and should not be used or stored outdoors in wet conditions.

9. Take care when using a machine near the top of stairs to avoid overbalancing.

10. DO NOT cover the machine when in use.

11. DO NOT leave machine running unattended.

12. DO NOT wash and vacuum corrosive, flammable and/or explosive liquids, even if diluted.

13. WARNING - Should foam/liquid emit from the machine exhaust, switch off immediately.

14. Keep hair, loose clothing, hands, feet and all other parts of the body away from openings and moving parts.

15. DO NOT put any object into openings. DO NOT use with any opening blocked; keep free of dust, debris and anything that may reduce airflow.

16. DO NOT use volatile or combustible solvents (e.g. diesel/petrol/IPA/trichloromethane) nor any corrosive, toxic or highly irritant substances to wash floors, even if diluted. In the event of accidental contact with any such substances(e.g. due to spills) follow the decontamination procedures in force at the user site.If in any doubt about the condition of the machine, contact Truvox or the dealer/agent who supplied the machine.

17. DO NOT operate the machine if it malfunctions or is damaged in any way. Contact an authorised service agent for repair or adjustments.

18. DO NOT leave the machine connected to the electricity supply when not in use, always remove the plug from the socket-outlet.

19. Report any liquid leaking from the battery. Leaks are dangerous and highly polluting.

20. WARNING - In the event of a fire, use approved powder extinguishers only; DO NOT use water to put out the fire.

21. WARNING DO NOT fill the machine with water hotter than 50° C.

22. Never use excessive foaming or highly corrosive cleaning solutions.

23. IMPORTANT - Never allow the cleaning head to rest on the brush or drive disc and pad when not in use.

24. WARNING - Never start the machine without the brushes fitted.

25. WARNING - To avoid damaging the floor, DO NOT use the machine in a fixed position with the brush rotation activated.

26. IMPORTANT – The correct way of cleaning and drying the floor is to move the machine forwards. Moving the machine backwards damages the blades as well as not allowing correct vacuum of the water from the floor.

ELECTRICAL HAZARD

1. DO NOT operate the machine with a damaged charger power cord or plug, or after the machine malfunctions or is damaged in any way. Contact an authorised Service Agent for repair or adjustment.

2. The machine must be kept clean and in good condition with regular inspections of the charger power cord and plug for signs of any damage. If any parts are damaged they shall only be replaced by an approved part by the manufacturer, its service agent or a similar qualified person in order to avoid a hazard.

3. When unplugging, pull the plug, not the charger power cord.

4. WARNING: Keep the charger power cord clear of moving parts.

5. DO NOT kink or twist the charger power cord and keep cord away from heated surfaces.

6. DO NOT operate switches or touch the mains plug with wet hands as this may cause electric shock.

7. WARNING - Make sure that the mains system is equipped with an RCD (circuit breaker).

8. WARNING Unless you are charging the machine, always remove the plug from the socket outlet.

9. DO NOT pull or carry by the charger power cord. DO NOT use cord as a handle, close door on cord or pull cord around sharp edges or corners.

10. Unless charging, the plug of the charger power cord must be removed from the socket-outlet when not in use and before commencing cleaning of the machine or undertaking maintenance operations.

11. DO NOT clean the machine using water sprays or jets.

12. DO NOT rest tools and metal objects on the batteries; danger of short circuits.

13. Opportunity / top up charging may damage the batteries. This may cause the run time to fall and overall battery life to be affected. AVOID TOP UP CHARGING.

SAFE DISPOSAL OF BATTERIES

- The batteries must be neutralised through an approved secondary treatment facility prior to disposal as waste.

- The battery can be recycled at an authorised facility, through a licensed waste carrier.

CLEANING AGENTS

1. When using cleaning and care agents, the manufacturer's danger wanings must be followed and protective goggles and clothing must be worn.

2. Only use low-foaming, non-combustible cleaning agents which do not contain generally health-hazardous substances.

3. Please ensure that after each use any chemical residue is rinsed out with clean water.

TRANSPORTING THE MACHINE

• Take extreme care when moving the machine up or down steps or stairs.
• Incorrect lifting techniques may result in personal injury. We advise that the manual handling regulations are followed. Carefully wrap the charger power cord and store in dry indoor location. Incorrect lifting techniques may result in personal injury. We advise that the manual handling regulations are followed.
  • DO NOT expose the machine to rain or moisture.
• Ensure the machine is empty prior to lifting or transporting.
  • DO NOT attempt to lift the machine without assistance.
• When transporting the machine the handle should be locked in the upright position.

STORAGE

• Always switch off the machine after use.
• Store the machine in a dry indoor area only.
- Never store the machine with a brush fitted as this causes distortion, and results in instability during operation.
- Always switch off, empty, wipe down and dry the machine after use.
- Both the solution and recovery tanks should be emptied and flushed out with clean water to ensure the seals and pumps are free from any cleaning detergents.
- IMPORTANT – To dispose of unused cleaning solution, comply with the standards in force in the country in which the machine is being used.
- IMPORTANT – To dispose of the recovery water tank, comply with the standards in force in the country in which the machine is being used.

MAINTENANCE

WARNING - Before undertaking maintenance operations or adjustments switch off machine, unplug from the electricity supply and disconnect the battery.

IMPORTANT – All other servicing and repairs should only be performed by a Truvox engineer or Authorised Service Agent.

IMPORTANT – Should the machine fail to operate please refer to the fault diagnosis section in the back of this instruction manual. If the problem / remedy is not listed please contact Truvox Customer Service Department for rapid attention.

The machine requires minimum maintenance apart from the following checks by the operator prior to use:

• Body of the machine - Clean with a damp cloth.
- Charger power cord - Regularly inspect sheath, plug and cord anchorage for damage or loose connection.
- Solution tank - Check water flow, if restricted inspect hoses and tubes for blockage or kinks.
- Solution tank – Check filter is clean and undamaged. A damaged or missing filter must be replaced or damage to pump head and spray jet could occur.
- Spray jet – Check jet for blockage and full spray pattern. Blow through jet to clean. DO NOT use a pin, as this could damage the jet.
- Drive boards, pads and brushes - Inspect for wear and replace worn brushes. Clean under running water.

- Solution feed filter (Pump) - The filter prevents clogging of the spray nozzle and should be periodically cleaned.

AFTER SALES SERVICE

Truvox machines are high quality machines that have been tested for safety by authorised technicians. It is always apparent that after longer working periods, electrical and mechanical components will show signs of wear and tear or ageing. To maintain operational safety and reliability the following service interval has been defined: Every year or after 250 hours. Under extreme or specialised conditions and/or insufficient maintenance, shorter maintenance intervals are necessary. Use only original Truvox spare parts. Use of other spare parts will invalidate all warranty and liability claims. Should you require after sales service please contact the supplier from whom you purchased the machine, who will arrange service. Repairs and servicing of Truvox products should only be performed by trained staff. Improper repairs can cause considerable danger to the user.

GUARANTEE

Your product is guaranteed for one year from the date of original purchase, or hire purchase, against defects in materials or workmanship during manufacture. Within the guarantee period we undertake at our discretion, to repair or replace free of charge to the purchaser, any part found to be defective, subject to the following conditions:

CONDITIONS

I. Claims made under the terms of the guarantee must be supported by the original invoice/bill of sale issued at the time of sale, or the machine Serial No.
2. For claims under this guarantee contact the supplier from whom you purchased the product who will arrange the appropriate action. Do not initially return the product as this could result in transit damage.
3. Neither Truvox nor its distributor shall be liable for any incidental or consequential loss.
4. This guarantee is governed by the laws of England.
5. This guarantee does not cover any of the following:

• Periodic maintenance, and repair or replacement of parts due to normal wear and tear.
• Damage caused by accident, misuse or neglect, or the fitting of other than genuine Truvox parts.
• Defects in other than genuine Truvox parts, or repairs, modifications or adjustments performed by other than a Truvox service engineer or authorised service agent.
• Costs and risks of transport relating directly or indirectly to the guarantee of this product.
• Consumable items such as power cords, brushes, drive discs, filters, belts, vacuum skirts and other similar items.

This guarantee does not affect your statutory rights, or your rights against the supplier arising from their sales or purchase contract. Truvox International Limited policy is one of continual product development and we reserve the right to alter specifications without prior notice.

RECOMMENDED SPARES & ACCESSORIES

Part No.	Item	Usage
05-4621-0000	Standard brush (black)	General purpose scrubbing
05-4622-0000	Soft brush (white)	Light scrubbing
05-4620-0000	Drive board	For use with pads
95.0048.00	Squeegee front & rear blades PARA (1 pair of blades)	Wet pick up on all types of floor
95.0049.00	Squeegee front & rear blades PARA (5 pairs of blades)	Wet pick up on all types of floor
95.0050.00	Squeegee front & rear blades Anti-oil (1 pair of blades)	Oil resistant squeegee blades
95.0051.00	Squeegee front & rear blades Anti-oil (5 pairs of blades)	Oil resistant squeegee blades

FAULT DIAGNOSIS

The following simple checks may be performed by the operator. If the machine is still not working, please contact your local Service Agent:

Trouble	Reason	Remedy

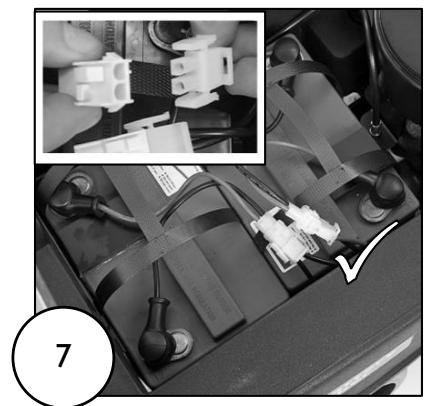

The machine does not start up	Batteries aren't connected	Connect the batteries
	Low battery	Charge the machine for 8 hours
The brush does not rotate	Motor is not connected	Connect the motor.
Vacuum does not work or the machine is leaving traces of water	Can you hear the vacuum running?	If yes, follow steps below. If no, contact your local Service Agent.
	Recovery tank is full	Empty the recovery tank.
	Recovery tank drain hose plug is not fitted correctly	Refit the recovery tank drain hose plug
	Recovery tank lid is not fitted correctly.	Refit the recovery tank lid
	Vacuum float cage is blocked or ball is stuck	Check vacuum float cage for debris and clean. Check ball is not stuck in top position.
	Squeegee hose is damaged or not fitted correctly.	Check squeegee hose for signs of damage and refit.
	Squeegee blades are not on the floor	Use foot pedal to lower the squeegee blades to the floor
	Squeegee blades are damaged or dirty	Check squeegee blades for signs of damage and clean.
No water comes out	Brush motor is not turned on	Turn on brush motor
	Solution tank is empty	Fill solution tank
	Solution solenoid button is not working	Check the solution solenoid button light comes on and you can hear it when pulling the handle triggers.
	Water tap is in closed position	Change water tap to open position. The water tap can be found at the back of the machine, just inside of the left hand wheel from the operator's position.
Insufficient floor cleaning	Unsuitable brush or detergent	Use a brush and detergent which are suitable for the type of floor or dirt to be cleaned.
	Worn brush	Replace the brush

* If the fuse blows several times, the machine should be checked by an authorised Service Agent.

PLEASE REFER TO THE BACK OF THE MANUAL FOR PICTORIAL INSTRUCTIONS

PRODUKTINFORMATIONEN

Truvox International Limited

Unit C (East), Hamilton Business Park,

Manaton Way, Botley Road,

Hedge End, Southampton,

SO30 2JR, UK

Malcolm Eneas

Operations Manager

Southampton, 21/08/2018

ELEKTRO- UND ELEKTRONIK-ALTGERÄTE (WEEE)

INFORMATIONS SUR LE PRODUIT

Truvox International Limited Unit C (East), Hamilton Business Park, Manaton Way, Botley Road, Hedge End, Southampton, SO30 2JR, UK

Malcolm Eneas Operations Manager Southampton, 21/08/2018

DÉCHETS D'EQUIPEMENTS ELECTRIQUES ET ELECTRONIQUES (DEEE)

DRYING ONLY | NUR BODENTROCKNUNG | SECHAGE AU SOL SEULEMENT

BRUSHING ONLY | NUR BÜRSTENROTATION | ROTATION DE LA BROSSE SEULEMENT

WASHING & BRUSHING | BODENREINIGUNG UND BÜRSTENROTATION | NETTOYAGE DES SOLS ET ROTATION DES BROSSES

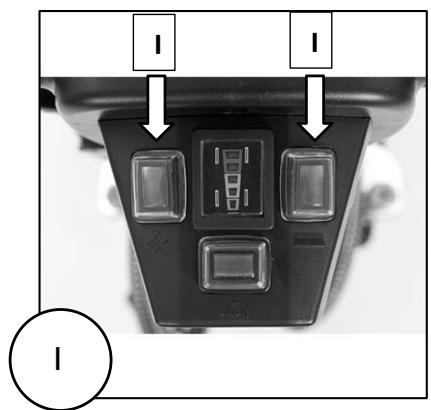

WASHING, BRUSHING & DRYING | BODENREINIGUNG, BÜRSTENWECHSEL UND BODENTROCKNUNG | NETTOYAGE DES SOLS, ROTATION DES BROSSES ET SÉCHAGE DES SOLS
