VWAV - Vacuum Cleaner Truvox - Free user manual and instructions

Product type	Commercial dust vacuum
Brand	Truvox
Model	Valet Wide Area Vac (VWAV)
Power supply	230 V / 50 Hz
Suction motor power	2 x 1000 W
Tank capacity	40 L
Brush width	70 cm
Brush speed	1800 rpm
Filtration	4-stage clean-air
Productivity rate	743 m²/h
Vacuum (water lift)	15.7 kPa / 1600 mm H2O
Brush adjustment	5 brush heights
Sound pressure level	70 dB(A)
Dimensions (L x W x H)	50 x 76 x 91 cm
Weight	43 kg
Cable length	25 m
Warranty	1 year (subject to conditions)
Intended use	Indoor, commercial use (hotels, schools, hospitals, etc.)
Maintenance and cleaning	Regular cleaning of filters; dry filter before reinstalling
Safety	Do not use outdoors, on wet surfaces, or with liquids
Spare parts and repairability	Use only original parts; repair by an authorized agent
Compliance	CE - Directives 2006/42/EC and 2014/30/EU

Frequently Asked Questions - VWAV Truvox

Can I use this vacuum cleaner outdoors?

No, this vacuum cleaner is designed for indoor use only. It should not be used or stored outdoors, especially in humid conditions.

Can I vacuum liquids with this device?

No, this vacuum cleaner is designed to collect dust. Do not use the machine on wet surfaces or to pick up liquids, as this could damage the device and pose an electrical risk.

What is the tank capacity?

The tank has a capacity of 40 litres, allowing for long cleaning sessions without having to empty it frequently.

How do I maintain the filter?

It is essential to clean the filters regularly to maintain suction performance. Make sure the filter is dry before putting it back in place. Never use the vacuum without a filter or dust bag.

What are the dimensions and weight of the device?

The dimensions are 50 x 76 x 91 cm (L x W x H) and the weight is 43 kg. These measurements are approximate and may vary slightly.

What is the noise level of the vacuum cleaner?

The sound pressure level is 70 dB(A), measured at 1 meter from the machine. This makes it relatively quiet for a commercial appliance.

Can I use non-original accessories?

No, use only original spare parts and accessories approved by Truvox. The use of non-compliant parts may compromise safety and affect operation.

What is the suction power?

The vacuum cleaner has two 1000 W motors each, totaling 2000 W. It offers a vacuum of 15.7 kPa and a high airflow rate for efficient cleaning.

Is this vacuum cleaner suitable for domestic use?

No, this device is intended for commercial use (hotels, schools, hospitals, factories, shops, offices). It is not designed for standard domestic use.

What to do in case of malfunction?

In case of a problem, do not modify the device and do not attempt to repair it yourself. Contact a manufacturer-authorized agent for any repair. Do not use the machine if it is damaged.

USER MANUAL VWAV Truvox

ORIGINAL INSTRUCTIONS

CAUTION – READ THESE INSTRUCTIONS BEFORE USING THE MACHINE

Valet Wide Area Vac

Commercial Vacuum Cleaner

USER MANUAL EN

EC DECLARATION OF CONFORMITY		EN (English)
Machine Type: Commercial vacuum cleaner		UK
Model: VWAV...,
This machine is in conformity with the following EU directives:		CA
• Machinery Directive:	2006/42/EC
• The EMC Directive:	2014/30/EU
Applied harmonised standards:
BS/EN60335-1, BS/EN60335-2-67, BS/EN55014-1, BS/EN55014-2, BS/EN61000-3-2, BS/EN61000-3-3, BS/EN62233		M. Steas.
Truvox International Limited, Unit C (East),Hamilton Business Park, Manaton Way		Malcolm Eneas, Operations Director
Botley Road, Hedge End, Southampton, SO30 2JR, UK		30/04/2025

EC DECLARATION OF CONFORMITY		EN (English)
Machine Type: Commercial vacuum cleaner		CE
Model: VWAV...,
This machine is in conformity with the following EU directives:
• Machinery Directive:	2006/42/EC
• The EMC Directive:	2014/30/EU
Applied harmonised standards:
EN60335-1, EN60335-2-67, EN55014-1, EN55014-2, EN61000-3-2, EN61000-3-3, EN62233		M. Eneas.
Truvox International SARL, 38 rue de Berri, 75008 Paris, France		Malcolm Eneas, Operations Director30/04/2025

The following instructions contain important information about the machine and safety advice for the operator. Equipment must be operated, serviced, and maintained in accordance with the manufacturer's instructions. If in doubt, contact the supplier of your machine.

Read all instructions before using the machine

PRODUCT INFORMATION

This vacuum cleaner is designed for the collection of dust. This machine is for indoor use only. The machine is intended for commercial use, for example in hotels, schools, hospitals, factories, shops, offices, rental businesses and other than normal housekeeping purposes.

TECHNICAL SPECIFICATIONS

Model		Valet Wide Area Vac
Product Code		VWAV
Voltage AC (~)/ Frequency	V/Hz	230 / 50
Vacuum motor power	W	2 x 1000
Capacity	litres	40
Brush width	cm	70
Brush speed	rpm	1800
Filtration		4-stage clean-air
Productivity rate	m2/h	743
Vacuum / water lift	kPa / mmwg	15.7 / 1600
Brush Adjustment		5 pile settings
Sound pressure level	dB(A)	70
Dimensions (L x W x H)	cm	50 x 76 x 91
Weight	kg	43
Cable length	m	25
Warranty		1 year subject to conditions

• Handle vibration does not exceed 2.5 m / s² when operating on a smooth hard surface.
• Noise levels measured at a distance of 1 meter from machine and 1.6 metres above floor, when washing a hard floor. Measurements recorded using a hand held meter.
• Above dimensions are approx. Since the company's policy is to continuously improve the product, there could be changes without prior notice.

WASTE ELECTRICAL & ELECTRONIC EQUIPMENT (WEEE)

Do not dispose of this device with unsorted waste. Improper disposal may be harmful to the environment and human health. Please refer to your local waste authority for information on return and collection systems in your area.

IMPORTANT SAFETY ADVICE

The safety information described in this manual provides basic precautions and supplements standards in force in the country where the machine is used.

This symbol warns the operator of hazards and unsafe practices which could result in severe personal injury or death.

WARNING – to reduce the risk of injury, electric shock or fire.

1. This machine must only be used for the manufacturer's approved application as described in this manual.
2. The machine must be unpacked and assembled in accordance with these instructions before connecting to the electrical supply.
3. Only genuine accessories and spare parts provided with the machine or those approved by the manufacturer should be used. The use of other accessories may impair the safety of the machine. All repairs must be performed by a qualified service agent.
4. DO NOT modify the machine from its original design.
5. Operators must be fully trained in the use of the machine in accordance with these instructions, able to perform regular user maintenance and the correct selection of accessories.
6. Operators should be physically capable to manoeuvre, transport and operate the machine.
7. Operators should be able to recognise unusual operation of the machine and report any problems.
8. This machine is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the machine by a person responsible for their safety.
9. Keep children and unauthorised persons away from the machine when in use. DO NOT use as a toy.
10. DO NOT use if it has been damaged, left outdoors or dropped in water.
11. DO NOT use where hazardous dust is present.
12. DO NOT use in an explosive atmosphere.
13. DO NOT pick up or use near flammable or combustible fluids, hazardous dusts or vapours.
14. CAUTION - If it is suspected that there is hazardous dust or flammable/corrosive material, stop cleaning the area immediately and consult your superior.

15. DO NOT use to clean up any burning or lighted materials such as cigarettes, matches, ashes or other combustible objects.

16. Only use the machine on firm level surfaces. DO NOT use on a gradient or slope of more than 2%.

17. DO NOT use on rough, uneven surfaces e.g., industrial, or coarse concrete surfaces.
18. DO NOT use outdoors e.g., on patios, decks or rough surfaces.
19. CAUTION - This machine is for dry indoor use only and should not be used or stored outdoors in wet conditions.
20. Take care when using a machine near the top of stairs to avoid overbalancing.
21. DO NOT cover the machine when in use.
22. DO NOT use without filters or dust bags in place.
23. IMPORTANT - The filter must be dry before refitting.
24. DO NOT leave machine running unattended.
25. DO NOT use to pick up moisture or any liquids.
26. Keep hair, loose clothing, hands, feet and all other parts of the body away from openings and moving parts.
27. DO NOT put any object into openings. DO NOT use with any opening blocked; keep free of dust, debris and anything that may reduce airflow.
28. DO NOT operate the machine if it malfunctions or is damaged in any way. Contact an authorised service agent for repair or adjustments.
29. DO NOT leave the machine connected to the electricity supply when not in use, always remove the plug from the socket-outlet.
30. DO NOT use the appliance to vacuum tiny particles like cement or plaster dust as this will shorten life of the motor.

CAUTION - Risk of electric shock

1. DO NOT operate the machine with a damaged power cord or plug, or after the machine malfunctions or is damaged in any way. Contact an authorised Service Agent for repair or adjustment.
2. The machine must be kept clean and in good condition with regular inspections of the power cord and plug for signs of any damage. If any parts are damaged, they shall only be replaced by an approved part by the manufacturer, its service agent or a similar qualified person in order to avoid a hazard.
3. Only replace the charger power cord with the type specified in the instruction manual.
4. WARNING: Keep the power cord clear of moving parts.
5. DO NOT kink or twist the power cord and keep cord away from heated surfaces.
6. DO NOT pull or carry by the power cord. DO NOT use cord as a handle, close door on cord or pull cord around sharp edges or corners.
7. Switch off the machine before removing the plug.
8. DO NOT operate switches or touch the mains plug with wet hands as this may cause electric shock.
9. This machine should always be connected to a fully earthed power supply of the right voltage and frequency.
10. The machine shall be disconnected from its power source when not in use and before commencing cleaning of the machine or maintenance and when replacing parts or accessories, by removing the plug from the socket-outlet.
11. When unplugging, pull the plug, not the power cord.
12. The power cord plus any extension leads should not exceed 30 metres in total. The cross section of an extension cable wiring must be at least 2.5mm² .

TRANSPORTING THE MACHINE

• Take extreme care when moving the machine up or down steps or stairs.
• Incorrect lifting techniques may result in personal injury. We advise that the manual handling regulations are followed.
- Carefully wrap the power cord and store in dry indoor location.
- Do not expose the machine to rain or moisture.
- When transporting the machine ensure that all components, tanks and removable parts are securely fastened.
- Do not attempt to lift the machine without assistance.

STORAGE

• Always switch off the machine after use.
• Store the machine in a dry indoor area only.
- Wrap the power cord around ensuring that the plug is not trailing on the floor.
• Always empty, wipe down and dry the machine after use.

MAINTENANCE

WARNING - Before undertaking maintenance operations or adjustments switch off machine and unplug from the electricity supply.

IMPORTANT – All other servicing and repairs should only be performed by a Truvox engineer or Authorised Service Agent.

IMPORTANT – Should the machine fail to operate please refer to the fault diagnosis section in the back of this instruction manual. If the problem / remedy is not listed, please contact Truvox Customer Service Department for rapid attention.

The machine requires minimum maintenance apart from the following checks by the operator prior to use:

• Body of the machine - Clean with a damp cloth.
• Power cord - Regularly inspect sheath, plug and cord anchorage for damage or loose connection.
- Air vents - Check for dust accumulation around the air inlet and outlet vents of the motor cooling-air system and clean if necessary. Blocked vents will cause the motor to overheat and may lead to premature failure. Warranty claims for this type of damage will not be accepted.
- Blocked vents will cause the motor to overheat, and may lead to premature failure. Warranty claims for this type of damage will not be accepted.
• Vacuum filter – Check the vacuum filter is clean and replace as appropriate.
• Vacuum head – Check and remove any debris or lint build-up from the head.

AFTER SALES SERVICE

Truvox machines are high quality machines that have been tested for safety by authorised technicians. It is always apparent that after longer working periods, electrical and mechanical components will show signs of wear and tear or ageing. To maintain operational safety and reliability the following service interval has been defined: Every year or after 250 hours. Under extreme or specialised conditions and/or insufficient maintenance, shorter maintenance intervals are necessary.

Use only original Truvox spare parts. Use of other spare parts will invalidate all warranty and liability claims. Should you require after sales service please contact the supplier from whom you purchased the machine, who will arrange service. Repairs and servicing of Truvox products should only be performed by trained staff. Improper repairs can cause considerable danger to the user.

GUARANTEE

Your product is guaranteed for one year from the date of original purchase, or hire purchase, against defects in materials or workmanship during manufacture. Within the guarantee period we undertake at our discretion, to repair or replace free of charge to the purchaser, any part found to be defective, subject to the following conditions:

CONDITIONS

1. Claims made under the terms of the guarantee must be supported by the original invoice/bill of sale issued at the time of sale, or the machine Serial No.
2. For claims under this guarantee contact the supplier from whom you purchased the product who will arrange the appropriate action. Do not initially return the product as this could result in transit damage.
3. Neither Truvox nor its distributor shall be liable for any incidental or consequential loss.
4. This guarantee is governed by the laws of England.
5. This guarantee does not cover any of the following:

• Periodic maintenance, and repair or replacement of parts due to normal wear and tear.
• Damage caused by accident, misuse or neglect, or the fitting of other than genuine Truvox parts.
- Defects in other than genuine Truvox parts, or repairs, modifications or adjustments performed by other than a Truvox service engineer or authorised service agent.
• Costs and risks of transport relating directly or indirectly to the guarantee of this product.
• Consumable items such as power cords, brushes, drive discs, filters, belts, vacuum skirts and other similar items.

This guarantee does not affect your statutory rights, or your rights against the supplier arising from their sales or purchase contract. Truvox International Limited policy is one of continual product development and we reserve the right to alter specifications without prior notice.

RECOMMENDED SPARES & ACCESSORIES

Description	Part No.
Pack of 10 dust bags	90701
Cloth Filter Bag	19816
Exhaust Filter	19855

FAULT DIAGNOSIS

The following simple checks may be performed by the operator. If the machine is still not working, please contact your local Service Agent:

Trouble

The brush is not rotating and the vacuum does not work	Lack of voltage/electrical supply	Check fuse*, power cord, plug and socket outletPress the brush motor overload cut out reset buttonPress the vacuum motor overload cut out reset button
The brush is not rotating but the vacuum does work	Damaged beltBuild up of debris or blockage	Contact service agentClean the machine and remove any blockagesPress the brush motor overload cut out reset button

Reason
Remedy
*If the fuse blows several times, the machine should be checked by an authorised Service Agent

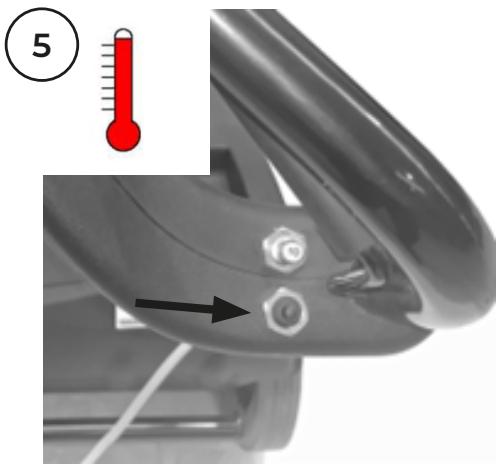

PLEASE REFER TO THE BACK OF THE MANUAL FOR PICTORIAL INSTRUCTIONS
