About the Owner's Manual

Please read the owner's manual thoroughly to ensure correct usage of the projector and its features.

After reading, store the owner's manual in a safe place for future reference.

Features

1. Dress up Design
2. Designed for tough environment
3. Side change lamp
4. Side change filter
5. Quick off
6. Advanced Anti-theft features
7. Five auto features (Auto Search, Auto Sync, Auto Ceiling, Auto Keystone and Auto on)
8. Six display modes (Natural, Cinema, Daylight, Green board, White Board, Black Board)
9. Built-in 8W speaker
10. User logo capture
11. Image freeze function
12. Digital zoom adjustment

The content of this manual is subject to change without previous notice.

All rights reserved.

Issue of edition 0806.03_01

About Owner's Manual

Contents 1
Contents of Your Box 3-A
Safety Instructions 4
Safety Labels. 5
Part Names 6

Projector 6
Control Panel 7
Rear 8

Setting Up 9

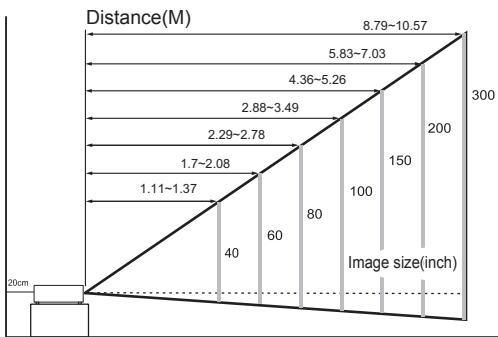

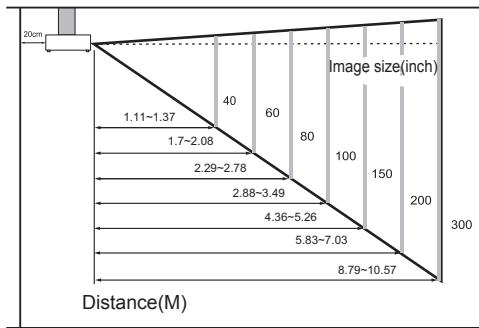

Arrangement 9
Power ON/OFF 10
Setting Up The Projector 11
Ceiling Mounted Installation Guide 12
Adjusting The Projector's Elevation 13

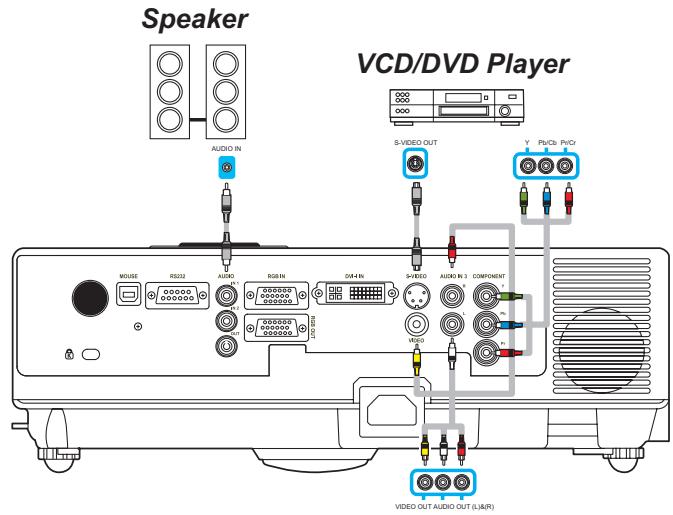

How To Connect 14

Remote Control. 16

Menu Operation 18

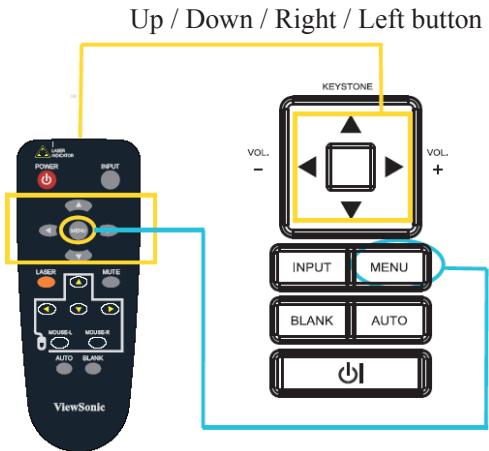

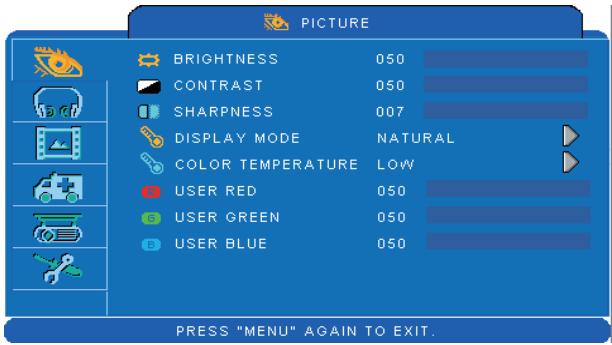

How To Operate On-Screen Display 18

MENU (PC Mode) 19

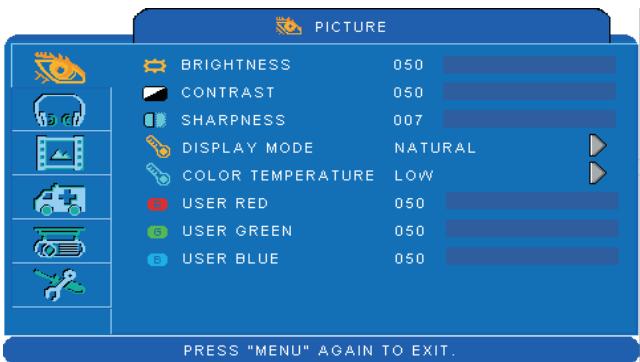

Picture Menu (PC Mode) 19

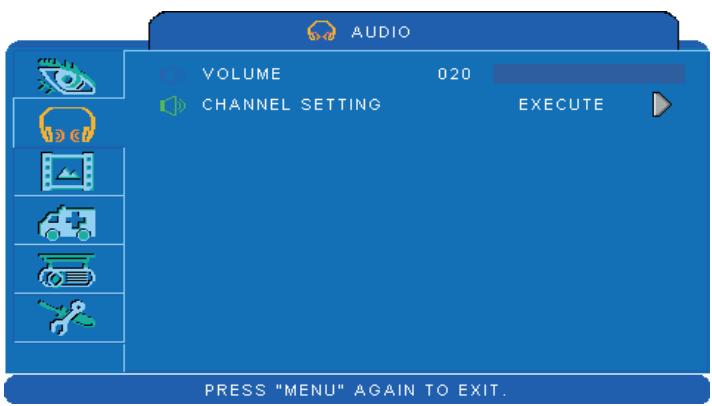

Audio Menu (PC Mode) 20

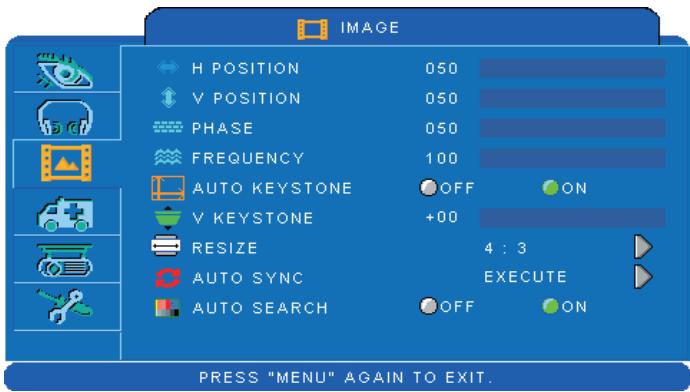

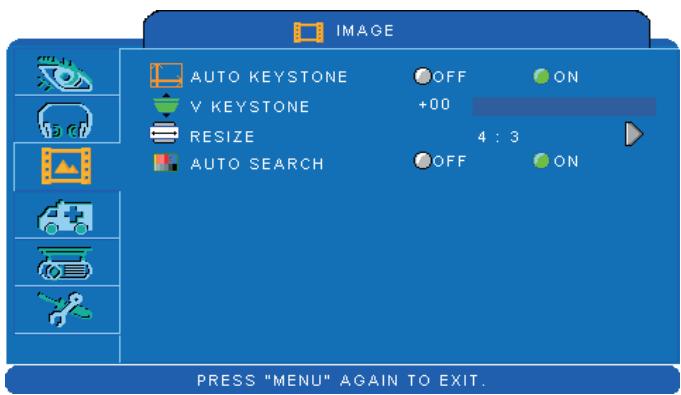

Image Menu (PC Mode) 21

MENU (Video Mode) 22

Picture Menu (Video Mode) 22
Audio Menu (Video Mode) 23
Image Menu (Video Mode) 24

MENU 25

Setting Menu 25
Option Menu 29

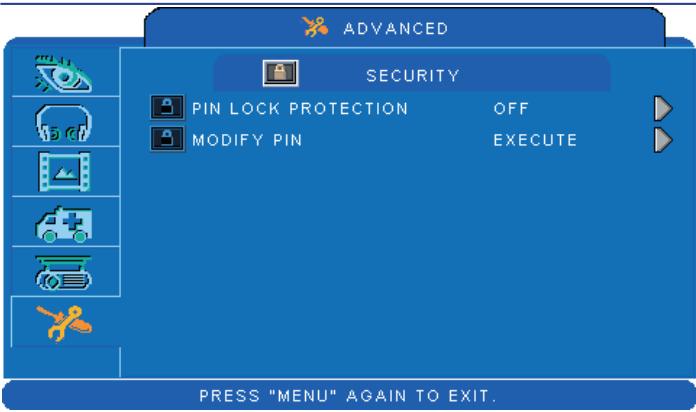

Advanced Menu 30

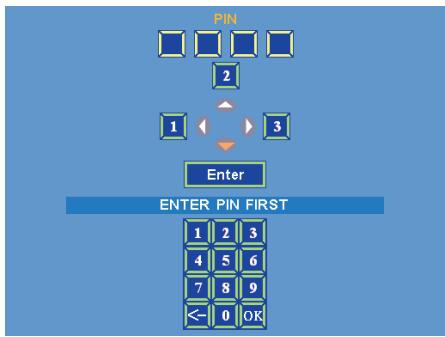

PIN Key In Operation 32

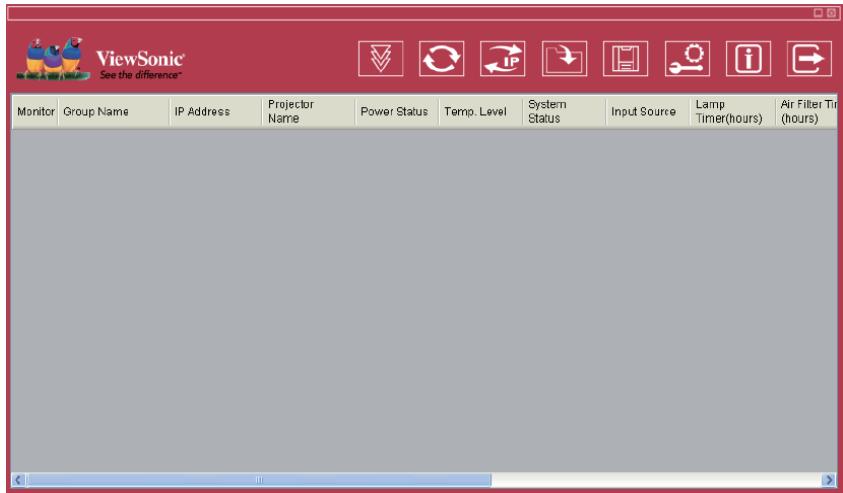

Network Control Software Application (Optional) 33

Before Use 34

Before To Use Network Control Software 34

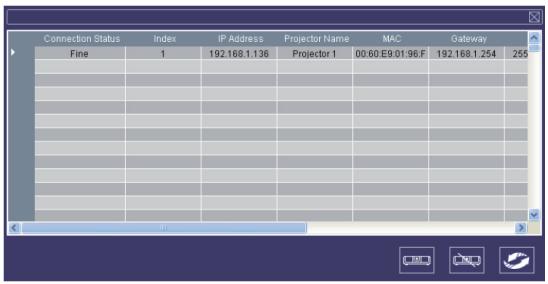

Projector Auto Search 35

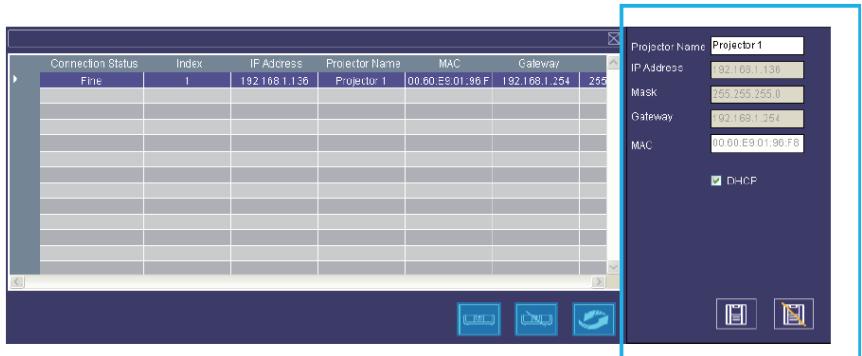

Modify the Projector Setting 37

Registering And Configuring the Projector 38

Delete 38
Projector Setting 39
System Setting / Monitor / Default Setting / Auto Detect Optimal Setting. 40
Link. 42

Control Panel Window Introduction 43

Power Control / Input Source / Function Key 43
Function Key / Projector Status 44
Network Control Window Introduction 45

Maintenance Of Projector 46

Air Filter / Replacing the Air Filter 46
Lamp/Replacing New Lamp. 47
Other Care / Cleaning the Lens 48

Troubleshooting 49

Indicator 49
Error For Machine Defects 50
List of Supported Monitor Displays 52

Appendix

Check-list of your accessories

Please make sure that following items are included in the box, along with the main. If any items missing, contact your dealer.

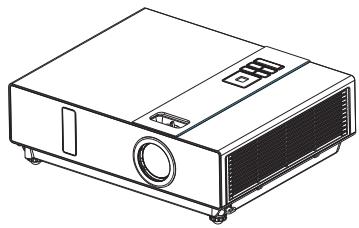

1. Projector

2. Remote control

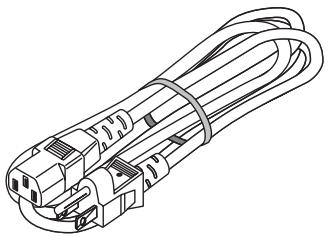

3.Power cord

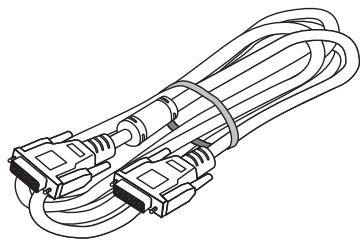

4. Computer cable

5. USB Cable (1.5M)

6.Quick Start Guide

7. Owner's Manual CD

8. Network Control Application CD (Optional)

9. Soft Bag

The projector is designed and tested to meet the latest standards for safety of information technology equipment. However, to ensure safe use of this product, it is important that you follow the instructions mentioned in this manual and marked on the product.

WARNING / CAUTION

1. If a problem occurs

-If smoke or strange odors arise, continued use could result in fire or electrical shock.
-If there is no image or sound, or the sound is distorted in the projector. In some cases, immediately remove the power cable from the power outlet. After making sure that the unit has stopped, contact your dealer for repairs. Never attempt to repair by yourself because this is dangerous.
2. Do....
-Place the projector in a stable horizontal position.
-Put the projector in a cool place, and ensure that there is sufficient ventilation.
-To consult with your dealer before a special installation such as suspending from a ceiling.
3. Do not....
-Do not place the projector on an unstable, slanted or vibrating surface such as a wobbly or inclined stand.
-Do not cover the projector's vents. Keep a space of 20~cm or more between the projector and other objects such as walls.
-Do not place the projector on metallic goods.
-Do not place the projector on carpet, cushions or bedding. Do not place the projector in direct sunlight or near hot objects such as heaters.
-Do not place anything near the projector lens or vents, or on top of the projector.
-Do not place anything that may be sucked into or stick to the vents beside of the projector.
-Do not use this projector if there is no image or sound, or if the sound is distorted.
-Do not place this projector in a container containing liquid.

1. While connecting, make sure that the shape of the cable's connector fits the port to connect with. Be sure to tighten the screws on connectors with screws.
2. Do not disassemble or modify the projector and accessories.
3. Be careful not to damage the cables, and do not use damaged cables.
4. Use appropriate accessories or otherwise designed cables. Ask your dealer about non-accessory cables that may have other lengths.
5. Make sure that devices are connected to the correct ports. An incorrect connection may result in malfunction or damage to the device and the projector.
6. Do not look through the lens when the lamp is on.

Do not look through the lens when the lamp is on. The powerful light could adversely affect vision. Use special caution in households where children are present.

1. A strong light is emitted when the projector's power on. Do not look into the lens of the projector or look inside of the projector.

NO SIDEWARD

Do not place the projector upon either side to project an image.

NO DOWNWARD

Do not point the projector down to project an image.

Safety labels are used on or within the projector to alert you to items or areas requiring your attention.

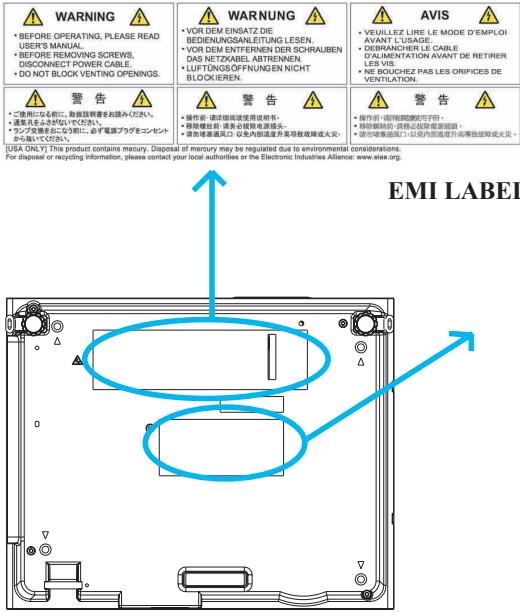

WARNING LABEL

LAMP DOOR WARNING LABEL

CAUTION HOT

TURN THE POWER OFF AND WAIT 1 HOUR BEFORE CHANGING THE

LAMP

WARNING HEISS!

SCHALTEN SIE DAS GERAT AUS

SIE DIE LAMPE WECHSELN

ATTENTION CHAUD

COUPER L'ALIMENTATION ET ATTENDRE

1 HEURE AVANT DE CHANGER LA LAMPE.

高温注意

HIGH-PRESS LAMP MAY EXPLODE IF IMPROPERLY HANDLED.

REPLACE WITH SAME TYPE NUMBER LAMP 1000-2500 (LAMP FILTER WITH WATER OR ANY LIQUID).

DO NOT OPERATE THE PROJECTOR WITHOUT THE AIR FILTER.

VORSICHT!

DIE HOCHDRUCKLAMPE KANN BEEF FALSORCH HANDHABUNG EXPOILERDEN, NUR MIT EINER LAMPE DES GLEICHEN TYPES AUSTAUSAChEN.

381 Brea Canyon Road, Walnut, CA 91789 USA

INPUTAC100-240V50/60Hz3.5=1.5A

Serial No.:

XXXXXXXXXXXX

CAUTION: Do not open. No user-serviceable parts Inside.

Tested To Comply With FCC Standards OME OR OFFICE US

Made In Taiwan

ViewSonic PJL7201

LCD Projector

Model:VS12199

ViewSonic Corporation

381 Brea Canyon Road, Walnut, CA 91789 USA

INPUT AC 100-240V, 50/60Hz, 3.5-1.5A

Serial No.:

XXXXXXXXXXXXX

Stated to Comply with FCC Standards. THE OR DEPARTMENT USES

Made In Taiwan

CAUTION: Do not open, No user-serviceable part

ed To Comply with FCC Standards THE OR OFFICE USE

ViewSonic PJL7202

LCD Projector

Model:VS12234

ViewSonic Corporation

381 Brea Canyon Road, Walnut, CA 91789 USA

INPUT AC 100-240V, 50/60Hz, 3.5-1.5A

Serial No.

XXXXXXXXXXXX

Made in Taiwan

CAUTION: Do not open, No user-serviceable part

Attach when not using to protect the lens from becoming dirty or damaged.

3 Filter cover

Prevents dust and other foreign particles from being drawn into projector.

Remove the filter cover to clean the air filter.

4 Focus ring

Use the focus ring to focus the projector image.

Rotate the focus ring until the image is clear.

5 Zoom ring

Use the zoom ring to adjust the size of the projected image.

Rotate the zoom ring until the image is the desired size.

6 Lamp door

The lamp unit is inside.

7 Foot adjust button

Lock / unlock the adjustable foot.

8 Front adjustable foot

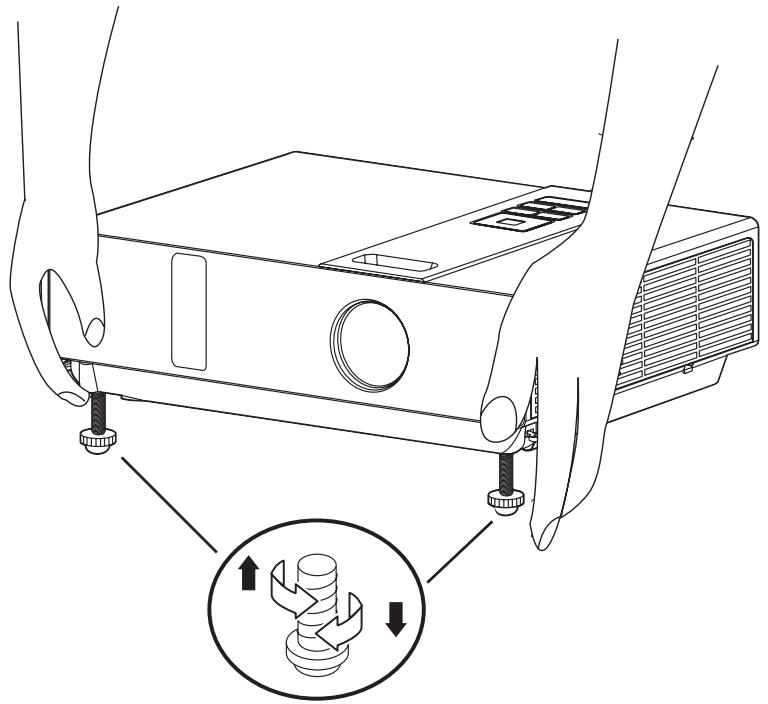

Extend and retract to adjust the projection angle.

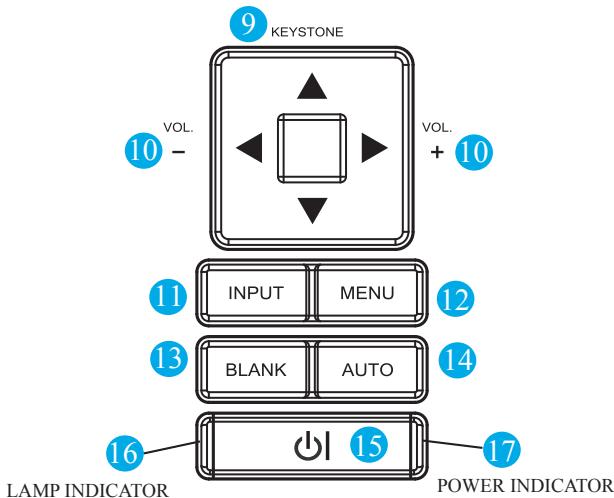

Control Panel

9 KEystone

Adjust the vertical keystone with menu-up, menu-down.

10 VOLUME ^+ /-

Sound louder or lower.

11 INPUT

Select input source:

12 MENU

Display or hide the On-Screen Display main menu page.

13 BLANK

Blanks the projected image. If the projector is left in blank mode for more than 15 minutes, the projector will automatically shut down.

14 AUTO

Automatically adjust the setting to match the current input.

15 (POWER)

Power on / operation mode, Standby mode, Cooling-down mode.

16 LAMP INDICATOR

Indicates a status in the internal projector temperature, lamp door properly closed or cooling down.

17 POWER INDICATOR

Light on or flash to indicate the operating status of the projector.

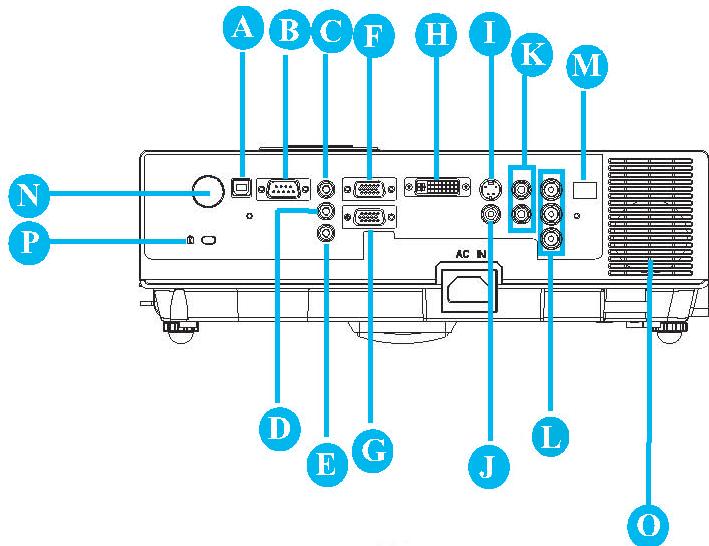

Rear

MOUSE

Connect a USB mouse cable to a computer to control computer mouse functions.

B RS232

Serial data port for controlling the projector with a computer or other RS-232 control device.

Audio IN 1 & Audio IN 2

Mini jack port corresponds to computer input.

E Audio Out

RGB IN

Input analog RGB video signal from a computer.

RGB OUT

Connect an external monitor to this connection to view the "RGB IN" input.

DVI-I IN

Input digital DVI-I signal from a computer.

S-VIDEO

S-Video signal from a video source.

VIDEO

Component video signal from a video source.

AUDIO IN 3, R / L

Stereo mini jack corresponds to video input.

COMPONENT,Y/Pb/Pr

Input Y,Pb,Pr signal from a DVD player.

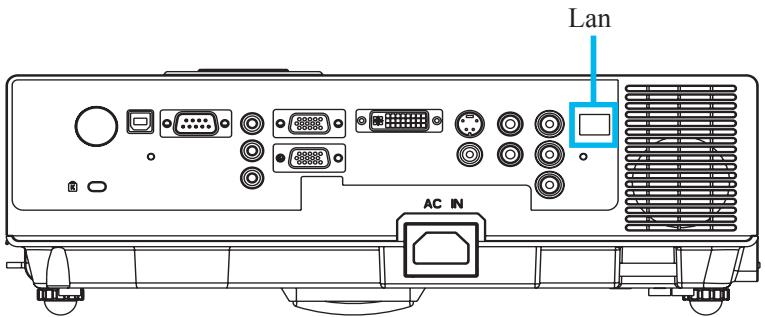

LAN (Optional)

This function is optional.

Please see page 33 Network Control Application for details.

N Rear IR receiver

SPEAKER

P Slot for Kensington Micro Saver

Security System

Built-in Security Slot. This security slot supports the MicroSaver® Security System. MicroSaver® is a registered trademark of Kensington Microwave Inc. The logo is trademarked and owned by Kensington Microwave Inc.

Arrangement

1. Before installation, make sure that the projector is turned off and the power cord is disconnected.
2. Do not set up and move the projector, while it is hot.
3. The distance between the projector and screen determines the actual image size. Refer to the table below to determine the screen size at a given distance.

Note: The dimensions in the table below are approximate.

4:3 Screen size (diagonal)		Distance (m)		Distance (feet)
inch	m	Tele	Wide	Tele	Wide
40	1.0	1.37	1.11	4.49	3.64
50	1.25	1.72	1.4	5.65	4.61
60	1.5	2.08	1.7	6.81	5.58
70	1.8	2.43	2.00	7.97	6.54
80	2.0	2.78	2.29	9.13	7.51
90	2.25	3.14	2.59	10.29	8.48
100	2.5	3.49	2.88	11.45	9.45
150	3.8	5.26	4.36	17.26	14.29
200	5.1	7.03	5.83	23.06	19.13
250	6.4	8.80	7.31	28.87	23.98
300	7.6	10.57	8.79	34.67	28.82

When in against at wall, leave about 20cm (7.9in.) Between thw projector and the wall.

Power ON / OFF

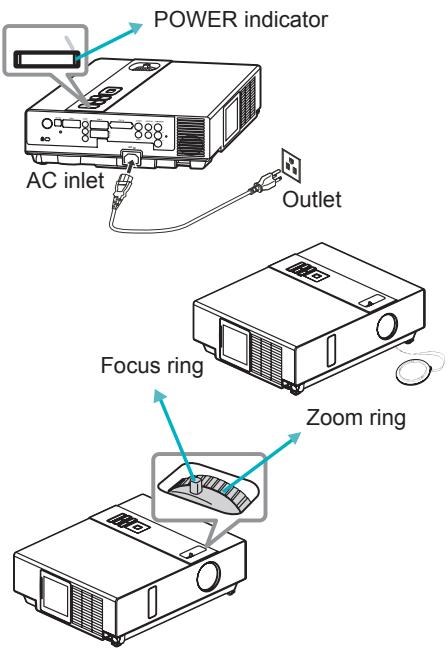

Turning on the power

1. Make sure that power cord is firmly and correctly connected to the projector.
2. Remove the lens cover, and the POWER indicator will light up in green.
3. Press POWER button on the control panel or the remote control to turn on the projector.
4. Rotate the zoom ring to adjust the screen size.
5. Rotate the focus ring to adjust the focus.

WARNING

A strong light is emitted when the projector's power is on. Do not look into the lens of the projector or look inside of the projector through any of the projector's openings.

Power off?

Please press

POWER

key again to power off.

ViewSonic

Turning off the power

1. Press the POWER button on the control panel or the remote control. The "power off" confirmation message appears.
2. Press the POWER button again while the message appears.
3. When the projector enters "Standby" mode, the POWER indicator will light up in green.
4. If you don't use the projector, remove power cord.

WARNING

Do not touch around the lamp cover and the exhaust vents during use or just after use, since it is too hot.

Setting Up The Projector

The projector supports the following four different projection methods.

1.Front projection

3.Rear ceiling projection

4.Front ceiling projection

2.Rear projection

Special installation is required in order to suspend the projector from the ceiling. Please ask your dealer for details.

Ceiling Mounted Installation Guide

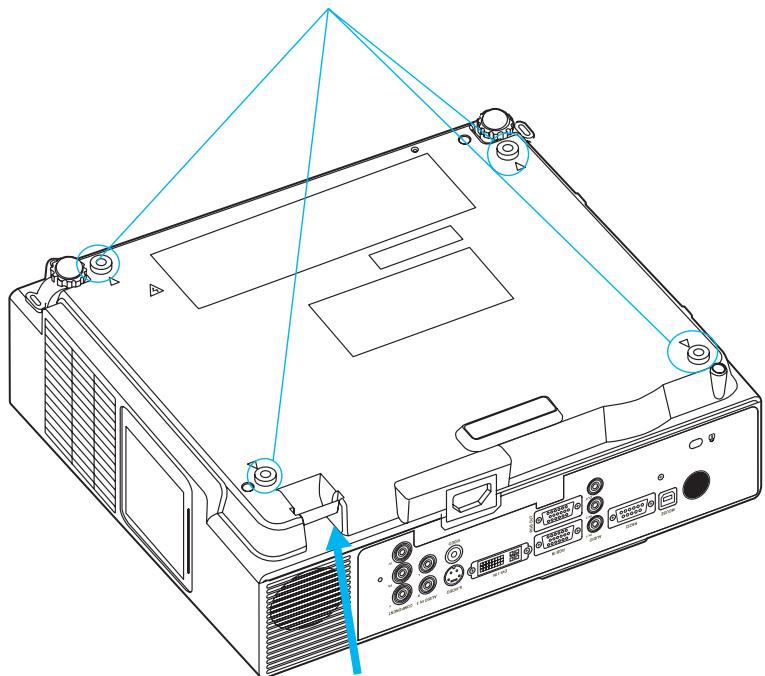

Attach ceiling mount at four-suspension bracket fixing points when suspending from a ceiling. Special installation is required in order to suspend the projector from the ceiling. Please ask your dealer for details.

MAX M4x8 mm For Mounting.

Security Anchor

The product is equipped with security anchor and PIN LOCK functions to help prevent unauthorized removal projector.

WARNING

Do not grasp the security anchor to carry projector, since it is not designed for it.
The security anchor is not for comprehensive theft prevention measures. It is intended to be used as supplemental theft prevention measure.

Adjusting The Projector's Elevation

Use the adjustable foot at the front of the projector to set the image height.

1 Holding the projector, push the foot adjust buttons to loosen the front adjustable foot.
2 Position the front side of the projector to the desired height.
3 Release the foot adjust buttons in order to lock the front adjustable feet.
4 After making sure that the front adjustable feet are locked, put the projector gently atop.

CAUTION

• The adjustment range of front adjustable foot is 0 to 8.5 degrees.
• When the foot is adjusted, it may cause the shape of the projected image to become distorted. Use the keystone correction function to correct this distortion.

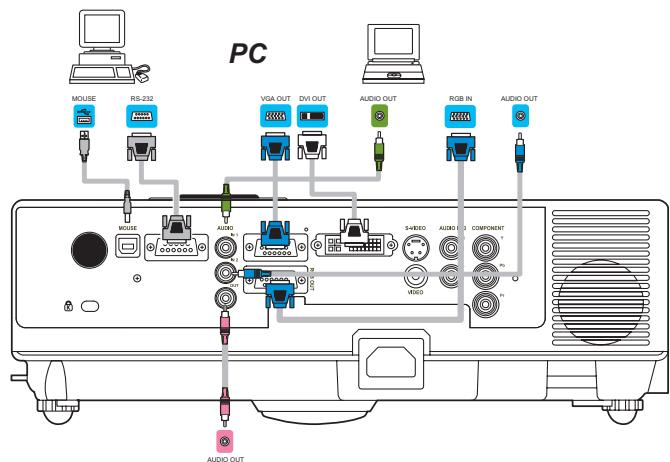

How To Connect

Laptop or desktop computer

Before starting, make sure that the projector and computer are both turned off.

Connect the computer cable.

Connect either end of the computer cable to the projector's RGB IN.

Connect the computer cable from the computer to the projector.

If needed, connect the MONITOR OUT to a monitor to view input from RGB IN.

Tighten the screw on all connectors.

How To Connect

Laptop or desktop computer

Connect the audio cable if necessary

1. If you connect end of the computer cable to the projector's RGB IN. Please connect one other end of the audio cable to the AUDIO IN 1.
2. If you connect the DVI cable to the projector's DVI-I IN. Please connect one other end of the audio cable to the AUDIO IN 2.
3. If you connect the S-Video/ Video/ Y,Pb,Pr port of the projector. Please connect the other end of the audio cable to the AUDIO IN 3.

Connect USB Mouse

USB mouse compatible MS-Window98/ 2000/ NT/ XP/ Me, Macintosh : OS8.6~10.1, and a Microsoft Mouse driver installed.

1. Insert the end of the USB Cable (B-Type) to the projector's USB port.
2. Connect the end of the USB Cable (A-type) to the computer's USB port.
3. When the projector and computer are turned on, the appropriate drivers should load automatically.

If the selected video image is not displayed after the projector is turned on and the correct video source has been selected, please check that the video source device is turned on and operating correctly. Also check that the signal cables have been connected correctly.

Many laptops do not turn on their external video ports when connected to a projector. Usually a key combination like Fn + F3 or CRT/LCD key turns the external display on / off. Locate a function key labeled CRT/LCD or a function key with a monitor symbol on the laptop. Press Fn and the labeledfunction key simultaneously. Refer to your laptop's documentation to discover your laptop's key combination.

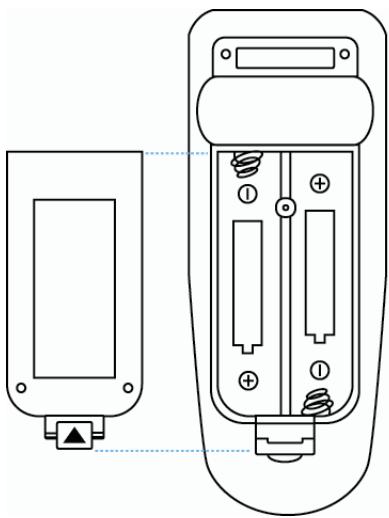

Remote Control Batteries Installation

1. Remove the battery cover.
2. Load the batteries. Make sure the poles are correctly oriented.
3. Close the battery cover.

Caution

Avoid excessive heat and humidity.
Do not drop the remote control.
If the remote control will not be used for an extended period, remove the batteries.
Do not expose the remote control to water or moisture. This could result in malfunction.
Replace the battery when remote control operation becomes sluggish or unresponsive.
Do not place the remote control close to the cooling fan of the projector.
Do not use batteries of different types at the same time.
- Do not mix a new battery with used one. Make sure the plus and terminals are correctly aligned when loading batteries.
Dispose of batteries in accordance with environmental laws.
Do not disassemble the remote control. If the remote control needs service, please contact your dealer.

POWER

Power on / operation mode, Standby mode,

Cool down mode.

INPUT

Select input source :

MENU

Display or hide the On-Screen Display main menu page.

Press or to select On-Screen Display menu item.

Press or to select and adjust the function of On-Screen Display menu item or value.

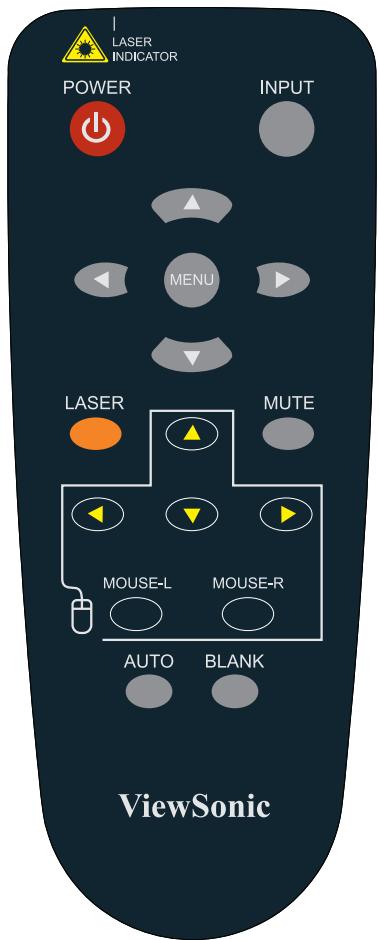

LASER

Aim the remote control at the screen, press and hold button to activate the laser pointer.

MUTE

Mute audio.

AUTO

Refresh the current image.

BLANK

Hide the current image, become black color on the screen.

Press / / / button to move arrow direction of window.

MOUSE-L/MOUSE-R

The function is like mouse of desktop/ notebook.

Remote control's mouse functions only will work if the USB cable is connected (see page 15 for instructions)

How To Operate On-Screen Display

1. You could press "Menu" button. It will be shown blue main menu. The first main menu is "PICTURE" menu.
2. Choose which item you want to enter, you could press up / down /left/ right button of control panel or remote control to adjust item or value.

Menu button

Picture Menu

Step:

1.Use the / buttons to select an item.
2.Use the / cursor buttons to select an item or adjust the value.

Item	Selection	Description
BRIGHTNESS	000/100	Adjust the image brightness level.
CONTRAST	000/100	Adjust the image contrast level.
SHARPNESS	000/004	Adjusts the image sharpness.
DISPLAY MODE	NATURAL	Nature color
	CINEMA	Enhance contrast mode for cinema mode
	DAYLIGHT	It to be suitable to the environment has strong light.
	GREEN BOARD	Adjust the color settings and makes the projected image on a (green,white, black) board more visible.
	WHITE BOARD
	BLACK BOARD
COLOR TEMP	LOW	Adjust the image color temperature level.
	MIDDLE
	HIGH
	USER
		User Red 000/100 User Green 000/100 User Blue 000/100

Audio Menu

Step:

1.Use the / buttons to select an item.

2.Use the / buttons to select an item or adjust the value.

Item	Selection	Description
VOLUME	00/40	Adjust the volume.
CHANNEL SETTING	RGB	Audio 1 → Audio 2
	DVI-I	Mute ← Audio 3
	Y,Pb,Pr
	VIDEO
	S-VIDEO

Image Menu

Step:

1.Use the / buttons to select an item.
2.Use the / buttons to select an item or adjust the value.

Item	Selection	Description
H POSITION	000/100	Move the image position horizontally. This function is only selected for computer signal.
V POSITION	000/100	Move the image position vertically. This function is only selected for computer signal.
PHASE	000/100	Adjust the image sharpness.
FREQUENCY	000/200	Set the horizontal scanning frequency.
AUTO KEYSTONE	OFF/ON	Correct keystone distortion in image automatically.
KEYSTONE V	-70/+70	Correct vertical keystone distortion in image manually.
RESIZE		4:3, 16:9, Native
AUTO SYNC	EXECUTE	Set all of the above setting automatically.
AUTO SEARCH	OFF/ON	Search signal source manually or automatically.

• DVI doesn't support H POSITION, V POSITION, PHASE, FREQUENCY and AUTO SYNC.

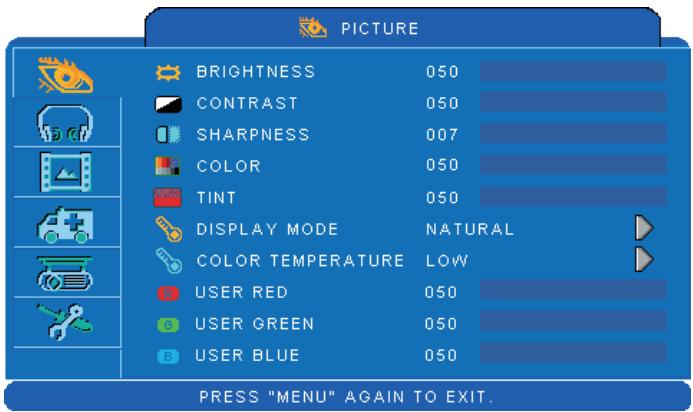

Picture Menu

Step:

1.Use the / buttons to select an item.
2.Use the / cursor buttons to select an item or adjust the value.

Item	Selection	Description
BRIGHTNESS	000/100	Adjust the image brightness level.
CONTRAST	000/100	Adjust the image contrast level.
SHARPNESS	000/004	Adjusts the image sharpness.
COLOR	000/100	Adjust the strength of whole color. This function is for video signal, S-Video signal, or component video signal.
TINT	000/100	Adjust the image tint. This function is for video signal, S-Video signal, or component video signal.
DISPLAY MODE	NATURAL	Natural color.
	CINEMA	Enhance contrast mode for cinema mode
	DAYLIGHT	It to be suitable to the environment has strong light.
	GREEN BOARD	Adjust the color settings and makes the projected image on a (green, white, black) board more visible.
	WHITE BOARD
	BLACK BOARD
COLOR TEMP	LOW	Adjust the image color temperature level.
	MIDDLE
	HIGH
	USER
		User Red 000/100 User Green 000/100 User Blue 000/100

Audio Menu

Step:

1.Use the / buttons to select an item.
2.Use the / buttons to select an item or adjust the value.

Item	Selection	Description
VOLUME	00/40	Adjust the volume.
CHANNEL SETTING	RGB	Audio 1 → Audio 2
	DVI-I	Mute ← Audio 3
	Y,Pb,Pr
	VIDEO
	S-VIDEO

Image Menu

Step:

1.Use the / buttons to select an item.
2.Use the / buttons to select an item or adjust the value.

Item	Selection	Description
AUTO KESTONE	OFF/ON	Automatically Correct keystone distortion in image.
KEYSTONE V	-70/+70	Correct vertical keystone distortion in image manually.
RESIZE		4:3, 16:9
AUTO SEARCH	OFF/ON	Search signal source manually or automatically.

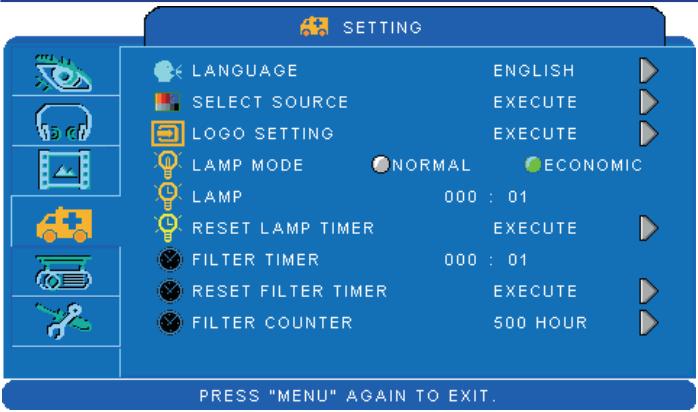

Setting Menu

Step:

1.Use the / buttons to select an item.
2.Use the / buttons to select an item or adjust the value.

Item	Selection	Description
LANGUAGE	ENGLISH	Select the language that the menu and on screen massage is display in → English → 繁體中文 → 简体中文 → 日本語 → Deutsch ← Français ← Nederlands ← 法国网어 → Italiano → Polski → Português → Pyccknii → İmail ← İkpɑньka ← Svenska ← Espanol ←
SELECT SOURCE	EXECUTE	Select the input source from: The search is started from the current port. Then when an input is found, the projector will stop searching and display the image. → RGB → DVI-I → S-Video ← Video ← Y,Pb,Pr ←
LOGO SETTING	EXECUTE	Customize the start-up logo.
LAMP MODE	NORMAL / ECONOMIC	Economic mode reduces the lamp brightness.
LAMP		Show lamp use time.
RESET LAMP TIMER (optional)	EXECUTE	After changing a new lamp, execute this function to reset the lamp timer.
FILTER TIMER		Show the filter use hour.
RESET FILTER TIMER	EXECUTE	Reset the filter timer after cleaning or change filter.
FILTER COUNTER	500 HOUR 800 HOUR 1000 HOUR	Select (500 / 800 / 1000 hours) depending on the environment.(default: 500 hours). Please see as below.

Setting Menu

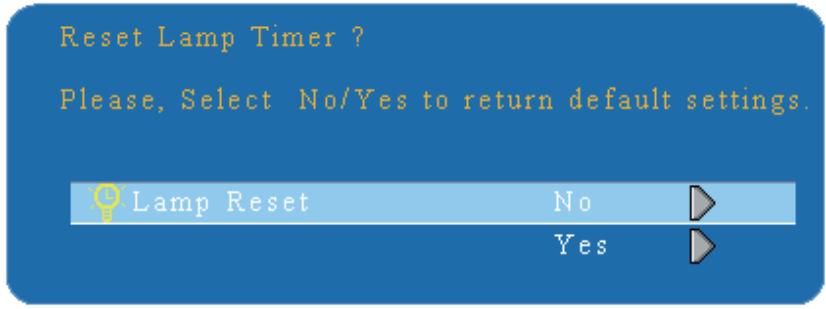

Reset Lamp Timer

The lamp timer is the time counted after the last resetting. The usage time of the lamp is shown in the PRESENTATION Menu. Pressing the RESET button or the button displays a dialog.

To reset the lamp time, select the RESET using the button.

NOTE

The replacement warning message is set to appear after about 2000 hours of lamp use in order to maintain the initial brighreplacement message appears, replace the lamp with a new one as soon as possible, even if it is still working.

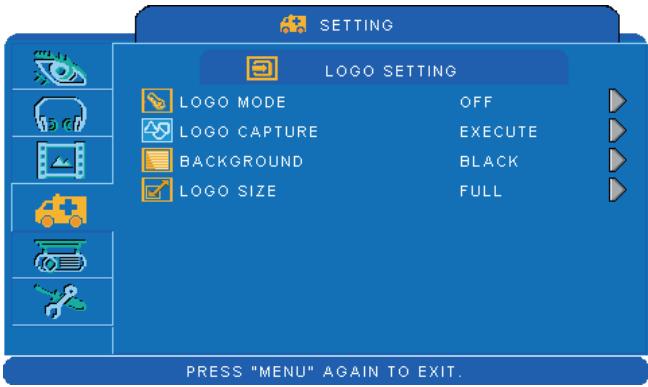

Setting Menu

LOGOSetting

This function allows you to customize the start-up logo.

IMPORTANT:

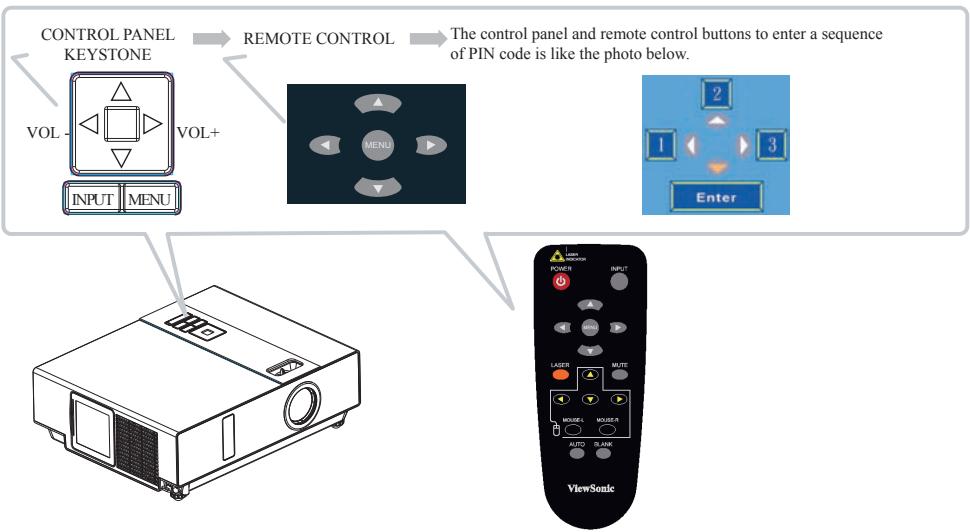

To execute the logo function, you must enter the PIN code first.

Item	Selection	Description
LOGO MODE	DEFAULT USER OFF	Select Mode(▶cursor button)
		The factory logo. The image you captured. The blank image. You can select color with background function.
LOGO CAPTURE	EXECUTE	Start to capture the image.(PC mode only)
BACKGROUND	BLACK BLUE WHITE	Set background color.
LOGO SIZE	ORIGINAL FULL	Display the captured image in original size and put in the center of the screen. Expend the image to full screen.

Setting Menu

Logo Capture

How to use this function?

Select Logo Capture item in the logo setting menu, and press button.
You can see the red frame to select captured area.
Use 4 direction buttons to adjust the position of the frame.
Press "MENU" to start capturing and display a dialog.

2

4

NOTE To capture an image is available only in computer mode.

The area that can be captured is 512 × 384 dots.

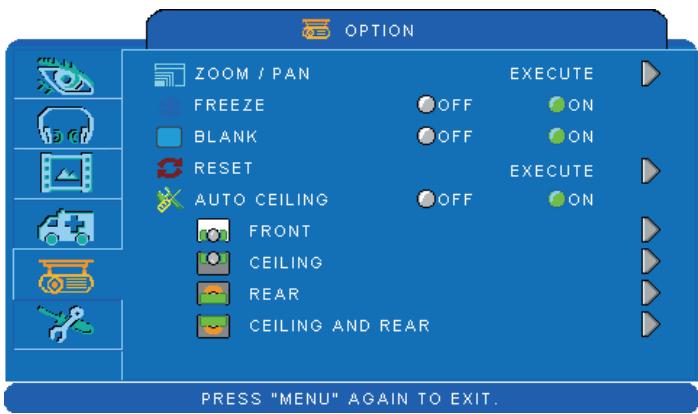

Option Menu

Step:

1.Use the / buttons to select an item.
2.Use the / buttons to select an item or adjust the value.

Item	Selection	Description
ZOOM / PAN	EXECUTE	Execute digital and pan function.
FREEZE	OFF / ON	Freeze the current image on the screen.
BLANK	OFF / ON	Hide the image, display a black screen.
RESET	EXECUTE	Reset all menu function to their factory default values.
AUTO CEILING	OFF / ON	Automatically invert the image when the projector is turned upside down, i.e. when the projector is mounted on the ceiling.
FRONT	EXECUTE	Normal projection mode.
CEILING	EXECUTE	Mirror the image vertically, only for the projector mounted upside down.
REAR	EXECUTE	Mirror the image horizontally, only for projecting onto rear projection screen.
CEILING AND REAR	EXECUTE	Mirror the image horizontally and vertically. Projecting onto a rear projection screen while projector is upside down.

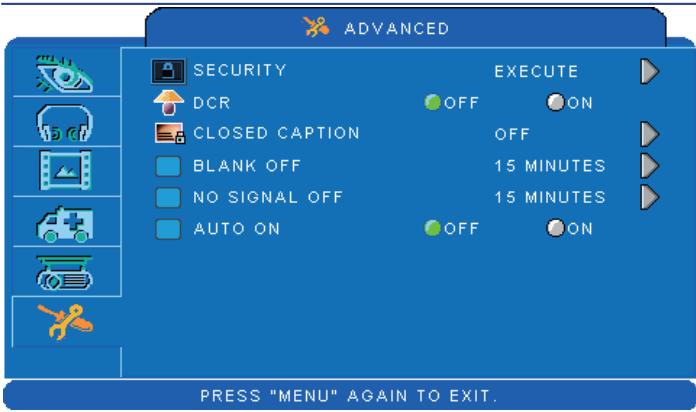

Advanced Menu

Step:

1.Use the / buttons to select an item.
2.Use the / buttons to select an item or adjust the value.

Item	Selection	Description
SECURITY	EXECUTE	You could execute PIN LOCK PROTECTION and MODIFY PIN functions.
DCR	OFF / ON	DCR (Dynamic Contrast Ratio) to strengthen image contrast strongly. If DCR is turned on, the projector will automatically switch the lamp mode between normal or ECO mode according to the input image level decided. After enabling DCR, frequent lamp mode switching may shorten lamp life and noise level will vary during operation.
CLOSED CAPTION	OFF(Default) C.C1 C.C2 C.C3 C.C4 T1 T2 T3 T4	The Closed Caption function intimates the sound effects, dialogue, and narration in the content of the television program or video source. Caption (C.C1~C.C4) : Display closed caption Text (T1~T4) : Display text data, which is for additional information such as news reports or a TV program guide. NOTE: This function is available only in video / S-Video source.
BLANK OFF	15 MINUTES 30 MINUTES 60 MINUTES	Choose when image is blank off.
NO SIGNAL OFF	15 MINUTES 30 MINUTES 60 MINUTES	Turn off when no signal is received.
AUTO ON	OFF / ON	Turn on lamp automatically.

Advanced Menu

Step:

1.Use the / buttons to select an item.
2.Use the / buttons to select an item or adjust the value.

Item	Selection	Description
PIN LOCK PROTECTION	OFF ON 1 ON 2	OFF: Turn off PIN lock protection. ON 1: PIN code is needed only in the first time after AC power has been switched off. ON 2: PIN code is needed every time while the projector is turned on. CAUTION: Once the PIN code had been set, the projector cannot be used unless you enter the correct PIN code.
MODIFY PIN	EXECUTE	1. Press “MENU” on the projector or remote control. 2. Use the ➔ button to select the MODIFY PIN item of the SECURITY category. 3. Press the ➔ button to change PIN LOCK PROTECTION mode. 4. Please enter the original PIN code. (a) If the PIN is correct, system will allow you to change a new PIN code. (b) If the PIN is incorrect, a “Code Error” message will appear. 5. Please enter a new PIN code. And then enter again to confirm. NOTE: (1) To change the PIN lock protection state, you must enter the PIN code first. (2) Please enter: 0000 for first-time use. (3) Write your selected password down here in this manual to help you remember it; see the selection “Appendix”. (4) To avoid unnecessary trouble, if you activate the [PIN Lock Protection], it is highly recommended that you write down the PIN code and store it in a safe place.

PIN Key In Operation

When the projector is turned on and the PIN LOCK PROTECTION is set to [ON], the image will show as on the right side.

1. Press the MENU button on the projector or remote control. Enter PIN code by keypad or remote control.

2.How to enter a PIN code?

You can use control panel or remote control.

(1) Press button: Select the [1]
(2) Press button: Select the [2]
(3) Press button: Select the [3]
(4) Press button: Select the [Enter] move to next row.(4~6,7~9, OK)
(5) Press (backspace) item: In case you enter a wrong digit, select to delete the wrong digit you entered.
(6) Press (backspace) item: Once all four digits of the PIN are entered, select to confirm.

NOTE

If the PIN is incorrect, a 'Enter new code' message will be shown. Please try again. If the PIN code input is incorrect for three times, a warning message will show up and the projector will shut itself down in 30 seconds.

If you have no idea about the PIN, please contact your dealer for help.

NOTE: This Network Control Software Application is an optional function and support model with RJ45 LAN port only.

1 Register the projector(s) which needs to be controlled.

"Auto search" can help you to seek the projector(s) source easily.

After registering in the work group, you can start to control the projector.

Group the projector(s) into different sections.

You can monitor the status easily by the sort of group name function in the network.

Monitor the status for each projector.

a. You can manage and change the monitoring content by System Parameter Setting.

b. The Lamp timer, filter working time or system warning feedback etc. can be known by checking the status for projector(s).

Control the booked projector(s).

The status can be refreshed and acquired by monitoring functions; you can also operate the function easily by Network Control.

NOTE

To monitor and control the projector(including stand-by mode), the following conditions need to be ready:

(1) Projector should already be powered on.
(2) Projector is connected to network.
(3) LED light of the projector network port shows normal. (Green light on, Orange twinkle)

• Stand-by mode indictor: Green LED (Power) on the projector's control panel flashes.

Before To Use Network Control Software

If the system is Windows 2000, NT 4.0 or XP, the PC should be started by the Administrator.
Before starting the Network Control software, please check the following.

(1) The computer must have Network Control software installed.
(2) The projector should be powered on and the LAN wire is well connected to projector.
(3) Make sure the computer and projector can connect to network. Network Control software needs to arrange in TCP/IP network communication and the network cable.

Open Network Control Software

Click Network control software icon.

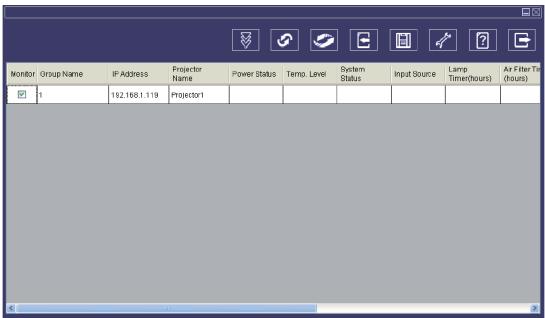

Monitor window will show as Graph 1 and Table 2.

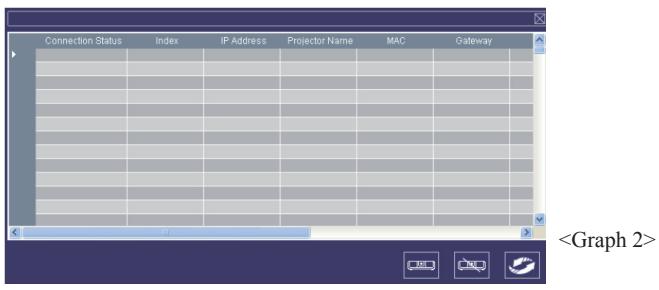

Projector Auto Search.

Click the (Projector search), located projector will show on the network correctly. (Graph2)

NOTE

When the security warning window appears while Network Control is executing, please select "Unblock" to decontrol area network linking against from System Administrator.

Click (search again), the projector which is well connected with a PC will be shown. (Graph3)

3 Click (register projector), the projector information will show on the monitor window. Click button (exit), it will cancel the registered item then return to register table.

Monitor window

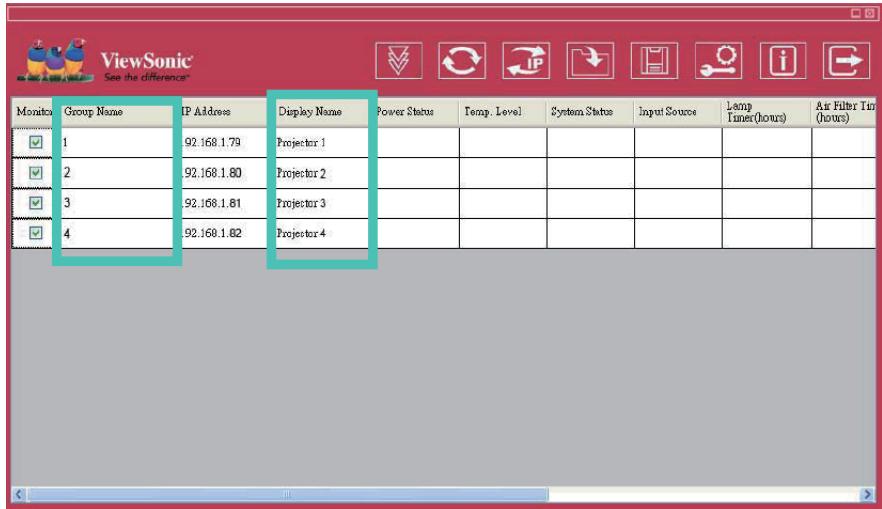

Projector Auto Search.

Projector Auto Search can rank group names or display names by clicking the monitor window title (Group Name) or (Host Name). This will help you easily to understand projectors status.

After registering, you can click button (Data single capture) in the tool bar or click button (Start Auto Scan) running in this program to monitor the projector.

NOTE

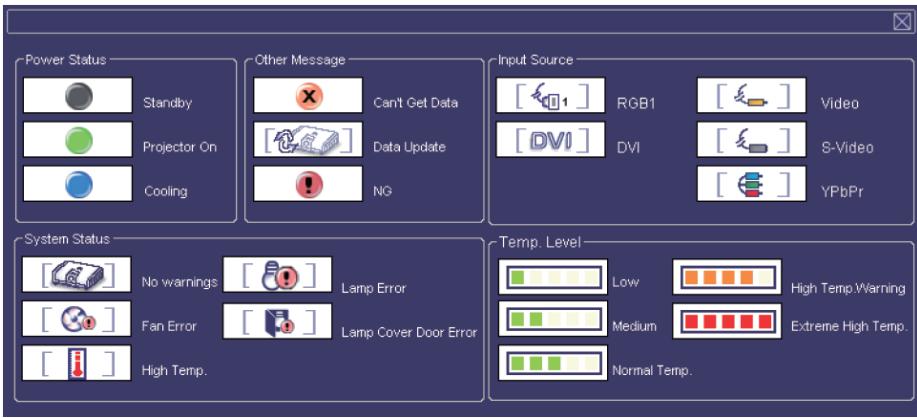

When pressing "About" button for help, you will see icons explained as in the chart below.

Modify The Projector Setting

1 If modifying the registered projector setting is needed, please move your cursor to the data table and click the item that you would like to modify, the detail will be shown on the right side table.

< Graph 5 >: Register Table.
After setting, you can save the data by clicking button or cancel by clicking button.

: Setting Windows

Item	Description
Display name	Show the Host name (16 characters at most in ASCII)
IP Address	Show the IP Address
Mask	Show the Mask
Gateway	Show the Gateway
MAC	Show up the MAC code (The default value can not be modified)
Monitor	Show up the projector monitor status (The default set in power on status)
DHCP	Capture IP address from network sensor automatically.

Delete

Select the registered projector in monitor window. Click mouse right key and select "Delete" to erase the registered projector data.  < Graph 6>: Register Table.

Projector Setting

1 Select the registered projector in monitor window. Click mouse right key and select "projector setting" to modify the registered projector data. After finishing the setting, you can save by clicking button or cancel by clicking button.  < Graph 7> : Register table.  < Graph 8> :Setting table.

Projector Setting

Click button (system setting) to modify system alert setting.  < Graph 9>  :Setting table.

System Setting

Monitor

Item	Description
Lamp Timer	Lamp timer from projector.
Air Filter Alert	Air Filter Timer from projector.
System Status/Tempeture Level	System Status and Tempeture. Level from projector in Power On status.
Input Source	Input Source from projector in Power ON status.

Default Setting

Item	Description
Lamp Timer Alert (Hr.)	Default Setting Includes 1000/1500/2000 Hours. When Lamp Timer reach alert target, window will show lamp timer in red color to remind user to replace the lamp.
Filter Timer Alert (Hr.)	Default setting includes 300/500/800/1000/1500 Hours. When Filter Timer reach alert target, window will show filter timer in red color to remind user to replace the filter.
Auto Detect Timer (minutes)	Auto Detect setting. Default setting includes 1/3/5/10 minutes; user can set the optimal default listed in Table 6.

Auto Detect Optimal Setting

Projectile Number (Sets)	Timer Interval (Minutes)
1~25	1/3/5/10
26~50	3/5/10
51~100	5/10
101~255	10>

* The maximum quantity of projector monitored is 255.

Link

Select the registered projector in monitor window. Click mouse right key and select "Link" to show up the control panel table and the projector connected status.  < Graph 12> : The control panel table

Power Control

Icon	Name
	Power on
	Power off

2 Input Source

Icon	Name
	Video
	S-Video
	Y,Pb,Pr
DVI	DVI-I
	RGB 1
	Change Input Source

Function Key

Icon	Name	Icon	Name
	Up		Freeze
	Down		Blank
	Left	K	Keystone Correction +
	Right	K	Keystone Correction -
	Menu		Increase Brightness
	Auto Sync		Decrease Brightness
	Mute		Higher Contrast

Function Key

Icon	Name
	Lower Contrast
	Zoom In
	Zoom Out
	Volume Up
	Volume Down

4 Projector Status

Icon	Name
	System Status
	Input Source Status
	Lamp Timer
	Air Filter Timer

Network Control Window introduction

Icon	Name	Description
	Scan all	Capture the projector information 1 time only.
	Start Auto Scan	According to the system setting, get the projector information automatically.
	Stop Auto Capture
	Auto Search	Search the projector in the same network to register and modify the setting.
	Open Project File	Open project file which was saved.
	Save Project File	Save the registered projector in this project.
	System Setting	Setting the projector system remind message.
	About	Icon content description.
	Exit	Exit the Network software.

Air Filter

When a warning message appears to remind you to clean the air filter, please replace a new one as soon as possible. Please check and clean the air filter periodically.

Replacing the Air Filter

When the use time reaches the filter counter time, the projector will display a message that indicates to replace a new filter. If there is no spare air filter available, please contact your dealer.  Turn off the projector, and unplug the power cord. Allow the projector to sufficiently cool down. 1 Remove the filter cover from the right side of projector. Pull out the air filter. Install a new air filter. Put the filter cover on. Reset filter timer after cleaning or changing air filter. (P.25)

Lamp

1. If you want to replace new lamp, but the projector was just turned off, please let the projector cool down and unplug power cord at least 60 minutes. 2. If the projector is mounted in the ceiling, contact your dealer to replace the lamp.

Replacing New Lamp

1. Remove the lamp door. 2. Loosen 2 screws of the lamp holder. Take the handle on the top of the lamp, pull out the lamp straight off the projector. 3. Insert new lamp, lock the lamp door firmly with 2 screws. 4. Put the lamp door on. 5. Please reset the lamp timer after replacing lamp. (P.26)

Other Care

Cleaning The Lens

If the lens is dirty and dusty, display quality maybe decreased. Before cleaning the lens, please make sure that the projector is cool down adequately. After the projector has cooled down adequately, lightly wipe the lens with the available lens-cleaning cloth. Do not touch the lens directly with your hand.

Additional

-In order to ensure the safe use of your projector, please contact your dealer to inspect about once a year. - Before maintenance, make sure the power cable is unplugged, allow the projector to cool sufficiently. The high temperature state of the projector could cause a burn in and/or malfunction to the projector. - Never try to maintain the inside of the projector by yourself -Avoid wetting the projector or inserting liquids in the projector. This could result in a fire, an electric shock, and/or malfunction to the projector.

Indicator

The power and lamp indicators show the status of the projector. Before requesting repair, check the projector status using the chart below. If the problem cannot be resolved, contact your dealer. In normal status\~\~

POWER	LAMP	CONDITIONS	DESCRIPTION
Blinking In Green	Off	Stand by mode	Projector is ready to be turned on.
Lighting In Green	Off	On mode	Projector is on and operating.
Lighting In Green	Blinking In Red (Slow)	Cool down mode	Projector is in cool down mode and will not respond to user input.

In abnormal status\~\~\~

POWER	LAMP	CONDITIONS	DESCRIPTION
Blinking In Green	Blinking In Red (Fast)	Fan fault mode	The projector has detected a problem of a slow internal fan speed. The lamp will shut off automatically. Contact your dealer.
Blinking In Green	Lighting In Red	Lamp cover open	The lamp cover is open or there is a problem with the lamp. If the lamp door is closed and replacing the lamp does not correct the issue, contact your dealer.
Blinking In Green (Fast)	Blinking In Red (Fast)	High temperature	The projector has overheated and shut itself down. Correct the over temperature condition immediately. 1. Check that the ventilation slots are free from obstructions. 2. Check the cleanliness of the air filter.
Blinking In Green (Slow)	Blinking In Red (Slow)	Lamp fail	The lamp does not light. Come back to “stand by mode”, and press the power button.

Error For Machine Defects

The following problems may be confused with a machine defect. Check and follow the table. If it couldn't be improved, contact your dealer.

Symptom	Cause / Remedy
Projector power does not turn on.	The power cord is disconnected. Plug the power cord into an AC outlet.
	Intending to turn on the projector again during the cool down mode. Wait until the cool down mode has completed.
	There is no lamp and/or lamp cover is not firmly closed. Please turn off the power and disconnect the power plug from the power outlet. Check if the lamp is installed or the lamp cover is firmly closed and turn on the power again.
	Power cord has impaired. When you touch the power cord, the indicator goes on then off, please remove the power cord and connect it again. If the situation is repeated, remove the power cord and contact your dealer.
No Video	The input is not connected correctly. Select the appropriate input source.
	No signal input. Connect correctly.
	The lens cover is attached to the lens. Remove the lens cover.
Colors are pale	Color density and color matching are not adjusted correctly. Adjust the RGB setting.
	Color lose. Caused by poor VGA cable connection.
Abnormal brightness & contrast	Brightness and contrast are not adjusted correctly. Adjust the brightness and contrast setting.
	The lamp is near the end of its service life. Replace with a new lamp.
Video is blurred	The projection lens is not focused. Adjust the focus using the focus ring.
	The lens is dirty or misty. Clean the lens.

Error For Machine Defects

Symptom	Cause / Remedy
No audio	The projector is not connected correctly. Check audio cable if connect correctly.
	The volume is set to minimum. Adjust the volume.
	Mute is turned on. Press the MUTE button.
Remote control is not working.	No battery. Before using the remote control, please check the battery of remote control.
	Remote signal is obstructed. Remove the obstacle between projector and remote control.

List of Supported Monitor Displays

Computer mode
Signal	Refresh Rate (Hz)	Resolution (dots)
VGA	60	640x480
VESA	60 /72 /75/85	640x480
SVGA	56 /60/72/75 /85	800x600
XGA	60 /70/75/85	1024x768
SXGA	70 /75	1152x864
SXGA	60 /75	1280x960
SXGA	60	1280x1024
WXGA	60 /75	1280x800
WXGA+	60/75/85	1440x900
SXGA +	60/75	1400x1050
UXGA	60	1600x1200
MAC	67	1280x1024 / 640x480
MAC	75	832x624
MAC	75	1024x768
MAC	75	1152x870
Component (Y,Pb,Pr)
Signal	Refresh Rate (Hz)	Resolution (dots)
SDTV(480i)	30	720x480
SDTV(480p)	60	720x480
HDTV(720p)	60	1280x720
HDTV(1080i)	30	1920x1080
Composite / S-Video
Signal	Refresh Rate (Hz)	Resolution (dots)
TV(NTSC)	60	720x480
TV(PAL,SECAM)	50	720x576

Menu Tree (PC Mode)

   *DVI doesn't support H / V POSITION, PHASE, FREQUENCY, AUTO SYNC function.

Menu Tree (PC Mode)

   Menu Tree (Video Mode)

Menu Tree (Video Mode)



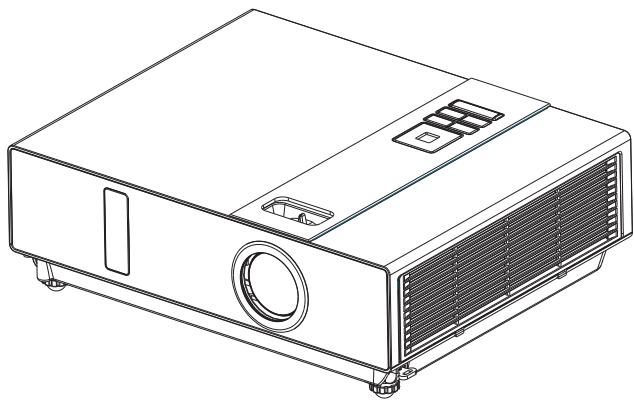

Appearance



Configurations of Terminal (RS232 Control)

Communication Protocol RS232 Cable Definition

Item	Specification
Standard Baud rate	9600 bps
Data length	8 bits
Parity	None
Stop bit	1 bit
Flow Control	None


PC side	Projectile side with D-sub pin
RX 2	RX 2
TX 3	TX 3
GND 5	GND 5

3 Command Transference Protocol

TYPE1 Code : Example: Power ON command is sent to the projector with a CR, the projector returns a "06" code.

Command (ASII)
		PC			C	0	0	CR						0	6
		Projector							Processing Command		0	6

Configurations of Terminal (RS232 Control)

Command List

TYPE1 Command (HEX+CR)	Function	Remarks
C00(43 30 30 0D)	POWER ON
C01(43 30 31 0D)	POWER OFF
C02(43 30 32 0D)	RGB
C03(43 30 33 0D)	Y,Pb,Pr
C05(43 30 35 0D)	DVI
C06(43 30 36 0D)	VIDEO
C07(43 30 37 0D)	S-VIDEO
C09(43 30 39 0D)	VOLUME+
C0A(43 30 40 0D)	VOLUME-
C1D(43 31 44 0D)	MENU
C30(43 33 30 0D)	UP
C31(43 33 31 0D)	DOWN
C32(43 33 32 0D)	LEFT
C33(43 33 33 0D)	RIGHT
C34(43 33 34 0D)	MUTE
C43(43 34 33 0D)	FREEZE
C80(43 38 33 0D)	ZOOM+
C81(43 38 31 0D)	ZOOM-
C90(43 39 33 0D)	ESC
C91(43 39 31 0D)	SOURCE
C92(43 39 32 0D)	AUTO
C93(43 39 33 0D)	CONTRAST+
C94(43 39 34 0D)	CONTRAST-
C95(43 39 35 0D)	BRIGHTNESS+
C96(43 39 36 0D)	BRIGHTNESS-
C97(43 39 37 0D)	BLANK
C98(43 39 38 0D)	KEYSTONE+
C99(43 39 39 0D)	KEYSTONE-
CR0(43 52 30 0D)	POWER-STATUS	STATUS feedback "000"-projector is on "800"-projector is standby "200"-projector is cooling down "500"-projector is warm up
CR1(43 52 31 0D)	SOURCE-STATUS	STATUS feedback "001"-RGB

IR Control Code

Custom Code : 0x6A Data Code

No.	DATA	CODE
1	POWER	0x00
2	INPUT	0x11
3	MENU	0x27
4	UP	0x14
5	LEFT	0x16
6	RIGHT	0x18
7	DOWN	0x19
8	MUTE	0x13
9	BLANK	0x23
10	AUTO	0x1F


Customer Support

For technical support or product service, see the table below or contact your reseller. Note : You will need the product serial number.

Country/Region	Web Site	T=Telephone F=Fax	E-mail
Australia/New Zealand	www.viewsonic.com.au	AUS=1800 880 818 NZ=0800 008 822	[e-mail]
Canada	www.viewsonic.com	T (Toll-Free)= 1-866-463-4775 T (Toll)= 1-424-233-2533 F= 1-909-468-1202	[e-mail]
Europe/Middle East/Baltic countries/North Africa	www.viewsoniceurope.com	Contact your reseller
Hong Kong	www.hk.viewsonic.com	T= 852 3102 2900	[e-mail]
India	www.in.viewsonic.com	T= 1800 11 9999	[e-mail]
Korea	www.kr.viewsonic.com	T= 080 265 9080	[e-mail]
Latin America (Argentina)	www.viewsonic.com/la/	T= 0800 666 0194	[e-mail]
Latin America (Brazil)	www.viewsonic.com/la/	T= 0800 891 6984	[e-mail]
Latin America (Chile)	www.viewsonic.com/la/	T= 800 440 303	[e-mail]
Latin America (Columbia)	www.viewsonic.com/la/	T= 01 800 915 6588	[e-mail]
Latin America (Mexico)	www.viewsonic.com/la/	T= 001 800 514 6518	[e-mail]
Renta y Datos, 29 SUR 721, COL. LA PAZ, 72160 PUEBLA, PUE. Tel: [phone] CON 10 LINEAS Electroser, Av Reforma No. 403Gx39 y 41, 97000 Merida, Yucatan. Tel: [phone] Other places please refer to http://www.viewsonic.com/la/soporte/index.htm#Mexico
Latin America (Peru)	www.viewsonic.com/la/	T= 0800 53458	[e-mail]
Macau	www.hk.viewsonic.com	T= 853 700 303	[e-mail]
Puerto Rico & Virgin Islands	www.viewsonic.com	T= 1-800-688-6688 (English) T= 1-866-379-1304 (Spanish) F= 1-909-468-1202	[e-mail] [e-mail]
Singapore/Malaysia/Thailand	www.ap.viewsonic.com	T= 65 6461 6044	[e-mail]
South Africa	www.viewsoniceurope.com	www.viewsoniceurope.com/uk/Support/Calldesk.htm
United Kingdom	www.viewsoniceurope.com/uk/	www.viewsoniceurope.com/uk/Support/Calldesk.htm
United States	www.viewsonic.com	T (Toll-Free)= 1-800-688-6688 T (Toll)= 1-424-233-2530 F= 1-909-468-1202	[e-mail]

Limited Warranty

VIEWSONIC® PROJECTOR

What the warranty covers:

ViewSonic warrants its products to be free from defects in material and workmanship, under normal use, during the warranty period. If a product proves to be defective in material or workmanship during the warranty period, ViewSonic will, at its sole option, repair or replace the product with a like product. Replacement product or parts may include remanufactured or refurbished parts or components.

How long the warranty is effective:

North and South America: 3 years for all parts excluding the lamp, 3 years for labor, 1 year for the original lamp from the date of the first consumer purchase. Europe: 3 years for all parts excluding the lamp, 3 years for labor, 1 year for the original lamp from the date of the first consumer purchase. Other regions or countries: Please check with your local dealer or local ViewSonic office for the warranty information. Lamp warranty subject to terms and conditions, verification and approval. Applies to manufacturer's installed lamp only. All accessory lamps purchased separately are warranted for 90 days.

Who the warranty protects:

This warranty is valid only for the first consumer purchaser.

What the warranty does not cover:

1. Any product on which the serial number has been defaced, modified or removed. 2. Damage, deterioration or malfunction resulting from: a. Accident, misuse, neglect, fire, water, lightning, or other acts of nature, unauthorized product modification, or failure to follow instructions supplied with the product. b. Repair or attempted repair by anyone not authorized by ViewSonic. c. Any damage of the product due to shipment. d. Removal or installation of the product. e. Causes external to the product, such as electric power fluctuations or failure. f. Use of supplies or parts not meeting ViewSonic's specifications. g. Normal wear and tear. h. Any other cause which does not relate to a product defect. 3. Any product exhibiting a condition commonly known as "image burn-in" which results when a static image is displayed on the product for an extended period of time. 4. Removal, installation, and set-up service charges.

How to get service:

1. For information about receiving service under warranty, contact ViewSonic Customer Support (please refer to "Customer Support" page). You will need to provide your product's serial number. 2. To obtain warranted service, you will be required to provide (a) the original dated sales slip, (b) your name, (c) your address, (d) a description of the problem, and (e) the serial number of the product. 3. Take or ship the product freight prepaid in the original container to an authorized ViewSonic service center or ViewSonic. 4. For additional information or the name of the nearest ViewSonic service center, contact ViewSonic.

Limitation of implied warranties:

There are no warranties, express or implied, which extend beyond the description contained herein including the implied warranty of merchantability and fitness for a particular purpose.

Exclusion of damages:

ViewSonic's liability is limited to the cost of repair or replacement of the product. ViewSonic shall not be liable for: 1. Damage to other property caused by any defects in the product, damages based upon inconvenience, loss of use of the product, loss of time, loss of profits, loss of business opportunity, loss of goodwill, interference with business relationships, or other commercial loss, even if advised of the possibility of such damages. 2. Any other damages, whether incidental, consequential or otherwise. 3. Any claim against the customer by any other party.

Effect of state law:

This warranty gives you specific legal rights, and you may also have other rights which vary from state to state. Some states do not allow limitations on implied warranties and/or do not allow the exclusion of incidental or consequential damages, so the above limitations and exclusions may not apply to you.

Sales outside the U.S.A. and Canada:

For warranty information and service on ViewSonic products sold outside of the U.S.A. and Canada, contact ViewSonic or your local ViewSonic dealer. The warranty period for this product in mainland China (Hong Kong, Macao and Taiwan Excluded) is subject to the terms and conditions of the Maintenance Guarantee Card. For users in Europe and Russia, full details of warranty provided can be found in www. viewsoniceurope.com under Support/Warranty Information. 4.3: Projector Warranty PRJ_LW01 Rev. 1h 06-25-07

Mexico Limited Warranty

VIEWSONIC® PROJECTOR

What the warranty covers:

ViewSonic warrants its products to be free from defects in material and workmanship, under normal use, during the warranty period. If a product proves to be defective in material or workmanship during the warranty period, ViewSonic will, at its sole option, repair or replace the product with a like product. Replacement product or parts may include remanufactured or refurbished parts or components & accessories.

How long the warranty is effective:

3 years for all parts excluding the lamp, 3 years for labor, 1 year for the original lamp from the date of the first consumer purchase. Lamp warranty subject to terms and conditions, verification and approval. Applies to manufacturer's installed lamp only. All accessory lamps purchased separately are warranted for 90 days.

Who the warranty protects:

This warranty is valid only for the first consumer purchaser.

What the warranty does not cover:

1. Any product on which the serial number has been defaced, modified or removed. 2. Damage, deterioration or malfunction resulting from: a. Accident, misuse, neglect, fire, water, lightning, or other acts of nature, unauthorized product modification, unauthorized attempted repair, or failure to follow instructions supplied with the product. b. Any damage of the product due to shipment. c. Causes external to the product, such as electrical power fluctuations or failure. d. Use of supplies or parts not meeting ViewSonic's specifications. e. Normal wear and tear. f. Any other cause which does not relate to a product defect. 3. Any product exhibiting a condition commonly known as "image burn-in" which results when a static image is displayed on the product for an extended period of time. 4. Removal, installation, insurance, and set-up service charges.

How to get service:

For information about receiving service under warranty, contact ViewSonic Customer Support (Please refer to the attached Customer Support page). You will need to provide your product's serial number, so please record the product information in the space provided below on your purchase for your future use. Please retain your receipt of proof of purchase to support your warranty claim. For Your Records Product Name: Model Number: Document Number: Serial Number: Purchase Date: Extended Warranty Purchase? (Y/N) If so, what date does warranty expire? 1. To obtain warranty service, you will be required to provide (a) the original dated sales slip, (b) your name, (c) your address, (d) a description of the problem, and (e) the serial number of the product. 2. Take or ship the product in the original container packaging to an authorized ViewSonic service center. 3. Round trip transportation costs for in-warranty products will be paid by ViewSonic.

Limitation of implied warranties:

There are no warranties, express or implied, which extend beyond the description contained herein including the implied warranty of merchantability and fitness for a particular purpose.

Exclusion of damages:

ViewSonic's liability is limited to the cost of repair or replacement of the product. ViewSonic shall not be liable for: 1. Damage to other property caused by any defects in the product, damages based upon inconvenience, loss of use of the product, loss of time, loss of profits, loss of business opportunity, loss of goodwill, interference with business relationships, or other commercial loss, even if advised of the possibility of such damages. 2. Any other damages, whether incidental, consequential or otherwise. 3. Any claim against the customer by any other party. 4. Repair or attempted repair by anyone not authorized by ViewSonic.

Contact Information for Sales & Authorized Service (Centro Autorizzato de Servizio) within Mexico:
Name, address, of manufacturer and importers: México, Av. de la Palma #8 Piso 2 Despacho 203, Corporativo Interpalmas, Col. San Fernando Huixquilucan, Estado de México Tel: [phone] http://www.viewsonic.com/la/soporte/index.htm
NUMERO Gratis DE ASISTENCIA TÉCNICA PARATodo MÉXICO: 001.866.823.2004
Hermosillo: Distribuciones y Servicios Computaciones SA de CV. Calle Juarez 284 local 2 Col. Bugambillas C.P: 83140 Tel: [phone] E-Mail: [e-mail]	Villahermosa: Compumantenimietnos Garantizados, S.A. de C.V. AV. GREGORIO MENDEZ #1504 COL, FLORIDA C.P. 86040 Tel: [phone] E-Mail: [e-mail]
Puebla, Pue. (Matriz): RENTA Y DATOS, S.A. DE C.V. Domicilio: 29 SUR 721 COL. LA PAZ 72160 PUEBLA, PUE. Tel: [phone] CON 10 LINEAS E-Mail: [e-mail]	Veracruz, Ver.: CONEXION Y DESARROLLO, S.A DE C.V. Av. Americas # 419 ENTRE PINZON Y ALVARADO Fracc. Reforma C.P. 91919 Tel: [phone] E-Mail: [e-mail]
Chihuahua	Cuernavaca
Solutiones Globales en Computación C. Magisterio # 3321 Col. Magisterial Chihuahua, Chih. Tel: [phone] E-Mail: [e-mail]	Compusupport de Cuernavaca SA de CV Francisco Leyva # 178 Col. Miguel Hidalgo C.P. 62040, Cuernavaca Morelos Tel: [phone] E-Mail: [e-mail]
Distrito Federal: QPLUS, S.A. de C.V. Av. Coyoacán 931 Col. Del Valle 03100, México, D.F. Tel: [phone] E-Mail: [e-mail]	Guadalajara, Jal.: SERVICRECE, S.A. de C.V. Av. Niños Héroes # 2281 Col. Arcos Sur, Sector Juárez 44170, Guadalajara, Jalisco Tel: [phone] E-Mail: [e-mail]
Guerrero Acapulco	Monterrey: Global Product Services Mar Caribe # 1987, Esquina con Golfo Pérsico Fracc. Bernardo Reyes, CP 64280 Monterrey N.L. México Tel: [phone] E-Mail: [e-mail]
GS Computation (Grupo Sesticomp) Progreso #6-A, Colo Centro 39300 Acapulco, Guerrero Tel: [phone]
MERIDA: ELECTROSER Av Reforma No. 403Gx39 y 41 Mérida, Yucatán, México CP97000 Tel: [phone] E-Mail: [e-mail]	Oaxaca, Oax.: CENTRO DE DISTRIBUTUCION Y SERVICIO, S.A. de C.V. Murguía # 708 P.A., Col. Centro, 68000, Oaxaca Tel: [phone] Fax: [phone] E-Mail: [e-mail]
Tijuana: STD Av Ferrocarril Sonora #3780 L-C Col 20 de Noviembre Tijuana, Mexico	FOR USA SUPPORT: ViewSonic Corporation 381 Brea Canyon Road, Walnut, CA. 91789 USA Tel: [phone] (English); 866-323-8056 (Spanish); Fax: [phone] E-Mail: http://www.viewsonic.com

4.3: ViewSonic Mexico Limited Warranty

PRJ_LW03 Rev. 1A 06-25-07
