USER MANUAL DPF8-CAM VIEWSONIC

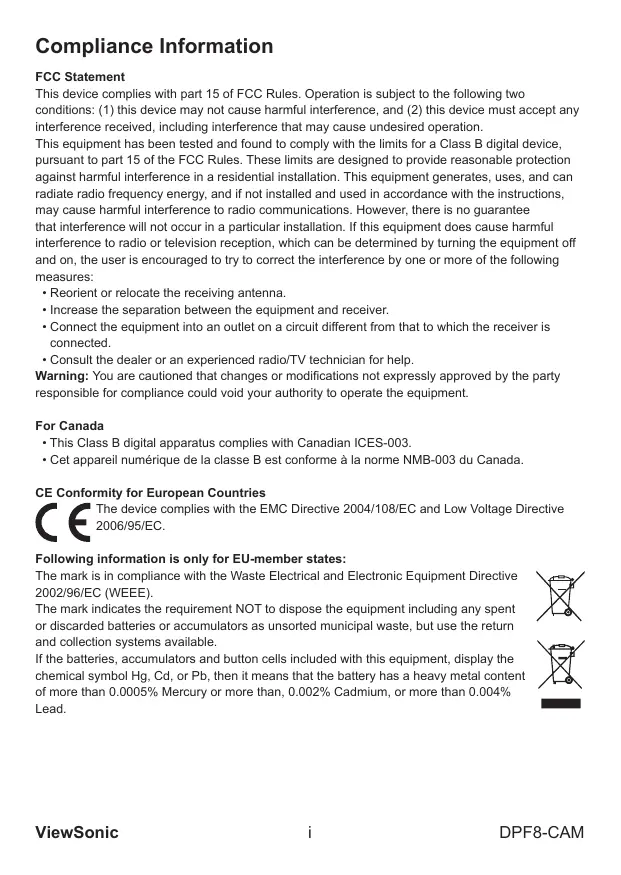

Compliance Information

FCC Statement ‘This device complies with part 15 of FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmfulinterference, and (2) this device must accept any interference received, including interference that may cause undesired operation. ‘This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiale radio frequency energy, and if not installed and used in accordance wih the instructions, may cause harmful interference lo radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmiul interference to radio or television reception, which can be determined by tuning the equipment off and on, the user is encouraged to try lo correct 1he interference by one or more of the following measures:

+ Reorient or relocate the receiving antenna.

* Increase the separation between lhe equipment and receiver.

+ Connect ihe equipment into an oullt on a circuit different from that to which the receiver is

+ Consul 1he dealer or an experienced radio/TV technician for help. Warning: You are cautioned that changes or modifications not expressiy approved by the party responsible for compliance could void your authority to operate the equipment

For Canada + This Class B digital apparatus complies with Canadian ICES-003. + Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.

CE Conformity for European Countries ‘The device complies wilh the EMC Directive 2004/108/EC and Low Voltage Directive 2006/95/EC.

Following information is only for EU-member states: ‘The mark is in compliance with the Waste Electrical and Electronic Equipment Directive 2002/96/EC (WEEE).

‘The mark indicates the requirement NOT Lo dispose the equipment including any spent or discarded batteries or accumulators as unsorted municipal waste, but use the return and collection systems available.

Ifthe batteries, accumulators and button cells included with this equipment, display the chemical symbol Hg, Cd, or Pb, then it means that the battery has a heavy metal content of more than 0.0008% Mercury or more than, 0.002% Cadmium, or more than 0.04% Lead

ViewSonic i DPF8-CAM Important Safety Instruc!

1. Read these instructions completely before using the equipment.

2. Keep these instructions in a safe place. 3. Heed all wamings. 4. Follow all instructions.

6. Do not use this equipment near waler. Warning: To reduce the risk of fire or electric shock, do not expose this apparatus Lo rain or moisture.

6. Clean with a sof, dry cloih.

7. Do not block any ventilation openings. Install the unit in accordance with the manufacturers instructions,

8. Do not install near any heat sources such as radialors, heat registers, stoves, or other devices {including amplifiers) that produce heat.

9. Do not defeat the safely purpose of the polarized or grounding-type plug. À polarized plug hes two blades with one wider than the other. À grounding type plug has two blades and a third grounding prong. The wide blade and the third prong are provided for yeur safety. Ifthe provided plug does not ft into your outiet, consult an electrician for replacement of the obsolete outiet.

10. Protect the power cord from being walked on or pinched particularly at plugs. Convenience receplacles and the point where they exi from the unit. Be sure that the power outiet is located near he unit so that it is easily accessible.

Oniy use attachments/accessories specified by ihe manufacturer.

Use only with the cart stand, ipod, bracket, or table specified by the manufacturer, or sold with the unit. When a cart is used, use caution when moving the cartunit combination to avoid injury from tipping over.

Unplug this unit when unused for long periods of time.

14. Refer all servicing lo qualified service personnel. Servicing is required when he unit has been damaged in any way, such as: the power-supply cord or plug is damaged, if liquid is spilled onto or objects fall into the unit, ifthe uni is exposed lo rain or moisture, or if the unit does not ‘operale nommally or has been dropped.

15. Caution: There is a risk of explosion if the battery is replaced by an incorrect type. Dispose of used batteries according to the instructions.

Only use battery packs approved by the manufacturer or else damage may oceur.

ViewSonic ü DPF8-CAM

‘This product has been designed and manufactured in compliance with Directive 2002/95/EC of the European Parliament and the Counail on restriction of the use of certain hazardous substances in electrical and electronic equipment (RoHS Directive) and is deemed to comply with the maximum concentration values issued by the European Technical Adaptation Committee (TAC) as shown below:

Substance Actual Concentration Concentration

Fa 04% 04% Polybrominated diphenyi thers u Don

Certain components of products as stated above are exempted under the Annex of he RoHS Directives as noted below:

Examples of exempted components are:

1. Mercury in compact fluorescent lamps not exceeding 5 mg per lamp and in other lamps not specifically mentioned in the Annex of RoHS Directive.

Lead in glass of cathode ray tubes, electronic components, fluorescent tubes, and electronic Geramic parts (e.g. plezoelectronic devices)

3. Lead in high temperature type solders (Le. lead-based alloys containing 85% by weight or more lead).

4. Lead as an allotting element in steel containing up Lo 0.35% lead by weight, aluminium containing up to 0.4% lead by weight and as a cooper alloy containing up to 4% lead by weïght.

ViewSonic ii DPF8-CAM Copyright Information

Copyright © ViewSonic® Corporation, 2010. AI rights reserved

ViewSonic, the three birds logo, OnView, ViewMatch, and Vieweler are registered trademarks of ViewSonic Corporation.

Disclaimer: ViewSonic Corporation shall not be liable for technical or editorial errors or omissions contained herein; nor for incidental or consequential damages resulting from furnishing his material, or the performance or use of Inis product.

In the interest of continuing product improvement, ViewSonic Corporation reserves {he right to change produet specifcations without notice, Information in his document may change wilhout notice.

No part of this document may be copied, reproduced, or transmitled by any means, for any purpose without prior wrtien permission from ViewSonic Corporation

Product Registration

To meet your future needs, and to receive any additional product information as it becomes available, please register your product on the Interne at: ww viewsonic.com. The ViewSonic® Wizard CD-ROM also provides an opporlunity for you Lo print the registration form, which you may mail or fax Lo ViewSonic.

Product disposal at end of product life ViewSonic respects the environment and is committed to working and Iving green. Thank you for being part of Smarter, Greener Computing. Please visit ViewSonic website Lo leam more.

Getting Started. Package Content … Product Features … Photo frame Overview How to set up the stand Connecting to AC power.……… Powering on/off your photo frame... Using the internal! external memory devices.

The package contains the following items:

Remote Control cD Quick Start Guide

- 20.32 cm (8") Digital photo frame with 5 Mega-pixel camera - 8" TFT LCD display (800x600 pixels)

- Removable and extendable stand for digitalizing old pictures

- Auto slideshow with multiple transition effects

- Supports high resolution pictures (JPEG) up to 16 Mega-pixel

- Supports SD, SDHC, MC, MS Pro card (up to 32GB) and USB flash drive - Sleep mode as auto-off function for saving power

- USB 2.0 high speed

- Calendar, clock, and alarm

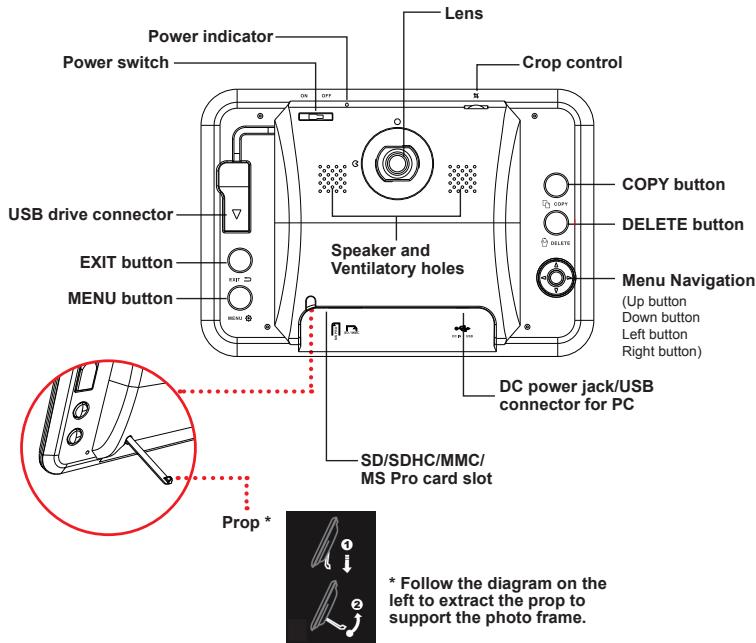

ViewSonic 2 DPF8-CAM Photo frame Overview mme

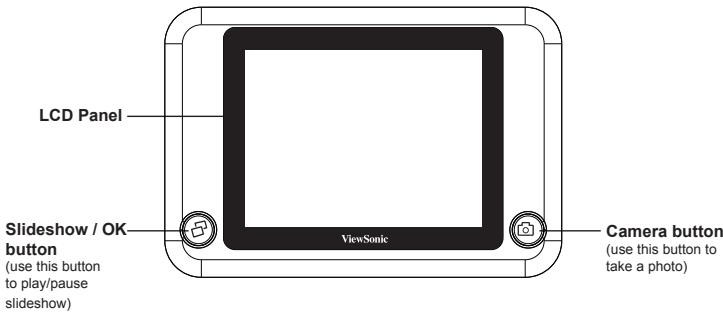

Slideshow / OK- S Camera button button LÈ {use his button to

Speaker and Ventilatory holes

DC power jack{USB —— connector for PC:

L_snisoxcmmc! MS Pro card slot

© {3 * Follow the diagram on the DA 10ft to extract the prop to SA sup tre photo rame.

3 DPF8-CAM How to set up the stan

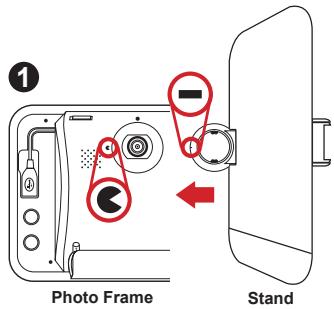

1) Align the = mark on the stand with the € mark on the back of the photo frame Then gently place the ring of the stand on top of the lens to attach the stand

2) Gently rotate the stand clockwise as indicated until the = mark is aligned with the @ mark.

3) Unfold the stand on the table by following the steps in the illustrations:

4) Place the photo frame on a flat surface such as a table:

ViewSonic 4 DPF8-CAM Connecting to AC power

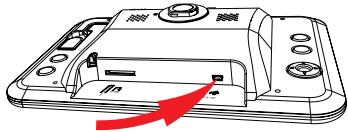

Connect one end of the accessory power cable to the photo frame, and then connect the power adapter to a power socket

Note: Always use the accessory power cable only.

Powering on/off your photo frame

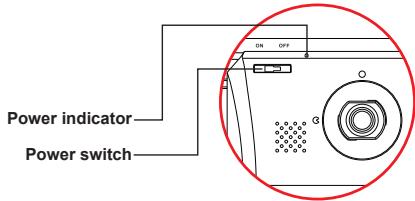

To power on the photo frame, turn the power switch to the ON position. When power is turned on, the power indicator will light up. To power off the photo frame, turn the power switch to the OFF position

Using the internal/ external memory devices

You can use the internal memory, or the compatible extemal memory devices {SD/SDHC/MMC/MS Pro/USB drive) to store the photos you took.

Note: If you connect the external memory devices to the photo frame first and then power on it, the data in the USB drive will be read first. However, ifthe photo frame is already powered on, the memory device that inserted lastly will be read first.

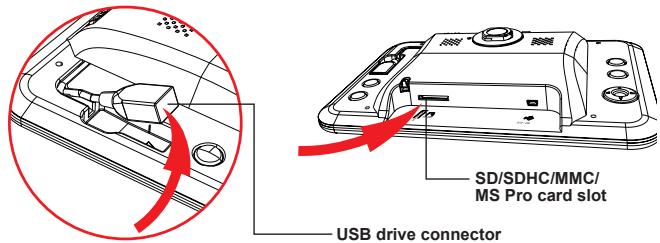

SD/SDHC/MMC/ MS Pro card slot

ViewSonic 5 DPF8-CAM Operations and Functio

Light source BE When capturing an old photo into

the photo frame, the photo should be well lit as indicated.

The light source should come from above and behind the handier to produce the best result.

1) Press the MENU button ( {@} ) to bring up the main menu.

2) Move the Menu Navigation ( () ) up/downfeftright to choose Setting and press @ to confirm. Move the Menu Navigation (() ) up or down to choose

Language and continue to move the Menu Navigation { (@) right to enter the language sub-menu

3) Move the Menu Navigation ( () ) up or down to choose the desired language and press @ to confirm.

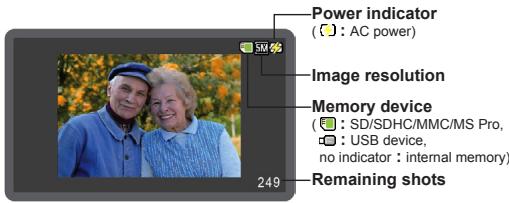

ViewSonic 6 DPF8-CAM Recapturing old photos + LCD indicators in preview mode

+ Select camera resolution:

You can take the photos in two resolutions: 3 or 5 Mega-pixel. The default resolution is 5 Mega-pixel. To change to lower resolution for keeping picture size small, press MENU button ({@}) on the reverse and use the Menu Navigation (@ to select Seting. Go to Camera Resolution and select 3M. Press the Slideshow button (5 ) to confirm. To return Lo preview, press {he EXIT button ( 5) ) on the back.

+ How to recapture aged photos? 1) Place your photo aligned with the base line on the foot stand

2) Press (to enter the preview mode.

3) Press ©) again to take a photo. Notice: The focus range of the camera is 19 to 23 cm, ideal for recapturing old photos put on the stand. The photo frame is not suitable for using as a regular camera to take new pictures.

4) The photo frame will automatically play back the photo you just took and the menu (Save/Cancel/Adjust) will show up.

5) Choose [Save] or [Cancel] or [Adjust] as you need by moving the Menu

Navigation ( (3) } up or down and then press (&to confirm

ViewSonic 7 DPF8-CAM

+ How to Save or Cancel the pictures?

After the photo is taken by the camera, the photo frame automatically enters Playback mode. Yellow frame ([7]) indicates the picture size ready to be saved in the photo frame.

The camera is programed to automatically detect the picture size shown in yellow frame. However, sometimes adjustment is needed.

Use the Menu Navigation { @) } on the back side to move up or dou to select Save, Cancel, or Adjust function

À. Ifthe picture size is correct, select Save and press the Camera button {15 ) to save the picture.

B. If you dont like the picture, select Cancel and press the Camera button {(&) to cancel the picture without saving it + How to adjust the pictures?

Ifthe picture size in the yellow frame does not 100% match the old photos, select Adjust and press the Camera button ( (5) ) lo enter Photo Adjust mode

5) | Use the Menu Navigation up/downfeftrght to choose the side of E2 |'the photo to be adjusted.

4m] Tu ihe crop control move the red line for adjusting the borders ofthe photo.

| Press @ (Slideshow/OK button) to rotate the photo

L-] Press {&ÿ (EXIT button) to exit and go back to the preview mode.

x | Press @) (Camera button) to confirm.

Note: Please recompose the photo first if needed, and then rotate the photo. The rotate function will only be effective for the image inside the lines.

ViewSonic 8 DPF8-CAM Playing back your files

This product is a photo frame to playback photos (JPEG) taken by your digital

camera. To see your photos in action, only a few simple steps are needed:

1) Save your favorite photos onto a memory card or a USB drive. (You may need to use your computer and a card reader for this operation.)

2) Insert the card into the photo frame or plug the USB drive to the photo frame.

3) Power on the photo frame.

4) Wait for the slideshow to automatically start

+ Slideshow playback

By default, the photo frame will automatically play photo slideshow shortly after powered on. If the photo frame is in other mode, you can press & once to switch to Slideshow mode.

+ Using function bar Wiile in slideshow, you can press the MENU button ({@} ) for about 2 seconds to bring up the function bar. To perform a function, use the Menu Navigation ( @) ) (up/downieftright) to shift between items, and press @ to confirm.

The photo function bar provides the following items:

1) Rotate photo: rotate the current photo 90° clockwise.

6) Index playback: The image index mode allows you to view 12 image miniatures in one single page. This function is handy when you want to browse all photos in a quick way. or select a particular photo among tons of image files.

ViewSonic 9 DPF8-CAM In index mode, you can:

+ View a photo in full screen: Use the Menu Navigation ( (@) ) (up/downleftright) to move the highlight box. The pages can be scrolled up or down as well. When the desired photo is selected, press @ to confirm. Note that this operation will switch the mode to slideshow.

Copy a photo from your memory card to the internal memory and vice versa. Use the Menu Navigation ( (&)) (up/downileft/right) to select the desired file and press the COPY button (LP). The YES/NO window will show up. Move the Menu Navigation ( () } up or down to choose and press @ to confirm

+ Delete a file existing in the internal/external memory device. Use the Menu Navigation ( @) ) (up/down/eft/ right) to select the desired file and press the Delete button {Ê). The YES/NO window will show up. Move the Menu

Navigation ( (@) } up or doun to choose and press & to confirm.

7) The file name of current photo.

When the photo function bar is inactive in slideshow mode, you can:

+ Press @ to play/pauselresume slideshow.

+ Move the Menu Navigation ( (&}) left or right to view previous or next photo. Move the Menu Navigation ( (2 } up or down to zoom infout of the photo if needed.

+ Press É to go to the preview mode for taking a photo.

+ Press the EXIT button ( (3 ) to go back to main menu

+ Press the COPY button ( LP }to copy a photo from your memory card to the internal memory and vice versa.

+ Press the DELETE button ( © ) to delete a photo from the current memory device.

ViewSonic 10 DPF8-CAM Seti

When you power on your photo frame for the first me, you are recommended to adjust the time and language settings. To set date/time, you can press the MENU button (@} ) to go to the main menu. Move the Menu Navigation ( @) ) upldoun/ leftright to'choose Date/Time and press @ to confirm.

+ move the Menu Navigation ( (5)) leftright to toggle analog/digital clock + move the Menu Navigation ( (}) Calendar with analog clock up/down to toggle calendar on/ot

Calendar with digital clock

+ To adjust date, time and alarm:

1) Press the MENU button { {@} ) for about 2 seconds. The clock will tu into digital format and a highlight box vl appear.

2) Move the Menu Navigation ( () } up or down to adjust value. Move ihe Menu Navigation ( (@)) left or right to shift between items.

3) Continue to move the Menu Navigation ( (@) ) left or right until the alarm icon is selected. Move the Menu Navigation ( () } up or down to toggle on {highlighted) or off (gray out)

Note: The alarm function is set to off every time the photo frame is powered on. However, the configuration of the alarm will be saved.

4) When all settings are completed, press the MENU button ( {@} } for about two seconds to exit. (Or just let the photo frame stay idle for a few seconds and the highlight box will disappear.)

+ About wake-up alarm When the clock reaches the set time and the alarm starts beeping, you can:

1) Press @ to turn off the alarm.

2) If you press any other button, the alarm will stop beeping for 5 minutes. After 5 minutes, the alarm will start beeping again. This snooze function allows you to catch a bit more sleep and it can launch twice (for a total of 10 minutes).

3) Ifthe alarm beeps for 1 minute and no button is pressed, the alarm will enter snooze function mode.

Note: The alarm volume is not adjustable.

ViewSonic 11 DPF8-CAM The main menu provides several options for you to fine-tune this product's functions. The following table gives details on main menu.

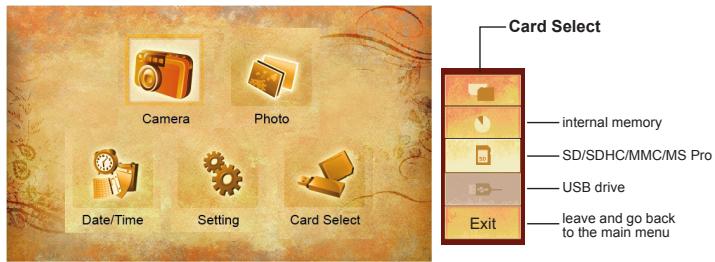

How to... Action Bring up the main menu Press the MENU button ({@} ). Move the highlight bar Use the Menu Navigation {@)) (up/doumnlright, Enter sub-menu / Confimm an item Press @ (the Slideshow/OK button). Exit menu / Go back to sideshow dispiay | Press the EXIT button (5)

leave and go back 16 Une main menu

+ Camera: go to the camera preview mode.

+ Photo: display all the photos stored in the interal/external memory. You can also Copy { Lfy) or Delete (Ê} ) a photo in this option.

+ DatelTime: set date, time and alarm clock. {see *SETTING DATEITIME/ALARM" section)

+ Card Select: change the storage device.

ViewSonic 12 DPF8-CAM Advanced Setting

Use the Menu Navigation ( (&) } on the back side to move Up/Down/Left/Right to Select the item and press Slideshow button ( El ) to confirm the setting.

Language: Set the language to be used for “On Screen Display”. Camera resolution:

Set the photo resolution in 3 Mega-pixel or 5 Mega-pixel. Sleep mode:

Set the auto-power-off function. Off/30min/1hr/2hr/4hr/8hr

Screen setting: Set the screen Brightness/Contrast (4 to +4). Slideshow speed:

Set ihe speed for slideshow playback. 5 sec/10 sec/15 sec/30 sec/1 min/3 min/S hr/10 hr/24 hr

Memory size: This option shows the remaining size of current device. Display mode:

[Smart ratio]: the photo frame will automatically display a photo in best ratio depending on its smart program.

[Original]: display a photo in original mode.

Fit to screen]: display a photo in fit-to-screen mode.

Set the pattern for slideshow playback.

If date stamp function is enabled, the date will be printed on the photos you took. Dateltime:

Check the status of date, time and alarm clock.

Power indicator is not lit.

Power is off or power indicator is broken.

Check whether the power supply

the socket works normall.

Îs well connected and

The order of image files is not what | wanted.

The order offiles is sorted

by file name Numbers

have higher priority than

Note: Since there are many brands of memory cards, please test the compatibilty on {he spot when you purchase the memory cards. This digital photo frame cannot support pirate cards. Ifthe memory card is correclly inserled, and the start-up intertace is displayed but the photo frame can not read the card, please turn off and restart the photo frame, or format the card and re-copy files.

Using remote control

© Betore using the remote control, be sure to remove the insulator.

fn | © lenerconnmsicesron

ViewSonic 15 DPF8-CAM Customer

For technical support or product service, see the table below or contact your reseller. Note : Vou will need the product serial number

Contact your resaller

ViewSonic 16 DPF8-CAM Limited Warranty ViewSonic” Digital Photo Frame

What the warranty covers:

ViewSonic warrants its products to be free from defects in material and workmanship, under normal use, during the warranty period. f a product proves to be defective in material or workmanship during the warranty period, ViewSonic wil, at its sole option, repair or replace the product with a like product. Replacement product or parts may include remanufactured or refurbished parts or components.

How long the warranty is effective: ViewSonic Digital Photo Frame are warranted for 1 year for labor from the date of the first customer purchase.

Who the warranty protects: ‘This warranty is valid only for the first consumer purchaser.

What the warranty does not cover: 1... Any product on which {he serial number has been defaced, modified or removed. 2. Damage, delerioration or malfunction resuling from: 8. Accident, misuse, neglect, fire, water, lighining, or other acts of nature, unauthorized product modification, or failure to follow instructions supplied with the product. Any damage of {he product due Lo shipment. Removal or installation of the product. Causes external to the product, such as electrical power fluctuations or failure. Use of supplies or paris not meeting ViewSonic's specifications. Normal wear and tear. ‘Any other cause which does not relate Lo a product defect. 3. Any product exhibiting a condition commonly known as “image burn static image is displayed on the product for an extended period of time. 4. Removal installation, one way transportation, insurance, and sel-up service charges.

which results when a

1... Forinfommation about receiving service under warranty, contact ViewSonic Customer Support {please refer to Customer Support page). You wil need Lo provide your products serial number.

2. To obtain warranted service, you will be required to provide (a) the original dated sales slip, {b) your name, (c) your address, (d) a description of the problem, and (e) ihe serial number of the product

3. Take or ship the product freïght prepaid in the original container Lo an authorized ViewSonic service center or ViewSonic.

4. For additional information or the name of the nearest ViewSonic service center, contact ViewSonic.

ViewSonic 17 DPF8-CAM Limitation of implied warranties: ‘There are no warranties, express or implied, which exlend beyond the description contained herein including the implied warranty of merchantabiity and fitness for a particular purpose.

Exclusion of damages: ViewSonic liabiliy is limited to the cost of repair or replacement of the product. ViewSonic shall not be liable for:

1... Damage Lo other property caused by any defects in the product, damages based upon inconvenience, loss of use of he product, loss of lime, loss of profits, loss of business opportunity, loss of goodwil, interference with business relationships, or other commercial loss, even if advised of the possibilty of such damages.

2. Any other damages, whelher incidental, consequential or otherwise.

3. Any claim against the customer by any other party.

4. Repair or attempted repair by anyone not authorized by ViewSonic.

4.3: ViewSonic DPF Warranty DPF_LWO1 Rev. 1A 06-20-08

ViewSonic 18 DPF8-CAM
