Product Type	Digital Photo Frame
Brand	ViewSonic
Model	VFD920W-12
Display Size	9 inches (diagonal)
Display Resolution	800 x 600 pixels
Aspect Ratio	4:3
Supported Memory Cards	SD, SDHC, MMC, MS, xD
USB Ports	1 x USB 2.0 (host)
Internal Memory	128 MB (expandable via card)
Power Supply	DC 5V, 1.5A (included adapter)
Power Consumption	Approx. 5W (max)
Weight	Approx. 1.2 lbs (0.54 kg)
Dimensions (W x H x D)	10.2 x 7.3 x 1.5 inches (259 x 185 x 38 mm)
Color	Black/Glossy finish
Supported Image Formats	JPEG, BMP, PNG, GIF
Slideshow Modes	Multiple transition effects, adjustable timing
Additional Functions	Clock, calendar, alarm, temperature display
Remote Control	Included (IR, range 15 ft)
Cleaning Instructions	Use a soft, dry cloth. Do not use liquid cleaners.
Safety Precautions	Keep away from moisture and extreme temperatures. Unplug during storms.
Spare Parts & Repairability	Contact ViewSonic support; no user-serviceable parts.

Frequently Asked Questions - VFD920W-12 VIEWSONIC

How do I turn on the ViewSonic VFD920W-12 digital photo frame?

Press and hold the Power button located on the top edge of the frame for 2 seconds. The screen will light up and begin displaying photos.

What memory cards does the VFD920W-12 support?

It supports SD, SDHC, MMC, Memory Stick, and xD-Picture Card formats. Insert the card into the slot on the side of the frame.

Can I connect the frame to my computer?

Yes, you can connect via the USB 2.0 port (host) to transfer photos from a USB flash drive. However, it does not support direct PC connection for file transfer; use a memory card or USB drive instead.

How do I set up the clock and calendar?

Go to the Settings menu using the remote control or buttons. Select Clock/Calendar and adjust the date and time using the arrow keys. Confirm with the OK button.

Why is my photo frame not reading the memory card?

Ensure the card is properly inserted in the correct orientation. The frame supports FAT16/FAT32 formatted cards. If the card is exFAT or NTFS, reformat it to FAT32. Also check if the card capacity is within the supported limit (up to 32GB).

Can I display a photo slideshow with background music?

The VFD920W-12 does not have built-in speakers for music playback. It supports image display only. For music, consider using an external device.

How do I rotate a photo on the screen?

During slideshow or photo view, press the Rotate button on the remote control. Each press will rotate the image by 90 degrees.

What is the resolution of the display?

The screen resolution is 800 x 600 pixels, which provides clear and sharp images for a 9-inch frame.

Can I use the frame as a digital clock?

Yes, the frame has a Clock mode. Enable it from the menu to display the current time, date, and optional alarm. You can choose between 12-hour and 24-hour formats.

How do I clean the screen without damaging it?

Turn off and unplug the frame. Use a soft, lint-free cloth slightly dampened with water (or a specialized screen cleaner) to gently wipe the screen. Do not spray liquid directly; apply to the cloth first. Avoid using abrasive cleaners.

USER MANUAL VFD920W-12 VIEWSONIC

ViewSonic® Digital Photo Frames

2010

VFM1042-52

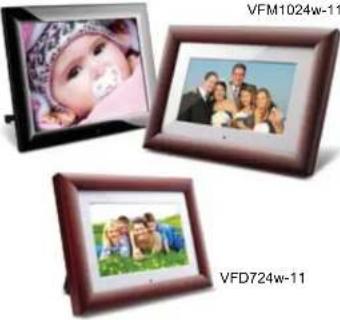

Three decorative frames with family photos, displayed side by side (no text or symbols visible on the frames themselves)

Stylish Photo Frames

Relieve your life's most precious moments with ViewSonic® Digital Photo Frames. It's the easy way to take all your favorite digital photos from your computer, camera or thumb drive and proudly display them in a slideshow horizontally or vertically. Customize your own slideshow with your favorite photos. Some models include a speaker background music.

These beautiful photo frames make great gifts for weddings, baby showers, graduations, anniversaries, birthdays, holidays or any other gift-giving occasion that calls for a truly memorable gift.

	DPG807BK VFA710w-50 VFA724w-10 VFD720-12 VFD724w -11 VFD810-50
Screen Size (in.) 8 7 7 7 7 8
Aspect Ratio 4:3 16:9 16:9	4:3	16:9	4:3
Screen Resolution	800x600	480x234	480x234	800x600	800x480	800x600
Internal Memory	512MB	-	-	2GB	128MB	-
Brightness (cd/m2)	250	200	200	200	220	250
Contrast Ratio (typ)	500:1	300:1	500:1	400:1	400:1	500:1
Speakers	2x1.5-watt --	-	--
Calendar	Yes	--	Yes	Yes -
Clock/Timer	Yes	-	-	Yes	Yes	-
Alarm	Yes	-	-	-	-	-
Audio Format	MP3	-	-	-	-	-
Photo Formats	JPEG, BMP	JPEG	JPEG	JPEG	JPEG	JPEG
Video Formats	M-JPEG, MPEG1/4	-	-	-	-	-
USB Interface	2.0 Host/Device	2.0 Host	2.0 Host	2.0 Host/Device	2.0 Host/Device	2.0 Host/Device
Memory Support	CF/MMC/MS/SD/XD/SDHC/MS pro	SD/MMC/MS	SD/MMC/MS	SD/MMC/MS	SD/MMC/MS	SD/MS/MMC
Special Features	Hidden SwiTouch"frame controls, slideshow with transition effects and selectable speeds, brightness adjustment, background music, full screen display, easy-to-use ODS display, wall mount option	Slideshow with selectable speeds, easy-to-use OSD	Slideshow with shuffle, transition effects and selectable speeds, wall mount option, easy-to-use OSD	Slideshow with selectable speeds, wall mount option, easy-to-use OSD	Slideshow with transition effects, wall mount option, easy-to-use OSD	Slideshow transition effects, multi-slideshow speed, easy-to-use OSD display, wall mount option
Frame	Black acrylic	Glossy black plastic	Cherry wood	Ebony wood	Genuine wood	Glossy black plastic
Remote Control	---	Yes	Yes -

Sales: [phone] · [e-mail] · ViewSonic.com

For the most current product accessories and specifications visit ViewSonic.com. Availability, pricing and specifications subject to change without notice. Selection, offers and programs may vary by country, see your ViewSonic representative for complete details. Corporate names, trademarks stated herein are the property of their respective companies. Copyright © 2010 ViewSonic Corporation. All rights reserved. [14/09/4/18-03(1)]

Black-and-white photo of a smiling couple in a floral setting (no text or symbols visible)

VFD1020-12

• Easy to use on-screen menus
• Clock and calendar keep you on schedule
- Slideshow feature lets you add transition effects and variable display speeds
• USB 2.0 port allows for fast photo imports
• Supports most popular memory cards

ViewSonic® Digital Photo Frames

2010

	VFM842-12 VFM842-52 VFP838-11 VFD920w-12 VFD1020-12
Screen Size (in.) 8.4 8.4 8 9 10
Aspect Ratio 4:3 4:3 4:3 16:9 4:3
Screen Resolution	800x600	800x600	800x600	800x480	1024x768
Internal Memory	2GB	2GB	512MB	2GB	2GB
Brightness (cd/m2)	250	250	200 200 250
Contrast Ratio (typ)	600:1	600:1	400:1	500:1	500:1
Speakers	2x1-watt	2x1-watt	2x1.5 watt	-	-
Calendar	Yes	Yes Yes	Yes Yes
Clock/Timer	Yes	Yes	Yes	Yes	Yes
Alarm	Yes	Yes	Yes	-	-
Audio Formats	MP3	MP3	MP3,WMA	-	-
Photo Formats	JPEG	JPEG	JPEG	JPEG	JPEG
Video Formats	M-JPEG, MPEG1/4	M-JPEG, MPEG1/4	M-JPEG	-	-
USB Interface	2.0 Host/Slave	2.0 Host/Slave	2.0 Host/Device	2.0 Host/Device	2.0 Host/Device
Memory Support	SD/SDHC/MMC/MS/MS Pro	SD/SDHC/MMC/MS/MS Pro	SD/SDHC/MMC/ MS/MS Pro/CF	SD/MMC/MS	SD/MMC/MS
Special Features	Slideshow with suffle, transition effects and selectable speeds, auto on/off, easy-to-use OSD, auto picture rotation, magic feature for 4-way split screen and random image rotation, background music, wall mount option	Slideshow with suffle, transition effects and selectable speeds, auto on/off, easy-to-use OSD, auto picture rotation, magic feature for 4-way split screen and random image rotation, background music, wall mount option	WiFi enabled, supports video and music playback, supports Flickr and Picasa, FrameChannel for custom RSS feed, instant news and weather, wall mount option	Slideshow with selectable speeds, wall mount option, easy-to-use OSD	Slideshow with selectable speeds, wall mount option, easy-to-use OSD
Frame Color	Ebony wood	Glossy, black plastic	Ebony wood	Ebony wood	Ebony wood
Remote Control	Yes	Yes Yes	Yes Yes

Sales: [phone] · [e-mail] · ViewSonic.com

For the most current product accessories and specifications visit ViewSonic.com. Availability, pricing and specifications subject to change without notice. Selection, offers and programs may vary by country, see your ViewSonic representative for complete details. Corporate names, trademarks stated herein are the property of their respective companies. Copyright © 2010 ViewSonic Corporation. All rights reserved. [14/07-4/18-03(1)]

framed picture of three young girls in white dresses sitting on a table outdoors (no text or symbols visible)

VFM1530-11

• Easy to use on-screen menus
  • Clock and calendar keep you on schedule
  • Slideshow feature variable display speeds
  • USB 2.0 port allows for fast photo imports
  • Supports most popular memory cards

ViewSonic® Digital Photo Frames

2010

	VFM1024w-11 VFM1042-52 VFM1035-52 VFP1038-11 VFM1530-11
Screen Size (in.) 10 10.4 10	10.4 15
Aspect Ratio 16:9 4:3 16:9 4	3 4:3
Screen Resolution 1024x600	800x600 1024x768 800x600 10	24x768
Internal Memory	128MB	2GB	2GB	1GB	256MB
Brightness (cd/m2)	250 300 250 300	400
Contrast Ratio (typ)	500:1	500:1	600:1	500:1	500:1
Speakers	2x0.5-watt	2x1-watt	2x1-watt	2x1.5-watt	2x1-watt
Calendar	Yes Yes Yes Yes	Yes
Clock/Timer	Yes Yes Yes Yes	Yes
Alarm	Yes Yes Yes Yes	Yes
Audio Formats MP3 MP3	MP3	MP3, WMA	MP3
Photo Formats	JPEG	JPEG	JPEG	JPEG	JPEG
Video Formats	M-JPEG, MPEG1/4	M-JPEG, MPEG1/4	M-JPEG, MPEG1/4	M-JPEG/MPEG 1/4	MPEG 1/4
USB Interface	2.0 Host/Slave	2.0 Host/Slave	2.0 Host/Device	2.0 Host/Device	2.0 Host/Device
Memory Support	SD/SDHC/MMC/MS/MS Pro	SD/SDHC/MMC/MS/MS Pro/CF	SD/SDHC/MMC/MS/MS Pro	SD/SDHC/MMC/MS/MS Pro/CF	SD/SDHC/MMC/MS/CF
Special Features	Slideshow with shuffle, transition effects and selectable speeds, auto on/off, easy-to-use OSD, auto picture rotation, magic feature for 4-way split screen and random image rotation, background music, wall mount option	Slideshow with shuffle, transition effects and selectable speeds, auto on/off, easy-to-use OSD, auto picture rotation, magic feature for 4-way split screen and random image rotation, background music, wall mount option	Slideshow with selectable speeds, wall mount option, SwifTouchTM hidden control, easy-to-use OSD	WiFi-enabled, supports video and music playback, auto On/Off function, supports Flickr and Picasa, FrameChannel for custom RSS feed, instant news and weather, wall mount option, easy-to-use OSD	Wall mount option, slideshow with selectable speeds, background music, easy-to-use OSD
Frame Color	Cherry wood	Cherry wood	Black acrylic	Ebony wood	Dark brown wood
Remote Control	Yes	Yes	Yes	Yes	Yes

Sales: [phone] · [e-mail] · ViewSonic.com

For the most current product accessories and specifications visit ViewSonic.com, Instability, pricing and specifications subject to change without notice. Selection, offers and programs may vary by country, see your ViewSonic representative for complete details. Corporate names, trademarks stated herein are the property of their respective companies. Copyright © 2019 ViewSonic Corporation. All rights reserved. [14/07-4/18-03(1)]
