Product Type	Digital Photo Frame
Brand	Viewsonic
Model	VFA720w-50
Display Size	7 inches
Resolution	800 x 480 pixels
Aspect Ratio	16:9 widescreen
Dimensions (W x H x D)	200 x 150 x 30 mm
Weight	550 g
Power Supply	DC 5V, 1A via AC adapter
Supported Memory Cards	SD, SDHC, MMC (up to 32 GB)
USB Port	USB 2.0 Host for flash drives
Photo Formats	JPEG, BMP, PNG, GIF
Video Formats	AVI, MP4, MOV, RMVB
Audio Formats	MP3, WMA, WAV
Slideshow Modes	Multiple transition effects, adjustable speed
Clock & Calendar	Built-in with alarm function
Remote Control	Infrared remote included
Internal Memory	512 MB built-in flash
Care & Cleaning	Wipe with soft, dry cloth; avoid solvents
Safety Precautions	Keep away from moisture; do not disassemble
Spare Parts Availability	Remote control and AC adapter available from Viewsonic
General Information	Viewsonic digital photo frame with 7-inch display, supports various media formats, includes remote control and built-in memory.

Frequently Asked Questions - VFA720w-50 VIEWSONIC

How do I insert photos into the frame?

Insert an SD card or USB flash drive with JPEG photos into the corresponding slot. The frame will automatically detect and display the images.

Can I play videos on the Viewsonic VFA720w-50?

Yes, the frame supports video formats such as AVI, MP4, MOV, and RMVB. Simply transfer video files to a memory card or USB drive and insert it.

How do I set the clock?

Press the 'Menu' button, navigate to 'Clock Settings', adjust the date and time using the direction buttons, and confirm with 'OK'.

What memory cards are compatible?

The frame supports SD, SDHC, and MMC cards up to 32 GB. Make sure the card is formatted in FAT32.

Can I rotate photos?

Yes, during slideshow, press the 'Rotate' button on the remote control to rotate the current image 90 degrees clockwise.

The frame does not power on. What should I do?

Check the AC adapter connection and ensure it is securely plugged into the frame and power outlet. Try a different outlet. If still not working, contact Viewsonic support.

How do I clean the screen?

Use a soft, dry microfiber cloth to gently wipe the screen. Do not use liquid cleaners or abrasive cloths.

Can I use the frame without a memory card?

Yes, the frame has 512 MB of built-in memory. You can copy photos directly to the internal memory via USB connection to a computer.

Does the frame include a remote control?

Yes, an infrared remote control is included for convenient operation from a distance.

How do I change slideshow transition effects?

Press 'Menu', go to 'Slideshow Settings', select 'Transition Effect', and choose from available options like fade, dissolve, or slide.

USER MANUAL VFA720w-50 VIEWSONIC

IMPORTANT: Please read this User Guide to obtain important information on installing and using your product in a safe manner, as well as registering your product for future service. Warranty information contained in this User Guide will describe your limited coverage from ViewSonic Corporation, which is also found on our web site at http://www.viewsonic.com in English, or in specific languages using the Regional selection box in the upper right corner of our website. "Antes de operar su equipo lea cu idadosamente las instrucciones en este manual"

Model No. VS14400

Compliance Information

FCC Statement

This device complies with part 15 of FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy, and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.

Warning: You are cautioned that changes or modifications not expressly approved by the party responsible for compliance could void your authority to operate the equipment.

For Canada

CE Conformity for European Countries

The device complies with the EMC Directive 2004/108/EC and Low Voltage Directive 2006/95/EC.

Following information is only for EU-member states:

The mark is in compliance with the Waste Electrical and Electronic Equipment Directive 2002/96/EC (WEEE).

The mark indicates the requirement NOT to dispose the equipment including any spent or discarded batteries or accumulators as unsorted municipal waste, but use the return and collection systems available.

If the batteries, accumulators and button cells included with this equipment, display the chemical symbol Hg, Cd, or Pb, then it means that the battery has a heavy metal content of more than 0.0005% Mercury or more than, 0.002% Cadmium, or more than 0.004% Lead.

Declaration of RoHS Compliance

This product has been designed and manufactured in compliance with Directive 2002/95/EC of the European Parliament and the Council on restriction of the use of certain hazardous substances in electrical and electronic equipment (RoHS Directive) and is deemed to comply with the maximum concentration values issued by the European Technical Adaptation Committee (TAC) as shown below:

Substance	Proposed Maximum Concentration	Actual Concentration
Lead (Pb) 0.1% < 0.1%
Mercury (Hg) 0.1% < 0.1%
Cadmium (Cd) 0.01% < 0.01%
Hexavalent Chromium ( Cr^6+ ) 0.1% < 0.1%
Polybrominated biphenyls (PBB) 0.1%	< 0.1%
Polybrominated diphenyl ethers (PBDE)	0.1% < 0.1%

Certain components of products as stated above are exempted under the Annex of the RoHS Directives as noted below:

Examples of exempted components are:

1. Mercury in compact fluorescent lamps not exceeding 5 mg per lamp and in other lamps not specifically mentioned in the Annex of RoHS Directive.
2. Lead in glass of cathode ray tubes, electronic components, fluorescent tubes, and electronic ceramic parts (e.g. piezoelectronic devices).
3. Lead in high temperature type solders (i.e. lead-based alloys containing 85% by weight or more lead).
4. Lead as an allotting element in steel containing up to 0.35% lead by weight, aluminium containing up to 0.4% lead by weight and as a cooper alloy containing up to 4% lead by weight.

Copyright Information

Copyright© ViewSonic Corporation, 2011. All rights reserved.

ViewSonic, the three birds logo, OnView, ViewMatch, and ViewMeter are registered trademarks of ViewSonic Corporation.

Disclaimer: ViewSonic Corporation shall not be liable for technical or editorial errors or omissions contained herein; nor for incidental or consequential damages resulting from furnishing this material, or the performance or use of this product.

In the interest of continuing product improvement, ViewSonic Corporation reserves the right to change product specifications without notice. Information in this document may change without notice.

No part of this document may be copied, reproduced, or transmitted by any means, for any purpose without prior written permission from ViewSonic Corporation.

For Your Records

Product Name: VFA720W ViewSonic Digital Photo Frame

Model Number: VS14400

Document Number: VFA720W_UG_ENG Rev. 1A 07-29-11

Serial Number: ____

Purchase Date: ____

Product disposal at end of product life

ViewSonic respects the environment and is committed to working and living green. Thank you for being part of Smarter, Greener Computing. Please visit ViewSonic website to learn more.

USA and Canada: http://www.viewsonic.com/company/green/recycle-program/

Europe: http://www.viewsoniceurope.com/uk/kbase/article.php?id=639

Taiwan: http://recycle.epa.gov.tw/recycle/index2.aspx

Important Safety Instructions

Always follow the basic safety precautions below when using your Digital Photo Frame. This will reduce the risk of fire, electric shock, and injury.

Warning: To reduce the risk of fire or shock hazard, do not expose this product to rain or moisture, do not remove the cover, there are no spare parts inside, refer all product services to professional personnel.

• Digital Photo frame is for indoor use only.
• Unplug Digital Photo frame before performing care and maintenance.
- Do not block the ventilation holes on the back of Digital Photo Frame at any time.
- Keep your Multimedia Digital Photo Frame out of direct sunlight and heat source.
- Route power cord appropriately to avoid trip over by someone else or pinched by items placed on or against them.
- Only use the AC adapter included with the Digital Photo Frame. Using any other power adapter will void your warranty.
- Unplug the power cord from the outlet when the unit is not in use.

Cleaning LCD Screen

The screen is made of glass which can be scratched or damaged

To clean fingerprints or dust from the LCD screen, use a soft / nonabrasive cloth such as a camera lens cloth to clean the LCD screen.

Do not apply the cleaning liquid directly to the LCD screen. Clean the LCD screen with cleaning cloth moistened with the liquid.

Cleaning Digital Photo Frame

Clean outer surface of Digital Photo Frame (excluding the screen) with a soft cloth dampened with water.

Package Content

• Digital Photo Frame
- AC power adapter
- Stand
• This User Guide
- Quick Start Guide

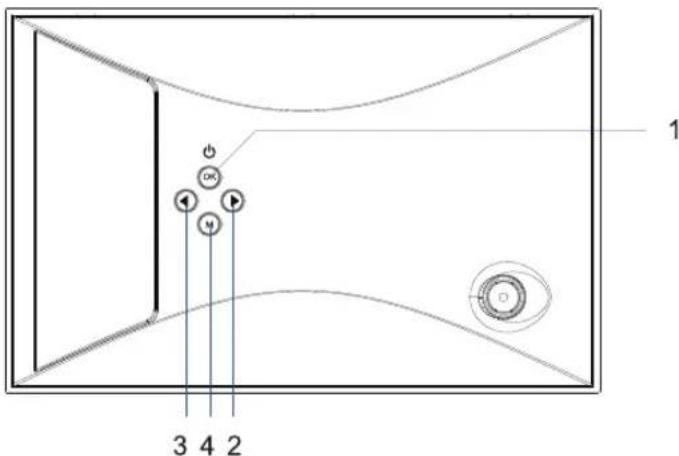

Identify the Parts

1. ⏻/OK

Short press: Power On.

Pause or Play.

Move the selection Up.

Press and hold 1 seconds: Enter.

Press and hold 3 seconds: Power Off.

2.

Move the selection Left, display the Previous photo.

3.

Move the selection Right, display the Next photo.

1. M

Short press: Move the selection Down, Exit slideshow.

Press and hold 2 seconds: Show or close the OSD Menu Mode.

OSD Menu Mode will close automatically after 10 seconds of menu inactivity.

1. USB port for USB Flash Drives

2. Card slot for SD, SDHC, MMC, MS

3. DC power input

4. Stand

Setup Up the Digital Photo Frame

The Digital Photo Frame is easy to set up. Just follow these steps:

1. Insert the stand with the notch facing up.
2. Insert a memory card into appropriate slot.

SD, SDHC, MMC, MS.

Note: The card will only fit in one direction; do not force it. The card should fit snugly when properly inserted. Please see the memory card diagrams printed on the back of the photo frame.

1. Plug the AC Power Adapter into the Digital Photo Frame and into a wall outlet.

2. Press the OK on the back of the Digital Photo frame to power ON. The Digital Photo frame will automatically start a slide show of the photos on the memory card.

3. To display photos individually, press the button to open the Thumbnails Screen. Use the ◀ / ▶/ OK/ M to choose a Photo. Press and hold 1 seconds on the back of the Digital Photo Frame for full screen and start a slide show.

4. Press OK to pause or restart the Slide Show.

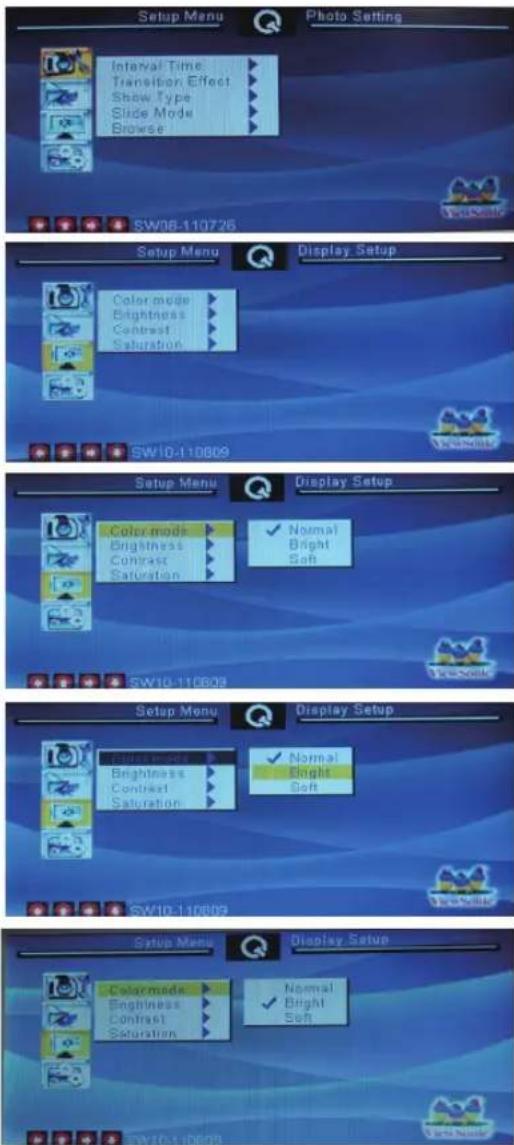

Setting Viewing Options

You can control all of the viewing options in the Setup menu using the buttons on the back of the photo frame.

1. To show the Setup Menu, press and hold the Ⓜ button 2 seconds.

2. With the Setup Menu open, use the Ⓜ / Ⓞ to choose a Display Setup.

3. Press ◀ to enter the sub-menu and listing the available settings. A √ shows the current setting.

4. Use the Ⓜ / Ⓞ to highlight a setting.

5. Press and hold OK button 1 seconds to select the setting. The √ moves to the selected setting.

6. You can change other settings in the same manner. When you are finished, press and hold the Ⓜ button 2 seconds to close the Setup Menu.

Technical Specification

Product 17.8cm/7.0” LCD	Screen Digital Photo Frame
Resolution 480 x 234 pixels
Memory Card Format SD, SDHC, MMC, MS (max:32GB)
File Format JPEG, BMP (Up to 18 million pixel)
Feature	Slideshow modeMultiple transitional Style for SlideshowVariable Speed for Slide Show
USB Port USB 2.0 (Host)
Power Adapter Input 100V-240V AC, 50~60Hz
Power Adapter output 5V DC, 1A

Customer Support

For technical support or product service, see the table below or contact your reseller.

Note: You will need the product serial number.

Country/Region Web Site		T=TelephoneF=Fax	E-mail
Australia/New Zealand www.viewsonic.com.au		AUS=1800 880 818NZ=0800 008 822	[e-mail]
Canada www.viewsonic.com		T (Toll-Free)= 1-866-463-4775T (Toll)= 1-424-233-2533F= 1-909-468-3757	[e-mail]
Europe www.viewsoniceurope.com www.viewsoniceurope.com/uk/support/call-desk
Hong Kong www.hk.viewsonic.com T= 852 3102 2900 [e-mail]
India www.in.viewsonic.com T= 1800 266 0101 [e-mail]
Ireland (Eire)	www.viewsoniceurope.com/uk/	www.viewsoniceurope.com/uk/support/call-desk/	[e-mail]
Korea www.kr.viewsonic.com T= 080 333 2131 [e-mail]
Latin America (Argentina) www.viewsonic.com/la/ T= 0800-4441185 [e-mail]
Latin America (Chile) www.viewsonic.com/la/ T=1230-020-7975 [e-mail]
Latin America (Columbia) www.viewsonic.com/la/ T= 01800-9-157235 [e-mail]
Latin America (Mexico) www.viewsonic.com/la/ T= 001-8882328722 [e-mail]
Renta y Datos, 29 SUR 721, COL. LA PAZ, 72160 PUEBLA, PUE. Tel: [phone] CON 10 LINEASElectroser, Av Reforma No. 403Gx39 y 41, 97000 Merida, Yucatan. Tel: [phone]Other places please refer to http://www.viewsonic.com/la/soporte/index.htm#Mexico
Latin America (Peru)	www.viewsonic.com/la/	T= 0800-54565	[e-mail]
Macau	www.hk.viewsonic.com T= 853 2870 0303 [e-mail]
Middle East	ap.viewsonic.com/me/	Contact your reseller	[e-mail]
Puerto Rico and Virgin Islands	www.viewsonic.com	T= 1-800-688-6688 (English)T= 1-866-379-1304 (Spanish)F= 1-909-468-3757	[e-mail]@viewsonic.com
Singapore/Malaysia/Thailand	www.viewsonic.com.sg T= 65 6461 6044 [e-mail]
South Africa	ap.viewsonic.com/za/	Contact your reseller	[e-mail]
United Kingdom	www.viewsoniceurope.com/uk/	www.viewsoniceurope.com/uk/support/call-desk/	[e-mail]
United States	www.viewsonic.com	T (Toll-Free)= 1-800-688-6688T (Toll)= 1-424-233-2530F= 1-909-468-3757	[e-mail]

Limited Warranty

VIEWSONIC Digital Photo Frame

What the warranty covers:

ViewSonic warrants its products to be free from defects in material and workmanship, under normal use, during the warranty period. If a product proves to be defective in material or workmanship during the warranty period, ViewSonic will, at its sole option, repair or replace the product with a like product. Replacement product or parts may include remanufactured or refurbished parts or components.

How long the warranty is effective:

ViewSonic Digital Photo Frame are warranted for 1 year for labor from the date of the first customer purchase.

Who the warranty protects:

This warranty is valid only for the first consumer purchaser.

What the warranty does not cover:

1. Any product on which the serial number has been defaced, modified or removed.
2. Damage, deterioration or malfunction resulting from:

a. Accident, misuse, neglect, fire, water, lightning, or other acts of nature, unauthorized product modification, or failure to follow instructions supplied with the product.
b. Repair or attempted repair by anyone not authorized by ViewSonic.
c. Causes external to the product, such as electric power fluctuations or failure.

d. Use of supplies or parts not meeting ViewSonic's specifications.
e. Normal wear and tear.
f. Any other cause which does not relate to a product defect.

1. Any product exhibiting a condition commonly known as “image burn-in” which results when a static image is displayed on the product for an extended period of time.

How to get service:

1. For information about receiving service under warranty, contact ViewSonic Customer Support (please refer to Customer Support page). You will need to provide your product's serial number.
2. To obtain warranted service, you will be required to provide (a) the original dated sales slip, (b) your name, (c) your address, (d) a description of the problem, and (e) the serial number of the product.
3. Take or ship the product freight prepaid in the original container to an authorized ViewSonic service center or ViewSonic.
4. For additional information or the name of the nearest ViewSonic service center, contact ViewSonic.

Limitation of implied warranties:

There are no warranties, express or implied, which extend beyond the description contained herein including the implied warranty of merchantability and fitness for a particular purpose.

Exclusion of damages:

ViewSonic's liability is limited to the cost of repair or replacement of the product. ViewSonic shall not be liable for:

1. Damage to other property caused by any defects in the product, damages based upon inconvenience, loss of use of the product, loss of time, loss of profits, loss of business opportunity, loss of goodwill, interference with business relationships, or other commercial loss, even if advised of the possibility of such damages.

2. Any other damages, whether incidental, consequential or otherwise.

3. Any claim against the customer by any other party.

4.3: ViewSonic DPF Warranty

DPF_LW01 Rev. 1A06-20-08

Mexico Limited Warranty

VIEWSONIC Digital Photo Frame

What the warranty covers:

ViewSonic warrants its products to be free from defects in material and workmanship, under normal use, during the warranty period. If a product proves to be defective in material or workmanship during the warranty period, ViewSonic will, at its sole option, repair or replace the product with a like product. Replacement product or parts may include remanufactured or refurbished parts or components.

How long the warranty is effective:

ViewSonic Digital Photo Frame are warranted for 1 year for labor from the date of the first customer purchase.

Who the warranty protects:

This warranty is valid only for the first consumer purchaser.

What the warranty does not cover:

1. Any product on which the serial number has been defaced, modified or removed.

2. Damage, deterioration or malfunction resulting from:

a. Accident, misuse, neglect, fire, water, lightning, or other acts of nature, unauthorized product modification, or failure to follow instructions supplied with the product.
b. Repair or attempted repair by anyone not authorized by ViewSonic.
c. Causes external to the product, such as electric power fluctuations or failure.
d. Use of supplies or parts not meeting ViewSonic's specifications.
e. Normal wear and tear.
f. Any other cause which does not relate to a product defect.

1. Any product exhibiting a condition commonly known as “image burn-in” which results when a static image is displayed on the product for an extended period of time.

How to get service:

For information about receiving service under warranty, contact ViewSonic Customer Support (Please refer to the attached Customer Support page). You will need to provide your product's serial number, so please record the product information in the space provided below on your purchase for your future use. Please retain your receipt of proof of purchase to support your warranty claim.

For Your Records

Product Name: ____ Model Number: ____

Document Number: Serial Number:

Purchase Date: Extended Warranty Purchase? (Y/N)

If so, what date does warranty expire?

1. To obtain warranty service, you will be required to provide (a) the original dated sales slip, (b) your name, (c) your address, (d) a description of the problem, and (e) the serial number of the product.
2. Take or ship the product in the original container packaging to an authorized ViewSonic service center.
3. Round trip transportation costs for in-warranty products will be paid by ViewSonic.

Limitation of implied warranties:

There are no warranties, express or implied, which extend beyond the description contained herein including the implied warranty of merchantability and fitness for a particular purpose.

Exclusion of damages:

ViewSonic's liability is limited to the cost of repair or replacement of the product. ViewSonic shall not be liable for:

1. Damage to other property caused by any defects in the product, damages based upon inconvenience, loss of use of the product, loss of time, loss of profits, loss of business opportunity, loss of goodwill, interference with business relationships, or other commercial loss, even if advised of the possibility of such damages.
2. Any other damages, whether incidental, consequential or otherwise.
3. Any claim against the customer by any other party.
4. Repair or attempted repair by anyone not authorized by ViewSonic.

Contact Information for Sales & Authorized Service (Centro Autorizado de Servicio) within Mexico:
Name, address, of manufacturer and importers:México, Av. de la Palma #8 Piso 2 Despacho 203, Corporativo Interpalmas,Col. San Fernando Huixquilucan, Estado de MéxicoTel: (55) 3605-1099 http://www.viewsonic.com/la/soporte/index.htm
NÚMERO GRATIS DE ASISTENCIA TÉCNICA PARA TODO MÉXICO: 001.866.823.2004
Hermosillo:Distribuciones y Servicios Computacionales SA de CV.Calle Juarez 284 local 2Col. Bugambilas C.P: 83140Tel: [phone]E-Mail: [e-mail]	Villahermosa:Compumantenimietnos Garantizados, S.A. de C.V.AV. GREGORIO MENDEZ #1504COL, FLORIDA C.P. 86040Tel: [phone]E-Mail: [e-mail]
Puebla, Pue. (Matriz):RENTA Y DATOS, S.A. DE C.V. Domicilio:29 SUR 721 COL. LA PAZ72160 PUEBLA, PUE.Tel: [phone] CON 10 LINEASE-Mail: [e-mail]	Veracruz, Ver.:CONEXION Y DESARROLLO, S.A DE C.V. Av. Americas #419ENTRE PINZÓN Y ALVARADOFracc. Reforma C.P. 91919Tel: [phone]E-Mail: [e-mail]
ChihuahuaSoluciones Globales en ComputaciónC. Magisterio # 3321 Col. MagisterialChihuahua, Chih.Tel: [phone]E-Mail: [e-mail]	CuernavacaCompusupport de Cuernavaca SA de CVFrancisco Leyva # 178 Col. Miguel HidalgoC.P. 62040, Cuernavaca MorelosTel: 01 777 3180579 / 01 777 3124014E-Mail: [e-mail]
Distrito Federal:QPLUS, S.A. de C.V.Av. Coyoacán 931Col. Del Valle 03100, México, D.F.Tel: [phone]E-Mail : [e-mail]	Guadalajara, Jal.:SERVICRECE, S.A. de C.V.Av. Niños Héroes # 2281Col. Arcos Sur, Sector Juárez44170, Guadalajara, JaliscoTel: 01(52)33-36-15-15-43E-Mail: [e-mail]
Guerrero AcapulcoGS Computación (Grupo Scsicomp)Progreso #6-A, Colo Centro39300 Acapulco, GuerreroTel: 744-48-32627	Monterrey:Global Product ServicesMar Caribe # 1987, Esquina con Golfo PérsicoFracc. Bernardo Reyes, CP 64280Monterrey N.L. MéxicoTel: 8129-5103E-Mail: [e-mail]
MERIDA:ELECTROSERAv Reforma No. 403Gx39 y 41Mérida, Yucatán, México CP97000Tel: [phone]E-Mail: [e-mail]	Oaxaca, Oax.:CENTRO DE DISTRIBUCION YSERVICIO, S.A. de C.V.Murguía # 708 P.A., Col. Centro, 68000, OaxacaTel: 01(52)95-15-15-22-22Fax: [phone]E-Mail. [e-mail]
Tijuana:STDAv Ferrocarril Sonora #3780 L-CCol 20 de NoviembreTijuana, Mexico	FOR USA SUPPORT:ViewSonic Corporation381 Brea Canyon Road, Walnut, CA. 91789 USATel: 800-688-6688 (English); 866-323-8056 (Spanish);Fax: [phone]E-Mail: http://www.viewsonic.com

4.3: ViewSonic Mexico Limited Warranty

DPF_LW03 Rev. 1A 06-25-07

Illustration of three colorful bird perched on a branch against a red background (no text or symbols)

ViewSonic®
