Product type	Paper cutter (trimmer)
Brand	UNITED OFFICE
Model	KH 4436
Cutting mechanisms	Guillotine (scissor) and roller cutter
Cutting capacity (guillotine)	Max. 8 sheets (80 g/m²)
Cutting capacity (roller cutter)	Max. 10 sheets (80 g/m²)
Maximum cutting length	308 mm
Compatible materials	Paper and transparencies (films)
Intended use	Cutting paper and films for private use
Measuring template	With standard size markings (black for roller cutter, blue for guillotine)
Adjustable stop	Allows precise alignment of documents
Blade guard	Yes, for the guillotine
Secure transport device	Locking the guillotine in the low position
Safety	Never use without blade guard; do not touch the blade; cut only on the left side
Maintenance	Clean with a dry cloth; do not use solvents
Warranty	3 years from the date of purchase
After-sales service	Contact by phone or email (see contact details in the manual)
Supplied accessories	Handle, instruction manual
Recommendation	Do not exceed indicated capacities; test thick materials (1 sheet first)
Repairability	Adjustment screw available (SW 14) for guillotine tension

Frequently Asked Questions - KH 4436 PAPER TRIMMER UNITED OFFICE

How to use the roller cutter?

Lower the roller cutter to the bottom position, place the document under the cutting rail, use the adjustable stop and black markings for alignment, then pull the roller cutter up with a firm motion.

How to use the guillotine?

Place the document under the blade guard, press firmly to prevent movement, align using the stop and blue markings, then lower the guillotine with a quick motion.

How to secure the device for transport?

Lower the guillotine completely, then slide the adjustable stop fully to the right until it contacts the handle. The guillotine is then locked.

What is the maximum number of sheets to cut?

For the guillotine: maximum 8 sheets of 80 g/m² paper. For the roller cutter: maximum 10 sheets. Never exceed these limits to avoid damage or injury.

What types of materials can I cut?

This device is designed to cut paper and transparencies (films). For other materials (cardboard, thick plastic), always test with one sheet first.

How to clean the device?

Use a dry cloth to wipe the surface. Never use solvents or abrasive products that could damage the components.

What to do if the guillotine blade does not return automatically?

If the blade remains in the low position, it may be necessary to tighten the screw at the pivot point of the guillotine using a 14 mm wrench. If the problem persists, contact after-sales service.

Where to find spare parts?

Spare parts are not directly listed in the manual. Contact after-sales service at the provided contact details (phone or email) for information on availability.

Is the device suitable for children?

This paper cutter is not a toy. Children should only use it under adult supervision. The blades are very sharp and pose a risk of serious injury.

What is the warranty for this device?

The warranty is 3 years from the date of purchase. It covers material and manufacturing defects, but not normal wear or damage caused by misuse. Keep your receipt.

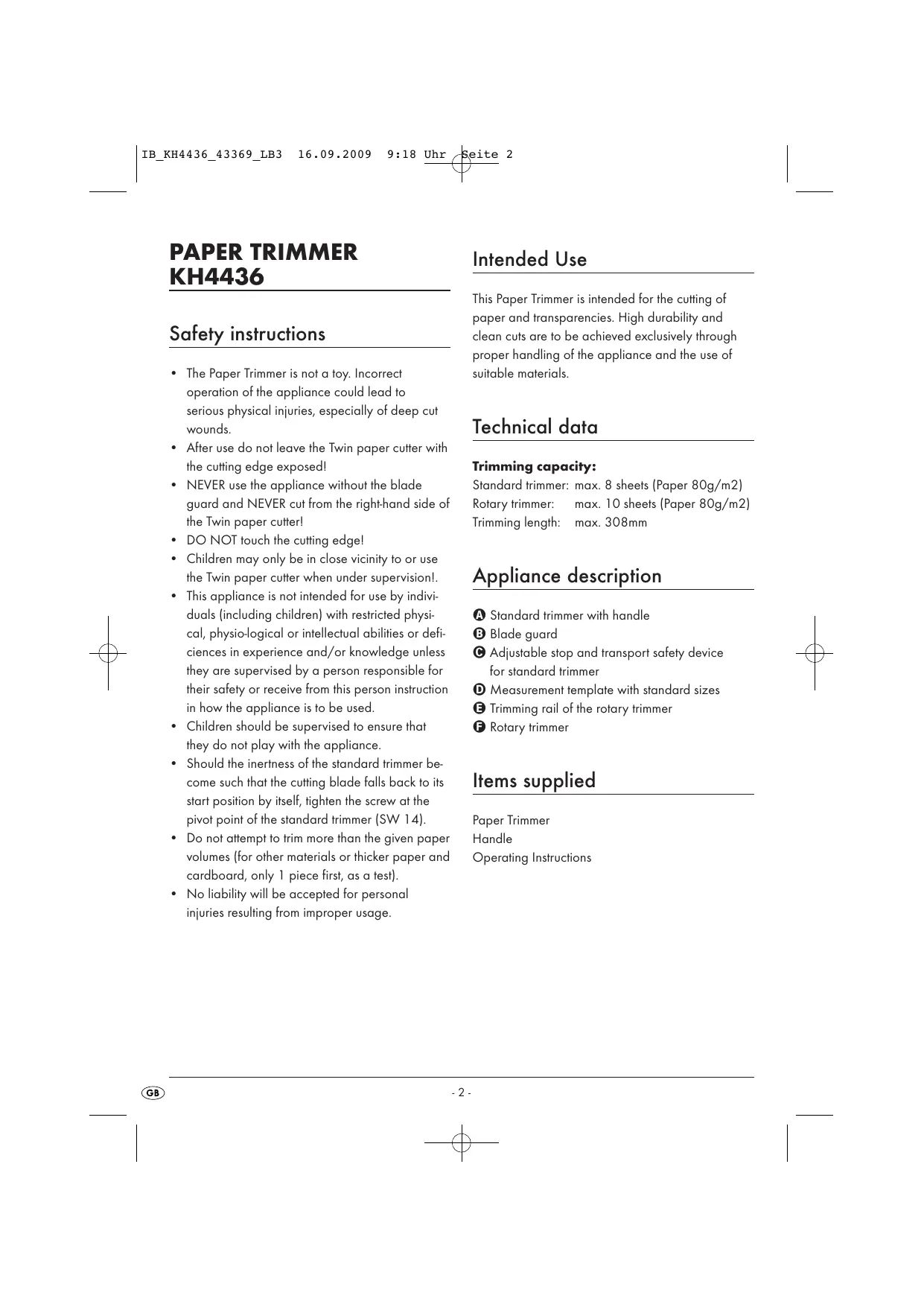

USER MANUAL KH 4436 PAPER TRIMMER UNITED OFFICE

Read the operating instructions carefully before using the appliance for the first time and preserve this booklet for later reference. Pass the manual on to whomsoever might acquire the appliance at a later date.

FI

PAPERILEIKKURI

5

• The Paper Trimmer is not a toy. Incorrect operation of the appliance could lead to serious physical injuries, especially of deep cut wounds.
  After use do not leave the Twin paper cutter with the cutting edge exposed!
• NEVER use the appliance without the blade guard and NEVER cut from the right-hand side of the Twin paper cutter!
  DO NOT touch the cutting edge!
  Children may only be in close vicinity to or use the Twin paper cutter when under supervision!.
• This appliance is not intended for use by individuals (including children) with restricted physical, physio-logical or intellectual abilities or deficiencies in experience and/or knowledge unless they are supervised by a person responsible for their safety or receive from this person instruction in how the appliance is to be used.
  Children should be supervised to ensure that they do not play with the appliance.
• Should the inertness of the standard trimmer become such that the cutting blade falls back to its start position by itself, tighten the screw at the pivot point of the standard trimmer (SW 14).
• Do not attempt to trim more than the given paper volumes (for other materials or thicker paper and cardboard, only 1 piece first, as a test).
• No liability will be accepted for personal injuries resulting from improper usage.

Intended Use

This Paper Trimmer is intended for the cutting of paper and transparencies. High durability and clean cuts are to be achieved exclusively through proper handling of the appliance and the use of suitable materials.

Technical data

Trimming capacity:

Standard trimmer: max. 8 sheets (Paper 80g / m2 Rotary trimmer: max. 10 sheets (Paper 80g / m2 Trimming length: max. 308mm

Appliance description

A Standard trimmer with handle
Blade guard
Adjustable stop and transport safety device for standard trimmer
Measurement template with standard sizes
E Trimming rail of the rotary trimmer
F Rotary trimmer

Items supplied

Paper Trimmer

Handle

Operating Instructions

Preparation

• Remove all packaging material from the appliance.
  Caution: The guillotine A is very sharp. Risk of injury!
  Pull the transport protector from the guillotine A and push the handle on to the blade.

Utilisation

Use of the rotary trimmer

1. Slide the rotary trimmer F downwards.
2. Position the document under the trimming rail .
3. Use the adjustable stop and the black markings on the measurement template D to align the document exactly.
4. Press the document onto the measurement template D and draw the rotary trimmer F to the top.

Use of the standard trimmer

Caution: The standard trimmer is very sharp. Risk of personal injury!

1. Position the document under the blade guard ③ and press it down firmly, such that the document cannot move whilst being trimmed.
2. Use the adjustable stop and the blue markings on the measurement template to align the document exactly.
3. Press the standard trimmer A downwards.

Securing and transportation

To protect the Paper Trimmer both from improper use and during transportation, the standard trimmer is fitted with a securing device.

1. Press the standard trimmer A down completely.
2. Slide the adjustable stop completely to the right and against the handle.

The standard trimmer is now secured for transportation.

The rotary trimmer does not need to be fixed down as it is secured by the trimming rail E

Disposal

Disposing of the appliance

Do not dispose of the appliance in your normal domestic waste.

Dispose of the appliance through an approved dis-posal centre or at your community waste facility.

Observe the currently applicable regulations.

In case of doubt, please contact your waste disposal centre.

Disposal of packaging

Dispose of the packaging materials in an environmentally responsible manner.

Warranty & Service

The warranty for this appliance is for 3 years from the date of purchase. The appliance has been manu-factured with care and meticulously examined before delivery. Please retain your receipt as proof of purchase. In the case of a warranty claim, please make contact by telephone with our service department. Only in this way can a post-free despatch for your goods be assured.

The warranty covers only claims for material and manufacturing defects, not for wearing parts or for damage to fragile components. This product is for private use only and is not intended for commercial use.

The warranty is void in the case of abusive and improper handling, use of force and internal tampering not carried out by our authorized service branch. Your statutory rights are not restricted in any way by this warranty.
