USER MANUAL LYON HAUCK

1. Never leave your child unsupervised.

2. Allfitings must be properly fastened at all times. Screws must not be loose, as children can become stuck on them or items of clothing (e.g. cords, necklaces, and dummy chains) can get caught up on them, and then there is a risk of strangulation.

3. Never leave anything in the cot that your child can use to climb up.

4. Never leave anything in the cot that can pose a risk of your child suffocating or being strangled.

5. Never putthe cot with your child in it near fans, fires, sources of heat, electrical equipment, sharp edges, dangling curtain cords, ties, ribbons or water tanks. These pose a risk of injury.

6. The lowest position of the cot base is the safest. If your child is old enough to sit up, put the cot in the lowest position to ensure maximum security.

7... We recommend that you use a mattress measuring 695 mm x 1,375 mm.

8. The height ofthe mattress must be such that the height to be climbed over (surface of the mattress to top edge of the cot frame) is at least 500 mm in the lowest position of the cot base and at least 200 mm in the highest position.

THIS COT COMPLIES WITH STANDARD 716-1:1995-12, 716-2:1995-8

Before you assemble the cot check that you have all the parts listed Πbelow that should be included.

A Top part of head/foot of the cot 2x

B Bottom part of head/foot of the cot 2x

D2 Side panel with three sliding bars 1x

How to assemble the cot:

Insert the metal pins (1) into the bottom part of the head/foot, then join the top part of the head/foot (A) to the bottom part of the head/foot (B).

Insert the gudgeons (F) into the slatted frame (C) and screw the screws (E) on to the head/foot using the Allen key (1). Do the same with the side panels (D1 and D2).

Use the caps (H) to seal off the openings.

Locate three sliding bars in the middle of side panel D2 (see marking). These can be removed by pressing upwards.

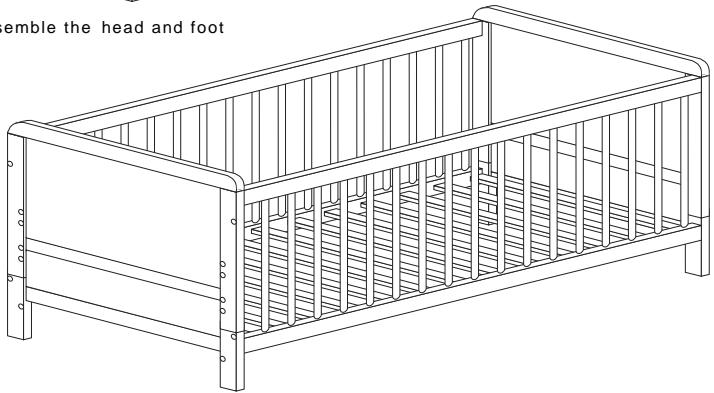

How to assemble the head and foot

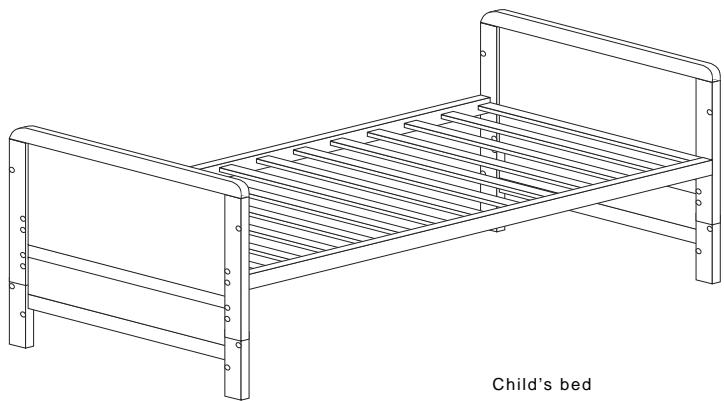

How to assemble / Convert the cot to a child’s bed:

To convert the cot into a child's bed, loosen the screws on the side panels (D1 and D2) and the slatted frame (C) and remove the head/foot (B). Next, join the top parts of the head/foot to the slatted frame (C), tighten the screws and you child's bed is ready to use. Seal off the drill holes with the caps (K).

The cot requires no maintenance. However, check the bed for worn-out parts from time to time and replace them immediately. To clean the cot, please use a damp cloth and mild detergent.
