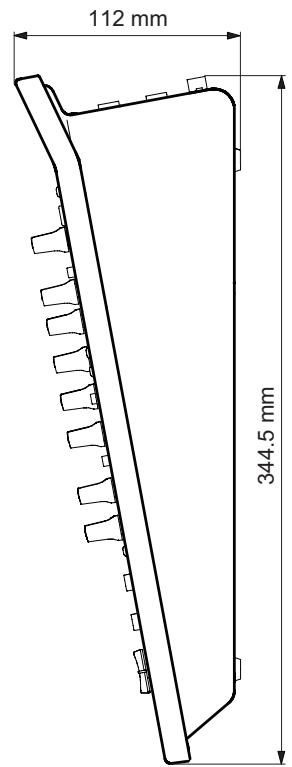

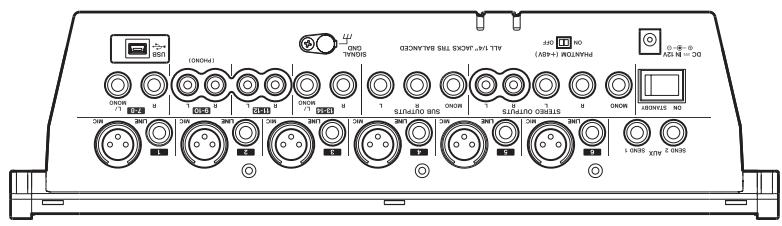

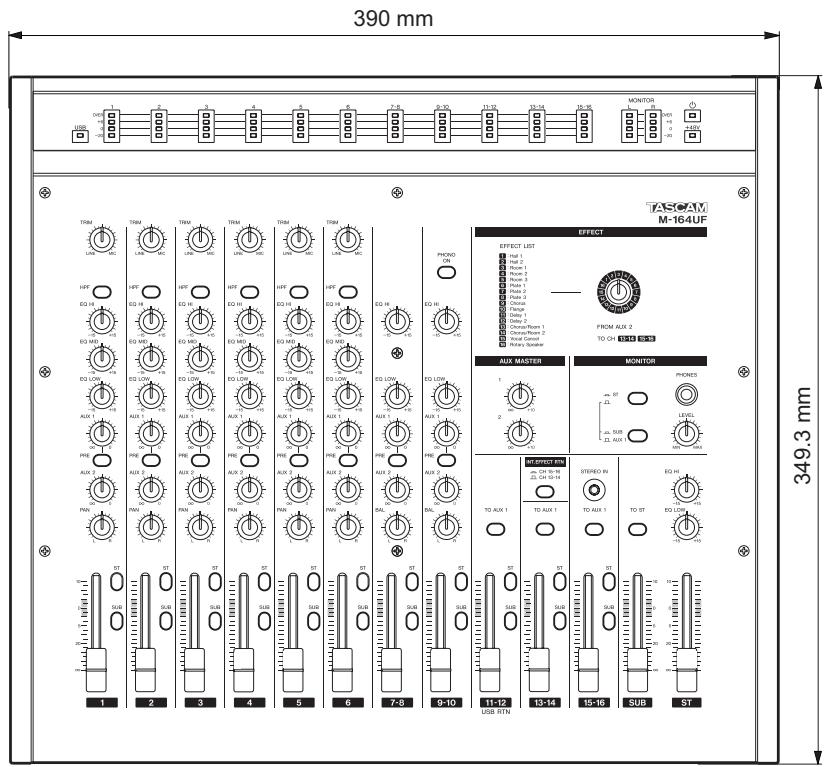

Dimensional drawing. Block diagram Level diagram

This appliance has a serial number located on the rear panel. Please record the model number and serial number and retain them for your records.

Thank you very much for purchasing this TASCAM M-164 series mixer.

Before using the unit, please read this Owner’s Manual carefully so that you will understand the correct operating procedures. We hope that you will enjoy using this product for many years to come.

Please keep this manual for future reference. You can also download a digital copy of this Owner’s Manual from our website (http://www.tascam.com/).

+ Audio mixer with 16 inputs, 4 output busses and 2 AUX sends

+ All input channels have faders and the stereo (ST) and SUB buses have output faders

+ _ Meter bridge allows observation of input and monitor levels

+ Channels 1-6 are mic/line input channels that have both XLR mic input connectors with +48V phantom power, standard jacks for line inputs and a full set of mixer functions (TRIM, HPF, 3-band EQ, 2 AUX sends, PAN, fader and bus assign switch)

+ _ Channels 7-10 are stereo line input channels with numerous mixer functions (2-band EQ, 2 AUX sends, PAN, fader and bus assign switch)

+. Channels 9-10 include a PHONO input preamp, allowing direct connection of a record player

+ Channels 11-12, 13-14 and 15-16, which are 3 pairs of stereo line input channels with faders and bus assign switches, have adjustable levels and can be used as sub- inputs

+ On M-164FX and M-I64UF mixers, channels 13-14 or 15-16 can be used as return channels for the internal effects

+. On M-I64UF mixers, audio signals from a computer can be input to channels 11-12 by USB

+ TO AUX 1 switches are included on M-164 chan- nels 13-14, M-164FX channels 13-14 and 15-16 and on M-I6A4UF channels 11-12, 13-14 and 15-16

+ _ SUB and main stereo (ST) output busses each have dedicated faders, allowing independent adjustment of output levels

+ TO ST switch on SUB bus can be turned ON to send its signal to the stereo output, allowing the SUB bus to be used as a sub-mix group

+ _ Channel 1-10 AUX sends can be used to send input sig- nals to the internal effects or monitoring outputs

+ AUX I has a PRE switch allowing pre/post selection (AUX 2 is fixed to post)

+ _ AUX MASTER (1, 2) knobs adjust the total AUX 1 and 2 send levels

+ _ Bus assign switches on all input channels

+ Internal digital effects on M-164FX and M-164UF mix- ers

+ _2-band EQ on the stereo bus to control the sound quality of the mixed stereo output

+ _ Stereo and mono output jacks for both stereo and SUB bus outputs

+ _ Headphone monitoring of stereo, SUB or AUX 1 bus possible

+ _M-I64UF has USB 2.0 audio interface that allows 16 channels to be sent to (inputs 1-10, AUX send 1/2, SUB bus, stereo bus) and 2 channels to be returned from a computer

The included items are listed below.

Take care when opening the package not to damage the items. Keep the package materials for transportation in the future.

Please contact the store where you purchased this unit if any of these items are missing or have been damaged dur- ing transportation.

+ Mainunit. + _ AC adaptor (TASCAM PS-1225L) + _ USB cable (M-164UF only)... + CD-ROM (Driver, M-I6AUF only) … + DVD-ROM (Cubase LE4, M-I164UF only). + _ Cubase LE4 Quick Start Guide

(Driver, M-164UF only). + A warranty card … + _Owner's manual (this manual).

Always use the included TASCAM PS-1225L (AC adaptor/ power cord) with this equipment. Do not use the included AC adaptor and power cord set with other equipment. Doing so could cause malfunction, fire or electrical shock.

In this manual, we use the following conventions:

+ _ The names of keys and controls are given in the follow- ing typeface: MENU.

+ _ Additional information is introduced in the styles below when needed:

Useful hints when using the unit.

TASCAM M-164/M-164FX/M-164UF 5

Explanation of actions in special situation and supplement.

Instructions that should be followed to avoid injury, damage to the unit or other equipment, and loss of data.

+ TASCAM is a registered trademark of TEAC Corporation.

+ Microsoft and Windows are either registered trademarks or trademarks of Microsoft Corporation in the United States and/or other countries.

+ Macintosh, Mac OS and Mac OS X are trademarks of Apple Inc.

< Pentium is a trademark of Intel Corporation in the U.S. and other countries.

+ AMD Athlon is a trademark of Advanced Micro Devices, Inc.

+ _iPod is a trademark of Apple Inc.

+ _ Other company names, product names and logos in this document are the trademarks or registered trademarks of their respective owners.

Precautions and notes for placement and use

<_ Use this product within its guaranteed operating tem- perature range of 5-35° C. In addition, avoid placement in dusty or humid locations because such conditions could cause malfunction.

+. Do not apply strong force to this unit. Doing so could damage the internal cireuitry or external panels.

+. Do not use near anything that generates a strong mag- netic field. Doing so could cause hum or high frequency interference, for example.

To clean the unit, wipe it gently with a soft cloth slightly dampened with a diluted neutral cleanser. Do not wipe

with chemical cleaning cloths, benzine, paint thinner, or other chemical agents as they could damage the surface.

6 TASCAM M-164/M-164FX/M-164UF

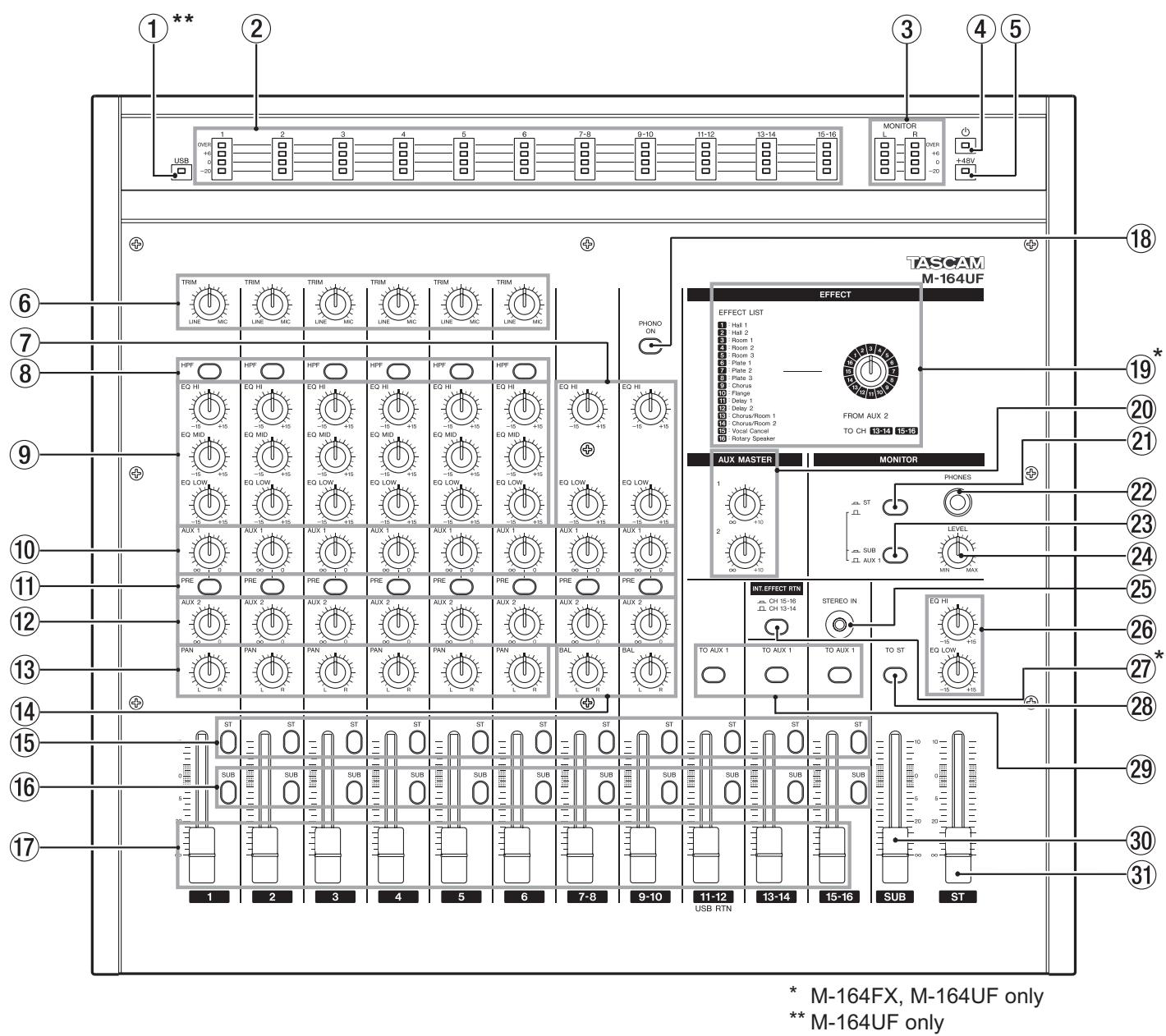

- Names and Functions of Parts

(“USB indicator Lights when the mixer is connected to a computer by USB.

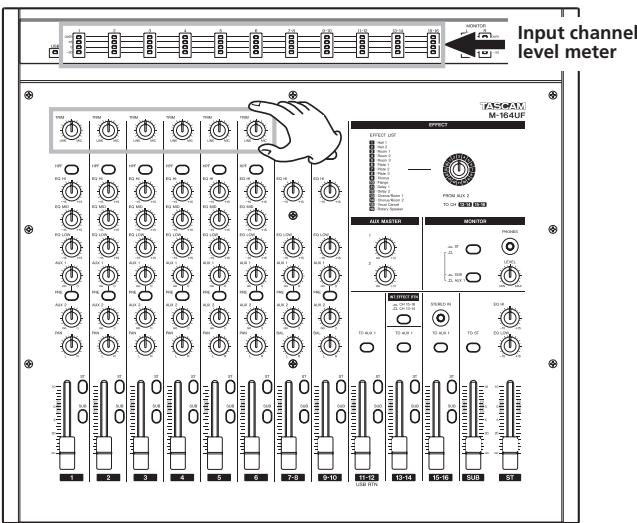

@ Input channel meters Display the input level of each input channel (levels after signals pass through the EQ section).

G@) MONITOR (L, R) meters

Display the output signal level of the monitoring source (stereo, SUB or AUX 1 bus) that has been selected with

the two switches at the MONITOR section.

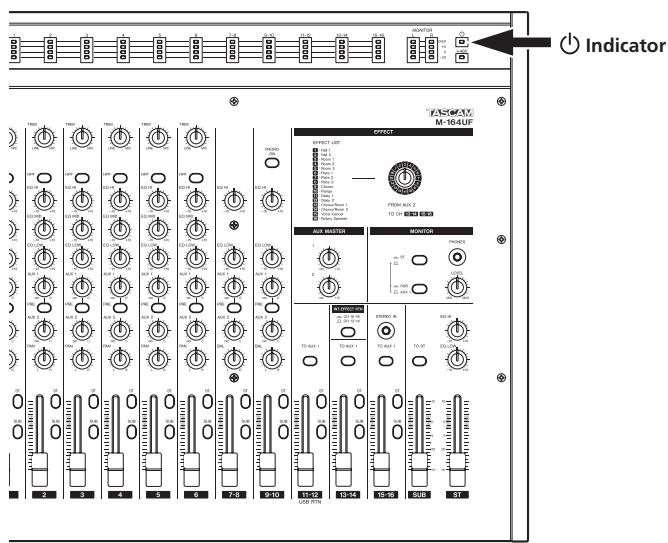

Lights when the mixer power has been turned ON using

the ON/STANDBY switch on the rear panel.

(®) +48V indicator Lights when the phantom power has been turned ON using the PHANTOM (+48V) switch on the rear panel.

* M-164FX, M-164UF only **M-164UF only

@) TRIM knobs (channels 1-6) Use to adjust the input levels of signals from the MIC and LINE input jacks. While observing the channel meters above, turn to the left (toward LINE) for line level sources (electronic instruments, audio equipment, etc.) or to the right (toward MIC) for microphones.

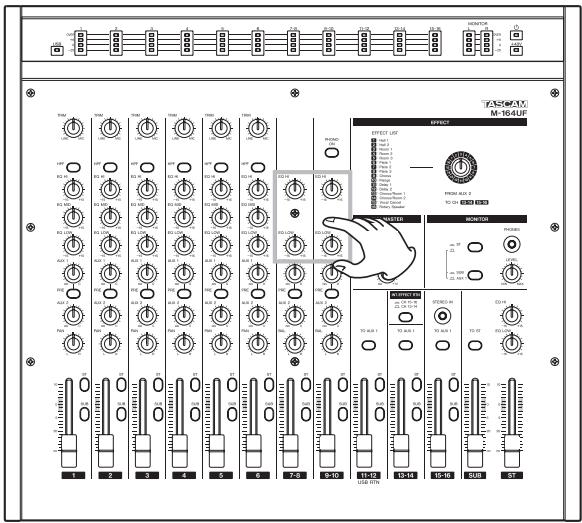

) EQ section (channels 7-8, 9-10)

These channels each have a 2-band EQ.

The EQ HI knob adjusts the high frequency range with a roll-off frequency of 12 KHz and a boost/cut range of +15 dB.

The EQ LOW knob adjusts the low frequency range with a roll-off frequency of 100 Hz and a boost/cut range of +15 dB.

TASCAM M-164/M-164FX/M-164UF 7

2 - Names and Functions of Parts

@ HPF switch (channels 1-6)

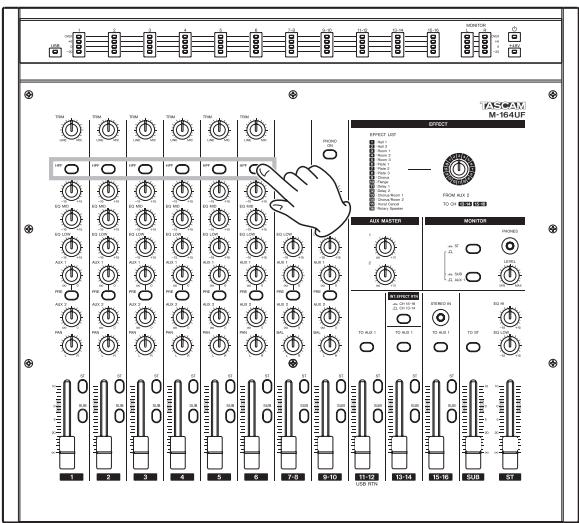

Push this switch in to turn ON the high-pass filter, which cuts frequencies below 80 Hz by 12 dB/octave. The high-pass filters affect inputs from both MIC and

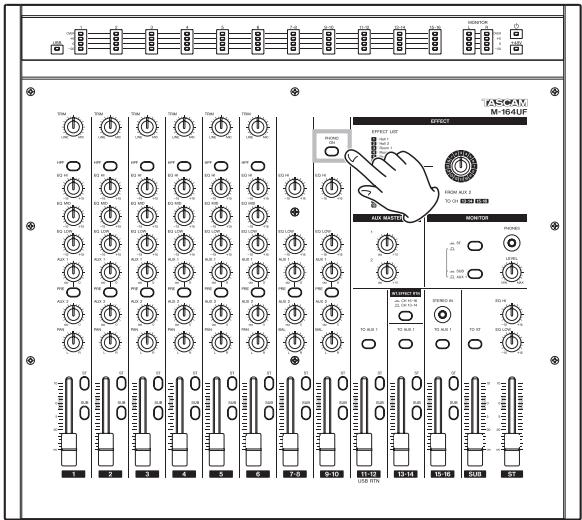

43 PHONO ON switch (channels 9-10) Turn this switch ON (push switch in) when the output of a record player is connected to channels 9-10.

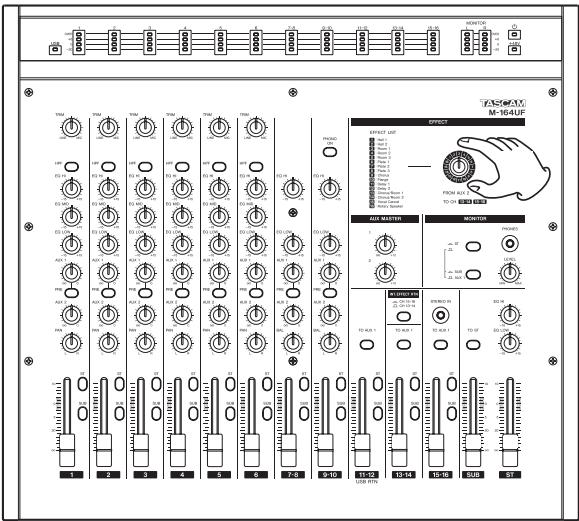

49* EFFECT rotary knob (M-164FX and M-164UF only)

LINE input jacks. Use to select the internal effect type. Turn left or right

to select the number of the corresponding effect in the list to the left.

The internal effects stereo return output is sent to chan- nels 13-14 or 15-16.

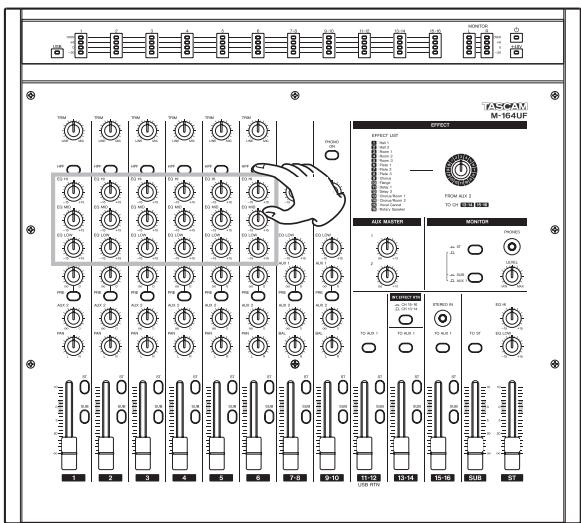

) EQ knobs (channels 1-6) These channels each have a 3-band EQ. The EQ HI knob adjusts the high frequency range with a roll-off frequency of 12 KHz and a boost/cut range of +15 dB. The EQ MID knob adjusts the middle frequency range with a central frequency of 2.5 kHz and a boost/cut range of +15 dB. The EQ LOW knob adjusts the low frequency range, with a roll-off frequency of 100 Hz and a boost/cut range of +15 dB.

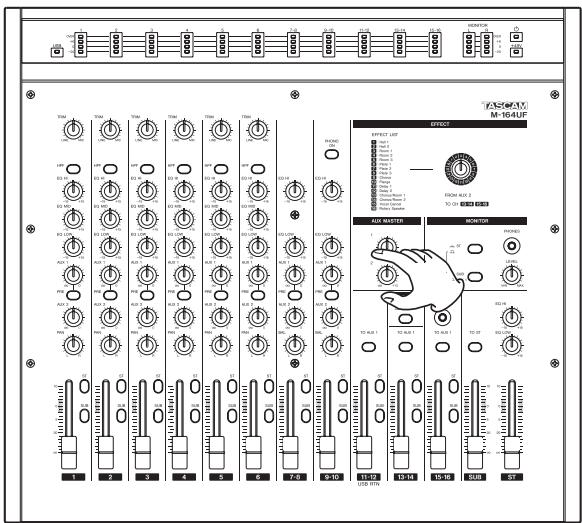

@ AUX MASTER (1, 2) knobs Use to adjust the output levels of the AUX 1 and AUX 2 busses.

@) MONITOR section ST switch Turn ON (push switch in) to monitor the stereo bus sig- nal through headphones. Turn OFF to monitor the SUB or AUX I bus.

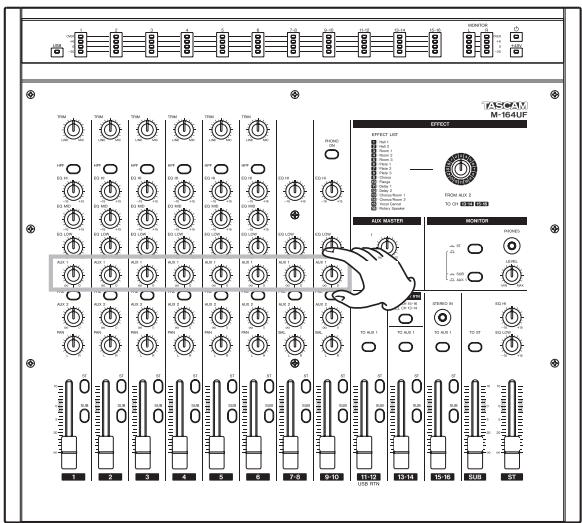

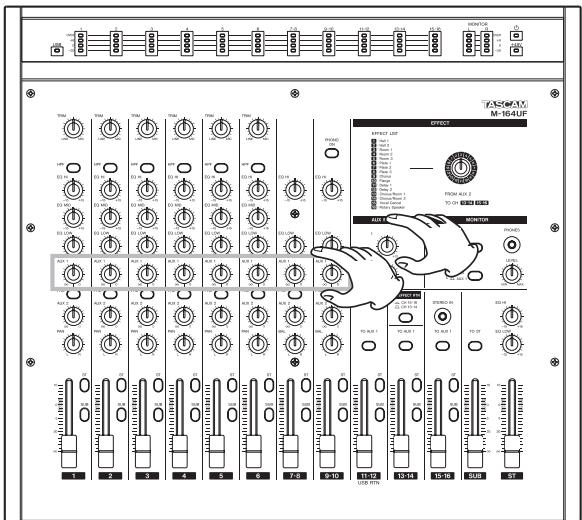

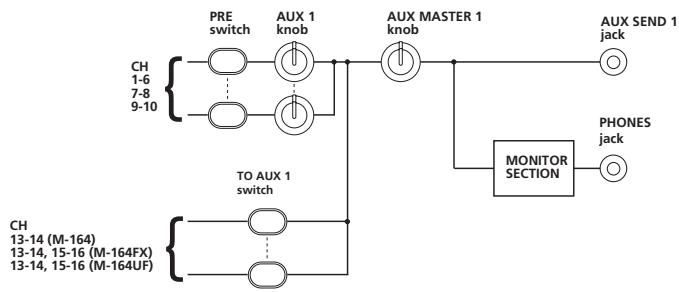

AUX 1 knobs (channels 1-6, 7-8, 9-10)

Use to adjust the level of the channel signals sent to the AUX 1 bus.

When the PRE switch is OFF (switch not pushed in), the post-fader signal (signal after being adjusted by

the fader) is sent to the AUX 1 bus. When ON (switch pushed in) the pre-fader signal (signal after EQ adjust- ment but before fader adjustment) is sent to the AUX

1 bus. In addition to being output from the rear panel AUX SEND 1 jacks, the AUX 1 bus signal can also be | monitored with headphones. @) LEVEL knob

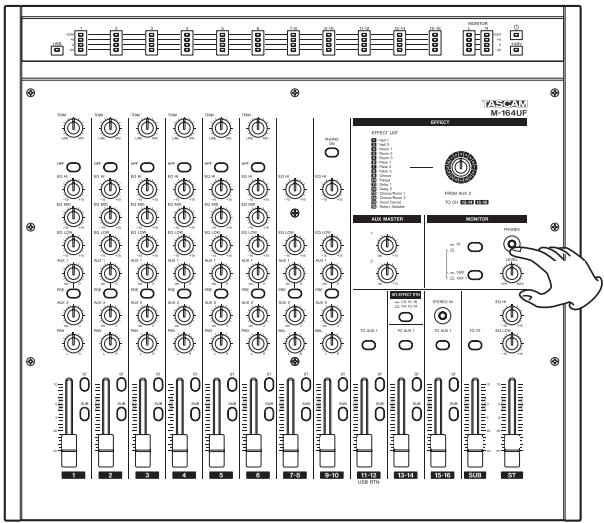

_ Use to adjust the signal level sent to the headphones. 4 PRE switches (channels 1-6, 7-8, 9-10)

Use to set when the channel signal is sent to the AUX 1 bus. When OFF (switch not pushed in), the post-fader signal (signal after being adjusted by the fader) is sent to the AUX 1 bus, and when ON (switch pushed in), the The connected source signal is sent to channels 15-16. pre-fader signal (signal after EQ adjustment but before fader adjustment) is sent. NOTE

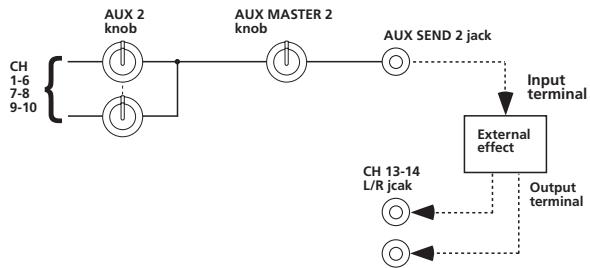

42 AUX 2 knobs (channels 1-6, 7-8, 9-10) On M-164FX and M-164UF mixers, when an input is Use to adjust the post-fader signal level (signal after connected to this jack, the input is given priority and being adjusted by the fader) of the channel signal sent the internal effects return signal is not sent to channels

JUSreC oy Signes 15-16 even if the INT. EFFECT RTN switch described

to the AUX 2 bus. : : h below is pushed in to set channels 15-16 as the internal In addition to outputting the AUX 2 bus signal from the effects return channels.

rear panel AUX SEND 2 jacks, M-164FX and M-164UF & EQ Hi and EQ LOW knobs

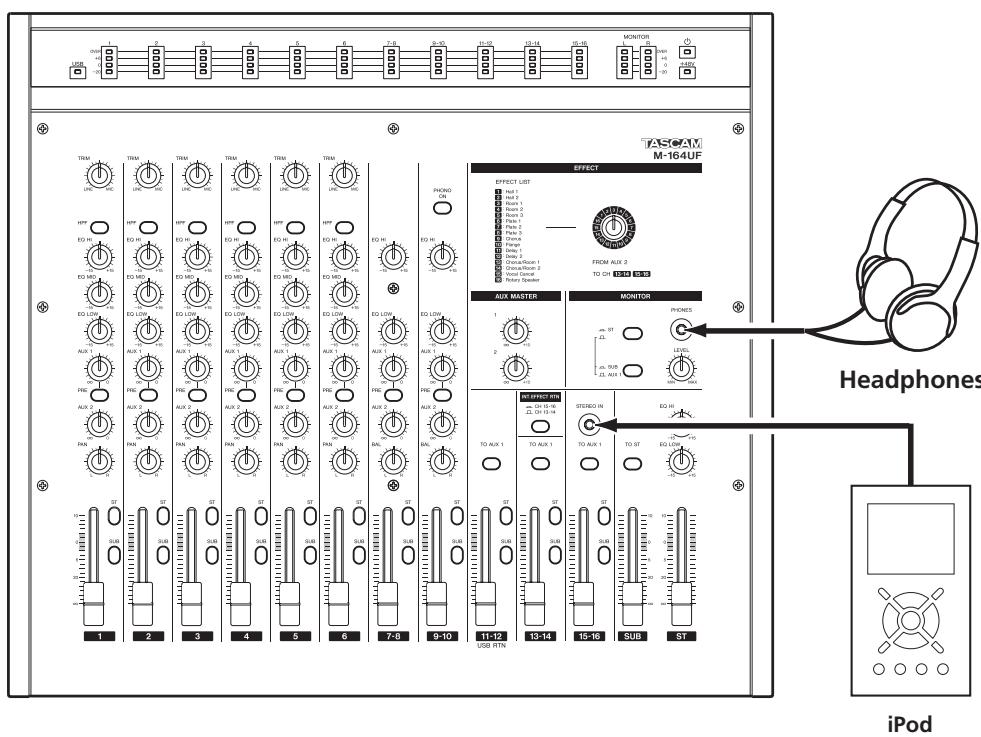

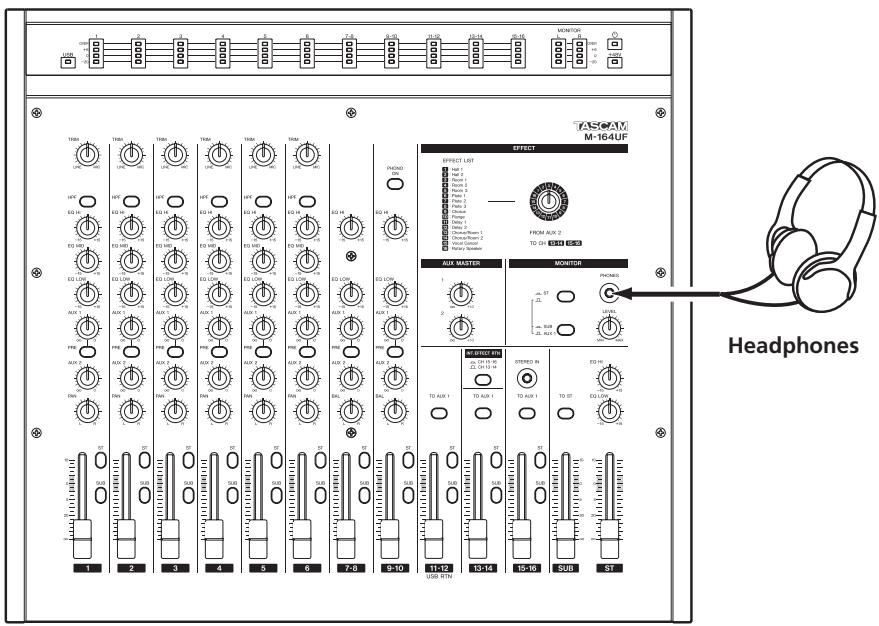

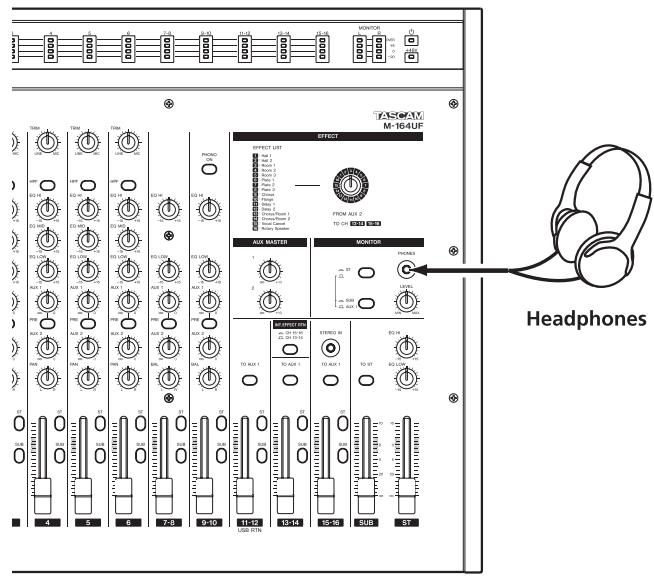

22 PHONES jack (standard stereo jack) Connect stereo headphones here. Depending on the MONITOR section switch settings, you can monitor the stereo, SUB or AUX 1 bus.

@ MONITOR section SUB/AUX 1 switch ‘When the MONITOR section ST switch is OFF, push this switch in to monitor the SUB bus or leave it out to monitor the AUX 1 bus through headphones.

@ STEREO IN jack (stereo mini-jack) Use this jack to connect an iPod or another external (stereo) sound source.

units can also send these signals to the internal effects.

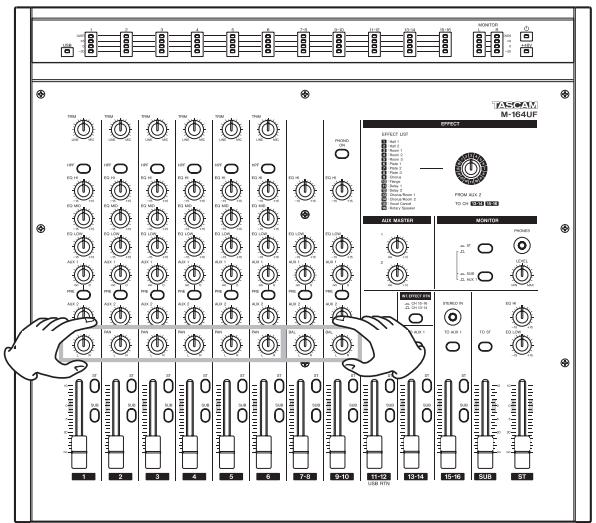

43) PAN knobs (channels 1-6)

Use to set the left-right position of the channel signals sent to the stereo and SUB busses.

4) BAL knobs (channels 7-8, 9-10)

Use to set the left-right balance of stereo channel sig- nals sent to the stereo and SUB busses.

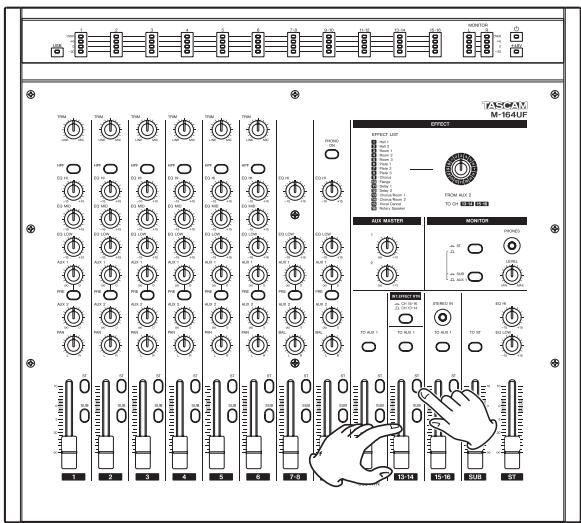

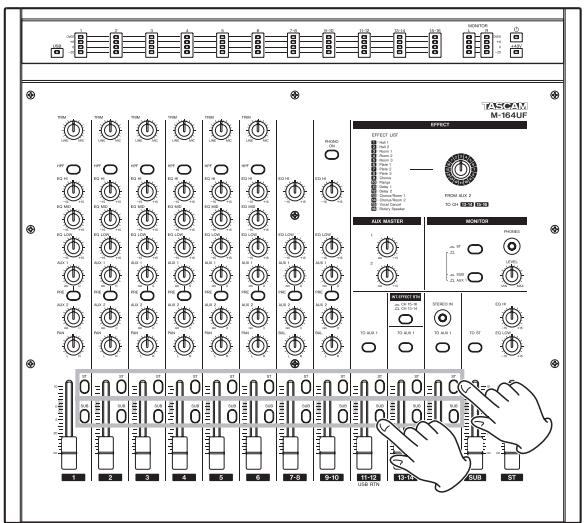

) ST switches (all channels) Turn ON (push switch in) to send a channel signal to the stereo (ST) bus.

4 SUB switches (all channels)

Turn ON (push switch in) to send a channel signal to the SUB bus.

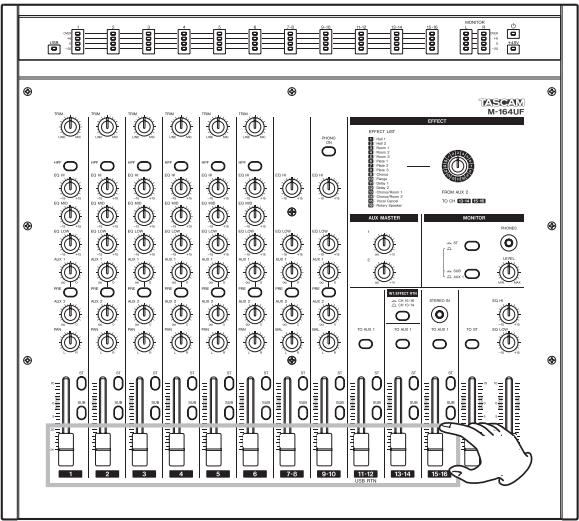

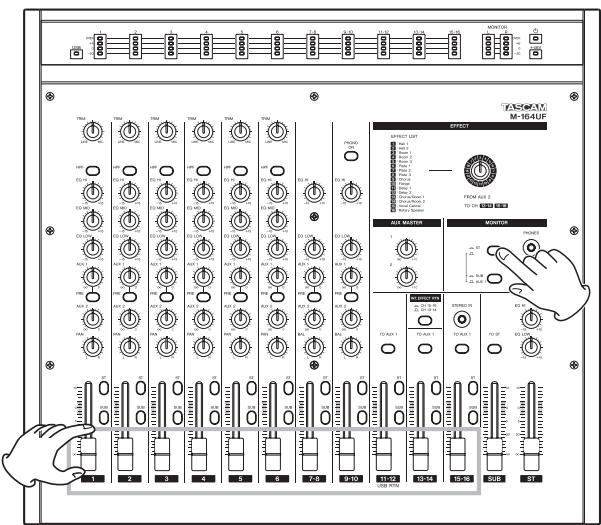

Channel faders (all channels) Use to adjust the levels of channel signals sent.

8 TASCAM M-164/M-164FX/M-164UF Use this 2-band EQ on the stereo bus to adjust the sound character of the mixed stereo signal output.

The EQ HI knob adjusts the high frequency range, with a roll-off frequency of 12 KHz and a boost/cut range of +15 dB.

The EQ LOW knob adjusts the low frequency range with a roll-off frequency of 100 Hz and a boost/cut range of +15 dB.

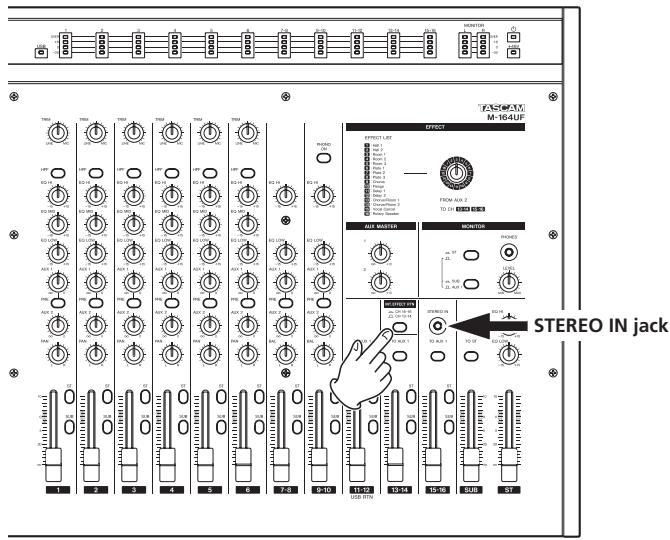

@*INT. EFFECT RTN switch (M-164FX and M-164UF) This switch above the channel 13-14 fader of M-164FX and M-I64UF mixers allows the selection of the inter- nal effects return channels.

Channels 13-14 are selected as return channels when the switch is not pushed in, and channels 15-16 are selected when the switch is pushed in.

2 - Names and Functions of Parts

@ TO ST switch Turn this switch ON (push switch in) to send the SUB bus output signal to the stereo bus.

&) TO AUX 1 switch(es) The M-164 has one switch for channels 13-14. The M-164FX has one switch each for both channel 13-14 and 15-16 pairs. The M-164UF has one switch each for channel 11-12, 13-14 and 15-16 pairs. ‘When ON (switch pushed in), the post-fader signal (signal after being adjusted by the fader) is sent to the AUX 1 bus.

This is the SUB bus output fader.

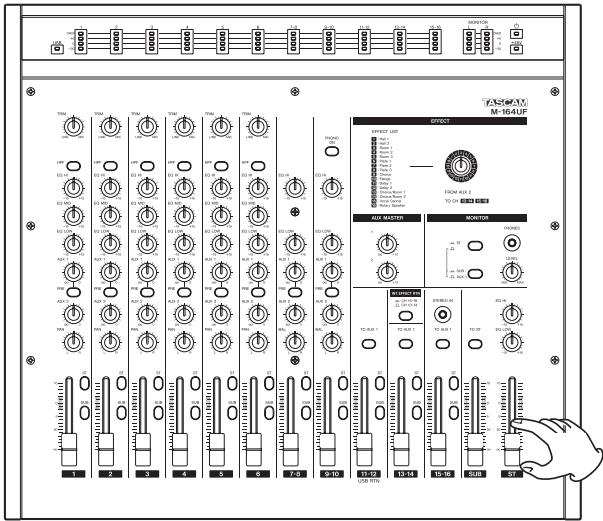

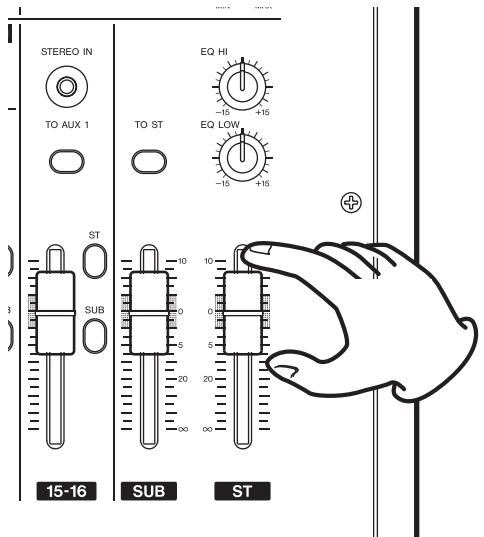

&) ST fader This is the stereo bus output fader.

TASCAM M-164/M-164FX/M-164UF 9

2 - Names and Functions of Parts

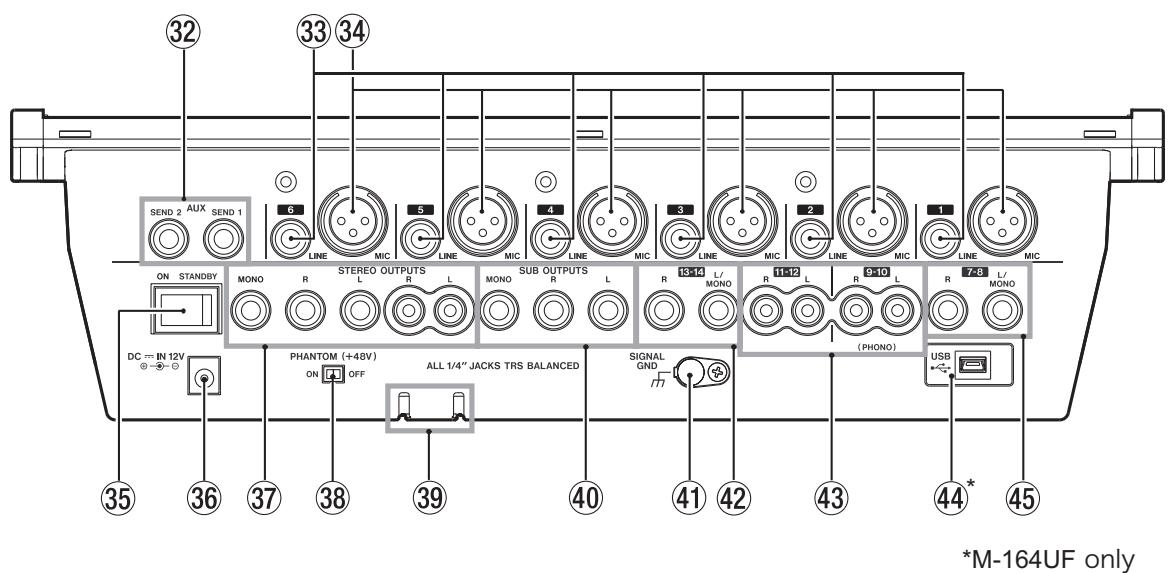

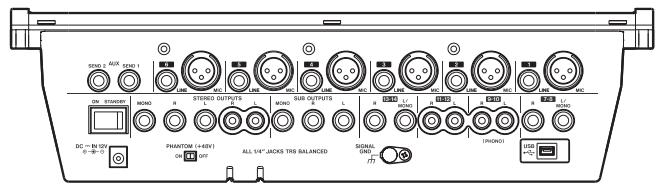

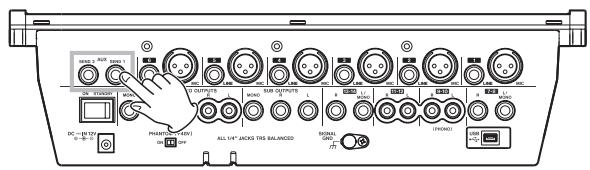

4 AUX SEND 1 and 2 jacks (standard jacks)

These are balanced outputs for the AUX bus 1 and 2 signals. Unbalanced connections are also possible. Use with external effects or monitoring systems.

&) LINE input jacks (standard jacks) The outputs of electronic instruments, audio equipment and other line level signals can be connected to these input jacks. Both 3-pole balanced and 2-pole unbal- anced standard plugs can be connected.

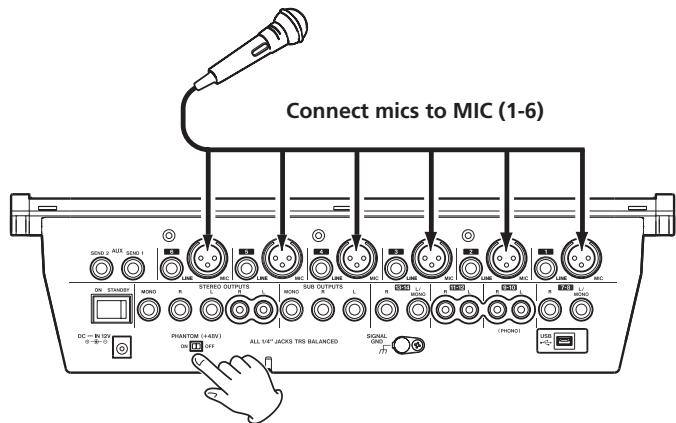

&) MIC input connectors (XLR connectors) These are balanced mic inputs wired for pin 2 to be hot.

45 ON/STANDBY switch Turns the mixer power ON and STANDBY.

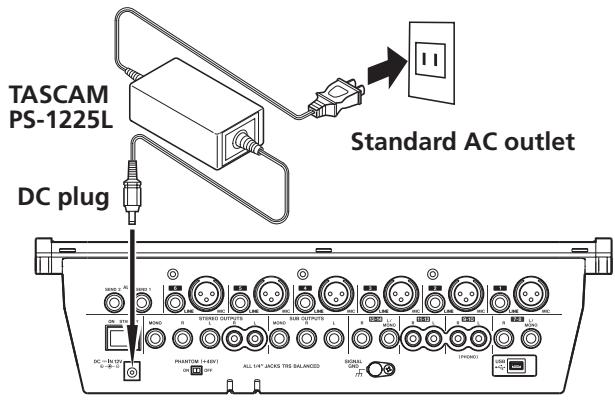

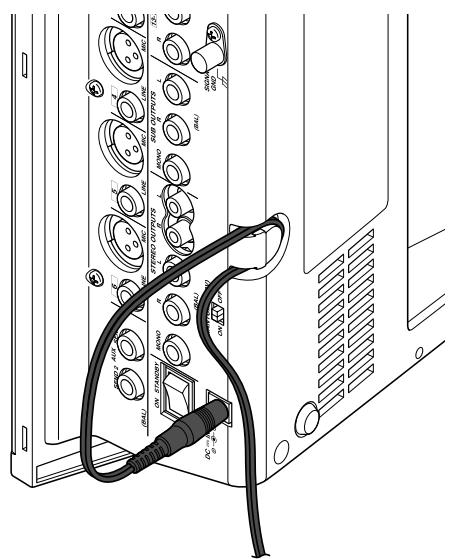

4 DC“IN 12V Connect the included AC adaptor (TASCAM PS-1225L) here.

In order to prevent the cord from being accidentally disconnected during use, pass the cord through the cord holder.

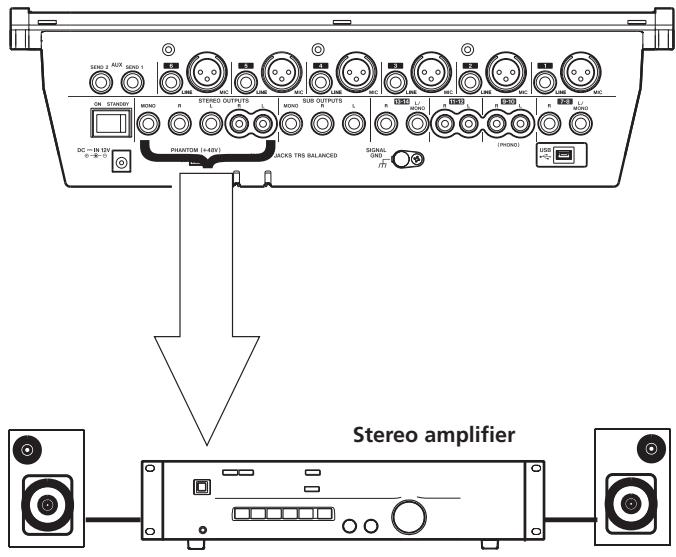

STEREO OUTPUTS jacks (standard and RCA pin jacks)

These output the stereo bus signals.

The standard jacks (L, R, MONO) output balanced sig- nals, but connection with unbalanced cables is also pos- sible. The MONO jack outputs a monaural signal.

The RCA pin jacks (L, R) output unbalanced signals.

43 PHANTOM (+48V) switch Use this to turn +48V phantom power to channel 1-6 MIC inputs ON and OFF.

CAUTION Do not connect or disconnect mics when the PHANTOM (+48V) switch is ON.

10 TASCAM M-164/M-164FX/M-164UF

& Cord holder Use this to hold the cord and prevent accidental discon- nection of the plug.

4 SUB OUTPUTS (standard jacks) These output the SUB bus signals on balanced jacks, but connection with unbalanced cables is also possible. The MONO jack outputs a monaural signal.

&) SIGNAL GND When connecting a record player to channels 9-10, connect the player’s grounding wire here.

If humming occurs when external equipment other than a record player is connected to the mixer, connecting this jack with part of the metal frame of the external equipment (or the rack frame if rack mounted) with grounding wire might reduce the noise.

4) 13-14 input jacks (standard jacks) The outputs of electronic instruments, audio equipment and other line level signals can be connected to these input jacks. Both 3-pole balanced and 2-pole unbal- anced standard plugs can be connected. If a connection is only made to the L/MONO input jack, the signal is sent to both left and right channels.

On M-164FX and M-164UF mixers, do not connect anything to this input jack if the internal effects return channels are set to channels 13-14 (INT. EFFECT RTN switch not pushed in).

4 9-10, 11-12 input jacks (RCA pin jacks)

The outputs of electronic instruments, audio equipment and other line level signals can be connected to these unbalanced input j A record player can also be connected to the 9-10 input jacks. When doing so, also connect the grounding wire from the record player to the SIGNAL GND jack and turn the PHONO ON switch on the top panel ON.

2 - Names and Functions of Parts

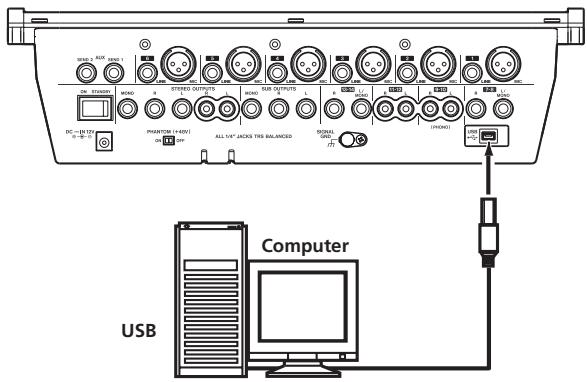

&* USB port (M-164UF ONLY) Connect the mixer to a computer from this port using the included USB cable.

45) 7-8 input jacks (standard jacks)

The outputs of electronic instruments, audio equipment and other line level signals can be connected to these input jacks. Both 3-pole balanced and 2-pole unbal- anced standard plugs can be connected.

If a connection is only made to the L/MONO input jack, the signal is sent to both left and right channels.

TASCAM M-164/M-164FX/M-164UF 1 1

3 - Preparation for Use

This chapter explains how to connect external equipment and the power cord, as well as how to make other prepara- tions before turning on the power. See “5—Using with a Computer (M-164UF)” for an explanation of how to con- nect an M-164UF mixer with a computer.

Connecting the power

Confirm that the mixer power switch is set to STANDBY beforehand.

Connect the included power cord and AC adaptor (TASCAM PS-1225L) to the mixer.

The cord holder is an opening on the bottom of the mixer for securing the AC adaptor cord. When connecting the cord, pass it through the cord holder to prevent it from accidentally becoming disconnected during use.

+ _ Always use the included AC adaptor (TASCAM PS- 12251). Use of a different AC adaptor could cause malfunction, generation of heat, fire or other trouble.

+ _ Do not force the cord into the holder. Doing so could break the line.

12 TASCAM M-164/M-164FX/M-164UF Examples of connecting external equip- ment

Two connection examples follow.

For details about making connections, see “Making stereo output connections” and “Making input sound source connections.”

Precautions before making connections

< Turn the power OFF on all the equipment to be con- nected and set the mixer to standby.

< Plug in all pieces of equipment into the same outlet or power strip so that they will receive power from the same line. To minimize power voltage fluctuation when using an extension cord, for example, use a heavy cable with high electrical current capacity.

3 - Preparation for Use

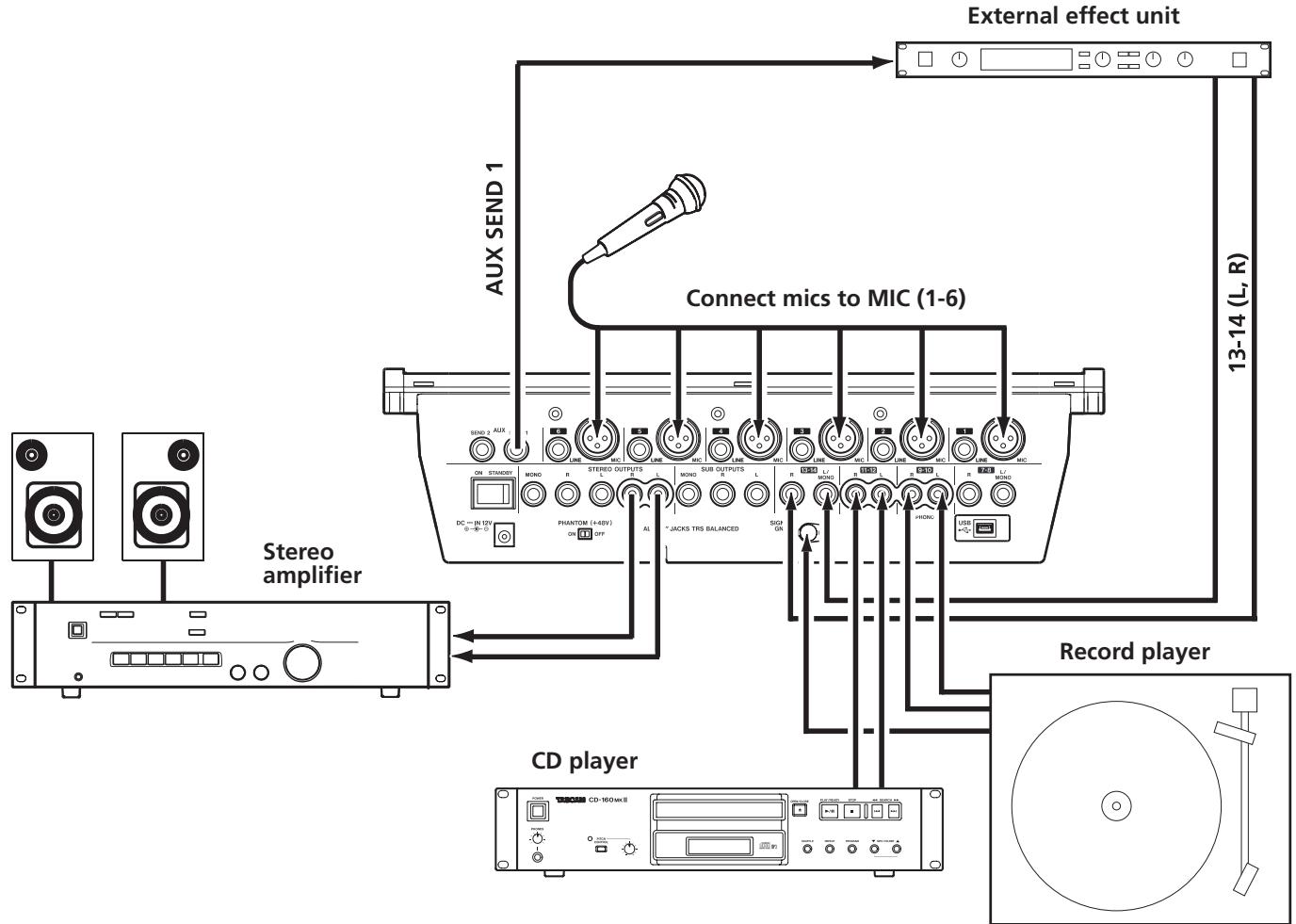

Connection example 1: Using an M-164 with multiple mics and for background music in a club External effect unit

Connect mics to MIC (1-6)

Stereo [ amplifier : — TS | [TT d pl = Record player LL” 00 O =) TT

TASCAM M-164/M-164FX/M-164UF 13

3 - Preparation for Use

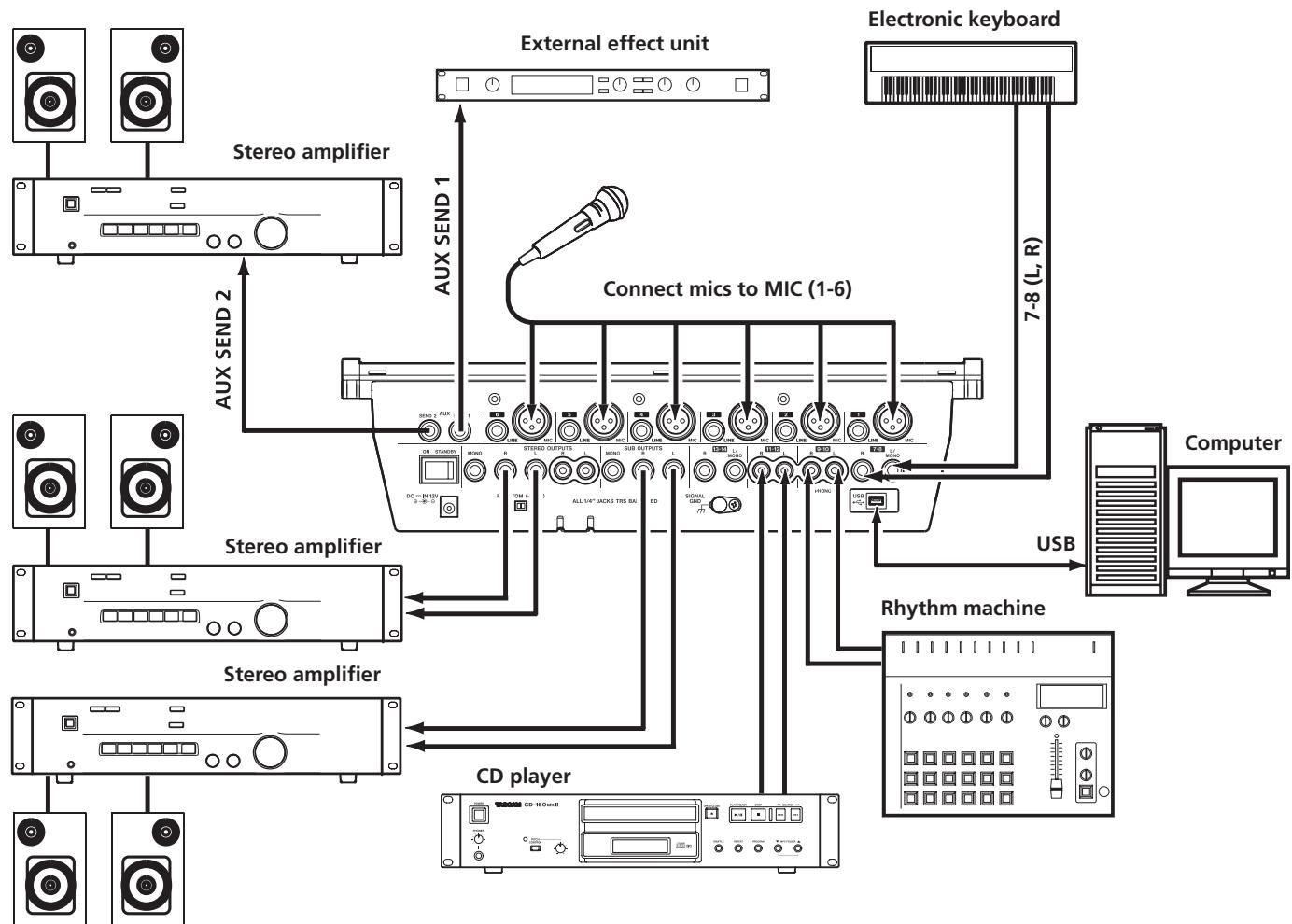

Connection example 2: Using an M-164UF for recording in a home studio

External effect unit

3 - Preparation for Use

Making stereo output connections

Connecting headphones

(CZ Turn the power OFF on all equipment to be connected and set the mixer to standby before making connections.

The mixer stereo bus output is usually used as the main output and connected to an external amplifier or speaker system. Depending on the type of amplifier, use the STEREO OUTPUTS standard jacks (L, R) or the RCA pin jacks (L, R). The standard jacks provide balanced outputs, but unbalanced cables can also be used to connect to amplification systems with unbalanced inputs.

+ Using the MONO jack instead of the Land R jacks is convenient when connecting to a mono amplifier.

+ Using both the STEREO OUTPUTS and SUB OUTPUTS is convenient for connecting two amplification or speaker systems at the same time, including setups with main and sub speakers or main and monitor speakers. Each output pair has a dedicated fader, so you can set their levels independently with the mixer.

+ By connecting the SUB OUTPUTS to a recorder, you can record the same stereo mix signal as it is output from an amplification or speaker system.

To monitor with headphones, connect stereo headphones to the PHONES jack on the top panel.

Making input sound source connections

CAUTION Turn the power OFF on the mixer and all equipment to be connected before making connections.

Connect mics to the channel 1-6 MIC input jacks (XLR). When using condenser mics that require phantom power, turn the PHANTOM (+48V) switch on the rear panel ON.

Connect mics to MIC (1-6)

Use the PHANTOM (+48V) switch to turn the phantom power supply to all channels (1-6) ON or OFF simultane- ously. When the PHANTOM (+48V) switch is ON, if you want to use dynamic mics at the same time as condenser mics, always connect the dynamic mics using balanced connections.

TASCAM M-164/M-164FX/M-164UF 15

3 - Preparation for Use

+ Connecting a dynamic mic with an unbalanced +. Connect a stereo sound source using RCA pin jack

connection could damage it if the PHANTOM (+48V) switch is ON.

+ On M-I64UF mixers, the stereo audio output from a

+ Do not connect or disconnect mics when the PHANTOM (+48V) switch is ON. Doing so could cause loud noise or damage the equipment.

+ When the PHANTOM (+48V) switch is ON (and the mixer power is ON) the +48V indicator lights on the

computer connected by USB is also input to channels 11-12. The signals from these channels can also be sent to AUX 1.

right side of the meter panel. + _ Connect a stereo sound source using standard jacks (L,

+ __ The XLR connector #2 pins are “hot” on this mixer.

Connecting synthesizers, other sound sources and audio equipment (line level sound sources)

R). These jacks are balanced, but they can also be con- nected with unbalanced sound sources.

+ _Ifa mono sound source is connected to the L jack, the L

input signal is sent to both channels 13 and 14.

+ On M-164FX and M-I64UF mixers, if the INT. EFFECT Line level sound sources can be connected to every chan- nel (1-16). However, the types of jacks and mixer functions differ depending on the channel. Channels 7-16 are five

RTN switch is not pushed in, the internal effects return signal is input to channels 13-14.

pairs of stereo channels, and channels 9-10 can also be CAUTION

connected to a record player.

+ _ On M-164FX and M-164UF mixers, when connecting

+ Connect using the standard (LINE) jacks. These jacks are balanced, but they can also be connected with unbal- anced sound sources.

+ Use the TRIM knobs on the top panel to adjust the input levels (see “Adjusting levels ” on page 18). The mixer channel functions include a high-pass filter, a 3-band EQ, AUX 1 and 2 sends and pan.

an external sound source to the standard jacks of channels 13-14, push the INT. EFFECT RTN switch in to set channels 15-16 as the internal effects return channels. If the INT. EFFECT RTN switch is not pushed in, the signal from the external sound source connected to the standard jacks of channels 13-14 and the internal effects return signal will interfere with each other and neither signal will be input correctly.

+ _ The signals from channels 13-14 can also be sent to

+ Connect a stereo sound source using standard jacks (L, + Connect a stereo sound source to the STEREO IN jack

R). These jacks are balanced, but they can also be con- nected with unbalanced sound sources.

+ _Ifa mono sound source is connected to the L jack, the L input signal is sent to both channels 7 and 8.

+ The mixer channel functions include a 2-band EQ, AUX land 2 sends and balance.

on the top panel. This stereo mini-jack is convenient for connecting iPods and similar devices.

CAUTION On M-164FX and M-164UF mixers, when a plug is connected to the STEREO IN jack, this external input is

prioritized even if the INT. EFFECT RTN switch is pushed

Channels 9-10 in, setting channels 15-16 as the internal effects return = E

channels. As à result, the effects signal will not be

+ _ Connect a stereo sound source using RCA pin jack jacks returned to these channels. Therefore, when using this

(LR). jack, set the internal effects return to channels 13-14.

+ A record player can be connected to these jacks. When + On the M-164FX and M-164UF models, the signals from

doing so, press in the PHONO ON switch on the top panel. In addition, connect the grounding wire from the

channels 15-16 can also be sent to AUX 1.

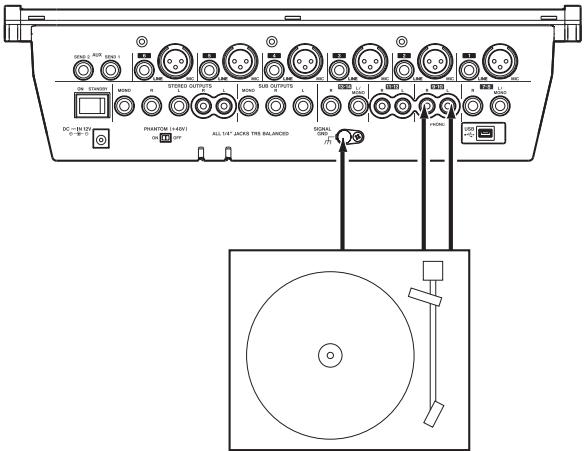

record player to the SIGNAL GND jack.

+ The mixer channel functions include a 2-band EQ, AUX land 2 sends and balance.

Setting the internal effects return channels (M-164FX and M-164UF)

When using the internal effects of an M-164FX or M-164UF mixer, either channels 13-14 or 15-16 can be used

16 TASCAM M-164/M-164FX/M-164UF

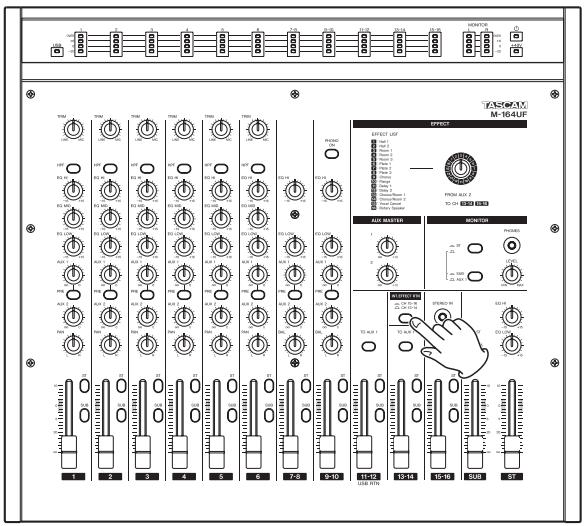

as the return channels. Use the INT. EFFECT RTN switch to select the return channels.

When using the channel 13-14 input jacks on the rear panel, push the INT. EFFECT RTN switch in to select chan- nels 15-16 as the return channels. When using the channel

3 - Preparation for Use

15-16 STEREO IN jack on the top panel, select channels 13-14 as the return channels by setting the INT. EFFECT RTN switch so that it is not pushed in.

When using channels 13-14 as the return channels, do not use the channel 13-14 input jacks on the rear panel. When using channels 15-16 as the return channels, do not use the STEREO IN jack on the top panel.

Turning the power on and putting the mixer in standby

2 Turn the power of the connected input sound source equipment ON.

3 Finally turn the power of the connected amplifica- tion system ON.

Before turning the power on 1 Prepare the mixer as follows.

Set the EQ, PAN and BAL knobs to their center posi- tions.

Turn other knobs completely to the left (minimum). Lower faders completely (minimum). Turn switches OFF (not pushed in).

2 Minimize the output levels of sound sources and the input levels of amplifying equipment connected to the mixer.

Turning on the power

1 Turn the mixer power ON using the ON/STANDBY switch on the rear panel of the mixer.

The indicator () on the right of the meter panel lights.

Putting the mixer in standby

To put the mixer in standby, reverse the procedures above. Failure to do so might cause noise that could damage the equipment.

TASCAM M-164/M-164FX/M-164UF 1 7

3 Raise the ST (stereo) fader to the 0 position.

After turning on the power, adjust the level of each input signal. The following explanation assumes that the STEREO OUTPUTS are being used as the main outputs.

1 Prepare headphones or an amplification system to output the sound in advance.

If monitoring with headphones, raise the volume with the PHONES LEVEL knob slightly.

If monitoring with an amplification system, raise the input level on the amp slightly.

2 Turn the MONITOR section ST switch ON (push switch in). With this set, the level of the signals output from the

STEREO OUTPUTS jacks is shown on the MONITOR meters.

18 TASCAM M-164/M-164FX/M-164UF

4 For the channel 1-6 inputs, adjust the TRIM knob for the channel so that the “0” indicator on the chan- nel level meter lights when a signal is being input that is at the loudest level ordinarily expected.

For the channel 7-16 inputs, adjust the level at the sound source so that the “0” indicator on the chan- nel level meter lights when a signal is being input that is at the loudest level ordinarily expected.

Input channel level meter

5 Raise the channel fader.

Using the mixer channel functions

SÉRIE ION Even if there is no meter indication or no signal is being output despite the fact that a signal is being input, do not raise the faders carelessly. The operation of other switches or features could cause a loud signal to be output suddenly, possibly damaging speakers or other equipment. Sudden loud noises could also harm your hearing.

The best settings for audio quality are when the input meter “0" indicator lights, and the channel fader or ST fader is set in the range around 0 (where the fader scale on the mixer is highlighted). If the fader is set to an extremely low value, we recommend lowering the amp volume and then raising the fader. On the other hand, if the fader is too high, we recommend raising the amp volume and lowering the fader.

High-pass filter (HPF)

Press the HPF switch to turn the high-pass filter ON and cut frequencies of 80 Hz or less by -12 dB/octave. The high-pass filter affects inputs from both MIC and LINE input jacks, but it is especially effective when using mics for reducing unwanted noise from wind and breathing.

SR EQ Channels 1-6 have 3-band equalization (EQ) with HI, MID and LOW frequency boost and cut adjustment ranges of +15 dB.

The HI band is a shelving EQ. Use the EQ HI knob to boost or cut the frequency band above 12 kHz.

The MID band is a peaking EQ with 2.5 kHz as the central frequency. Use the EQ MID knob to boost or cut mid frequencies.

The LOW band is a shelving EQ. Use the EQ LOW knob to boost or cut the frequency band below 100 Hz.

TASCAM M-164/M-164FX/M-164UF 19

Channels 7-8 and 9-10 have 2-band EQ with HI and LOW shelving frequency boost and cut adjustment ranges of +15 dB.

Use the EQ HI knob to boost or cut the frequency band above 12 kHz, and use the EQ LOW knob to boost or cut the frequency band below 100 Hz.

AUX sends The mixer has 2 AUX busses (AUX 1, AUX 2).

Signals from channels 1-6, 7-8 and 9-10 can be sent to the AUX 1 bus by adjusting their AUX 1 knob levels. Use the AUX MASTER 1 knob to set the final level of the AUX 1 bus signal that is output from the AUX SEND 1 jack on the rear panel. You can also monitor the AUX 1 signal using headphones attached to the mixer.

20 TASCAM M-164/M-164FX/M-164UF

You can set whether the signal sent to the AUX 1 bus

is pre-fader or post-fader. When the PRE switch is ON (switch pushed in), the signal is sent to the AUX 1 bus after EQ adjustment but before fader adjustment so the fader position has no effect. When the PRE switch is OFF (switch not pushed in), the signal is sent to the AUX 1 bus after being adjusted by the fader.

Ordinarily, if you want to use AUX 1 for stage or cue monitoring, turn the PRE switch ON to create a mix that is entirely independent from the main mix. To use AUX 1 as an effect send, turn the PRE switch OFF.

In addition, there is a TO AUX 1 switch on channels 13-14 on all M-164 mixers, as well as on channels 15-16 on M-164FX and M-I164UF mixers and channels 11-12 on M-I6A4UF. Turn this ON to send the post-fader signal to the AUX 1 bus. For example, input an effect return to a pair of these channels, and use this switch to set whether or not to send this to a monitoring setup on the AUX 1 bus.

AUX 2 Signals from channels 1-6, 7-8 and 9-10 can be sent to the AUX 2 bus by adjusting their AUX 2 knob levels.

The signal sent to the AUX 2 bus is always post-fader, so the AUX 2 bus is usually used for an effect send. Use the AUX MASTER 2 knob to set the final level of the AUX 2 bus signal that is output from the AUX SEND 2 jack on the rear panel.

On M-164FX and M-I64UF mixers, the AUX 2 signal is also sent to the internal effects. (See “Using internal effects (M-164FX and M-164UF)” on page 23.)

Monitoring with headphones

For channels 1-6, use the PAN knob to set the left-right stereo position of the channel signal sent to the stereo and SUB busses.

For stereo channels 7-8 and 9-10, use the BAL knob to set the left-right balance of the stereo channel signals sent to the stereo and SUB busses.

Stereo channels 11-12, 13-14 and 15-16 do not have left- right balance control.

STRÉRIEE Using the ST and SUB switches, the outputs of channels 1-16 can be sent to the stereo and SUB busses.

Turn both ST and SUB switches OFF to cut (mute) the output of a channel easily.

You can monitor the outputs of the mixer’s stereo, SUB or AUX 1 send bus.

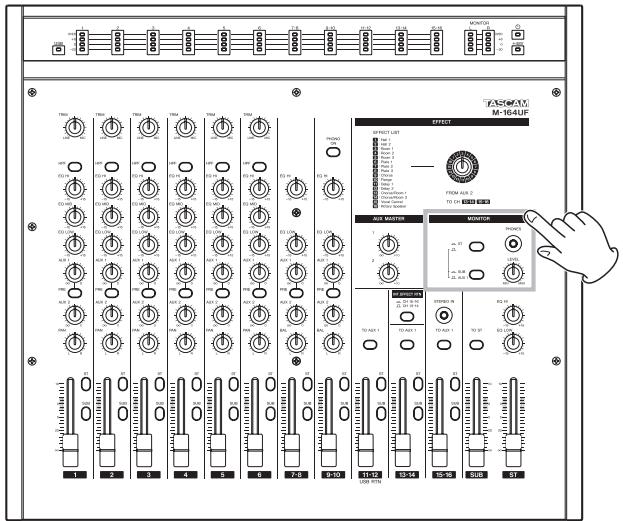

1 Connect stereo headphones to the PHONES jack on the top panel of the mixer.

2 Raise the PHONES knob level slightly.

3 Use the two switches in the MONITOR section to set whether the stereo, SUB or AUX 1 send bus is moni- tored.

< Push in the upper switch to monitor the stereo bus sig- nal. (The status of the bottom switch has not effect.)

<_ Without pushing in the upper switch, push in the lower switch to monitor the SUB bus.

+ Do not push in either the upper or lower switch to moni- tor the AUX 1 send bus.

Using AUX 1 for a monitoring mix

By using the AUX 1 bus to output a pre-fader signal mix, you can use this for stage and cue monitoring setups, as explained in “AUX sends” in “Using the mixer channel functions.”

Pre-fader signal levels can be sent to the AUX 1 bus for channels 1-6, 7-8 and 9-10.

The TO AUX 1 switches on channels 13-14 on all M-164 mixers, as well as on channels 15-16 on M-164FX and M-16A4UF mixers and channels 11-12 on M-164UF, can be used to send post-fader signals to the AUX 1 bus. Pre- fader signals cannot be sent from these channels.

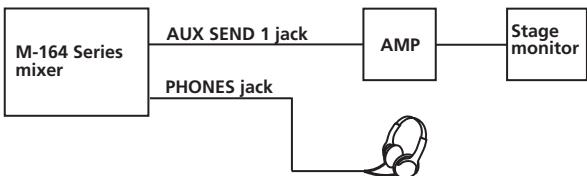

Connect an amplification or speaker system to the AUX SEND 1 jack or connect headphones to the mixer in advance, to allow monitoring of AUX 1. (See “Monitoring with headphones” on page 21.)

TASCAM M-164/M-164FX/M-164UF 21

AUX SEND 1 jack Stage M-164 Series É AMP monitor

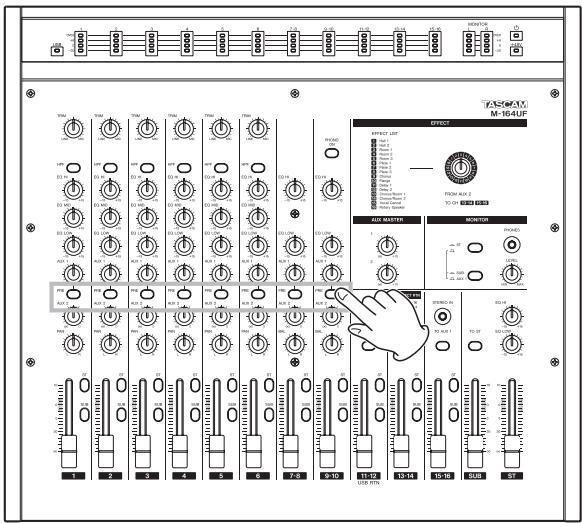

1 Turn ON (push in) the PRE switch under the AUX 1 knob of each channel that you want to monitor.

Use each channels AUX 1 knob to adjust the signal level sent for monitoring.

22 TASCAM M-164/M-164FX/M-164UF

3 Use the AUX MASTER 1 knob to adjust the overall level sent to the AUX 1 send bus.

Using sub-group functions

By using the SUB bus as a sub-group, you can make adjusting the stereo mix balance more efficient.

For example, in a live application when connecting drum mics to channels 1-3, and inputting guitar, bass, and vocal on channels 4-6, turn the ST assign switches OFF and the SUB assign switches ON for channels 1-3. Turn the ST assign switches ON and the SUB assign switches OFF for channels 4-6. Then turn the TO ST switch above the SUB fader ON.

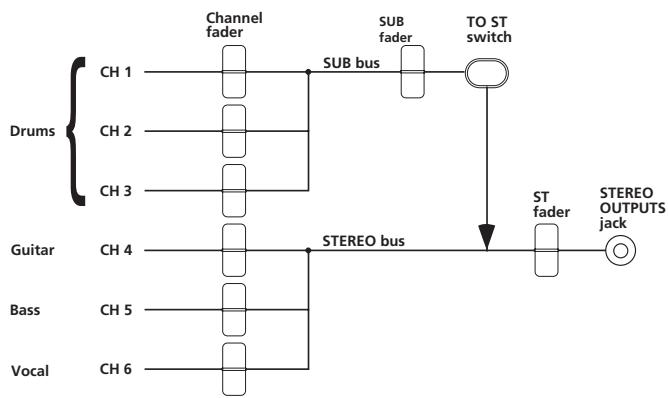

panne sue TOST fader fader switch Ha +), SUBbus Drums À cH2 BC ST STEREO = fader OUTPUTS N NT jade Guitar CHA STEREO bus e à Bass eus — + | | Vol CH6

With this setting, the guitar, bass and vocal signals are sent directly to the stereo bus, but the drums signals pass through the SUB bus before being sent to the stereo bus. By doing this, after adjusting the balance of the three drum mics, you can use the SUB fader to adjust the overall level of the drums when balancing with the other sound sources.

Using the internal effects (M-164FX and M-164UF)

M-164FX and M-I64UF units have an internal effects capability that allows the use of an effect without connect- ing an external effect unit.

These internal effects can be applied by sending signals from channels 1-6, 7-8 and 9-10 to the AUX 2 bus. The return signal can be sent to channels 13-14 or 15-16.

D Knob Return AN internat | Signal cH1314 7 CH 15-16

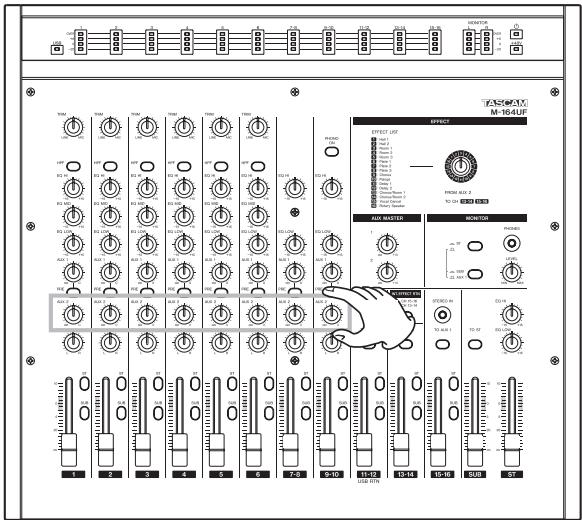

1 Use the AUX 2 knob of each channel to adjust the level of the channel signal sent to the effects.

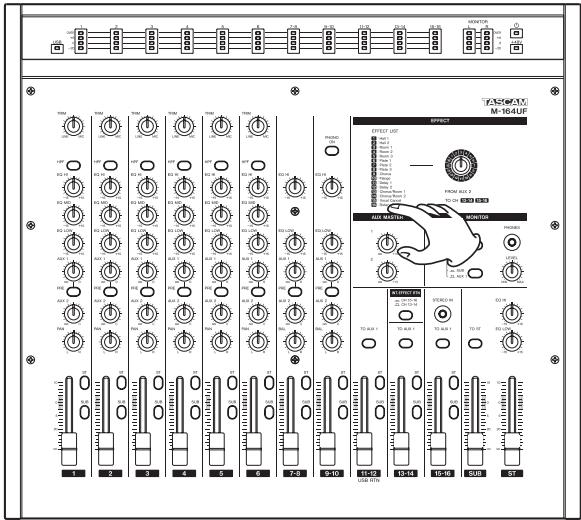

3 Use the EFFECT section rotary knob to select the effect type. The effect types are explained in the list below by their corresponding numbers.

No. Effect name Description list dt 1 | Halt Bright hall reverb suitable for drums, guitars and vocals Fe 2 Hall 2 Warm hall reverb suitable for acoustic guitars, pianos and vocals 3 Room 1 Simulation of a room with hardwood walls and floor suitable for acoustic instruments 4 Room 2 Ambience suitable for acoustic mixes and synth sounds 5 Room 3 Warm room sound suitable for guitars and rhythm instruments se 6 Plate 1 Classic plate reverb suitable for lead vocals and lead instruments 7 Plate 2 Bright and showy plate reverb suitable for vocals and drums 8 Plate 3 Short vintage plate reverb suitable for snare drums and guitars 2 Use the AUX MASTER 2 knob to adjust the overall S$ | Chorus Stereo chorus suitable for guitars and , pianos level of the signal sent to the effects. = 10 | Flange Stereo flanger creates a jet-like sound En LE Sue 11 | Delay1 125-ms slapback delay suitable for sit US vocals and guitars = 12 | Delay 2 190-ms delay suitable for percussive arpeggios 13 | Chorus/Room 1 Chorus/reverb suitable for guitars, synths and pianos 14 | Chorus/Room 2 | Autowah guitar effect with reverb se suitable for lead instruments 15 | Vocal Cancel Effect that reduces the lead vocals from commercial CDs and other sources 16 | Rotary Speaker | Emulation of a rotary speaker suitable

for organs and guitars

TASCAM M-164/M-164FX/M-164UF 23

Push the INT. EFFECT RTN switch in to send the return signal to channels 15-16. Leave the switch out (do not press it in) to send the return signal to chan- nels 13-14.

Do not connect anything to the STEREO IN jack when using channels 15-16 for the return signal. Doing so cuts (mutes) the return signal.

When connecting an iPod or other device to the STEREO IN jack on channels 15-16, set the INT. EFFECT RTN switch to channels 13-14 (pressed in) to send the return signal to these channels.

5 Turn the ST switch ON for the input channel receiv- ing the return signal, and use its fader to adjust return levels.

When using AUX 1 for stage or cue monitoring, if you want to monitor the sound with the effect applied, turn the TO AUX 1 switch ON for the input channel receiving the return signal.

Using external effects

External effects can also be used with this mixer.

Channels 1-6, 7-8 and 9-10 can have an external effect applied by sending their signals to the external effect through the AUX 1or AUX 2 bus. The return signal can be input into any other channels as desired.

In the following explanation, the signals are sent through the AUX 2 bus to an external effect, and the return signals are received by channels 13-14.

24 TASCAM M-164/M-164FX/M-164UF

+ _ When sending signals to an external effect through AUX 1, turn the PRE switch OFF to send the post fader signal.

+ _ When receiving external effect signals back through channels 13-14, do not set the internal effect return to channels 13-14 (by setting the INT. EFFECT RTN switch to CH 13-14).

+ _Ifthe AUX 2 bus is used to send signals to an external effect, the AUX 1 bus can still be used for monitoring.

+ _ With M-164 FX and M-164 UF units, by sending AUX 1 to an external effect and AUX 2 to the internal effect, two types of effects can be used.

First, connect the input jack of the external effect to the AUX SEND 2 jack first, and connect the external effect output jacks to the L/R input jacks of mixer channels 13-14.

AUX MASTER 2 knob AUX SEND 2 jack

/F , Ô—© ; : - Un Ha v" LL External ar aus LR jeak d Quput De. ©<

1 Use the AUX 2 knob of each channel to adjust the level of the channel signal sent to the effect.

2 Use the AUX MASTER 2 knob to adjust the overall level of the signal sent to the effect.

3 Set the effect as desired.

4 Turn the ST switch for channels 13-14 ON, and use its fader to adjust the return level.

When using the AUX 1 bus for monitoring, turn the TO AUX 1 switch for channels 13-14 ON to also monitor the effect return signal.

Using a record player Making final adjustments to the main

An analog record player can be directly connected to mixer output sound channels 9-10. The stereo bus has a 2-band EQ with HI and LOW shelving that can be used to adjust the sound of the mix overall.

Make the following connections and settings to use an analog record player with this mixer.

RE ë + Connect the record player audio output to the channel _ _

9-10 input jacks on the rear panel of the mixer. F ° ss

+ _ Connect the record player grounding wire to the SIGNAL GND jack on the rear panel of the mixer.

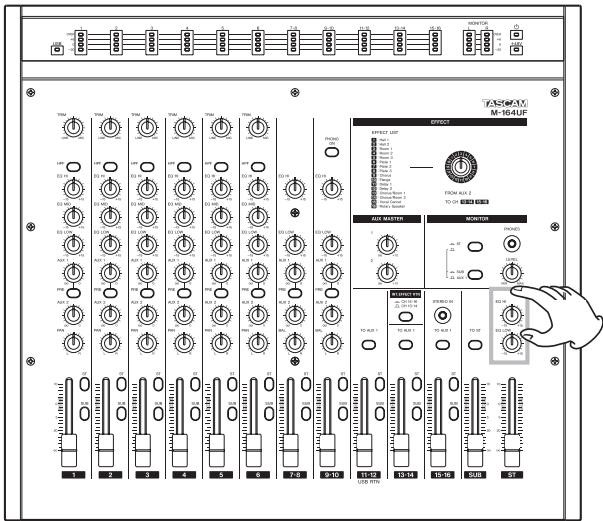

The EQ HI and EQ LOW knobs can boost and cut the high and low frequency ranges by +15 dB.

_ Use the EQ HI knob to boost or cut the frequency band Record player above 12 kHz, and use the EQ LOW knob to boost or cut the frequency band below 100 Hz.

+ Turn the PHONO ON switch on the top panel ON (push switch in).

Sn DE The output signals of analog record players are different from ordinary line output signals. If the connections and settings described above are not made, the playback sound will not be correct.

TASCAM M-164/M-164FX/M-164UF 25

5 - Using with a Computer (M-164UF)

When connected with a computer by USB, the M-164UF mixer can function as a USB 2.0 interface. Using the included Cubase LEA or another audio application, you can easily create music on your computer. In addition, you can input a sound that you have created or edited on the com- puter into the M-164UF mixer, and mix it with live playing in a performance application.

+ The M-164UF mixer can simultaneously send indepen- dent signals of input channels 1-10 and the AUX 1/2, STEREO and SUB busses to the computer.

Since the input channel signals sent to the computer

are post-fader signals, the HPF, EQ and fader M-164UF mixer settings do affect them.

The output level settings of the AUX 1/2, STEREO and SUB busses (AUX MASTER 1 and 2 knobs, ST and SUB fader settings) also affect their signals.

+ _ The stereo output from the computer can also be sent to the M-164UF mixer by USB. The stereo signals sent from the computer are input on the 11-12 channels of the M-164UF mixer, so it is pos- sible to mix and output them from the mixer together with other input signals.

Supported operating system:

+ _ Audio device that supports ASIO + DVD-ROM drive

+ _ Internet connection

26 TASCAM M-164/M-164FX/M-164UF These requirements must be satisfied if you plan to use Cubase LE 4 (bundled with the M-164UF). If you are planning to use other application software, please consult its technical documentation for operating requirements specific to that software.

+ __ The number of available audio tracks will depend on the speed of your hard disk. A faster hard disk will facilitate smoother and easier operation.

+ USB1.1 is not supported.

+ For memory, we recommend at least 512 MB for 32-bit systems and 1 GB for 64-bit systems (at least 2 GB for Windows Vista). When using digital audio applications, however, the more memory available, the smoother the performance is generally.

+ _ M-164UF operation has been confirmed using standard computers that meet the above system requirements, but we cannot guarantee operation with computers that meet the above conditions in every case. Even under the same conditions, processing capabilities vary due to differences in the unique design specifications of each computer and its operating environment.

æ MacOS X Supported operating system: Mac OS X version (10.4.11 or later, 10.5.6 or later)

+ _ Audio device that supports Core Audio or ASIO + DVD-ROM drive

+ Internet connection

For Macintosh systems as well, additional memory and a faster hard disk drive will facilitate smoother and easier operation of digital audio application software.

Installing the drivers

Before you can use the M-164, you must install the appro- priate drivers on your computer. As described below, this is a simple process that uses the CD-ROM included with the M-164.

Drivers are updated from time to time. You can download the latest version of the drivers from the TASCAM website <http://www.tascam.com/>.

5 - Using with a Computer (M-164UF)

When installing the driver, start with the M-164UF mixer disconnected.

+ Handle the enclosed CD-ROM with care. If the disc becomes scratched or dirty, your computer may be unable to read it and you may be unable to install the software.

If the disc becomes unreadable, you can request a replacement disc for a fee.

+ _ Do not try to play the included CD-ROM disc on an ordinary audio CD player. The noise produced could damage the speakers or harm your hearing.

Installing the drivers for Windows

The US-164/’s drivers are provided on the CD-ROM as an executable installer.

You can also download the latest version of the driver from the TASCAM website (www.tascam.com).

If the driver on the included CD-ROM is an older version, we recommend that you download the latest version and install it

Installation procedures

The following are detailed explanations (for a Windows XP system) of how to install the driver from the included CD-ROM and how to update the firmware.

(CZ When installing the driver, it is necessary to disconnect and reconnect the USB cable during steps 7, 8 and 9. During this time, complete the procedures indicated on the screen within about a minute. Failure to complete the procedures quickly could result in the installation failing.

Installing the drivers

1 Make sure that the unit (M-164) is not connected to your computer via a USB cable.

2 Insert the included driver installation CD-ROM into the CD-ROM drive on your computer.

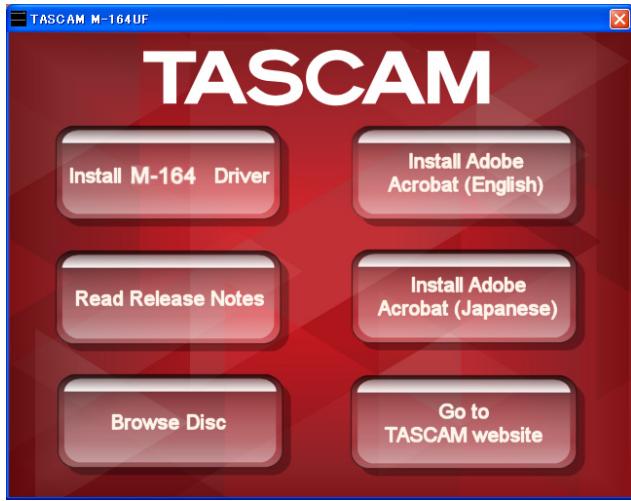

3 Click the /nstall M-164 Driver button when the menu screen below appears. If the menu screen does not appear, find and open the “M-164UF_Install.exe” file on the driver.

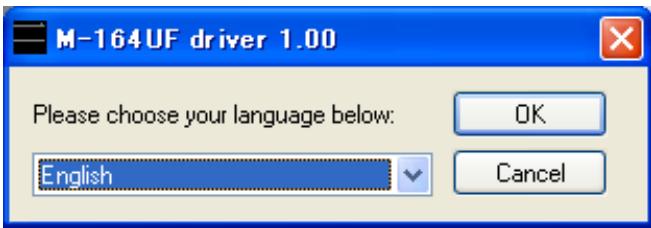

4 When the language selection screen appears after a short time, use the up and down arrow keys to select the desired language and then click the “OK” but- ton.

Please choose your language below:

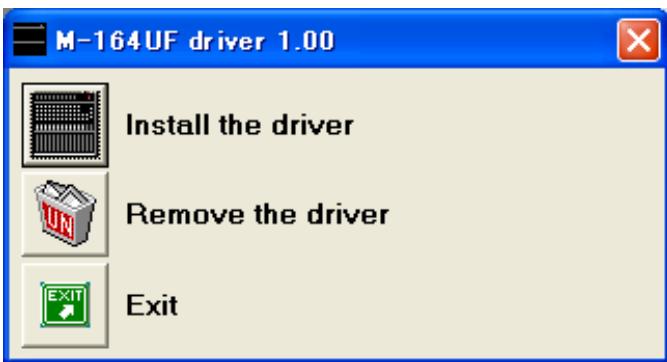

5 When the screen below appears, click the Install the driver button.

TASCAM M-164/M-164FX/M-164UF 27

5 - Using with a Computer (M-164UF)

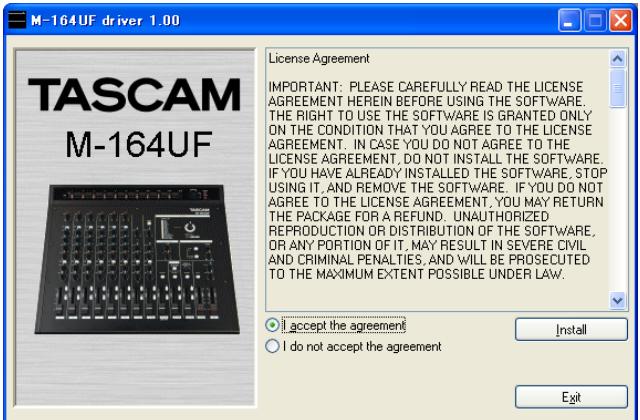

6 Read the contents of the License Agreement, then select | accept the agreement if you agree to the terms. Click the /nstall button to start installation.

License Agrearent FT IMPORTANT. DEN CARE PERD THEUGNSE AGREEMENT EN BÉFORE UE THE TV SA GT CE CAE HE DO VAE LD BSANEED ON pute AE LHHÉEMEN I DU NOT AGREE TU 1 LRSCAREEMEN DONOT INSTALL ICE Su Was: VENU HAVE ARE ETAT ED ME STEP USING IL.AND RENCVE. VOL DÉ NOT AGAEE TO THE RS AN TR A PACRAGE FU AFEA LIHOBLEU RÉÉCODUE: EN OH DISTRIBUTION DE He SOETVARE, CO ANY PORTIQM 07 IT MAY RESULT IN SEVERE DVI LAND CAIMNAL FENALTIES, ND IL BE PROSECUTED FO THE MSI EXTENT POSSIBLE UNDER LAW.

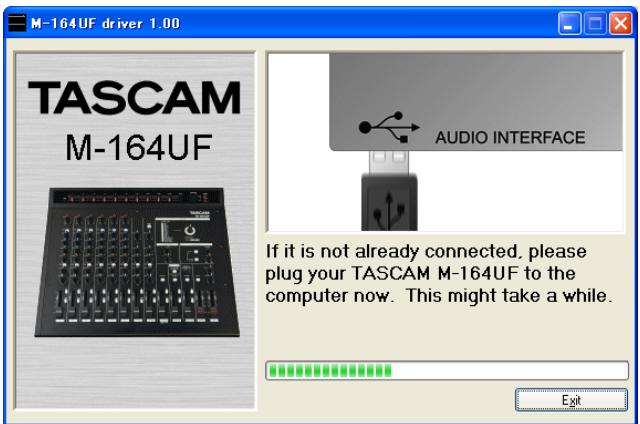

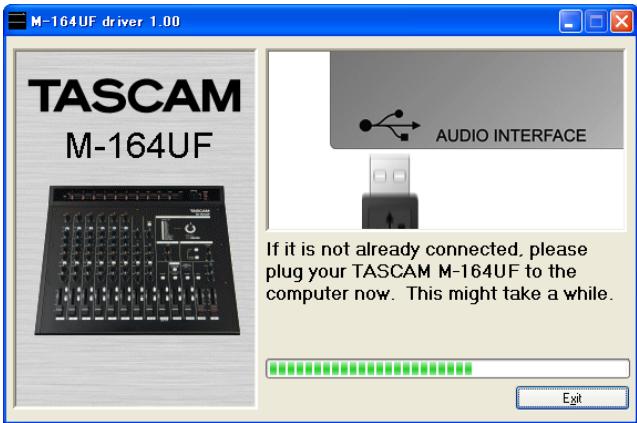

7 When the following screen appears, use the includ- ed USB cable to connect the mixer (M-164UF) with the computer.

Ifitis not already connected, please plug your TASCAM M-164UF to no computer now. This might take a while

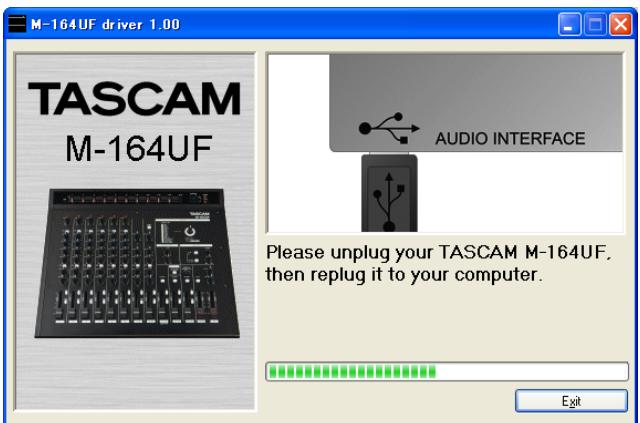

8 When the following screen appears, disconnect the USB cable from the mixer (M-164UF) or the com- puter for a moment.

Please unplug your TASCAM M-164UF, hon replug it to your computer

9 When the following screen appears, reconnect the mixer (M-164UF) and the computer with the USB cable.

28 TASCAM M-164/M-164FX/M-164UF M-164UF driver 3.00

Ifitis not already connected, please plug your TASCAM M-164UF to no computer now. This might take a while

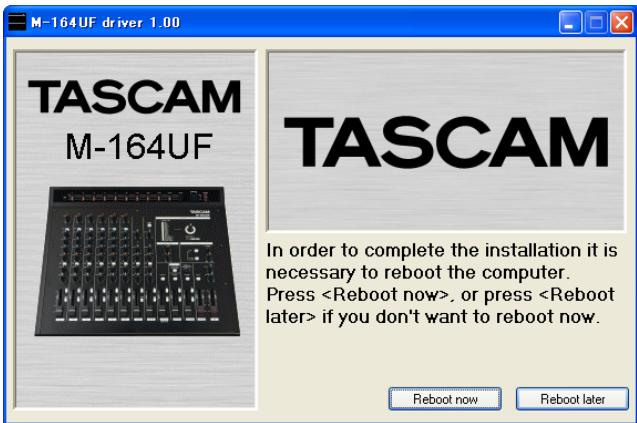

10 When the following screen appears, installation has completed.

Click the Reboot now button to restart the comput- er.

TASCAM M-164UF TASCAM In order to complete the installation it is nocossany to reboot the computer. Press <Reboot now>. or press <Reboot later> if you don't want to reboot now

11 After the computer restarts, click 7ASCAM M-164UF (Start > Settings > Control Panels) to launch the M-164UF Control Panel. If information about the driver version, device and other details appear, installation has been successful.

Installation of Mac OS X drivers

1 Confirm that the M-164UF and computer are not connected.

2 Double-click the WM-164UF._Drivers.mpkg on the included CD-ROM to launch the installer software.

3 Follow the instructions shown on screen to proceed with the installation.

4 After the computer restarts, connect the mixer.

5 - Using with a Computer (M-164UF)

How to update the firmware

By connecting the M-164UF with a computer by USB, you can overwrite the mixer firmware.

The latest firmware updater can be downloaded from our http:/www.tascam.com website.

Preparation 1: Install the latest driver on your computer.

Preparation 2: Connect the M-164UF to be updated to the computer by USB.

The firmware updater differs according to the version.

Updating the firmware with Windows

The following is an explanation of the procedures for updating the firmware using a Windows XP computer. When using a Windows Vista computer, the screens differ, but the procedures are fundamentally the same.

1 Connect the mixer and computer by USB.

2 Launch the Windows XP firmware updater file for the version that you want to update.

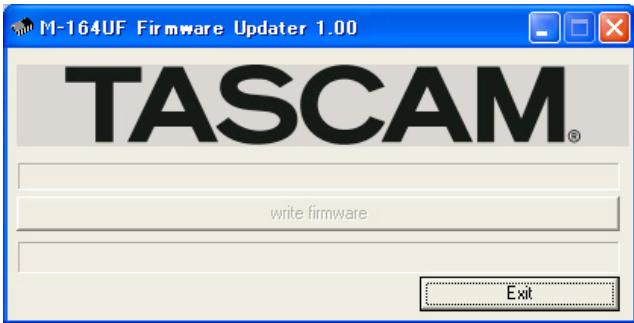

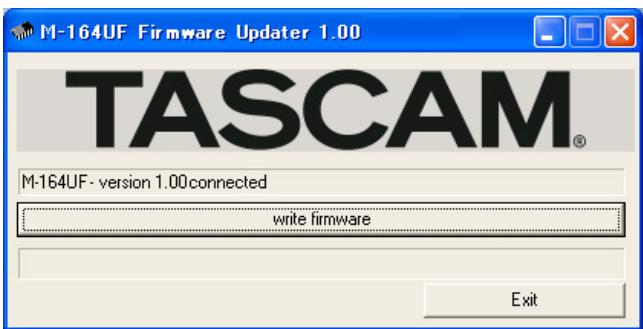

The following screen appears.

dM-164UF Firmware Updater 1.00

TASCAM MAB4UF- version 1.0Uconnected

3 Click the write firmware button to start updating the firmware.

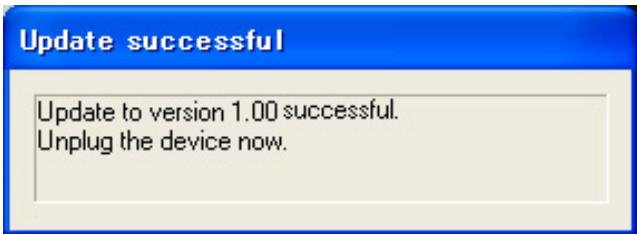

When updating completes, the following screen appears.

Update to version 1.00 successful. Unplug the device now.

4 Disconnect the USB cable from the mixer.

The next screen appears.

uM=164UF Firmware Updater 1.00)

5 Click the Exit button to complete updating.

Updating the firmware with Macintosh (OS X) 1 Connect the mixer and the Mac by USB.

2 Launch the Macintosh firmware updater file for the version that you want to update.

The screens differ somewhat from those above, but fun- damentally the same procedures used with Windows computers can be followed.

Only an overview of key points is provided in this Owner’s Manual.

« Avoid launching other applications. Although you might use the computer that is connected with the M-164UF for purposes other than audio, when using audio applica- tions, avoid using other applications as much as possi- ble. Digital audio processing puts a fairly heavy burden on computers. As a result, the use of other applications (particularly graphic and Internet tools) could interfere with audio processing.

+ _ Some network cards and devices such as software modems can conflict with USB operation (interfere with functions). If a conflict occurs, you can temporarily disable the device that is causing the problem using its device manager.

+ _Ifthere is an IDE hard drive installed in the computer, turning ON direct memory addressing (DMA) will improve performance. In Windows, this function is ON by default.

Moreover, the alteration or addition of computer hardware peripherals might improve the computer’s ability to process audio as well as increase the number of tracks that it can record simultaneously.

TASCAM M-164/M-164FX/M-164UF 29

5 - Using with a Computer (M-164UF)

Control panel settings

Connecting by USB Overview M-I6AUF functions can be set from the control panel.

On Windows XP, the M-164UF Control Panel can be accessed from shortcuts in the following locations.

+ Start menu + Control panels

+. Programs/TASCAM/M-164UF On Mac OS X, the M-164UF Control Panel is located inside the application folder.

The control panel is divided into the following two sections.

+ Status display section This shows the current status of the driver and connect- ed hardware. Changes cannot be made in this section.

+ Settings section Changes to various driver settings can be made here.

Audio Performance (Windows OS)

The M-164UF driver stores audio input and output signals temporarily in a buffer.

The buffer can be set to one of five sizes using the Audio Performance item. The smallest buffer size has the low-

est latency, while the largest buffer size has the highest latency.

The smaller the buffer size is, the shorter the time that the audio signal will be delayed from the time that the input

signal is monitored in real time. However, smaller buffers also require more high-speed processing by the computer.

When other system operations are occurring, for example, the audio processing might not be fast enough, caus-

ing clicking and popping noises as well as audio signal dropouts.

Larger buffer sizes provide more stable operation, and other system operations are less likely to interfere with the audio signal, but the audio signal delay from real- time monitoring is also greater. The buffer size used with this mixer can be set to best meet the user’s computer and recording conditions.

In the Mac OS X version, there is no Audio Performance setting in the control panel. The optimal buffer size can be set suitably in each audio application. See the manuals for the audio applications that you are using for details.

30 TASCAM M-164/M-164FX/M-164UF Use the included USB cable to connect the M-164UF with a computer as shown in the illustration.

usB Some USB equipment uses the USB bus frequently.

In order to prevent the audio signal from dropping out, clicking noises and other trouble, we recommend that you do not connect other USB equipment (including USB hubs) to the same USB hub to which the M-16AUF is connected.

USB keyboards and mice are exceptions, however, and connecting them should not cause any problems.

Using Cubase LEA to record For details see the Cubase LE4 Quick Start Guide (page 4).

Related to mixer settings

Q: There is no sound from the speakers connected to the STEREO OUTPUTS jacks.

A: Turn the MONITOR ST switch ON and check the MONITOR meters.

If the meter indicators are changing: + Check the settings and volume of the connected amplifi- cation system.

If the meter indicators are not changing:

+ Are the channel ST assign switches ON (pushed in)?

+ Are the channel and ST faders raised?

< Is the input sound source properly connected to the mixer?

Q: The sound is quiet even if the faders are raised.

+ _Ifmics are being input to channels 1-6, are their TRIM knobs turned up?

+ Are external sound sources connected to both the MIC and LINE input jacks of any of these channels (1-6)?

+ _Ifa condenser mic is connected, is phantom power ON?

Q: The sound is distorted.

If the channel meters are peaking:

+ Are the channel 1-6 TRIM knobs set suitably?

< Are the output levels of external sound sources con- nected to channels 7-16 too high?

If the channel meters display normal levels:

< Are the EQ settings too high?

+ Are the channel or ST faders raised too high?

Q: The record player sounds strange.

< Is it connected to channels 9-10, and is the PHONO ON switch ON?

< Is the record player grounding wire connected to the SIGNAL GND jack on the mixer?

Q: There is a humming noise coming from external equipment.

A: < Try using grounding wire to connect a metal part of the

external equipment chassis with the SIGNAL GND jack on the mixer.

Q: The internal effect does not work (M-164FX,

+ _ Have you increased the level of the AUX 2 knob for any channels with inputs to send their signals to the internal

effect and increased the level of the AUX MASTER 2 knob?

+ Have you raised the fader of the return channels selected by the INT. EFFECT RTN switch?

+ _Ifthe return channels are set to 15-16, is something plugged into the STEREO IN jack, causing the effect return to be bypassed?

Q: There is no sound from the monitoring system connected to the AUX SEND 1 jack.

If you can monitor the AUX 1 bus by headphones: + Check the settings of the external monitoring system.

If you cannot monitor the AUX 1 bus by head- phones:

+ _ Have you increased the level of the AUX 1 knob for any channels with inputs and increased the level of the AUX MASTER 1 knob?

+ Are the PRE switches for the channels that you want to monitor ON? (If the PRE switches are OFF and the channel faders are lowered, those channels cannot be monitored.)

Related to recording with Cubase LE4 (M-164UF ONLY)

For details see the Cubase LE4 Quick Start Guide (page 4).

TASCAM M-164/M-164FX/M-164UF 31

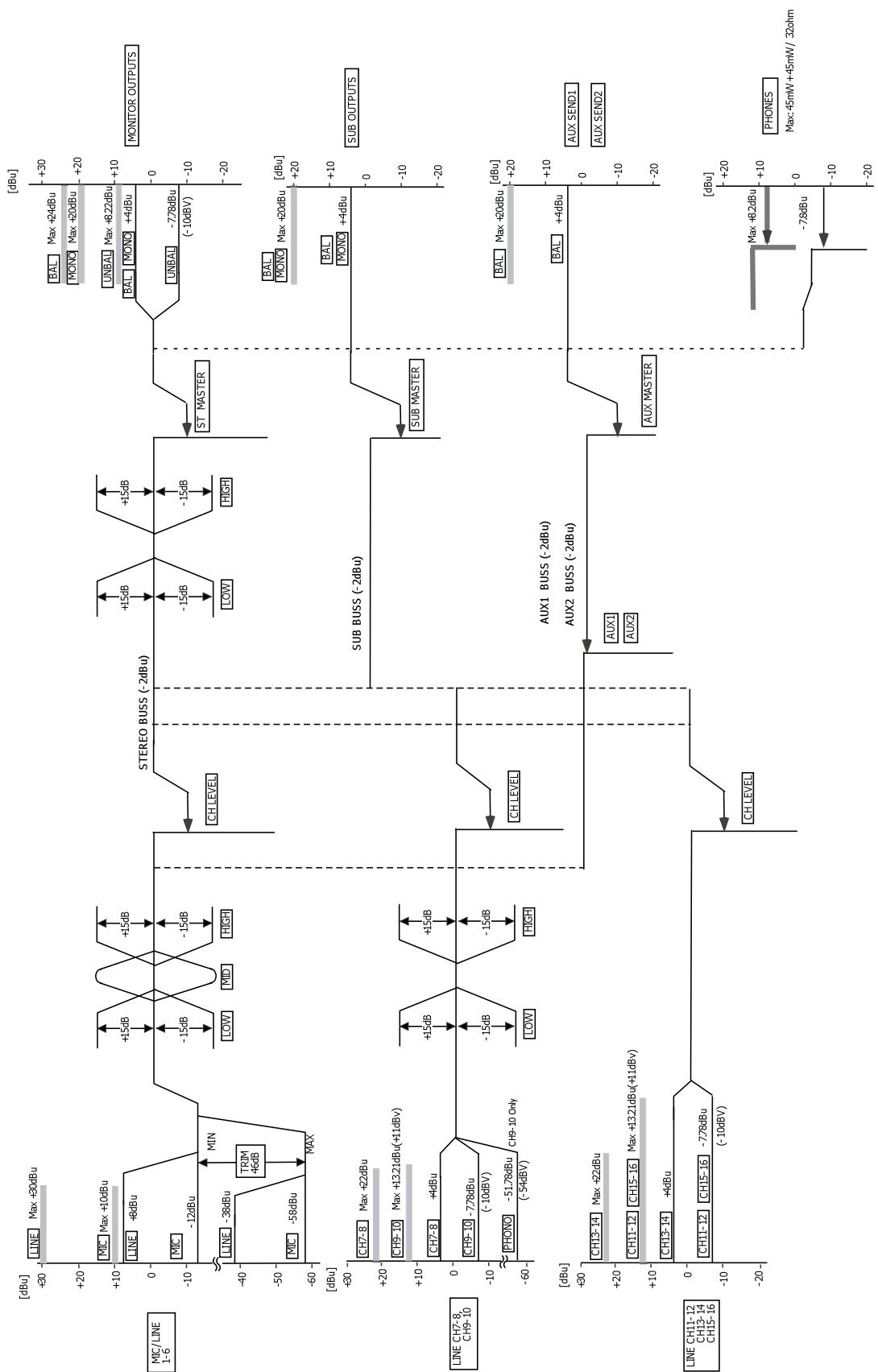

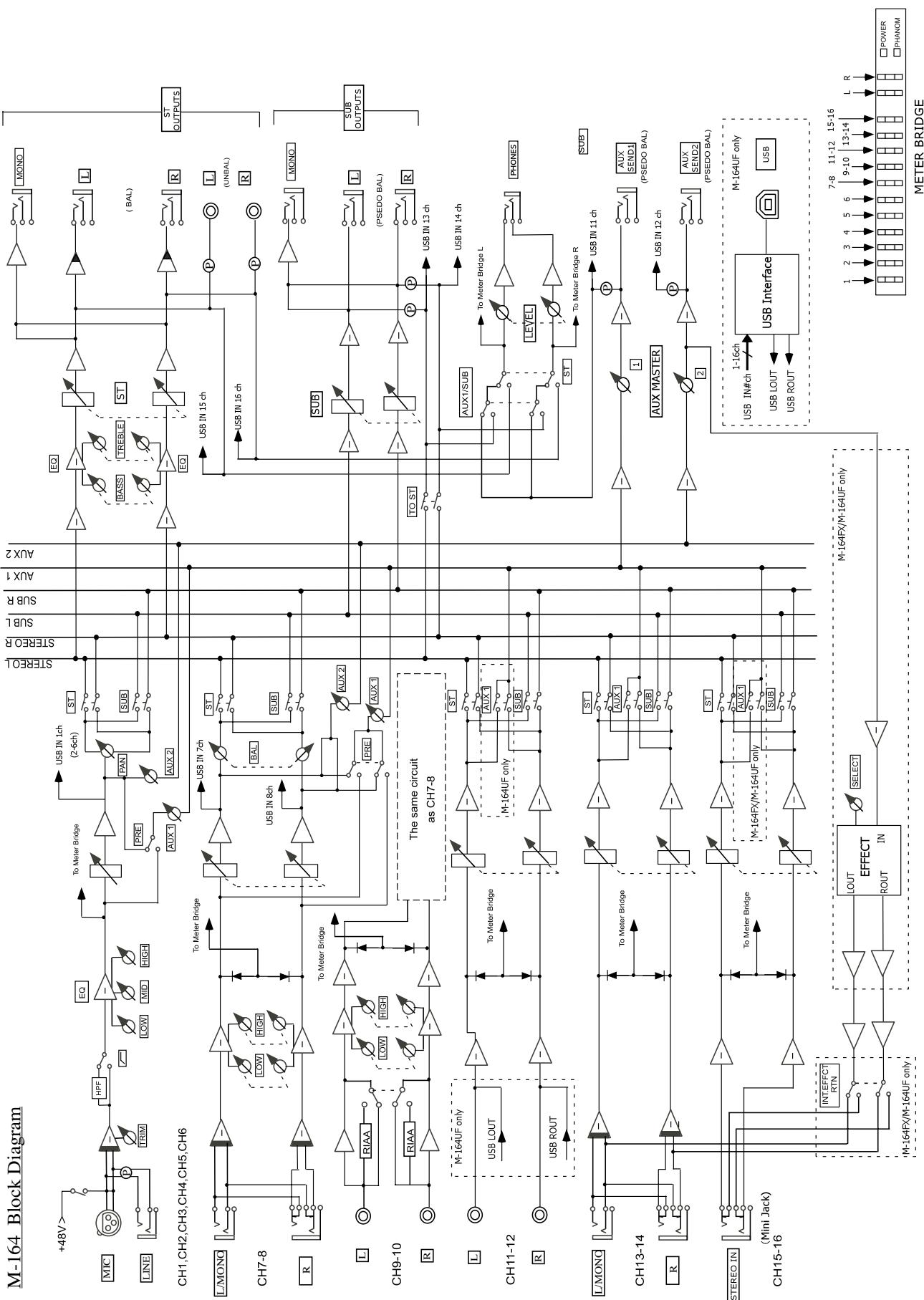

7 - Specifications and Block Diagrams

Internal operation level: -2 dBu

Inputs MIC input jacks (channels 1-6) Connectors: XLR-3-31

Circuit type: electronically balanced (#1: ground, #2: hot, #3: cold)

Input impedance: 2.4 kQ Nominal input level (TRIM knob at maximum): -58 dBu Nominal input level (TRIM knob at minimum): -12 dBu Maximum input level: +10 dBu (TRIM knob at minimum) LINE input jacks (channels 1-6)

Connectors: 3-pole standard jacks

Circuit type: electronically balanced (tip: hot, ring: cold, sleeve: ground)

Input impedance: 22 kQ Nominal input level (TRIM knob at maximum): -38 dBu Nominal input level (TRIM knob at minimum): +8 dBu Maximum input level: +30 dBu (TRIM knob at minimum) 7-8, 13-14 input jacks

Connectors: 3-pole standard jacks

Circuit type: electronically balanced (tip: hot, ring: cold, sleeve: ground)

Input impedance: 10 KQ Nominal input level: +4 dBu

Maximum input level: +22 dBu

Connectors: RCA pin jacks

Circuit type: unbalanced

Input impedance: 47 kQ (47 kQ with PHONO ON) Nominal input level: -10 dBV (-54 dBV with PHONO ON) Maximum input level: +11 dBV

Connectors: RCA pin jacks

Circuit type: unbalanced

Input impedance: 10 KQ Nominal input level: -10 dBV Maximum input level: +11 dBV

32 TASCAM M-164/M-164FX/M-164UF

15-16 input jacks Connectors: 3-pole mini-jack (tip: L, ring: R, sleeve: ground)

Circuit type: unbalanced

Input impedance: 10 KQ Nominal input level: -10 dBV Maximum input level: +11 dBV Outputs STEREO OUTPUTS (L, R) balanced jacks Connectors: 3-pole standard jacks

Circuit type: electronically balanced (tip: hot, ring: cold, sleeve: ground)

Output impedance: 100 Q Nominal output level: +4 dBu Maximum output level: +24 dBu

STEREO OUTPUTS (MONO) jacks Connectors: 3-pole standard jacks

Circuit type: electronically balanced (tip: hot, ring: cold, sleeve: ground)

Output impedance: 100 Q Nominal output level: -2 dBu Maximum output level: +20 dBu STEREO OUTPUTS (L, R) unbalanced jacks Connectors: RCA pin jacks Circuit type: unbalanced

Output impedance: 100 Q Nominal output level: -10 dBV Maximum output level: +6 dBV SUB OUTPUTS (L, R) jacks Connectors: 3-pole standard jacks

Circuit type: Pseudo balanced (tip: hot, ring: cold, sleeve: ground)

Output impedance: 150 Q Nominal output level: +4 dBu Maximum output level: +20 dBu SUB OUTPUTS (MONO) jacks Connectors: 3-pole standard jacks

Circuit type: Pseudo balanced (tip: hot, ring: cold, sleeve: ground)

Output impedance: 150Q Nominal output level: -2 dBu

Maximum output level: +20 dBu

7 - Specifications and Block Diagrams

AUX SEND (1, 2) jacks NOTE Connectors: 3-pole standard jacks + Illustrations in this Owner's Manual might differ from

the appearance of the actual product.

+ __In order to improve a product, its specifications and/ or appearance might be changed without notice.

Circuit type: Pseudo balanced (tip: hot, ring: cold, sleeve: ground)

Output impedance: 150Q Nominal output level: +4 dBu Maximum output level: +20 dBu PHONES jack

Connector: 3-pole standard jack (tip: L, ring: R, sleeve: ground)

Maximum output: 45 mW + 45 mW (1% THD, for 32Q load)

(Measured at a -2 dBu operating level)

Frequency response (MIC inputs = all outputs)

20 Hz - 20 kHz, +1/-3 dB (TRIM at maximum, for 150Q load)

Distortion (MIC inputs =} STEREO OUTPUTS) 0.01% or less (20 Hz — 20 kHz, TRIM at minimum)

Hum & noise (MIC inputs + STEREO OUTPUTS) With 1 mic input: -60 dBu or more (TRIM at maximum) With 6 mics input: -52 dBu or more (TRIM at maximum)

Crosstalk 80 dB (1 kHz)

Power: AC adaptor (TASCAM PS-1225L)

AC adaptor input: AC 100-240 V, 50-60 Hz

AC adaptor output voltage: 12V DC AC adaptor output electric current: 2.5 A Power consumption:

Weight: 3.3 kg (M-164), 3.4 kg (M-164FX), 3.5 kg (M-164UF)

7 - Specifications and Block Diagrams

7 - Specifications and Block Diagrams

CH1,CH2,CH3,CHA,CHS,CHS TASCAM M-164/M-164FX/M-164UF 35

7 - Specifications and Block Diagrams
