USER MANUAL E3F OMRON
The quick way to install reliable and accurate sensing
» Long sensor lifetime
» Fast installation
» High accuracy
Reliable sensing performance guaranteed!
Selling more than a million pieces per year, Omron is a leading supplier of both M18 cylindrical and compact square photoelectric sensors. Thanks to our ongoing commitment to achieving the highest reliability, accuracy and value for money, we have taken the proven and ultra-reliable technology of the E3Z photoelectric sensor and applied it to the E3F family.
By using the same optical sensing module you get the same proven optical performance with minimum tolerance variations and the highest durability. So, with the new generation of photoelectric sensors you get the highest reliability and best price/performance available.
OMRON
ECOLAB
Stainless-steel

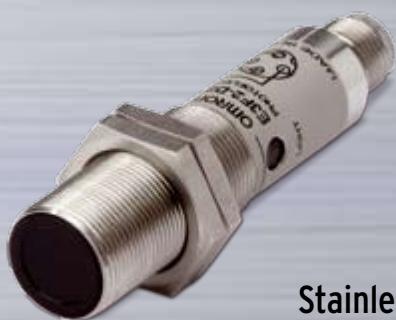

E3F2- -S sensors in stainless steel M18 housing
For areas that undergo frequent cleaning the stainless steel housing of the E3F2- _S provides enhanced detergent resistance and longer sensor lifetime. The tight housing construction with IP69k rating provides protection against high-pressure wash-down.
| Through-beam | |
| 7 m | |
| Retroreflective | |
| 4 m | |
| Diffuse reflective | |
| 1 m |
Diffuse reflective with background suppression
10 cm
Accuracy and long sensor lifetime… wherever your machines go
Whichever environment you have in mind, the E3 sensor family covers your requirements. The accuracy, operational stability and long lifetime of these highly popular sensors are proven in countless installations throughout the world.
Moreover, OMRON supplies these sensors for the complete range of our customers’ machines to wherever in the world they are exported and independent of the area of usage. This applies for standard, as well as machines that are built for frequent cleaning. Customers realise that with OMRON on board the maintenance and support costs can be minimized.

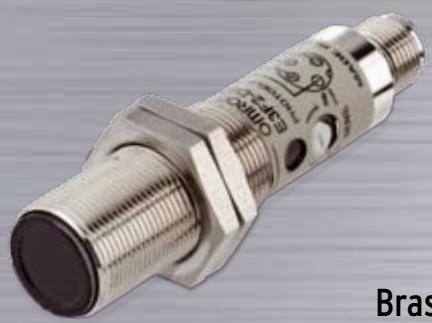

Brass
L-on / D-on selectable by wiring M12 connector or pre-wired.

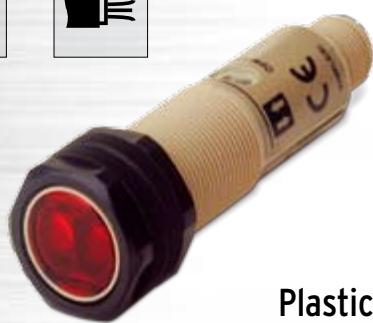

Plastic
E3F2- _M and E3F2 sensors in brass and plastic M18 housing
For a wide range of general applications, the standard E3F2 sensors in brass and plastic housing provide the best value / performance ratio. The complete line-up includes through-beam, retroreflective, diffuse reflective, background-suppression, special-beam and AC/DC voltage-supply models.
| Through-beam | 7 m |
| Retroreflective | 4 m |
| Diffuse reflective | 1 m |
| Diffuse reflective with background suppression | 10 cm |

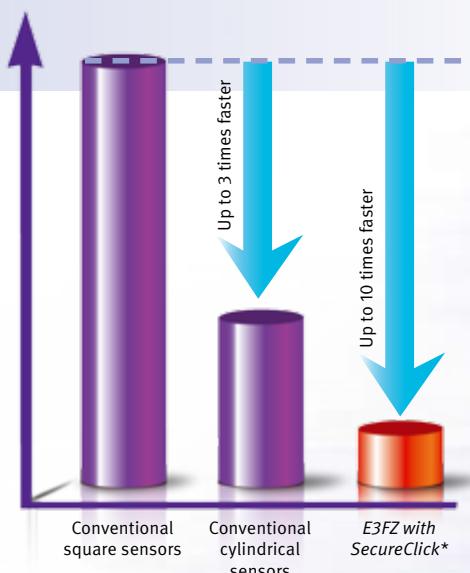

Minimize your installation costs
With Omron's E3F family you need not worry about lengthy installation times because the cylindrical shape means that these sensors are quick to fit and align. The customer benefit is clear: minimised installation time and costs.
Fast mounting
*Secure-Click has been tested and found to be severe-vibration proof.

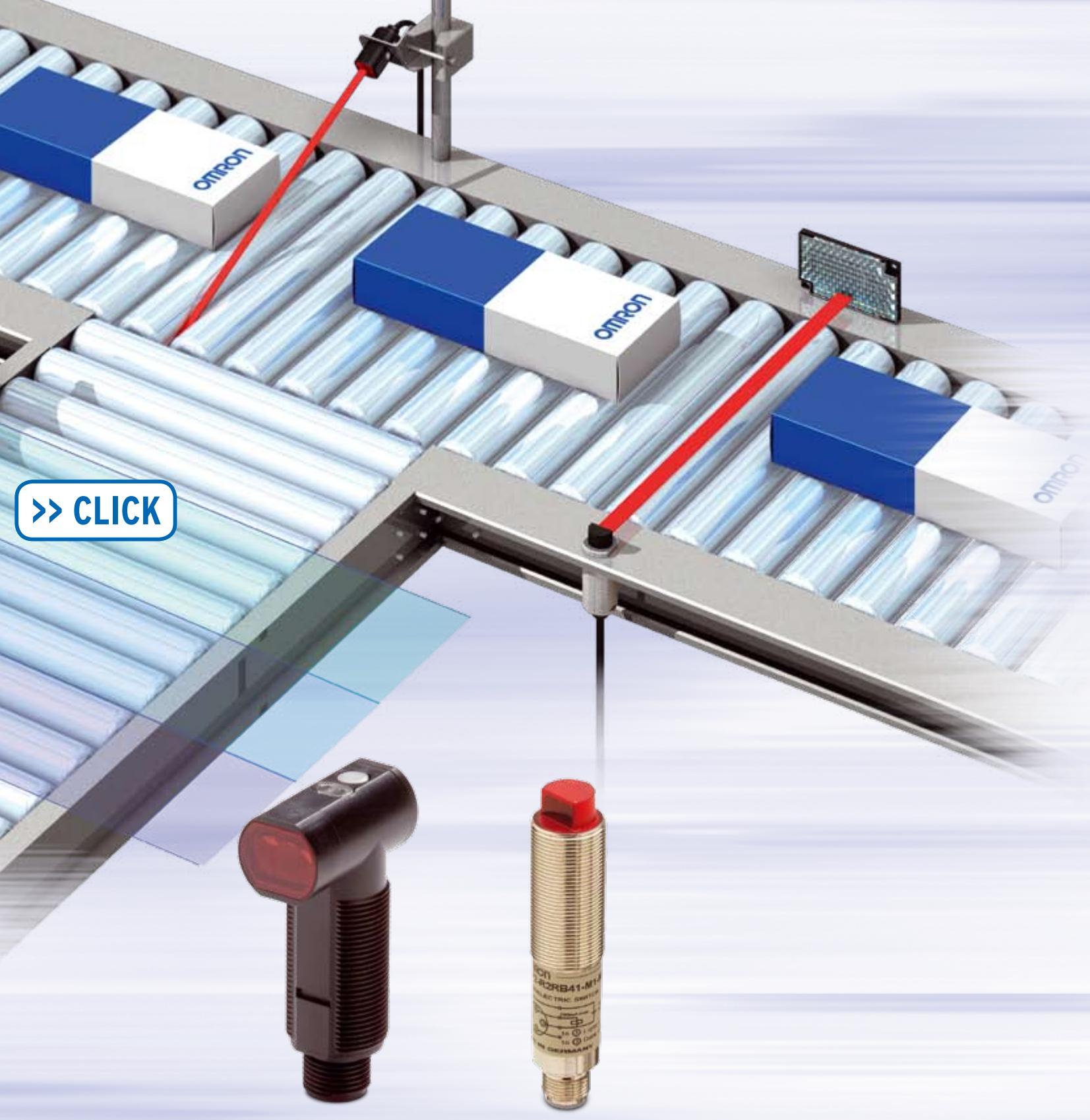

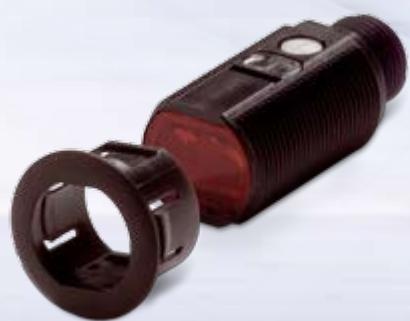

E3FZ easy mounting sensor in short M18 plastic housing
Installation times can be significantly reduced with the E3FZ. The snap-in mechanism provides fast and vibration proof mounting. The Laser welded compact M18 body measures less than 40mm in length and provides highest protection and durability.
| Through-beam | 15 m |
| Retroreflective | 4 m |
| Diffuse reflective | 1 m |
| Diffuse reflective with background suppression | 20 cm |
Through-beam
15 m
Retroreflective
4 m/2 m
Diffuse reflective
1 m/0,3m
Diffuse reflective with background suppression
20 cm

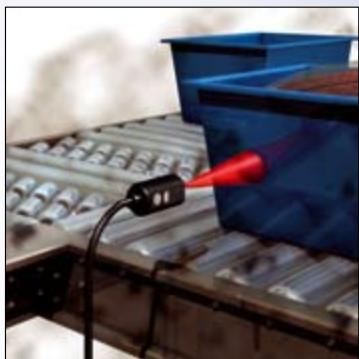

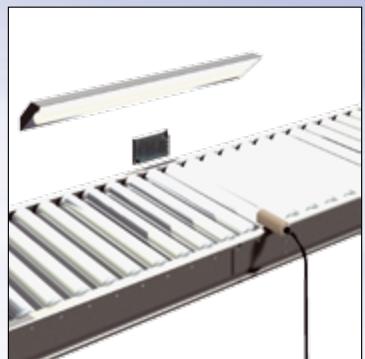

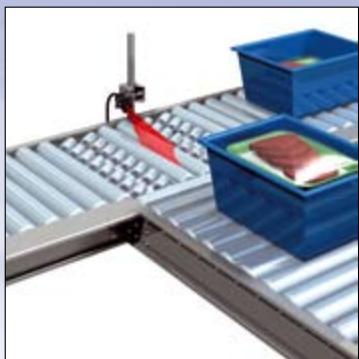

E3FR and E3F2- _-41 sensors in M18 housing with 90^ radial optics
The radial (90^ optics) sensors allow a simplified bracket-less installation. The E3FR is based on the E3FZ family and offers the same functionality and product range. The E3F2-_-41 range of retroreflective and diffuse reflective sensors features a smaller-sized sensing head with a built-in 90^ prism for challenging mounting conditions.
High power LED to compensate for dirt and misalignment.
Pulse synchronisation for high ambient light immunity.
Reliable operation on shiny surfaces and backgrounds - background suppression (BGS) and mirror surface rejection (MSR).

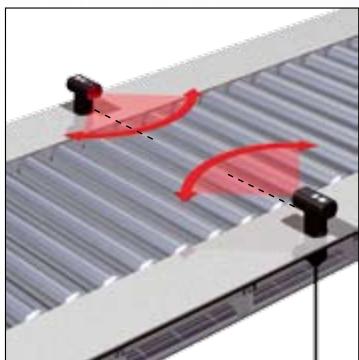

Precise optical and mechanical characteristics for simple alignment.

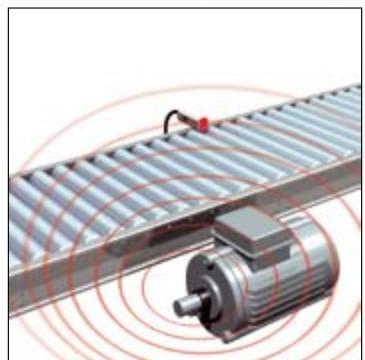

Intensive shielding for high electromagnetic noise immunity.

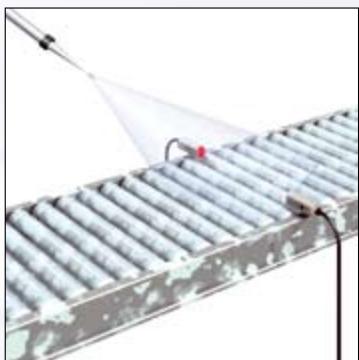

Tight housing construction for high-level water protection.
Long sensor lifetime and high operational stability
Environmental influences like high temperatures, chemicals, water or electromagnetic noise can reduce the lifetime of sensors or influence the stable operation. For highest reliability and long lifetime, each Omron sensor is designed and tested to withstand conditions exceeding legal requirements and standard industrial environmental conditions.
The new generation of optical sensors based on the modular design achieves an even higher level of resistance against environmental disturbances and provides stable sensor operation... wherever your machines go.
For more details and information about our complete portfolio, please contact your nearest Omron representative or visit www.omron-industrial.com/E3Z
| Special function models | Accessories | Certificates, listings and test info |
| Wide-beam models for the detection of structured objects, models for AC/DC voltage supply, ... | Cable connectors, reflectors and mounting brackets, ... | UL, CSA (AC types), RoHS, ECOLAB detergent resistance, ... |
