Product type	Inductive proximity sensor
Brand	OMRON
Model	E2KQ-X
Detection distance	10 mm (adjustable 6 to 10 mm)
Detection object	Conductors and dielectrics
Output type	DC 3-wire NPN (NO or NC)
Supply voltage	12 to 24 VDC (10 to 30 VDC)
Current consumption	15 mA max
Switching current	100 mA
Response frequency	35 Hz
Detection indicator	Red LED
Ambient temperature	-10°C to 55°C
Ambient humidity	35% to 85% RH
Protection	IP66
Housing material	Fluorine resin (Teflon)
Weight	Approx. 150 g
Dimensions (Diameter x Length)	M18 x 61.8 mm
Connection	Pre-wired cable 2 m
Included accessories	Adjusting screwdriver, lock nuts
Electrical protections	Reverse polarity protection, surge absorber

Frequently Asked Questions - E2KQ-X OMRON

What is the detection distance of the sensor?

The standard detection distance is 10 mm, adjustable between 6 and 10 mm via the sensitivity adjuster.

What type of output does the sensor have?

The sensor is available with 3-wire NPN output, normally open (NO) or normally closed (NC) depending on the model.

What supply voltage is required?

The nominal supply voltage is 12 to 24 VDC, with an operating range of 10 to 30 VDC.

What materials can it detect?

It detects conductors and dielectrics. The detection distance varies depending on the material: grounded metals offer the longest range.

Is the sensor resistant to water and chemicals?

Yes, it has a housing made of fluorine resin (Teflon) resistant to oils and chemicals, and an IP66 protection rating.

How to adjust the detection distance?

Use the provided screwdriver to adjust the sensitivity adjuster located on the sensor. The distance can be set from 6 to 10 mm.

What is the response frequency?

The response frequency is 35 Hz, allowing fast object detection.

How to install the sensor to avoid interference?

Respect the minimum distances from surrounding metals and other sensors: 30 mm lateral clearance, 200 mm face-to-face, and 32 mm side-by-side.

What to do if the sensor does not work correctly?

Check the power supply, connections, detection distance and ensure the object is a conductor or dielectric. Refer to the manual for troubleshooting.

What accessories are supplied with the sensor?

The sensor is delivered with an instruction sheet, an adjusting screwdriver, and two fluorine resin lock nuts.

USER MANUAL E2KQ-X OMRON

Inductive Proximity Sensor

E2KQ-X

Proximity Sensor with Easy Sensing Distance Adjustment and Teflon* Coating Effective Oil and Chemical Resistance

• Oil and chemical-resistant Teflon case.
• Sensitivity adjuster ensures easy sensing distance adjustment according to the sensing object.
• Incorporates a cord connector with an indicator providing high visibility.
  * Teflon is a registered trademark of Dupont Company and Mitsui Dupont Chemical Company for their fluoride resin.

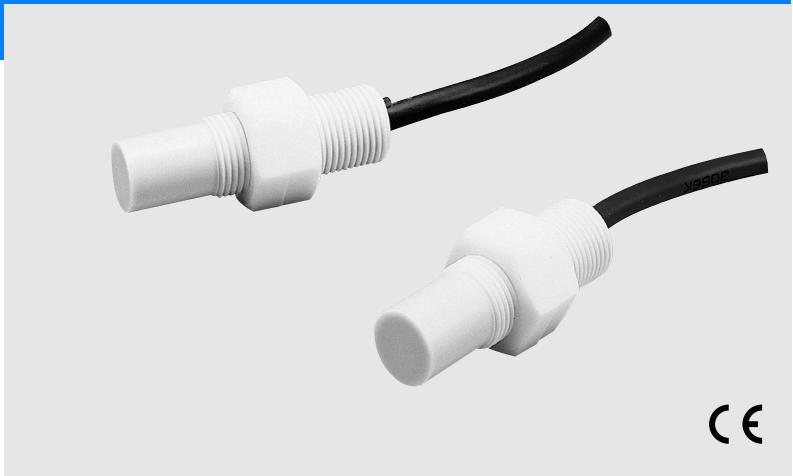

Two white plastic connectors with threaded ends, one black and one white, against a plain background (no text or symbols visible)

Ordering Information

Shape		Sensing distance			Output	Operating status	Model
Unshielded	M18			6 to 10 mm	DC 3-wire NPN	NO *	E2KQ-X10ME1

* NC models available (E2KQ-X10ME2)

Characteristic data (typical)

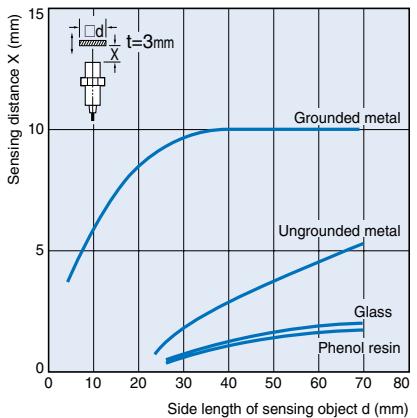

Sensing Distance vs. Sensing Object

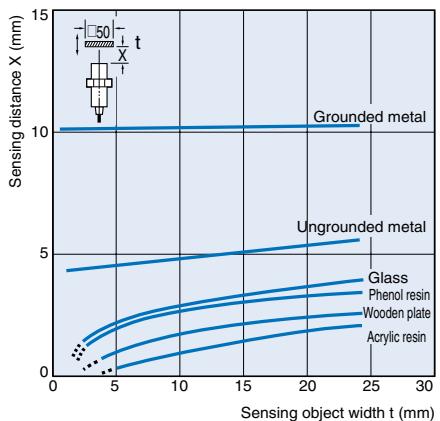

Sensing Object Thickness and Material vs. Sensing Distance

DC 3-wire Models

Operating status	Model	Timing chart	Output circuit
NO	E2KQ-X10ME1

Rating/Performance

Item	Model	E2KQ-X
Sensing distance *		10 mm
Sensing distance adjustable range		6 to 10 mm
Differential distance		4% to 20% of sensing distance
Sensing object		Conductors and dielectrics
Standard sensing object		with grounded metal: 50 x 50 x 1t mm
Response frequency		35 Hz
Rated supply voltage (operating voltage)		12 to 24 VDC (10 to 30 VDC), ripple (p-p): 10% max.
Current consumption		15 mA max.
Control output	Switching capacity	100 mA
	Residual voltage	1.5 V max. (under load current of 100 mA with cable length of 2 m)
Indicator lamp		Detection indicator (red LED)
Operating status (with sensing object approaching)		Refer to previous pages for details of operating chart of output circuits.
Protective circuits		Reverse connection protection, surge absorber
Ambient temperature		Operating: -10°C to 55°C, Storage: -25°C to 55°C (with no icing or condensation)
Ambient humidity		Operating/Storage: 35% to 85%RH (with no condensation)
Temperature influence		±15% max. of sensing distance at 23°C in the temperature range of -10°C and 55°C
Voltage influence		2% max. sensing distance within a range of 80% to 120% of the rated supply voltage.
Insulation resistance		50 M min. (at 500 VDC) between energized parts and case
Dielectric strength		500 VAC 50/60 Hz for 1 min between energized part and case
Vibration resistance		10 to 55 Hz, 1.5 mm double amplitude for 2 hours each in X, Y, and Z directions
Shock resistance		Destruction: 500 m/s2 for 3 times each in X, Y, and Z directions
Protective structure		IEC IP66
Connection method		Pre-wired models (standard length: 2 m)
Weight (Packed state)		Approx. 150 g
Material	Case, Sensing surface	Fluororesin
	Clamping nut
Accessories		Instruction sheet and screwdriver for adjustment

* This sensing distance is possible with a standard sensing object. Refer to Engineering Data for sensing distances of other materials.

Correct Use

Design

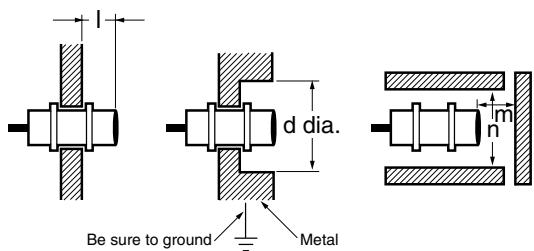

Effects of Surrounding Metals

If E2K-X is embedded in metal, maintain at least the following distances between E2K-X and the metal.

* Ensure to ground the metal object, otherwise E2KQ-X will not be in stable operation.

Effects of Surrounding Metal
(Unit: mm)

Model\Length	l	d	m	n
E2KQ-X10ME1	30	75	18	90

If a mounting bracket is used, be sure that at least the following distances are maintained.

Effects of Surrounding Metal
(Unit: mm)

Model	Length	G	H
E2KQ-X10ME1		30	35

Mutual Interference

If more than one Sensor is located face to face or in parallel, provide sufficient space between adjacent Sensors to suppress mutual interference as indicated in the following diagram.

(Unit: mm)

Mutual Interference

Model	Length	A	B
E2KQ-X10ME1		200	32

Effect of High-frequency Electro-magnetic Field

E2KQ-X may malfunction if there is an ultrasonic washer, high-frequency generator, transceiver, or inverter nearby. For a typical measure refer to the "Noise" with Common precautions of a photoelectric sensor in Rear B-page.

Installation

The tightening torque must not exceed the following value.

Model	Tensile strength (torque)
E2KQ-X10ME1	0.6 Nm

- Adjustment

Sensing object

The maximum sensing distance will decrease if the sensing object is a metal or dielectric object that is not grounded.

- Sensing Object Material E2K-C can detect almost any type of object. The sensing distance of E2K-C, however, will vary with the electrical characteristics of the object, such as the conductance and inductance of the object, and the water content and capacity of the object. The maximum sensing distance of E2K-C will be available if the object is made of grounded metal.

- Ensure a constant ambient operating temperature during the indirect detection of objects.

Miscellaneous

Ambient Conditions

Ensure that the E2K-X is free from sprayed water, oil, chemical, or condensation, otherwise E2K-X may malfunction by detecting them as sensing objects.

Environment

E2KQ-X has a water-resistant design. To increase the reliability of E2KQ-X in operation, however, it is recommended that E2KQ-X is free from sprayed water or machining oil.

The cord is not coated with Teflon, which must be taken into consideration when installing the E2KQ-X.

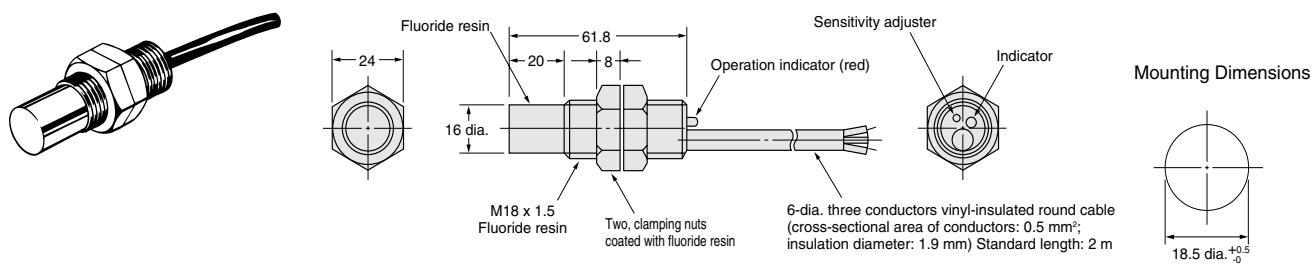

Dimensions

(Unit: mm)

E2KQ-X10ME1

ALL DIMENSIONS SHOWN ARE IN MILLIMETERS.

To convert millimeters into inches, multiply by 0.03937. To convert grams into ounces, multiply by 0.03527.

Cat. No. D078-E2-02-X

In the interest of product improvement, specifications are subject to change without notice.
