USER MANUAL POOL PUMPS ASTRALPOOL

INSTALLATION AND GENERAL MAINTENANCE MANUAL MANUEL D'INSTALLATION ET MAINTENANCE GÉNÉRAL MANUAL DE INSTALLACION Y MANTENIMIENTO GENERAL MANUALE DI INSTALLAZIONE E MANUTENZIONE GENERALE ALLGEMEINES INSTALLATIONS- UND MONTAGEARBEITEN MANUAL DE INSTALLação E MANUTENÇÂO GERAL

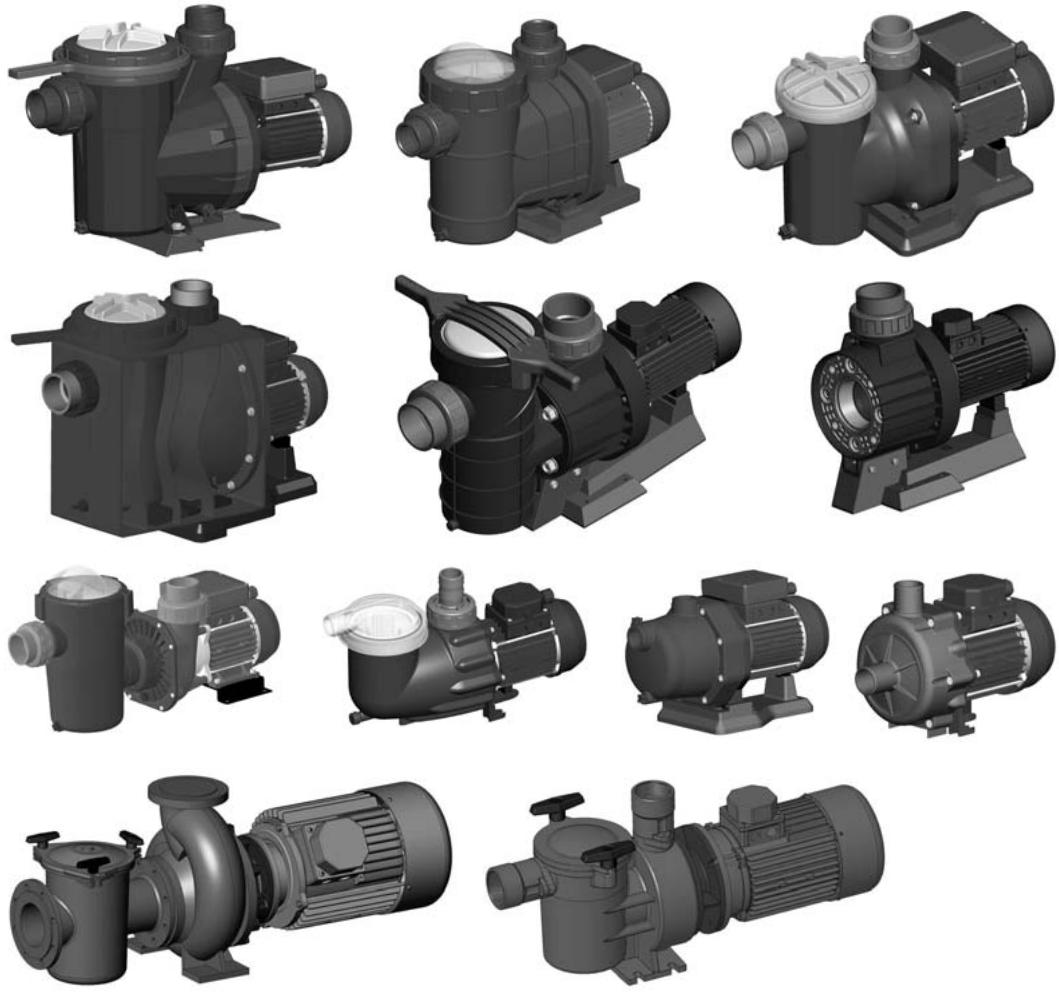

POOL PUMPS

POMPES POUR PISCINES

This manual contains basic information on the safety measures to be adopted during installation and start-up. The fitter and the user must therefore read the instructions before installation and start-up.

1. GENERAL SAFETY INSTRUCTIONS

These symbols (▲▲) indicate the possibility of danger where the corresponding instructions are not followed.

DANGER. Risk of electrocution.

Failure to abide by these instructions may lead to the risk of electrocution.

DANGER.

Failure to abide by these instructions may lead to the risk of injury or damage.

WARNING.

Failure to abide by these instructions may lead to the risk of damage to the pump or the installation.

2. GENERAL SAFETY REGULATIONS

GENERAL

• The machines indicated in this Manual are especially designed for the pre-filtering and recirculation of water in swimming pools.
• They are designed to work with clean water at temperatures not exceeding 35^ .
  Install them in line with the specific instructions for each installation.
• Respect current regulations regarding accident prevention.
• All modifications to the pump require prior authorisation from the manufacturer. Original spare parts and accessories authorised by the manufacturer ensure greater safety. The pump manufacturer is exempt from all liability regarding any damage caused by unauthorised spare parts or accessories.
• When working on each machine or on the units linked to them, disconnect the unit from the power supply and the start-up devices, as the electrical parts of the pump are live during operation.
• All assembly and maintenance work must be carried out by qualified and authorised personnel who have carefully read the installation and service instructions.
• To guarantee safety when operating the machine, you must comply with that set out in the installation and service instructions.
• In the event of defective operation or faults, contact your supplier or nearest representative.

WARNING DURING INSTALLATION AND ASSEMBLY WORK

• When connecting the electrical wiring to the machine motor, check the layout inside the connection box and make sure there are no pieces of wiring inside after it has been closed and that the earthing conductor is correctly connected. Connect the motor in line with the wiring diagram attached to the machine.
• Make sure that the electrical wiring connections to the machine terminal box are well mounted and screwed tight to the connection terminals.

HS179N3

• The electrical installation of the pump must include differential protection of a value no greater than 30mA .

• Correctly use the seal of the terminal box for the electrical motor to prevent water getting in. Likewise, position and tighten the gland inside the cable duct of the terminal box.

• Make sure that water is unable to enter the motor or the live electrical parts.

• Where the intended use is not as indicated, additional technical adaptations and regulations may be required.

WARNING DURING START-UP

Before starting the machine, check the calibration of the electric protection devices on the motor and that the protection against electrical and mechanical contacts is correctly positioned and secure.

NOTE

The pool should not be used while the pumping equipment is running.

Do not use the pump if anyone is in contact with the water.

WARNING DURING ASSEMBLY AND MAINTENANCE WORK

• Take into account national installation regulations when assembling and installing the pumps.
• Make sure that water is unable to enter the motor or the live electrical parts.
• Avoid contact at all times - even accidentally - with moving machine parts while the machine is running and/or before it comes to a complete standstill.
  Wait for the machine to come to a halt before handling it.
• Before any electrical or mechanical maintenance operation, disconnect the unit from the power supply and block the start-up devices.

• Follow the steps below before handling the machine:

• Disconnect the machine from the mains.

• Block all start-up devices.
• Check that there is no voltage in the circuits, even in the auxiliary circuits and additional services.
• Wait for the impeller to come to a complete standstill.

The list indicated must be used as a guideline and is not binding for safety purposes. There may be particular safety regulations in specific standards.

• For regular control:

• Check that the mechanical parts are tightly secured and check the condition of the screws supporting the machine.

• Check that the power conductors and isolating parts are in their correct position, are secure and in a good state of repair.
• Check the temperature of the machine and the electric motor. In the event of a fault, stop the machine immediately and repair.
• Check for machine vibrations. In the event of a fault, stop the machine immediately and repair.

Due to the complex nature of the cases treated, the installation, user and maintenance instructions contained in this manual do not seek to examine all possible and imaginable cases of service and maintenance. Should you require additional instruction or have specific problems, please do not hesitate to contact the distributor or the machine manufacturer directly.

3. INSTALLATION AND ASSEMBLY

GENERAL

• Our pumps may only be assembled and installed in pools or ponds that are compliant with HD 384.7.702. Should you have any doubts, please consult your specialist.

• Fit the pump horizontally due to the pre-filter. The pumps are fitted with a pre-filter with a basket inside to collect any large particles, as they may damage the hydraulic part inside the pump.
• All pumps are fitted with a foot with two holes in it to anchor it to the ground (Fig. 1).

PIPING

• To connect the piping, glue the pipes and the connectors, supplied together with the pump; the fitting connections to the suction and return ports on the pump are threaded and include seals to prevent water loss (Fig. 2).
• Fit the return pipes completely perpendicular and centred in relation to the port to be connected to prevent the pump and the pipe from being subjected to external stress that, apart from making fitting difficult, could break them (Fig. 2).
• Fit the suction piping on a slight 2% slope towards the pump to avoid the formation of air pockets (Fig. 2).
• To ensure the pump works correctly, prime the pump pre-filter until water rises up through the suction pipe (Fig. 3).

LOCATION

• Fit the pump underneath the water level in the pool to improve pump performance.
• Where a self-priming pump is to be fitted above the water level, the difference in height must be no more than 2 metres (Fig. 4), ensuring that the suction pipe is as short as possible as a long pipe would increase drainage times and load losses in the installation.
• Make sure that the pump is safe from possible flooding and receives dry ventilation.

ELECTRICAL INSTALLATION

• The electrical installation must include a multiple separation system with contact openings of at least 3mm
• Use a rigid cable to connect to the mains. If you use a flexible cable to connect to the mains, it must have cable lugs to connect to the terminals of the pump motor.
• With any type of pump, 0.03 A differential protection must be fitted for electricity leakage protection (indicated on the diagrams).
• Adjust the value of the thermal relay appropriately depending on the pump current.

For pumps with a single-phase motor:

• Thermal protection is incorporated. Installation with a switch is sufficient, in line with the "Mains connections" diagram.
• Use a motor guard with magneto-thermal protection.
• The adjustment data for the thermal relay is to be used as a guideline, as the motor is already fitted with protection.
• For 230V , use a H07 RN-F3 type connection sleeve with a cable section that adapts to the power of the motor and to the length of the cable.

For pumps with a three-phase motor:

• Use a motor guard with magneto-thermal protection.

• Protect the pump against overloads with a cut-off switch for the motor.

• Adjust the thermal value according to the thermal protection table. For the connection (3 x 230 V network), use the protection with the highest indicated value. For the connection Y (3 x 400 V network), use the protection with the lowest indicated value.

Connect the lowest voltage at and the highest at Y for voltage intervals other than 230 / 400V;400 / 690V.
- For AC, use a H07 RN-F3 type connection sleeve with a cable section that adapts to the power of the motor and the length of the cable.
- The mains cable may only be connected by skilled, authorised personnel.

• Before connecting the motor, check the type of fuse required.
• Check the correct layout and connection of the earthing cable in the equipment.
• Respect the electrical installation and connection conditions. Failure to do so may lead to the pump manufacturer declining all responsibility and rendering the guarantee null and void.
• The motors are subject to the EEC standards with IP-55 protection.
• Special regulations may exist for the installation.
• Unsuitable mains connections involve the risk of death.

4. START-UP INSTRUCTIONS

PRIOR TO START-UP

• Carry out the following operations before starting the pump:

• Remove the pre-filter cap by unscrewing the nut holding it in place (Fig. 5).

• Fill the pump with water through the pre-filter until it rises up through the suction pipe.
• Should the basket be removed during these operations, do not forget to replace it to prevent large particles from entering the pump that could block it.

• Check that the mains voltage and power correspond with those indicated on the pump characteristics plate.

• Fit the pre-filter cap and screw on tight, not forgetting to fit the seal in its housing (Fig. 5).

• The pumps must not be run without the pre-filter having first been filled with water. Where this is not the case, the mechanical gasket may be damaged, leading to a loss of water.

• Check that the motor rotates in the correct direction by means of the fan located at the back of the motor that can be seen through the view hole on the fan cover (Fig. 6).
• Check that the pump shaft turns freely.

START-UP

• Open all the valves and connect the motor.
• Activate the self-priming and wait a reasonable time for this to be completed.

5. MAINTENANCE

• Clean the pre-filter basket regularly to avoid drops in pressure. To prevent the basket from breaking, do not hit it during the cleaning process.
• Should the pump stop, check that consumption of the running motor in amperes is equal to or below that indicated on the manufacturer's characteristics plate. If this information is available, contact the nearest Technical Assistance Service.

• Where the amperage is higher, consult the manufacturer.

• Empty the pump if it is to remain at a standstill for a certain length of time, especially in cold countries where there is a risk of freezing.

• Remove the purge cap (10) to empty the pump.

• Every time the pre-filter is opened, clean the seal and its seating of any impurities to ensure airtightness when the cap is closed (Fig. 5).
• Pump components that, due to their normal use, suffer wear and/or tear must be regularly replaced to ensure good pump performance. The following table shows the perishables and/or consumables used in the pump and their estimated working life.

COMPONENT DESCRIPTION	ESTIMATED WORKING LIFE
0 rings and general seals	1 year
Mechanical seal	1 year
Bearings	1 year

The estimated working life of the parts above has been established according to normal product use and installation conditions.

Follow the instructions in the installation manual to maintain the working life of the pump.

6. REMOVAL

• The motor unit can be removed from the pump body without having to disconnect the pump's suction and return pipes.
• To remove the Motor unit from the pump body, remove the screws joining them together.

7. TROUBLESHOOTING

1. The pump is not primed

2. The pump will not start

3. The pump releases only a small flow of water

4. The motor is making a noise but will not start

5. The pump makes a noise

6. The motor is stopped

1	2	3	4	5	6	CAUSES	SOLUTIONS
•	•					Air entering the suction pipe	Check the condition of connections and seals on the suction pipe
•						Filter cap badly sealed	Clean the filter cap and check the condition of the rubber seal
•	•					Inverted motor turning	Invert 2 power phases
•	•		•			Wrong voltage	Check the voltage on the characteristics plate and that of the mains
	•					Pre-filter blocked	Clean the filter
	•					Load loss in drainage	Prevent parts from causing load loss wherever possible
		•				Pump incorrectly secured	Secure the pump correctly
				•		Motor blocked	Remove the motor and contact the technical service
					•	Increased temperature in the terminal box due to electric arc	Check the terminal box connections
					•	The thermal protection trips	Connect the cables correctly to the terminal boxes
					•	Incorrect terminal box connections	Tighten the cable correctly to the terminal / Adapt the size of the cable connection to the terminal box

IMPORTANT

Cod. 05085-0008 / Rev. 3

• We reserve the right to change all or part of the features of the articles or contents of this document, without prior notice.
• Nous nous réservons le droit de modifier totalement ou en partie les caractéristiques de nos articles ou le contenu de ce document sans préavis.
• Nos reservamos el derecho de Cambiar total o parcialmente las caracteristicas de nuestros articulos o contenido de este documento sin previo aviso.
• Ci riserviamo il diritto di cuiare totalmente o parzialmente le caratteristiche tecniche dei nostri prodotti ed il contento di quello documento alla nessum preawviso.
• Wir halten uns dasrecht vor, die merkmale unserer Produkte und den inhalt dieser beschreibung ohne vorherige unkündigung ganz oder teilweise zu ändern.
• Reservamo-nos no direito de alterar, total ou parcialmentecharacteristicadoosnossosartigosouo conteudoestedocumentosemavisoprevio.
