IN42 - Video projector INFOCUS - Free user manual and instructions

Product type	LCD video projector
Brand	InFocus
Model	IN42 (also known as IN42+)
Native resolution	XGA 1024 x 768
Brightness	4000 ANSI lumens max
Contrast ratio	1000:1 (with active iris)
Display technology	0.8" P-Si TFT LCD x 3 with micro-lenses
Lamp	285W UHP, lamp life 2000 hours (user-replaceable)
Dimensions (W x D x H)	41.4 x 31 x 12.8 cm
Weight	7.1 kg
Power supply	100-240 V, 50-60 Hz, 400 W
Connectivity	2 computer inputs (M1-DA and VGA), 5 video inputs (component, S-Video, composite), RS232, RJ45, USB, stereo audio
Keystone correction	Vertical +/-40°, horizontal +/-20°
Lens shift	Manual vertical and horizontal
Interchangeable lenses	Yes (short fixed, short, long, ultra-long throw)
Main features	HD projection, built-in web management, remote control, silent modes (<32 dBA), quiet startup/shutdown
Maintenance and cleaning	Clean the air filter regularly, replace the lamp after use
Safety	Adequate ventilation required, ceiling installation possible with optional kit
Spare parts and repairability	Replacement lamp, optional lenses, ceiling mount kit, remote control
General information	Suitable for large meeting rooms and auditoriums, limited manufacturer's warranty

Frequently Asked Questions - IN42 INFOCUS

What is the maximum brightness of the InFocus IN42 projector?

The maximum brightness is 4000 ANSI lumens, allowing use in daylight or with lights on.

What is the native resolution of the projector?

The native resolution is XGA 1024 x 768, compatible with HD signals (480p, 720p, 1080i).

Can I connect the projector to my network?

Yes, thanks to the RJ45 and RS232 connectors, you can integrate the projector into your network infrastructure and control it remotely via the built-in web interface.

What is the lamp type and its lifespan?

The lamp is a 285W UHP with a lifespan of approximately 2000 hours. It is user-replaceable.

Can the projector be ceiling-mounted?

Yes, an optional ceiling mount kit (ref. SP-CEIL-UNIV) is available. The projector also supports ceiling projection (ceiling mode).

How do I correct image distortion?

Use the digital keystone correction: vertical up to +/-40° and horizontal up to +/-20°. You can also adjust the lens shift manually.

What are the main connectors available?

The projector has 2 PC inputs (M1-DA and VGA), 5 video inputs (component, S-Video, composite), RS232, RJ45, USB, and audio inputs/outputs.

How do I clean the air filter?

The air filter should be cleaned regularly to ensure proper ventilation. Use a soft vacuum or compressed air. Consult the manual for more details.

What are the dimensions and weight of the projector?

The dimensions are 41.4 x 31 x 12.8 cm (W x D x H) and the weight is approximately 7.1 kg.

Is the projector under warranty?

Yes, a limited manufacturer's warranty (parts and labor) is included, as well as a limited lamp warranty. Warranty extensions are available.

USER MANUAL IN42 INFOCUS

Business presentation scene with a speaker gesturing toward a seated audience applauding (no visible text or symbols)

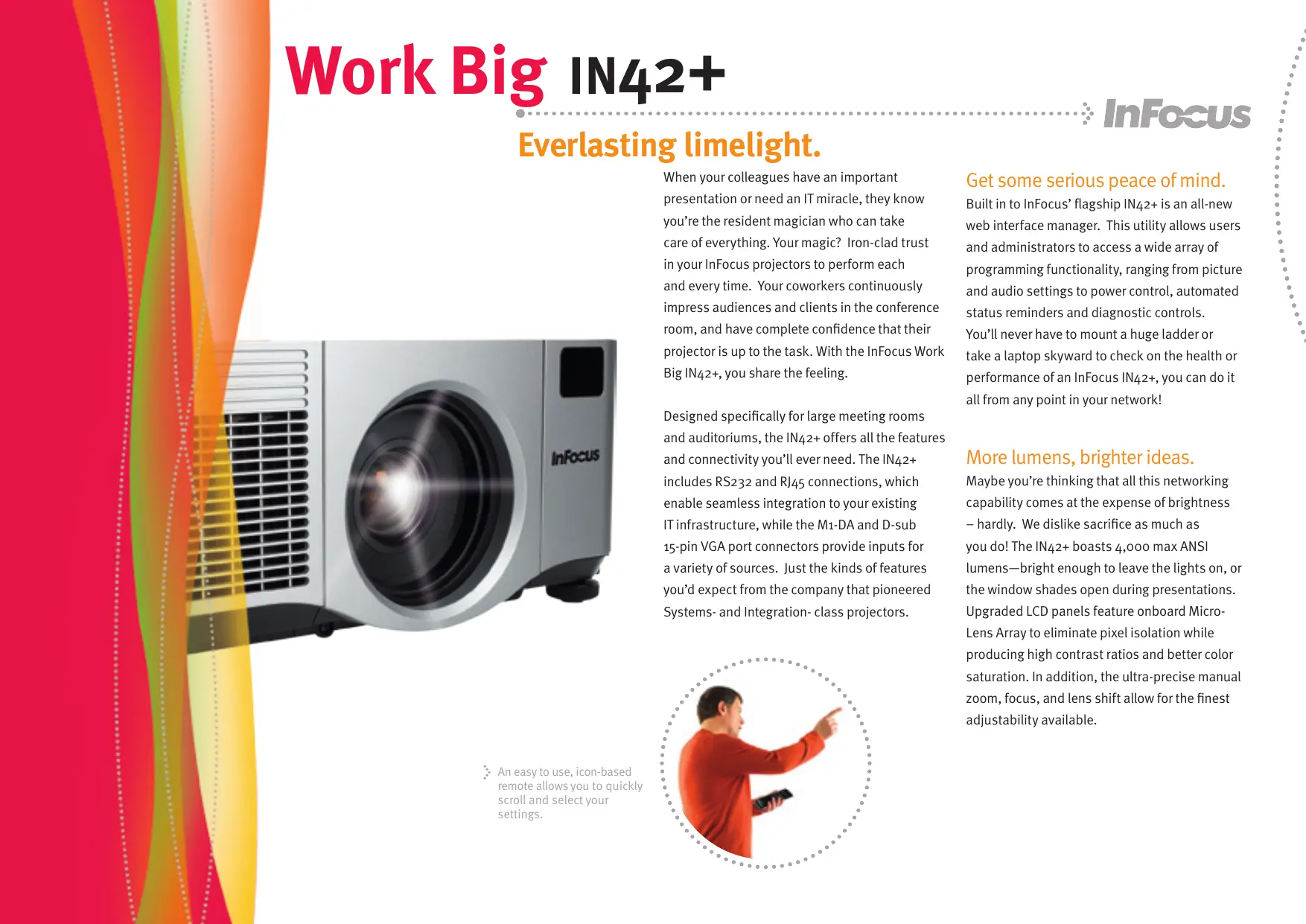

Work Big IN42+

InFocus

Everlasting limelight.

When your colleagues have an important presentation or need an IT miracle, they know you're the resident magician who can take care of everything. Your magic? Iron-clad trust in your InFocus projectors to perform each and every time. Your coworkers continuously impress audiences and clients in the conference room, and have complete confidence that their projector is up to the task. With the InFocus Work Big IN42+, you share the feeling.

Designed specifically for large meeting rooms and auditoriums, the IN42+ offers all the features and connectivity you'll ever need. The IN42+ includes RS232 and RJ45 connections, which enable seamless integration to your existing IT infrastructure, while the M1-DA and D-sub 15-pin VGA port connectors provide inputs for a variety of sources. Just the kinds of features you'd expect from the company that pioneered Systems- and Integration- class projectors.

Get some serious peace of mind.

Built in to InFocus' flagship IN42+ is an all-new web interface manager. This utility allows users and administrators to access a wide array of programming functionality, ranging from picture and audio settings to power control, automated status reminders and diagnostic controls. You'll never have to mount a huge ladder or take a laptop skyward to check on the health or performance of an InFocus IN42+, you can do it all from any point in your network!

More lumens, brighter ideas.

Maybe you're thinking that all this networking capability comes at the expense of brightness – hardly. We dislike sacrifice as much as you do! The IN42+ boasts 4,000 max ANSI lumens—bright enough to leave the lights on, or the window shades open during presentations. Upgraded LCD panels feature onboard Micro-Lens Array to eliminate pixel isolation while producing high contrast ratios and better color saturation. In addition, the ultra-precise manual zoom, focus, and lens shift allow for the finest adjustability available.

Exterior view of a InFocus projector with visible lens and ventilation grille (no text or symbols on the device itself)

An easy to use, icon-based remote allows you to quickly scroll and select your settings.

Man in orange shirt pointing forward, holding remote control (no text or symbols visible)

Group of five business professionals seated at a conference table with laptops and charts, one person holding a remote (no visible text or symbols)

InFocus Not only will your digital presentations look rich and crisp, but the IN42+ projects HD-quality images that will really please the audience.

Exterior view of a white InFocus projector with a lens, set against a red and white background (no text or symbols on the device itself)

Form, function and features.

The IN42+ features a new industrial design that's as alluring as the images it projects. As a protective measure the lens has been recessed, and a bright, intuitive LED feedback panel is built-in to keep all users informed.

Other features include:

→ Onboard web-interface manager for ultimate control & awareness
Full ProjectAbility keypad for easy access to over 90% of the standard projector adjustments
→ Business basic remote control
→ Audible start-up/power-down cues
→ Quiet operation at <32dBA
→ Tie wraps to ensure easy stowaway of both the power and data cables

Add it all up and you've got a projector that stands out from all the rest. Plus, with an affordable price point, the IN42+ has a feature even the accounting organization will enjoy.

Enduring Quality

If you're happy, InFocus is happy. That's why every InFocus projector comes with a standard limited factory warranty (including parts and labor) and a limited lamp-replacement warranty. Extended product & lamp warranty programs are also available.

For more information about warranty and service programs in your region, please visit:

www.infocus.com/service

Optional Accessories

Ceiling Mount (SP-CEIL-UNIV)

Projection Screens

Performance Cables for Digital and HDTV

Cable Adapters

Commander Remote (HW-Commander)

For more information about the IN42+ or any InFocus business or home projector, optional accessories or service programs please visit:

www.infocus.com

Lens Options

Fixed Short Throw LENS-037

Short Throw LENS-038

Long Throw LENS-039

Ultra Long Throw LENS-040

Close-up of a black cylindrical mechanical component with flanges, enclosed in a dotted circular border (no text or symbols visible)

InFocus Corporate Headquarters:

27500 SW Parkway Avenue

Wilsonville, Oregon 97070-9215, USA

Phone: [phone]

1-800-294-6400

Fax: [phone]

In Europe:

Louis Armstrongweg 110

1311 RL Almere

The Netherlands

Freephone: 008000 4636287

(008000 INFOCUS)

Fax: [phone]

In Asia:

19 Tanglin Road

7^th Floor

Singapore 247909

Phone: [phone]

Fax: [phone]

INFOCUS TECHNICAL SPECIFICATIONS*

Native Resolution	XGA 1024 x 768
Display Technology	0.8" P-Si TFT LCD x 3 MLA
Input Sources	2xComputer (M1-DA and VGA); 5xVideo (3x Component YPrPb, 2 available with optional M1 and VGA adapters, S-Video 4-pin mini DIN, Composite RCA; 4xAudio (2x3.5mm/mini-jack for computer and 2xStereo RCA for Video); 4xControl Inputs (RS232, RI45, USB (via M1-DA), 2.5 mm for Wired Remote)
Output Sources	Monitor Out (VESA); Line Level Stereo Audio (3.5 mm)
Computer Compatibility	VGA, SVGA, XGA, SXGA, SXGA+, UXGA, Macintosh®
Video Compatibility	SDTV (NTSC, PAL, SECAM, 480i, 576i), ED/HDTV (480p, 576p, 720p, 1080i)
Brightness	4000 max ANSI lumens
Contrast Ratio	1000:1 w/Active Iris
Number of Colors	16.7 million
Brightness Uniformity	95%
H-Synch Range	15-91 kHz
V-Synch Range	50-120 Hz
Dot Clock	13.5 MHz-140 MHz
Digital Keystone Correction	+/-40 degrees vertical correction; +/- 20 degrees horizontal correction video/data
Standard Projection Lens	Zoom Ratio 1.2:1, Throw Ratio 1.5 - 1.8 : 1, F No 1,74 - 2.06 (distance/image width)
Short Throw Projection Lens	Zoom Ratio 1.6:1, Throw Ratio 1.2 - 2.0:1, F No 1.94 - 2.55
Fixed Short Throw Projection Lens	Zoom Ratio 1.0:1, Throw Ratio 0.8:1, F No 2.30
Long Throw Projection Lens	Zoom Ratio 1.2:1, Throw Ratio 1.9 - 3.9:1, F No 2.10 - 2.92
Ultra Throw Projection Lens	Zoom Ratio 1.85:1, Throw Ratio 3.9 - 7.4:1, F No 2.24 - 3.10
Lens Shift	Manual Vertical Shift (9:1 - 1:1) Manual Horizontal Shift (6:4 -4:6)
Minimum Projection Distance	3.75' (1.15 m)
Image Offset Ratio %	Vertical 9:1 to 1:1 offset Horizontal 6:4-4:6
Aspect Ratio	4:3 Native. Will resize 16:9, 5:4
Image Size (diagonal)	30"-500" (.76m - 12.7m)
Projection Methods	Front, ceiling, rear, rear ceiling
Audio	2 x 4W Stereo
Control	Projector keypad, IR remote control, USB via M1-D/A, RS232, RI45
Lamp	285W UHP / 2000 hour user replaceable
Product Dimensions	5.11" H x 16.53" W x 12.4" D (12.8 cm H x 41.4 cm W x 31 cm L)
Product Weight	15.7 lbs
Product Color	Black with Silver
Shipping Weight	23.2 lbs
Shipping Dimensions	9.17" H x 21.6" W x 18.5" D (22.9 cm H x 54 cm W x 46.2 cm L)
Power Consumption	400W
Power Supply	100-240 Volts at 50-60 Hz
Operating Temperature	10-35°C at sea level to 7500' (2286 m), 50-95°F
Ships with	Computer cable (VGA w/tie wrap), power cable (w/tie wrap), remote control, user
Menu Languages	English, German, French, Italian, Spanish, Swedish, Portuguese, Russian, Chinese (simplified)
Audible Noise	32dbA Whisper Mode
Approvals	UL and c-UL (US/Canada), FCC-A (US/Canada), CE (CE member countries), GOST (Russia), TUV GS (Germany), CCC (China), IRAM (Argentina), NOM (Mexico), C-Tick (Australia)

* All specifications subject to change
** Some resolutions may require Component/Vesa adapter
*** Resolution support may be product specific
**** Actual lamp life may vary based on the ambient environment. Conditions that may affect lamp life include temperature, altitude, and rapidly switching the projector on and off.
