Product type	Radio alarm clock
Brand	EBENCH
Model	KH 2274
Mains power	230 V / 50 Hz
Backup power	9 V block battery
Radio reception	FM / AM
Alarm functions	Radio and alarm (buzzer)
Sleep timer	59 minutes maximum, adjustable
Snooze duration	9 minutes
Time setting	TIME button + HOUR/MINUTE
Alarm setting	ALARM button + HOUR/MINUTE
Alarm on/off	Slide switch (AUTO/OFF)
Cleaning	Soft dry cloth; do not use cleaning products
Electrical safety	Do not expose to moisture; damaged cord must be replaced by customer service
Recommended safety distance	1 meter from the bed (electromagnetic fields)
Intended use	Household use only
Disposal	Recycling at collection point; used batteries separately

Frequently Asked Questions - KH 2274 EBENCH

How to set the time on the KH 2274 radio alarm clock?

Press and hold the TIME button while pressing HOUR for the hour and MINUTE for the minutes. A 9V battery must be installed for backup.

How to set the alarm?

Press and hold the ALARM button, then press HOUR (hour) and MINUTE (minutes) to set the alarm time.

How to listen to the radio?

Set the slide switch to ON, adjust the volume with VOL, select FM or AM with the AM/FM switch, and tune a station with TUNING.

How to activate the alarm?

Set the slide switch to AUTO. A light dot appears on the display. The alarm will trigger either by radio (if the volume is sufficient) or by the sound alarm (buzzer) if the volume is set to the BUZZ position.

Which battery to use for clock backup?

Use a standard 9 V block battery, to be inserted into the compartment on the back or under the device.

How to turn off the alarm or use snooze?

Press SNOOZE to repeat the alarm after 9 minutes. To completely stop the alarm, set the switch to OFF.

How does the sleep timer work?

Set the switch to AUTO and press SLEEP. The radio will turn off after 59 minutes. You can reduce this duration by holding SLEEP and adjusting the minutes with MINUTE.

How to clean the radio alarm clock?

Unplug the device, then clean with a soft dry cloth. Never use cleaning agents or solvents. Never open the casing.

What to do in case of malfunction?

Check the mains connection and the condition of the 9V battery. If the cord is damaged, have it replaced by customer service. Do not attempt to repair yourself.

Where to place the radio alarm clock in a bedroom?

To minimize exposure to electromagnetic fields, place the device at least 1 meter from the bed. Avoid heat sources and ensure good ventilation.

USER MANUAL KH 2274 EBENCH

Operating Instructions

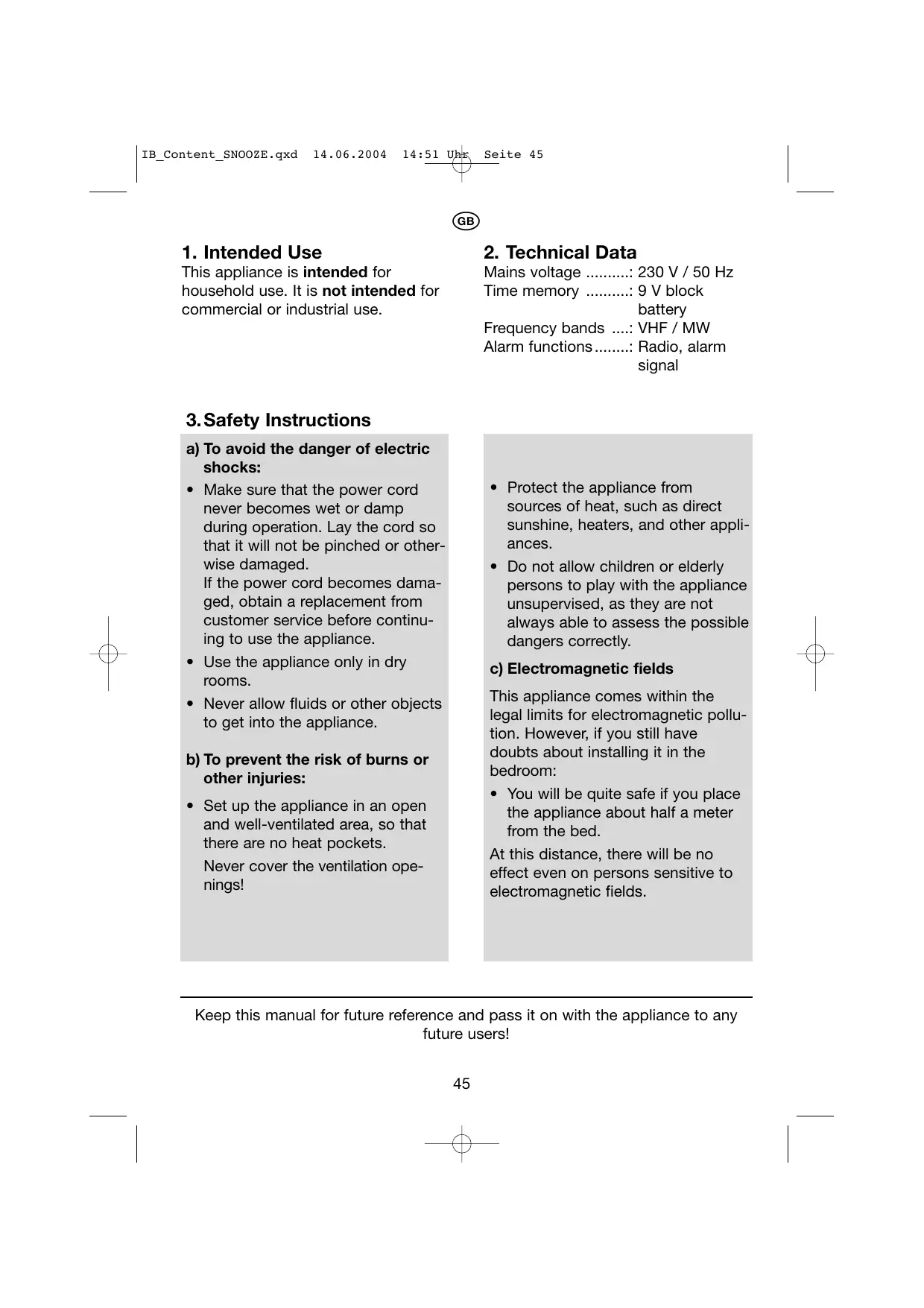

1. Verwendungszweck

This appliance is intended for household use. It is not intended for commercial or industrial use.

2. Technical Data

Mains voltage : 230 V / 50 Hz

Time memory ....: 9 V block battery

Frequency bands ....: VHF / MW

Alarm functions: Radio, alarm signal

3. Safety Instructions

a) To avoid the danger of electric shocks:

• Make sure that the power cord never becomes wet or damp during operation. Lay the cord so that it will not be pinched or otherwise damaged.
• If the power cord becomes damaged, obtain a replacement from customer service before continuing to use the appliance.
• Use the appliance only in dry rooms.
• Never allow fluids or other objects to get into the appliance.

b) To prevent the risk of burns or other injuries:

• Set up the appliance in an open and well-ventilated area, so that there are no heat pockets. Never cover the ventilation openings!

• Protect the appliance from sources of heat, such as direct sunshine, heaters, and other appliances.

• Do not allow children or elderly persons to play with the appliance unsupervised, as they are not always able to assess the possible dangers correctly.

c) Electromagnetic fields

This appliance comes within the legal limits for electromagnetic pollution. However, if you still have doubts about installing it in the bedroom:

• You will be quite safe if you place the appliance about half a meter from the bed.

At this distance, there will be no effect even on persons sensitive to electromagnetic fields.

4. Connecting the appliance

Before oeprating the appliance, make sure that it is in perfect condition. Do not use it otherwise.

Open the battery compartment at the back or underneath, and insert a 9V battery pack.
Insert the power plug into the power socket.

Choose a power socket that is accessible at any time, so that you can pull out the plug from the socket quickly if there is a fault.

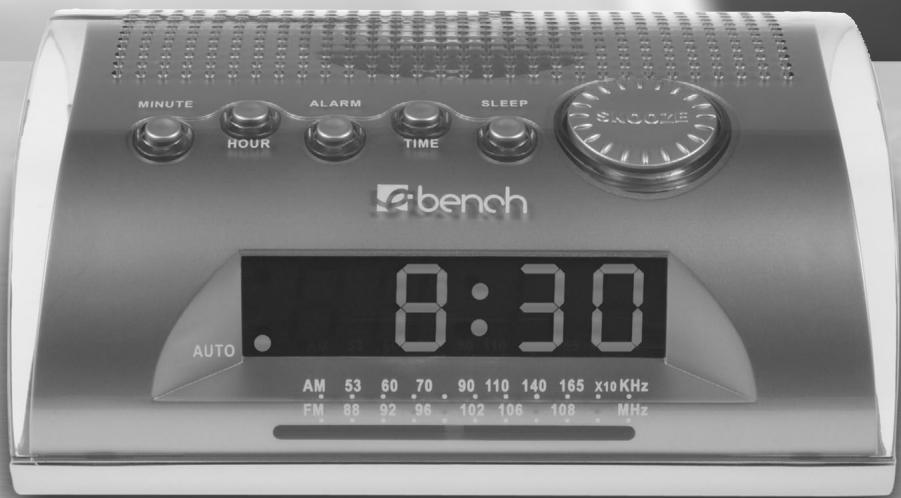

5. Setting the clock

If you are setting up the appliance for the first time after inserting a new battery:

Press and hold the TIME button and:
Press the HOUR button to set the hour.
Press the MINUTE button to set the minutes.

6. Setting the alarm time

If the clock is set correctly, as described above:

Press and hold the ALARM button and:
Press the HOUR button to set the hour.
Press the MINUTE button to set the minutes.

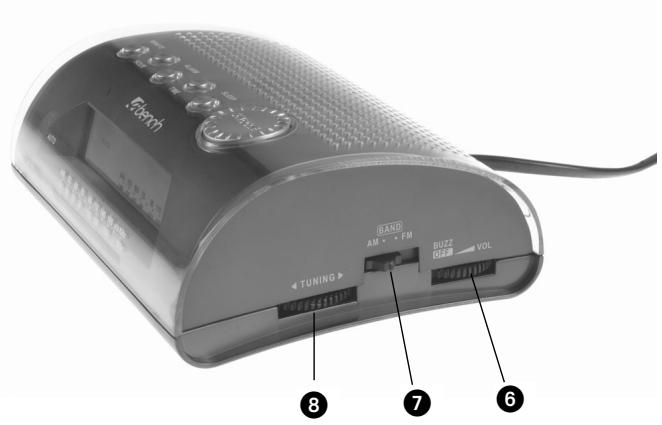

7. Radio reception

Move the sliding switch to the ON position.
⑥ Turn the volume control VOL to the centre position.
Select the frequency band with the AM / FM sliding switch.
Select the desired station with the TUNING control.

8. Switching on the alarm

If the clock and alarm time are set correctly, as described above:

Set the sliding switch to the AUTO position. The alarm is now switched on. This is confirmed by a dot at the bottom left of the display.
You will be awakened by the radio if ...
the volume control VOL is set to a level high enough to awaken you.

You will be awakened by the alarm signal if ...

the volume control VOL is turned quietly until it switches off with an audible click, and goes into the BUZZ setting.

9. Switching off the alarm

Press the SNOOZE button and the alarm will sound again after 9 minutes.
Move the sliding switch to the OFF positioin, to switch off the alarm altogether.

10. Sleep timer

If you would like to listen to the radio for a while before going to sleep and would like the radio to switch off by itself:

Move the sliding switch to the AUTO position, and ...
10 press the SLEEP button. The radio will remain on for 59 min.

You can shorten the time remaining till switch-off time by ...

10 pressing and holding the SLEEP button
3 then pressing the MINUTE button to set the remaining time.

11. Cleaning and Care

Warning: Danger of electric shock!

Before cleaning the appliance:

Disconnect the power plug from the power socket.
Never open the casing. There are no operating controls inside.

Clean the appliance using a clean dry cloth only.
Do not use cleaning agents or solvents. These can damage the plastic surfaces.

12. Disposal

Before disposing of the appliance,...

Take out the batteries, as described at point 4. Old batteries should not be disposed of with the household waste:
Return old batteries to your dealer, or take them to an appropriate disposal point.
Protect the environment! Take the appliance to a recycling point for electronic equipment.
