KH 2271 - Alarm clock radio EBENCH - Free user manual and instructions

Product Type	Clock Radio
Brand	EBENCH
Model	KH 2271
Mains Voltage	230 V / 50 Hz
Backup Power	9V battery (type 6LR61)
Radio Reception	FM (VHF) / AM (MW)
Alarm Functions	Radio and alarm (BUZZ)
Sleep Timer	Yes, up to 59 minutes
Snooze	Yes, 9 minutes
Display	Digital LED
Dimensions (approx.)	150 x 100 x 100 mm
Weight (approx.)	0.5 kg
Housing Material	Plastic
Cleaning	Dry soft cloth only
Safety	Do not open the housing; avoid moisture
Repairability	No user-serviceable parts
Disposal	Recycle at a WEEE collection point; batteries separately

Frequently Asked Questions - KH 2271 EBENCH

How to set the time?

Press and hold the TIME button while pressing HOUR for hours and MINUTE for minutes.

How to set the alarm?

After setting the time, press and hold the ALARM button, then use HOUR and MINUTE to set the alarm time.

How to use the snooze function?

When the alarm sounds, press the SNOOZE button to repeat the alarm after 9 minutes.

How to use the sleep timer?

Set the switch to AUTO position and press SLEEP. The radio will turn off after 59 minutes. You can reduce the duration by holding SLEEP and pressing MINUTE.

How to switch from radio to alarm?

To be woken by the radio, set the volume high enough. To be woken by the alarm (buzzer), turn the volume down gently until it clicks (the BUZZ position).

What to do if the screen shows nothing?

Check that the mains plug is properly connected and that the 9V backup battery is installed correctly. If the problem persists, contact customer service.

How to clean the appliance?

Unplug the appliance and clean it only with a soft dry cloth. Do not use detergents or solvents.

Can I use rechargeable batteries?

Yes, you can use a 9V rechargeable battery, but the manual recommends a standard battery. Make sure it is fully charged.

The radio reception is poor, what should I do?

Extend the built-in antenna or orient the device to improve reception. Avoid sources of interference such as electronic devices.

How to turn off the alarm permanently?

Set the slide switch to the OFF position. To stop the alarm immediately, press the same switch or the SNOOZE button.

USER MANUAL KH 2271 EBENCH

Operating Instructions

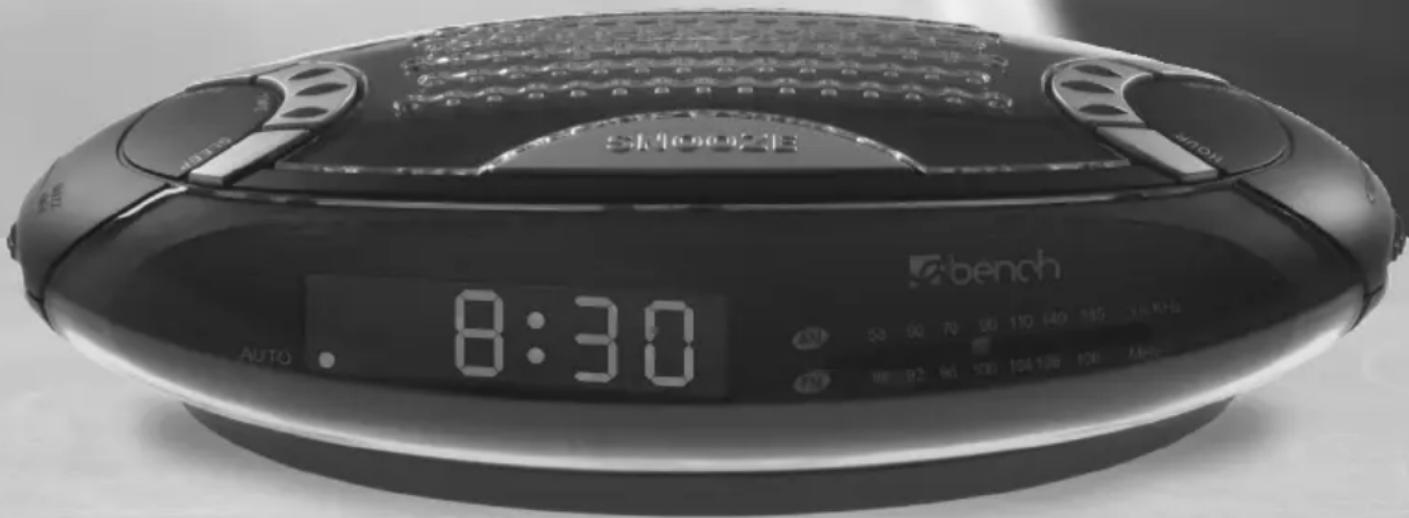

SKMOZIE bench AUTO 8:30 50 50 70 90 110 140 165 185 MHz 92 96 100 104 108 106 MHz

8:30

1. Verwendungszweck

This appliance is intended for household use. It is not intended for commercial or industrial use.

2. Technical Data

Mains voltage ......: 230 V / 50 Hz

Time memory ......: 9 V block battery

Frequency bands .....: VHF / MW

Alarm functions......: Radio, alarm signal

3. Safety Instructions

a) To avoid the danger of electric shocks:

- Make sure that the power cord never becomes wet or damp during operation. Lay the cord so that it will not be pinched or otherwise damaged. If the power cord becomes damaged, obtain a replacement from customer service before continuing to use the appliance.

- Use the appliance only in dry rooms.

- Never allow fluids or other objects to get into the appliance.

b) To prevent the risk of burns or other injuries:

- Set up the appliance in an open and well-ventilated area, so that there are no heat pockets.

Never cover the ventilation openings!

• Protect the appliance from sources of heat, such as direct sunshine, heaters, and other appliances.
• Do not allow children or elderly persons to play with the appliance unsupervised, as they are not always able to assess the possible dangers correctly.

c) Electromagnetic fields

This appliance comes within the legal limits for electromagnetic pollution. However, if you still have doubts about installing it in the bedroom:

- Y ou will be quite safe if you place the appliance about half a meter from the bed.

At this distance, there will be no effect even on persons sensitive to electromagnetic fields.

4. Connecting the appliance

Before oeprating the appliance, make sure that it is in perfect condition. Do not use it otherwise.

→ Open the battery compartment at the back or underneath, and insert a 9V battery pack.
Insert the power plug into the power socket.

Choose a power socket that is accessible at any time, so that you can pull out the plug from the socket quickly if there is a fault.

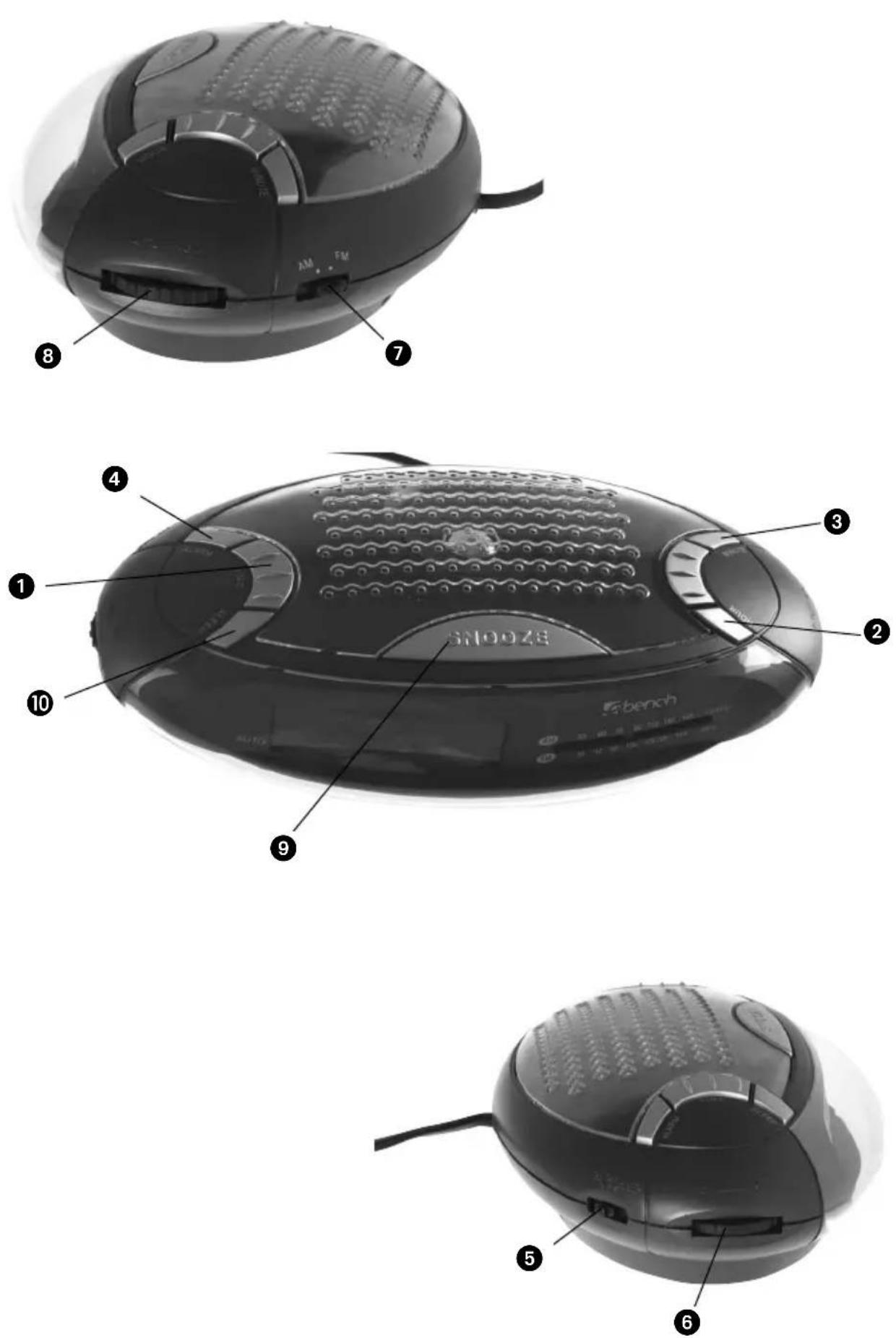

5. Setting the clock

If you are setting up the appliance for the first time after inserting a new battery:

① Press and hold the TIME button and:
② Press the HOUR button to set the hour.
③ Press the MINUTE button to set the minutes.

6. Setting the alarm time

If the clock is set correctly, as described above:

4 Press and hold the ALARM button and:
② Press the HOUR button to set the hour.
③ Press the MINUTE button to set the minutes.

7. Radio reception

⑤ Move the sliding switch to the ON position.
6 Turn the volume control VOL to the centre position.
⑦ Select the frequency band with the AM / FM sliding switch.
⑧ Select the desired station with the TUNING control.

8. Switching on the alarm

If the clock and alarm time are set correctly, as described above:

⑤ Set the sliding switch to the AUTO position. The alarm is now switched on. This is confirmed by a dot at the bottom left of the display.

You will be awakened by the radio if ...

⑥ the volume control VOL is set to a level high enough to awaken you.

You will be awakened by the alarm signal if ...

⑥ the volume control VOL is turned quietly until it switches off with an audible click, and goes into the BUZZ setting.

9. Switching off the alarm

9 Press the SNOOZE button and the alarm will sound again after 9 minutes.
⑤ Move the sliding switch to the OFF positioin, to switch off the alarm altogether.

10. Sleep timer

If you would like to listen to the radio for a while before going to sleep and would like the radio to switch off by itself:

⑤ Move the sliding switch to the AUTO position, and ...
⑩ press the SLEEP button. The radio will remain on for 59 min.

You can shorten the time remaining till switch-off time by ...

10 pressing and holding the SLEEP button
③ then pressing the MINUTE button to set the remai- ning time.

11. Cleaning and Care

Warning: Danger of electric shock!

Before cleaning the appliance:

→ Disconnect the power plug from the power socket.
→ Never open the casing. There are no operating controls inside.

→ Clean the appliance using a clean dry cloth only.
Do not use cleaning agents or solvents. These can damage the plastic surfaces.

12. Disposal

Before disposing of the appliance,...

Take out the batteries, as described at point 4. Old batteries should not be disposed of with the household waste:
→ Return old batteries to your dealer, or take them to an appropriate disposal point.
Protect the environment! Take the appliance to a recycling point for electronic equipment.
