KH 2271 - Alarm clock radio EBENCH - Free user manual and instructions

Product type	Radio alarm clock
Brand	EBENCH
Model	KH 2271
Mains power	230 V / 50 Hz
Backup power	9 V battery (not included)
Radio reception	FM and AM
Alarm functions	Radio or audible alarm (buzzer)
Snooze (snooze)	9 minutes
Sleep timer	Up to 59 minutes, adjustable
Time setting	Buttons TIME, HOUR, MINUTE
Alarm setting	Buttons ALARM, HOUR, MINUTE
Radio controls	Switch ON/OFF/AUTO, volume VOL, tuning TUNING
Number of presets	Not specified
Display	Digital with alarm activation indicator
Maintenance and cleaning	Dry soft cloth; do not use chemicals
Electrical safety	Do not expose to moisture; check power cord
Electromagnetic fields	Compliant with standards; recommended distance of 1 meter from bed
Spare parts available	9 V battery (not included)
Repairability	Do not open the casing; no user-serviceable parts inside
Intended use	Household use only
Operating temperature	Dry location only

Frequently Asked Questions - KH 2271 EBENCH

How to set the time on the KH 2271 radio alarm clock?

Press and hold the TIME button, then press HOUR for hours and MINUTE for minutes.

How to set the alarm?

Press and hold the ALARM button, then use HOUR and MINUTE to set the desired wake-up time.

How to choose between radio alarm or buzzer alarm?

To wake up to the radio, set the VOL volume high enough. To wake up to the buzzer, turn the VOL knob gently until it clicks (BUZZ position).

How to activate or deactivate the alarm?

Slide the switch to AUTO to activate the alarm (an indicator light appears). To OFF to deactivate.

How to use the snooze function?

When the alarm sounds, press the SNOOZE button. The alarm stops and repeats automatically after 9 minutes.

How to set the sleep timer?

Set the switch to AUTO, then press SLEEP. The radio will turn off after 59 minutes. To reduce the duration, press and hold SLEEP and press MINUTE.

How to clean the radio alarm clock?

First unplug the device. Clean with a dry soft cloth. Never use cleaning agents or solvents.

What to do in case of a power outage?

A 9 V battery ensures the clock memory. If the battery is drained, the time will need to be reset after power returns.

Where to place the radio alarm clock to minimize exposure to electromagnetic fields?

Place the device at least 1 meter from the bed. It complies with standards, but this distance is recommended for sensitive individuals.

How to dispose of the device?

Remove the battery and dispose of it at a collection point. The electronic device must be recycled at a specialized collection point. Do not throw it in household waste.

USER MANUAL KH 2271 EBENCH

Operating Instructions

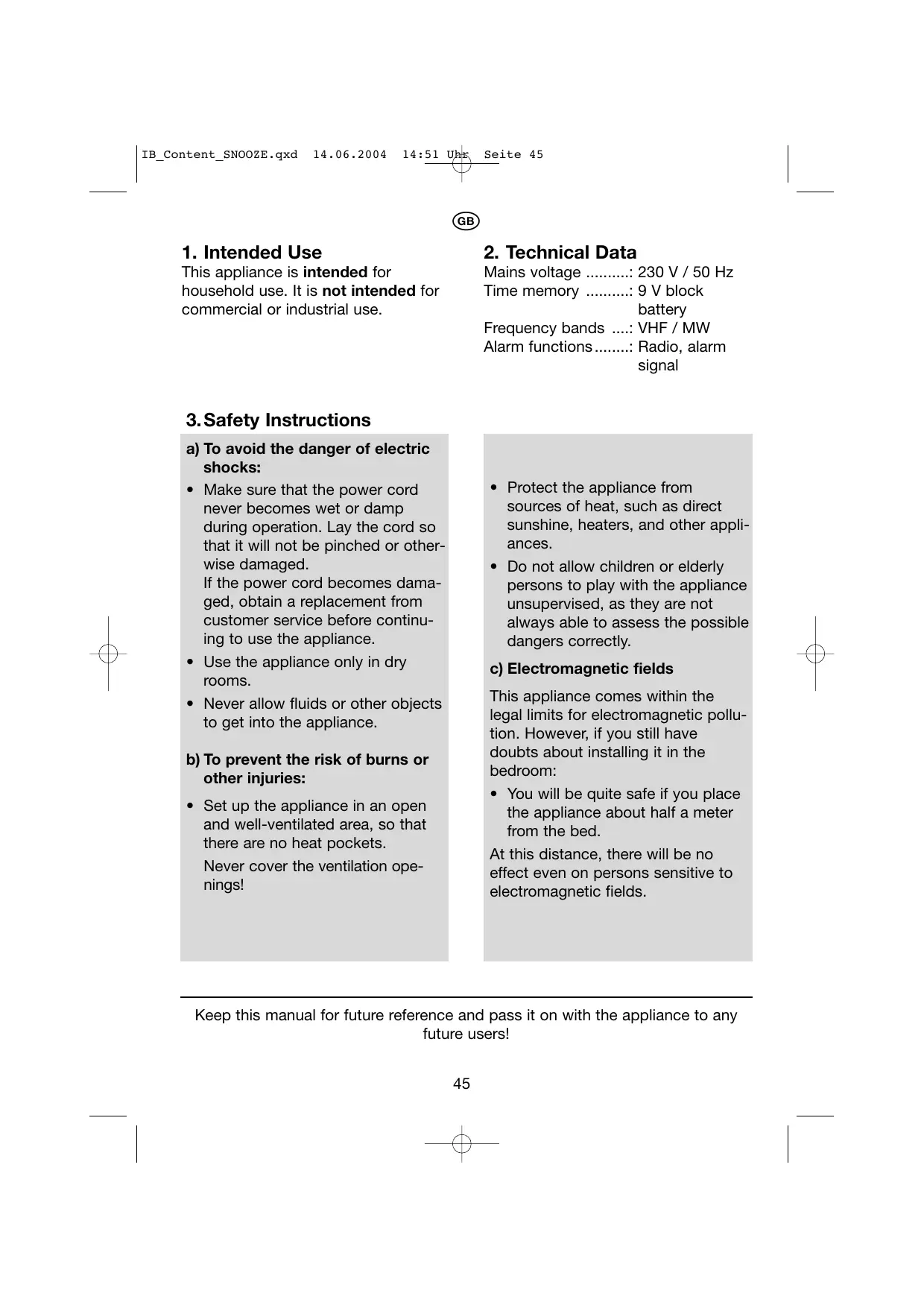

1. Verwendungszweck

Paioφωviκη ληψη……: UKW (FM) / MW (AM)

This appliance is intended for household use. It is not intended for commercial or industrial use.

2. Technical Data

Mains voltage : 230 V / 50 Hz

Time memory : 9 V block

battery

Frequency bands ....: VHF / MW

Alarm functions: Radio, alarm

signal

3. Safety Instructions

a) To avoid the danger of electric shocks:

• Make sure that the power cord never becomes wet or damp during operation. Lay the cord so that it will not be pinched or otherwise damaged.
• If the power cord becomes damaged, obtain a replacement from customer service before continuing to use the appliance.
• Use the appliance only in dry rooms.
• Never allow fluids or other objects to get into the appliance.

b) To prevent the risk of burns or other injuries:
- Set up the appliance in an open and well-ventilated area, so that there are no heat pockets.

Never cover the ventilation openings!

• Protect the appliance from sources of heat, such as direct sunshine, heaters, and other appliances.
• Do not allow children or elderly persons to play with the appliance unsupervised, as they are not always able to assess the possible dangers correctly.

c) Electromagnetic fields

This appliance comes within the legal limits for electromagnetic pollution. However, if you still have doubts about installing it in the bedroom:

• You will be quite safe if you place the appliance about half a meter from the bed.

At this distance, there will be no effect even on persons sensitive to electromagnetic fields.

4. Connecting the appliance

Before oeprating the appliance, make sure that it is in perfect condition. Do not use it otherwise.

Open the battery compartment at the back or underneath, and insert a 9V battery pack.
Insert the power plug into the power socket.

Choose a power socket that is accessible at any time, so that you can pull out the plug from the socket quickly if there is a fault.

5. Setting the clock

If you are setting up the appliance for the first time after inserting a new battery:

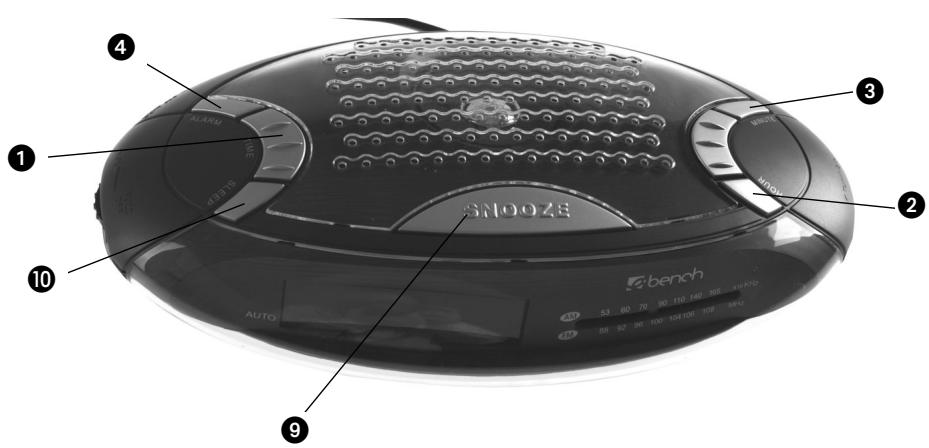

Press and hold the TIME button and:
Press the HOUR button to set the hour.
Press the MINUTE button to set the minutes.

6. Setting the alarm time

If the clock is set correctly, as described above:

Press and hold the ALARM button and:
Press the HOUR button to set the hour.
Press the MINUTE button to set the minutes.

7. Radio reception

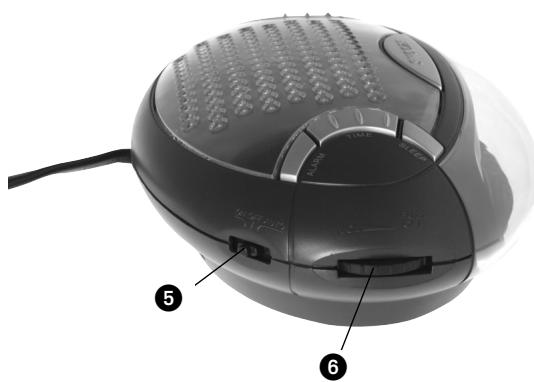

Move the sliding switch to the ON position.
⑥ Turn the volume control VOL to the centre position.
Select the frequency band with the AM / FM sliding switch.
Select the desired station with the TUNING control.

8. Switching on the alarm

If the clock and alarm time are set correctly, as described above:

Set the sliding switch to the AUTO position. The alarm is now switched on. This is confirmed by a dot at the bottom left of the display.

You will be awakened by the radio if ...

the volume control VOL is set to a level high enough to awaken you.
You will be awakened by the alarm signal if ...
the volume control VOL is turned quietly until it switches off with an audible click, and goes into the BUZZ setting.

9. Switching off the alarm

Press the SNOOZE button and the alarm will sound again after 9 minutes.
Move the sliding switch to the OFF positioin, to switch off the alarm altogether.

10. Sleep timer

If you would like to listen to the radio for a while before going to sleep and would like the radio to switch off by itself:

Move the sliding switch to the AUTO position, and ...
10 press the SLEEP button. The radio will remain on for 59 min.

You can shorten the time remaining till switch-off time by ...

10 pressing and holding the SLEEP button
3 then pressing the MINUTE button to set the remaining time.

11. Cleaning and Care

Warning: Danger of electric shock!

Before cleaning the appliance:

Disconnect the power plug from the power socket.
Never open the casing. There are no operating controls inside.

Clean the appliance using a clean dry cloth only.
Do not use cleaning agents or solvents. These can damage the plastic surfaces.

12. Disposal

Before disposing of the appliance,...

Take out the batteries, as described at point 4. Old batteries should not be disposed of with the household waste:
Return old batteries to your dealer, or take them to an appropriate disposal point.
Protect the environment! Take the appliance to a recycling point for electronic equipment.
