USER MANUAL TPL-304E TRENDNET

• TPL-304E / TPL-304E2K
• CD-ROM (Utility and User's Guide)
• Multi-Language Quick Installation Guide
• Cat.5 Ethernet Cable (1.8m/6ft.)

System Requirements

• CD-ROM Drive
• A desktop or laptop PC with a network adapter installed
• Existing 10/100Mbps wired network when TPL-304E is used as a bridge device

Software Requirements

Supported Operating Systems	CPU	Memory
Windows 7 (32/64-bit)	1GHz or above	1GB RAM or above
Windows Vista (32/64-bit)	800MHz or above	512MB RAM or above
Windows XP (32/64-bit)/2000	300MHz or above	256MB RAM or above

Note:

1. DO NOT install the TPL-304E until instructed to do so.
2. DO NOT plug the TPL-304E into a surge protector.
3. Avoid connecting the TPL-304E into an outlet that has appliances (e.g. refrigerators, washer and dryer machines) plugged in.
4. In order for the TPL-304E to see each other, each unit must be on the same circuit breaker box.
5. A maximum of 8 TPL-304E can be networked.

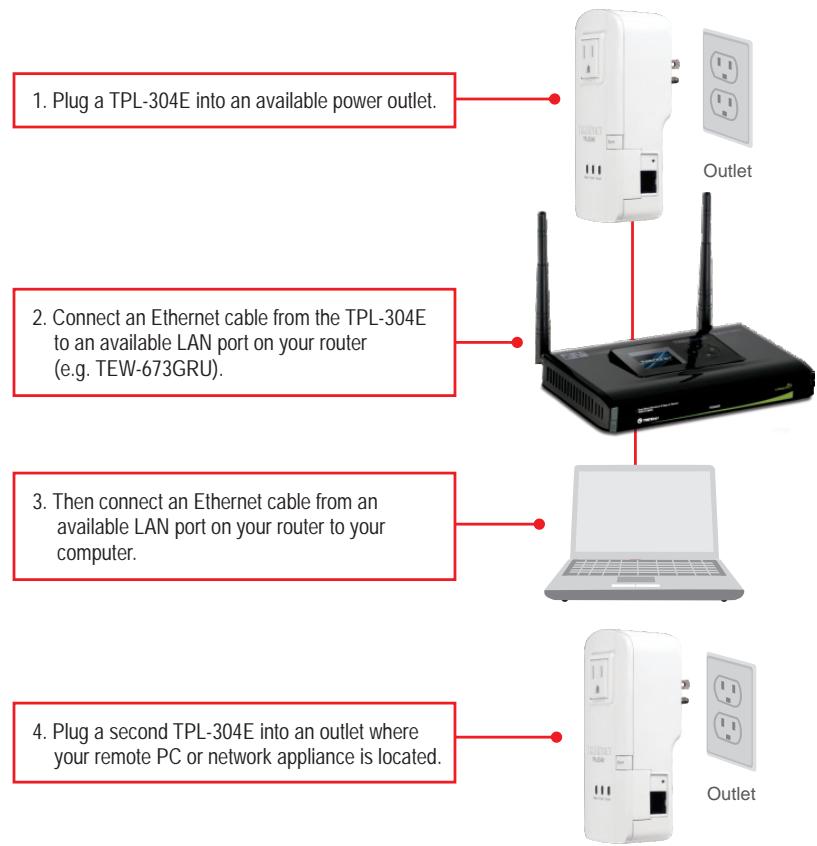

Note:

Remote TPL-304E refers to the TPL-304E that is connected to your remote PC or network appliance.

1. Connect a CAT 5 cable from the TPL-304E into your remote PC or network appliance.

1. Verify that the Power, P-Link (blinking), and E-Link (blinking) LEDs are lit green on all TPL-304Es.

Your installation is now complete

For detailed information regarding the TPL-304E/TPL-304E2K configuration and advanced settings, please refer to the Troubleshooting section, User's Guide on the Utility CD-ROM, or TRENDnet's website at http://www.trendnet.com.

Register Your Product

To ensure the highest level of customer service and support, please take a moment to register your product Online at: www.trendnet.com/register

Thank you for choosing TRENDnet

For Windows Users

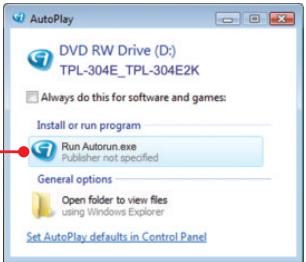

1. Insert the Utility CD-ROM into your computer's CD-ROM Drive .
2. Click Autorun.exe (Windows 7 / Vista).

1. Click Install Utility.

1. Follow the WinPCap Setup Wizard instructions and then click Finish.

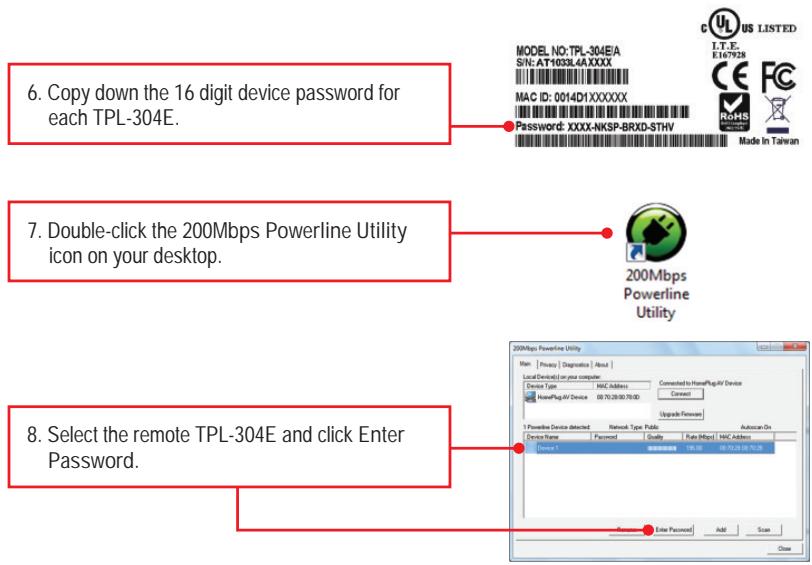

1. Follow the 200Mbps Powerline Utility instructions and then click Finish.

Note: Remote TPL-304E refers to the TPL-304E that is connected to your remote PC or network appliance.

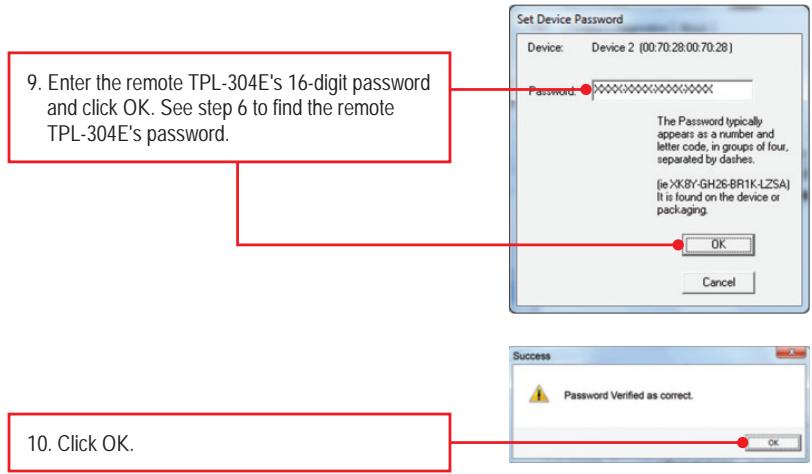

1. Repeat steps 8-10 for additional remote TPL-304E's.

Note: The default network name is HomePlugAV. If the network name of your existing Powerline network is NOT HomePlugAV, you must change this in the utility.

1. Click the Privacy tab. If you would like to change the Private Network Name, enter the desired Private Network Name, then click Set All Devices.
2. Click OK.

Your configuration is now complete

Local Area Connection

Identifyin

NVIDIA nI

Disable

Status

Diagnose

Bridge Connections

Create Shortcut

Delete

Rename

Properties

Obtain an IP address automatically

Uge the following IP address:

Paddies

Sputum mask

Default gateway

Obtain an IP address automatically

Use the following IP address:

IP address:

Sylonet mask:

Default gateway

1. I inserted the TPL-304E CD-ROM into my computer's CD-ROM Drive and the installation menu does not appear automatically. What should I do?

2. For Windows 7, if the installation menu does not appear automatically, click on the Windows icon on the bottom left hand corner of the screen, click the "Search programs and files" box, and type D:\Autorun.exe, where "D" in "D:\Autorun.exe" is the letter assigned to your CD-ROM Drive, and then press the ENTER key on your keyboard.

3. For Windows Vista, if the installation menu does not appear automatically, click Start, click the Start Search box, and type D:\Autorun.exe where "D" in "D:\Autorun.exe" is the letter assigned to your CD-ROM Drive, and then press the ENTER key on your keyboard.

4. For Windows XP/2000, if the installation menu does not appear automatically, click Start, click Run, and type D:\Autorun where "D" in "D:\Autorun.exe" is the letter assigned to your CD-ROM Drive, and then press the ENTER key on your keyboard.

5. I have verified that my Powerline device is connected to my workstation, but I cannot detect other Powerline devices. What should I do?

6. Verify that you are using Cat 5e or Cat. 6 Ethernet cables.

7. Press the Sync button on your TPL-304E's for 3 seconds then let go.
8. Open up the 200Mbps Powerline Utility and click scan.
9. Verify the network name of your Powerline network. Then go to the Privacy tab in the 200Mbps Powerline Utility, type in the network name and click Set Local Device Only.
10. Verify that the power outlet the TPL-304E is plugged into is on the same electrical power distribution and/or circuit breaker box.

11. Reset your TPL-304Es. Take a pin or paperclip and press the reset button for 15 seconds. The reset button is located on the side of the TPL-304E.

12. I can detect my Powerline devices on my Powerline network, but I cannot connect to the Internet. What should I do?

13. Make sure you are not connected the device into a surge protector.

14. Make sure that your Router is connected to the Internet.
15. Make sure your TCP/IP settings are set to Obtain an IP address automatically (see the steps below).

Windows 7

1. Go into the Control Panel, click Network and Internet, click Network and Sharing Center, click Change Adapter Settings and then right-click the Local Area Connection icon and then click Properties.

Local Area Conn

Disable

Status

Diagnose

Bridge Connections

Create Shortcut

Delete

Rename

Properties

Obtain an IP address automatically

Uge the following IP address:

IP address:

Subnet mask:

Default gateway

1. Click Internet Protocol Version 4(TCP/IPv4) and then click Properties. Then click on Obtain an IP address automatically.

Windows Vista

1. Go into the Control Panel, click Network and Internet, click Network and Sharing Center, click Manage Network Connections and then right-click the Local Area Connection icon and then click Properties.

Local Area Connection

Identify n NVIDIA nt

Disable

Status

Diagnose

Bridge Connections

Create Shortcut

Delete

Rename

Properties

Obtain an IP address automatically

Uge the following IP address:

IP address:

Subnet mask:

Default gateway

1. Click Internet Protocol Version 4(TCP/IPv4) and then click Properties. Then click on Obtain an IP address automatically.

Windows XP/2000

1. Go into the Control Panel, double-click the Network Connections icon and then right-click the Local Area Connection icon and then click Properties.

Local Conne

Disable

Status

Repair

Bridge Connections

Create Shortcut

Delete

Rename

Properties

Obtain an IP address automatically

Uge the following IP address:

IP address:

Subnet mask:

Default gateway

1. Click Internet Protocol (TCP/IP) and then click Properties. Then click on Obtain an IP address automatically.

2. I tried changing the Private Network Name and applying it to all of my TPL-304E devices, but "Some devices could not be added to your network" error appears. I can no longer see any of the remote TPL-304Es. What should I do?

3. Open up the TRENDnet Powerline Utility, click the Privacy tab, click Use Default (Public Network) and then click Set Local Device Only.

4. Make sure to add each remote TPL-304E's password. See step 12 in Section 2 (How to Install).

5. I have a HomePlug 1.0 or HomePlug Turbo network. Can I use this with my network?

The TPL-304E is not backwards compatible with HomePlug 1.0 or HomePlug Turbo.

1. Do I need to reconfigure my TPL-304E after I hit the reset button.

The TPL-304E will automatically connect with each other once both units are reset to default settings.

If you still encounter problems or have any questions regarding the TPL-304E/TPL-304E2K, please refer to the User's Guide included on the Utility CD-ROM or contact TRENDnet's Technical Support Department.

200MbpsPowerline AV Adapter with Bonus Plug

Modèle:

TPL-304E

Nom Commercial:

TRENDnet

CE

Detalls standard applicable:

EN 55022:2006 + A1:2007

The product is herewith confirmed to comply with the requirements of Directive 1999/5/EC of the Council (European Parliament) on the radio and telecommunications terminal equipment.

Director of Technology

Position / Title

Signature

Certifications

This equipment has been tested and found to comply with FCC and CE Rules. Operation is subject to the following two conditions:

(1) This device may not cause harmful interference.
(2) This device must accept any interference received. Including interference that may cause undesired operation.

Waste electrical and electronic products must not be disposed of with household waste. Please recycle where facilities exist. Check with you Local Authority or Retailer for recycling advice.

NOTE: THE MANUFACTURER IS NOT RESPONSIBLE FOR ANY RADIO OR TV INTERFERENCE CAUSED BY UNAUTHORIZED MODIFICATIONS TO THIS EQUIPMENT. SUCH MODIFICATIONS COULD VOID THE USER'S AUTHORITY TO OPERATE THE EQUIPMENT.

ADVERTENCIA

Product Warranty Registration

Please take a moment to register your product online. Go to TRENDnet's website at http://www.trendnet.com/register
