| Product Type | Powerline Adapter |
| Brand | TRENDnet |
| Model | TPL-4052E |
| Data Rate | Up to 200 Mbps |
| Ports | 1 x 10/100 Mbps Ethernet |
| Security | 128-bit AES encryption |
| Dimensions (W x H x D) | 68 x 54 x 30 mm |
| Weight | 85 g |
| Power Supply | AC 100-240V, 50/60 Hz (via powerline) |
| Power Consumption | < 3 W (typical) |
| LED Indicators | Power, Ethernet, Powerline |
| Operating Temperature | 0°C to 40°C |
| Operating Humidity | 10% to 85% (non-condensing) |
| Mounting | Wall-plug type, direct outlet |
| Compliance | HomePlug AV, IEEE 1901 |
| Pairing Button | Yes (for secure connection) |
| Care and Cleaning | Wipe with a soft dry cloth; do not use liquids |
| Safety | Do not plug into a surge protector or UPS; avoid moisture |
| Repairability | No user-serviceable parts; do not open |
| Warranty | 3 years limited |
Frequently Asked Questions - TPL-4052E TRENDNET

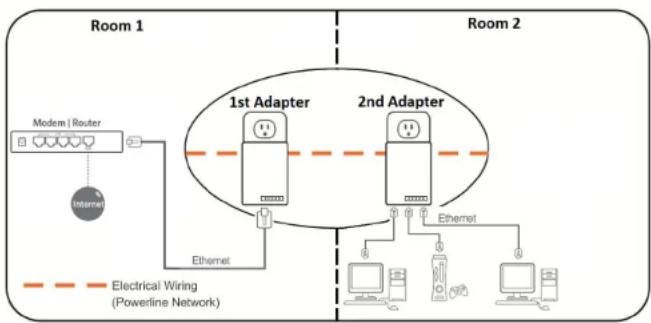

How do I pair the TPL-4052E with another powerline adapter?
Press the Pair button on the first adapter for 2 seconds, then press the Pair button on the second adapter within 2 minutes. The powerline LEDs will blink and then stay solid indicating a successful connection.
What is the maximum range of the TPL-4052E?
The maximum range is up to 300 meters over your home's electrical wiring under optimal conditions. Actual performance depends on wiring quality and distance.
Can I use the TPL-4052E with a surge protector?
It is recommended to plug the adapter directly into a wall outlet. Using a surge protector may reduce performance or cause interference.

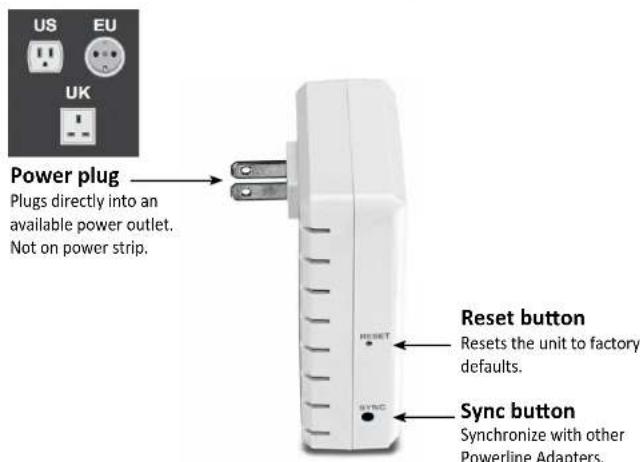

How do I reset the TPL-4052E to factory defaults?
Locate the Reset pinhole on the adapter. Use a paperclip to press and hold the button for 10 seconds until the LEDs blink rapidly. Release and the adapter will reboot.
What does the Powerline LED indicate?
The Powerline LED shows the connection status: Solid green indicates a good connection, blinking indicates pairing or activity, and off means no connection.
Does the TPL-4052E support Quality of Service (QoS)?
Yes, it supports HomePlug AV QoS to prioritize streaming and gaming traffic for a smoother experience.

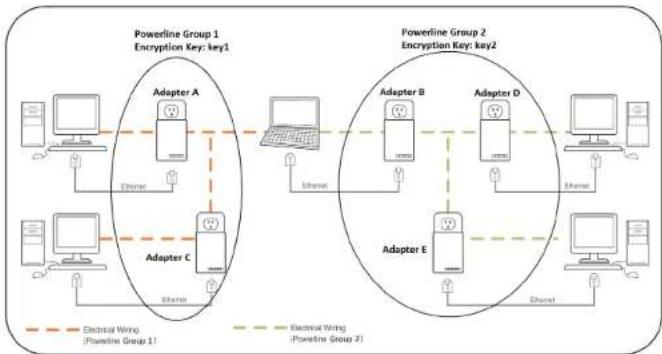

Can I connect multiple TPL-4052E adapters on the same network?
Yes, you can connect up to 16 adapters in a single powerline network. They all must be paired using the same password.

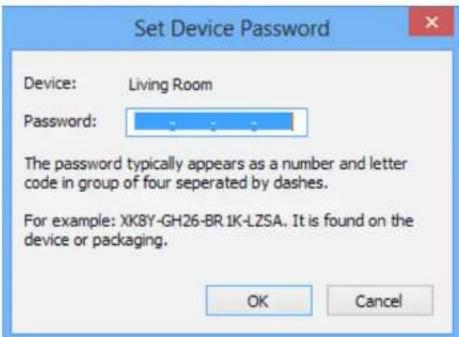

What is the password for the powerline network?

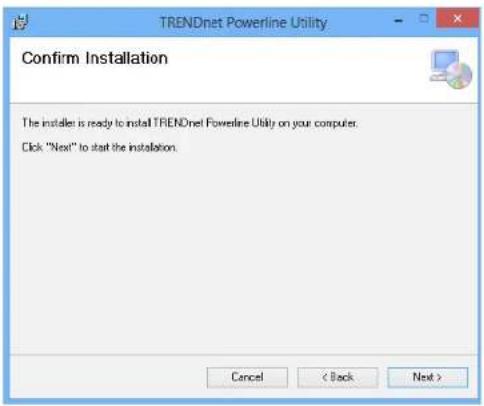

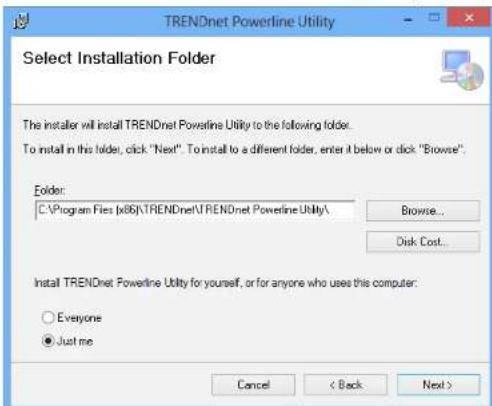

The default password is printed on the label on the adapter. To change it, use the TRENDnet Powerline Utility software available for Windows.
Why is my internet speed slower through the powerline adapter?
Powerline speed depends on wiring quality, electrical noise, and distance. Try plugging the adapter directly into the wall and avoid using it on circuits with heavy appliances.
Is the TPL-4052E compatible with other brands of powerline adapters?
It is compatible with any HomePlug AV certified adapter from other brands. However, using adapters from the same manufacturer ensures best performance.
