USER MANUAL DN-A200P MARANTZ

INTEGRATED AMPLIFIER

DN-A200

OPERATING INSTRUCTIONS

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated "dangerous voltage" within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock t persons.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

WARNING:

TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.

- DECLARATION OF CONFORMITY

We declare under our sole responsibility that this product, to which this declaration relates, is in conformity with the following standards: EN60065, EN55013, EN55020, EN61000-3-2 and EN61000-3-3. Following the provisions of 73/23/EEC, 89/336/EEC and 93/68/EEC Directive.

To completely disconnect this product from the mains, disconnect the plug from the wall socket outlet.

The mains plug is used to completely interrupt the power supply to the unit and must be within easy access by the user.

VORSICHT:

Allow for sufficient heat dispersion when installed in a rack

• Handle the power cord carefully.

Hold the plug when unplugging the cord.

* (For apparatuses with ventilation holes)

• Do not obstruct the ventilation holes.
  Die Beluftungsöffnungen)durenichtverdecktwerden.
• Ne pas obstruer les trou s d'airation.
  Non coprite i fori di ventilazione.
• No obtruya los orificios de ventilación.
• De ventilatieopeningen mogen nicht worden beblokkeerd.
  Tapp inte till ventilationsöppningarna.

• Do not let foreign objects into the apparatus.
• Keine fremden Gegenstände in das Gerätkommenlassen.
• Ne pas laisser des objets étrangers dans l'appareil.
  E' importante che nessun oggetto e inserto all'interno dell'unita.
• No重点领域
• No deje objetivos externos Dentro del equipo.
• Laat geen vreemde voorwerpen in dit apparaat vallen.
• Se till att främande foremål inte tränger in i apparaten.

• Do not let insecticides, benzene, and thinner come in contact with the apparatus.
• Lassen Sie das Gerät nicht mit Insektiziden, Benzin oder Verdunnungsmitteln in Berührung kommt.
• Ne pasmettre en contact des insecticides,du benzene et un diluant avec l'appraiel.
• Assicuratevvi che l'unità non venga in contatto con insetticidi, benzolo o solventi.
• No permita el contacte de insecticidas, gasolina y diluyentes con el equipo.
• Laat geen insetkenverdelende middelen, benzine of verfederdneter met dit apparaat in Kontaktkommen.
• Se till att inte insektsmedel på spraybruk, bensen och thinner kommt其间 kontakt med apparatens höje.

• Never disassemble or modify the apparatus in any way.
• Versuchen Sie nemals das Gerät auseinander zu behnem oder auf jegliche Art zu verändern.
• Ne jamais démonter ou modifier l'apparéil d'une manière ou d'une autre.
• Non smontate mai, né modifies l'unité in dessn modo.
• Nunca desarme o modifie el equipo de ninguna manera.
• Nooit dit apparaat demonteren of op andere wijze modifiernen.
• Tainte isär apparaten och försök inte bygga om den.

CAUTION:

• The ventilation should not be impeded by covering the ventilation openings with items, such as newspapers, tablecloths, curtains, etc.
• No naked flame sources, such as lighted candles, should be placed on the apparatus.
• Attention should be drawn to the environmental aspects of battery disposal.
• Do not expose the set to dripping or splashing fluids.
• No objects filled with liquids, such as vases, shall be placed on the apparatus.

ACHTUNG:

A NOTE ABOUT RECYCLING:

This product's packaging materials are recyclable and can be reused. Please dispose of any materials in accordance with the local recycling regulations.

When discarding the unit, comply with local rules or regulations.

Batteries should never be thrown away or incinerated but disposed of in accordance with the local regulations concerning chemical waste.

This product and the accessories packed together constitute the applicable product according to the WEEE directive except batteries.

HINWEIS ZUM RECYCLING:

Thank you for choosing the DENON PROFESSIONAL DN-A200 Premain Amplifier. This remarkable component has been engineered to provide superb sound, as well as providing outstanding high fidelity reproduction of your favorite music sources.

As this product is provided with an immense array of features, we recommend that before you begin hookup and operation that you review the contents of this manual before proceeding.

Contents

Getting Started

Accessories 1

Cautions on installation 1

Cautions on Using Mobile Phones 1

Before using 1

About the remote control unit 1

Inserting the batteries 2

Operating range of the remote control unit 2

Part names and functions

Front panel 2,3

Rear panel 3

Remote control unit 3

Connections

Connecting the speakers 4

Connecting the Audio Equipment 4

Cable indications 4

Connecting Players and Speakers 5

Connecting Recorders 5

Connecting the power supply cord 5

Operation

Preparations Prior to Playing 6

StartingPlayback 6

Starting Recording 6

Copying Cassette Tapes 6

Troubleshooting 7

Specifications 7

Accessories

Check that the following parts are attached in addition to the main unit:

① Operating instructions
② Service station list
③ Remote control unit (RC-1022)
④ Batteries (R03/AAA). 2

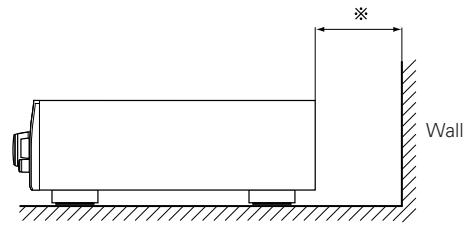

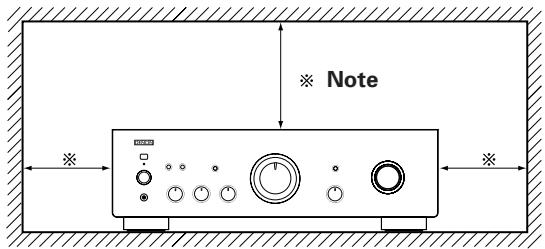

Cautions on installation

Note:

For heat dispersal, do not install this unit in a confined space such as a bookcase or similar enclosure.

Cautions on using mobile phones

Using a mobile phone near this unit may result in noise. If so, move the mobile phone away from this unit when it is in use.

Before using

Pay attention to the following before using this unit:

- Moving the set

To prevent short-circuits or damaged wires in the connection cables, always unplug the power supply cord and disconnect the connection cables between all other audio components when moving the unit.

- Before turning the power switch on

Check once again that all connections are correct and that there are not problems with the connection cables. Always set the power switch to the standby position before connecting and disconnecting connection cables.

- Store the operating instructions in a safe place.

After reading the operating instructions, store them in a safe place as they could come in handy in the future.

- Whenever the power switch is in the STANDBY state, the unit is still connected to AC line voltage.

Please be sure to turn off the power switch or unplug the cord when you leave home for, say, a vacation.

- Note that the illustrations in these instructions may differ from the actual unit for explanation purposes.

About the remote control unit

The included remote control unit can be used to control DENON PROFESSIONAL CD players, tape decks and tuners.

※ Some products may not be operable.

Inserting the batteries

① Remove the remote control unit's rear cover.

② Set two R03/AAA batteries in the battery compartment in the indicated direction.

③ Put the rear cover back on.

Notes on batteries:

• Replace the batteries with new ones if the set does not operate even when the remote control unit is operated nearby the unit. (The attached batteries are only for verifying operation.)
• When inserting the batteries, be sure to do so in the proper direction, following the "⊕" and "Θ" marks in the battery compartment.

• To prevent damage or leakage of battery fluid:

• Do not use a new battery together with an old one.

• Do not use two different types of batteries.
• Do not short-circuit, disassemble, heat or dispose of batteries in flames.
• If the battery fluid should leak, carefully wipe the fluid off the inside of the battery compartment and insert new batteries.
• Remove the batteries from the remote if it will not be in use for long periods.

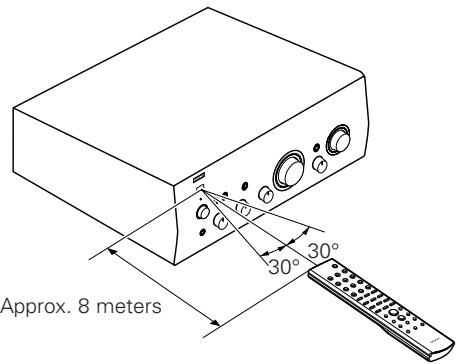

Operating range of the remote control unit

• Point the remote control unit at the remote sensor when operating it.
• The remote control unit can be used from a distance of up to about 8 meters, at a horizontal angle of up to 30^ with respect to the sensor.

NOTE:

• It may be difficult to operate the remote control unit if the remote sensor is exposed to direct sunlight or strong artificial light.

Part names and functions

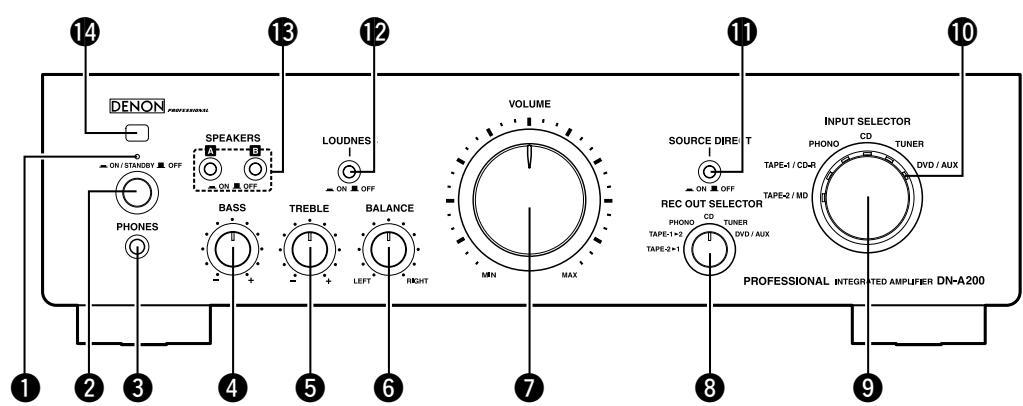

Front panel

1 POWER indicator

Changes as shown below according to this unit's status.

• For several seconds after the power is turned on: Red (blinking)
• When the power is on: Green
• When in standby: Red
• When the power is off: Off

2 POWER switch (ON/STANDBY OFF)

When set to "ON/STANDBY", the power turns on, and when set to "OFF", the power turns off.

3 Headphone jack (PHONES)

BASS control knob

TREBLE control knob

BALANCE control knob

7 VOLUME control knob

REC OUT SELECTOR knob

When copying between 2 recorders to select the source to be output to the recording output terminals.

INPUT SELECTOR knob

Use this to select the source that you wish to listen to.

10 Input indicator

The selected input is shown with an orange indicator.

SOURCE DIRECT switch

When set to "ON", the signals do not pass through the tone adjustment circuitry (bass, treble, balance and loudness), resulting in playback with higher sound quality.

When set to "■OFF", the sound can be adjusted to your tastes.

12 LOUDNESS switch

When listening with the volume turned low, set this to "ON" to amplify the bass and treble sound that is hard to hear when the volume is low and achieve a more natural sound.

13 SPEAKERS A/B switches

• When A (or B) is set to "ON", sound is produced from the speakers connected to the A (or B) speaker output terminals.
• When both A and B are set to "ON", sound is produced from the speakers connected to both the A and B speaker output terminals.
• When both A and B are set to "■OFF", no sound is produced from the speakers. Use this when listening over headphones.

Remote control sensor

Getting Started

• When the VOLUME control knob is set just beyond the "12 o'clock" position (over halfway), the adjustments that can be made with the BASS and TREBLE controls is decreased.
• When the VOLUME control knob is set to maximum or turned fully clockwise, the base and treble can no longer be adjusted.

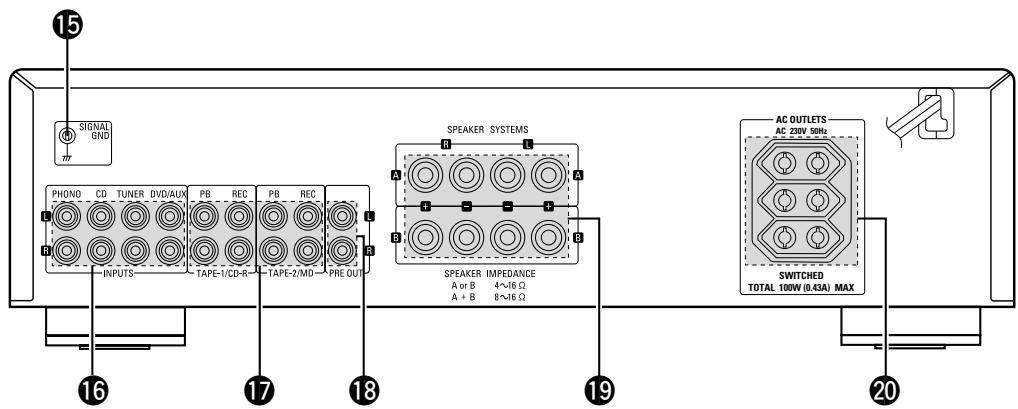

Rear panel

15 SIGNAL GND (ground) terminal

Connect the ground wire from your turntable here.

NOTE:

• This terminal is not a safety ground.

16 INPUTS terminals

Connect your source equipment here.

17 Recording input/output terminals

(TAPE-1/CD-R and TAPE-2/MD)

Connect your recording equipment here.

PRE OUT terminals

Use this to add such equipment as a power amplifier or subwoofer.

19 SPEAKER SYSTEMS terminals

Connect your speakers here.

20 AC OUTLETS

Use these as the power outlets for other audio devices. Check equipment power requirement ratings before use (see the ratings as marked on the rear panel). If in doubt consult with your dealer or DENON PROFESSIONAL distributor.

NOTE:

• Functions 4, 5, 6 and 12 are only available when the SOURCE DIRECT switch is set to "■OFF".

• Short-circuiting plugs are inserted into the PHONO input terminals. Remove these when connecting a turntable. Be sure to keep it for future use.

• The PRE OUT terminals are still active even when using headphones. If you do not want any audio signal to be output from the equipment connected to the PRE OUTS turn off the connected devices (power amplifier, etc.).

NOTE:

• NEVER insert the short-circuiting pin plug into the recording output or PRE OUT terminals. Doing so could result in damage.

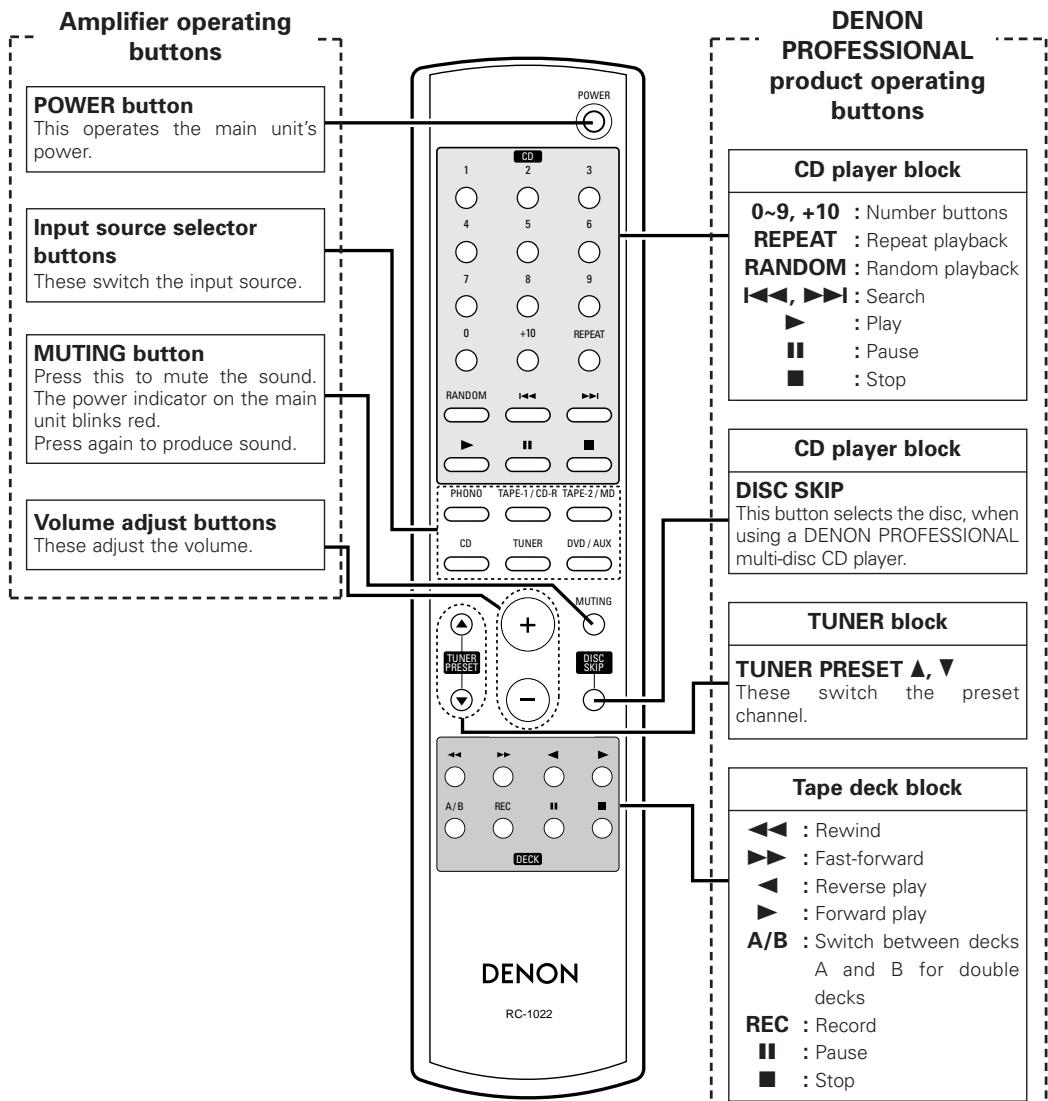

Remote control unit

• The included remote control unit can be used to operate DENON PROFESSIONAL CD players, tape decks and tuners.
• When using it, also refer to the operating instructions of the other devices.
• Some products may not be operable.

Connections

Connecting the speakers

Connect the speaker terminals with the speakers making sure that like polarities are matched ( with , with

Connecting the speaker cables

1. Loosen by turning counterclockwise.

Either tightly twist or terminate the core wires.

1. Insert the cable.
2. Tighten by turning clockwise.

NOTE:

When making connections, take care that none of the individual conductors of the speaker cable come in contact with adjacent terminals, with other speaker cable conductors, or with the rear panel and screws.

NEVER touch the speaker terminals when the power is on. Doing so could result in electric shocks.

Speaker impedance

Use speakers with impedances within the ranges shown below according to their usage conditions.

Speakers used	Impedance
A or B only	4 ~ 16 Ω/ohms
Both A and B	8 ~ 16 Ω/ohms

Note on speaker impedance

When using speakers with an impedance below the designated value (for example 4 Ω/ohms), playing for long periods of time with the volume high could cause the temperature to rise, activating the protection circuit.

When the protection circuit is activated, the output to the speakers is cut off and the power indicator blinks. If this happens, unplug the power cord, wait for the set to cool off and improve ventilation around the unit. Also check the wiring of the input cables and the speaker cables. After doing this, plug the power cord back in and turn the unit's power back on. If the protection circuit is activated again even though there are no problems with the wiring or the ventilation around the unit, switch off the power and contact a DENON PROFESSIONAL service center.

Connecting the Audio Equipment

NOTE:

• Do not plug in the power supply cord until all connections have been completed.
• When making connections, also refer to the operating instructions of the other components.
• Be sure to connect the left and right channels properly (left with left, right with right).
• Do not bundle power cords together with speaker cables. Doing so could result in humming or noise.
• Do not turn up the volume when no turntable is connected to the PHONO input terminals. Doing so will cause humming or noise.

When not connecting a turntable, leave the included short-circuiting pin plug plugged in.

Cautions on playing SA sources:

When regular speakers not compatible with SA sources (DVD Audio discs, Super Audio CDs and other sources including treble components above the audible range), set the properties of the player (DVD Audio player, Super Audio CD player, etc.) for use with regular speakers (or amplifiers).

The speakers may be damaged if the volume is set too high when playing SA sources.

For instructions on setting the player, refer to the operating instructions included with the player.

Cable indications

The hookup diagrams on the subsequent pages assume the use of the following optional connection cables (not supplied).

Audio cable	Signal direction
Analog terminal (Stereo) (White) (Red) Pin-plug cable	Audio signal IN OUT OUT IN

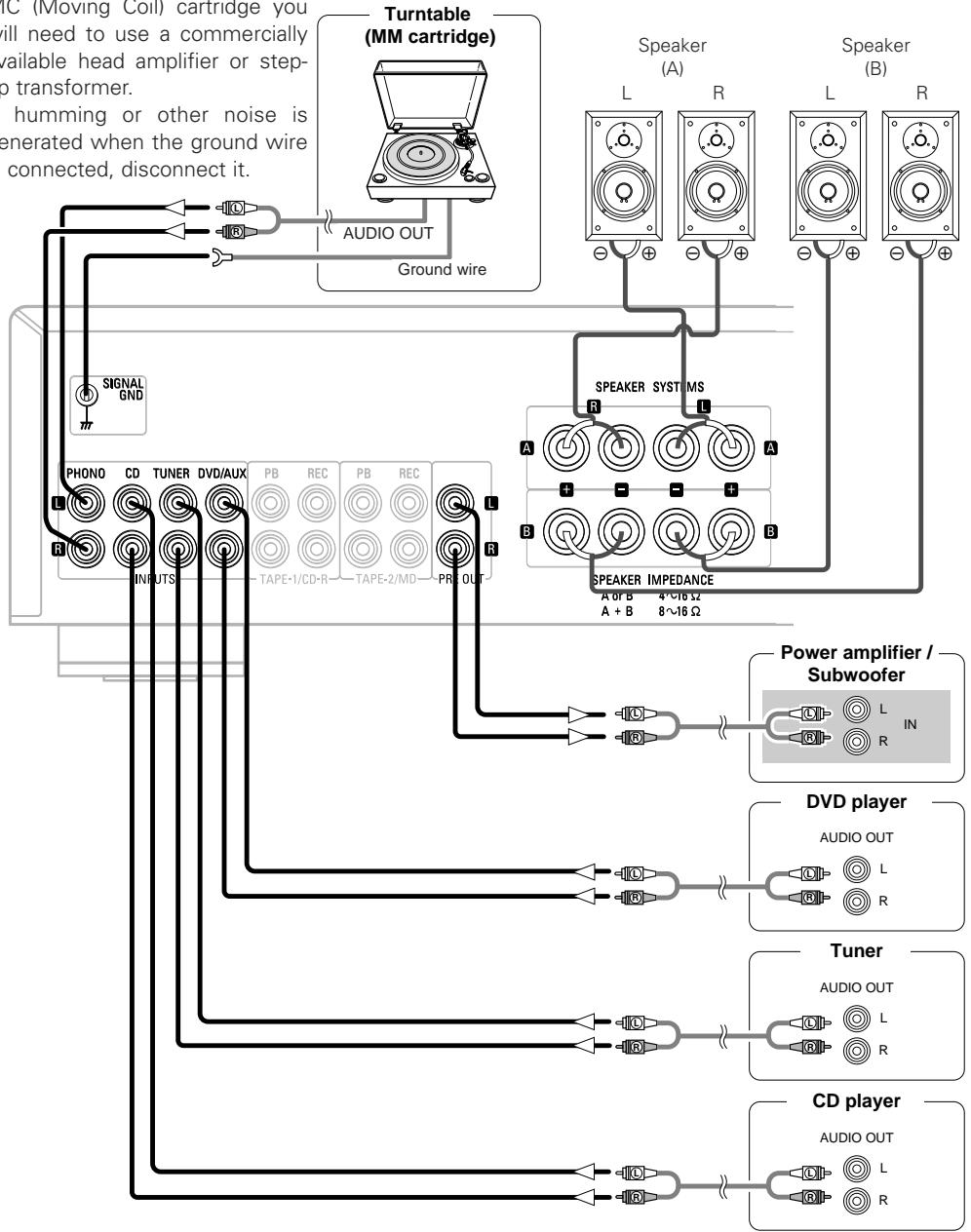

Connecting Players and Speakers

• Only Turntables fitted with a MM (Moving Magnet) cartridge can be used with this unit. If you have an MC (Moving Coil) cartridge you will need to use a commercially available head amplifier or step-up transformer.
• If humming or other noise is generated when the ground wire is connected, disconnect it.

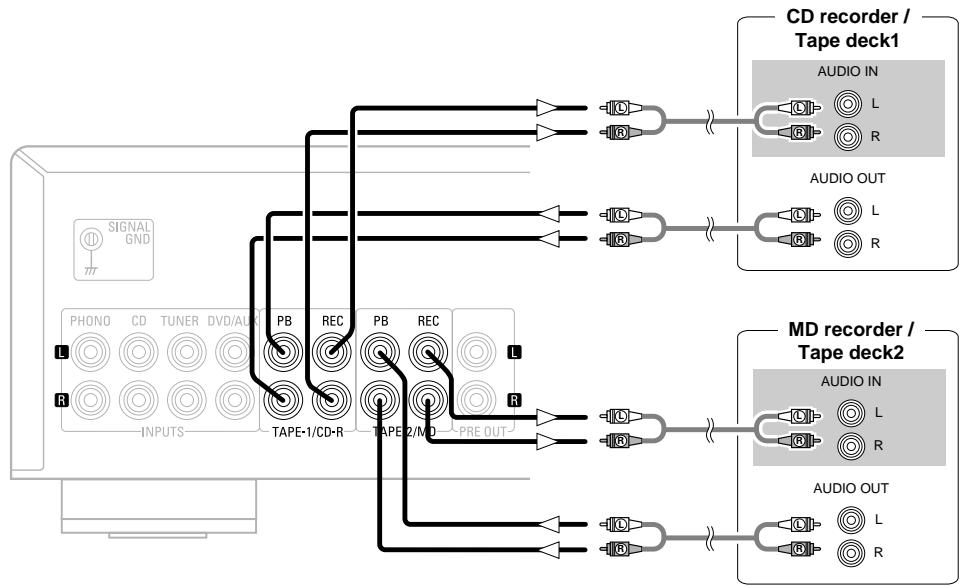

Connecting Recorders

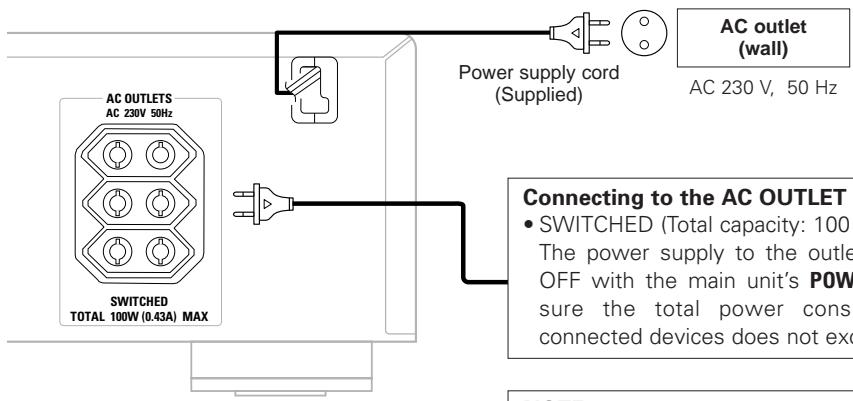

Connecting the power supply cord

Connecting to the AC OUTLET

• SWITCHED (Total capacity: 100 W (0.43 A): The power supply to the outlets turns ON and OFF with the main unit's POWER switch. Make sure the total power consumption of the connected devices does not exceed 100W.

NOTE:

• Only use the AC OUTLET for audio equipment. Never use it for hair driers, TVs or other electrical appliances.
• Insert the plugs securely. Incomplete connections will result in the generation of noise.

Operation

About the button names in this explanation

< > : Buttons on the main unit

[ ] : Buttons on the remote control unit

Button name only :

Buttons on the main unit and remote control unit

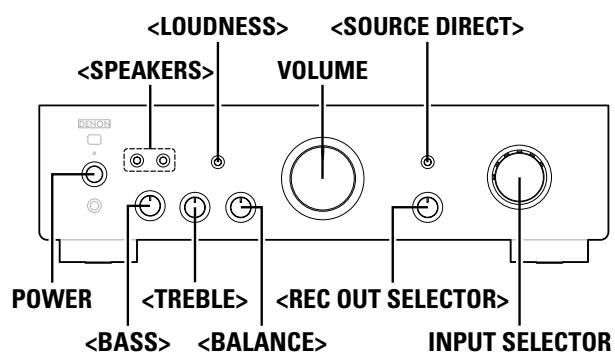

Preparations prior to playing

1 Set the volume to the minimum by using VOLUME.
2 Set and to "OFF".
3 Set , and to the center position.
Press A or B depending on the terminals to which speakers are connected.
5 Turn on the power by pressing POWER.

• The power indicator blinks red for several seconds, then lights green.

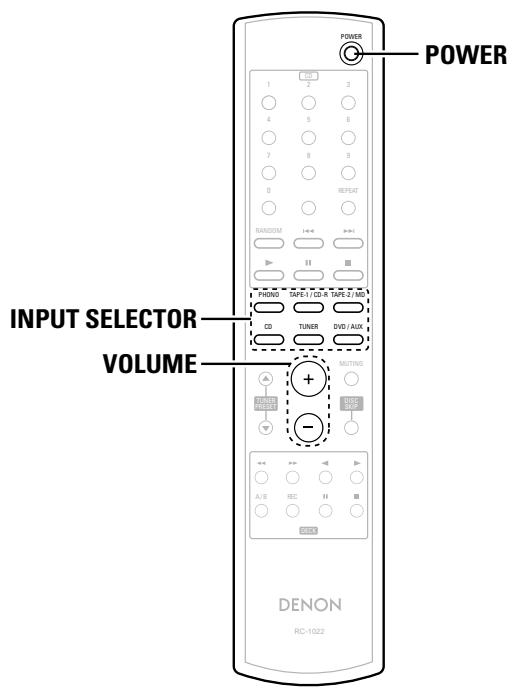

Starting playback

1 Use INPUT SELECTOR to select the source to be played.

• Select one of the sources among the following: TAPE-2/MD, TAPE-1/CD-R, PHONO, CD, TUNER and DVD/AUX.
  The input indicator for the selected source lights.

2 Play the selected source.
3 Adjust the volume by using VOLUME.
4 Adjust the tone with , , and .
※ If there is no need to adjust the tone, press .

Starting recording

1 Turn to select the source to be recorded.
PHONO, CD, TUNER, DVD/AUX:

Select the device connected to the recording terminals to record.

2 Set the recorder to the record mode.
3 Start playing the source to be recorded.

Copying cassette tapes

1 Turn and select "TAPE-1 2" (or "TAPE-2

TAPE-21, TAPE-12:

Select this to record from tape deck 2 onto tape deck 1 (or from tape deck 1 onto tape deck 2).

2 Set the device connected to the TAPE-2/MD (or TAPE-1/CD-R) terminal to the record mode.
3 Start playback on the device connected to the TAPE-1/CD-R (or TAPE-2/MD) terminal.

• The sound to be recorded can be heard by selecting the playback source with INPUT SELECTOR, while the recorded sound can be heard by selecting the recorder.
• When performing these operations, also refer to the operating instructions of the other devices.

NOTE:

• The sound may be interrupted or noise may be recorded if INPUT SELECTOR is operated during recording.

Troubleshooting

Check the following before assuming there is a problem with the set

1. Are all connections proper?
2. Is the set being operated as described in the operating instructions?
3. Are the speakers and input components being operated properly?

If the set does not seem to be operating properly, check the points listed below. If these points do not apply, the set may be damaged. Turn off the power immediately and contact your store of purchase.

Symptom	Cause	Measures	Page
When the power is turned on, the power indicator does not light and no sound is produced.	·The power supply cord's plug is not fully plugged in.	·Make sure the unit is correctly plugged in and switched on at the mains socket.	5
The power indicator lights but no sound is produced.	·The speaker cables are not fully connected. ·The device you want to listen to has not been selected. ·The volume control is set to minimum. ·The input cable is not fully connected. ·The speaker selector button is set to “OFF”.	·Connect securely. ·Insure the correct input is selected. ·Set to an appropriate level. ·Connect securely. ·Ensure the SPEAKER A or B buttons are set to “ON” as appropriate.	4, 5 2, 6 2, 6 5 2, 6
Sound is only produced from the left or right speaker(s).	·The speaker cables are not fully connected. ·The input cable is not fully connected. ·The left/right balance is off.	·Connect securely. ·Connect securely. ·Adjust to a proper balance using the balance control knob.	4, 5 5 2
For stereo sound, the positions of the instruments are inverted left/right.	·The connections of the speakers or input cables are inverted.	·Check the connections to be sure that left is connected to left, right to right.	4, 5
Humming sound is heard in the music when playing records.	·The player's ground wire is not connected. ·The cables are not fully connected to the PHONO terminals. ·Influence from a TV or VCR near the player.	·Connect securely. ·Connect securely. ·Try changing the positions in which the devices are installed.	3, 5 3, 5 -
Howling is produced along with the music if the volume is too high when playing records.	·The player and speakers are too close together. ·The vibrations from the speakers are being transmitted to the player through the floor.	·Install the player and speakers as far from each other as possible. ·Use cushions, etc., to absorb the speakers' vibrations.	- -
When playing a record, the sound is distorted.	·The needle pressure is not proper. ·There is dirt on the tip of the needle. ·The cartridge is defective.	·Adjust to a proper needle pressure. ·Check the tip of the needle. ·Replace the cartridge.	- - -

Specifications

Power amplifier section

Rated Output Power:

2-channel driving (CD SP OUT)

50 W + 50 W (8 Ω/ohms, 20 Hz ~ 20 kHz, T.H.D. 0.07%)

Dynamic power:

85 W + 85 W (4 Ω/ohms, DIN, 1 kHz, T.H.D. 0.7%)

High frequency distortion:

0.01% (Rated output: -3 dB), 8 Ω/ohms, 1 kHz

Output terminals:

Speaker A or B: 4 16 /ohms

A+B: 8 16 /ohms

Suited for headphones/stereo headphones

Pre amplifier section

Equalizer amplifier output: (REC OUT terminals)

Input Sensitivity/Input Impedance:

150mV

PHONO (MM): 2.5 mV/47 kΩ/kohms

CD, TUNER, DVD/AUX, TAPE-1/CD-R, TAPE-2/MD:

105 mV/47 kΩ/kohms (SOURCE DIRECT OFF)

105 mV/13 kΩ/kohms (SOURCE DIRECT ON)

RIAA Deviation:

PHONO (MM):

20Hz 20kHz± 0.5 dB

Overall performance

SN Ratio (A network):

PHONO (MM): 86 dB

(With input terminals short-circuited, 5mV input signal)

CD, TUNER, DVD/AUX, TAPE-1/CD-R, TAPE-2/MD:

107 dB (input terminals short-circuited)

Tone control (bass):

BASS: 100 Hz ±8 dB

TREBLE: 10kHz± 8 dB

LOUDNESS:

100 Hz +6 dB, 10 kHz +6 dB

General

Power outlets:

3 switched outlets, total capacity 100W (0.43A)

Power Supply:

AC 230 V, 50 Hz

Power Consumption:

200 W (IEC)

Dimensions:

434 (W) x 121 (H) x 337 (D) mm (including protruding parts)

Net Mass:

7.0 Kg

Remote control unit (RC-1022)

Remote control type:

Infrared pulse

Power supply:

R03/AAA Type (2 batteries)

External dimensions:

120 g (including batteries)

• For improvement purposes, specifications and functions are subject to change without advanced notice.

D&M Holdings Inc.

PROFESSIONAL BUSINESS COMPANY

TOKYO, JAPAN

http://www.dm-pro.jp
