JP5931 - Water filter SOLAC - Free user manual and instructions

Product type	Water filter (purifier pitcher)
Brand	SOLAC
Model	JP5931
Capacity	2.4 L or 3.3 L depending on version
Indicator power	Battery (type not specified, likely button cell)
Main functions	Water filtration, reduction of limescale, chlorine, lead, pesticides, etc.; smart filter change indicator; refillable filter
Materials	Plastic (jug, funnel, lid), activated carbon granules and ion exchangers (filter)
Care and cleaning	Wash with hot water and mild detergent; jug, funnel and lid are dishwasher safe (except the lid)
Safety	Do not expose to sunlight; keep in refrigerator; consume filtered water within 48 hours
Filter change indicator	Electronic "smart" indicator, can pause if not used for extended period, reset, duration of 6 weeks or 100/150 fills
First use	Wash parts, soak new filter for 15 min, discard first two fills
Filter refill	Ecological system: open filter, empty used granules (can be used as fertilizer), fill with new Solac granules
Included parts	Jug, lid with spout, funnel, refillable purifier filter, electronic indicator
Spare parts and repairability	Refillable filter, Solac purifying granule sachets; washable and reusable parts
General information	Food contact certified; designed to reduce plastic pollution; compatible with other jugs
Dimensions	Not specified (standard pitcher, fits in refrigerator door)
Weight	Not specified

Frequently Asked Questions - JP5931 SOLAC

How to use the pitcher for the first time?

Wash the jug, funnel and lid with hot water and mild detergent (lid not dishwasher safe). Immerse the new filter in cold water for 15 minutes, stirring to remove air bubbles. Place the filter in the funnel, then the funnel in the jug. Pour cold water. The first two fills must be discarded.

How often should the filter be changed?

The electronic indicator signals the change after about 6 weeks or after 100 to 150 fills depending on the capacity of the jug (2.4 L or 3.3 L).

How to refill the filter?

Turn the filter lid to open it. Empty the used granules (they can be discarded or used as fertilizer). Fill with new Solac granules, then close. Then follow the first use procedure (soaking and discarding first two waters).

How does the electronic indicator work?

The smart indicator measures usage time and number of fills. It can be paused if the jug is not used: simply leave the indicator outside for 5 minutes. To reset, remove and insert the indicator 5 times in a row.

Can I wash the jug and funnel in the dishwasher?

Yes, the jug and funnel are dishwasher safe. However, the lid (containing the electronics) must not be washed in the dishwasher; wash it by hand with warm soapy water.

How to store filtered water?

Keep the jug in the refrigerator for fresh water. Filtered water should be consumed within 48 hours. Do not expose the jug to sunlight.

Is the filter compatible with other jugs?

Yes, the Solac refillable filter is universal and compatible with other standard water filtration jugs.

What to do if water does not flow through the filter?

This probably means there are still air bubbles in the filter. Remove the filter, immerse it again in cold water for 15 minutes while gently stirring, then reinstall it.

How to recycle the appliance at the end of its life?

Do not throw the jug in the trash: take it to a recycling point or waste collection center. Used granules can be composted or used as plant fertilizer.

Where can I find refill sachets for the filter?

Solac purifier sachets are available in stores or from customer service. Check the online store or contact [e-mail] for more information.

USER MANUAL JP5931 SOLAC

m = 311

Fig. 1

Fig. 2

Fig. 3

Fig. 4

ESPANOL

es

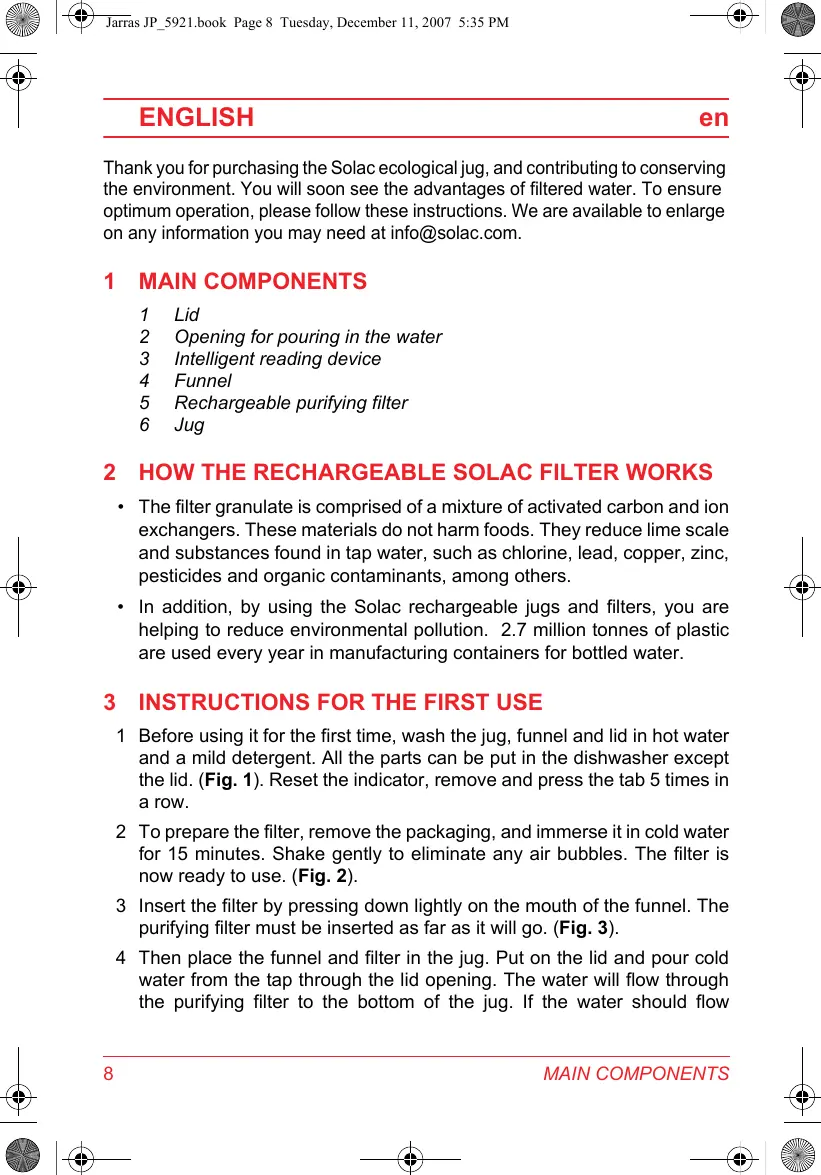

Thank you for purchasing the Solac ecological jug, and contributing to conserving the environment. You will soon see the advantages of filtered water. To ensure optimum operation, please follow these instructions. We are available to enlarge on any information you may need at [e-mail].

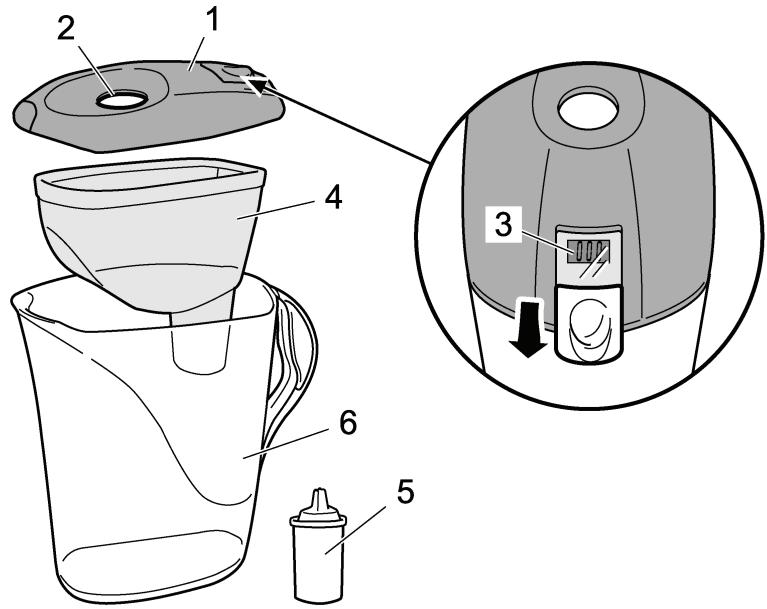

1 MAIN COMPONENTS

1 Lid
2 Opening for pouring in the water
3 Intelligent reading device
4 Funnel
5 Rechargeable purifying filter
6 Jug

2 HOW THE RECHARGEABLE SOLAC FILTER WORKS

• The filter granulate is comprised of a mixture of activated carbon and ion exchangers. These materials do not harm foods. They reduce lime scale and substances found in tap water, such as chlorine, lead, copper, zinc, pesticides and organic contaminants, among others.
• In addition, by using the Solac rechargeable jugs and filters, you are helping to reduce environmental pollution. 2.7 million tonnes of plastic are used every year in manufacturing containers for bottled water.

3 INSTRUCTIONS FOR THE FIRST USE

1 Before using it for the first time, wash the jug, funnel and lid in hot water and a mild detergent. All the parts can be put in the dishwasher except the lid. (Fig. 1). Reset the indicator, remove and press the tab 5 times in a row.
2 To prepare the filter, remove the packaging, and immerse it in cold water for 15 minutes. Shake gently to eliminate any air bubbles. The filter is now ready to use. (Fig. 2).
3 Insert the filter by pressing down lightly on the mouth of the funnel. The purifying filter must be inserted as far as it will go. (Fig. 3).
4 Then place the funnel and filter in the jug. Put on the lid and pour cold water from the tap through the lid opening. The water will flow through the purifying filter to the bottom of the jug. If the water should flow

unevenly or stop flowing, this means that the filter still contains air bubbles. Repeat the steps given in paragraph 2. (Fig. 4).

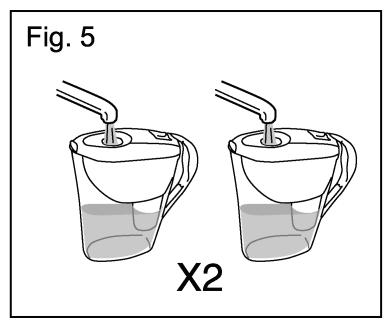

5 After changing or replacing the filter, the first two filling operations are intended to clean and activate the granulate. For this reason, the water will come out slightly darker in colour. Use the first two filling operations to water your plants or just throw away the water. The jug of filtered water is now ready for use. (Fig. 5).

4 INSTRUCTIONS FOR REPLACING THE SOLAC PURIFYING FILTER

The ecological system used to replace the filters enables you to use them several times and replace them with Solac purifying sachets. The rechargeable filter is also universal and compatible with other jugs.

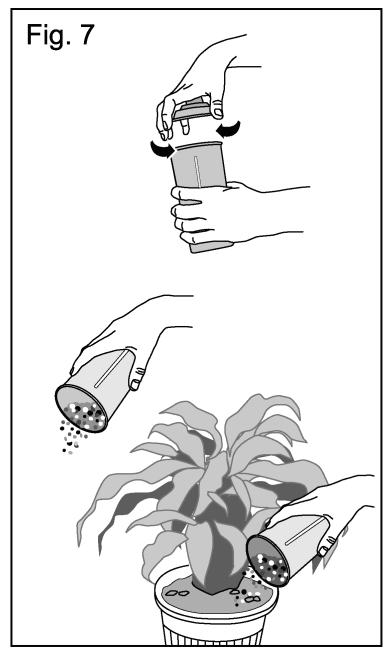

1 Turn the lid to open the filter. (Fig. 7).
2 Empty out the contents. The granulate can be disposed of together with household waste or used as a fertiliser for plants.

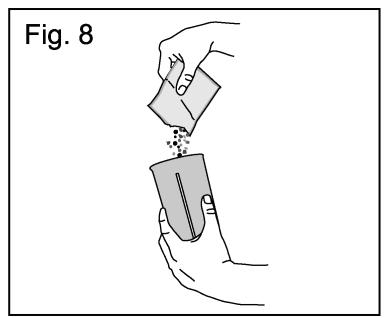

3 Fill the filter with the new granulate. Close the filter again. Follow the instruction of paragraph 2 in the section entitled "Instructions for the first use". (Fig. 8).

5 INSTRUCTIONS FOR THE SOLAC "INTELLIGENT" ELECTRONIC INDICATOR

The new SOLAC electronic indicator gives precise information to remind you when to refill the filter. It is so precise that it enables you to stop calculating the life of the filter during periods when the jug is not in use. This way, we can get maximum use from the refill.

1 If you are not going to use the jug for some time, stop the counter so as to avoid including this time in the life of the filter. To stop the counter just release the tab for 5 minutes.
2 To start the counter again, just reset it. To reset the indicator, remove and press the tab 5 times in a row.
3 Indicates the need to change the filter after 6 weeks or 100/150 fillings. 100 fillings for the pitcher of 3.3 L and 150 fillings for the pitcher of 2.4L.

6 TIPS

1 The jug can be stored in the refrigerator door. To keep your water fresh, pure and cold, always leave the jug in the refrigerator. The filter must remain in permanent contact with the water. (Fig. 9).

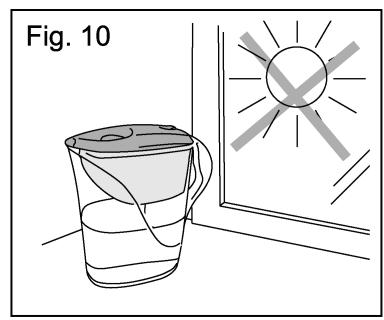

2 Never expose the jug to direct sunlight. (Fig. 10).

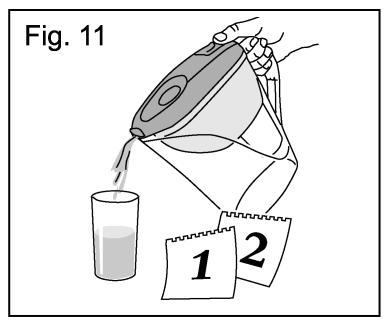

3 Use the filtered water within two days. (Fig. 11).

CAUTION! When you want to dispose of the appliance, NEVER throw it in the rubbish bin. Take it to your nearest CLEAN POINT or the waste collection centre closest to your home for processing. You will thus be helping to take care of the environment.

FRANÇAIS

fr

3 POKNY K PRVÉMU POUŽITIU

1 Pred prvym pouzitim umyte kanvicu, nalevku a veko v horucej vode s jemnym cistiacim prostriedkom. Vsetky casti, okrem veka, mozete umyvat' v umyvačke na riad. (Obr.1). Resetujete ak 5-krát bez prerušenia vytiahnete a stlačite jazýček.
2 Na prépravu filtra odstrănte obalovy material a na 15 minút ho namočte do studenej vody. Jemne potraste, aby ste odstránili vzduchové bubliny. Týmto je filter pripravený na použitie. (Obr. 2).
3 Filter jemne stlačte pri ústí nalievky. Pri Čistení filtra ho musité vložit' tak hlboko, akto to len pójde. (Obr. 3).
4 Potom vložte do kanvice nálevku a filter. Nasad'te veko a cz otvor vo veku najeje z vodovodu studenú vodu. Ak voda tečie nerovnomerne,

1 OCHOBHN KOMNHOENTN

1 Kanak
2 Om8op 3a HaIuBaHe Ha 6oda
3 IHmJIuaeHmHO ycmpoUcM8o 3a u3MepeAHe
4 yHu
5 Ppe3apekdaa ce npeucmeameneen fummbp
6 KaHa
