Brand	SOLAC
Model	AS3258
Product type	Bagless cyclonic vacuum cleaner
Technology	Non-Stop Cyclone System
Power (estimated)	800 W
Power supply	Mains, 220-240 V
Cord length (estimated)	6 m
Dust bin capacity (estimated)	1.5 L
Filters	HEPA exhaust filter, Washable motor protection filter
Included accessories	Universal floor and carpet brush (retractable), Parquet brush, Crevice and corner nozzle, Upholstery brush, Telescopic metal tube, Accessory holder
Suction control	Manual regulator on the handle
Switch	Pedal switch (on/off and cord retraction)
Safety thermostat	Yes, automatic shut-off in case of overheating
Dimensions (L x W x H, estimated)	40 x 30 x 25 cm
Weight (estimated)	5 kg
Maintenance and cleaning	Empty dust bin, wash motor protection filter with water (max 40°C), clean HEPA filter, exterior cleaning with damp cloth
Safety	Do not use without filter, unplug before maintenance, do not vacuum liquids or embers
Spare parts and repairability	Replaceable HEPA and motor filter, accessories available
Intended use	Domestic, cleaning of floors, carpets, furniture, and fabrics

Frequently Asked Questions - AS3258 SOLAC

How to empty the dust bin of the SOLAC AS3258 vacuum cleaner?

Press the release button (17) to free the bin. Place it over a trash can, then press button (8) to empty the contents. Clean the inner chamber with a brush and a damp cloth, and make sure everything is dry before reassembling.

How to clean the motor protection filter?

Remove the dust bin. Turn the cover (18) counterclockwise, remove the filter (14) and wash it with warm water (max 40 °C). Let it dry for 24 hours before reinstalling.

What to do if the vacuum cleaner suddenly stops?

It is probably the safety thermostat that has triggered due to overheating. Turn off and unplug the appliance, check that the air inlets and outlets are not blocked, empty the dust bin and let it cool for about an hour before using again.

How to adjust the suction power?

Use the manual regulator (19) located on the handle. Open the flap to reduce suction, close it to increase it.

What accessories are included with the vacuum cleaner?

The vacuum cleaner comes with a universal floor and carpet brush (retractable), a parquet brush, a crevice and corner nozzle, an upholstery brush, a telescopic metal tube, and an accessory holder.

How to retract the power cord?

Once the appliance is turned off and unplugged, press the pedal button (3) to retract the cord automatically. Hold the plug in your hand to avoid any impact.

Can you vacuum liquids with this vacuum cleaner?

No, this vacuum cleaner is designed only for dry cleaning. Never vacuum liquids, glowing embers, ashes, or sharp objects.

How to use the universal brush for different floors?

The universal brush (23) is retractable. For hard floors (wood, parquet), activate the bristles by pressing the brush button (25). For carpets and rugs, retract the bristles.

Where to store the accessories?

Place the accessory holder (22) on the telescopic metal tube. You can attach accessories to it to keep them always at hand.

How to clean the HEPA exhaust filter?

Release the grid (6) by following the instructions in figure 6, remove the filter (7) and gently shake it over a trash can to remove excess dust. Put it back in place. Replace the filter once or twice a year.

USER MANUAL AS3258 SOLAC

AS3258.book Page 2 Thursday, January 14, 2010 2:13 PM

. ESPÁÑOL

• Read these instructions carefully before using the appliance.
• This manual is an integral part of the product. Keep it in a safe place for future reference.
• This appliance is exclusively for household use and not for industrial use. It is dangerous to use it for any purpose other than the one indicated (e.g. vacuuming liquids, dust from construction work, cement, etc.)
  Children must be supervised to ensure they do not play with the appliance.
• This appliance is not to be used by persons (or children) whose physical, sensorial or mental capacities are impaired, or who have no experience or knowledge, unless supervised or instructed in the use of the appliance by a person responsible for their safety.
• Do not make any modifications or repairs to the appliance. In the event of any anomaly in the cord or any other part of the appliance, do not use it and take it to an authorised service centre.
• Do not use any parts or accessories not supplied or recommended by SOLAC.
• Before plugging the appliance into the mains, check that the indicated voltage is the same as in your home.
• Always unplug the appliance after use and before assembling or removing parts, and performing any maintenance or cleaning operations. Also unplug it in the case of a power cut. The appliance must be switched off before plugging or unplugging it into the mains
• Do not use the cord to hang up the appliance. Always unplug the appliance by pulling on the plug, and not the cord.
• Make sure the cord does not come into contact with sharp edges or hot surfaces. Do not leave the cord hanging over the edge of a table or worktop, to prevent children from pulling it and causing the appliance to fall.

Never immerse the appliance in water or any other liquid, and do not put it in the dishwasher.

• Never handle the vacuum cleaner or the plug with wet hands.
• Do not leave the appliance plugged into the mains unattended.
• Keep your vacuum cleaner away from heat sources.
• Never use the vacuum cleaner without the dust container or the protective filters correctly fitted.
  Always keep the air intakes and outlets clear.
• Keep hair, clothes, fingers or any other body part away from the air intakes and outlets.
• Do not use the vacuum cleaner to clean animals.
• Be very careful when using the vacuum cleaner on stairs.
• Do not use the appliance in confined spaces where explosive or toxic vapours can build up.

CAUTION! When you want to dispose of the appliance, NEVER throw it in the rubbish bin. Take it to the CLEAN POINT or waste collection centre closest to your home for processing. You will thus be helping to take care of the environment.

MAIN COMPONENTS

1 Main body
2 On/off foot switch
3 Cord-winder foot button
4 Groove for holding the brush while the appliance is temporarily stopped
5 Power cord
6 Outlet filter grille
7 HEPA air outlet filter
8 Button for opening dust container
9 Dust container
10 Inner dust container chamber
11 Release tabs for the flexible hose
12 Flexible hose connection
13 Flexible hose
14 Motor protection filter
15 Motor filter protection holder
16 Carry handle
17 Release button for dust container
18 Dust container cover
19 Manual suction regulator
20 Telescopic metal tube
21 Button for adjusting the telescopic tube height
22 Accessory holder

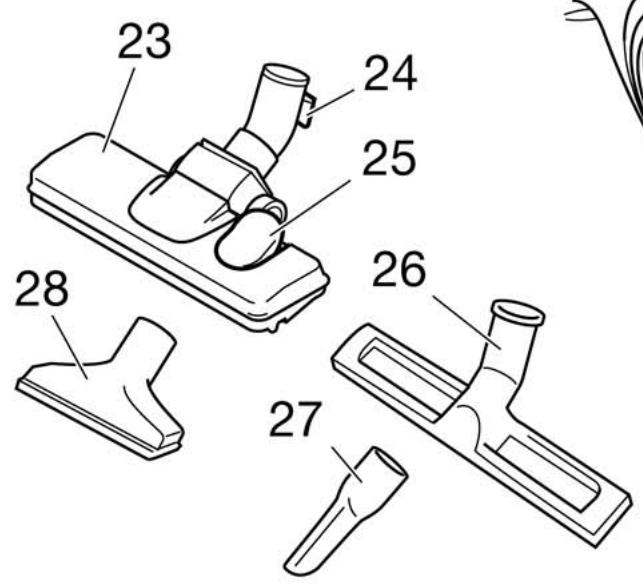

23 All-purpose brush for floors and carpets
24 Storage hook
25 Retractile brush push button
26 Brush for parquet floors
27 Tip for vacuuming grooves and corners
28Upholstery brush

USE

NON-STOP CYCLONE SYSTEM CYCLONIC TECHNOLOGY

The vacuumed dust enters the dust container (9) and remains suspended thanks to the Non-Stop Cyclone System cyclonic technology. Any dust particles that escape from the outer dust container chamber are retained in the inner chamber (10) before passing through the motor protection filter (14), thereby ensuring that the air leaving the appliance is free from dust particles.

This appliance has been designed exclusively for vacuuming floors, carpets, furniture and fabrics. Do not use it for any other purpose.
Never vacuum live ash, splinters, sharp objects, or liquids.
Never vacuum lit matches or cigarette butts. Do not vacuum toxic material (ammonia, etc.).
Completely remove all the elements used for transportation and packaging.
Unplug the appliance from the mains before adding or removing any accessories or performing any maintenance tasks.
Do not use the appliance above the height of the power cord.

1 Check that the dust container (9) and filters (7 and 14) are fitted correctly. See the following section (Cleaning and Conservation)
2 Insert the flexible hose (13) into the connection (12) until it clicks into place When you want to remove the hose, press the release tabs (11) at the same time.

3 Insert the telescopic metal tube (20).
4 Prepare the accessories required for the surface you want to clean. Insert the required accessory into the telescopic metal tube (20).

All-purpose brush for floors and carpets (23)

It can be used on all types of floors, as it is retractile and can adapt to the surface to be cleaned. To change the cleaning position of the brush, press the brush button (25) with your foot. We recommend cleaning hard floors, wood and parquet with the fibre brush extended, and cleaning carpets and rugs with the fibre brush retracted.

Brush for parquet floors (26)

It is recommended for use on parquet floors and hard floors (stoneware, ceramic, marble, etc.). Vacuuming tip (27)

For narrow places, grooves and corners.

Upholstery brush (28)

Suitable for upholstery.

• The length of the telescopic tube can be adjusted (20) by sliding the adjustment button (21) while moving both parts of the telescopic tube.
  5 Pull the cord (5) out as far as the yellow mark (ideal length). If necessary, pull it out as far as the red mark, but no further.
  6 Plug the appliance into the mains.
  7 Switch the vacuum cleaner on by pressing the foot button (2) and adjust the suction power by opening or closing the regulator on the handle (19). (Opening the valve reduces the power and closing it increases the power).

If, while using the appliance, you hear a sharp whistle unlike the usual sound, turn it off and unplug it. Check that the air intakes, outlets and filters are not blocked. If they are blocked, get rid of the cause of the blockage.

While using the appliance, drag it along like a trolley. Use the container handle (16) to carry the vacuum cleaner.
This appliance has a position known as "horizontal parking", which can be used for pausing from time to time during cleaning. This position is achieved by holding the telescopic tube by the hook in the groove (4) of the appliance body (fig. 1).
All these accessories can be stored in the accessory holder (22) housed in the telescopic metal tube (fig. 1).
8 Once you have finished, switch the appliance off by pressing the button (2). Unplug it and press the button (3) to wind up the cord. Hold the cord plug in your hand to prevent it from banging against the vacuum cleaner housing.

SAFETY THERMOSTAT

The system has a safety thermostat. If for any reason the vacuum cleaner should overheat, the thermostat will automatically shut off the appliance. If this should happen:

1 Press the on/off switch (2) and unplug the appliance from the mains.
2 Check that the air intakes and outlets are not blocked. If they are blocked, get rid of the cause of the blockage.
3 Empty the dust container (outer and inner chamber). See the next section "Cleaning and Conservation".
If the automatic shut-off was due to the motor overheating, wait for about one hour for the appliance to cool before turning it on again. You can reduce the waiting time by placing the appliance in a cool or well-ventilated place to allow the heat to dissipate.

CLEANING AND CONSERVATION

EMPTYING THE DUST CONTAINER (9)

The dust container (9) has a maximum level mark. Check the dust does not exceed that level.

1 Press the release button (17). This releases the dust container. (fig. 4). 2)
2 Remove the dust container and hold it over the waste bin. Press the button (8) on the container (fig. 3) to empty the contents into the bin.
3 Clean the inner chamber (10) and dust container with a brush and wet cloth.

Check that the washed elements are completely dry before putting them back together.
Never immerse the inner chamber in water or any other liquid, nor put it in the dishwasher. Do not use abrasive products or solvents.
4 Close the dust container cover (18) properly.
5 Put the dust container back inside the appliance. Push the container towards the body until you hear a click indicating that the container has been correctly attached to the appliance.

CLEANING THE MOTOR PROTECTION FILTER (14)

It is advisable to inspect the motor protection filter from time to time, to ensure that it is operating correctly.
Once or twice a year, or if a reduction in suction power is detected, clean the protection filter. To do so:

1 Remove the dust container. See the previous section "Emptying the dust container (9)".
2 Turn the cover (18) anti-clockwise (fig. 4).

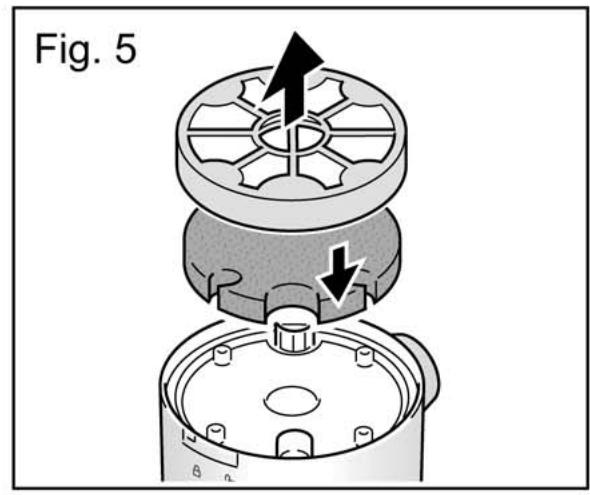

3 Remove the protection filter (14) from its holder (15) (fig. 5).
4 Wash the filter with tap water and leave it to dry completely.

The filter can be washed with warm water (max. 40^ ). Leave it to dry for 24 hours before replacing it.

5 Replace the motor protection filter in its holder.
6 Put the holder with the motor protection filter back in the dust container.
7 Place the cover (18) on the container body turning it anti-clockwise to the lock mark (fig. 4).

Never use the vacuum cleaner without the motor protection filter.

CLEANING AND REPLACING THE AIR OUTLET FILTER (7)

It is advisable to inspect the air outlet filter from time to time to ensure that it is operating correctly. Clean the filter thoroughly if you detect a reduction in the suction power of the appliance.
It is advisable to replace the air outlet filter once or twice a year, depending on how often you use the appliance. To do so:

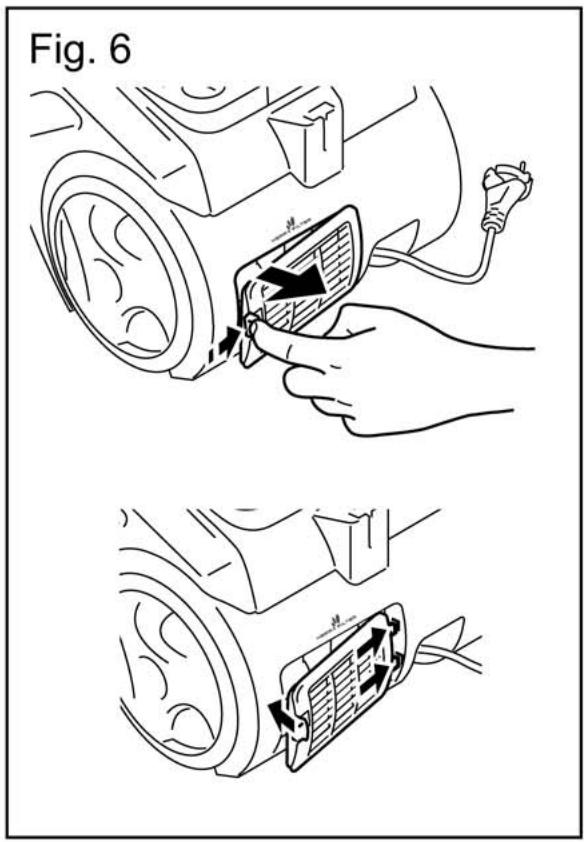

1 Release and remove the grille from the air outlet filter (6) as shown in figure 6.
2 Remove the outlet filter (7) pulling it towards you (fig. 8). 7).
3 Gently tap the outlet filter against the side of the waste bin to remove any excess dirt and dust.

Never use the vacuum cleaner without the air outlet filter.
4 Insert the air outlet filter and grille in their housing (fig. 6).

CLEANING THE APPLIANCE

Clean the appliance before using it for the first time, immediately after each use and after not using it for a long period of time. You will thus ensure the correct operation of the appliance and prolong its useful life.
Before cleaning the appliance, unplug it from the mains.
Check that no water gets into the appliance.

1 Clean the outside of the appliance with a damp cloth. Do not use any abrasive products or solvents.
