USER MANUAL AR6290 SOLAC

Solac is a registered Trade Mark

01/08

5-8 ESPANOL

9-11 • ENGLISH

12-15 FRANÇAIS

16-19 DEUTsCH

20-23 • PORTUGUES

24-27 ITALIANO

28-31 NEDERLANDS

32-34 • CESKY

35-38 POLSKI

39-41 • SLOVENCINA

42-45 MAGYAR

46-49 6bIrpck

50-52 - HRVATSKA

53-56 ROMÁNÁ

es

en

fr

de

pt

it

nl

CS

pl

sk

hu

bg

hr

ro

ESPANOL

es

1 ATencion

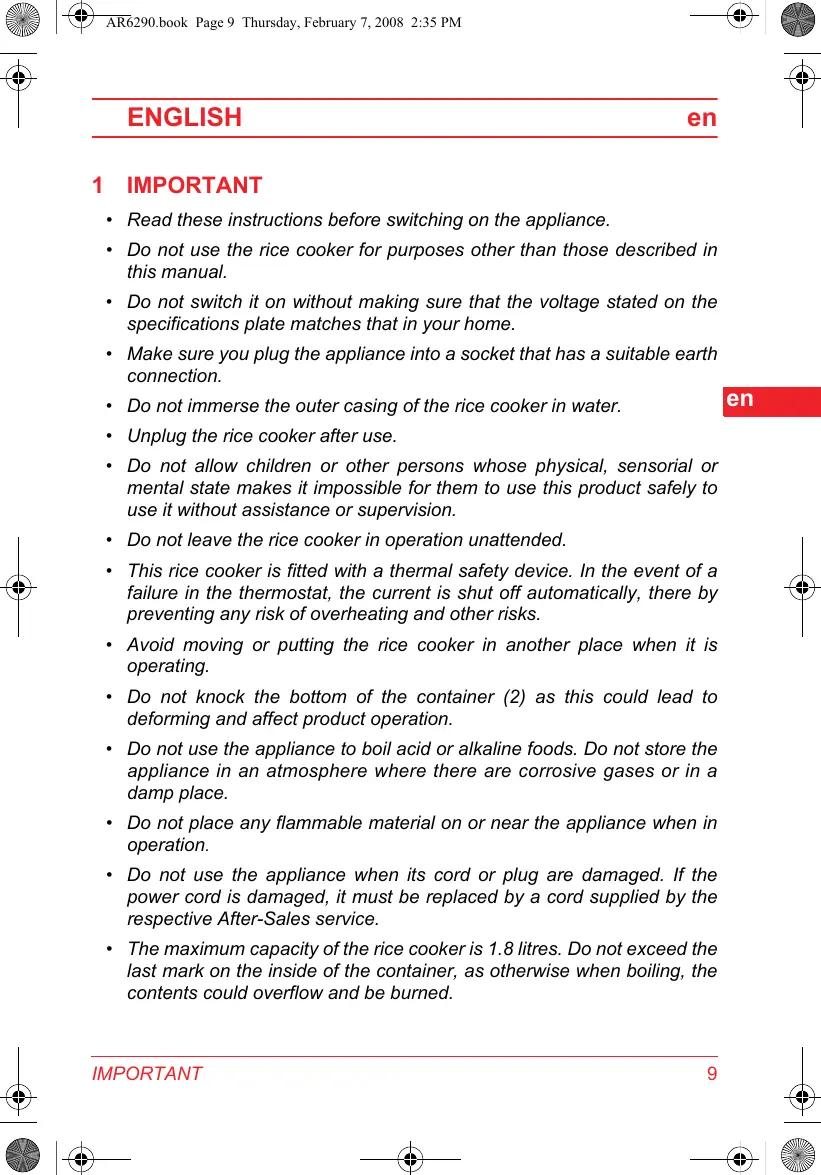

• Read these instructions before switching on the appliance.
• Do not use the rice cooker for purposes other than those described in this manual.
• Do not switch it on without making sure that the voltage stated on the specifications plate matches that in your home.
• Make sure you plug the appliance into a socket that has a suitable earth connection.
• Do not immerse the outer casing of the rice cooker in water.
• Unplug the rice cooker after use.
• Do not allow children or other persons whose physical, sensorial or mental state makes it impossible for them to use this product safely to use it without assistance or supervision.
• Do not leave the rice cooker in operation unattended.
• This rice cooker is fitted with a thermal safety device. In the event of a failure in the thermostat, the current is shut off automatically, there by preventing any risk of overheating and other risks.
• Avoid moving or putting the rice cooker in another place when it is operating.
• Do not knock the bottom of the container (2) as this could lead to deforming and affect product operation.
• Do not use the appliance to boil acid or alkaline foods. Do not store the appliance in an atmosphere where there are corrosive gases or in a damp place.
• Do not place any flammable material on or near the appliance when in operation.
• Do not use the appliance when its cord or plug are damaged. If the power cord is damaged, it must be replaced by a cord supplied by the respective After-Sales service.
• The maximum capacity of the rice cooker is 1.8 litres. Do not exceed the last mark on the inside of the container, as otherwise when boiling, the contents could overflow and be burned.

WARNING!!: When you want to dispose of the appliance, NEVER throw it in the bin. Take it to your nearest RECYCLING POINT or waste collection centre for treatment. You will thus be helping to take care of the environment.

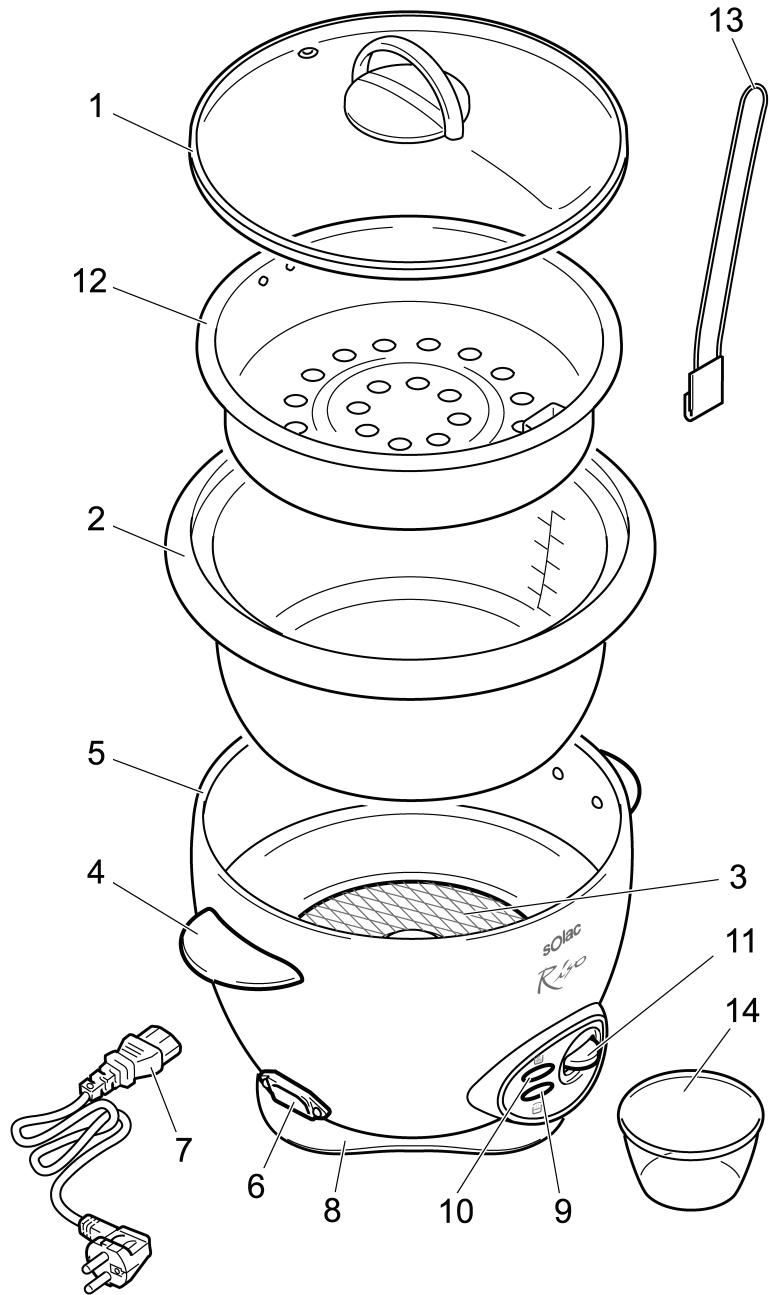

2 MAIN COMPONENTS

1 Lid
2 Container
3 Heating plate
4 Handles
5 Outer casing
6 Power socket
7 Power cord
8 Base
9 Cooking function pilot lamp
10 Warming pilot lamp
11 Cooking / heating switch
12 Steaming accessory
13 Handle for steaming accessory
14 Dispensing vessel

3 OPERATION

FOR COOKING RICE

1 Clean the rice and pour it into the container (2). You can use the dispensing vessel (14) to calculate the quantity.

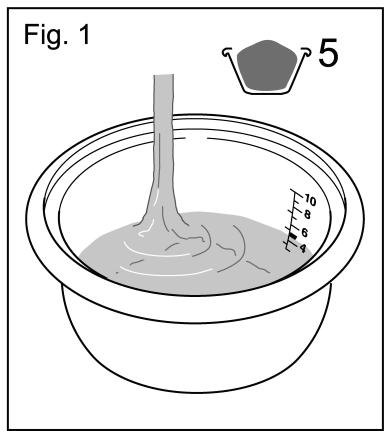

2 Add water, depending on the type of rice used and the amount of cooking required. If using the dispensing vessel, the marks inside the container indicate the quantity of water that must be added. For example: if you add 5 glasses of rice pour the water in until it reaches the mark corresponding to 5 on the inside of the container (2). (fig. 1)

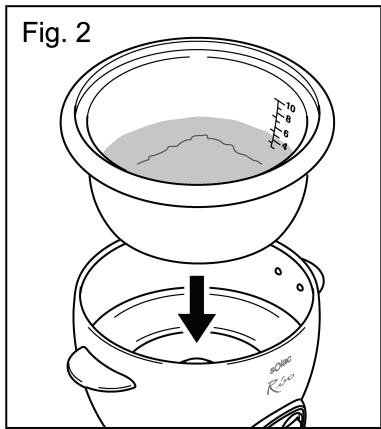

3 Put the container (2) inside the casing and move it gently, making sure it touches the heating plate (3). (fig.2).

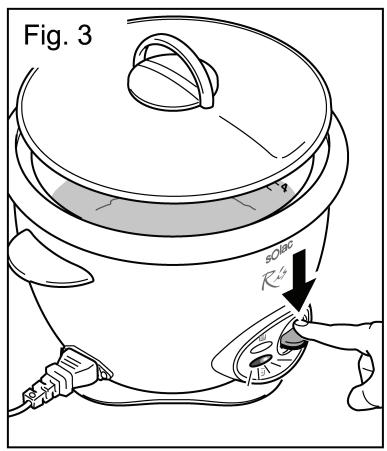

4 Plug the connection cord (7) into the socket (6) and connect the other end to the mains. Then press the switch by selecting the cooking position, when the red pilot lamp (9) will light up, indicating that the rice is being cooked (fig.3).
5 Once the rice is cooked, after approximately 20 minutes, the switch (11) will automatically move to the heating function, when the orange pilot light (10) will go on.

6 Leave the rice with the lid (1) on for 10 minutes before serving.
7 While the heating function is selected, the rice temperature will be maintained at between approximately 60^ and 70^ .
8 Unplug the connection cord when the rice no longer needs to be kept warm, and in all cases before removing the container (2).

STEAMING

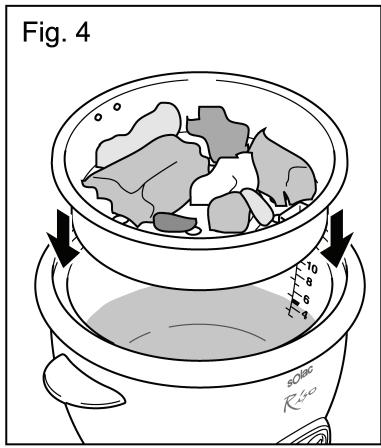

1 Pour water inside the container (2) up to the 5 mark. Put the food to be cooked inside the accessory (12) (Fig. 4). Use the switch to select the cooking position and maintain this position for the required length of time, depending on the type of food (vegetables, fish.) and amount of cooking required. In this case, the appliance will not automatically change to the warming function, but continue in the cooking position, provided there is water inside the container.
2 If using the steaming accessory when cooking rice, the quantity of rice must not exceed 4 cups, equivalent to 560 grams.

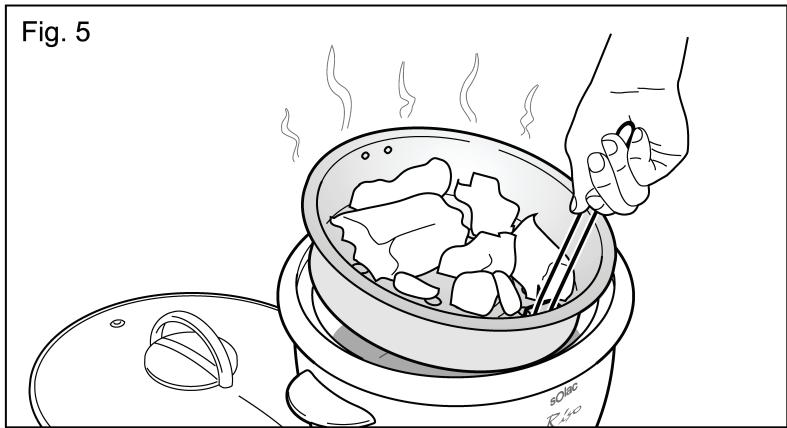

3 When handling the steaming accessory (12) when hot, please use the handle supplier (13) (Fig. 5).

4 CLEANING AND MAINTENANCE

Check the appliance is not connected to the mains before starting to clean it.
The container and casing must always be cleaned to prevent any food particles, rice grains or any other type of dirt from adhering to them. There must be no external particles between the container (2) and heating plate (3) as otherwise the rice cooker operation could be affected and the components might even be burned.
Never immerse the rice cooker casing or connection cable in water. Wipe the outside with a dry cloth. Use a dry cloth to clean the inside of the casing (5), once the element is dry. Clean the container using water and a non-corrosive detergent for best results.

5 SAFETY SYSTEM

When the appliance has been plugged into the mains, to select the cooking position with the switch (11), the container must be placed inside the casing (5) with some weight inside, as if not, the switch will not allow you to select this position. However, do not plug in the rice cooker if the container is not inside or empty, since the warming function will start to operate.
