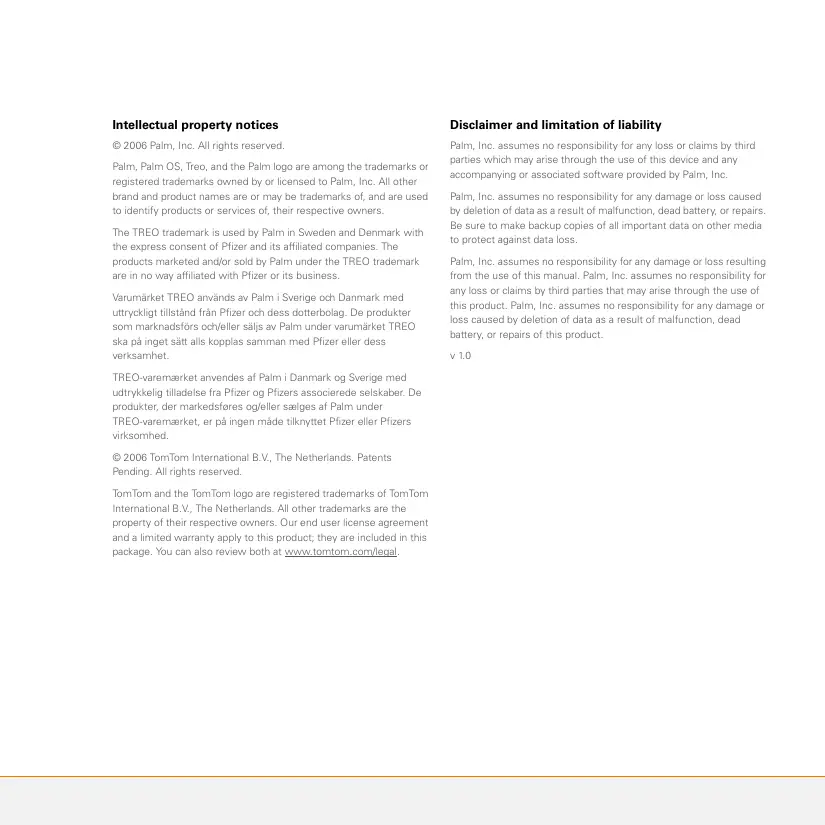

Arecibo_ML_Title.fm Page i Tuesday, November 14, 2006 2:02 PM Disclaimer and limitation of liability © 2006 Palm, Inc. All rights reserved. Palm, Inc. assumes no responsibility for any loss or claims by third parties which may arise through the use of this device and any accompanying or associated software provided by Palm, Inc. Palm, Palm OS, Treo, and the Palm logo are among the trademarks or registered trademarks owned by or licensed to Palm, Inc. All other brand and product names are or may be trademarks of, and are used to identify products or services of, their respective owners. The TREO trademark is used by Palm in Sweden and Denmark with the express consent of Pfizer and its affiliated companies. The products marketed and/or sold by Palm under the TREO trademark are in no way affiliated with Pfizer or its business. Varumärket TREO används av Palm i Sverige och Danmark med uttryckligt tillstånd från Pfizer och dess dotterbolag. De produkter som marknadsförs och/eller säljs av Palm under varumärket TREO ska på inget sätt alls kopplas samman med Pfizer eller dess verksamhet. TREO-varemærket anvendes af Palm i Danmark og Sverige med udtrykkelig tilladelse fra Pfizer og Pfizers associerede selskaber. De produkter, der markedsføres og/eller sælges af Palm under TREO-varemærket, er på ingen måde tilknyttet Pfizer eller Pfizers virksomhed. © 2006 TomTom International B.V., The Netherlands. Patents Pending. All rights reserved. TomTom and the TomTom logo are registered trademarks of TomTom International B.V., The Netherlands. All other trademarks are the property of their respective owners. Our end user license agreement and a limited warranty apply to this product; they are included in this package. You can also review both at www.tomtom.com/legal. Palm, Inc. assumes no responsibility for any damage or loss caused by deletion of data as a result of malfunction, dead battery, or repairs. Be sure to make backup copies of all important data on other media to protect against data loss. Palm, Inc. assumes no responsibility for any damage or loss resulting from the use of this manual. Palm, Inc. assumes no responsibility for any loss or claims by third parties that may arise through the use of this product. Palm, Inc. assumes no responsibility for any damage or loss caused by deletion of data as a result of malfunction, dead battery, or repairs of this product. v 1.0 Getting started the TomTom NAVIGATOR expansion card, refer to the included TomTom NAVIGATOR Quick Start Guide. The Palm® GPS Navigator Car Kit is a GPS navigation system that consists of the following:

A GPS receiver located within a cradle that you install in your car

A TomTom NAVIGATOR expansion card containing maps and software that you set up on your smartphone It is compatible with various Palm® smartphones, including the following:

NOTE For a complete list of compatible smartphones, go to the Palm website at www.palm.com. This guide explains how to set up the TomTom NAVIGATOR software on your smartphone. For information on installing the cradle into your car, refer to the Palm® GPS Navigator Car Kit Setup poster included in this package. For instructions on using the TomTom NAVIGATOR software or adding and removing maps on You can move your GPS Navigator Car Kit from car to car, as needed. DID YOU KNOW? Installation requirements

One of the compatible smartphones listed above. For information on other supported smartphones, visit the Palm website at www.palm.com.

A TomTom NAVIGATOR expansion card (included).

A TomTom NAVIGATOR product code (included).

One of the following:

A data plan with your wireless service provider.

A computer with Internet access. GETTING STARTED

Setting up TomTom NAVIGATOR software on your smartphone 2 Select the language you want, and then select Yes. To set up the TomTom NAVIGATOR software on your smartphone, complete all of the steps included in this section. Install TomTom NAVIGATOR software 1 Insert the TomTom NAVIGATOR expansion card included in this package into the expansion card slot on your smartphone. 3 When prompted, tap the screen to begin preference selection. 4 Select right- or left-handed operation, and then select Done. 5 Select how distances are displayed, and then select Done. 6 Select how time is displayed, and then select Done.

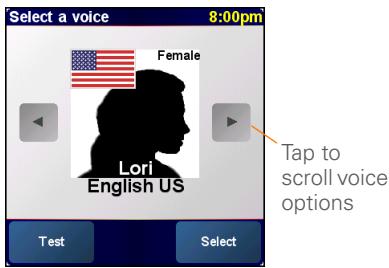

SETTING UP TOMTOM NAVIGATOR SOFTWARE ON YOUR SMARTPHONE 7 Using the left and right arrows, select a voice, and then select Select. Activate TomTom NAVIGATOR software How you activate the TomTom NAVIGATOR software depends on whether or not you have a data plan with your wireless service provider. If you have a data plan with your wireless service provider, do the following: Tap to scroll voice options 1 Select Automatic. NOTE For a complete list of voice options, go to www.tomtom.com. 8 If prompted, select the map that you want, and then select Done. 2 Select Activate. SETTING UP TOMTOM NAVIGATOR SOFTWARE ON YOUR SMARTPHONE

3 Enter the 15-character code printed on the product code label, and then select Done. Product code If you don’t have a data plan with your wireless service provider or aren’t sure, do the following: 1 Tap Manual. 4 When the TomTom NAVIGATOR software is activated, select Continue. 2 On your computer, go to www.ttcode.com and select the Product Activation option for your country.

SETTING UP TOMTOM NAVIGATOR SOFTWARE ON YOUR SMARTPHONE 3 On your computer, enter the 15-character code printed on the product code label, and then click Next. 6 On your smartphone, enter the activation code displayed on your computer screen, and then select Done. Product code xxxxx-xxxxx-xxxxx 4 On your computer, enter the device code displayed on your smartphone screen, and then click Next. 5 On your smartphone, select Activate. 7 When the TomTom NAVIGATOR software is activated, select Continue. SETTING UP TOMTOM NAVIGATOR SOFTWARE ON YOUR SMARTPHONE

Complete TomTom NAVIGATOR software setup 1 To set your home address, select Yes. 2 Enter or scroll to your zip code or city, and then select it when it is displayed. 5 On the Select your GPS receiver screen, select Palm GPS Car Kit, and then select Select. 6 Repeatedly tap the screen to take a tour of the TomTom NAVIGATOR software. 3 Enter or scroll to your street name, and then select it when it is displayed. 7 On the Legal notice screen, read the information, and then select I agree if you agree. 4 Enter your house number, and then select Done. NOTE You must select I agree to use the software. You are now ready to use the TomTom NAVIGATOR software on your smartphone.

SETTING UP TOMTOM NAVIGATOR SOFTWARE ON YOUR SMARTPHONE Exiting TomTom NAVIGATOR software 1 On the TomTom NAVIGATOR navigation screen, tap the top portion of the screen to open the Main Menu. 2 Repeatedly select the blue arrow until the Main Menu 3 of 3 screen is displayed. 3 Select Exit application. Setting your GPS Navigator Car Kit to automatically answer calls 1 Set up the TomTom NAVIGATOR software on your smartphone. See “Setting up TomTom NAVIGATOR software on your smartphone” on page 5. 2 In Applications View, select GPS Car Kit 3 If prompted, read the information on the GPS Car Kit screen, and then select OK. SETTING YOUR GPS NAVIGATOR CAR KIT TO AUTOMATICALLY ANSWER CALLS

4 Select the Auto Answer pick list, and then select how quickly you want your GPS Navigator Car Kit to automatically answer incoming calls. NOTE Each ring lasts approximately five seconds, regardless of the length of your ring tone. For example, if you select After 2 rings, the GPS Navigator Car Kit automatically answers your calls after approximately ten seconds. 5 Select Done. NOTE Auto Answer is disabled during active calls, when the GPS Navigator Car Kit is not powered, and when your smartphone is not in the cradle.

COMMON QUESTIONS Common questions What can I do to improve the amount of time it takes for my GPS Navigator Car Kit to locate a satellite signal?

Ensure your GPS Navigator Car Kit has an open view of the sky. This is important because obstructions, such as large trees or tall buildings, may block its reception.

Don’t drive your car until your GPS Navigator Car Kit has located a satellite signal. If your car is moving, more data must be downloaded.

Use your GPS Navigator Car Kit often. Downloaded data is retained for two to three days. You can reduce data download time by frequently using your GPS Navigator Car Kit. NOTE The first time you use your GPS Navigator Car Kit, it may take up to 15 minutes to locate a satellite signal. This is because so much data must be downloaded. Where can I get customer support if I need it? Go to the Palm website at www.palm.com/ support. Important safety and legal information Please read the following information to ensure safe use of your GPS Navigator Car Kit. Global Positioning System The Global Positioning System (GPS) is a satellite-based system that provides location and timing information around the globe. GPS is operated and controlled under the sole responsibility of the Government of the United States of America, which is responsible for its availability and accuracy. Any changes in GPS availability and accuracy may impact the operation of your GPS Navigator Car Kit. Environmental conditions will affect the operation of your GPS Navigator Car Kit. TomTom B.V. and Palm cannot accept any liability for the availability and accuracy of GPS. Use With Care Use of the GPS Navigator Car Kit does not by any means substitute for the need to drive with due care and attention. IMPORTANT Do not mount the GPS Navigator Car Kit where the driver’s field of vision is obscured or where airbags may deploy, and do not place it on the dashboard without securing it reliably. Do not mount the unit or route the cables in such a way as to interfere with control of the vehicle. Failure to follow these guidelines could result in an accident or collision resulting in serious injury or death. Drive safely using information from street signs and landmarks in addition to the GPS Navigator Car Kit. Do not become distracted by the GPS Navigator Car Kit while operating the vehicle. Use voice prompts to minimize the need to look at the display. Do not input destinations or access other functions that take time to complete unless the vehicle is safely stopped. Make all settings before departing or pull off the road in a safe and legal manner if changes need to be made. IMPORTANT Use the GPS Navigator Car Kit only as an aid to navigation. It is not designed for any use requiring precise measurements. The Global Positioning System (GPS) is operated by the government of the United States of America and is subject to changes which could affect the accuracy and performance of this GPS equipment. NOTICE TO DRIVERS When using this product you must obey your local vehicle codes. Some vehicle codes restrict any object or material from being placed, displayed, installed, affixed, or applied upon the windshield or side or rear windows. Where such codes exist, when using this product, the suction cup mount pad should be used instead of attaching the mount directly to the vehicle windshield or side or rear windows. Palm is not responsible for any damages, fines, or penalties that may result from disregarding this notice. Aircraft and Hospitals Use of devices with an antenna is prohibited on most aircraft, in many hospitals, and in many other locations. The GPS Navigator Car Kit must not be used in these environments. Heat-Reflective Shields Some newer-model vehicles may have a heat-reflective shield embedded in the windshield, which may prevent proper GPS signal reception if the GPS Navigator Car Kit is placed behind the windshield. To enable proper reception:

Place the GPS Navigator Car Kit in a different position, or

Place the GPS Navigator Car Kit behind the rearview mirror, where many vehicles have an opening in the heat reflective shield, as indicated by a black outline.

IMPORTANT SAFETY AND LEGAL INFORMATION

Installation, Use, and Maintenance

Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. IMPORTANT Do not attempt to service this product yourself. Do not open, puncture, or disassemble the product.

Consult the dealer or an experienced radio/TV technician for help. In order for the GPS Navigator Car Kit to work properly, make sure that the receiver has an unobstructed view of the sky. Protect the GPS Navigator Car Kit from excessive heat, extreme cold, dust, liquids, and direct sunlight. Do not use in a humid environment or on an unstable surface. Make sure the GPS Navigator Car Kit is always securely mounted to prevent accidental movement. Handle all parts, cables, and connectors with care. Use only supplied and recommended accessories and power supplies. Ensure that any power supply is cooled by placing it in a ventilated area. The power supply and the GPS Navigator Car Kit may become warm or hot during operation. Unplug the product from any external power source before cleaning. Only clean the product with a dry cloth. Follow the instructions in this manual carefully. FCC statement This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

Reorient or relocate the GPS Navigator Car Kit.

Increase the separation between the equipment and receiver.

IMPORTANT SAFETY AND LEGAL INFORMATION

The use of shielded I/O cables is required when connecting this equipment to any and all optional peripheral or host devices. Failure to do so may violate FCC rules. IMPORTANT Changes or modifications not covered in this manual must be approved in writing by the manufacturer’s Regulatory Engineering Department. Changes or modifications made without written approval may void the user’s authority to operate this equipment. Responsible Party Palm, Inc. 950 W. Maude Avenue Sunnyvale, CA 94085-2801 United States of America (408) 617-7000 www.palm.com CE Compliance Statement This product was tested by Palm, Inc. and found to comply with all the requirements of the EMC Directive 89/336/EEC as amended. Precautions against ESD Make sure to discharge any built-up static electricity from yourself and your electronic devices before touching an electronic device or connecting one device to another. The recommendation from Palm is that you take this precaution before connecting your Palm device to your computer, placing a device in a cradle, or connecting it to any other device. You can do this in many ways, including the following:

Ground yourself when you're holding your device by simultaneously touching a metal surface that is at earth ground. For example, if your computer has a metal case and is plugged into a standard three-prong grounded outlet, touching the case should discharge the ESD on your body.

Increase the relative humidity of your environment.

Install ESD-specific prevention items, such as grounding mats. Static Electricity, ESD, and Your Palm Device Electrostatic discharge (ESD) can cause damage to electronic devices if discharged into the device, so you should take steps to avoid such an occurrence. Description of ESD Static electricity is an electrical charge caused by the buildup of excess electrons on the surface of a material. To most people, static electricity and ESD are nothing more than annoyances. For example, after walking over a carpet while scuffing your feet, building up electrons on your body, you may get a shock-the discharge event-when you touch a metal doorknob. This little shock discharges the built-up static electricity. ESD-susceptible equipment Even a small amount of ESD can harm circuitry, so when working with electronic devices, take measures to help protect your electronic devices, including your Palm® device, from ESD harm. While Palm has built protections against ESD into its products, ESD unfortunately exists and, unless neutralized, could build up to levels that could harm your equipment. Any electronic device that contains an external entry point for plugging in anything from cables to docking stations is susceptible to entry of ESD. Devices that you carry with you, such as your Palm device, build up ESD in a unique way because the static electricity that may have built up on your body is automatically passed to the device. Then, when the device is connected to another device such as a docking station, a discharge event can occur. Conditions that enhance ESD occurrences Conditions that can contribute to the buildup of static electricity in the environment include the following:

Low relative humidity.

Material type. (The type of material gathering the charge. For example, synthetics are more prone to static buildup than natural fibers like cotton.

The rapidity with which you touch, connect, or disconnect electronic devices. While you should always take appropriate precautions to discharge static electricity, if you are in an environment where you notice ESD events, you may want to take extra precautions to protect your electronic equipment against ESD. For information on environmental programs, visit www.palm.com/environment.

IMPORTANT SAFETY AND LEGAL INFORMATION

IMPORTANT SAFETY AND LEGAL INFORMATION

IMPORTANT SAFETY AND LEGAL INFORMATION
