USER MANUAL CM700D MINOLTA

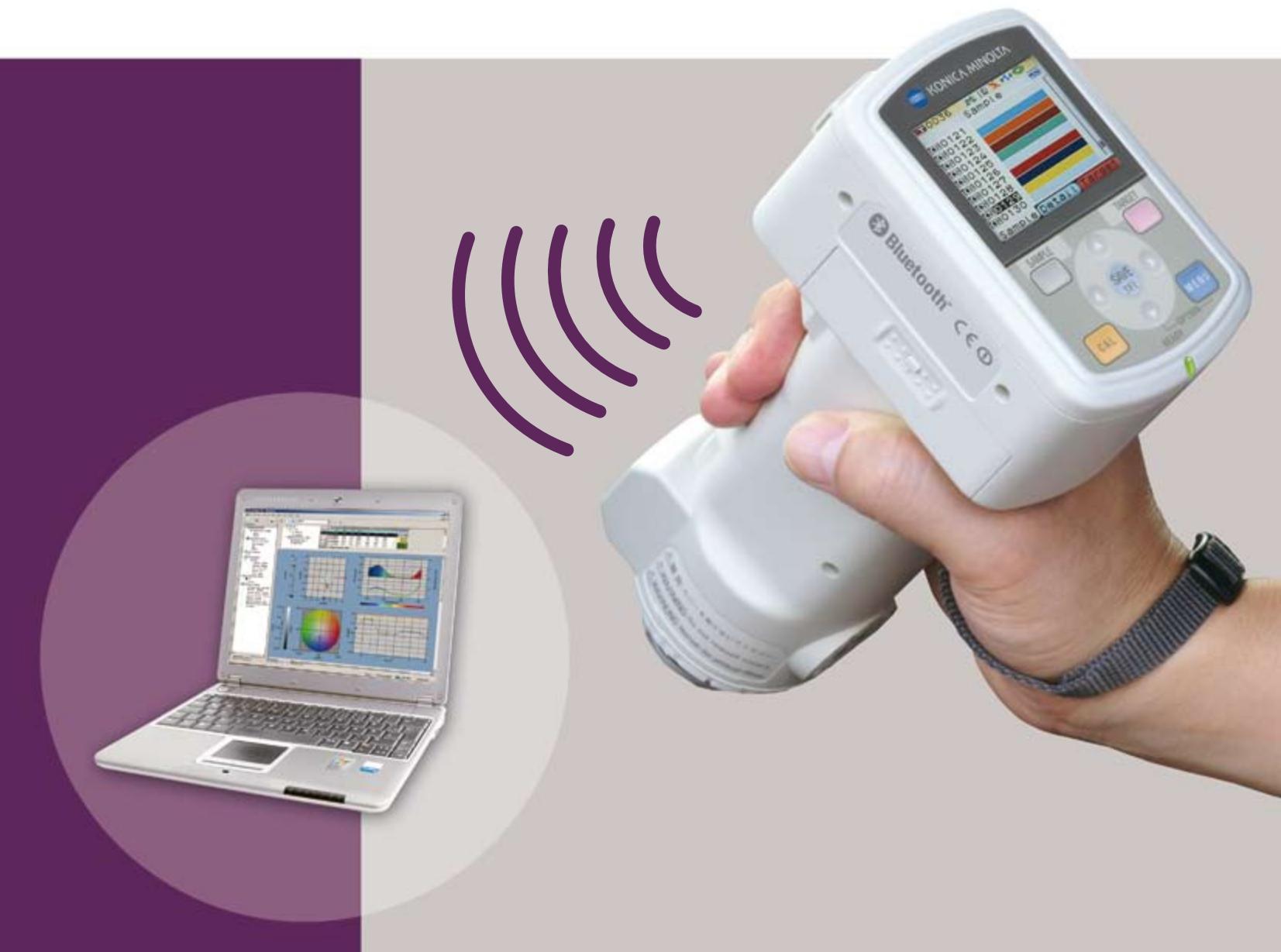

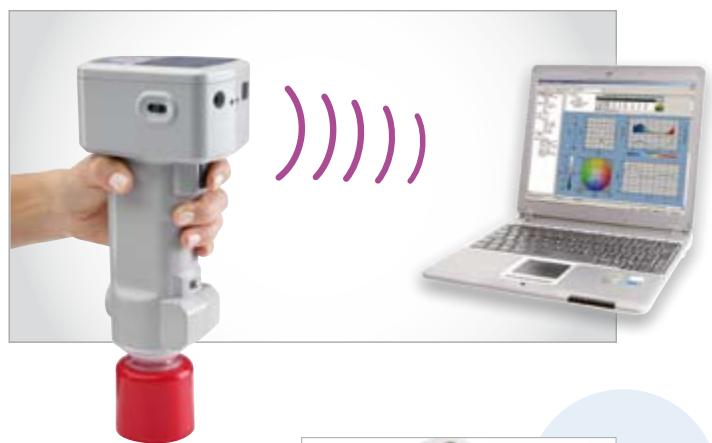

KONICA MINOLTA Spectrophotometer CM-700d / 600d New Generation Spectrophotometers with Wireless Communication and Colour LCD Screen The essentials of imaging

CM-700d / 600d Compact andlightweight spectrophotometer offering new technologies for perfect handling! Objective Quality Control of colour by instrumental assessment has proven to be reliable and affordable technology for any products where colour is an important quality criterion, as in the Paints & Coatings-, Plastics-, Automotive-, Home- Appliance-, Ceramics-, Textiles- and many other Industries. In addition, the increasingly global relationship between raw material suppliers, component manufactures, assemblers and buyers make precise colour data communication essential in a world which is ever more colourful. The new generation of portable spectrophotometers from Konica Minolta offers unprecedented ease of use and perfect handling by utilising new technologies, enhanced ergonomics and applying Konica Minolta’s known advanced optical design and signal processing technology. The CM-700d and CM-600d models will change the way portable spectrophotometers are perceived and applied in Research & Development and QualityControl by improving usability and convenience. Experience impressive colour measurement! Measure anything anywhere. With the CM-700d and CM-600d you can measure any sample anywhere! The ergonomic vertical alignment is perfectly suited to position and measure round or even concave shaped parts and samples with single hand operation. Weighing only 550 g, the CM-700d and CM-600d are the most lightweight instruments in their class and thus allow excellent portability for on-site measurement. The measuring aperture is selectable between D8mm and G3 mm to measure even small sample sizes (CM-700d only). Communicate wireless. The CM-700d and CM-600d are the world's first portable colour measuring instruments enabling wireless data communications with an external PC or a Printer using Bluetooth" class 1 technology. This brings a new dimension of freedom of operation to portable colour measurement in production eliminating the usual cable tangle associated with conventional instruments. Bluetooth" data communications with the new models can work at distances up to 100m including bi- directional communications displaying PASS/FAIL message or colorimetric data. In stationary mode, the instruments also offer communications via a USB port. See colours in colour. The CM-700d and CM-600d are the world's first portable colour measuring instruments with a colour LCD screen to improve colour data reading & perception. The 2.36-inch bright TFT display shows colour readings both in numerical or graphical mode to improve operability and understanding. Pseudo colour simulations to express colour difference or metamerism are also possible for rapid visual indication.

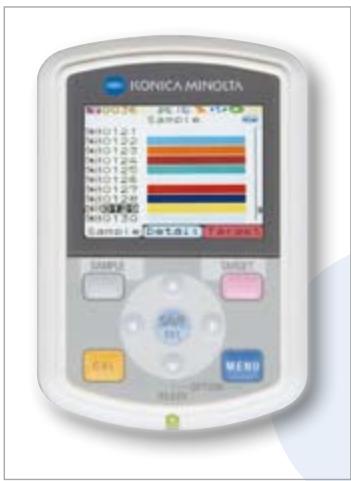

Easy to operate. The CM-700d and CM-600d also set new standards in ease of use and in- tuitive operation. Five dedicated buttons for the most important operations and displayed menu guidance in 6 languages make it easy to navigate through all functions and features. Data memory capacity allows users to store up to 1.000 targets and 4.000 measurement sets. With the "Auto target” function, the instrument searches for the closest target of any mea- sured colour. Easy to read colour LCD screen. Abundant information is displayed in colour for easy understanding. Mea- sured colours can also be reproduced as colour patches on the colour LCD, which is useful to check the level of colour difference or to search for colours.

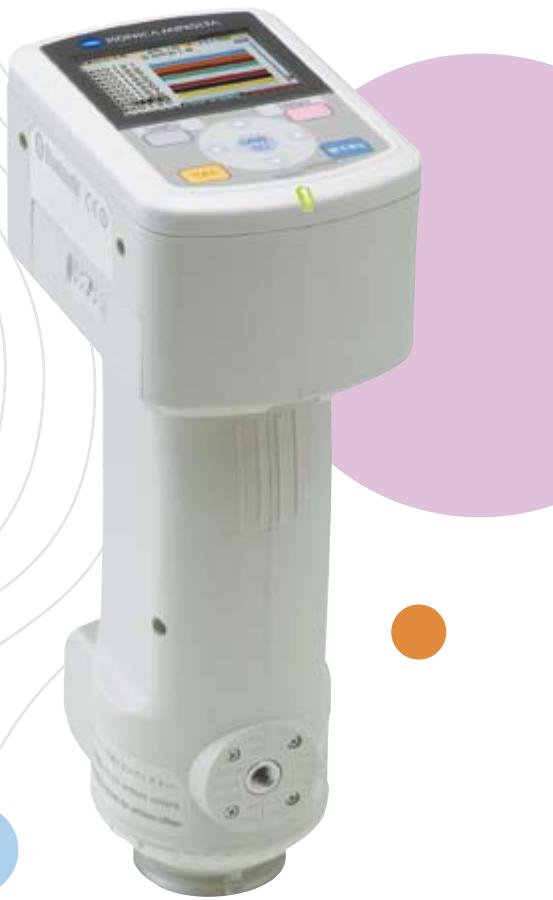

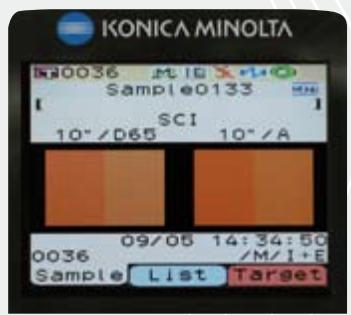

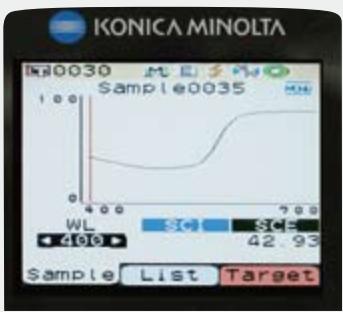

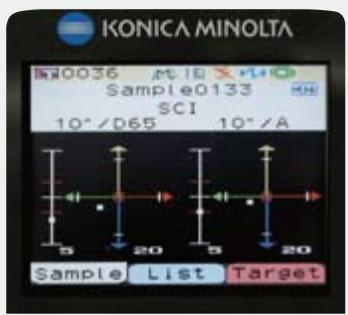

Sampie0133 sci Spectral graph Pseudocolour Colour difference graph More than you expect. In addition to all the advanced technology, both models come with a full list of features and functions you can expect from the leader and pioneer in portable colour measurement:

1. Sphère geometry with simultaneous measurement (automatic

switching) of specular components Included (di:8°) and excluded tde:8”)

2. Powerful and long life Xenon Flash illumination for maximum accu-

racy even on dark and saturated colours

3. Highest levels in Inter-Instrument- and Inter-Model-Agreement,

essential for global colour data exchange

4. Choice of 3 power supply modes: Dry battery, rechargeable

batteries {4 AA size) or AC Adapter for maximum flexibility

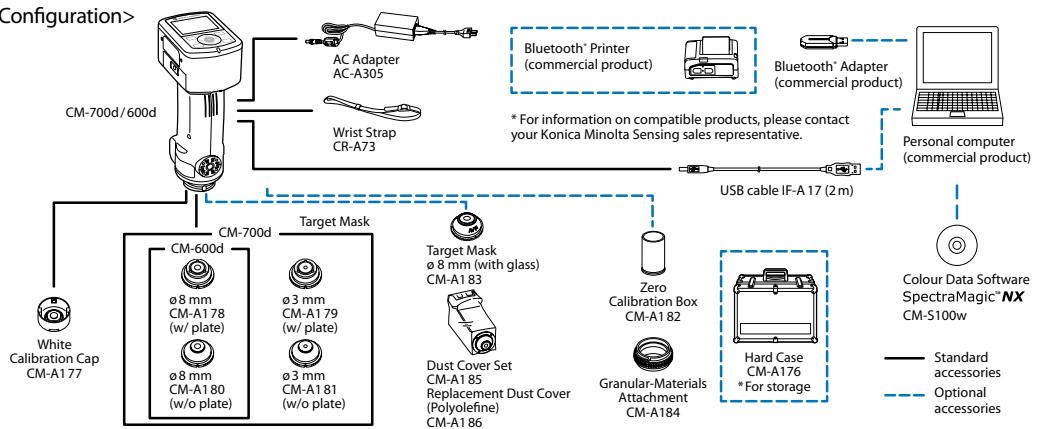

Main specifications Model CM-700d CM-600d Illumination /viewing system dF&, de:8 (difusedillumination 8-degree viewing angle), SCI (specular component indudedi/SCE (specular component excluded) selectable with automatic switching (Conforms to CIE No. 15, ISO 7724/1, DINS033 Teil7, ASTM E 1164, and JIS Z 8722) Size ofintegrating sphere 040 mm Detector Silicon photodiode array (dual 36-element) Spectral separation device Diffraction grating Wavelength range 400 nm to 700 nm Wavelength pitch 10nm Half bandwidth Approx. 10 nm Reflectance range Oto 175%, Display resolution: 0.01% Light source Pulsed xenon lamp (with UV cut filter) Measurement time Approx. 1 second Minimum messurementinterval Approx. 2 seconds (in SCI or SCE mode) Battery performance With alkaline dry batteries: Approx. 2000 measurements With nicke}-metalhydride rechargeable batteries (2300 mAh} Approx 2,000 measurements withful charge * Stand-alone continuous measurement fixed to either SCI or SCE mode at 10-secondintevals at 23°C Measurement/ilumination area MAV: 08 mm a 11 mm SAV: 03 mm/ 06 mm MAV:08 mm/ 0 11 mm only

• Changeable by replacing target mask and selecting lens position Repeatability Spectral reflectance: Standard deviation within 0.1%, Chromaticity value: Standard deviation within A Ë°,, 0.04
• When a white calibration plate is measured 30 times at 10-second intervals after white calibration Inter-instrument agreement Within AË*,, 02 (MAV/SCI * Based on 12 BCRA Series Î colour tiles compared to values measured with a master body at 23°C No.of averaging measurements 1 to 10 (Auto averaging), 1 to 30 (Manual averaging) Display 236-inch TFT colour LCD Interfaces USBT.1; Bluetooth" standard version 12° Observer 2 observer or 10° observer Iuminant A CD, Dis F2, F6, F7, F8, F10, F1, F12 (Simultaneous evaluation with two light sources possible) Displayed data Spectral values/graph, colorimetric values, colour difference values/graph, PASS/FAIL result, pseudocolour colour assessment Colour spaces Lab”, L'Ch, Hunter Lab, Yxy, XVZ, Munsell and colour difference in these spaces (except for Munsell) Colorimetric data MI, WI(ASTM E313-73/E313-96), VI(ASTM E313-73/ASTM D1925), SO Brightness, 8° gloss value Colour difference formulas AE, (CIE1976), AË°,, (CIE1994), AË*, (CIE 2000), CM (fc) Storable data sets Measurement data: 4,000 sets /Target colour difference data: 1,000 sets Pass/fail judgment Tolerances can be setto colorimeti values [exduding Munsel), colour difference values, colour values (exdluding 8° gloss value) respectiely Power Special AC adapter, 4 AA-size alkaline dry batteries or nickel-metal-hydride rechargeable batteries Sie 73 WI) x 2175 (H) x 107 (D) mm Weight Approx. 550 g (without white calibration cap and batteries) Opeaingtemperaure/humidiyrenge | 5 to 40°C, relative humidity 80% or less [at 35°C) with no condensation Srorgetempertur/humédiyrange | O to 45°C, relative humidity 80% or less [at 35-C) with no condensation
