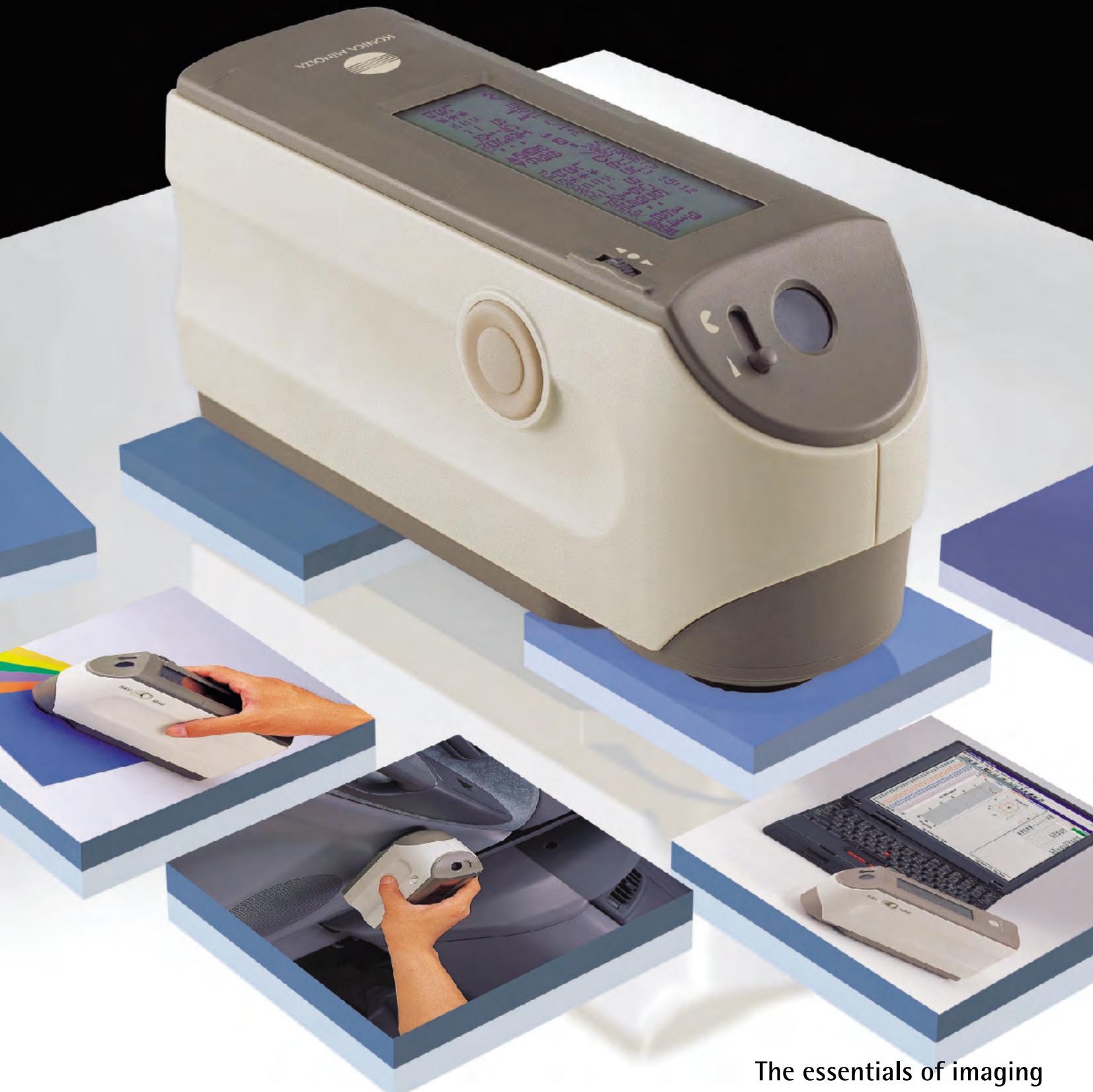

SPECTROPHOTOMETER 7 CM-2600d IKONICA MINOLTA Portable, Compact, Easy to Use Performs Like a Desktop Spectrophotometer World's first portable spectrophotometer equipped with automatic UV adjustment function. Advanced Numerical UV Control dramatically reduces evaluation time. The essentials of imaging

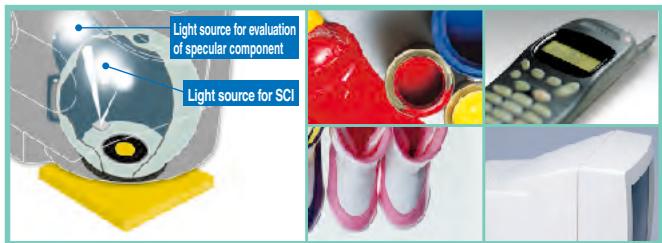

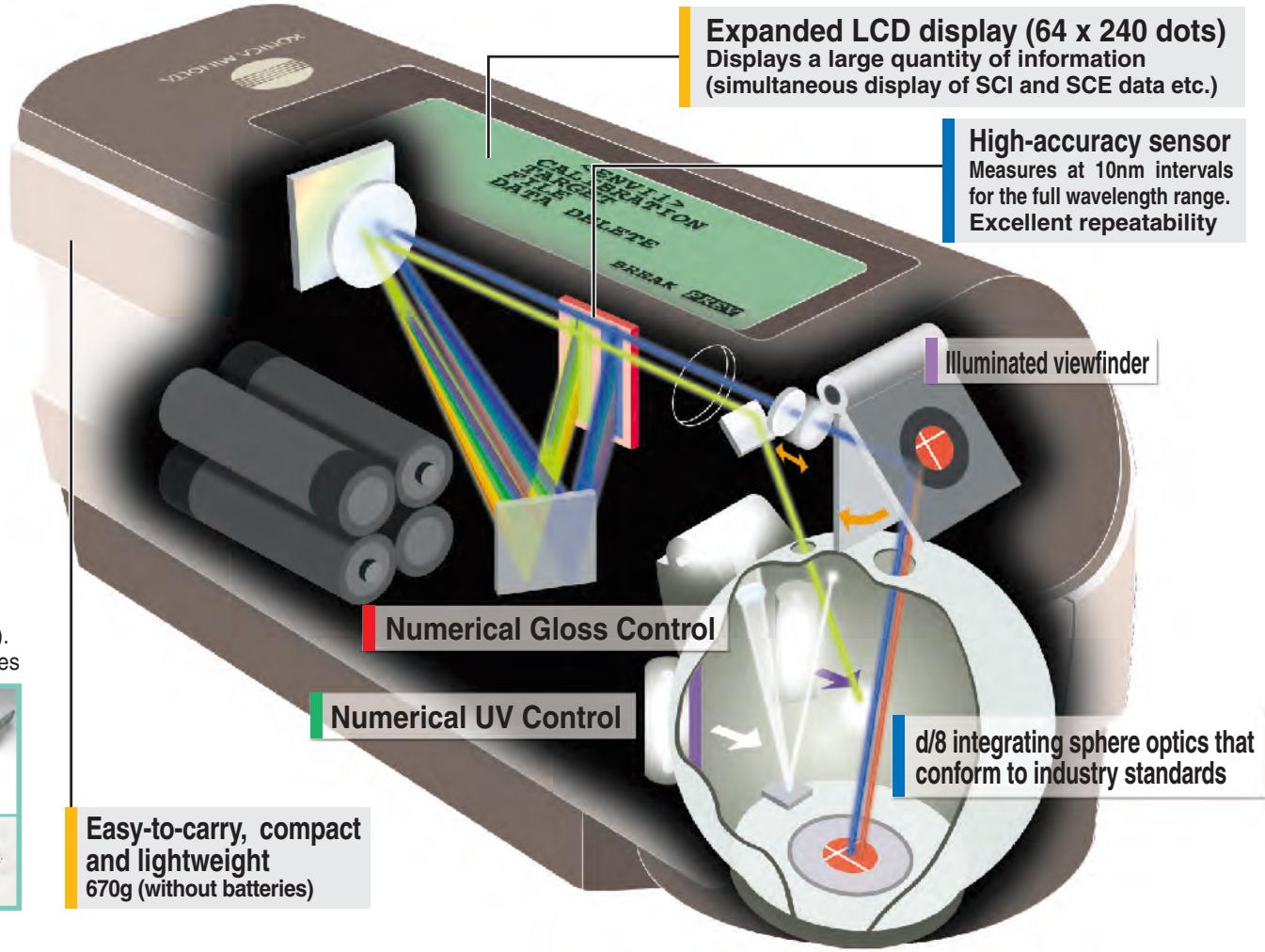

The CM-2600d is a portable integrating sphere spectrophotometer designed for versatility in various applications. Simultaneous measurement of SCI (specular component included) and SCE (specular component excludedi). Advanced Numerical Gloss Control. Simultaneous measurement of SCI and SCE displays data on the LCD in 1.5 seconds. Unlike conventional spectrophotometers, there is no need to switch between SCI and SCE mode. This improves working efficiency, and provides stable measured data since the measurement area does not shift when the mode is switched. And also Relativity Gloss Value can be displayed by using Numerical Gloss Control. + SCI is a method in which measurements are taken with the specular reflection included. For this reason, it minimizes influences of the surface condition of à sample, and is especially suitable for color quality control and Computer Color Matching, + SCE is a method in which measurements are taken excluding the specular reflection. For this reason, it provides measurement results similar to those observed by the human eye. Relativity Gloss Value The LCD speciications are subject to change without prior notice. High reliability and long life. Maintenance-free design. The number of moving parts used in the instrument is minimized through the introduction of numerical control technology. The CM-2600d can be used with confidence, since it has been developed, manufactured and calibrated to meet ISO 9001 requirements.

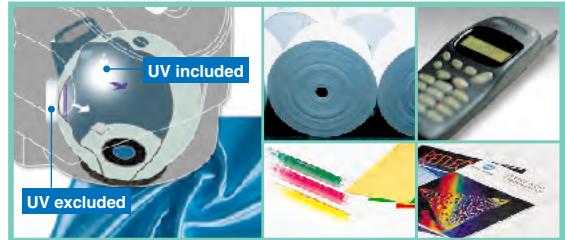

World's first portable spectrophotometer equipped with instantaneous UV adjustment function. UV evaluation time has been reduced revolutionarily due to the introduction of advanced Numerical UV Control. Light sources including and excluding UV component flash sequentially to provide sample data taken with UV-included energy as well as UV-excluded energy (UV400nm cutoff filter) Example of data taken wilh UVexcuded energy Example of data taken aîter UV adjustment

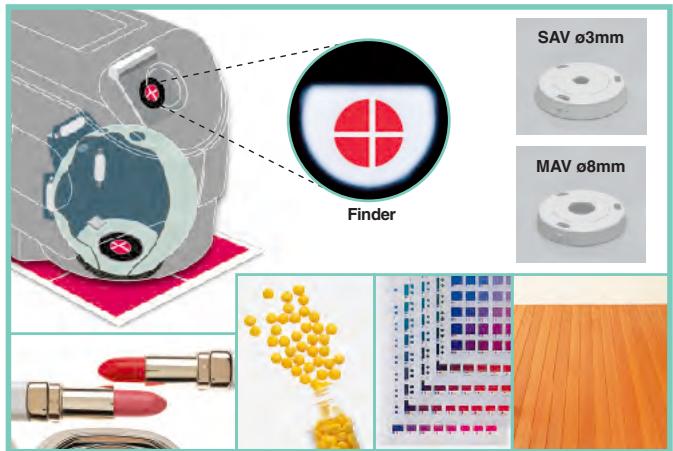

Since the instrument has a built-in instantaneous UV adjustment function, data can be easily taken using the desired light source (e.g. D65, D50, C). UV calibration can be performed simply by measuring a standard with known fluorescent values under the desired light source. Once the UV calibration is completed, sample data can be taken by measuring the sample under the desired light source. Since the conventional UV adjustment that requires the UV cutoff filter to be moved is not necessary, measurement time can be reduced Easy-to-carry, compact and lightweight 670g (without batteries) drastically. (Note on UV-Adjustment : Numerical UV- calibration requires for the adjustment calculation SpectraMagic"NX.) For textile, paper, fluorescent and consumerproducts Allows measurement in any position. Compact, lightweight with an easy-to-operate navigation wheel and large LCD display. The battery-powered small, compact body allows the instrument to be placed in any position at the sample surface. The large LCD reverse video display provides easy reading, irrespective of which hand it is held in. Using your finger, the gp navigation wheel allows simple and user-friendly operation. (= Turn) (Æ Push) For paints, plastics, automobiles, ceramics, architectural interiors, textile, paper, food etc. Measures the target with high accuracy. Easy-to-carry stylish body with an illuminated viewfinder. The instrument is portable and it allows measurements to be taken using two different areas of view (o8mm and 63mm). The user can choose the most suitable measurement area for the target. The lightweight, easy-to-carry body with the illuminated viewfinder enables the user to position the instrument on the target quickly and accurately. Promotes accurate color communication. Conforms to all widely accepted industry standards and allows measurements in all commonly used color spaces. The optics use an integrating sphere to provide diffuse illumination/8-degree viewing system. The CM-2600d conformms to all widely accepted industry standards including ISO, JIS, DIN, CIE and ASTM, and generates measurements in color spaces such as L'a*b*, Yxy, Munsell and CMC. OR: | In various applications Expanded LCD display (64 x 240 dots) Displays a large quantity of information (simultaneous display of SCI and SCE data etc.) High-accuracy sensor Measures at 10nm intervals for the full wavelength range. Excellent repeatability d/8 integratingssphere optics that conform to industry standards Finder

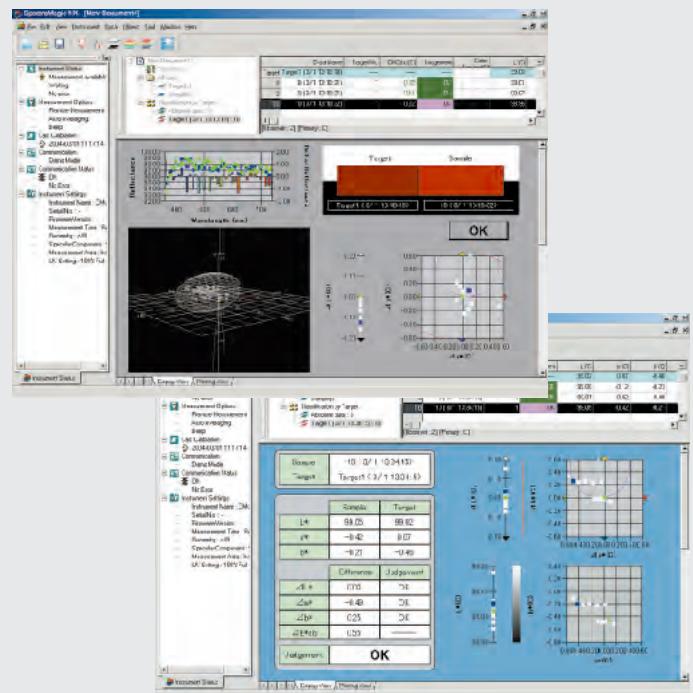

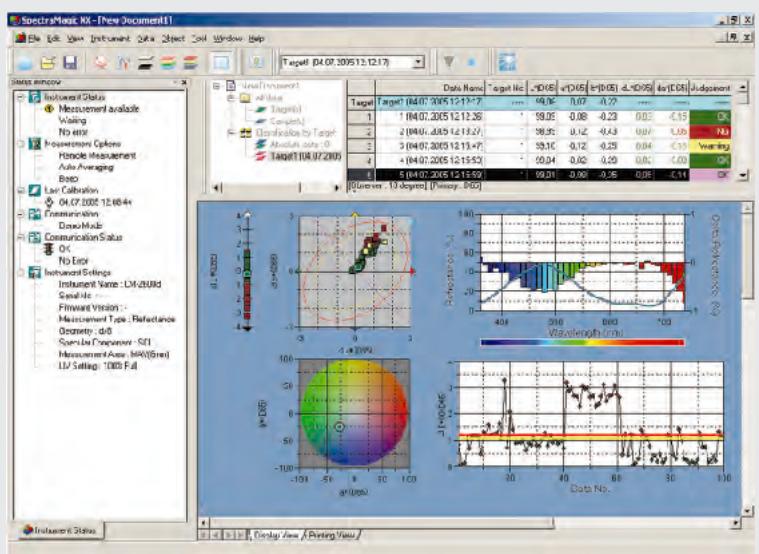

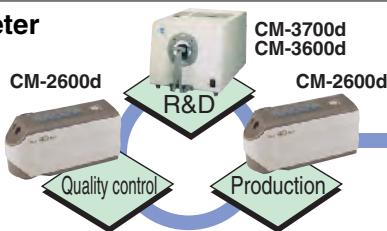

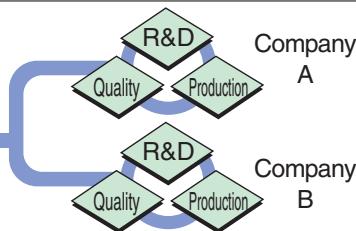

For pharmaceuticals, cosmetics, printing, building materials, textiles etc. Powerful partnership between CM-2600d and SpectraMagic"NX Color Data Software pectraMagic' Supports Windows”2000/XP SpectraMagic"NX enables you to perform comprehensive color inspection and analysis of incoming raw materials, in process production, and outbound color critical goods and materials in virtually any industry. With SpectraMagic"NX you can insert digital images with measured data. Measure samples in any of 8 universally accepted color spaces. Select from 15 illuminants, and up to 40 indices to determine specific color and appearance properties, such as strength, brightness, haze, yellowness, opacity and strength. You can even configure up to 3 customized color equations. Reports range from simple Pass/Fail to trend charts, histograms, color plots, and spectral graphs. SpectraMagic"NX comes with predefined templates using skin technology, or you can create your own templates. For illustrations and explanations to understanding color and color measurement technology, there is a link to Konica Minolta's well known and respected “Precise Color Communication”. Step by step navigation help. SpectraMagic"NX conforms to FDA 21 CFR Part 11 assuring integrity and reliability of data records. + Windows” is a trademark of Microsoft Corporation in the USA and other countries.

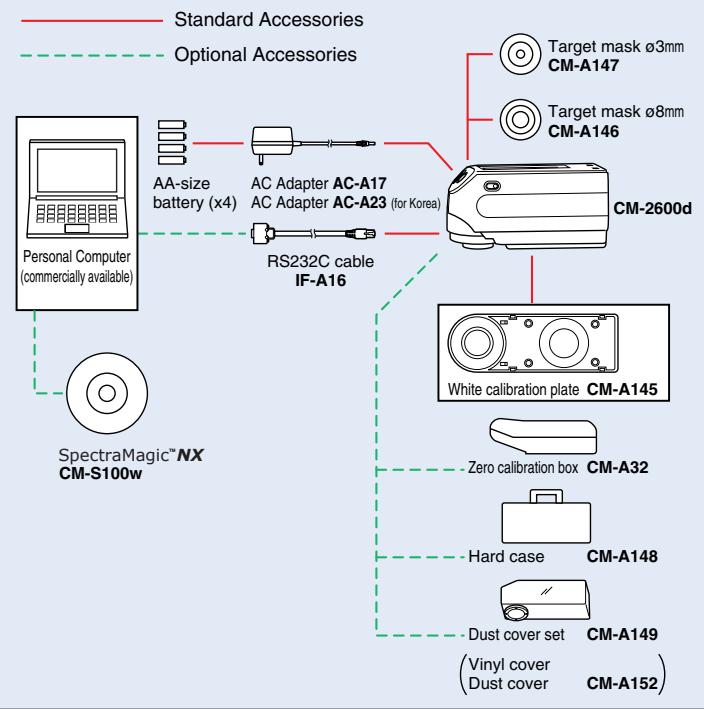

Specifications System Diagram lllumination/ |d/8 (difiuse illumination, 8-degree viewing ), equipped with simultaneous. | Bee E0 observation system | measurement of SCI {specular component included)SCE (specular component excluded) Conforms to CIE No15,1S0 7724/1,ASTM E1164, DIN 5033 Teil7 and JIS Z8722 Condition C standard. Sphere Size |o52mm Target mask 03m CM-A147 - Optional Accessories Target mask 8m Lightrecehing element | Siicon photodiode array (dual 40 elements) = a CM-A146 Spectral separation device [Difiraction grating = TT \ Wavelength range | 360nm to 740nm An< AC Adapter AC-A17 Wavelength pitch | TOnm battery (x4)_ AG Adapler AG-A23 {arkas) K cu-26004 Half bandwidth _| Approx. 10nm | = ——— Reflectance range [0 to 175%, resolution: 0.01% ser uioerl RS232C cable Light source [3 pulsed xenon lamps L y arte) 1F-A16 Measurement time | Approx. 1.5 seconds (approx. 2 seconds for fluorescent measurement) Minimum interval [3 seconds for SCVSCE (4 seconds for fluorescent measurement) between measurements Battery perfomance [Alkaline manganese-approx. 1000 measurements __ @) Measurement | MAV: o8mm/otimm illumination area |SAV: o3mm/émm (Selectable between MAV and SAV) Repeatability | Spectral Reflectance:Standard deviation within 0,1% (860 to 380nm within 0.276) ÉpETEMe NM CM-S100w |Colorimetric Value : Standard deviation within AE*ab 0.04(Measurement | [conditions:White calibration plate measured 30 times lat 10-second intervals after white calibration was performed) Inter instrument |within AE'ab 0.2 (MAV/SCI) Average for 12BCRA Series I color CP === Hard case CM-A148 agreement iles compared to values measured with master body. i UV adjustment … |Instantaneous numerical agustment (no mechanical adjustment required) 1 [With UV400nm eut filter La Dust cover set CM-A149 Measurement [Single measurementautomatic averaging of muliple measurements Vinyl cover mode auto mode: 3, 5, 8 times/manual mode) (out cover CM-A1 =) Interface RS-232C standard Observer 2/10 degrees (CIE 1931/2CIE 1964/10°) = —— Muminant À, ©, D50, D65, F2, F6, F7, F8, F10, F1, F12 (smullaneous evaluation Dimensions (Units:mm) CM-2600d is possible using to light sources) Display data |Specalvaluelgraph coltimenc value, clrdfrence vluelgraph, PASS/FAL resut Color space [Lab L'O', MC (1:17, CUC (2:1), CIEUA, Hunter Lab, Vay, Munsel, XVZ, colorimetric data |Ml WI (ASTM E3t), VI (ASTM E313/ASTM D1925), ISO Brghiness (ISO 2470) Density status AT, WiTint (CIE/Ganz), CIEO0 Data memory | 1700 pieces of data [as SCISCE 1 data” 700 peces of datainthe” defnedin COND: mode. “To of the sample ta fre COND and TASK mode and calrdiferenc target data FTolerance judgment | Tolerance for color difference (both box and elpical tolerances can be sel) Power source [4 AÂ-size battery or AC adapter Size (WxHxD) [69 x 96 x 193mm Weight Approx. 670g (without batteries} Operating temperature/|5 to 40 C, relative humidity 80% or less (at 35 C) with no humidity range (*1) | condensation Storage temperature/ [0 to 45 C, relative humidity 80% or less (at 35 C) with no humidity range _|condensation Standard White calibration plate, Target mask o8mm, Target mask 08m , accessories |RS-232C cable, AC adapter, AA-size battery (x4) 198 Optional Hard case, Dust cover sel, Dust cover, one nn Spectral giNX (sofitare)/Z8r calibration box 1 Opera tenpararlhumdt range of product Lr No Amical 40, rl ur BU res [131 jo condnsaon Color control network by spectrophotometer … 4 c-37004 ? CM-3600d R&D Company High inter-instrument agreement between the CM-2600d CM-2600d Énirèà A portable CM-2600d spectrophotometer and the R& desk top CM-3000 series make it easy to build a total color control network. J NET R&D Company (Quality contro) A B In-house color control Color control among companies
