USER MANUAL LE QUATUOR 11847 RUSSELL HOBBS

Stacked electric grill grates with open panes and control knobs (no visible text or symbols)

Quatuor

Réf.: 11847

Symbol of a trash bin with crossed lines indicating no waste or discharge (no text or labels)

Simple line drawing of a trash bin with no text or symbols

Symbol of a trash bin crossed with diagonal lines, no text or labels present

Symbol of a trash bin crossed out by two diagonal lines, no text or labels present

Simple line drawing of a trash bin with no text or symbols

Read For your safety

1. Read these instructions carefully before using your new appliance
2. Check that voltage corresponds with that of the appliance before using it.
3. Only responsible adults should operate this appliance.
4. Check for cord damage regularly. In the case of cord or other appliance damage, refrain from using the appliance.

5. This appliance is for domestic use only and should only be used according to the directions provided.

6. Never immerse the appliance in water or any other liquid, for cleaning or any other purpose.

7. Do not use this appliance near a heat source.

8. If the power cable is damaged, it must be replaced by the manufacturer, your dealer's repair service, or a manufacturer-approved technician to avoid any possible danger. Contact your reseller.

9. All repairs must be carried out by a competent and qualified tradesman.

10. Do not leave the appliance outdoors. Keep it in a dry place.

11. Do not use accessories that have not been recommended by the manufacturer, as these could be dangerous to the user and risk damaging the appliance.

12. Never use the cable to move the appliance. Ensure the appliance is not pulled from its surface by checking the power cord is not obstructing anything. Do not twist the cord nor wrap it around the appliance.

13. Place the appliance on a stable, heat-resistant surface.

14. Allow your Quartet to cool down before cleaning or storing. After unplugging the appliance, allow the cooking stone to cool for at least an hour before cleaning or putting away.

15. Only cook foods suitable for cooking and ready for consumption.

16. This appliance is in direct contact with foodstuffs and must be kept clean at all times.

17. Keep the power cord and all other objects away from the appliance's hot surfaces. Do not touch these hot surfaces, but use the plastic handles.

18. While you are using the appliance, ensure that the hot parts do not come into contact with highly flammable materials such as curtains or tablecloths, as this might cause a fire. Place a heat-resistant mat between your table and the appliance so that the heated surface does not leave marks on your tablecloth or table.

19. Do not scratch the skillet's non-stick surface, as this could cause the surface to be transferred onto your food. Use a traditional wood or a heat-resistant plastic spatula.

20. Unplug your appliance when you are not using it.

21. Oil and fat can cause flames if overheated. Be very careful.

22. Make sure you use this appliance in a well-ventilated room.

Household use only.

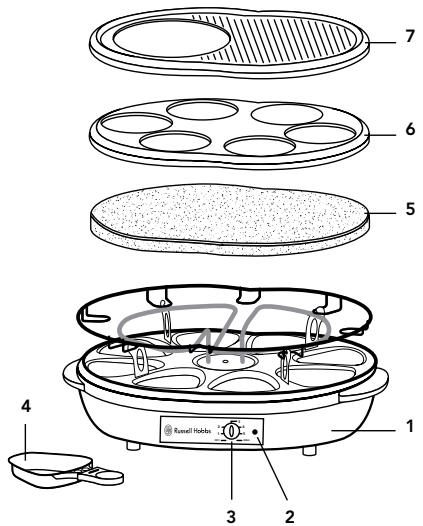

7 6 5 4 1 Russell Hobbo 3 2

1. Base
2. Indicator light
3. Thermostat
4. Raclette skillets
5. Cooking stone
6. Crêpe griddle
7. Grilling + Crêpe plate

Instructions

1. Lubricate the non-stick plates with oil before first use.
2. Carefully wipe the raclette skillets, grilling plate and crêpe griddle with a damp cloth before first use.
3. The appliance may omit a slight odour the first time it is used. This is because of its protective coating. We therefore recommend setting the appliance to its highest temperature without food, for at least ten minutes (make sure the room is well-ventilated as you do so).
4. This appliance must be preheated before use.
5. Place some paper towels under the appliance to avoid any spitting fat damaging tablecloths or surfaces.

Powering and preheating

Check that the appliance's voltage and power levels are compatible with the electric circuit in your home.

Attach the appliance to an earthed plug. If in any doubt, consult your electrician. Set the thermostat to HIGH. The indicator light will turn on.

Allow the appliance to preheat for:

• 5-8 minutes for raclette skillets
• 15 minutes for cooking stone or grill
• 10 minutes for crêpe griddle

For the first ten uses, place a little sunflower oil or finely-ground salt on the cooking stone after preheating and wipe with a soft cloth. This will ensure that food does not stick to the surface.

Cooking

After preheating the appliance is ready for use.

- Raclette setting

Raclette is a traditional Swiss dish. Use original Raclette cheese for best results. Use 150-250g of cheese per person. Cut into slices about 2mm thick.

• Prepare boiled potatoes in their skin and keep warm in a covered container or on the grill.
• Put cheese in each of the raclette skillets and place them into the appliance. The cheese will be ready in 3-4 minutes.
• When the cheese has turned a nice golden-brown colour, serve it warm or pour it over the potatoes. Season with freshly ground black pepper.

Raclette is good with ham, Swiss beef (viande de Grison), shallots and gherkins.

Do not let the skillets heat while empty.

- Cooking stone setting

• Turn thermostat to desired temperature. The indicator light will go on. During cooking, the stone will take 5-10 minutes to register and respond to any changes in temperature.
• Each guest puts pieces of meat, fish, vegetables or fruit on the stone and cooks them to his or her taste.
• Serve with cold sauces, salad and potatoes.

Do not use the cooking stone for frozen or deep frozen food, or for thick pieces of food (max 2cm). Do not allow acidic products (vinegar, mustard, pickles, gherkins...) to come into contact with the cooking stone. Never rest any object on the cooking stone. The appliance should not be left for more than 30 minutes without food: the cooking stone will become too hot and will not operate well. The little cracks caused by the stone's dilation are natural and have no effect on its functioning. They are not therefore cause to return this product. After several uses the stone normally turns a permanent dark colour. The first time it is used, it may omit smoke or a slight odour.

- Grill/Crêpe griddle setting

• Turn thermostat to desired temperature. The indicator light will go on.
• Cut meat into small pieces; this shortens the cooking time. Serve the pieces of meat on a plate or wooden board, so that each guest can choose how much he/she would like and can cook it him/herself.
• You can grill toast, glaze or cook fruit, eggs, potatoes, etc.

Grilled foods can be served with various sauces, salads or bread. The griddle's concave surface is perfect for making crêpes and omelettes.

- Crêpe setting

• Turn thermostat to HIGH. The indicator light will go on.
• Pour batter onto the griddle and cook for 1-2 min. each side.
• The first time it is used, it may omit smoke or a slight odour.
• Do not touch the surface of the appliance - it is hot!

- Mix and match! Change it up and use all the settings.

• Raclette/grilled foods/crêpes
• Cooking stone/raclette
• Crêpe party.

If you want to change the plates/stone while the appliance is in operation (and still very hot), use an oven mitt to move them to a heat-resistant surface out of the reach of children and allow them to cool.

After use

• Turn thermostat to the Off position.
• Unplug appliance.
• Allow appliance to cool completely (wait for at least one hour before touching the cooking stone).

Keep the machine out of the reach of children while it is cooling.

Cleaning

The grill and crêpe plates, the skillets and the main body of the appliance can be cleaned in hot water with washing-up liquid (if desired). Use neither a metallic sponge nor scouring powder. Never immerse the appliance or the cord in water.

Instructions for cleaning the cooking stone:

Each cooking stone is a unique natural element. Depending on its porosity, yours may be more or less permeable. A cooking stone that has been immersed in water may crack or break the next time it is used. Wash the cooking stone under running water, rubbing it with an abrasive sponge then wiping it. Avoid soap and detergents. Never immerse a cooking stone - hot or cold -- in water. Do not leave to soak. Never put a cooking stone in a dishwasher.

Symbol of a trash bin crossed out by two diagonal lines, no text or labels present

To avoid environmental and health problems due to hazardous substances in electrical and electronic goods, appliances marked with this symbol mustn't be disposed of with unsorted municipal waste, but recovered, reused, or recycled.
