USER MANUAL F1-FOX HUMAX

English (HSMM30GB) 10/30/02 10:05 AM Page 3,

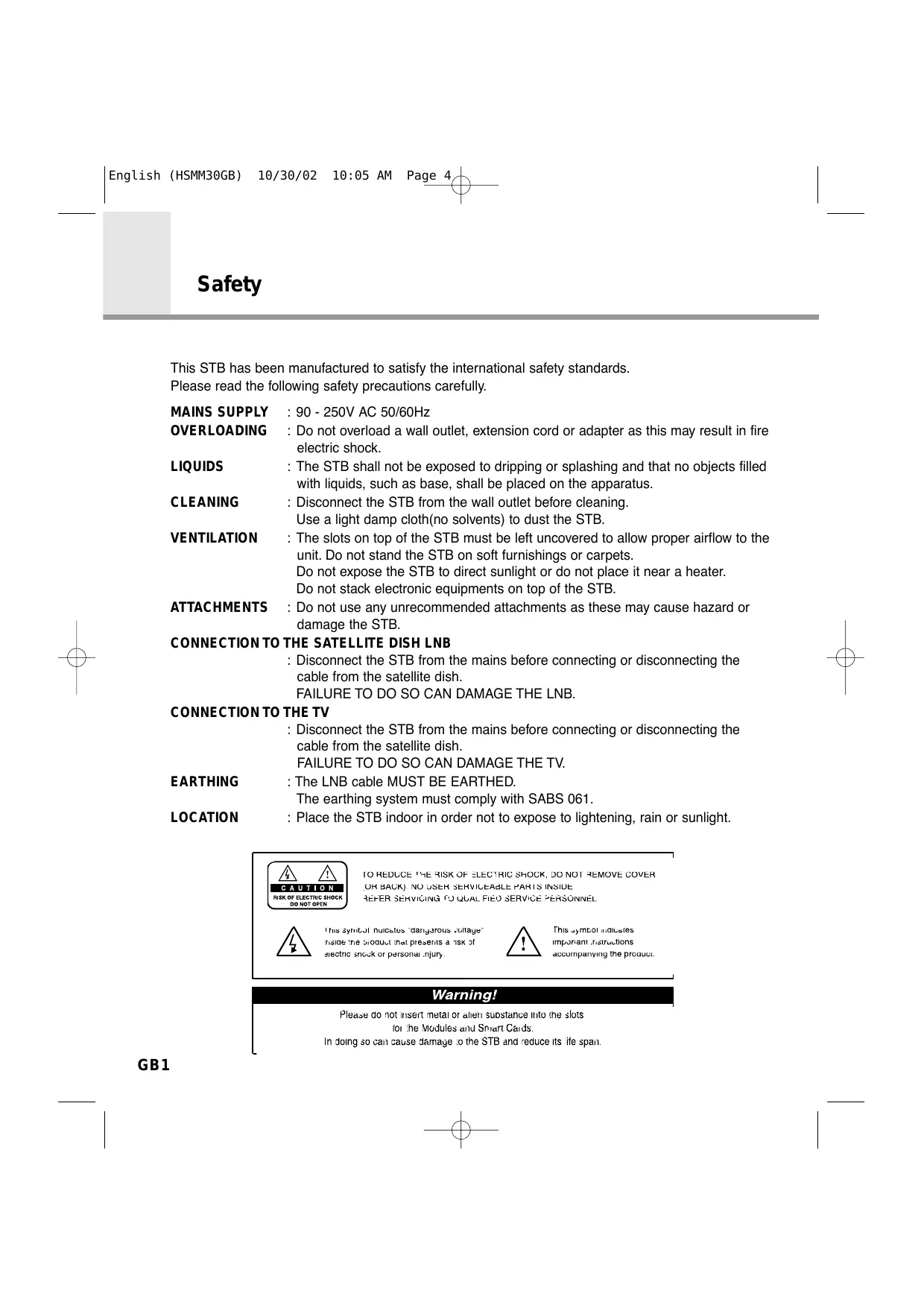

English (HSMM30GB) 10/30/02 10:05 AM Page * Safety This STB has been manufactured to satisfy the international safety standards. Please read the following safety precautions carefully. MAINS SUPPLY : 90 - 250V AC 50/60Hz OVERLOADING : Do not overload a wall outlet, extension cord or adapter as this may result in fire electric shock. LIQUIDS : The STB shall not be exposed to dripping or splashing and that no objects filled with liquids, such as base, shall be placed on the apparatus. CLEANING : Disconnect the STB from the wall outlet before cleaning. Use a light damp cloth(no solvents) to dust the STB. VENTILATION : The slots on top of the STB must be left uncovered to allow proper airflow to the unit. Do not stand the STB on soft furnishings or carpets. Do not expose the STB to direct sunlight or do not place it near a heater. Do not stack electronic equipments on top of the STB. ATTACHMENTS : Do not use any unrecommended attachments as these may cause hazard or damage the STB.

CONNECTION TO THE SATELLITE DISH LNB

: Disconnect the STB from the mains before connecting or disconnecting the cable from the satellite dish. FAILURE TO DO SO CAN DAMAGE THE LNB.

CONNECTION TO THE TV

: Disconnect the STB from the mains before connecting or disconnecting the cable from the satellite dish. FAILURE TO DO SO CAN DAMAGE THE TV. EARTHING : The LNB cable MUST BE EARTHED. The earthing system must comply with SABS 061. LOCATION : Place the STB indoor in order not to expose to lightening, rain or sunlight. 10 REDUCE HE ISK OF ELECTRIC SHOUK, DO NOT REMOVE COVER OK BAUK). NO USE SEHVILEABLE FAKIS INSIUE RÉFER SERVICINS F9 UUAL FIED SERVICE ZERSONNEL 1h Syntl Naiates ‘GA yrous suitage This symbol nalLates nigé ne OQULL Mat presents à 18K A Imponant ns tONs aectne sncuk or personal jury accumpanying tne proauct Please do not sert metal Or ah SuDstance Into (ne slots lor he Modules and Srrart Cauds. In doing 50 can cause damage 0 the STB and reduce is ife sparr GB1

English (HSMM30GB) 10/30/02 10:05 AM Page 5,

Copyright Copyright + VIACCESS" is a trademark of France Telecom. + CryptoWorks(TM) is a trademark of Philips Electronics N.V. + Irdeto is a trademark of Mindport BV. + Nagravision is a registered trademark of Kudelski S.A. + Conax is a trademark ofTelenor Conax AS. Warning HUMAX cannot be held responsible for any kind of problems caused by the use of unofficial software. The use of software versions other than HUMAX official software will void the manufacturer's warranty. Itis advised that only the formal software released from HUMAX should be used in all HUMAX product range.

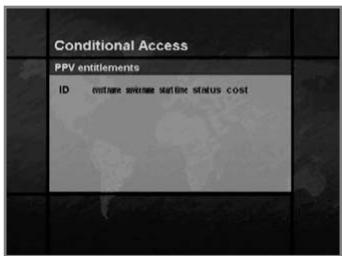

Caution To watch Pay Per View programmes, be sure to inform your STB dealer of the STB's and Smart card's serial numbers. So that they can pair your STB with your Smart card. Otherwise, you cannot watch the programmes because they are scrambled Note When the changed Network Information is sent, Nagravision realizes that the appropriate satellite/cable service information has been changed. And it will re-organize the service information based on the sent Network Information. The message “Network Information updated...” appears on the screen. lt is automatically done when changing NIT. The manufacturer can't change it because it is provided by Nagravision. When the user watches it, the message may suddenly appear during AV playback and simultaneously updating will proceed. (This happens about once a year.) Since this is not an error in operating, do not turn off the power. + Information for TV-Cabo subscriber When user searchs channels, the channel numbers from 001 to 100 are defined automatically for Nagravision by service provider. Other channels have the number from 101 in sequence as the receiver searchs the signal. + Specifications are for NA-FOX models.

English (HSMM30GB) 10/30/02 10:05 AM Page 6,

Glossary Glossary + Antenna A device that collects and radiates electromagnetic waves. includes a satellite dish and abroadband antenna. -+ Forward Error Correction(FEC) A system of error control for data transmission. - Frequency The number of cycles or events per one second, which is expressed in the unit of Hertz(Hz). + Intermediate Frequency(IF) A frequency to which a carrier frequency is shifted as an intermediate step in transmission or reception. + Low Noise Block(LNB) Downconverter A low noise microwave amplifier and converter which downconverts a range of frequencies to IF range. + Packet Identifier(PID) A set of numbers that idenitifies transport stream packets containing data from a single data stream. + Polarisation Characteristic of an electromagnetic wave determined by the orientation of the electricfield vector. + Quaternary Phase Shift Keying(QPSK) Phase-shift keying in which four different phase angles are used. + Service A channel to which a decoder or TV is tuned. - Transponder An automatic device that receives, amplifies and retransmits a signal on a different frequency. GB3

English (HSMM30GB) 10/30/02 10:05 AM Page 7

All our receivers are designed to be DiSEqC 1.0 compatible. This allows multiple antennas to be connected to the STB simultaneously. If you have two or more fixed antennas or LNBs, you can use a DiSEqC 1.0 switch. . Connect the coaxial cable from the first LNB to the LNB 1 or LNB A input connector of the DiSEqC switch.

2. Connect the coaxial cable from the second LNB to the LNB 2 or LNB B input connector

of the DiSEqC switch.

3. Do the same for other LNBs.

4. Connect one end of a Coaxial cable to the RF output connector of the DiSEqC switch

and the other end to the LNB IN socket on the STB.

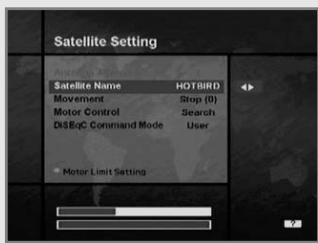

2. Connect DISEqC 1.2

Please refer to page GB39. The Locking Time might take longer than expected during the initial boot if the motorised system is set “enable” mode.

3. Connect a Satellite antenna

To the digital receiver, you can connect either a single satellite antenna directly or through converter box several antennas or LNB of multi-feed equipment. You can connect a further Sat-receiver(for example analogue), with the receiver of common antenna equipment that has satellite signals.

If you have another analogue or digital STB and you wish to use the same LNB then you can connect it via the loop through. Connect one end of a Coaxial cable to the LNB OUT on the STB and connect the other end to the LNB IN on your second STB. + F1-FOX models are not applicable. GB4

English (HSMM30GB) 10/30/02 10:05 AM Page 8,

HUMAX digital set-top box is a highly sophisticated product - incorporating one of the best software applications. Whenever a problem is found with this software or, in fact, extra functions or enhanced applications are added, the software in the equipment has to be upgraded. In order to maintain proper performance of the product, it is essential to have the most up to date software. The latest news and release of software versions may be found at HUMAX website - http://www.humaxdigital.com. Itis recommended that users register to HCSA(HUMAX Customer Service Area) and periodically check for the availability of software upgrade. There are three methods to upgrade the software: (a) set-top box to set-top box download(copies the software of the main unit into slave unit); (b) pc to set-top box download(downloads the software directly from pc to the model requiring upgrade); (c) OTA over-the-air(downloads the software where the manufacturer reserves the right to decide when and where to release through satellite system). Over The Air(OTA) is simply another alternative for downloading software versions. However, the manufacturer reserves the right to decide when and where this software upgrade can take place by "beaming" latest software versions over the air via satellite systems. Note that OTA is only limited to certain geographical regions mainly due to different satellites having different footprints(area where the signal can be received). SUSS(TM) is an official trademark and logo for HUMAX loader software to perform OTA. The software upgrade via satellite system will only occur under the following circumstances:

1) the equipment should have appropriate loader software;

2) the manufacturer decides to release software downloading via a designated satellite

3) the equipment must be "tuned" properly to the same satellite that the manufacturer uses.

+ Note : CR-FOX complies with the OTA type of CryptoWorks.

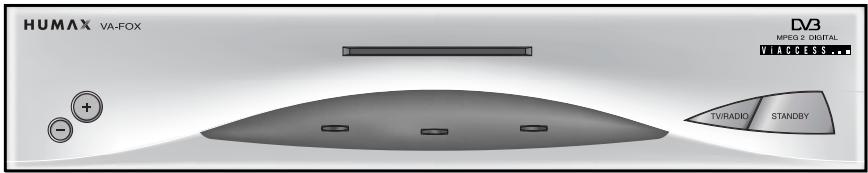

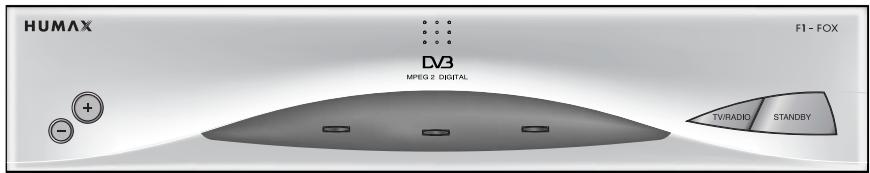

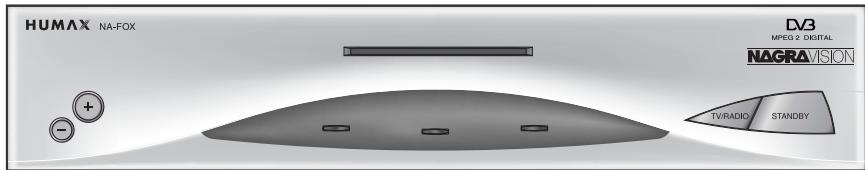

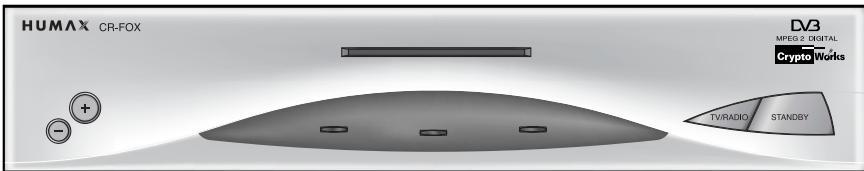

English (HSMM30GB) 10/30/02 10:06 AM Page _ STB Connections Front Panel "Fr FOX rree-ro-air HUMAX © HER. 7 "VA-FOX tsmartcard HUMAX varox Da ER. “= "CR-FOX :ismartcard HUMAX cmrox pee cr. HR... = GB6

English (HSMM30GB) 10/30/02 10:06 AM Page . STB Connections Front Panel "NA-FOX 15Smartcard HUMAX sex Re. “=

Press to change services down and up.

Insert a smart card in the slot with the gold chip facing up. Otherwise, it will not operate properly. + ERROR LED(AMBER) Indicates that the STB has an error. + STANDBY LED(RED) Indicates that the STB is under standby. + OPERATING LED(GREEN) Indicates that the STB is operating. + TV/RADIO Press to switch between TV and Radio modes. + STANDBY Press to switch between Operation and Standby modes. GB7

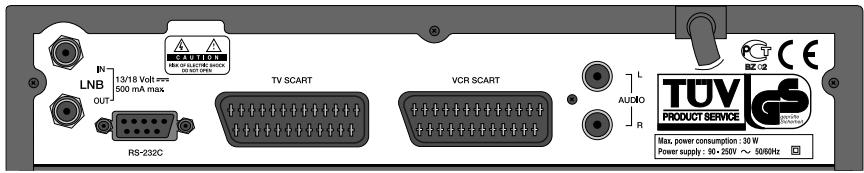

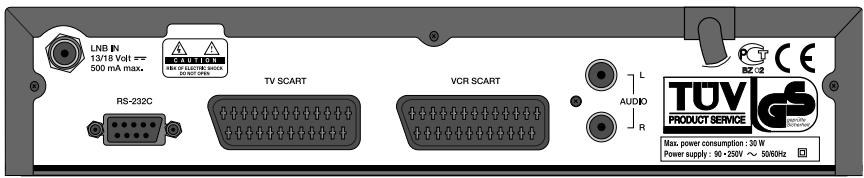

English (HSMM30GB) 10/30/02 10:06 AM Page . Rear Panel *FL-FOX - LNB IN Use to connect an antenna. + LNB OUT Use it when connecting to another STB. + RS-232C Use it when connecting to your PC. + TV SCART For the audio/video input of the TV. + VCR SCART For the VCR. + AUDIO OUTPUT Audio signal from your STB to Hi-Fi system. GB8

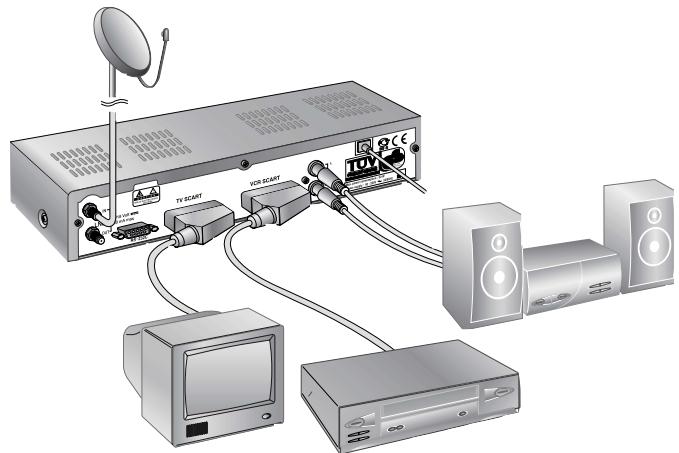

English (HSMM30GB) 10/30/02 10:06 AM Page Fe STB Connections There are several ways of connecting the STB to your existing Audio/TV system. We recommend using one of the following set-up for best results: -The specifications of Rear panel are based on VA-FOX. TV only

1. Connect one end of a 21-pin SCART cable to the TV SCART connector on the STB

and the other end to a SCART socket on your TV.

2. Connect the coaxial cable from the LNB to the LNB IN socket on the STB.

1. Connect one end of a 21-pin SCART cable to the TV SCART connector on the STB

and the other end to a SCART socket on your TV.

2. Connect one end of a 21-pin SCART cable to the VCR SCART connector on the STB

and the other end to a SCART socket on your VCR.

3. Connect the coaxial cable from the LNB to the LNB IN socket on the STB.

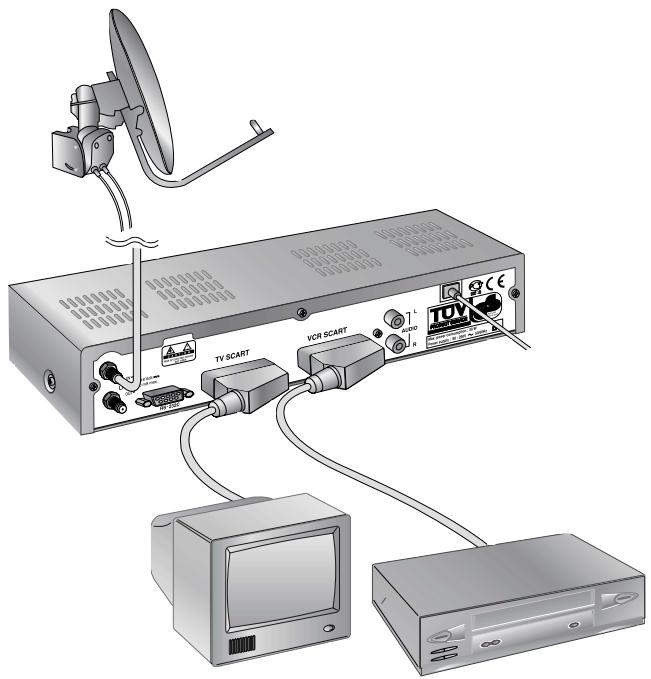

1. Connect an RCA/Cinch stereo cable from the AUDIO L,R sockets on the back of the

STB to the LINE, AUX, SPARE OR EXTRA input sockets on your Hi-Fi system. GB9

English (HSMM30GB) 10/30/02 10:06 AM Page . +The specifications of Rear panel are based on VA-FOX. BrViwith VCR and Motorised System(DiSEqC 1.2)

1. Connect one end of a 21-pin SCART cable to the TV SCART connector on the STB

and the other end to a SCART socket on your TV.

2. Connect one end of a 21-pin SCART cable to the VCR SCART connector on the STB

and the other end to a SCART socket on your VCR.

3. Connect the coaxial cable from the LNB of your motorised system(DiSEqC 1.2 Motor)

English (HSMM30GB) 10/30/02 10:06 AM Page 15]

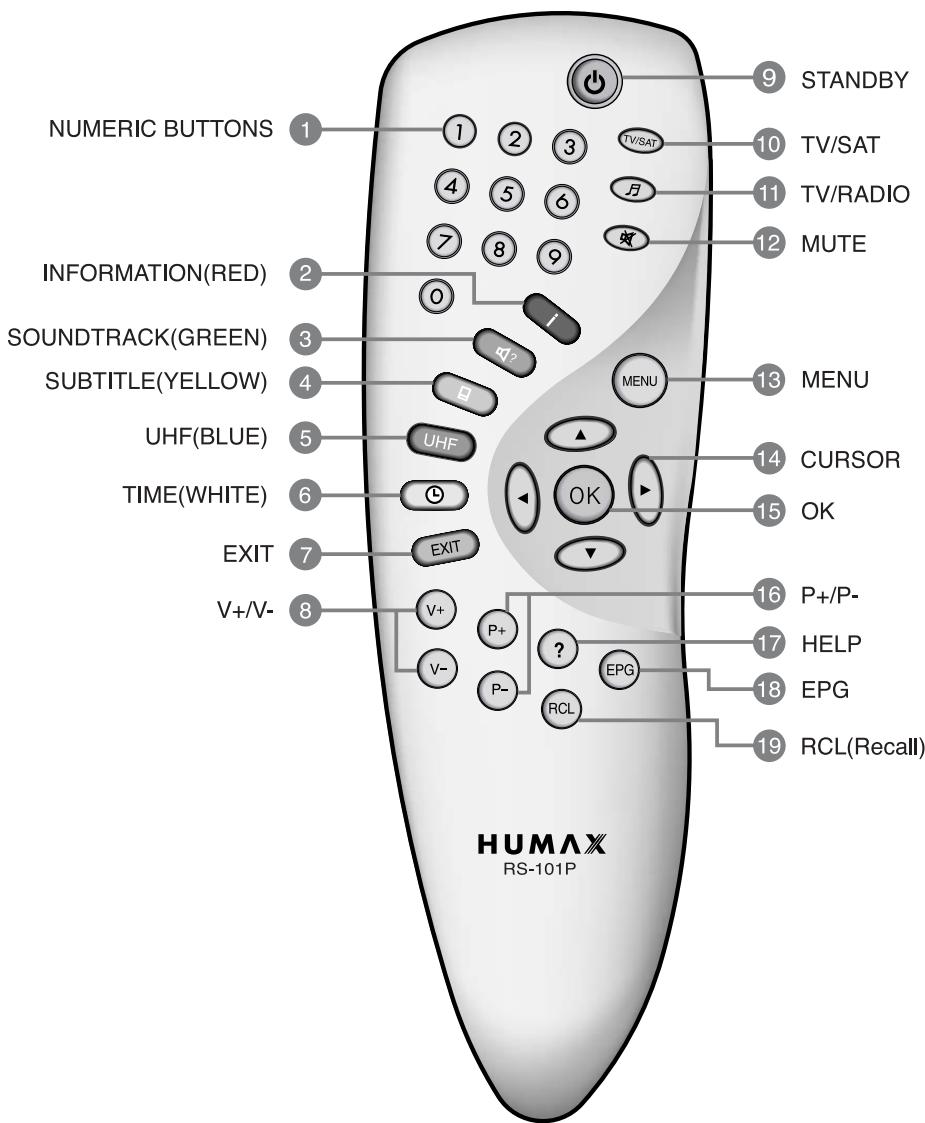

© NUMERIC BUTTONS Press to select a service, enter your PIN code or Numerics on the menu [2] INFORMATION(RED) Press to display the programme information box on the screen. This button functions same as the RED button on the menus. [3] SOUNDTRACK(GREEN) Press to display the soundtrack list for the current service. And this button functions same as the GREEN button on the menus. [4] SUBTITLE(YELLOW) Press to display the subtile language list for the current service. And this button functions same as the YELLOW button on the menus. UHF(BLUE) Option button. TIME(WHITE) Press to display the current time on the screen. Press to reserve services on the Information box or EPG. And this button functions same as the WHITE button on the menus.

EXIT Press to return to the previous menu and screen. V4N- Volume up/down buttons. Press to increase or decrease the volume. © sTanp8y Press to switch between Operation and Standby modes.

TV/SAT Press to select the TV/SAT mode. TV/RADIO Press to switch between TV and RADIO modes. MUTE Press to temporarily cut off the sound. MENU Press to display the Main Menu on the screen or return to the screen from a sub menu screen. CURSOR Press to move the highlight bar for selecting options on the menus. And this button is used to change services(up/down) and increase or decrease the audio volume.

Press to display the service list This button is used to select the item on the menus. P+#P- Programme up/down buttons. Press to tune to the next or previous service. Press to move up or down pages on the menus. HELP Press to display the help box on the screen. EPG Electronic Programme Guide button displays the TV/RADIO programme guide. RCL(Recall) Press to select the service that was previously viewed. + Please note : The design of Remote Control Unit may be changed without notice in advance. GB12

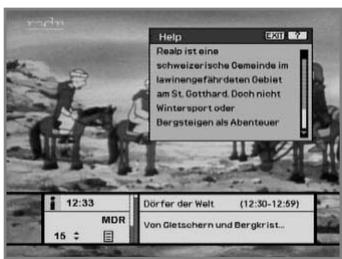

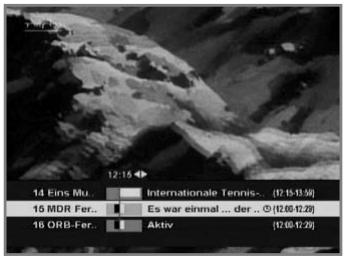

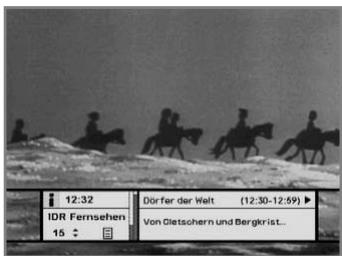

GB13 [urresmvm trou | Information Box(I-Plate) The details of service part and event part are automatically displayed on the l-Plate when pressing the i button(CD)) or changing services. I-Plate is divided into service part and event part. SERVICE-PART(Left side of the box) SERVICE PART consists of the following items: - I-Plate icon, Current time - Service name, Service number, # icons + Subtitle, Teletext, Scrambling service symbol (These are automatically displayed when the broadcasting station provides appropriate information.) + Signal level and Signal quality bar EVENT-PART (Right side of the box) EVENT PART consists of the following items: -+ Event name, Event duration time + Description text of event, State of reserved event Event part shows the current and next event information. > button : Use to move from the current event information to the next event information. < button : Use to move from the next event information to the current event information. When the HELP((?) )button is pressed under l-Plate display and there are no detailed event informations in the I-Plate, the Help window will appear on the screen. The Help window shows the current Network information, including: Satellite Name, Frequency, Polarisation, Symbol Rate, FEC... The detailed information for the event can be displayed by pressing the HELP(() )button in the I-Plate with event data displaying mode. You can reserve the programme in the event data display mode by using the WHITE (C)button. You can reset timer programme Once, Daily or Weekly mode. When you release the timer programme mode, then you will be asked to confirm the action.

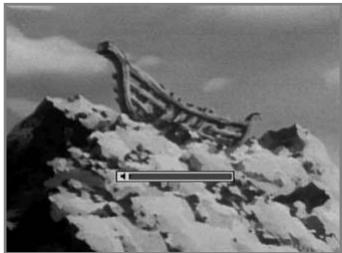

Changing Services To change services, do in the following sequence:

1. Press the NUMERIC buttons(0-9) on the remote control unit.

2. Press the Œ&)©) buttons or 4/v buttons.

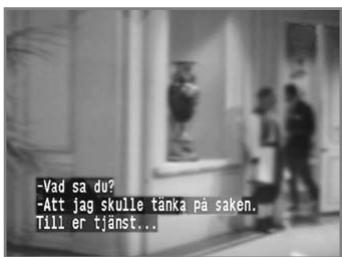

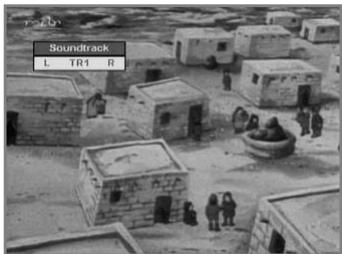

Or press the RECALL(( ), Service-list(OK), EPG((E )mode button. To switch between TV and Radio services, press the TV/Radio(@ )button. To select the previous viewed service, press the RECALL(( )button. Volume Control To adjust the volume level, use the @/C buttons or </» buttons. To temporarily stop the volume, press the MUTE(@ )button. To cancel mute, press the MUTE(@ )button again or press the @/® buttons or </»> buttons. Soundtrack When you want to change the audio language of current service, press the GREEN(C«))button firstly. The on-screen menu is displayed on the top to left side of the screen. To change the audio language:

will disappear keeping the selected Soundtrack language constant. When the current service is switched, the audio language returns to the audio language that was selected in previous service. lf the returned audio language is invalid, the audio language that you select- ed from the audio language menu has the priority of playback. Subtitle When the current broadcasting programme provides subtitle, press the SUBTITLE (C5 ))button to see the current subtitle language list. To change the subtitle language: Use the 4/v buttons to select a Subtitle language you want. Press the OK button and the selected language is highlighted and then the Subtitle language you want is displayed on the screen. Press the EXIT button to cancel the Subtitle mode. GB14

English (HSMM30GB) 10/30/02 10:06 AM Page . GB15 Guide of Functions Teletext Use your TV remote control unit to control the Teletext service. The teletext button doesn't exist on the STB remote control unit. When the service supports Teletext, the Teletext icon( E ) is displayed on the l-plate. Service List The Service List consists of Service All and Service Favourite. On the service list, you can change the attributes of a service though the Service Configuration. A/v button : Use to move to the previous or next service </» button : Use to move to the forward or backward service RED button (CD) : Service AI GREEN button( : Service Favourite Service Configuration To change the attributes of a service

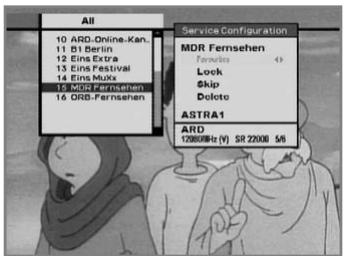

1. Use the A/v/<4/» buttons to move a service you want to change

in the service list.

2. Press the MENU( & )button.

3. Use the 4/Y buttons to move to an item(such as Favourite,

Lock, Skip, Delete) you want on the Service Configuration screen.

4. Use the </» buttons to select. Press the OK button to complete.

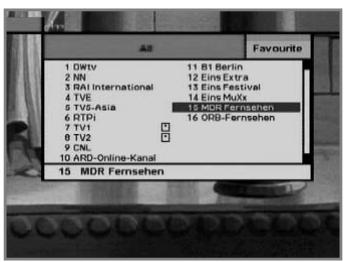

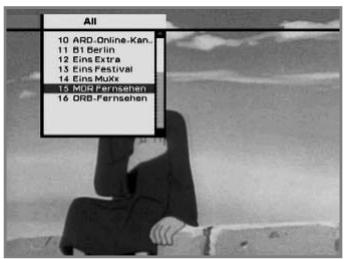

1. To display the service list, press the OK button.

Use RED(C1)button to select the Service All list.

2. Select the desired service by using the 4a/v/«/» buttons.

3. Press the OK button to view the selected service.

The right side scroll-bar of the screen displays the location of the selected service in relation to All services.

1. To add the services to the Service Favourite, use the Service

the favourite service list will be displayed on the screen.

3. When you want to see the services added to the favourite group,

English (HSMM30GB) 10/30/02 10:06 AM Page 19

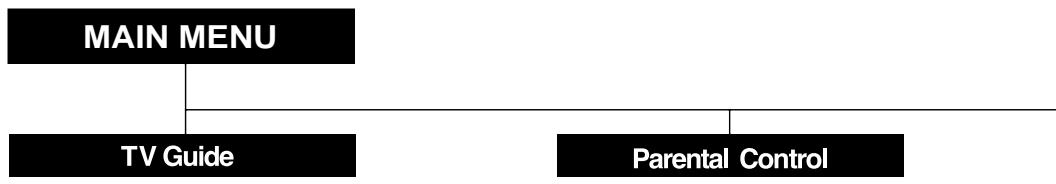

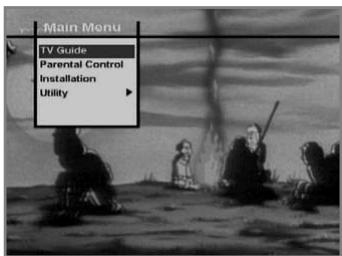

Guide of Main Menu Main Menu 1.TV Guide Your STB has an Electronic Programme Guide(EPG) to help you navigate through all the possible viewing options. The TV Guide supplies information such as programme listings and start and end times for all available services. In addition, detailed information about the programme listings and start and end times for all available services. In addition, detailed information about the programme is often available in the EPGthe availability and amount of these programme details will vary, depending on the particular broadcaster).

Access to services and programmes is controlled by a PIN code (i.e., a 4-digit secret code that is defined by the user). The very first time you attempt to lock all services(or lock programmes by ratings), the on-screen menu will instruct you to assign a PIN code(Later on, if necessary, you can change it).

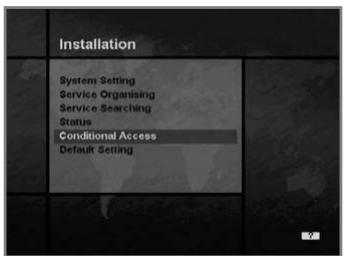

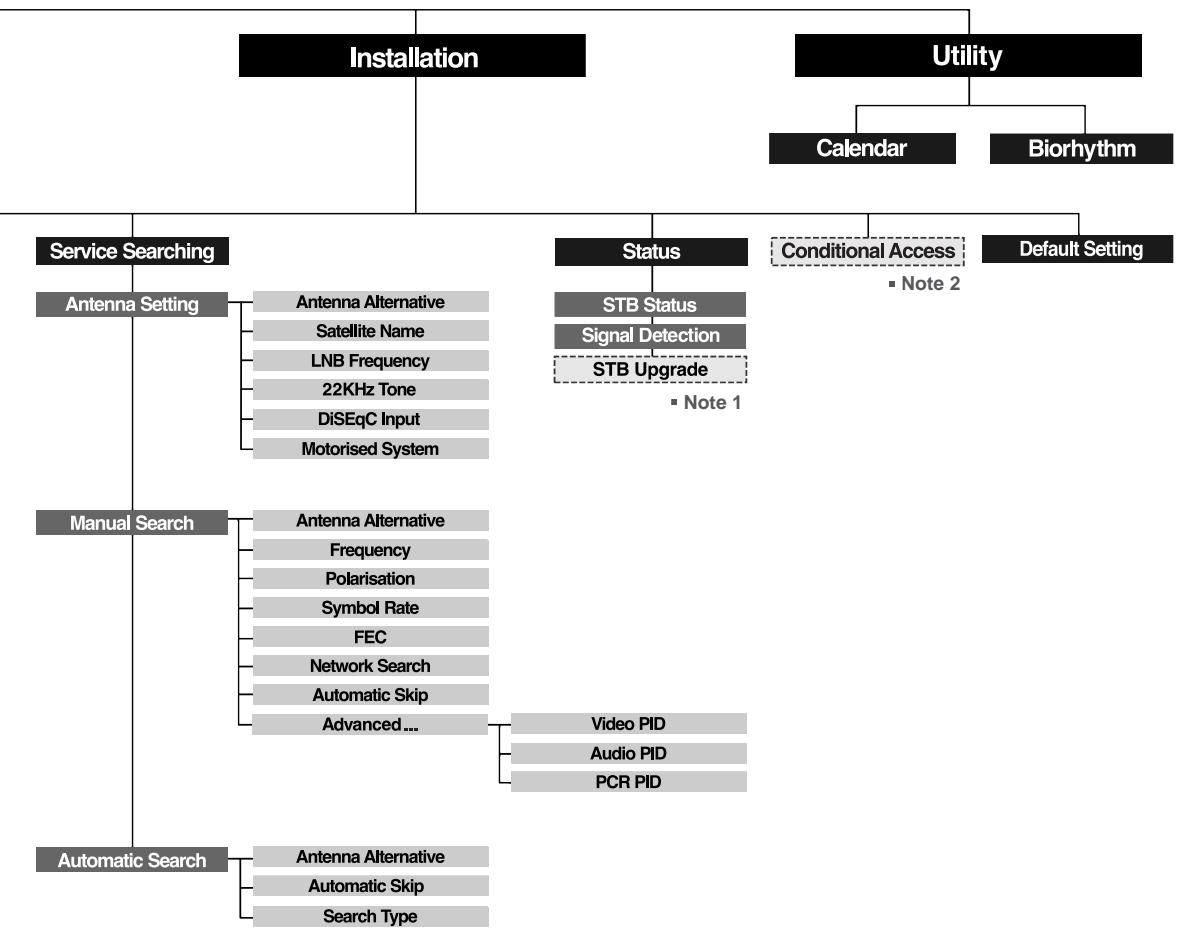

The Installation mode allows you to have the information of setting services and newly set services(language, time, organise, search...) Furthermore, you can recognise the states of hardware and software versions and signals from your STB.

English (HSMM30GB) 10/30/02 10:06 AM Page 28]

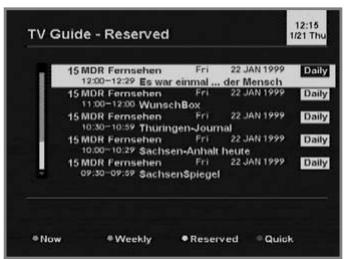

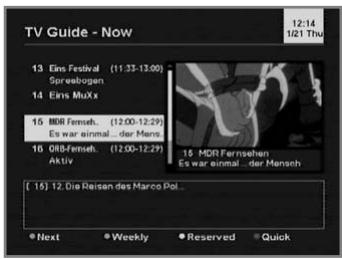

You can watch a programme being shown and reserve it in the TV Guide mode. To enter the TV Guide mode Press the EPG(@) button on the remote control unit or select the TV Guide on the Main Menu. To select the TV/Radio Guide Press the TV/Radio(@ )button on the remote control unit and TV Guide will be switched to the Radio Guide. TV Guide mode includes four different modes. To select each mode, use the following buttons: + RED (D }button : Use to display the current or next programme list.

• GREEN (Ce) )button : Use to display the programme list for one-week. + YELLOW( C5) )button : Use to display the reserved programme list. À BLUE (@ button : Use to display the simple TV Guide list. A (Quick mode) Now/Next mode Show the informations of the programmes that are played now or will be played next time. This mode consists of the service name, event name, event duration time, current time and on-screen-display window. To watch a programme you want through the display window: + Use the €} buttons to select a programme you want. The selected service will appear on the right display window. + Use the 4/v buttons to select a programme you want. And then press the OK button on the remote control unit. The selected service will appear on the right display window. The selected OSD will be highlighted every time the cursor moves. To reserve a programme you want: + Select a programme you want by using the ©) buttons or 4/v buttons. And then press the WHITE(C&S)>)button. Press the </»> buttons to watch the programme of previous page or the programme of next page. Press the YELLOW(CD)button to watch the reserved programme list. GB17

English (HSMM30GB) 10/30/02 10:06 AM Page 21

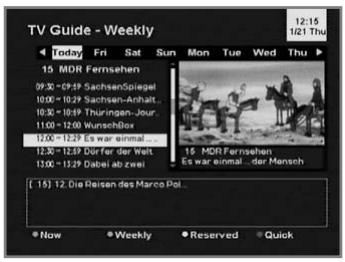

TV Guide - Week Weekly mode Shows the information of programmes that will be played for a week. Select a day you want using the </» buttons. To watch and reserve a programme you want, do the same steps with the Now/Next mode. Shows the programme lists that you have already reserved on the TV Guide or Information Box. Maximum twenty programmes can be reserved. This programme list includes service name, date, duration time, reservation mode and event name. To cancel the Reserved service, select a programme you want to cancel using the 4/v buttons and then press the WHITE (CS )button. Shows a simple TV Guide like an Information box. This mode shows in the A/V playback mode. + Blue vertical line : Indicates the current time. - Black/white bar : Shows the proceeding state of programme. un - Time range of bar : This consists of three blocks by 30 minutes aoû rer. DCE ur vu per block. GB18

English (HSMM30GB) 10/30/02 10:06 AM Page 22

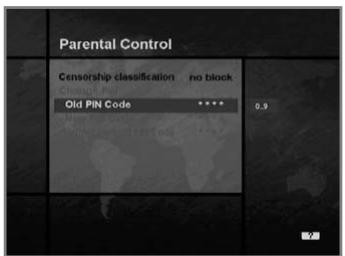

You can set a parental guidance rating to each programme in this mode.

1. When the OK button is pressed after selecting the highlighted

parental control on the initial menu screen, a display window for entering the PIN code will appear on the centre of screen. ** The default PIN code is EX.

2. Enter the PIN code on the display window.

(If any problem occurs when entering a PIN code, you cannot switch to the next mode.)

3. Set the parental guidance rating of highlighted censorship

classification. The parental level is given as age-based numbers : no block, 6, 10, 14, 18 and total block. Enter the PIN code to unlock or lock programmes.

4. To change your PIN code:

+ Select the highlighted Old PIN code using the A/v buttons and then enter your Old PIN code. + Enter a New PIN code in the highlighted New PIN code using the 4/v buttons. + To verify the New PIN code, re-enter a New PIN code in the highlighted Verify Changed PIN code.

5. When the entered PIN code is correct, then all settings are

completed. (If the PIN code is wrong, the message “PIN code mismatch” will be displayed on the display window. When the OK button is pressed at this time, the Old PIN code is valid and the cursor is located in the first position of this menu.)

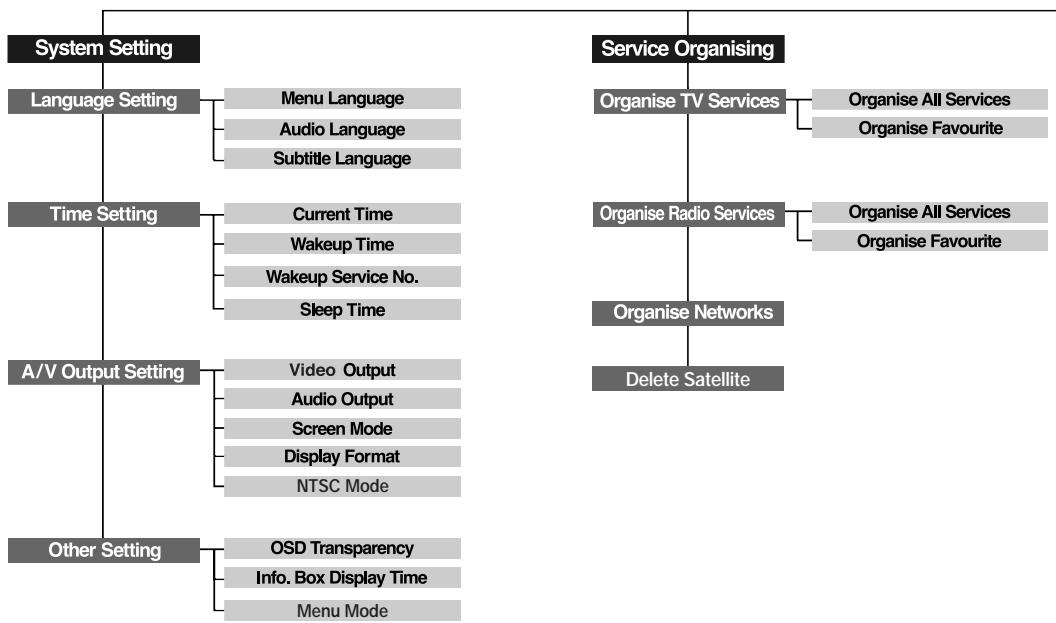

This mode allows you to customise, add a new service and displays the state of the STB. Enter the submenus after selecting the Installation mode in the Main Menu. 3-1. System Setting The System Setting mode supports the STB internal settings according to the connection of the receiver and external units. This mode includes Language Setting, Time Setting, AIN Output Setting and Other Setting.

English (HSMM30GB) 10/30/02 10:06 AM Page 23]

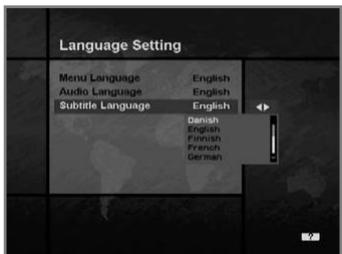

Language Setting Language Setting Language Setting Language Setting Select the language for menu, audio or subtitle.

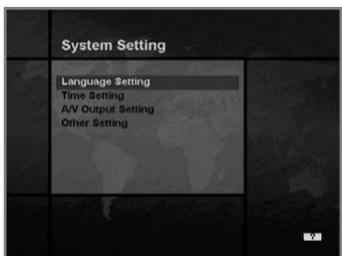

in the system setting mode and then press the OK button.

2. Select the highlighted Menu(or Audio, Subtitle) Language and

press the </» buttons and the language list will be displayed.

3. Use the 4/v buttons to move to a language you want and then

press the OK button to finish setting. Menu Language We support the various menu languages of Europe & Middle East areas. For Europe areas, there are Czech, Danish, English, French, German, Hungarian, Italian, Portuguese, Russian, Spanish, Swedish, Turkish and more. Also, it includes Arabic, English, French, German, Italian, Persian, Russian, Turkish for Middle East areas. - The kind of languages can be changed depending on the country. Languages are subject to change without prior notice. Audio Language Select the default language for audio when changing services. If you change the current service, your STB will initially select the previously memorised Audio Language. lf the Audio Language of current service is not provided, at this time, you should reselect a language on the Audio Language menu. Languages provided: Czech, Danish, Dutch, English, Finnish, French, German, Greek, Hungarian, Italian, Norwegian, Portuguese, Rumanian, Russian, Spanish, Swedish Turkish and more. If no language is provided, then the default language of current service will be automatically selected. Subtitle Language Select the default language for subtitle when changing services. Language provided: Danish, English, Finnish, French, German, Greek, Hungarian, Italian, Norwegian, Portuguese, Spanish, Swedish and more. GB20

English (HSMM30GB) 10/30/02 10:06 AM Page 24

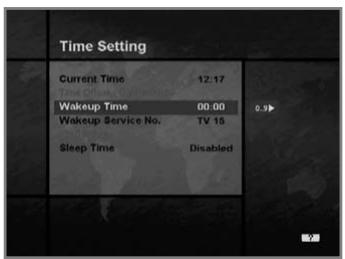

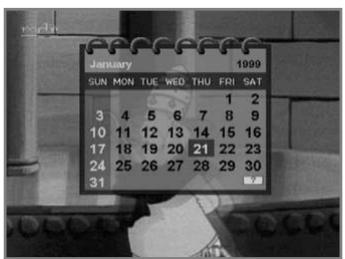

GB21 Guide of Main Menu You can set the Current Time and Wakeup Time in this mode. Furthermore, the Service Number in the Wakeup Time mode and Sleep Time(standby mode) can be set. When a VCR is connected, recording can be automatically done according to Wakeup/Sleep Time Setting. Current Time To set the Current Time, enter the Offset value using the standardised information of current service area. The time setting will be used as the standardised time for the I-Plate, TV Guide, Wakeup and Sleep Timer. Time Offset Current Time is based on TDT(Time and Data Table) at the stream of the current service. Wakeup Time Select the time when STB is turned on. Use the Numeric buttons(0-9) on the remote control unit to enter your Wakeup Time. Wakeup Service No. Use the </» buttons to set the service number provided for the set Wakeup Time. Use the TV/Radio(@ )button on the remote control unit to toggle TV/Radio service. Service Name The Service Name that has been determined by the Wakeup Service No. will be shown. Sleep Time Depending on Time Setting, select the time when STB is turned off.

English (HSMM30GB) 10/30/02 10:06 AM Page 25]

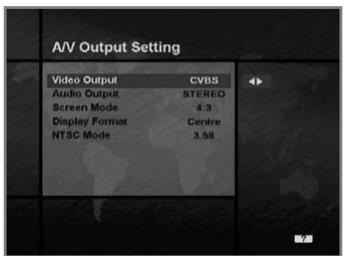

tput Setting AN Output Setting Video Output(CVBS/S-Video/RGB) Set the video mode for the TV SCART output. Audio Output Set the audio mode which is output from the TV SCART and RCA/Cinch Jack.(Stereo/Mono) Screen Mode Select the aspect ratio of TV which is connected to STB (4:3 or 16:9). Display Format Select the format which the video is to be displayed on screen. When your TV set is 4:3 and video source is 16:9, STB will display in Letter-box or Centre mode as selected. When your TV set is 16:9 and video source is 4:38, STB will display in the Pillar-box or Full mode as selected. NTSC Mode Adjust this value between 3.58 and 4.43 if your TV displays the video only in black and white color. Normally NTSC 3.58 mode is used worldwide, but some TV sets can support only NTSC 4.43 mode. GB22

English (HSMM30GB) 10/30/02 10:06 AM Page 26]

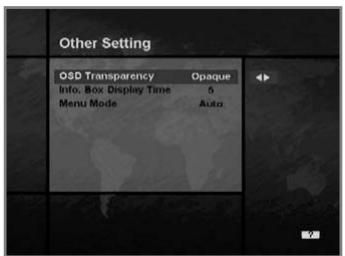

GB23 Guide of Main Menu other Other Setting Select the OSD Transparency and Information Box Display Time. OSD Transparency Select the OSD Transparent type. lt affects Information box, Soundtrack, Subtitle, Service list, Time and Quick mode of TV Guide. Use the 4/» buttons to toggle transparent and opaque. Info. Box Display Time Set the display duration of information box displayed on the screen after changing services. The time ranges from 0 to 20 seconds. Menu Mode Select NTSC, PAL, AUTO according to your TV type. In AUTO mode, the menu is automatically selected as NTSC or PAL according to the service played before the Menu mode is entered.

English (HSMM30GB) Service Organising Organi 10/30/02 10:06 AM Page 27

3-2. Service Organising This menu gives users access to options that allow them to organise their Networks, TV Services and Radio Services. ** The default PIN code is EX. Organise TV Set

Organise All Services This mode allows users to Delete, Move, Lock, Skip and Rename TV Services. + Delete

1. Press the RED( C1 )button to delete unwanted services.

2. Highlight the services that you want to delete in grey.

3. Press the OK button to confirm.

4. Press the EXIT button to cancel the deletion.

1. Press the GREEN(C:)button to move the service to where you

3. Press the OK button to fix the location.

4. Press the EXIT button to return to the original location.

1. Press the YELLOW(CH)button to lock services.

Then, the symbol “ #” will be displayed at the right side of the service name.

2. Enter the PIN code to view the locked services.

1. Press the BLUE (Gn)button to skip services.

Then, the symbol “ ”;" will be displayed at the right side of the service name.

2. Use Numeric buttons, service list or EPG( @ )button to view the

skipped services when selecting channels. Note : You can't view the skipped services by using (/6) buttons. GB24

English (HSMM30GB) 10/30/02 10:06 AM Page 28]

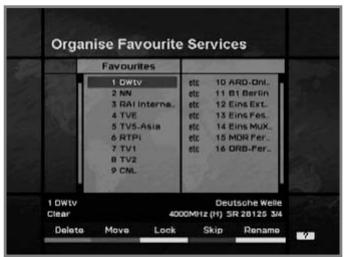

GB25 Guide of Main Menu Organise Favourite Services + Rename

1. Press the WHITE (()button to change the service name.

Then, the keyboard image will be displayed on the screen.

2. Key in the new service name.

You can use the four direction keys to move or select the services. A :to move the previous service y: to move the next service <: to move back by services » : to move forwards by services Note : The box between service list and the description of the colour buttons offers the brief information of a service where the cursor is located. Organise Favourite Services This mode service to add and delete services to and from the favourite group. To add services into Favourites, locate the cursor to the desired service and press the OK button. The function of the colour button is the same as Organise AI Services, except for the following differences. When you delete a service in the Favourites window, the service is excluded from the favourite group and the service is still stored in services window. You can move the service only within Favourites window. - To group the services into Favourites;

1. Use the » button to move the cursor to “Services”-plate(right).

2. Select the service you want to group into Favourites.

3. Press the OK button.

4. Use the <« button to move the cursor to “Favourites”-plate(left).

5. Press the OK button to save the selected group.

English (HSMM30GB) 10/30/02 10:06 AM Page 29]

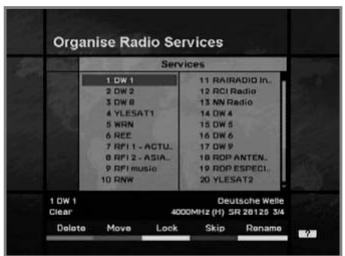

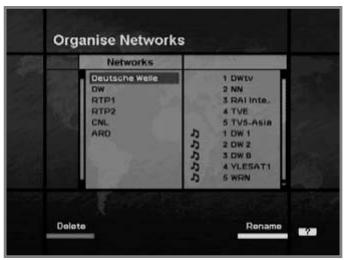

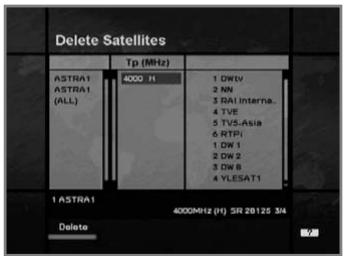

Organise Network Organise Radio Se The Organise Radio Services functions same as TV Services except that it uses Radio Services. You can delete or move Radio Services and change the attributes of them. ices Organise All Services The Organise All Services lets the user Delete, Move, Look, Skip or Rename Radio Services on the All Radio Services list. Organise Favourite Services The Organise Favourite Radio Services lets the user Delete, Move, Lock, Skip or Rename Radio Services from the Favourite Radio Services and group into a new Favourite Radio Services. The Radio Services are grouped into a Favourite in the same way as the TV Services(refer to page GB25). Organise Networks You can edit services using the network unit. - The provider names are displayed on the left side of screen and the TV/Radio Services included in the highlighted Network are displayed on the right side of screen. Only the Delete, Rename function can be used in this mode. + When TV/Radio Services are too many to be displayed, use the > button to move the cursor to the right window and use the 4/v and ©) buttons to move the cursor to the next list. When the number of services is under 10, the scroll bar is not displayed. In Radio Service icon( /2 ) is marked in front of service number. Delete Satellites

1. Press the A/v/</» buttons to move to the satellite,

Tp, or ALL you want to delete.

2. Press the RED(CD) button to select the item you want to delete.

3. Press the OK button to delete.

Press the EXIT button to cancel. GB26

English (HSMM30GB) 10/30/02 10:06 AM Page 38]

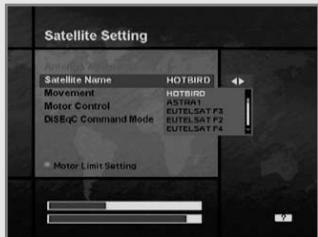

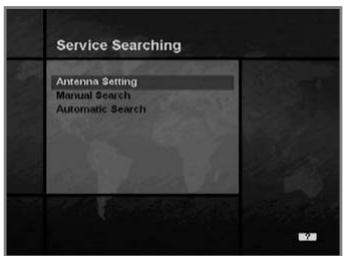

GB27 Guide of Main Menu Antenna Setting 3-3. Service Searching Enter the PIN code to access the Service Searching menu as you access the Parental Control or Service Organising menu. Press the OK button to start Service Search after setting the parameters.

• The default PIN code is KXXX. Selects the antenna and LNB settings for service search. As you can change the settings for 22KHz Tone and DiSEqC switch, there are 32 possible Antenna Setting for use. The values that are set in this menu will be available for selection in other service searching menus. Antenna Alternative There are 32 antenna alternatives, each one can have different combinations of settings for 22KHz Tone and DiSEqC switch. Satellite Name Selects the Satellite Name that corresponds to the value of the Antenna Alternative.

1. Press the </» buttons to display the satellite list box.

2. Select the wanted Satellite Name.

3. If the desired Satellite Name is not listed then select User

4. The keyboard will appear and you can type the Satellite Name

directly. The selected Satellite Name can help you select the Antenna Alternative in the searching menu, but it is possible to change or select the Satellite Name only in the Antenna Setting menu. Note : In case the selected satellite is used as OTA target satellite, automatic detection of the OTA target satellite might not work properly if you change or edit the name of the satellite.

5. Satellite Name is listed in alphabetical order and the order can

be changed according to Menu Language.

6. When inputting the Satellite Name, there is a 14 character limit.

English (HSMM30GB) 10/30/02 10:06 AM Page # LNB Frequency

1. Select the L.O. Frequency that is set to antenna.

4. When you select Universal, both 9750 and 10600MHZ are

supported at the same time. The 22KHz Tone setting is unnecessary. (Disabled) 22KHz Tone When you use a dual LNB or two antennas connected to a 22KHz Tone switch box, make 22KHz Tone switch Enable or Disable to select LNB or antenna. DISEqC Input According to the option and position of DiSEqC switch, select Disabled, Tone Burst A to B and DiSEqC A to D. After setting the above mentioned value, press the OK button to move to the Manual Search menu. Motorised System The Motorised System is used to set the DIiSEqC 1.2 motor by Eutelsat specification. If you wish to use this system, please refer to page GB39. GB28

English (HSMM30GB) 10/30/02 10:06 AM Page 32

Guide of Main Menu - Service Search OSD

1. 1f you press the EXIT button during the search, then Service

Search stops and the searching menu will appear again.

2. When you find all the services, the following picture appears.

3. Before saving it, you can select the services you want to delete.

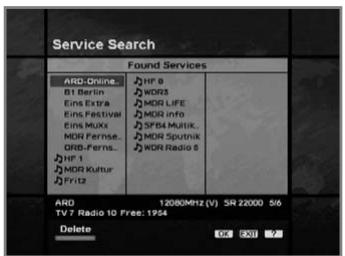

+ Found services OSD

1. The picture above shows services that are found after Manual

2. Use the RED(CT)button to mark the services that you want to

delete. To unmark a service, select the service and press the RED(CD)button again.

4. Then Service Search menu appears again. When you exit

from all menus, the first service of the found service list is played. In the bottom of found service picture, network, the information of transponder and the number of found service that the services belong to are displayed. The deleted service by the RED(CT) button is excepted from counting of the number of services. The deleted service is not included in this number. “Free” applies to the empty space of the memory. lt will be used to store future services. GB29

English (HSMM30GB) 10/30/02 10:06 AM Page 33]

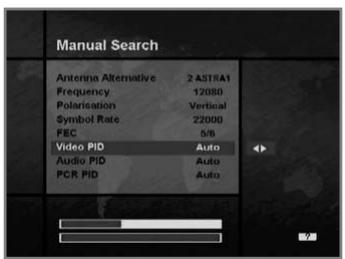

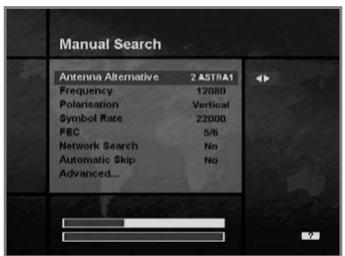

Manual Search Set the search parameters(Frequency, Symbol Rate, etc.) to manually find the services that you have selected in the transponder. The bar on bottom of the submenu shows the signal level and signal quality(BER) of the entered parameters. Antenna Alternative Select the target antenna for Manual Search. The Satellite Name helps you select antenna alternatives. This is only for reference and cannot be changed on this menu. Antenna Alternative 16 is fixed for SMATV. Frequency Use the NUMERIC buttons(0-9) on the remote control unit. AU Polarisation Use the </» buttons to select the Polarisation of the transponder. (Auto, Horizontal, Vertical) - Horizontal : 18 V are output through LNB line - Vertical : 13.5 V are output through LNB line Symbol Rate Inputs the Symbol Rate of the transponder you want to find. Use the </> buttons or NUMERIC buttons(0-9) on the remote control unit. FEC(Forward Error Correction) Use the <«/»> buttons to select the Forward Error Correction of the transponder. You can select the value of Auto, 1/2, 2/3, 3/4, 5/6 and 7/8. GB30

English (HSMM30GB) 10/30/02 10:06 AM Page 34

Guide of Main Menu Network Search + You can select Yes or No. When you select “Yes”, you can find more transponders using the home network. - As it refers to NIT during searching, if there is the frequency information of other transponder, it searches the other transponders besides the transponder that the user inputs. Automatic Skip + You can select Yes or No. When you select “Yes”, the search will skip all scrambled services. + When the found services are scrambled during searching, they are not listed up. Refer to descriptor of PMT whether it is scrambled or not. Advanced... Performs a manual search with the ability to enter PID(Video/Audio/ PCR) values. This mode is necessary when you search for the signal that has abnormal service Information tables. The setting of the sub items is the same as Manual Search. -+ Video PID/Audio PID/PCR PID You can set PID to search for services.

4. Enter a hexadecimal PID value.

Note : If no PID is input(Auto is displayed), the Advanced Search functions same as Manual Search.

5. After the above mentioned value is set, press the OK button to

start Service Search. Note : The picture and the found service list during Advanced Search are identical with the ones during Manual Search. GB31

English (HSMM30GB) 10/30/02 10:06 AM Page 35]

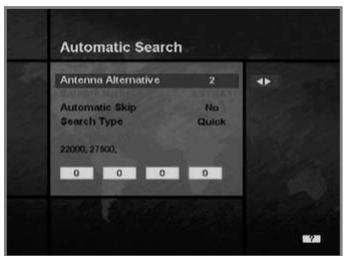

Automatic Search When you enter the Satellite Name that is set in Antenna Setting menu, search all of the selected satellite without inputting the extra frequency. Antenna Alternative Select the target antenna for Automatic Service Search. The attribute of this antenna alternative number is already set in Antenna Setting menu and the Satellite Name is helpful in the selection of the antenna, but in this menu you cannot change the Satellite Name. Automatic Skip Option to search only Free-To-Air services. The picture on the right tries to search with varying Frequency, Symbol Rate and FEC etc. 2 Search Type + You can select one of two modes(Quick or Detail). + When you select Quick mode, it searches the service by search parameters that is preset. + When you select Detail mode, it searches the service through all field of tuner(950 - 2150MHZz). Detail Mode ASTRA AAC SRANT The pre-fixed symbol rate list is changed according to Antenna Alternative and Satellite Name. If you want to add or change it, press the RED(CT)button.

• The value of Pre-fixed symbol rates can not be editable. (22000, 27500) The picture of the Symbol Rate Add/Change mode is as follows:

1. When you press the RED(CT))button after entered to detail

mode from search type, yellow box will be trimmed with red edges meaning edit is possible.

English (HSMM30GB) 10/30/02 10:06 AM Page 36]

GB33 Guide of Main Menu

3. Press the RED(CTD)button for confirmation, and you will

successfully exit from input mode. If press the OK button at symbol rate value input mode, the value will be confirmed, and if you moves left or right column use the </» buttons, you can differ values of symbol rate to input. Then press the EXIT and the RED((D)button to exit from input mode. To delete a Symbol Rate in the above list, press the O(Numeric button) in the selected position and then the symbol rate disappears. The range of Symbol Rate that is input additionally is 16-30Ms/s. Note : The user should select the Satellite name in Antenna Setting menu. When the user types the Satellite Name separately, the search type is fixed to the Detail mode. Press the OK button anywhere to start Automatic Search. The picture during searching is as follows. The picture searches with varying frequency, Symbol Rate and FEC etc. Satellite Name is the name that the user selects to correspond with Antenna Alternative of Antenna Setting. The progress bar(%) appears on bottom of the picture. During the search, services that are found are displayed as follows:

1. Press the EXIT button during Automatic Search to stop search.

2. After the search is finished, the appearite message appears.

English (HSMM30GB) 10/30/02 10:06 AM Page 37]

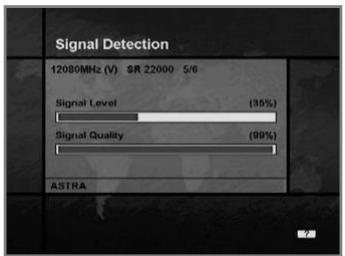

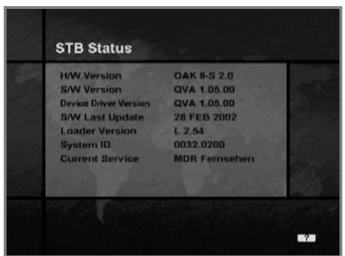

STE Status Signal Detection STB Upgrade 3-4. Status Displays the information of H/W Version, S/W Version, Loader Version and so on. gnal Detection Shows the Signal Level(AGC level) and Signal Quality(BER) of the current service and is help to the initial antenna setting. STB Upgrade You can download and upgrade the software of this STB via ASTRA satellite when the software of new version is released. Do not turn off the STB during downloading. When the power is switched OFF, turn on the STB and the process will be continued. +CR-FOX models are not applicable. GB34

English (HSMM30GB) 10/30/02 10:06 AM Page 38]

GB35 Guide of Main Menu 3-5. Conditional Access For Viaccess Embedded This menu allows the user to view the information on the Smart Card and Viaccess conditional access system such as general Smart Card Information, Service List, Change Maturity Rating, Change PIN code. General Smart Card Information You can see the Unique Address, so user Address, Current Maturity Rating of the Smart Card. Service List Services or Bouquets are encrypted by Viaccess and operators name, like TPS or ABsat, are displayed on the TV screen. To get more detailed information of viewing rights of services or Bouquets, press OK button. Change Maturity Rating The STB is required by Viaccess to include a parental control facility for the viewing of restricted services. This can be set to “No block” or for ages ranging from 4 to 18. The correct PIN code is required to change this option. Change PIN code When you buy a new Smart Card, the initial PIN code is set to “NULL”. Therefore, it is recommended that this PIN code should be changed. This PIN code is available only on Conditional Access Menu. Enter this PIN code to see the blocked Viacces Service. + Specifications are for VA-FOX models.

English (HSMM30GB) 10/30/02 10:06 AM Page 39]

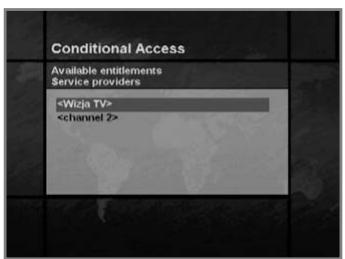

For CryptoWorks Embedded This menu allows the user to view and change information on the Smart Cards such as available entitlements, Maturity Rating and PIN Code. Besides, you can view the mails from programme providers. General Smart Card Information Card label will be displayed as issuer's name on the TV screen. Programmes or Bouquets which are encrypted by only CryptoWorks(TM) and distributor labels are displayed on the TV screen. To get more detailed information of viewing rights of channels or bouquets, press the OK button. + Smart Card details You can see smart card address, the validity date and current maturity rating. Available Entittements The user will select a single programme provider by selecting its distributor label and you can get the information of available entitlements. + Subscription You can see the valid period of each service. + PPV(Pay Per View) If You purchased events in advance, the entitlements of Pay Per View events will be displayed. + IPPV(Impulse Pay Per View) You can purchase an event during the active broadcast of the event without pre-ordering. The entitlements of Impulse Pay Per View events will be displayed. In this menu you need PIN code. Maturity Rating The STB is required by CryptoWorks(TM) to include a Parental Control facility for the viewing of restricted programmes. This can be set to “Disable MR" or PG(Parental Guide) to over 18. The correct PIN Code is required to change this option. GB36

English (HSMM30GB) 10/30/02 10:06 AM Page 48]

GB37 Guide of Main Menu PIN Code In this menu you can make PIN Code enabled, disabled or changed. + Enable PIN Code You can enable the PIN Code.

• Disable PIN Code You can disable the PIN Code. + Modify PIN Code You can change the PIN Code by using the NUMERIC buttons(0-9) on the RCU. You will need to enter the old PIN Code before you can enter new PIN Code. Mail Box The STB can receive maximum 10 mails from programme providers. To check and see the mails press the OK button. In the Mail list you can view or delete the mails. If you store 10 mails and a new mail arrives, the oldest mail will be erased and the new mail will be stored. + Specifications are for CR-FOX models. For Nagravision Embedded This menu allows the user to view the information on the Smart card and Nagravision Conditional Access system such as version and serial number of Smart card. PPV purchase list If you perchased events in advance, the entitlements of Pay Per View events will be displayed.(ID, event name, service name, start time, status and cost) Credit information Displays the Credit information. (ID, credit and status) System information Displays the System information. (Smart card serial number, IRD serial number, Smart card version, Smart card revision, Conditional Access software version and Conditional Access software revision.) + Specifications are for NA-FOX models.

English (HSMM30GB) 10/30/02 10:06 AM Page 41

3-6. Default setting When you press the OK button at the screen, the data of system setting will be changed into the default values and some Free-To-Air services of ASTRA1 will be stored in replacement of all services found. If you press the EXIT button, the function will be cancelled and return the Installation menu.

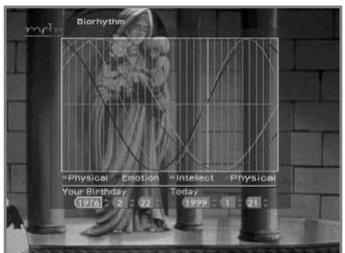

STB supports additional functions such as Calendar and Biorhythm. At the Biorhythm use the 4/v/</» buttons to adjust your birth year and date to see your current biorhythm status. GB38

English (HSMM30GB) 10/30/02 10:06 AM Page 42]

Guide of Main Menu DISEqC 1.2 User Instructions If you have a DiSEqC 1.2 motorised system, then you can use the DiSEqC 1.2 functions available. The following instruction describes how to use the DiSEqC 1.2 functions to store the positions of the satellites and to search for the services(STAB Rotor Sat motor recommended).

1. Satellite Setting Menu Options

When DISEqC Motorised System is Enabled in the Antenna Setting, a new menu is available for configuring the motor. This menu is called Satellite Setting and is accessed by pressing the OK button while the option Antenna Alternative is highlighted in the Manual Search menu. The following options are available on the Satellite Setting menu. Satellite Name A selection of satellite names that can be used to identify a motor position. If the satellite name you require is not available, please use other. In installer mode the Satellite Name Reference refers to the 0 position of the motor. Movement In user mode this is used to fine-tune the position of the motor for better reception. In Installer mode this is used to search for the position of a satellite manually. Motor Control + Search : Searches for services on the chosen transponder. + Goto _ : Moves the motor to the stored position of the selected satellite name. + Store _: Stores the current position of the motor for the selected satellite name. + Reset : Resets all stored positions of the motor relative to the O position. (Installer mode only) DiSEqC Command Mode Changes the current mode between Installer and User.

2. Setting your Receiver for DiSEqC 1.

You must set your receiver up so that it is ready to use DiSEqC 1.2. To do so, do as follows

to display the Antenna Setting menu.

4. You must set up a separate antenna alternative for each

satellite position required.

5. Select the name of the satellite you wish to use.

6. Select the correct LNB frequency for the LNB you are using.

7. Set the Motorised System to Enable using the A/v/4/» buttons.

8. The option DISEqC Input Selection should now be disabled. This option is used for DiSEqC 1.0 and

cannot be used in conjunction with DISEqC 1.2. Your receiver is now ready to use DIiSEqC 1.2. To return to the Main Menu, use the EXIT button until you are at the Main menu. GB39

English (HSMM30GB) 10/30/02 10:06 AM Page 43]

This is required when you first set your receiver up to use DiSEqC 1.2 and sets the positions of all pre-programmed satellites.

1. Make sure your motor is installed correctiy with the calibrations

Sato Seting adjusted for the region you are situated. {Please consult the user manual for your motor.)

2. Make sure your receiver is set up to use DiSEqC 1.2.

(see section 2 above).

the OK button, you should now see the Service Searching menu.

5. Highlight the DISEqC Command Mode option and use the 4/» buttons to change the value to

Installer and press the OK button.

6. Highlight the Motor Control option and use the 4/> buttons to change the value to reset and

press the OK button.

7. You will now see a warning message, press the OK button to continue. All motor positions of the

pre-programmed satellites should now be correct. If you have any other make or model of DISEqC 1.2 motor then you may need to store the satellite positions in yourself(Please refer to the user manual for your motor).

8. Highlight the DiSEqC Command Mode option and use the buttons to change the value to User and

press the OK button.

9. You should now be ready to start storing services for the various satellites(see 5 onwards).

4. Motor Limit Setting

Use this option to set the East and West limits of the motor. This should be used to prevent your dish from hitting anything that may be obstructing the path of the dish.

1. On the Main menu, select Service Searching option and press the OK button.

You should now see the Service Searching menu. Select Manual Search option and press the OK button, you should now see the Manual Search menu. Highlight the Antenna Alternative option and press the OK button. You should now be in the Satellite Settings menu. Press the CT) button to access the Motor Limit Setting menu. Highlight the Limit Setting option and use the <4/» buttons to disable this.(Warning: When this option is disabled your motor will be able to move beyond any limits that have been stored - please take care in case there are anything obstructing the path of your dish.) ®S D

English (HSMM30GB) 10/30/02 10:06 AM Page 44

a) Select Movement and use the 4/» buttons to move your motor East or West until the motor is at the position you wish to use as your East Limit. Use the 4/> buttons to stop the motor at the correct position. b) Highlight the Store East Limit option and press the OK button to store the current position as your East Limit. To set the West Limit: a) Select Movement and use the </» buttons to move your motor East or West until the motor is at the position you wish to use as your West Limit. Use the </» buttons to stop the motor at the correct position. b) Highlight the Store West Limit option and press the OK button to store the current position as your West Limit. lanual Satellite Search The purpose of this is to set the motor position for each satellite manually. This is useful if the satellite you require is not available from the pre-programmed list(see 3 above). To do this, you must access the Satellite Settings menu. Do as follows ;

1. Select Service Searching from the main menu and press the OK button, to display the Service

2. Select the Manual Search option and press the OK button, to display the Manual Search menu.

Select the relevant Antenna Alternative that you are using for this satellite.

8. Enter the Frequency, Polarisation, Symbol Rate and FEC of a transponder on the satellite you wish

to find. This transponder information should be unique to this satellite.

4. Select the Antenna Alternative option and press the OK button, to display the Satellite Settings:

5. Highlight the option DISEqC Command Mode and using the </» buttons change this to Installer.

6. Highlight the option Satellite name and use the </» buttons to select the satellite you want to find,

use others if the name of the satellite you want does not appear. 7.When you have selected the satellite you wish to find, go down to the Movement option and again using the </»> buttons to start the motor moving.

8. You should move the motor as far west as possible and the move it east so that you cover the

complete movement range of the motor.

9. During the move from west to east the Signal Quality bar should register a signal once.

This is the position of the satellite. If there are two or more different positions which registers a signal, then you must choose another frequency that is unique to the satellite you want.

10. Use the Signal level and Strength Quality bar at the bottom of the screen to judge the best

position of the dish.

11. Use the 4/» buttons to stop the motor when required.

12. When you have the best position of the dish go to the Motor Control option and using the 4/>

buttons select store and press the OK button. The position of the satellite should now be stored.

18. If you do not store this position, it will be lost when you exit the menu.

14. Repeat the process for each satellite if required, remembering to use a different antenna

alternative for each satellite. GB41

English (HSMM30GB) 10/30/02 10:06 AM Page 45]

Once you have stored the positions of the satellites you want(see left below) you can now search for the services transmitted from them. Before you can do this, you must move the motor to the position of the satellite you wish to search. To do this, you must access the Satellite Settings menu. Do as follows ; . Select Service Searching from the Main Menu and press the OK button, to display the Service Searching menu. Select the Manual Search option and press the OK button, to display the Manual Search menu. . Select the Antenna Alternative option and press the OK button, to display the Satellite Settings: menu. In the Satellite Settings menu ensure that you have DISEqC Command Mode option set to User. Highlight the option Satellite Name and use the _A/v/4/> buttons to select the satellite you want to view. . When you have selected the satellite you wish to view, go down to the Motor Control option and again using the 4/»> buttons select go to and press the OK button. The motor will now move to the position of the selected satellite. .The Movement option is used to fine-tune the position of the motor. . When using the Movement option for fine-tuning, you must remember to store the changes you have made or else these will be lost.

7. Searching for services on your selected Satellite

Once you have moved the motor into position, you can search for the channels transmitted from the relevant satellite. To search for services on your new selected satellite, Do as follows ; ne CN

1. Move the motor to the position of the satellite you wish to

Salle Setüng search.(see section 6 above)

2. Select the service searching from the Main Menu and press the

OK button. To display the Service Searching menu.

8. Select the manual search option and press the OK button to dis-

play the Manual Search menu.

4. Now enter the Frequency and Symbol Rate using the

NUMERIC buttons(0-9). Next enter the Polarisation and FEC values using the 4/> buttons.

5. When you have entered all these details in, press the OK button

and the search will begin. . When the search has finished, press the OK button to view. Repeat the process for all the transponders you want from this satellite.

English (HSMM30GB) 10/30/02 10:06 AM Page 46]

Motorised System Automatic Search Itis possible to use automatic search using the DiSEqC 1.2 motorised system.

1. Ensure that the positions for the satellite you want to search is correct.(see Section 3 and 5

8. In the Service Searching menu, select the Antenna Alternative that you have set for this

satellite. 4.When you search new services, please refer to Automatic Search of page GB32.

5. When the search has finished, press the OK button to store and view the services.

Now that you have stored all the positions of the satellites and searched for all the services you want, you can now use your receiver as normal. When you change to a service that is being transmitted from a different satellite, you will have to wait a few seconds to allow the motor to move into position to receive the new service. GB43

English (HSMM30GB) 10/30/02 10:06 AM Page 47]

Troubleshooting Guide Problem Solution About STB Does not display any LED * Check the main power cable and check hat it is lugged into a suitable pour out on the front panel or STB + Check Mheïner STB is in Standby mode has no pour. No Piaure * Ensure thatthe STE is swtched on(see above) - Check te video output port(SCART is fimly connected to the TV or VCR. Check It you have selected he correct channel or Video Output on your TV. Check the brighiness level of he TV. Poor picture quality * See “No Picture” above. + Check he signal leve, if this slow then try adjusting the alignment of your dish. No Sound * See *No Picture” above Check the volume level of the TV and STB, Check the Mute status of the TV and STE Remote Control does not aperate : Point remote control directly towards the STB. : Check and replace bateries. On-Screen Error Messages No or Bad Signal Check ne LNB - replace LNB if necessay. Check Ie cable from the LAB. : Check ie position of the dish realign dih i necessary, = Hyou are using à DISEQC 1.0 switch, check that you have connected the LNBS to the correct connections on he suite Check Ie “Signal Level" and the “Signal Qualiy” in the Signal Status menu Service Search No Signal in Manual Search : Check the “Signal Level” and the “Signal Qualiy” in the Signal Status menu Check ne LNB - replace LNB if necessay. Check the cable from tne LAB. Check ine postion of he dish realign dish if necessary + DISEQC 1.0 Check Iat you have connected the LNBS to the correct connections on he switch Check hat you have set he connected seing in the Antenna Seting menu.

• DISEQC 1.2 {Check that you have selected his in the Antenna Seting menu {Check that Ie sh is aimed at the correct satelite LED Error Message Amber onl: Invalid system ID * Check whether the system ID is diflerent for Software and STE. Amber & Red: Incorect data block CRC error | You nee to contact your real Shop. Amber & Red 8 Green You need to contact your retail Shop. incorrect application CRC error + If you can't solve the problem even referring this Troubleshootirg Guide, zoncact 4 via our nomepage Homepage : http:/www.humaxdigital.com GB44

English (HSMM30GB) 10/30/02 10:06 AM Page 49]

English (HSMM30GB) 10/30/02 10:06 AM Page # AN & Data In/Out TV SCART Video Output(CVBS, RGB, S-Video) Audio Output {Resolution : 20 bits DAC, Max. 2 Vrms) VCR SCART Video Output(CVBS) Video Input(CVBS, RGB, S-Video) Audio Output(Resolution : 20 bits DAC, Max. 2 Vrms(fixed)) AUDIO R/L RCA/Cinch Volume and Mute Control (Resolution : 20 bits DAC, Max. 2 Vrms) RS-232C Transfer rate 115,200 bps, 9pin D-sub Type Power Supply Input Voltage 90 - 250V AC, 50/60 Hz Type SMPS Power Consumption Max. 30 W Standby Power <8W Protection Separate internal fuse. The input shall have lightening Protection Physical Specification Size (W x H x D) 260 x 50 x 180 mm Weight (Net) Around 1.3 kg Operating Temp 0°C to + 45°C Storage Temp -10°C to + 70°C Storage Humidity 5% - 95% RH(Non-Condensing) + You can use a special antenna switch with DiSEqC commands. When changing ASTRA1 to EUTELSAT for example, a DISEqC command is sent with the 22KHz tone through the antenna cable. The antenna switch will change ASTRA to EUTELSAT. The concept of DiSEqC is a protective trademark of EUTELSAT. + Data rate decides the picture quality of digital TV programmes. Data rate of about 5-6 Mbit/s coincides with the picture quality of a analog TV programme. GB48
