USER MANUAL TUNER TNT S800 EMTEC

(and other countries)

www.intuix.net

Service Hot line 0820 825 333*

About the DVB-T Dongle EN-2

Software Installation EN-2

Connecting the DVB-T Dongle EN-3

Initial Setup EN-3

Description of Toolbars EN-4

Watching Digital TV EN-5

Viewing Modes EN-5

Recording EN-6

Teletex EN-8

EPG (Electronic Program Guide) EN-8

Troubleshooting Guide EN-9

ABOUT THE DVB-T DONGLE

The DVB-T dongle is a digital video broadcast receiver that plugs straight into the USB port of your computer and requires no additional power source, making it extremely portable. It can scan for and save all available digital TV stations and play any of these on your computer screen.

Minimum System Requirements

• USB port
• DirectX 9c
• Windows 2000/XP
• Pentium III 800MHz or equivalent
  256MB RAM
• DirectX 9c compatible sound card
• DirectX 9c compatible video card
  32MB HDD space (installation only)

Package Contents

DVB-T dongle
Software CD
- Quickstart guide
Antenna

• Please note that the antenna has a magnetic base and should not be placed near any items that can be affected by magnetic fields, for example, computer or TV screens, floppy disks, or credit cards.

Note that Microsoft, Windows, Windows 2000 and Windows XP are registered trademarks of Microsoft Corp.

SOFTWARE INSTALLATION

Please install all necessary software BEFORE connecting your DVB-T dongle.

• Insert the provided CD-ROM into the CD drive of your computer.
• The installation screen will appear. However, if it does not, click on Start>Run and type D:\setup.exe, where D refers to the letter assigned to your CD drive.
• You will be asked to choose the setup language, as follows:

Choose a language and then click OK. You will now be asked to accept the End User License Agreement. Be sure to check the I accept the terms in the license agreement box, then click on Next.

After a few seconds, the following screen will appear. Click on Install to continue the installation.

Once the software has finished being installed, you will be asked to restart the computer. Press Yes.

CONNECTING THE DVB-T DONGLE

Remove the cap from the DVB-T dongle, locate a free USB port on your computer and plug in the dongle. Once the computer recognises the new hardware, the New Hardware wizard will begin.

As the DVB-T is a Hi-Speed device, you may receive the following message if it is plugged into an older USB 1.1 port. The DVB-T will still work with USB 1.1. Simply click on the X in the top right-hand corner of this message.

You will see several messages during the installation of the DVB-T dongle. Please be patient, as this process make take a few minutes.

INITIAL SETUP

Double-click on the Sawy DTV icon, which appears on your desktop.

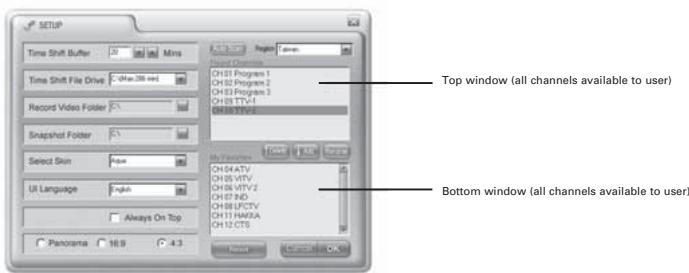

The Sawy Digital TV display panel and control panel will appear in the background and the following Setup screen will appear on top.

On the Left

• Time Shift Buffer : Specify the maximum Time Shift allowed.
• Time Shift File Drive : Browse to the location where you would like to temporarily store time shifted programs (Also shows available maximum space available for Time Shift).
• Record Video Folder : Browse to the location where recorded programs will be stored.
• Snapshot Folder : Browse to the location where you would like to store snapshot images
• Select Skin : Choose your preferred skin for the Sawyer Digital TV software.
• UI Language : Choose which language you would like for the user interface.
• Always on Top : Tick this box if you prefer the display panel not to be hidden by other windows.
• Panorama / 16:9 / 4:3 : Choose the screen proportions that best suit your needs

On the right

The top window displays all the channels found by pressing Auto Scan*.

The bottom window displays the channels that you wish to be available to you.

You can add individual channels by highlighting the channel of your choice (in the top window) and clicking on Add.

To remove individual channels from the bottom window, highlight the channel you wish to remove, and then click on Delete.

To rename any channels in the bottom window, highlight the channel you wish to rename, click on Rename and enter a name.

*Auto Scan : Press to automatically scan for and save all available channels (Ensure that the correct region is chosen first). This must be done before you can watch TV.

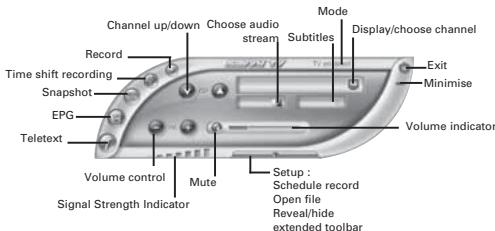

DESCRIPTION OF TOOLBARS

WATCHING DIGITAL TV

Launching the Sawy Digital TV Software

To start watching digital TV, simply double-click on the Sawy DTV icon, which appears on your desktop.

Please be patient, as the software may take a few seconds to appear.

Changing Channel

There are two ways to change channel.

1. Moving through the channels one at a time, by using the Channel up/down buttons (You can also use the up/down cursor keys on the computer keyboard).

1. Jumping straight to a channel, by choosing a channel from the drop-down list (click on this window to display list).

Adjusting the Volume

To adjust the volume click on the left (decrease) or right (increase) volume buttons (you can also use the left/right cursor keys on the computer keyboard).

The volume indicator bar will show you how loud the volume is.

Choose Audio Stream

On certain channels you may be offered more that one audio stream (for example, a second language may be offered). If this is the case, you can click here to choose which stream you prefer. Note that this service is not available on all channels.

Mute

To mute the sound, press the mute button beside the volume indicator.

When the sound is muted, a red line will appear through the speaker symbol.

To cancel the mute, click again.

Snapshot

To take a snapshot of the image currently on screen, click on this button.

To later view the image, browse to the location of the snapshots (specified in the Setup screen) and double-click on the file.

It will be opened by your default image viewing software.

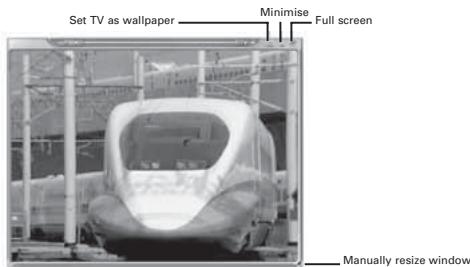

VIEWING MODES

Display as Wallpaper

This option will set the TV screen as the computer wallpaper.

In effect, it will be set as full screen and moved to the back.

Any other windows or icons will be placed on top of the TV screen.

Normal viewing mode can be restored from the Windows taskbar (see note below).

Minimise Window

This option will minimise the screen.

It can be restored from the Windows taskbar (See note below).

Full Screen

This option will display the TV full screen, and remove the control panel.

Click anywhere on the screen to return to normal viewing mode.

Both the display screen and the control panel can be restored from the Windows taskbar as follows:

• Right-click on the Sawyer DTV tab in the Windows taskbar.
• Select Restore Display Panel or Restore Control Panel.

Note that if you are currently in Wallpaper mode,

you will need to choose the Window Mode option to return to normal viewing mode.

RECORDING

Live recording

To record what is currently being shown on the screen, simply press the record button.

Pressing this button will instantly start recording the current program. To stop recording, press the stop button.

Time Shift recording

Time Shift recording is very useful when you are watching a programme and may have to leave just for a moment, for example if the phone rings.

To activate Time Shift recording, simply press the time shift button.

This will start time shifting the programme currently being shown. The computer may now be left unattended. When you return to the computer, you can use the forward wind or rewind buttons to search within the recording. You can also press the play button to start watching the program or the pause button to pause what you are viewing. None of these buttons will affect the recording process. To stop time shift recording, press the stop button. Please see next page for more information about the recording/playback

control panel.

The recording/playback control panel differs slightly from the standard control panel, with the following buttons added:

Rewind

Pause

Play

Stop

Forward Wind

Slider bar, shows how far through the recording you are. During playback, you can also drag the slider with the mouse rather than using the rewind / forward wind buttons.

Scheduled recording

Press on the schedule record button in the extended toolbar.

This will open the Schedule Record window, as follows :

To schedule a recording, you will need to enter the following information :

1. The date

Do this by clicking on a date in the top right-hand window, thus highlighting it by turning it blue. By default, today's date will already be highlighted.

2. The start and end times of the recording

These must be written in 24 hour format, e.g. half past three in the afternoon would be written 15 30.

3. The channel

Choose a channel from the list.

4. The frequency of the recording

For Frequency, you can choose the following from the drop-down list :

1 Time Record (will be displayed in orange), Daily Record (will be displayed in purple), or Weekly Record (will be displayed in green).

Once you have programmed the recording, press Add. You can then add more programmed recordings to the list, remembering to press Add after each one.

Below the channel list, you will see a representation of the disc space assigned to store recordings. The blue area shows what disk space has already been used, the yellow is which space has been allocated for scheduled recordings, and red shows available disk space.

Note that the Sawy Digital TV software will have to be running when it is time to start the scheduled recording. If you are watching another channel at the time the scheduled recording is due to start, the software will automatically change channel.

Watching a Recorded Programme

Press the recorded files button (in the extended toolbar).

Pressing this button will open up a browser window which will allow you to search for recorded mpg/mpg files. Note that this method allows you to view both scheduled recordings and live recordings.

TELETEXT

The Sawy Digital TV software can also access Teletext. To do so, click on the Teletext button on the control panel.

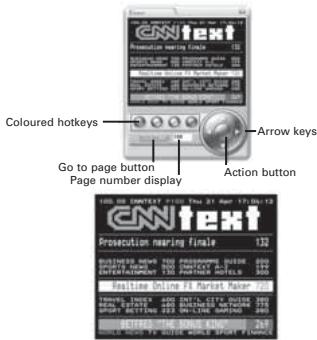

The Teletext control panel and the Teletext display screen will appear as follows:

There are several ways to navigate whilst in Teletext mode.

The left/right arrow keys can be used to move through the teletext pages one at a time. If subpages are available, then the up/down cursor keys can be used to navigate through these. In the above picture, for example, the page is 100, and the subpage is 08.

The page number display field can also be typed into directly. After the page number is typed, click on the Go to Page button in order to go to that page.

The four coloured buttons (red, green, yellow and blue) can be used at hotkeys to go directly to the coloured links which appear at the bottom of the teletext display screen.

The action button enables you to choose any page number displayed within the screen.

Once the action button has been pressed, it will change colour. You can then use the up/down arrow keys to navigate within the screen.

Once the page you would like to go to is highlighted, press the action button again to go to that page.

EPG (Electronic program guide)

The Sawy Digital TV software is EPG compatible. This means that you can get instant access to the list of programmes available to you.

To access this feature, click on the EPG button on the control panel.

This will open up the following screen:

You will find a list of channels down the left-hand side.

These can be scrolled through, using the up and down arrows above and below the list.

Clicking on any of the channels will change which channel you are currently viewing (highlighted in green, with programmes highlighted in blue). In the top left-hand corner, you will see the date.

This can also be changed, using the accompanying arrows. To the top of the main section, you will see the time.

Again, this can be scrolled through, using the arrows.

Note that some channels may not offer the EPG function.

TROUBLESHOOTING GUIDE

Problem	Possible Reason	Solution
No picture	Currently viewing radio station	No picture will appear on radio channels
No sound	Mute mode is activated	Click on the speaker icon beside the volume indicator to restore the sound
	Volume level is set too low	Increase volume
Cannot tune stations	Poor signal	Move the antenna for better reception
	Wrong country is chosen in Setup	Choose the correct country in Setup
Picture performance is poor	Not using latest version of Direct X	Download latest version of Direct X
	Computer hardware does not meet minimum requirements	Upgrade hardware to meet minimum requirements
	Too many programs are being used at the same time	Close unnecessary programs
	Poor signal	Move the antenna for better reception
	Laptop computer is using battery power	Try plugging the laptop into its power supply
Error message appears when starting software, saying “Please plug in the tuner”.	Tuner is not plugged in	Plug in tuner, or if necessary, disconnect and then reconnect.
The DVB-T tuner is heating while operating	Electronic parts of this tuner are reasonably heating	this doesn't affect your PC; heat stabilizes automatically after 15 minutes
