USER MANUAL STOREJET 25P TRANSCEND

Introduction | Congratulations on purchasing Transcend's StoreJet 25P. This lightweight, ultra-portable, high-speed USB storage device is the perfect data management system for uploading, downloading, storing and transferring your vital data and information. With its huge storage capacity and fast 480Mbps USB 2.0 data transfer rates, the compact StoreJet 25 is ideal for carrying your files, folders, documents, photos, music and videos to and from desktop or notebook computers. In addition, the StoreJet 25 comes with very useful software* that can increase your mobile productivity. This User's Manual is designed to help you get the most from your new device, please read both in detail before using the StoreJet 25. *Note: The StoreJet elite software only works in Windows - please see the Software User's Manual for details Package Contents | The StoreJet 25 package includes the following items: B StoreJet” 25P B Travel Pouch B 1 Mini USB to 2 Standard-A USB cable (USB Y cable)

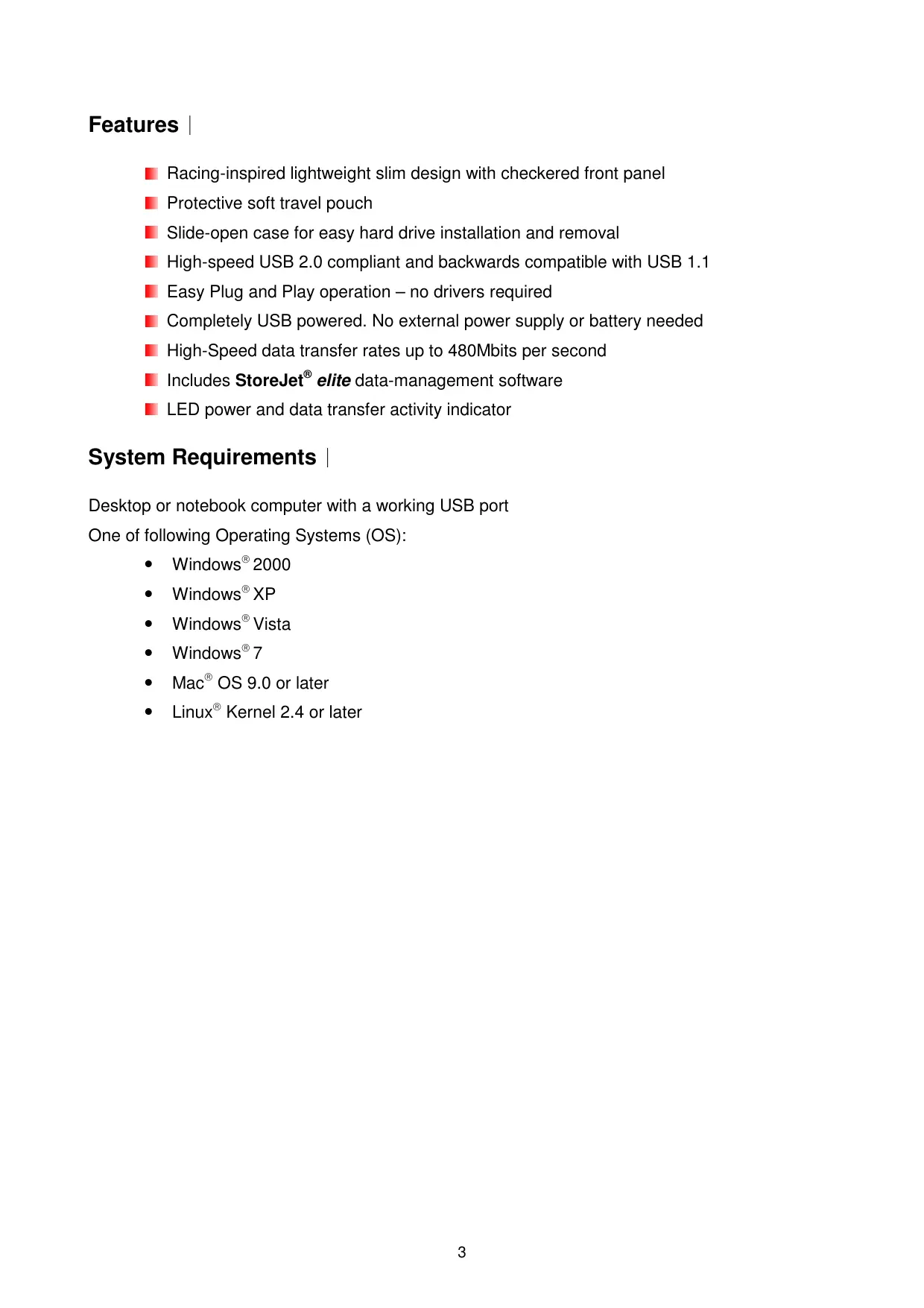

Features | Racing-inspired lightweight slim design with checkered front panel Protective soft travel pouch Slide-open case for easy hard drive installation and removal High-speed USB 2.0 compliant and backwards compatible with USB 1.1 Easy Plug and Play operation — no drivers required Completely USB powered. No external power supply or battery needed High-Speed data transfer rates up to 480Mbits per second includes StoreJet® elite data-management software LED power and data transfer activity indicator System Requirements | Desktop or notebook computer with a working USB port One of following Operating Systems (OS): Windows® 2000 Windows® XP Windows” Vista Windows® 7 Mac° OS 9.0 or later Linux® Kernel 2.4 or later

Safety Precautions | These usage and safety guidelines are IMPORTANT! Please follow them carefully.

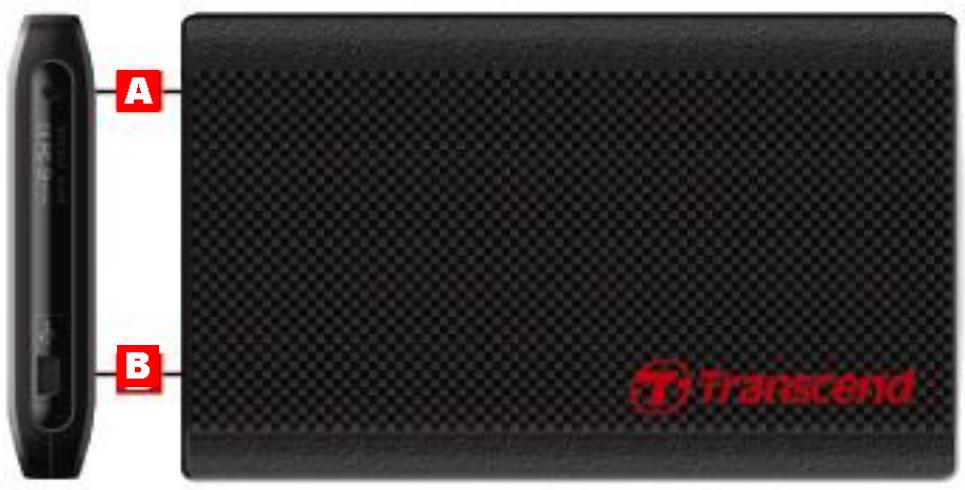

Please ensure that you connect the USB cable to the StoreJet 25 and your computer correctly (small end + StoreJet 25, large end > PC) B General Use Carefully unpack the contents of the StoreJet 25 package. During operation, avoid exposing your StoreJet 25 to extreme temperatures above 55°C, or below 5°C. Do not drop your StoreJet 25. Do not allow your StoreJet 25 to come in contact with water or any other liquids. Do not use a damp/wet cloth to wipe or clean the exterior case. Do not store your StoreJet 25 in any of the following environments: o Direct sunlight o Next to an air conditioner, electric heater or other heat sources o Ina closed car that is in direct sunlight o In an area with strong magnetic fields or excessive vibration B Backing Up Data Transcend does NOT take any responsibility for data loss or damage during operation. |f you decide to store data on your StoreJet 25 we strongly advise that you regularly backup the data to a computer, or other storage medium. To ensure High-Speed USB 2.0 data transfer rates when using your StoreJet 25 with a computer, please check that the computer has the relevant USB drivers. lf you are unsure about how to check this, please consult the computer or motherboard User's Manual for USB driver information. Transporting Do not pack your StoreJet 25 into luggage without the proper padded support. Other items in the luggage may damage your StoreJet 25 if it does not have the proper protection. Avoid squeezing your StoreJet 25 (to prevent damage to the internal HDD). Avoid placing objects on top of your StoreJet 25 (to prevent compression damage). B Power The StoreJet 25 is powered directly via a computer USB port. However, the power supplied by the USB port on some older computers is below the 5V DC required to power the StoreJet 25. In this instance, please connect the spare large connector of the provided USB Y cable to a second USB port on the computer, this will provide the additional power necessary to run the drive.

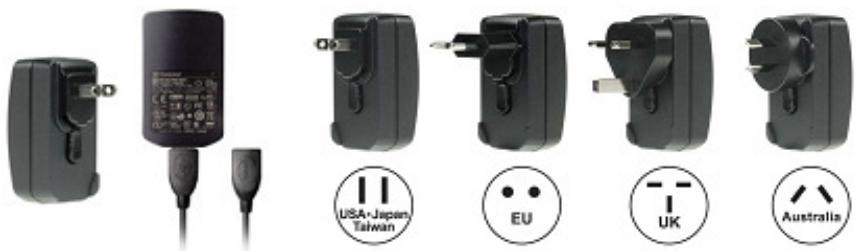

The spare USB connector can provide additional power for RE the StoreJet 25 when needed ° Please use the Mini USB to USB A-Type cable that came with the StoreJet 25 to connect it to a computer, and always ensure that the cable you are using is in good condition. NEVER use a cable that is frayed or damaged. °__ Ensure nothingis resting on the USB cable and that the cable is not located where it can be tripped over or stepped on. e If you have connected all ends of the USB cable and still have power-related problems while reading / writing data, we recommend that you purchase a Transcend USB Power Adapter (TS-PA2A) to provide the power necessary to operate the StoreJet 25. ,12%9 .. NO 7 mp, @) os B Reminders Always follow the procedures in the “Disconnecting from a Computer” section to remove the StoreJet from your computer.

Installing a Hard Drive | 4\ The StoreJet 25 hard drive enclosure only works with 2.5” SATA Hard Disk Drives. B Installing a Hard Drive If you purchased a Transcend StoreJet 25 hard drive enclosure that does not have an SATA hard disk drive already installed, please read this section for installation instructions. If a hard drive is already installed, you can skip to the “Connecting to a Computer” section.

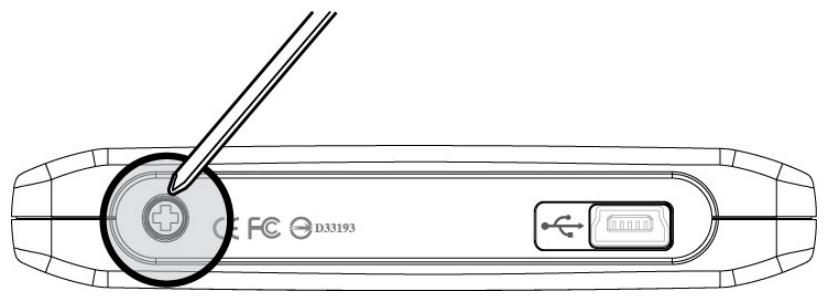

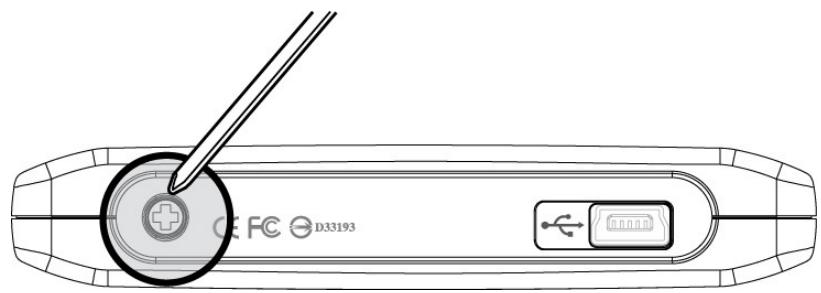

1. Use a small Philips screwdriver to remove the case screw

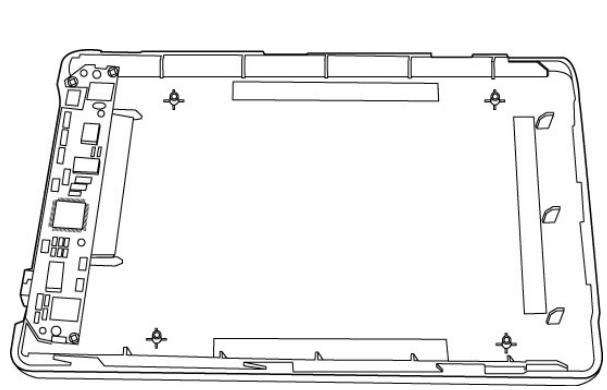

3. Place the hard drive (face up) into the case, with its SATA connectors facing the circuit board.

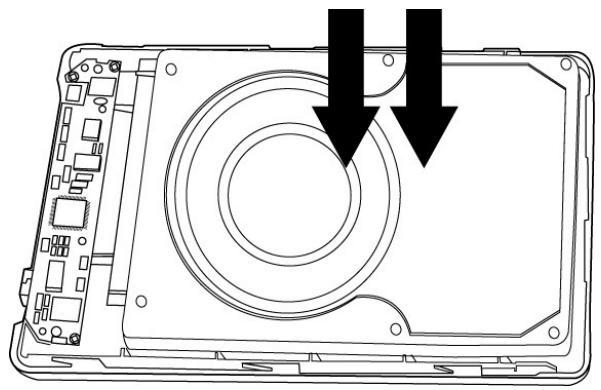

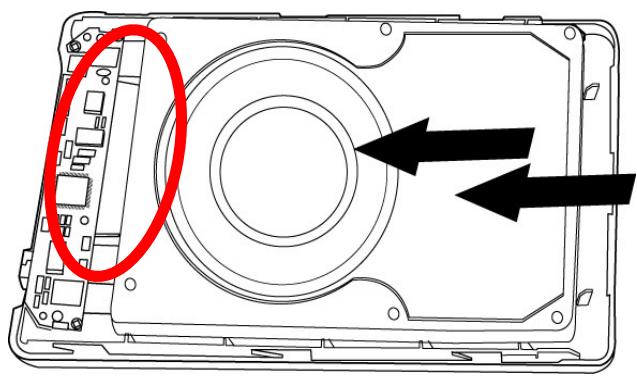

4. Gently push the hard drive onto the circuit board while making sure the SATA connectors are

correctly aligned. Do NOT connect the hard drive at an angle.

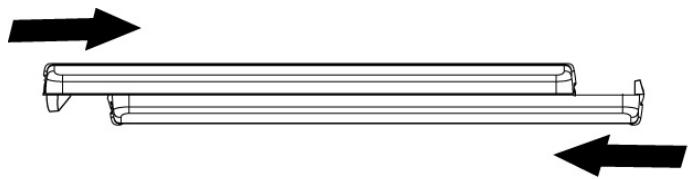

5. Reattach the front cover and slide it back into place

6. Reattach the case screw.

Connecting to a Computer | If you want to use the StoreJet 25 as an external hard drive to upload/download data to and from your computer, you will need to connect it to a USB port on the computer using the provided USB Y-cable. Large Ends Small End Cr < Extra USB connector for providing additional power StoreJet 25 Computer USB port Mini-USB port Figure 2: Mini USB to Standard-A USB cable (USB Y-cable)

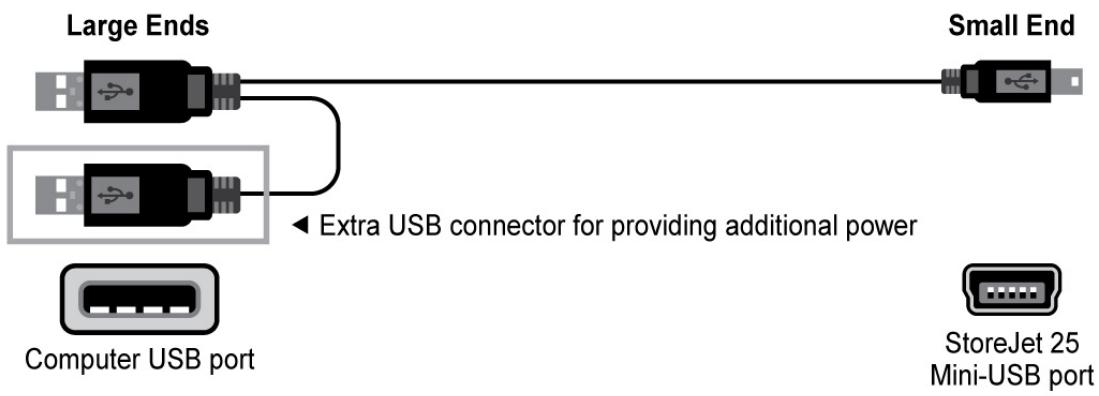

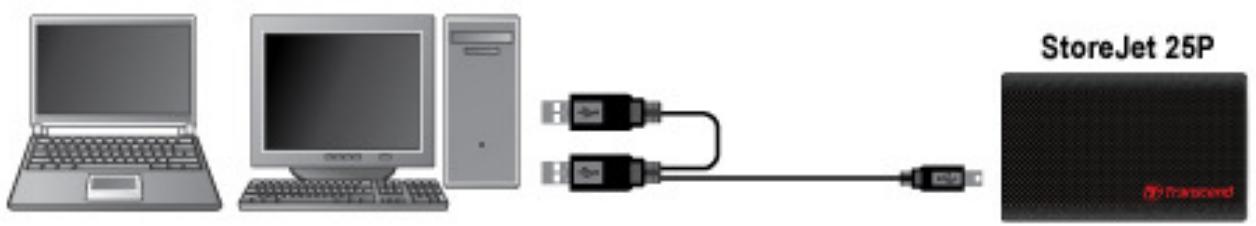

1. Plug the small end of the USB Y-cable into the Mini USB port on the StoreJet 25.

2. Plug the large end of the cable into an available USB port on your desktop, or notebook

computer. “On some older computers, the power supplied by the USB port is below the required 5V DC power. In this instance, please connect the spare large connector on the provided USB Y-cable to a second USB port on the computer. This will provide the additional power necessary to run the drive. F StoreJet 25P (== A Figure 3: Connecting to a Computer

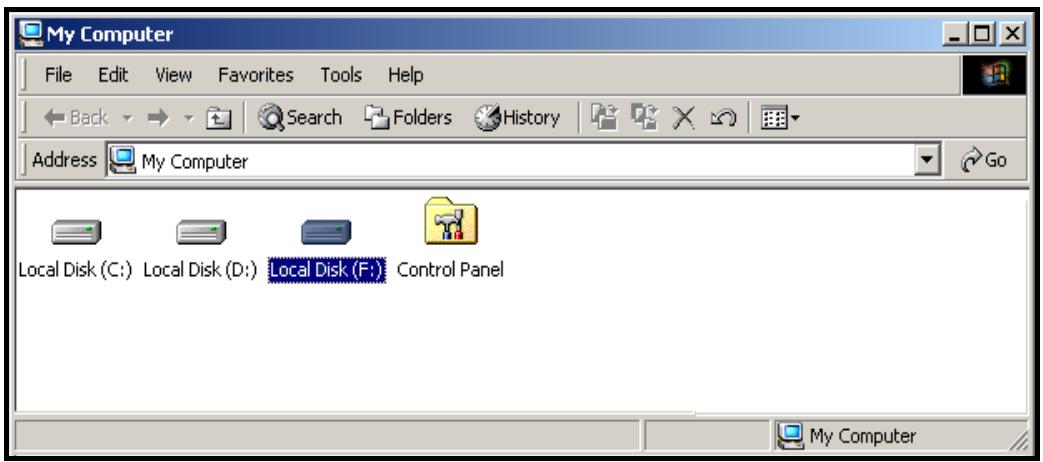

3. When the StoreJet 25 is successfully connected to a computer, the StoreJet's Power LED will

light up, a new Local Disk drive with a newly-assigned drive letter will appear in the My Computer window, and a Removable Hardware icon will appear on the Windows System Tray. The StoreJet 25's internal hard drive comes pre-formatted for FAT32. PTE | File Edt View Favorites Toos He EI | eat + + ; ©] QSearh CuFoders CAHstoy | 25 D X | Et address [2 my computer xl @c =] = Cd Local Disk (C:} Local Disk (D:) Control Panel Î | 15 My Computer 2 Figure 4: *F: is an example drive letter, the letter in your "My Computer" window may differ Once connected, you can use the StoreJet 25 as an external hard drive to transfer data to and from your computer. Simply drag and drop files or folders onto the Local Disk drive letter that represents the StoreJet 25.

5. If you installed a brand new hard drive into your StoreJet 25, please follow the instructions

in the Formatting the Hard Drive section to prepare your disk for use with your Windows® Mac®, or Linux® system.

Disconnecting from a Computer | 4 NEVER disconnect the StoreJet from a Computer when its LED is flashing. & Windows®

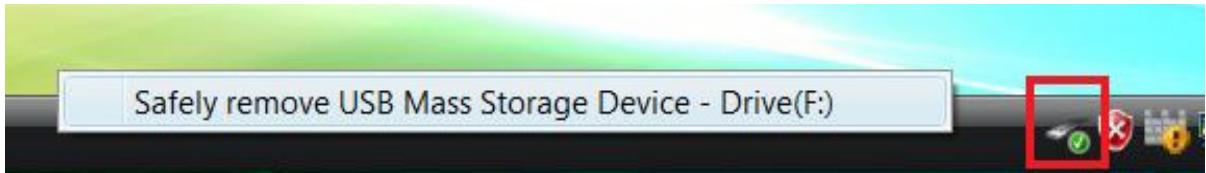

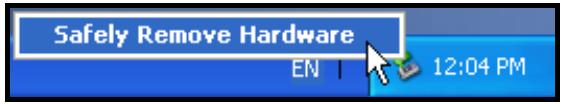

1. Select the Hardware icon on the system tray.

2. The Safely Remove Hardware pop-up window will appear. Select it to continue.

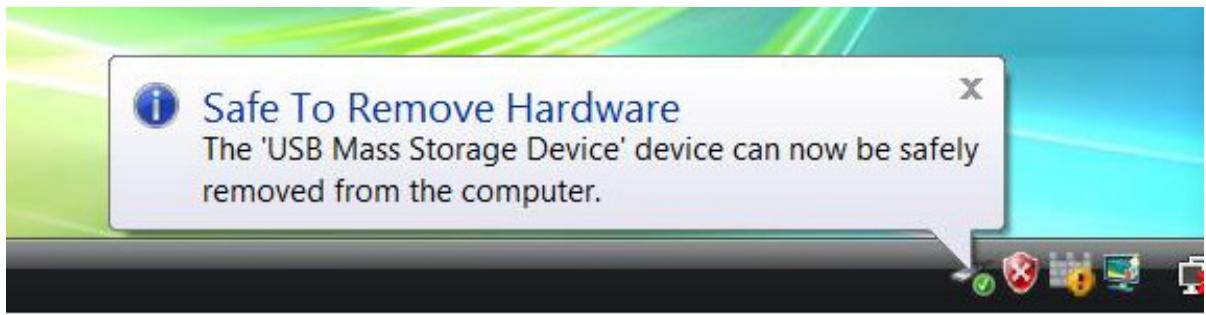

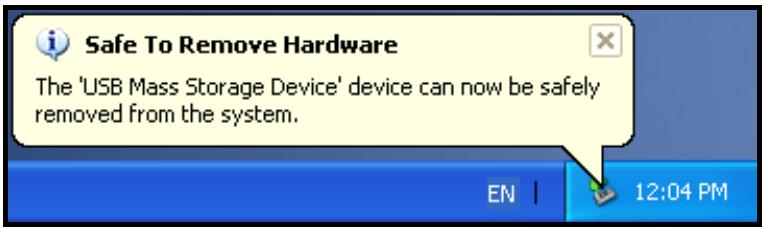

3. A window will appear stating, “The ‘USB Mass Storage Device’ device can now be safely

removed from the system.” À) Safe To Remove Hardware x The 'USB Mass Storage Device’ device can now be safely removed From the system. ® Safe To Remove Hardware The ‘USB Mass Storage Device’ device can now be safely removed from the computer. Figure 6: Safe to Remove Hardware WARNING! To prevent data loss, always use this procedure to remove the StoreJet from Windows®. & Mac OS 9.0 or Later Drag and drop the Disk icon that represents your StoreJet 25 into the Trashcan. Then unplug your StoreJet 25 from the USB port.

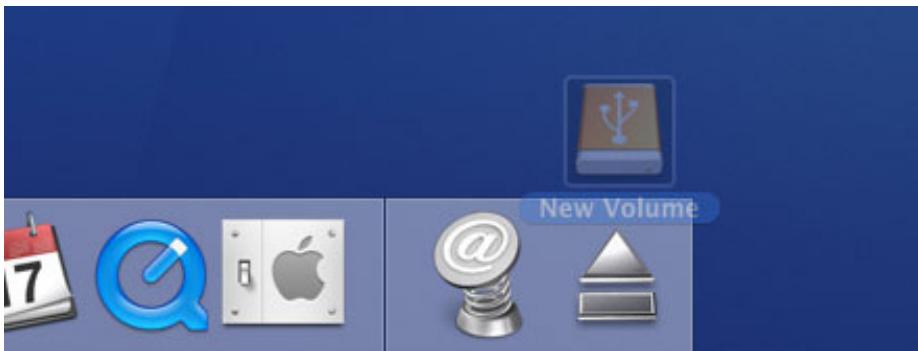

Figure 7: Drag StoreJet 25 drive icon into the Trashcan & Linux® Kernel 2.4 or Later Execute umount /mnt/Storejet to un-mount the device. Then unplug your StoreJet 25 from the USB port.

Formatting the Hard Drive | WARNING! Formatting the disk will erase all of the data on your StoreJet 25. You must have Administrator Rights to format in Windows. & Windows® 2000/XP

1. Download the StoreJet Format Utility from Transcend's online Download Center at

http://www.transcendusa.com/Support/DLCenter/index.asp (the software can be located by selecting “Storage Devices -> StoreJet Drives -> any StoreJet product -> any StoreJet model)

2. When the download is complete, extract the downloaded ZIP file to your computer's hard

drive (not the StoreJet 25) and run the StoreJetFormatter.exe application.

3. Plug the StoreJet 25 into an available USB port on a Windows® 2000/XP computer.

4. Unplug all other USB storage devices from your computer. This is to prevent accidental

format of a different USB drive.

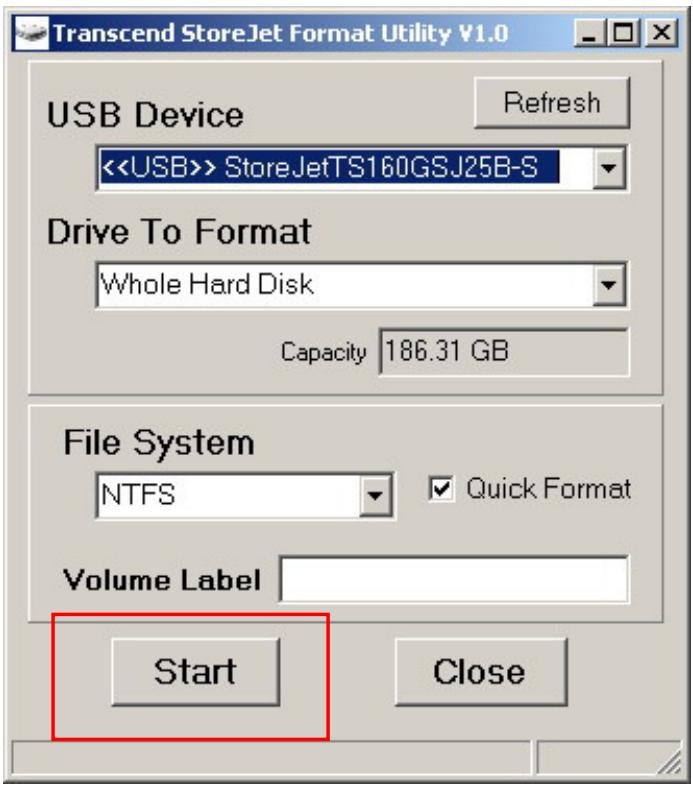

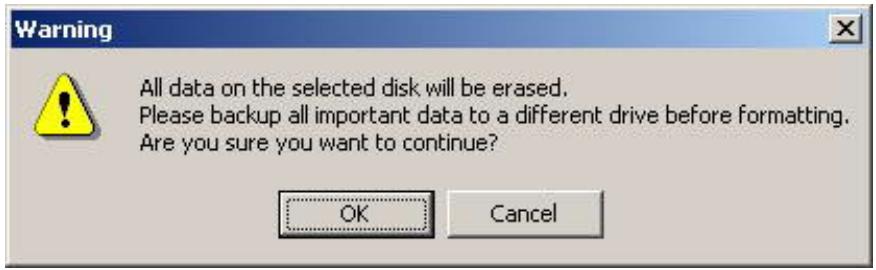

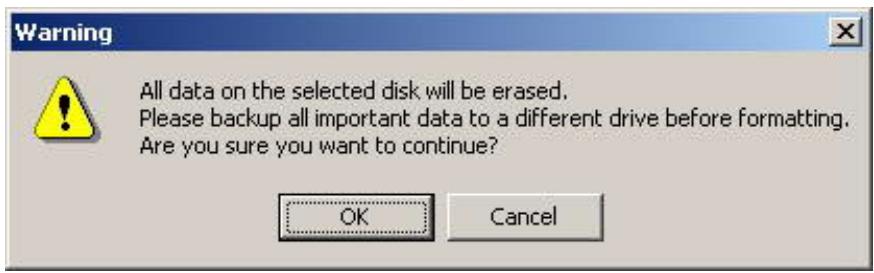

8. A confirmation window will appear. Press OK to begin formaitting the drive.

CCR x All data on the selected disk will be erased, Please backup all important data to a different drive before formatting, âre you sure you want to continue? Cancel

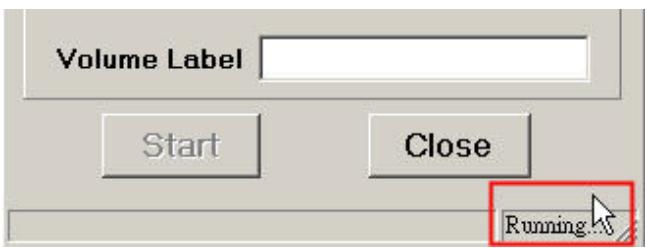

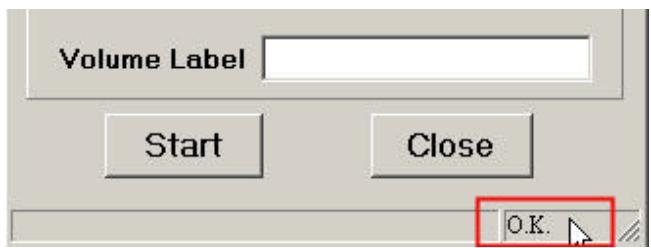

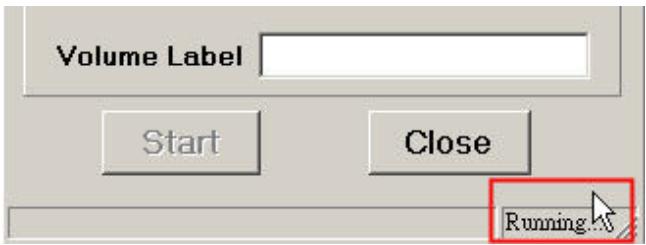

9. The format process may take a few minutes. When complete, an “O.K.” message will

appear in the bottom right hand corner of the window. Volume Label | Volume Label | Start Close Stat | Close | [ Fumnsh4| | OK. N |z Figure 10: Format Complete

10. Click the “Close” button to finish and exit.

1. Download the StoreJet Format Utility from Transcend's online Download Center at

http://www.transcendusa.com/Support/DLCenter/index.asp (the software can be located by selecting “Storage Devices -> StoreJet Drives -> any StoreJet product -> any StoreJet model)

2. When the download is complete, extract the downloaded ZIP file to your computer's hard

drive (not the StoreJet 25).

3. Plug the StoreJet 25 into an available USB port on your Windows® 7/Vista computer.

4. Unplug all other USB storage devices from your computer. This is to prevent accidental

format of a different USB drive.

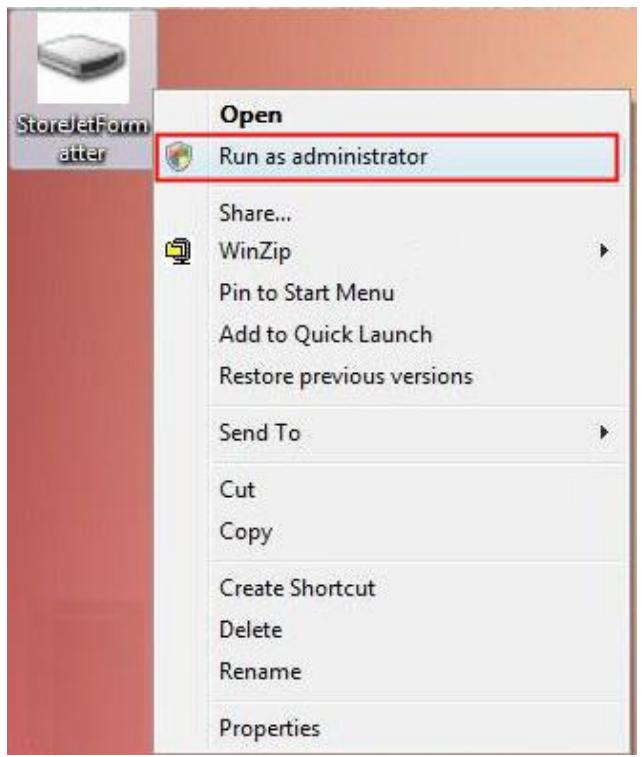

5. Righi-click “StoreJetFormatter.exe” and select “Run as Administrator.”

Open Run as administrator Share... WinZip , Pin to Start Menu Add to Quick Launch Restore previous versions Send To » Cut Copy Create Shorteut Delete Rename Properties Figure 11: Run as administrator

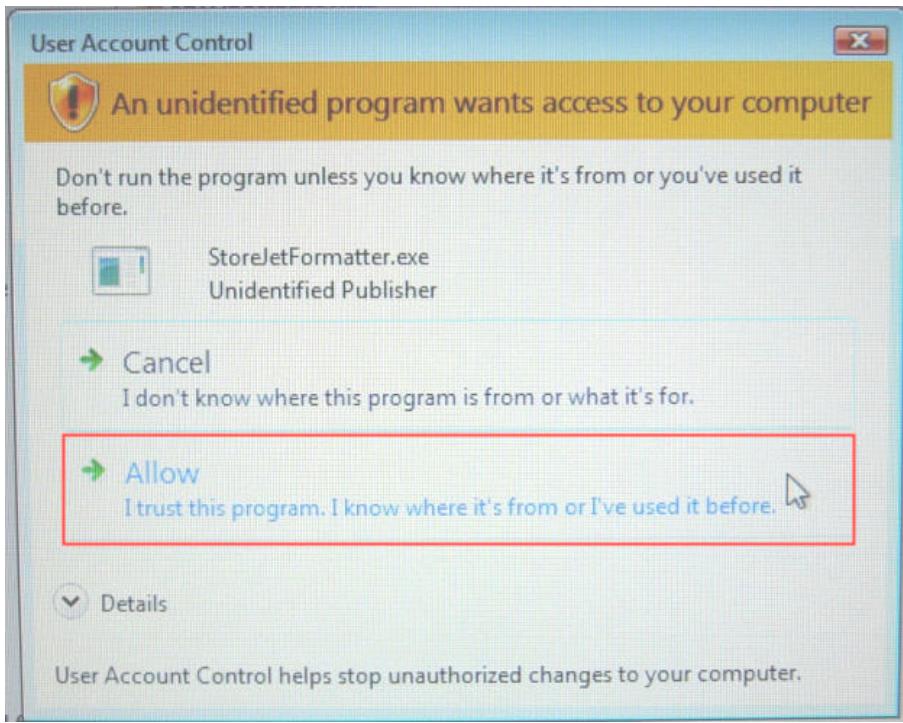

6. The User Account Control window will appear. Select “Allow” to continue.

Don't run the program unless you know where it's from or you've used it before, StoreletFormatter.exe 1 Unidentified Publisher + Cancel 1 don't know where this program is from or what it's for. + Allow N Ltrustthis program. know where it's from or l've used it before M Details User Account Control helps stop unauthorized changes to your computer, | Figure 12: Allow Transcend's StoreJet Format Utility to run in Vista/7

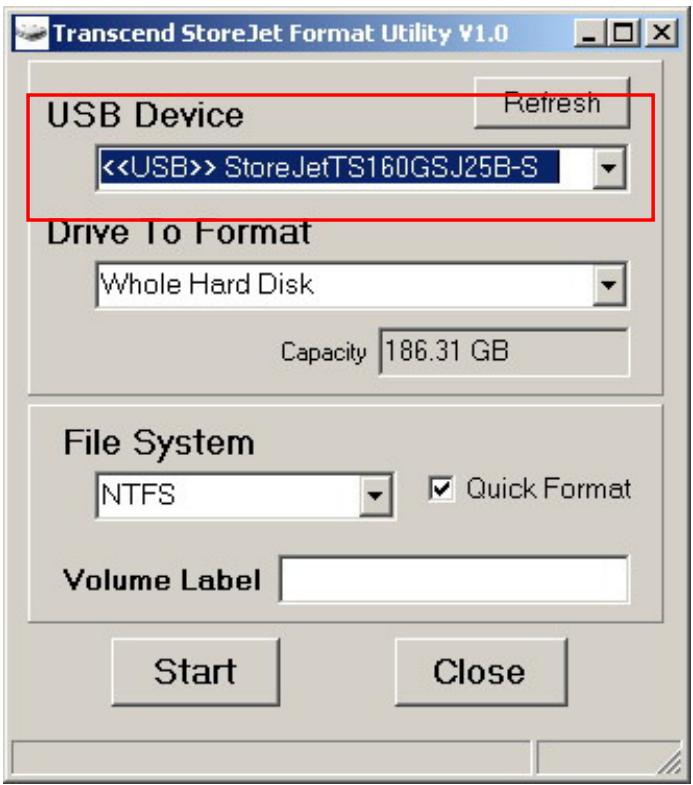

7. Inthe StoreJet Format Utility window, click the “Refresh” button.

10. A confirmation window will appear. Press OK to begin formatting the drive.

CCR x All data on the selected disk will be erased, Please backup all important data to a different drive before formatting. âre you sure you want to continue? Cancel

11. The format process may take a few minutes. When complete, an “O.K.” message will

appear in the bottom right-hand corner of the window. Volume Label | Volume Label [ | Start Stat | Close | [ PK KR | Figure 15: Format Complete

12. Click the “Close” button to finish and exit.

1. Plug the StoreJet 25 into an available USB port on your MAC computer.

2. Unplug all other external storage devices from your computer. This is to prevent

accidental format of a different drive.

3. Click the “Initialize” button.

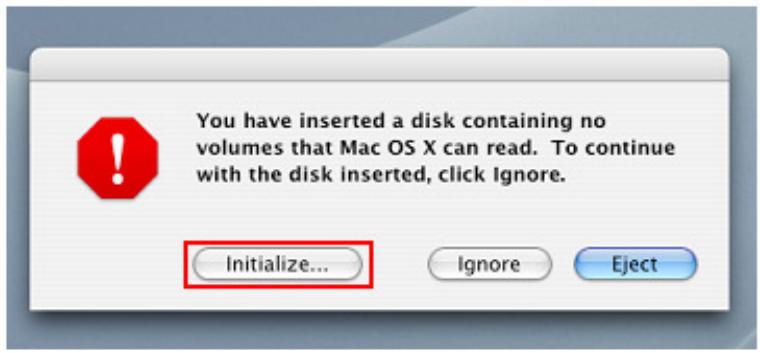

You have inserted à disk containing no volumes that Mac OS X can read. To continue with the disk inserted, click ignore. Initialize.…} (ignore ) Este) Figure 16: “Unreadable drive” pop-up window

4. Inthe Disk Utility window, select the new drive from the list on the left.

5. Select the “Erase” tab.

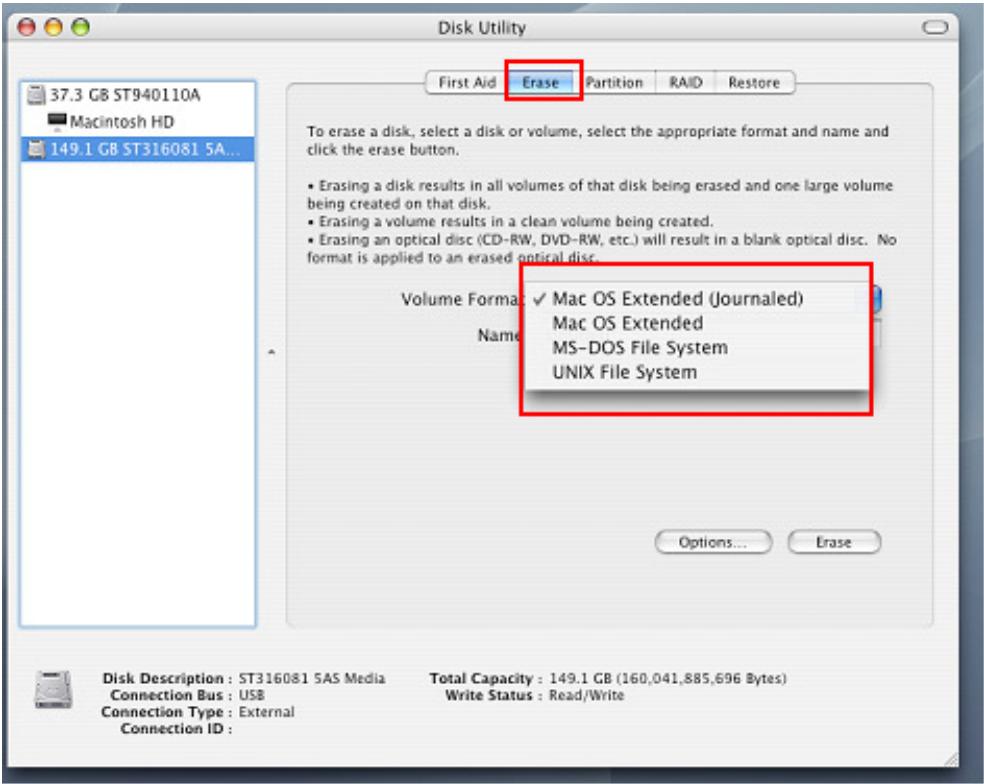

6. Choose the Volume Format you want (Mac OS Extended (journaled) is recommended).

eee Disk Utility a s A " " [137.3 cs sr9401104 mie Per Re | mic ones AD ‘To erase a disk, select a disk or volume, select the appropriate format and name and dick the erase button + Erasing à disk resus In al volumes of that disk being erased and one large volume being created on that disk, Erasing à volume results in à clean volume being created. Erasing an optical disc (CD-RW, DVD-R, etc) will result in a blank optical disc. No foemat is applied 10 an erasad GnticaL Volume Forma} / Mac OS Extended (ournaled) Mac OS Extended 3 MS-DOS File System UNIX File System 4 Disk Description : 51316081 5AS Media Total Capacity : 149.1 GB (160,041,585,696 &ytes) Ë :us8 Write Status : Read/Write Connection Type : External

Figure 17: Select a Volume Format (file system)

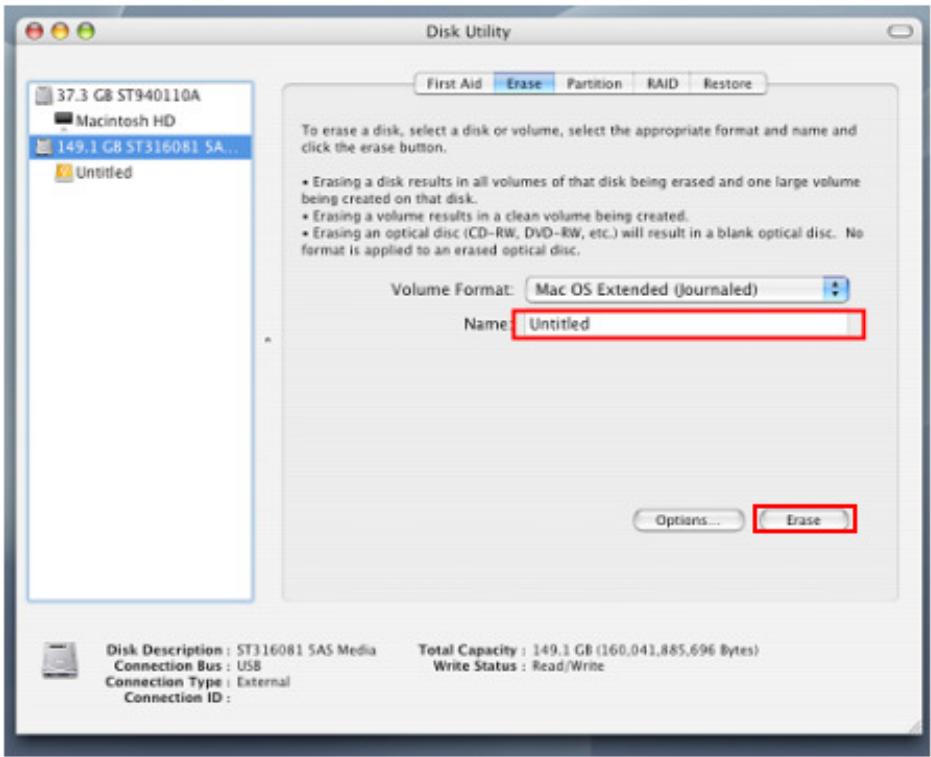

7. Input a name for your new drive (otherwise, your drive will be named “Untitled”)

8. Click the “Erase” button in the bottom right corner of the window

e Disk Unity e fire Aid DES rarmon | RAID | Restore D 373 ce sr9401104 | matacntosn #0 To erave à dk. select à du Ge volume, velect Une appropriate format and name and Citk 1e erase bumon. unsses + Erasmg à dk reste in a vohumes of rna disk Being erased and ane large vedume be createé on trat 43. + Era à voburne results in à cer voteme being created + Erasing an optical disc (CD-RM, DVO-W, en.) mil sesuh in à blank Optical disc. Ne format is app 0 an eraued optical Qc, Volume Format. | Mac OS Extended (oi E] Disk Description: ST316081 SAS Media Total Capacity : 149.1 GE 1160,042.885,696 bytes) Connection Bus : USB ‘We Status : Read /Wrne Connection Type : Enternai Figure 18: Name your drive (optional)

9. Click “Erase” again to confirm.

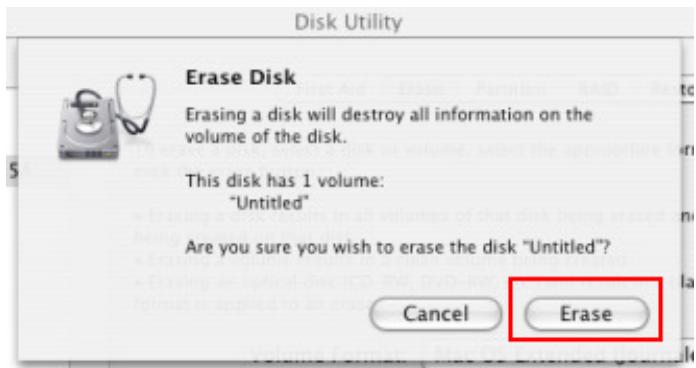

Erase Disk Erasing à disk will destroy all information on the volume of the disk This disk has 1 volume Untitled’ Are you sure you wish to erase the disk “Untitled”? Cancel Erase Figure 19: “Erase Disk” confirmation window

10. Click the “Close” button to finish and exit.

1. Plug the StoreJet 25 into an available USB port on your Linux computer.

2. Unplug all other USB storage devices from your computer. This is to prevent accidental

format of a different USB drive. Type fdisk /dev/sda (replace /dev/sda with your actual USB device) Press p Press n Press w Type mkfs.ext3 /dev/sda1 Go to /etc/fstab and add: /dev/sda1 /mnt/usbdrive auto user,noauto 0 0 © © N ® on » © Type mkdir /mnt/usbdrive

Troubleshooting | If a problem occurs with your StoreJet 25, please first check the information listed below before taking your StoreJet 25 in for repair. If you are unable to solve a problem from the following hints, please consult your dealer, service center, or local Transcend branch office. We also have FAQ and Support services on our website. m My operating system cannot detect the StoreJet 25 Check the following:

1. ls your StoreJet 25 properly connected to the USB port? If not, unplug it and plug it in again.

If it is properly connected, try using another available USB port.

2. Are you using the USB cable that came in the StoreJet 25 package? If not, try using the

Transcend USB Y-cable to connect the StoreJet to your computer.

3. The StoreJet 25 is powered directly via a computer USB port; however, the power supplied

by the USB port on some older computers is below the 5V DC required to power the StoreJet 25. In this instance, please connect the spare large end of the USB Y cable to a second USB port on your computer. This will provide the additional power necessary to run the drive.

Spare USB connector provides additional power.

4. Is your StoreJet 25 connected to a Mac® keyboard? If so, unplug it and plug it into an

available USB port on your Mac® desktop computer.

5. Is the USB port enabled? If not, refer to the user's manual of your computer (or motherboard)

to enable it. B My computer does not recognize the StoreJet 25

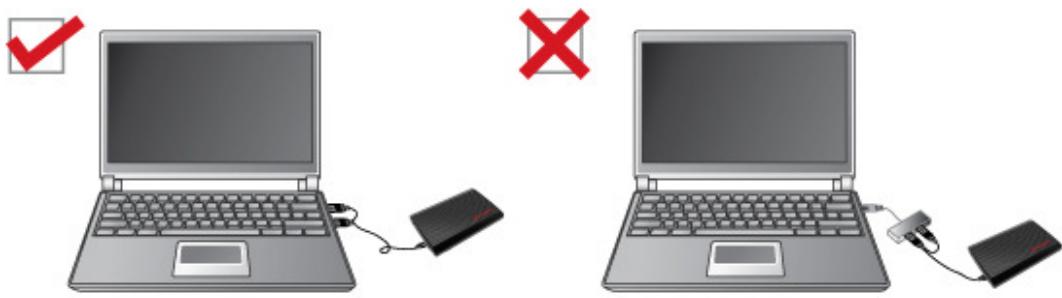

1. A single USB port may not provide enough power for the StoreJet 25 to function. Make sure

you plug both large ends of the USB cable directly into your computer's USB ports.

2. Avoid connecting the StoreJet 25 through a USB HUB.

Figure 20: Plug both USB connectors directly to your computer B The StoreJet 25 does not Power-ON Check the following:

1. Ensure that the StoreJet 25 is properly connected to the USB port(s) on your computer.

2. Ensure that the USB port is working properly. If not, try using an alternate USB port.

B | cannot detect the StoreJet 25 on my Mac If you installed a drive into the StoreJet 25P that was previously used in a Windows® computer, it is most likely formatted with NTFS, which is not compatible with Mac® OS. To store and backup data on your Mac® please follow the instructions on formatting the StoreJet 25 on a Mac®_ to convert the drive to Mac's HFS+ format. lf you plan to regularly use the drive with both Windows and Mac computers, we recommend formatting the drive to the FAT32 file system. Keep in mind that formatting the drive will erase all existing data on the drive. B | cannot detect the StoreJet 25 in Linux If you installed a drive into the StoreJet 25P that was previously used in a Windows® or Mac® computer, you may need to reformat the drive in order to use it with the Linux operating system. Please follow the instructions on formatting the StoreJet 25 in Linux. Remember that formatting the drive will erase all existing data on the drive.

StoreJet 25P Specifications | Size (Lx W xH) 127.4mm x 81.25mm x 14.5mm Weight (with hard drive) 158g Storage Media 2.5-inch SATA Hard Disk Drive Power Supply 5V DC supplied from the USB port(s) Max. Transfer Speed 480Mbits per second Operating Temperature 5°C (41°) to 55°C (131°F) Certificates CE, FCC, BSMI Warranty 3-years Ordering Information | Device Description Transcend P/N USB Power Adapter TS-PA2A
