USER MANUAL STOREJET 35T TRANSCEND

System Requirements 2

Safety Precautions 3

General Use 3
Setup. 3
Backing-Up and Storing Data 3
Power 3
Reminders 4

Product Overview 5

Connecting to a Computer 6

Connecting to Windows®, Mac® or Linux® Computers 6
One Touch Auto-backup Button 7
TurboHDD USB Mode 8

Disconnecting from a Computer | 10

Windows 10
MacOS 10
Linux 11

Formatting the Hard Drive 12

Windows® 2000/XP 12
Windows® 7/Vista 14
Mac OS. 16
Linux 18

Troubleshooting 19

Specifications 21

Ordering Information 21

Recycling & Environmental Considerations 22

Transcend Limited Warranty 23

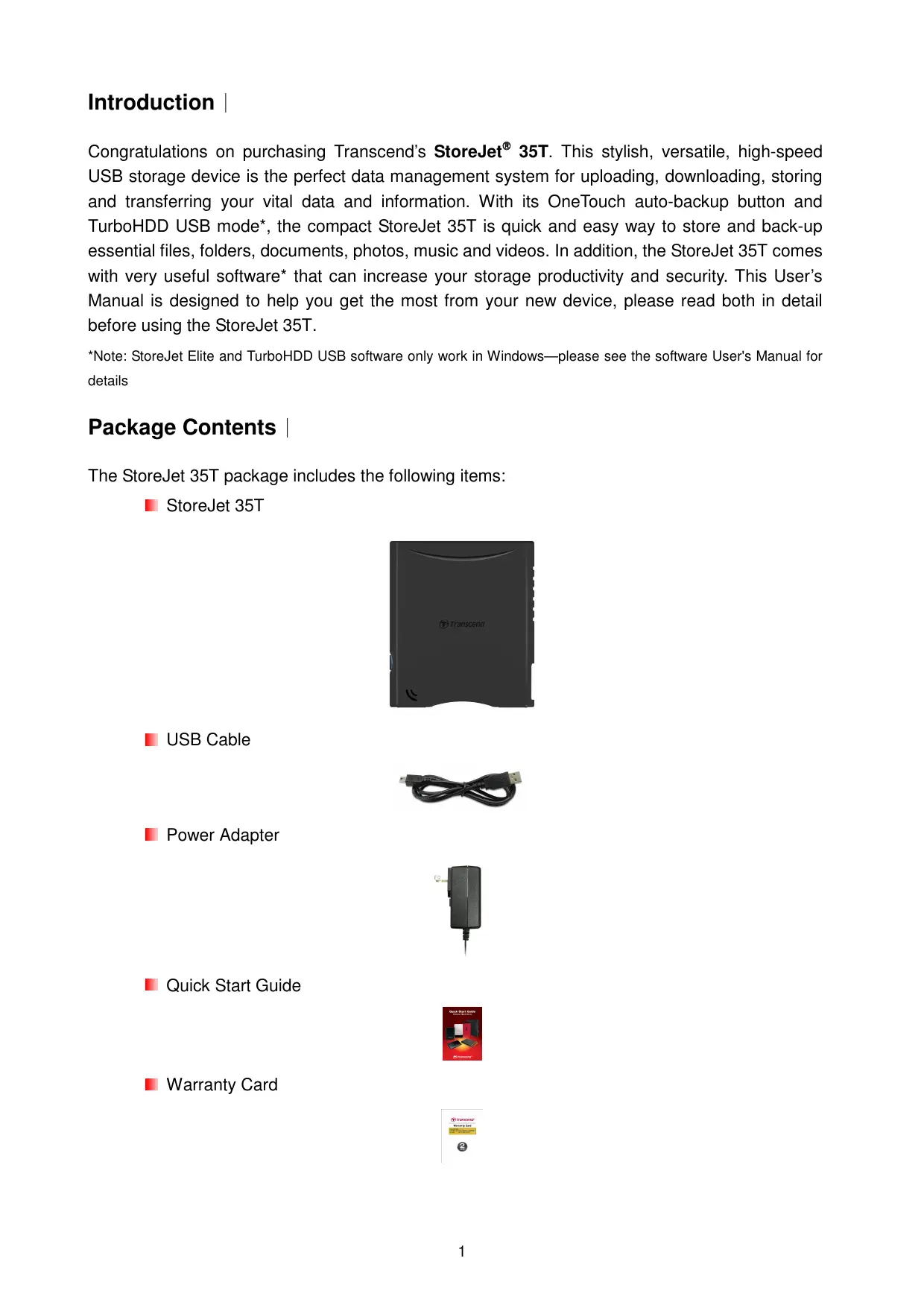

Introduction

Congratulations on purchasing Transcend's StoreJet® 35T. This stylish, versatile, high-speed USB storage device is the perfect data management system for uploading, downloading, storing and transferring your vital data and information. With its OneTouch auto-backup button and TurboHDD USB mode, the compact StoreJet 35T is quick and easy way to store and back-up essential files, folders, documents, photos, music and videos. In addition, the StoreJet 35T comes with very useful software that can increase your storage productivity and security. This User's Manual is designed to help you get the most from your new device, please read both in detail before using the StoreJet 35T.

*Note: StoreJet Elite and TurboHDD USB software only work in Windows—please see the software User's Manual for details

Package Contents

The StoreJet 35T package includes the following items:

StoreJet 35T

USB Cable

Power Adapter

Quick Start Guide

Warranty Card

Features

Space-saving upright design - no stand needed
TurboHDD USB mode increases file transfer speed
OneTouch auto-backup button
256-bit AES file & folder encryption*
Power-saving sleep mode
Pre-formatted for extra convenience
Fanless low-noise operation
High-speed 480Mbps USB 2.0 interface
Easy Plug and Play installation - no drivers required
Extra-large storage capacity for backing-up files
Includes StoreJet Elite backup and security software
Two-color LED indicator

*Software installation required to use these features

System Requirements

Desktop or notebook computer with a working USB port.

One of following operating systems:

• Windows® 2000
• Windows® XP
• Windows® Vista
• Windows® 7
  Mac® OS 9.0 or later
  Linux® Kernel 2.4 or later

Safety Precautions

These usage and safety guidelines are IMPORTANT! Please follow them carefully.

General Use

• Unpack the contents of the StoreJet 35T package carefully.
• Avoid exposing your StoreJet 35T to extreme temperatures above 55^ or below 5^ during operation.
• Never drop your StoreJet 35T.
• Never allow your StoreJet 35T to come in contact with water or any other liquids.
• Never use a damp/wet cloth to wipe or clean the exterior case.
• Do not user or store your StoreJet 35T in any of the following environments:

Direct sunlight
o Next to an air conditioner, electric heater or other heat sources
In a closed car that is in direct sunlight
In an area with strong magnetic fields or excessive vibration

Setup

• Place the StoreJet 35T on a flat, stable surface where it cannot be accidentally kicked or bumped
• Ensure that none of the ventilation holes on the outer case are blocked or covered.
• Only use the Mini USB to USB A-Type cable that came with the StoreJet 35T to connect it to a computer, and always ensure that the cable you are using is in good condition. NEVER use a cable that is frayed or damaged.

Backing-Up and Storing Data

• Transcend does NOT take any responsibility for data loss or damage during operation. If you decide to store data on your StoreJet 35T we strongly advise that you regularly backup the data to a computer, or other storage medium.
• To ensure High-Speed USB 2.0 data transfer rates when using your StoreJet 35T with a computer, please check that the computer has the relevant USB drivers. If you are unsure about how to check this, please consult the computer or motherboard User's Manual for USB driver information.

Power

• The StoreJet 35T is powered from your home's power outlet using the included Power Adapter. Do not use any other power adapter with the StoreJet 35T.
• Ensure nothing is resting on the power or USB cables and that the cables are not located where they can be tripped over or stepped on.

Reminders

• Always follow the procedures in the "Disconnecting from a Computer" section to remove the StoreJet from your computer.
• Never switch the StoreJet 35T between "Turbo USB Mode" and "Normal USB Mode" while transferring data.

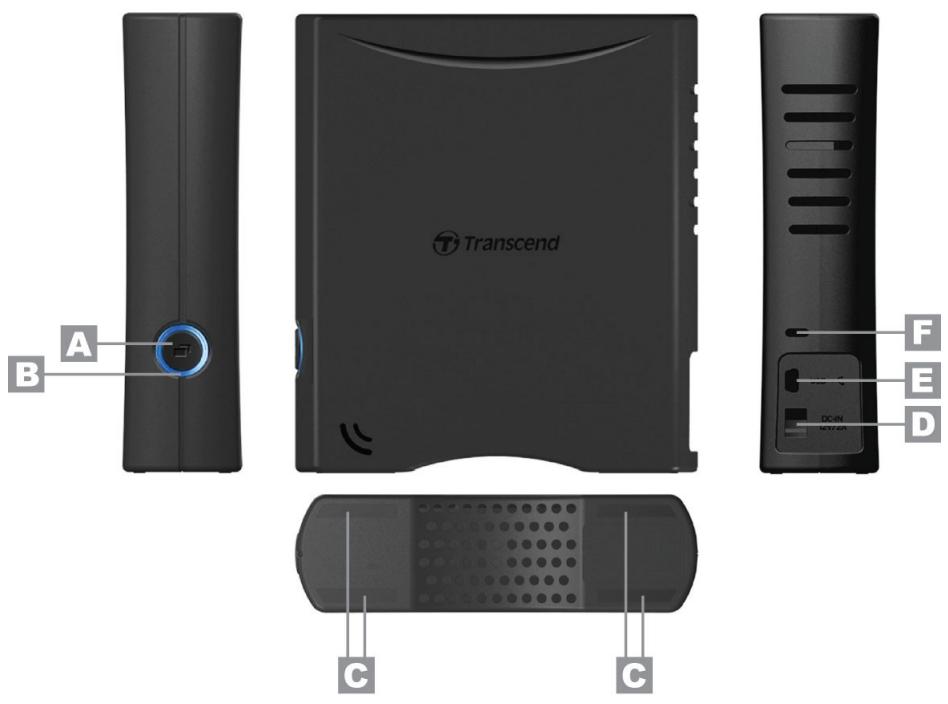

A	OneTouch Backup Button
B	Dual Color LED Indicator
C	Anti-slip Rubber Feet
D	DC Power Input Jack
E	USB Port
F	Security Lock Attachment

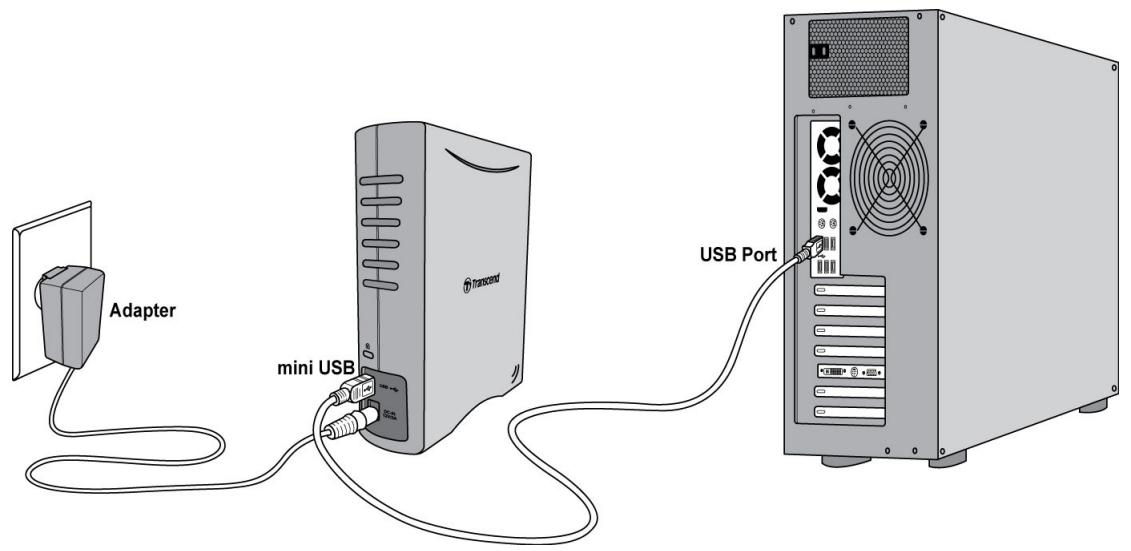

Connecting to Windows®, Mac® or Linux® Computers

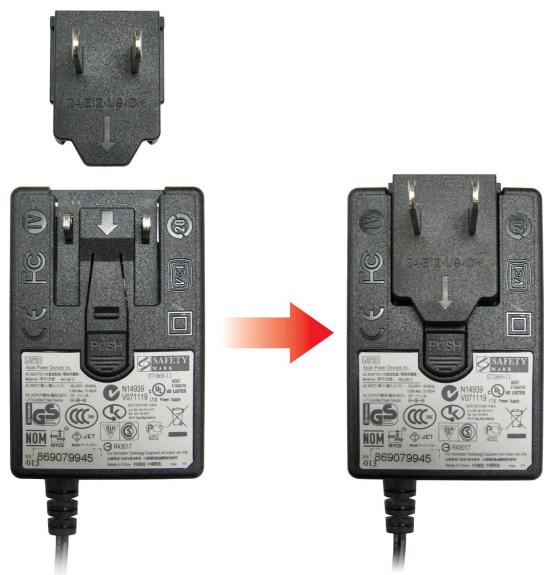

1. Attach the included 2-pin or 3-pin (country/region dependant) power connector to the USB Power Adapter by sliding it until it clicks into place.

1. Connect the Power Adapter cord to the round-shaped DC IN jack on the back of the StoreJet 35T and plug the Power Adapter into your home's power outlet.
2. Plug the small end of the USB Cable into the Mini USB port on the StoreJet 35T.
3. Connect the large end of the cable into an available USB port on your desktop or notebook computer.

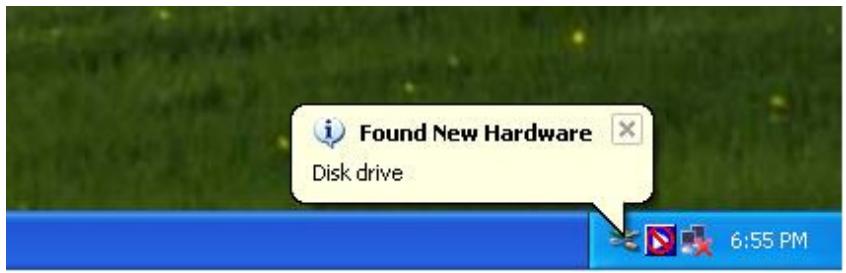

1. When the StoreJet 35T is successfully connected to a computer, its LED will light up. In Windows, a new Local Disk drive with a newly-assigned drive letter will appear, and a Removable Hardware icon will appear on the Windows System Tray. The StoreJet 35T's internal hard drive comes pre-formatted to FAT32, which is compatible with most computer systems, including Windows, Mac, Linux, and more.

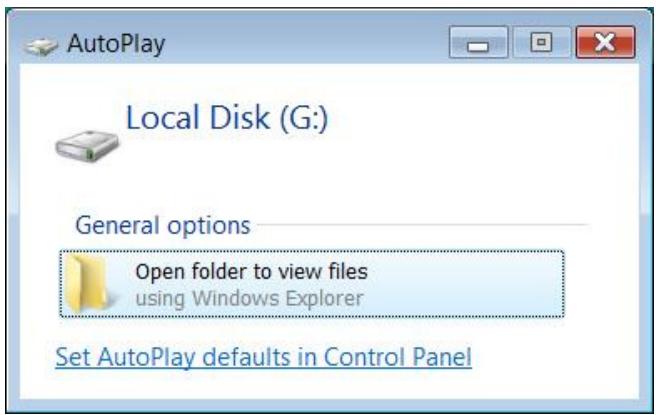

*G: is an example drive letter, the drive letter in your Windows computer may differ

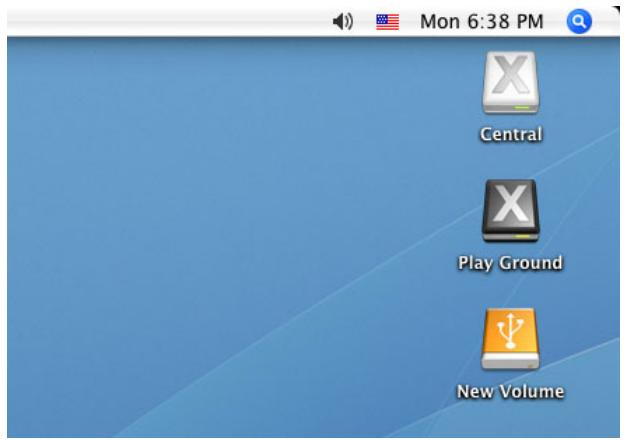

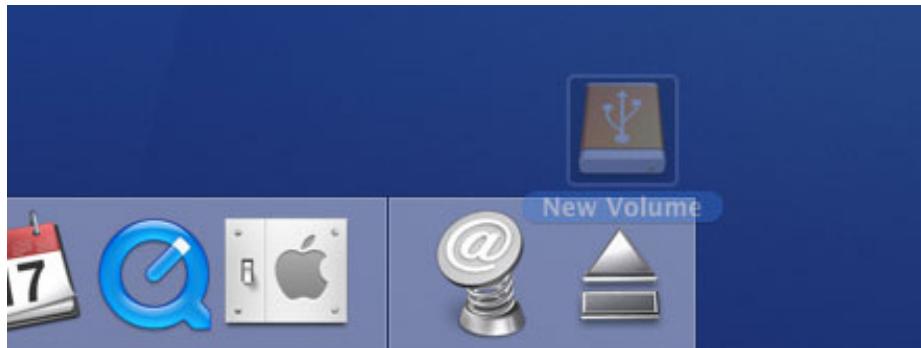

Note: "New Volume" is an example drive. The drive name on your Mac computer may differ

1. Once connected, you can use the StoreJet 35T as an external hard drive to transfer data to and from your computer. Simply drag and drop files or folders onto the Local Disk drive letter or volume that represents the StoreJet 35T.

One Touch Auto-backup Button

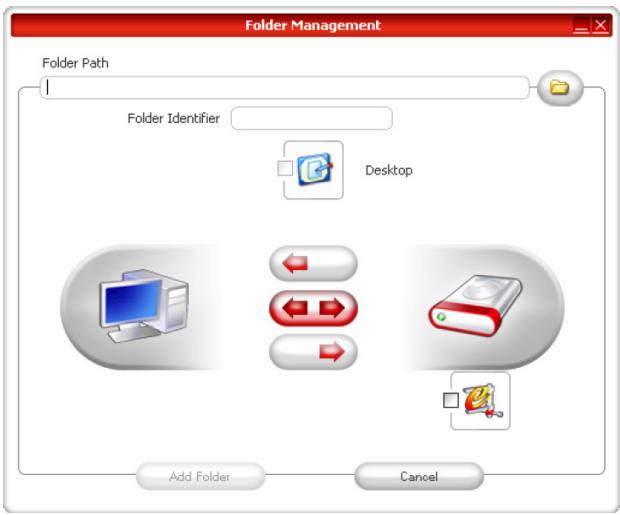

The StoreJet 35T is equipped with a convenient One Touch auto-backup button that you can use to instantly backup and synchronize your data. Installing the StoreJet Elite software enables the Auto-backup button, along with useful data-management tools and 256bit AES file security. Simply run the "sjelite3.exe" file in the root directory of your StoreJet drive to get started. StoreJet Elite is also available for download on the Transcend website.

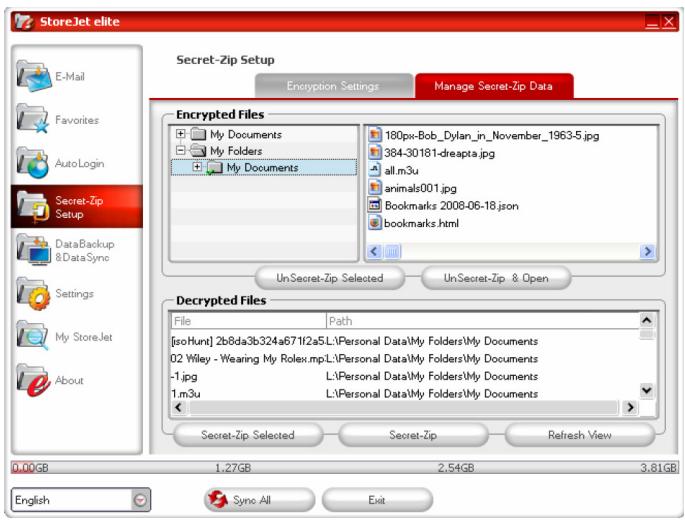

StoreJet®elite

Backup and Synchronize Files & Folders

Protect Data with Unbreakable 256-bit Security

Just click the conveniently located OneTouch auto-backup button on the front of the StoreJet 35T to perform an express synchronization of your important files and folders.

Compress your saved files to maximize memory storage space and/or protect your data using a password with powerful 256-bit AES encryption. With StoreJet Elite, you can protect files while saving space at the same time.

(Pleasesee theStoreJet Elite Software User's Manual for detailed instructions on how to use StoreJet Elite)

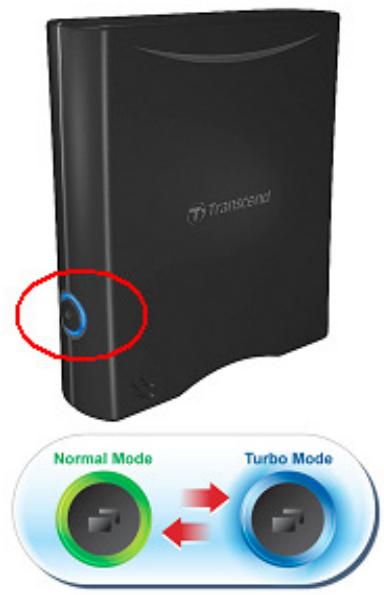

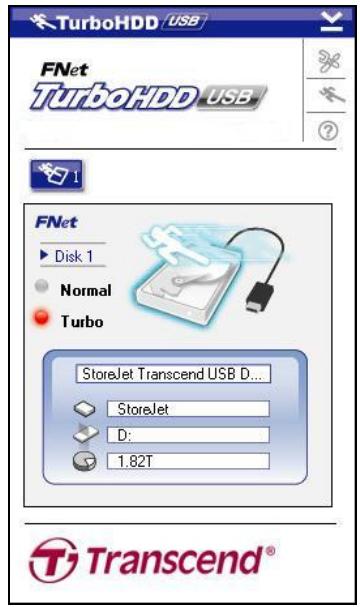

TurboHDD USB Mode

The StoreJet 35T features a special high-speed USB mode that can speed up file transfers. To enable TurboHDD USB, you must install the "TurboHDD USB" program located in the "TurboHDD USB" directory on your StoreJet drive. Once installed, double-click the "TurboHDD" icon in the Windows system tray and select the TURBO icon. The StoreJet 35T LED will change colors when in TurboHDD USB mode. (S/N of TurboHDD USB is on Warranty Card)

NEVER disconnect the StoreJet from a Computer when its LED is flashing.

Windows®

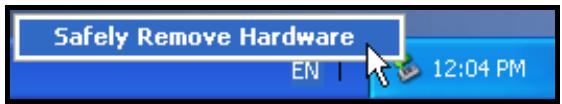

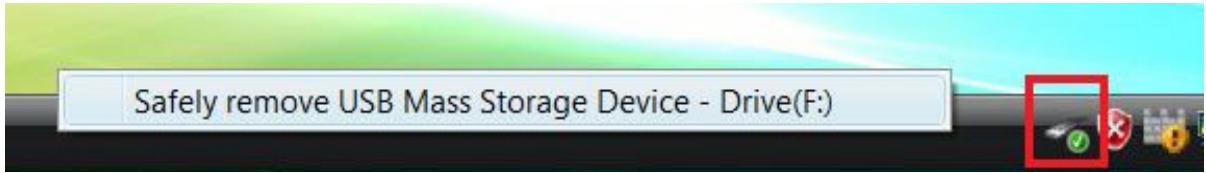

1. Select the Hardware icon on the system tray.
2. The Safely Remove Hardware pop-up window will appear. Select it to continue.

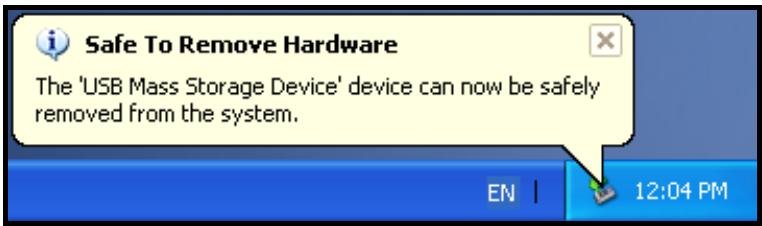

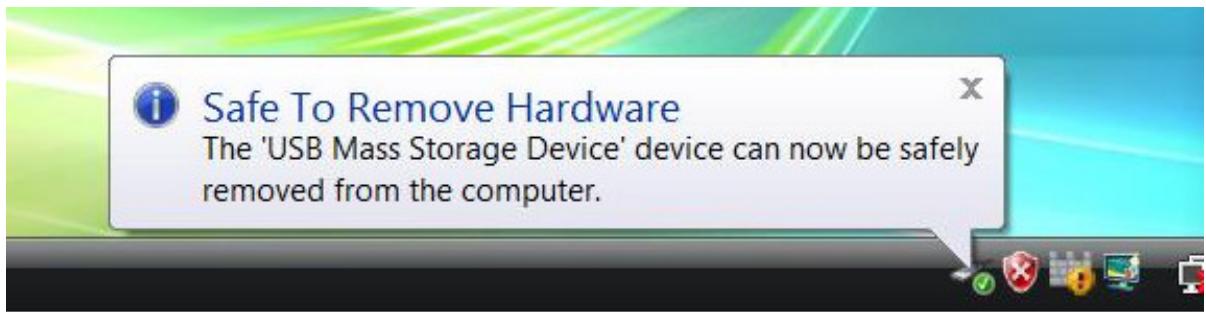

1. A window will appear stating, "The 'USB Mass Storage Device' device can now be safely removed from the system."

WARNING! To prevent data loss, always use the Safe Removal procedure to remove the StoreJet in Windows®

Mac® OS

Drag and drop the Disk icon that represents your StoreJet 35T into the Trashcan. Then unplug your StoreJet 35T from the USB port.

Linux®

Execute umount /mnt/Storejet to un-mount the device. Then unplug your StoreJet 35T from the USB port.

Formatting the Hard Drive

The StoreJet 35T comes pre-formatted to the FAT32 file system, which is compatible with virtually any computer system, including all versions of Windows®, Mac®, and Linux®. If you plan to use your StoreJet drive on various different types of computers, game consoles, or media playback devices, we recommend keeping the existing FAT32 file system. However, if you plan to store large files that exceed 4GB in size, you will need to format the drive to a different file system.

WARNING! Formatting the disk will erase all of the data on your StoreJet 35T.

To keep existing data, you will need to use a Windows® or Mac® computer that can detect the StoreJet drive to make a backup copy of all essential files.

Windows® 2000/XP

Note: You must have Administrator Rights to format in Windows 2000, XP.

1. Download the StoreJet Format Utility from Transcend's online Download Center at http://www.transcendusa.com/Support/DLCenter/index.asp (the software can be located by selecting "Storage Devices -> StoreJet Drives -> any StoreJet product -> any StoreJet model)
2. When the download is complete, extract the downloaded ZIP file to your computer's hard drive (not the StoreJet 35T) and run the StoreJetFormatter.exe application.
3. Plug the StoreJet 35T into an available USB port on a Windows 2000/XP computer.
4. Unplug all other USB storage devices from your computer. This is to prevent accidental format of a different USB drive.
5. In the StoreJet Format Utility window, click the "Refresh" button.
6. The program will automatically detect the StoreJet 35T drive.

1. Press "Start."

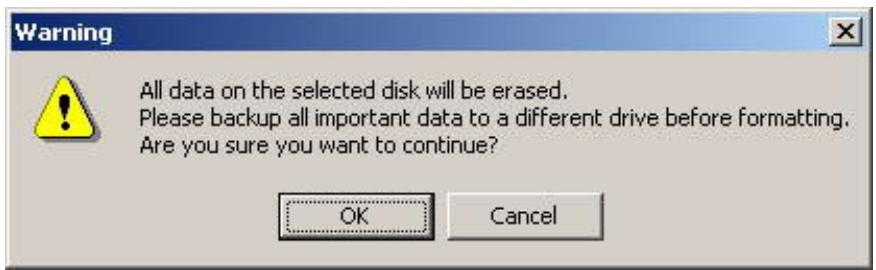

1. A confirmation window will appear. Press OK to begin formatting the drive.

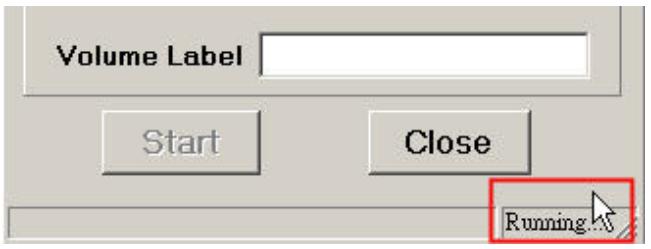

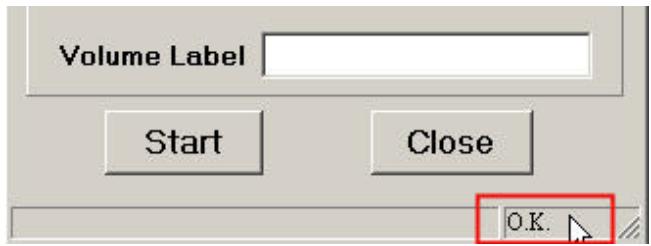

1. The format process may take a few minutes. When complete, an "O.K." message will appear in the bottom right hand corner of the window.

1. Click the "Close" button to finish and exit.

Windows® 7/Vista

Note: You must have Administrator Rights to format in Windows Vista or Windows 7.

1. Download the StoreJet Format Utility from Transcend's online Download Center at http://www.transcendusa.com/Support/DLCenter/index.asp (the software can be located by selecting "Storage Devices -> StoreJet Drives -> any StoreJet product -> any StoreJet model)
2. When the download is complete, extract the downloaded ZIP file to your computer's hard drive (not the StoreJet 35T).
3. Plug the StoreJet 35T into an available USB port on your Windows Vista® computer.
4. Unplug all other USB storage devices from your computer. This is to prevent accidental format of a different USB drive.

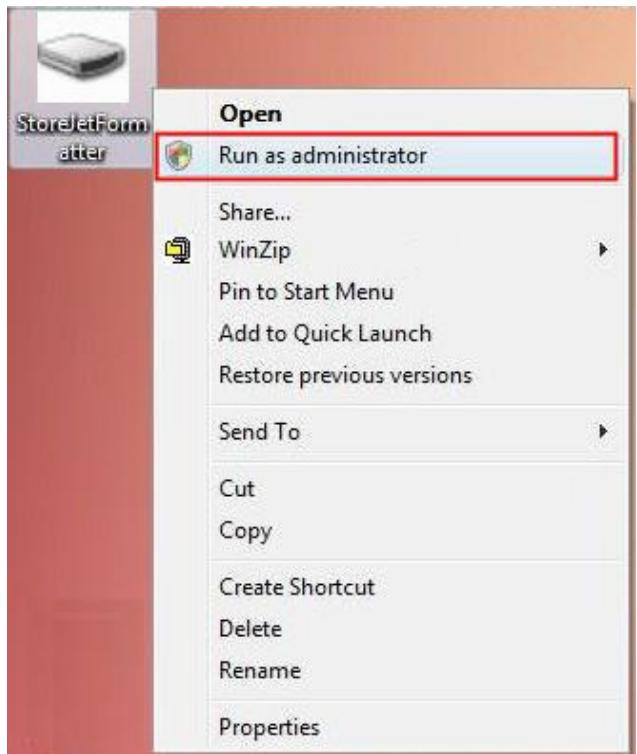

5. Right-click "StoreJetFormatter.exe" and select "Run as Administrator."

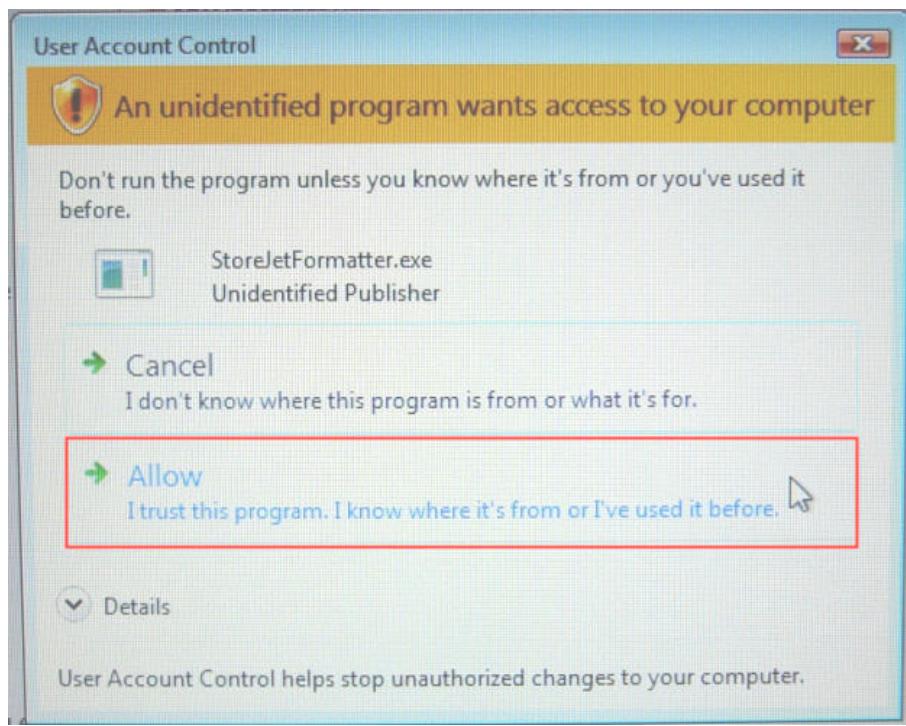

1. The User Account Control window will appear. Select "Allow" to continue.

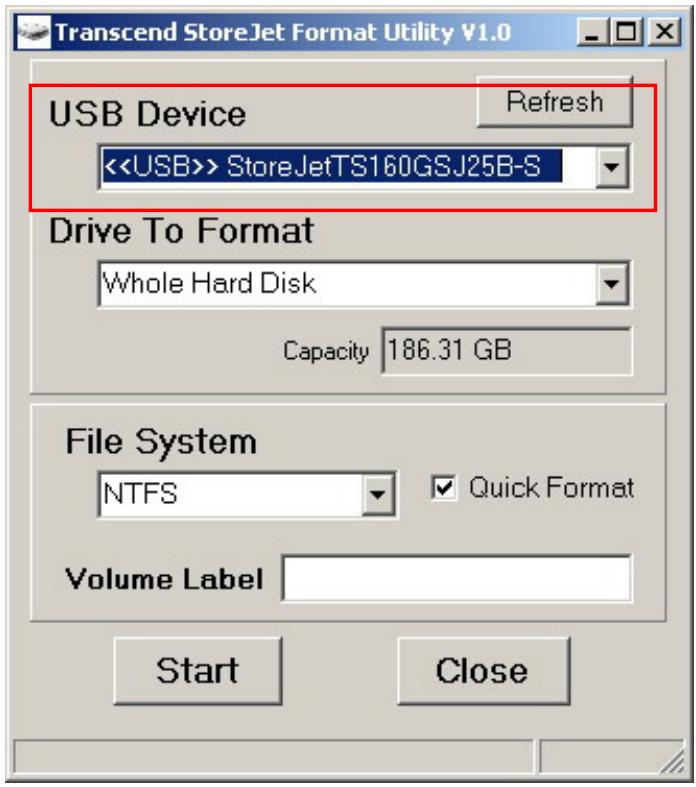

1. In the StoreJet Format Utility window, click the "Refresh" button.
2. The program will automatically detect the StoreJet 35T drive.

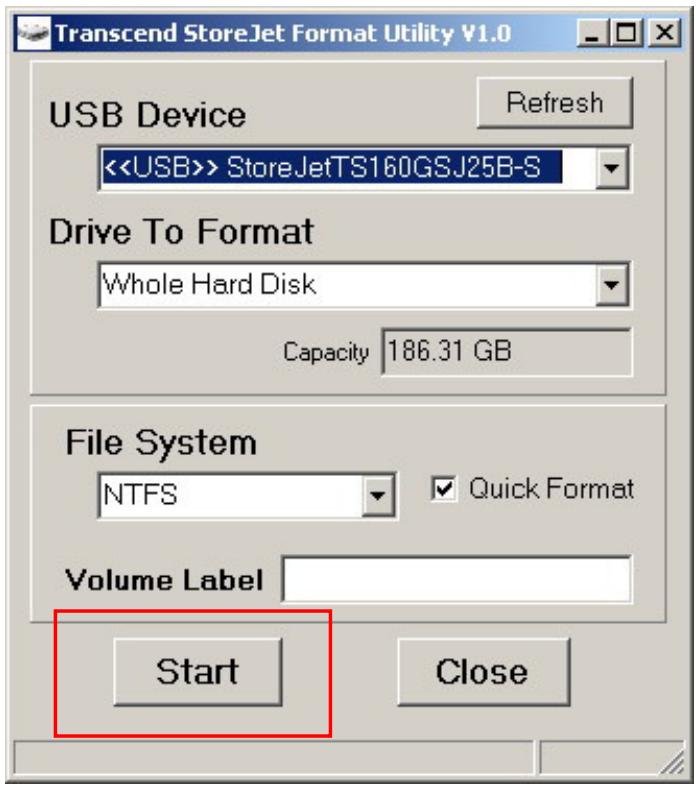

1. Press "Start".

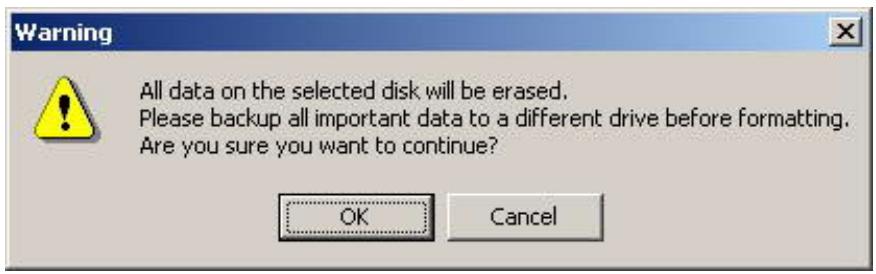

1. A confirmation window will appear. Press OK to begin formatting the drive.

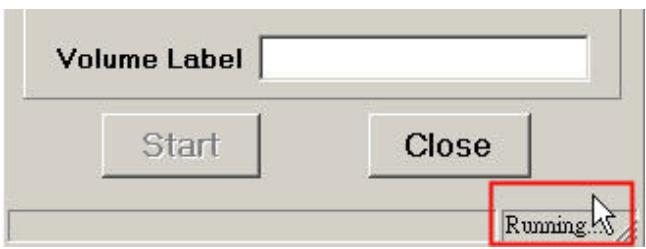

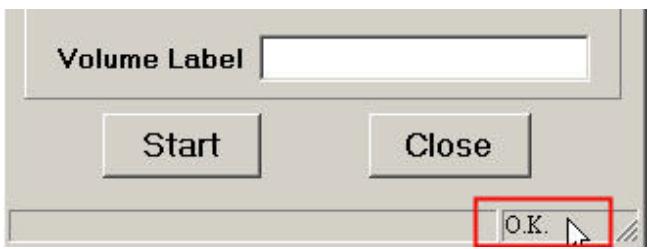

1. The format process may take a few minutes. When complete, an "O.K." message will appear in the bottom right-hand corner of the window.

1. Click the "Close" button to finish and exit.

Mac® OS

1. Plug the StoreJet 35T into an available USB port on your MAC computer.
2. Unplug all other external storage devices from your computer. This is to prevent accidental format of a different drive.

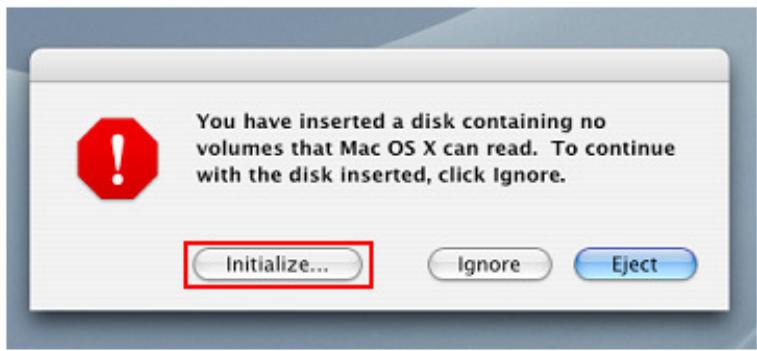

3. If a message windows like the one below appears, Click the "Initialize" button. If no message appears, open "Disk Utility" under "Applications > Utilities"

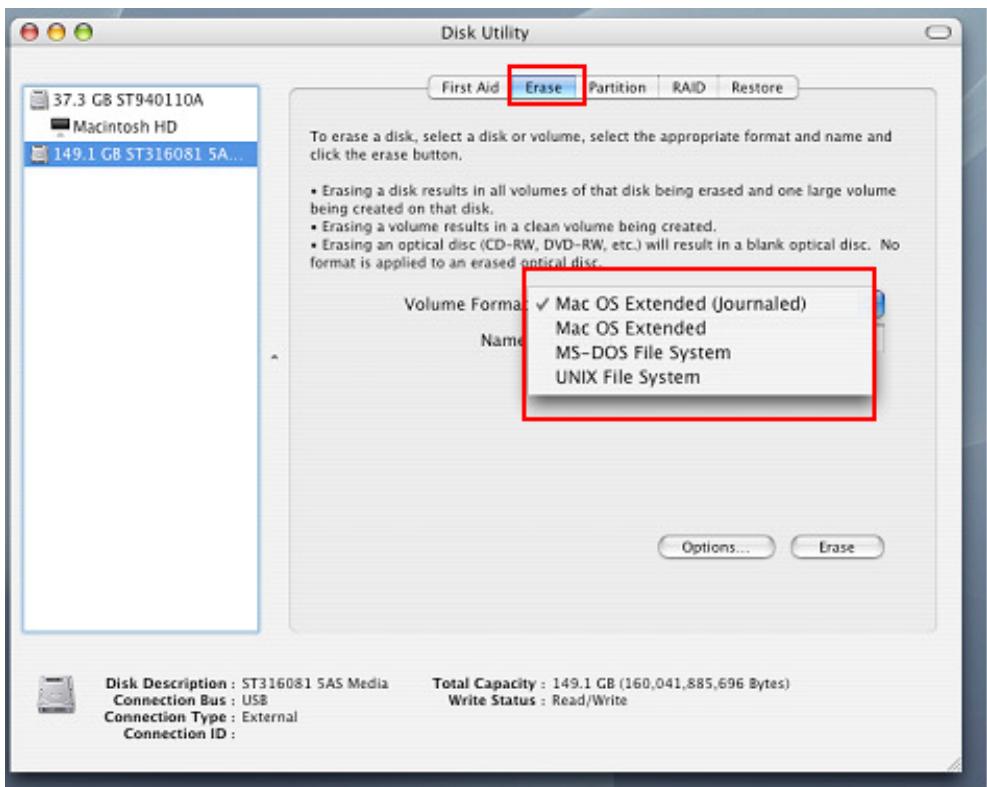

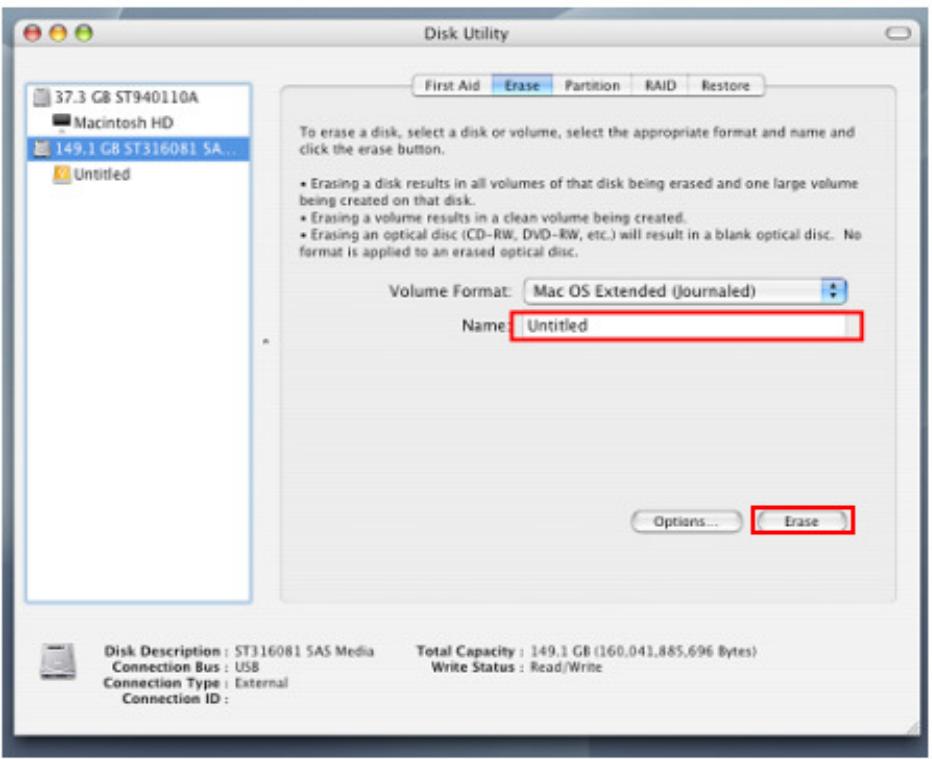

1. In the Disk Utility window, choose your StoreJet 35T from the list on the left.
2. Select the "Erase" tab.
3. Choose the Volume Format you want (Mac OS Extended (journal) is recommended).

1. Input a name for your new drive (otherwise, your drive will be named "Untitled")
2. Click the "Erase" button in the bottom right corner of the window

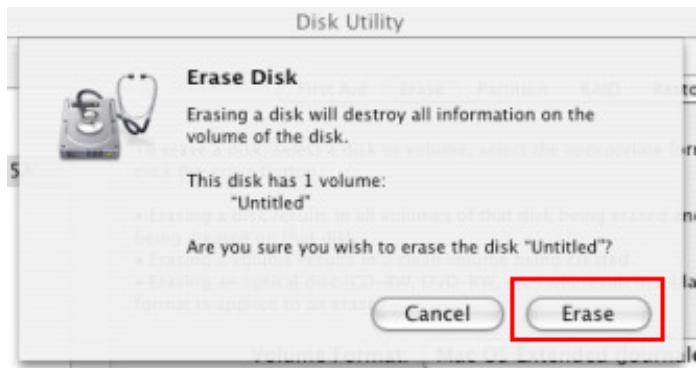

1. Click "Erase" again to confirm.

1. Click the "Close" button to finish and exit.

Linux®

1. Plug the StoreJet 35T into an available USB port on your Linux computer.
2. Unplug all other USB storage devices from your computer. This is to prevent accidental format of a different USB drive.
3. Type fdisk /dev/sda (replace /dev/sda with your actual USB device)
4. Press p
5. Press n
6. Press w
7. Type mkfs.ext3 /dev/sda1
8. Go to /etc/fstab and add: /dev/sda1 /mnt/usbdrive auto user,noauto 0 0
9. Type mkdir /mnt/usbdrive
10. Type mount /mnt/usbdrive

Troubleshooting

If a problem occurs with your StoreJet 35T, please first check the information listed below before taking your StoreJet 35T in for repair. If you are unable to remedy a problem after trying the following suggestions, please consult your dealer, service center, or local Transcend branch office. We also have FAQ and Support services on our website at www.transcend.com.tw.

My operating system cannot detect the StoreJet 35T

Check the following:

1. Is your StoreJet 35T properly connected to the USB port? Unplug the StoreJet 35T from your computer's USB port, wait for 10 seconds, and then plug it in again. If it is properly connected and nothing happens, try using another available USB port.
2. Ensure the Power Adapter cable is securely connected to the StoreJet 35's DC IN jack, and that the Power Adapter is also plugged into a working AC power outlet.
3. Are you using the USB cable that came in the StoreJet 35T package? If not, try using the Transcend supplied USB cable to connect the StoreJet to your computer.
4. Is your StoreJet 35T connected to a Mac® keyboard? If so, unplug it and plug it into an available USB port on your Mac® desktop computer.
5. Is the USB port enabled? If not, refer to the user's manual of your computer (or motherboard) to enable it.

The StoreJet 35T does not Power On

Check the following:

1. Ensure the Power Adapter cable is securely connected to the StoreJet 35's DC IN jack, and that the Power Adapter is also plugged into a working AC power outlet.
2. Ensure that the StoreJet 35T is properly connected to the USB port on your computer.
3. Ensure that the USB port is working properly. If not, try using an alternate USB port.

I cannot copy large files to the StoreJet 35T

1. Is there enough available disk space?
2. Is the file larger than 4GB? If so, please see below:

The StoreJet 35T default file system is FAT32, which allows it to be recognized on most types of computers, game consoles and media playback devices. However, the FAT32 file system does not support large files that exceed 4GB in size. If you plan to store large files that are larger than 4GB, you will need to convert the drive to a different file system such as NTFS. Please see the " Formatting the Hard Drive" section of this manual for instructions how to re-format the StoreJet 35T.

I'm having problems with the StoreJet 35T on my Mac®

If you previously formatted your StoreJet in Windows® 2000, XP, or Vista, it is most likely

formatted with the Windows NTFS file system, which may not be 100% compatible with Mac OS. To store and backup data on your Mac please follow the instructions on formatting to convert the drive to Mac OS file system. If you plan to regularly use the drive with both Windows and Mac computers, we recommend formatting the drive to the FAT32 file system (the StoreJet 35T comes pre-formatted with FAT32 from the factory). Keep in mind that formatting the drive will erase all existing data on the drive.

Note: To keep existing data, you will need to use a Windows or Mac computer that can detect the StoreJet drive to make a backup copy of all essential files.

I cannot detect the StoreJet 35T in Linux®

If you previously formatted the StoreJet 35T a Windows® or Mac® computer, it is most likely formatted with a file system that is not compatible with Linux®. To solve this problem, please follow the instructions on formatting the StoreJet 35T in Linux. However, please be aware that formatting the drive will erase all existing data on the drive.

Note: To keep existing data, you will need to use a Windows or Mac computer that can detect the StoreJet drive to make a backup copy of all essential files.

StoreJet® 35T

Specifications

Size (L x W x H)	152.40mm ×44.80mm ×172.40mm
Weight	1040g
Storage Media	3.5" SATA Hard Disk Drive
Power Supply	AC input: 100V-240VDC input: 12V/2A via Switching Power Adapter
Max. Transfer Speed	480Mbits per second
Operating Temperature	5°C (41°F) to 55°C (131°F)
Certificates	CE, FCC, BSMI
Warranty Period	3 years

Ordering Information

Device Description	Capacity	Transcend P/N
StoreJet 35T	1TB	TS1TSJ35T
StoreJet 35T	1.5TB	TS15TSJ35T
StoreJet 35T	2TB	TS2TSJ35T

Recycling & Environmental Considerations

Recycling the Product (WEEE): Your product is designed and manufactured with high quality materials and components, which can be recycled and reused. When you see the crossed-out wheel bin symbol attached to a product, it means the product is covered by the European Directive 2002/96/EC:

Never dispose of your product with other household waste. Please inform yourself about the local rules on the separate collection of electrical and electronic products. The correct disposal of your old product helps prevent potential negative consequences on the environment and human health.

Battery Disposal: Your product contains a built-in rechargeable battery covered by the European Directive 2006/66/EC, which cannot be disposed of with normal household waste.

Please inform yourself about the local rules on separate collection of batteries. The correct disposal of batteries helps prevent potentially negative consequences on the environment and human health.

For products with non-exchangeable built in batteries: The removal of (or the attempt to remove) the battery invalidates the warranty. This procedure is only to be performed at the end of the product's life.

Transcend Limited Warranty

"Above and Beyond" is the standard we set ourselves for customer service at Transcend. We consistently position ourselves to be significantly above the industry norm, which is all part of our commitment to Customer Satisfaction.

Please do not break or remove the warranty sticker on your Transcend products, as this will void your product warranty.

All Transcend information, Inc. (Transcend) products are warranted and tested to be free from defects in material and workmanship and to conform to the published specifications. During the warranty period should your Transcend StoreJet 35T fail under normal use in the recommended environment due to improper workmanship or materials, Transcend will repair the product or replace it with a comparable one. This warranty is subject to the conditions and limitations set forth herein.

Duration of Warranty: The Transcend StoreJet 35T is covered by this warranty for a period of three (3) years from the date of purchase. Proof of purchase including the date of purchase is required to collect on the warranty. Transcend will inspect the product and decide whether to repair or replace it. Transcend reserves the right to provide a functional equivalent product, or a refurbished replacement product.

Limitations: This warranty does not apply to product failure caused by accidents, abuse, mishandling, improper installation, alteration, acts of nature, improper usage, or problems with electrical power. In addition, opening or tampering with the product casing, or any physical damage, abuse or alteration to the product's surface, including all warranty or quality stickers, product serial or electronic numbers will also void the product warranty. Transcend is not responsible for recovering any data lost due to the failure of a hard drive device. Transcend's StoreJet 35T must be used with devices that conform to the recommended industry standards. Transcend will not be liable for damages resulting from a third party device that causes the Transcend StoreJet 35T to fail. Transcend shall in no event be liable for any consequential, indirect, or incidental damages, lost profits, lost business investments, lost goodwill, or interference with business relationships as a result of lost data. Transcend is also not responsible for damage or failure of any third party equipment, even if Transcend has been advised of the possibility. This limitation does not apply to the extent that it is illegal or unenforceable under applicable law.

Disclaimer: The foregoing limited warranty is exclusive. There are no other warranties, including any implied warranty of merchantability or fitness for a particular purpose. This warranty is not affected in any part by Transcend providing technical support or advice.

Online Registration: To expedite the warranty service, please register your Transcend Product within 30 days of purchase.

Register online at http://www.transcendusa.com/TsClub/RegProduct.asp

• The specifications mentioned above are subject to change without notice.

Transcend Information, Inc.

The Transcend logo is a registered trademark of Transcend Information, Inc.
All logos and marks are trademarks of their respective companies.
