USER MANUAL TS30GSJ18 TRANSCEND
Package Contents 3
Features 4
System Requirements 4
Safety Precautions 4
Driver Installation 6
Driver Installation for Windows® 2000, XP and VISTA. 6
Driver Installation for Mac OS 9.0, or Later 6
Driver Installation for LinuxTM Kernel 2.4, or Later 6
Basic Operation. 7
Connecting to a Computer 7
Disconnecting from a Computer 8
Removing the StoreJet™ 1.8 in Windows® 2000, XP and VISTA 8
Removing the StoreJetTM 1.8 in Mac OS 9.0, or Later 8
Remove the StoreJetTM 1.8 in LinuxTM Kernel 2.4, or Later 8
8
Troubleshooting 10
Specifications 11
Ordering Information 11
Transcend Limited Warranty 12
Introduction
Congratulations on purchasing Transcend's StoreJet™ 1.8. This tiny, Ultra-portable, Hi-Speed USB storage device is the perfect data management system for uploading, downloading, storing and transferring your vital data and information. With a huge storage capacity and Hi-Speed USB 2.0 data transfer rates, the compact StoreJet™ 1.8 is ideal for storing and transferring your files, folders, documents, photos, music and e-work between it and any desktop, or notebook computer. In addition, the StoreJet™ 1.8 comes with a very useful software (please see the Software User's Manual for detailed instructions) pack that can (used in Windows®) increase your productivity. The User's Manual and accompanying Software User's Guide are written to help you get the most from your new device, please read both in detail before using the StoreJet™ 1.8.
Package Contents
- StoreJet™ 1.8
- Carry case
- Mini USB to USB A-Type Cable
CD
- Quick Instruction Guide
Features
Hi-Speed USB 2.0 compliant and USB 1.1 backwards compatible
- Easy Plug and Play installation
1.8" Hard Disk Drive
- Ultra-Portability
- Powered via the USB port. No external power or battery needed
Hi-Speed data transfer rates up to 480Mbits (60MB) per second
- LED indicates Power On and data transfer activity
Additional StoreJet Software pack: StoreJet™ elite (helps you manage your data)
System Requirements
To use the StoreJet™ 1.8 the following are required:
- Desktop or notebook computer with a working USB port
-
One of the following operating systems:
-
Windows® 2000
- Windows® XP
- Windows® Vista
Mac™ OS 9.0, or later
LinuxTM Kernel 2.4, or later
Safety Precautions
Please follow these usage and safety guidelines for your StoreJet™ 1.8.
Your StoreJet™ 1.8 is connected to a computer using a Mini USB (on the StoreJet™) to USB A-Type (on a Desktop, Notebook,) cable. Please ensure that you connect the cable ends to the ports correctly.
General Use
- During operation avoid exposing your StoreJet™ 1.8 to temperature extremes above 60^ , or below 5^ .
- Do not allow your StoreJet™ 1.8 to become damp or wet from water or any other liquids.
- Do not place your StoreJet™ 1.8 in a strong magnetic field.
- Do not place your StoreJet™ 1.8 in any unstable or vibrating environment.
- Do not use a damp/wet cloth to wipe or clean the exterior case.
- Do not use or store your StoreJet™ 1.8 in any of the listed environments:
Direct sunlight
o Next to an air conditioner, electric heater or other heat sources
In a closed car that is in direct sunlight
Backing Up Data
- Transcend does NOT take any responsibility for data loss, or damage during operation. We strongly advise you to regularly backup the data on your StoreJet™ 1.8 to a computer, or other storage medium.
- To ensure High-Speed USB 2.0 data transfer rates when using your StoreJet™ 1.8 with a computer, please check the computer has the relevant USB drivers. If you are unsure on how to check this, please consult the computer or motherboard User's manual for USB driver information.
When Transporting
- Do not pack your StoreJet™ 1.8 into luggage without the proper padded support. Other items in the luggage may damage your StoreJet™ 1.8 without the proper protection.
- Avoid squeezing your StoreJet™ 1.8 to prevent damage to the internal HDD.
- Avoid placing objects onto your StoreJet™ 1.8 to prevent damaging it.
Power
- The StoreJet™ 1.8 is powered directly via the USB port, no external power, or battery is required.
- Please use the Mini USB to USB A-Type cable that came with the StoreJet™ 1.8 to connect it to a computer and always ensure that the cable you are using is in a good state of repair, NEVER use a cable that is frayed or damaged.
- Before you connect your StoreJet™ 1.8 to the USB port of a desktop, or notebook computer, please check the port is capable of supplying the 5V DC that the StoreJet™ 1.8 requires to operate.
- Ensure nothing is resting on the USB cable and that the cable is not located where it can be tripped over or stepped on.
Driver Installation
Driver Installation for Windows® 2000, XP and VISTA
No drivers are required. These Windows operating systems have built-in drivers to support the StoreJet™ 1.8. Simply connect the StoreJet™ 1.8 to the computer using an available USB port and Windows will install the necessary files. A new Removable Disk drive with a newly assigned drive letter will appear in the My Computer window.
Driver Installation for Mac™ OS 9.0, or Later

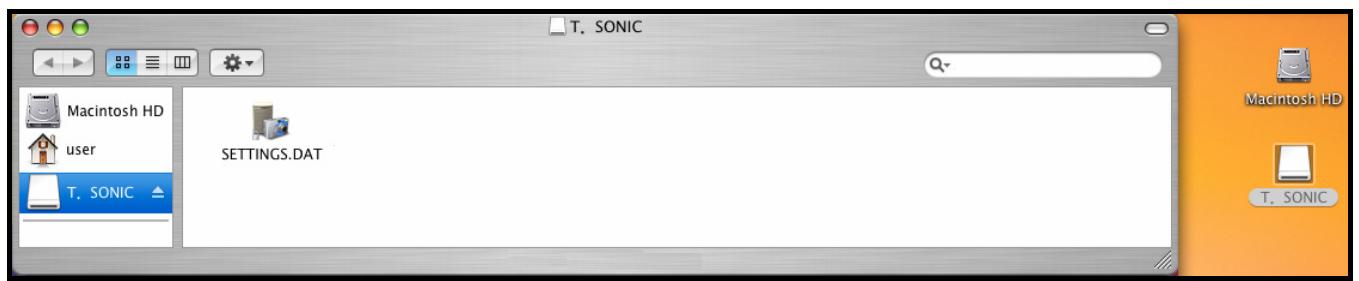

No drivers are required. Plug your StoreJet™ 1.8 into an available USB port and your computer will automatically detect it.
Driver Installation for Linux™ Kernel 2.4, or Later
No drivers are required. Plug your StoreJet™ 1.8 into a USB port and mount it.
- First create a directory for the StoreJet™ 1.8.
Example: mkdir /mnt/Storejet
- Then, mount the StoreJet™ 1.8.
Example: mount -a -t mdos /dev/sda1 /mnt/Storejet
Basic Operation
Connecting to a Computer
If you want to use the StoreJet™ 1.8 as an External Hard Disk Drive to upload/download data to, or from your computer you will need to connect it to a USB port on the computer using the provided Mini USB to USB A-Type cable.

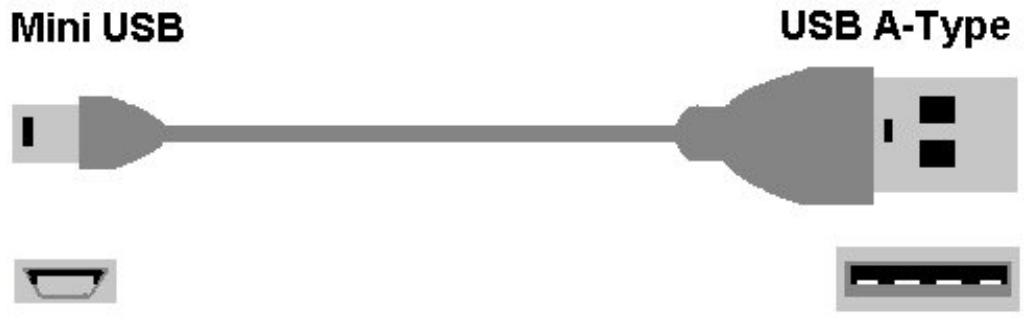

Figure 1. Mini USB to USB A-Type Cable

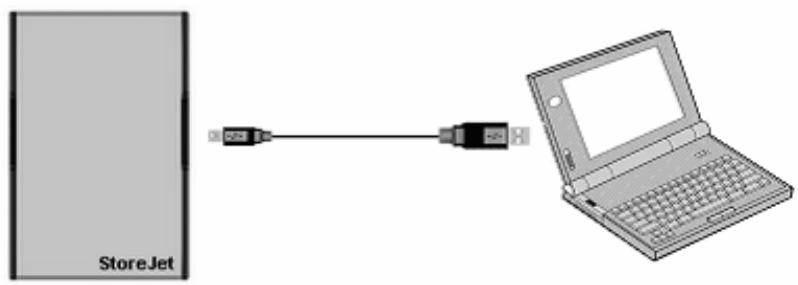

Figure 2. Connecting the StoreJet
- Connect the Mini USB end-connector of the cable to the Mini USB port on the StoreJet™ 1.8.
- Connect the normal USB A-Type end-connector of the cable to an available USB port on the computer.
- When the StoreJet™ 1.8 is successfully connected to the computer the StoreJet™'s Power LED will turn on and a new Removable Disk drive with a newly assigned drive letter will appear in the My Computer window. The StoreJet™ 1.8's internal hard drive comes formatted for NTFS.
- At this stage the StoreJet™ 1.8 is a Peripheral device and is charged via the computer's USB port. You can use the StoreJet™ 1.8 as an external hard drive in conjunction with your computer to upload/download data. You can download data to the StoreJet™ 1.8 simply by dragging and dropping files, or folders onto the Removable Disk drive that corresponds to the StoreJet™ 1.8.
- Please be aware that if you are using the StoreJet™ 1.8 with a notebook computer it is better to run the notebook off AC power. The reason for this is that the notebook's battery power will run down more quickly because the StoreJet™ 1.8 needs to draw power from the USB port.
Disconnecting from a Computer
Removing the StoreJet™ 1.8 in Windows® 2000, XP and VISTA
- Select the icon on the system tray.
- The "Safely Remove Hardware" pop-up menu will appear. Select it to continue.

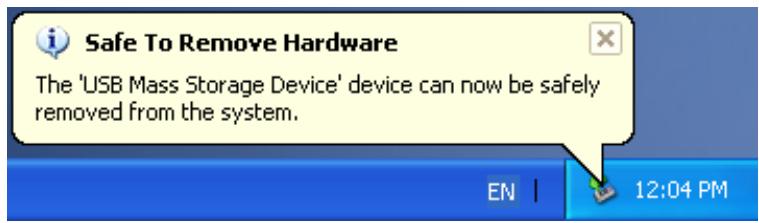

- A message box will appear: "The 'USB Mass Storage Device' device can now be safely removed from the system."
WARNING! To prevent data loss, always use this procedure to remove the StoreJet™ from Windows® 2000, XP and VISTA.
Removing the StoreJet™ 1.8 in Mac™ OS 9.0, or Later
Drag and drop the Disk icon that represents your StoreJet™ 1.8 into the trashcan. Then unplug your StoreJet™ 1.8 from the USB port.
Remove the StoreJet™ 1.8 in Linux™ Kernel 2.4, or Later
Execute umount /mnt/Storejet to un-mount the device. Then unplug your StoreJet™ 1.8 from the USB port.
Formatting the Hard Drive
The StoreJet™ 1.8 contains a hard disk drive and can therefore be formatted. The StoreJet™ 1.8's internal hard drive comes formatted for NTFS.
WARNING! Formatting the Disk will erase all of the data on your StoreJet™ 1.8
- Plug the StoreJet™ 1.8 into an available USB port.
-

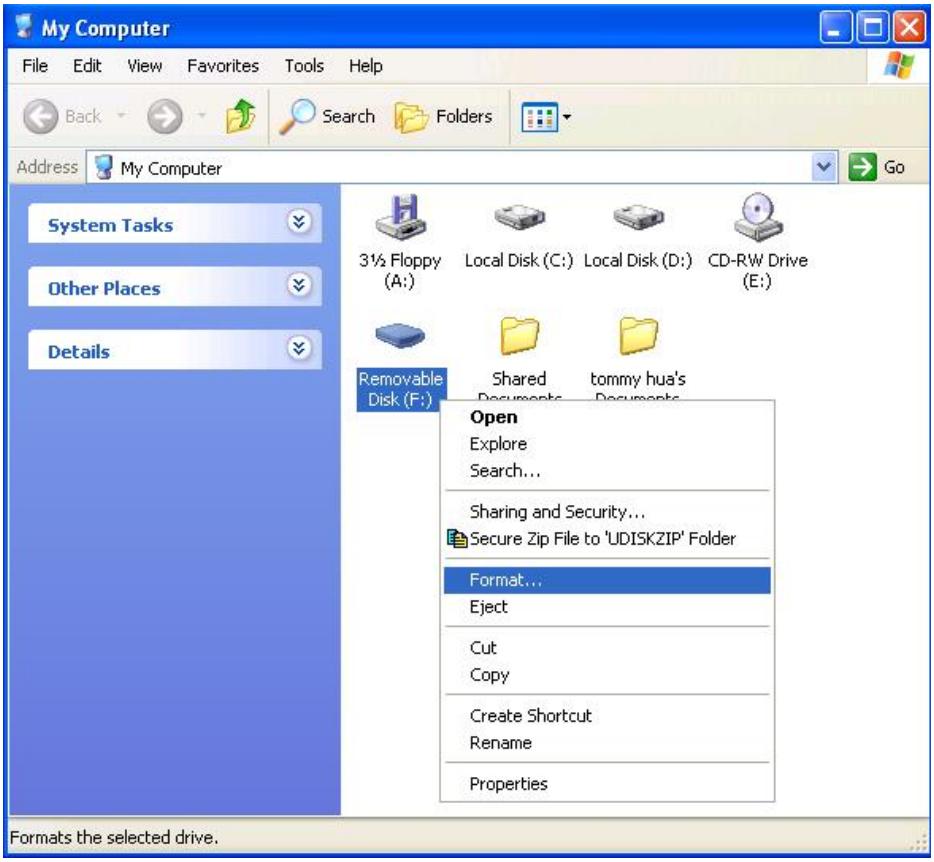

In Windows® Open My Computer, and right-click on the new Removable Disk that corresponds to the StoreJet™ 1.8.
-
Select "Format" in the drop down menu to format the StoreJet™ 1.8.

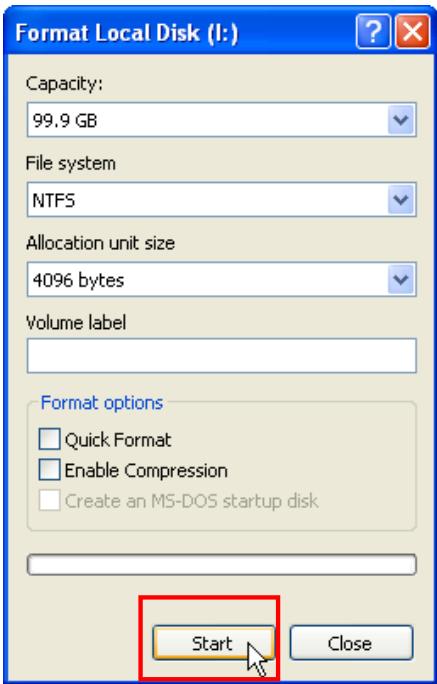

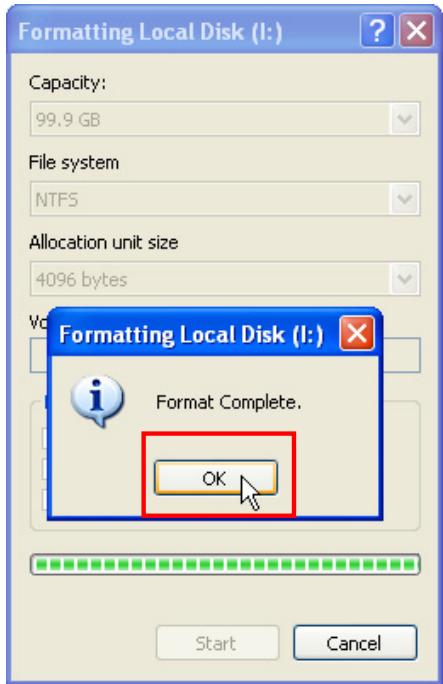

- Click Start.
Troubleshooting
If an error occurs with your StoreJet™ 1.8, please first check the information listed below before taking your StoreJet™ 1.8 for repair. If you are unable to remedy a problem from the following hints, please consult your dealer, service center, or local Transcend branch office. Transcend also provides an FAQ and Support service on our websites.
Driver CD cannot auto-run in Windows® OS
Enter the Device Manager in the Control Panel and enable the Auto-Insert function for the CD-ROM drive. Alternatively, you can manually execute the StoreJet.exe on the driver CD.
Operating system cannot detect the StoreJet™ 1.8
Check the following:
- Is your StoreJet™ 1.8 properly connected to the USB port? If not, unplug the cable and plug it in again. If yes, try another available USB port.
- Are you using the USB cable that came in the StoreJet™ 1.8 pack? If not, try using the Transcend USB cable to connect the StoreJet™ to the computer.
- Is your StoreJet™ 1.8 connected to the Mac™ keyboard? If yes, unplug it and plug it into an available USB port on your Mac™ Desktop instead.
- Is the USB port enabled? If not, refer to the user's manual of your computer (or motherboard) to enable it.
Cannot Power ON
Check the following:
- Check that your StoreJet™ 1.8 is properly connected to the USB port on the computer.
- Check that the USB port is working properly. If not, try using an alternative USB port.
Cannot back up my Mac™
The StoreJet™ 1.8's internal hard drive comes formatted for NTFS. If you want to backup a Mac computer you will need to format the drive for HFS+ using the Mac Disk Utility.
Cannot detect the StoreJet™ 1.8 in Linux
The StoreJet™ 1.8's internal hard drive comes formatted for NTFS. Linux CANNOT support the NTFS file system, please reformat the hard drive to the FAT file system.
Specifications
| • Size: | 95 mm × 71.5 mm × 15 mm |
| • Weight: | 130g |
| • Storage Media: | 1.8” Hard Disk Drive |
| • Power Supply: | 5V DC supplied from the USB port |
| • Max Transfer Speeds: | 480Mbits (60MB) per second |
| • Operating Temperature: | 5°C to 60°C |
| • Storage Temperature: | -40°C to 70°C |
| • Humidity: | 8% to 90% RH |
| • Certificates: | CE, FCC Class B, BSMI |
Ordering Information
| Product Type | Transcend P/N |
| StoreJet™ 1.8 60GB | TS60GSJ18 |
Transcend Limited Warranty
"Above and Beyond" is the standard we set ourselves for customer service at Transcend. We consistently position ourselves to be significantly above the industry norm, which is all part of our commitment to Customer Satisfaction.
All Transcend information, Inc. (Transcend) products are warranted and tested to be free from defects in material and workmanship and to conform to the published specifications. During the warranty period should your Transcend StoreJet™ 1.8 fail under normal use in the recommended environment due to improper workmanship or materials, Transcend will repair the product or replace it with a comparable one. This warranty is subject to the conditions and limitations set forth herein.
Duration of Warranty : The Transcend StoreJet™ 1.8 is covered by this warranty for a period of two (2) years from the date of purchase. Proof of purchase including the date of purchase is required to collect on the warranty. Transcend will inspect the product and decide whether to repair or replace it. Transcend reserves the right to provide a functional equivalent product, or a refurbished replacement product.
Limitations : This warranty does not apply to product failure caused by accidents, abuse, mishandling, improper installation, alteration, acts of nature, improper usage, or problems with electrical power. In addition, opening or tampering with the product casing, or any physical damage, abuse or alteration to the product's surface, including all warranty or quality stickers, product serial or electronic numbers will also void the product warranty. Transcend is not responsible for recovering any data lost due to the failure of a hard drive or flash memory device. Transcend's StoreJet™ 1.8 must be used with devices that conform to the recommended industry standards. Transcend will not be liable for damages resulting from a third party device that causes the Transcend StoreJet™ 1.8 to fail. Transcend shall in no event be liable for any consequential, indirect, or incidental damages, lost profits, lost business investments, lost goodwill, or interference with business relationships as a result of lost data. Transcend is also not responsible for damage or failure of any third party equipment, even if Transcend has been advised of the possibility. This limitation does not apply to the extent that it is illegal or unenforceable under applicable law.
Disclaimer : The foregoing limited warranty is exclusive. There are no other warranties, including any implied warranty of merchantability or fitness for a particular purpose. This warranty is not affected in any part by Transcend providing technical support or advice.
Online Registration : To expedite the warranty service, please register your Transcend Product within 30 days of purchase.
Register online at http://www.transcendusa.com/registration
- The specifications mentioned above are subject to change without notice.
