Congratulations on purchasing this device. Please read the following instructions carefully and follow them to prevent possible damages. We assume no liability for damage caused by disregard of the instructions and improper use. Scan the QR code to get access to the latest user manual and more product information.

CONTENTS

Safety Instructions 24

Installation Notes 26

Installing the Handle 27

Reversing the Door 27

Dimensions for Installation 29

Product Overview 30

Control Panel and Operation 32

Cleaning and Care 34

Troubleshooting 34

Disposal Considerations 35

Manufacturer & Importer (UK) 35

Product Data Sheet 36

Product Data Sheet 38

TECHNICAL DATA

Item number	10034269	10034268
Power supply	220-240 V ~ 50/60 Hz
Volume	56 L	86 L

SAFETY INSTRUCTIONS

- Check that the voltage of the power supply in your home is the same as the voltage shown on the rating label of this product.

- This device may be only used by children 8 years old or older and persons with limited physical, sensory and mental capabilities and / or lack of experience and knowledge, provided that they have been instructed in use of the device by a responsible person who understands the associated risks.

- Keep ventilation opening, in the appliance enclosure or in the built-in structure, clear of obstruction.

- Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.

- Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.

- Do not damage the refrigerant circuit.

- If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard.

- It is recommended to check regularly the supply cord for any sign of possible deterioration, and the appliance should not be used if the cable is damaged.

- To avoid injury or death from electrical shock, do not operate the appliance with wet hands, while standing on a wet surface.

- It is not recommended to use this refrigerator with an extension cord or power board. Please ensure that the appliance is plugged directly into the electrical outlet.

- When positioning the appliance, ensure that there is at least a 5 cm clearance at the sides and a 10 cm clearance at the back as this is the main outlet for heat. This will allow for adequate ventilation.

- Do not place hot food or drink into the refrigerator before it cools down to room temperature.

- Close the door immediately after putting in any items so the inside temperature will not rise dramatically.

- Keep appliance away from any heat source or direct sunlight.

- To fix stably, the appliance must be placed on a flat and solid surface. It should not be laid on any soft material.

- Do not place any other appliance on top of the refrigerator, and do not wet it.

- Do not store something like ether, methanol, gasoline, which is easy to evaporate burn or explode.

- Do not use outdoors or in wet conditions.

- Never pull the cord to disconnect it from the outlet. Grasp the plug and pull it from the outlet.

- Keep the cord away from heated surfaces.

- This appliance has been incorporated with a grounded plug. Please ensure the wall outlet in your house is well earthed.

- Connect your refrigerator to an independent electrical socket and use a safe ground wire.

- Defrost the freezer at least once a month because too much frost may affect refrigeration.

- Turn on electricity only 5 minutes later after electricity goes off. Otherwise, the compressor may be damaged.

This appliance contains the coolant isobutane (R600a), a natural gas which is environmentally friendly. Although it is flammable, it does not damage the ozone layer and does not increase the greenhouse effect. The use of this coolant has, however, led to a slight increase in the noise level of the appliance. In addition to the noise of the compressor, you might be able to hear the coolant flowing around the system. This is unavoidable, and does not have any adverse effect on the performance of the appliance. Care must be taken during the transportation and setting up of the appliance that no parts of the cooling system are damaged. Leaking coolant can damage the eyes.

Special Notes

• Children between the ages of 3 and 8 are allowed to fill refrigerators with food and remove food.
• When positioning the unit, make sure that the power cord is not pinched or damaged.
• Make sure that there are no multiple sockets or power supplies on the back of the unit.

To avoid contamination of food, please follow the instructions below:

• A prolonged opening of the door can lead to a significant rise in temperature in the compartments of the appliance.
• Regularly clean surfaces that may come into contact with food. Clean the water drain regularly.
• Store raw meat and fish in suitable containers in the refrigerator so that meat and fish do not come into contact with or drip on other foods.

WARNING

When using, servicing and disposing of the unit, pay attention to the left symbol on the rear of the unit or on the compressor. This symbol warns of possible fires. There are flammable substances in the refrigerant lines and in the compressor. Keep the appliance away from sources of fire during use, maintenance and disposal.

Notes on correct use

• This device is intended exclusively for the storage of drinks.
- This appliance is not intended for use as a built-in appliance unless explicitly mentioned in the instructions.
• This appliance is not suitable for freezing food.
- The shelves have been installed in advance to allow the most efficient use of energy.

INSTALLATION NOTES

It is important that upon receipt you stand your appliance upright for at least 4 hours before switching on to allow the system to sett le.

• The appliance should not be tilted more than 45 degrees when you move it. Do not use force on any part such as the condenser, the door or handle. They could distort and affect the operation of the cooler. Ensure ALL packaging is removed before installation.
  • Make sure there is enough ventilation space around product.
• The appliance should not be installed near external heat sources eg direct sun shine or external moisture sources.
• Ensure the supply voltage of socket is same as rating label. 5. The plug must be properly inserted to the wall socket.
• The mains supply socket must be earthed - preferably with a switch. If it is not earthed, do NOT install this appliance there. Do not use an extension cord.
• The product is equipped with adjustable feet. Once the product is in place, adjust these to ensure the fridge is level and doesn't rock.

Note: Do not site the product where the ambient temperature is likely to drop below 5 °C - eg: garage or shed.

INSTALLING THE HANDLE

The handle is supplied in a separate package with screws inside the carton. (1) Remove two small holes from the door frame by pulling out the door seal slightly. (2) Align the handle with the holes and insert the screws from the inside. (3) Tighten the screws with a screwdriver. (4) Insert the door seal to cover the screws.

REVERSING THE DOOR

1

2

• Open the door to 90 degrees and hold it tight.
• Loosen the two screws (1) from the lower right hinge (2) as shown in Figure 1.

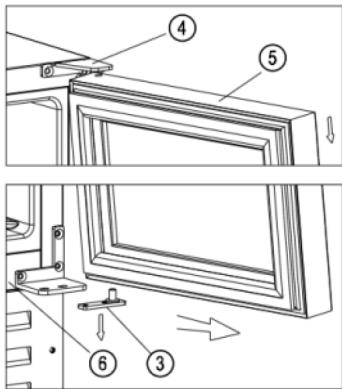

• Slowly pull the door (5) outwards (see figure 2) to release from the lower hinge (2).
  Then slowly pull the door (5) down to release it from the upper right hinge (4).
• Remove the lower hinge plate (3) from the door (see picture 2).

3
4

• Remove the upper right hinge (4) and the lower right hinge (2) from the cabinet (6) and keep them for future use (see Figure 3).

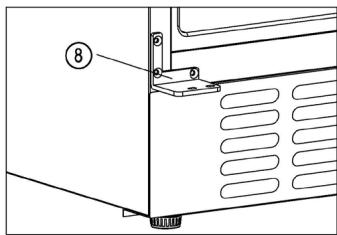

• Mount the top left hinge (7) and the bottom left hinge (8) on the left side of the cabinet (see Figure 4). Note: The hinges (7) and (8) are in a separate plastic bag inside the box.
• Rotate the door (5) 180 degrees and insert the bottom hinge plate (3) into the bottom hole of the door axis.
• First attach the door to the top left hinge (7). Hold the door straight and then attach the lower hinge plate (3) and the left lower hinge (8). The door reversal is complete.

DIMENSIONS FOR INSTALLATION

10034269

10034268

PRODUCT OVERVIEW

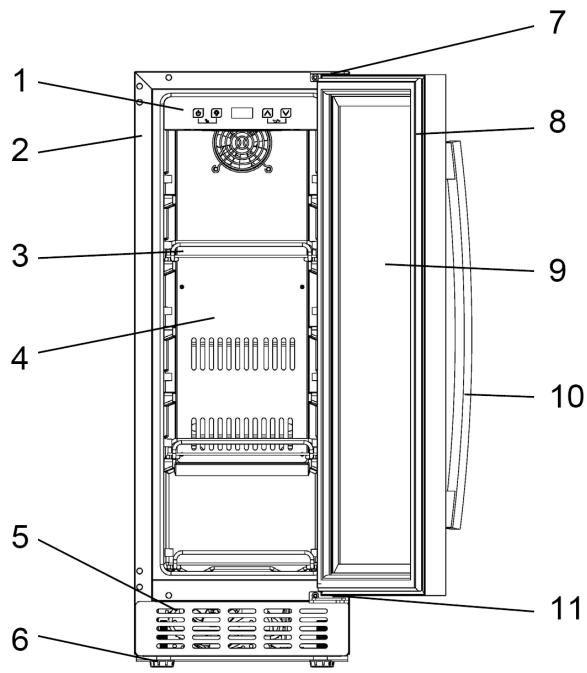

10034269

1	Control panel	7	Upper hinge
2	Case	8	Seal
3	Shelf	9	Door
4	Cover	10	Handle
5	Fan grille	11	Lower hinge
6	Adjustable feet

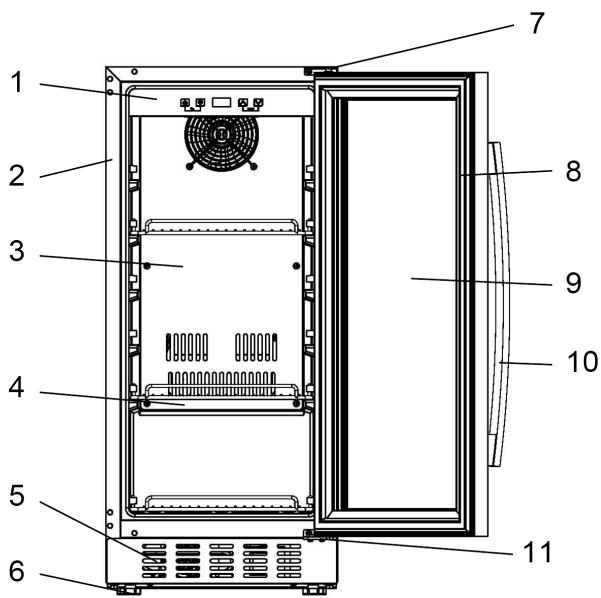

10034268

1	Control panel	7	Upper hinge
2	Case	8	Seal
3	Shelf	9	Door
4	Cover	10	Handle
5	Fan grille	11	Lower hinge
6	Adjustable feet

1	On/Off	Press and hold the button for 3 seconds to enter standby mode. Press and hold the button again for 3 seconds to return to normal operation.
2	Light	Press the button to turn the interior LED lights on or off. In standby mode, the key is invalid.
3	High	Press the button once and the LED display will show the current temperature setting. Press the button several times to increase the temperature in 1°C increments. Then wait 5 seconds without pressing any key, the set temperature will be accepted. The LED display will then show the current temperature inside.
4	Down	Press the button once, the LED display shows the current temperature. Press the button several times to decrease the temperature in 1°C increments. Then wait 5 seconds without pressing any key, the set temperature will be accepted. The LED display will then show the current temperature inside.
5	Child Safety Lock	Lock: Press both buttons simultaneously for 3 seconds to lock. Unlock: Press both buttons simultaneously for 3 seconds to unlock.
6	°C/°F	You can switch between Fahrenheit and Celsius by pressing both buttons simultaneously.

Notes on Operation

• The cooling temperature can be set between 0-10°C.
- If a system malfunction occurs and an alarm sounds, press any key on the control panel to stop the alarm.

Error Codes

If the temperature sensor fails, one of the following error codes will be displayed:

E1: Temperature sensor idle.
E2: Temperature sensor short circuit.
E3: Defrost sensor idle.
E4: Defrost sensor short-circuit.

Filling

• The loading quantity varies depending on the type, size and arrangement of the drinks.
• Each shelf is designed to hold 1 or 2 layers of beverages. Do not load the shelf with more than 2 layers.
• All shelves can be pulled out for easy storage. Open the door wide enough before pulling out the shelves.

CLEANING AND CARE

Outside

The outside of your refrigerator can be cleaned using a soft cloth moistened with a mild detergent solution. Wipe dry with kitchen towel. Do not use chemical or abrasive cleaners on any part of your refrigerator as these could permanently damage or discolour the surfaces.

Internal Cleaning

Wipe up any internal spills immediately with a soft cloth moistened with a mild detergent solution. Dry thoroughly.

Shelves and Guards

Any shelves can be removed and cleaned separately.

Door Seals

Ensure that the door seals are kept free from debris at all times. If they don't seal properly this can waste energy and cause refrigeration unit to over run

TROUBLESHOOTING

Problem	Possible cause and suggested solution
Condensation on outside of door.	Humidity in the room is high. This is also to be expected if the room is very warm.
Condensation on the inside of the cabinet.	This is also caused by high humidity. You can minimise this by only keeping the door open only as long as you need to.
Too cold / not cold enough inside the cabinet.	Adjust thermostat up or down accord ingly. Make sure nothing is stopping the door from sealing properly.
No power to cooler.	Check power cor d, power supply or on/off switch.

DISPOSAL CONSIDERATIONS

If there is a legal regulation for the disposal of electrical and electronic devices in your country, this symbol on the product or on the packaging indicates that this product must not be disposed of with household waste. Instead, it must be taken to a collection point for the recycling of electrical and electronic equipment. By disposing of it in accordance with the rules, you are protecting the environment and the health of your fellow human beings from negative consequences. For information about the recycling and disposal of this product, please contact your local authority or your household waste disposal service.

MANUFACTURER & IMPORTER (UK)

Manufacturer:

Chal-Tec GmbH, Wallstrasse 16, 10179 Berlin, Germany.

Importer for Great Britain:

Berlin Brands Group UK Limited

PO Box 42

272 Kensington High Street

London, W8 6ND

United Kingdom

Information according to Regulation (EU) No. 2019/2016

Supplier's name or trademark: Klarstein
Supplier's address: Wallstraße 16, 10179 Berlin, DE
Model identifier: 10034268
Type of refrigerating appliance:
Low-noise appliance:		No	Design type:	built-in
Wine storage appliance:		No	Other refrigerating appliance:	Yes
General product parameters:
Parameter		Value	Parameter	Value
Overall dimensions (mm)	Height	865	Total volume (dm 3 or L)	86
	Width	380
	Depth	570
EEI		125	Energy efficiency class	F
Airborne acoustical noise emissions (dB(A) re 1 pW)		41	Airborne acoustical noise emission class	C
Annual energy consumption (kWh/a)		100,0	Climate class:	extended temperate, temperate, subtropical
Minimum ambient temperature (°C), for which the refrigerating appliance is suitable		10	Maximum ambient temperature (°C), for which the refrigerating appliance is suitable	38
Winter setting		No

Compartment Parameters:
Compartment type		Compartment parameters and values
		Compartment volume (dm3 or L)	Recommended temperature setting for optimised food storage (°C) These settings shall not contradict the storage conditions set out in Annex IV, Table 3	Freezing capacity (kg/24h)	Defrosting type (auto-defrost=A, manual defrost=M)
Pantry	Yes	86,0	17	-	A
Wine storage	No	-	-	-	-
Cellar	No	-	-	-	-
Fresh food	No	-	-	-	-
Chill	No	-	-	-	-
0-star or icemaking	No	-	-	-	-
1-star	No	-	-	-	-
2-star	No	-	-	-	-
3-star	No	-	-	-	-
4-star	No	-	-	-	-
2-star section	No	-	-	-	-
Variable temperature compartment	-	-	-	-	-
For 4-star compartments:
Fast freeze facility			No
Light source parameters:
Type of light source			-
Energy efficiency class			-
Minimum duration of the guarantee offered by the manufacturer: 24 months
Additional information:
Weblink to the manufacturer's website, where the information in point4(a) Annex of Commission Regulation (EU) 2019/2019 is found: www.klarstein.co.uk

Information according to Regulation (EU) No. 2019/2016

Supplier's name or trademark: Klarstein
Supplier's address: Wallstraße 16, 10179 Berlin, DE
Model identifier: 10034269
Type of refrigerating appliance:
Low-noise appliance:		No	Design type:	built-in
Wine storage appliance:		No	Other refrigerating appliance:	Yes
General product parameters:
Parameter		Value	Parameter	Value
Overall dimensions (mm)	Height	820	Total volume (dm 3 or L)	56
	Width	295
	Depth	570
EEI		124	Energy efficiency class	F
Airborne acoustical noise emissions (dB(A) re 1 pW)		41	Airborne acoustical noise emission class	C
Annual energy consumption (kWh/a)		98,0	Climate class:	extended temperate, temperate, subtropical
Minimum ambient temperature (°C), for which the refrigerating appliance is suitable		10	Maximum ambient temperature (°C), for which the refrigerating appliance is suitable	38
Winter setting		No

Compartment Parameters:
Compartment type		Compartment parameters and values
		Compartment volume (dm3 or L)	Recommended temperature setting for optimised food storage (°C) These settings shall not contradict the storage conditions set out in Annex IV, Table 3	Freezing capacity (kg/24h)	Defrosting type (auto-defrost=A, manual defrost=M)
Pantry	Yes	56,0	17	-	A
Wine storage	No	-	-	-	-
Cellar	No	-	-	-	-
Fresh food	No	-	-	-	-
Chill	No	-	-	-	-
0-star or icemaking	No	-	-	-	-
1-star	No	-	-	-	-
2-star	No	-	-	-	-
3-star	No	-	-	-	-
4-star	No	-	-	-	-
2-star section	No	-	-	-	-
Variable temperature compartment	-	-	-	-	-
For 4-star compartments:
Fast freeze facility			No
Light source parameters:
Type of light source			-
Energy efficiency class			-
Minimum duration of the guarantee offered by the manufacturer: 24 months
Additional information:
Weblink to the manufacturer's website, where the information in point4(a) Annex of Commission Regulation (EU) 2019/2019 is found: www.klarstein.co.uk
