USER MANUAL Chupchup Matic Spatula CECOTEC

ChupChup

1. Parts and components 34
2. Before use 34
3. Operation 35
4. Cleaning and maintenance 39
5. Technical specifications 39
6. Disposal of old electrical and electronic appliances 40
7. Technical support and warranty 40
8. Copyright 40

SOMMAIRE

Read these instructions thoroughly before using the product. Keep this instruction manual for future reference or new users.

• This appliance can be used by children aged 8 years and above and persons with reduced physical, sensory, or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children must not play with the appliance. Cleaning and user maintenance should not be carried out by unsupervised children.
• Check the power cord regularly for visible damage. If the power cord is damaged, it must be replaced by Cecotec, our after-sales service, or similar qualified personnel to avoid risks.

• This appliance is designed for domestic use only and is not intended for bars, restaurants, farmhouses, hotels, motels, and offices.

• Do not immerse the cord, plug, or any other part of the appliance in water or any other liquid or expose electrical connections to water. Make sure your hands are dry before handling the plug or switching on the appliance.

• Ensure that the mains voltage matches the voltage specified on the product rating label and that the plug is earthed.
• Place the appliance on a dry, stable, flat, heat-resistant surface.
• Allow adequate space above and on all sides for air circulation. Do not allow the device to come into contact with any flammable material during use, such as curtains. Do not use it under a wall cupboard.
• Turn off and unplug the appliance from the mains supply when not in use and before cleaning it. Pull from the plug, not the cord, to disconnect it from the outlet.
• Do not use the device if it has been dropped or if there are any visible signs of damage.
• The appliance will be very hot during and immediately after operation. Use gloves or other convenient protective equipment to avoid burns and injuries.
• Unplug the product from the main power supply when not in use.
• Do not twist, bend, pull, or damage the power cord. Protect it from sharp edges and heat sources. Do not allow the cord to touch hot surfaces.
• Do not let the cord hang over the edge of the working surface or worktop.
• Exercise caution when moving the device if it contains food or liquid.
• Do not use the device near a gas or electric hob, in heated ovens or near open flames.
• Do not place the product on heat-sensitive surfaces. It is

suggested to place an insulated mat or any other protection beneath the product in order to avoid damage.

• The base of the product is not enamelled, so the surface on which you use it could be scratched or marked if you do not use a protective element.
• Do not use the device if it is empty, if the lid is not in place, or if it is broken or damaged.
• Allow the appliance to cool down before cleaning and storing.
• Exercise extreme caution when using the appliance. Misuse may expose you to potential damage.

Note: this product has undergone a quality control previous to its commercialisation with the aim of ensuring its correct operation. After the quality control testing, the appliance is cleaned thoroughly, therefore, although it is unlikely to occur, there could be rests of water drops in its inner parts.

INSTRUCTIONS DE SÉCURITÉ

Producto: ChupChup Matic/ ChupChup Matic X/ ChupChup Matic M/ ChupChup Matic S/ ChupChup Matic T

Referencia del producto: 02031/ 02057/ 02058/ 02059/ 02060

Potencia: 240 W

Voltaje: 220-240 V

1. Hinged glass lid
2. Silicone ring
3. Removable ceramic bowl
4. Main body of the cooker
5. Handles
6. Control panel
7. Display
8. Function and temperature buttons
9. Increase icon
10. Decrease icon
11. Select
12. On/Off/Confirm

Note:

The graphics in this manual are schematic representations and may not exactly match the product.

2. BEFORE USE

• This appliance is packaged in a way as to protect it during transport. Take the appliance out of its box and remove all packaging materials. You can keep the original box and other packaging elements in a safe place. This will help you prevent product damage when transporting it in the future. In case the original packaging is disposed of, make sure all packaging materials are recycled accordingly.
• Make sure all parts and components are included and in good conditions. If there is any piece missing or in bad conditions, contact the official Cecotec Technical Support Service immediately.
• Wash the ceramic bowl and the glass lid with warm soap water.
• Rinse and dry all parts of the product carefully before use.
• Place the product on a dry, flat and stable surface, away from heat sources.

Please note

• Always turn off and disconnect the product from the power supply before
• cleaning it.
• A slight odour and smoke might appear when using the appliance for the first time. This is due to manufacturing material residues and does not affect the operation of the appliance.

3. OPERATION

Recommendation

• Both the glass lid and the ceramic bowl will reach very high temperatures during use. Use the appliance carefully and with gloves.

• The slow cooker works by creating and accumulating heat and maintaining a stable temperature. For best results, do not remove the glass lid until at least halfway through the cooking process. The glass lid allows you to control the cooking process without interrupting it.

• Place the ceramic bowl into the base of the cooker and make sure it is correctly positioned before continuing. Fig. 2

• Place the ingredients in the ceramic bowl. Never put the ingredients directly in the cooker, always use the ceramic bowl. Fig. 3

Warning

It is recommended to fill the bowl 2/3, do not overfill.

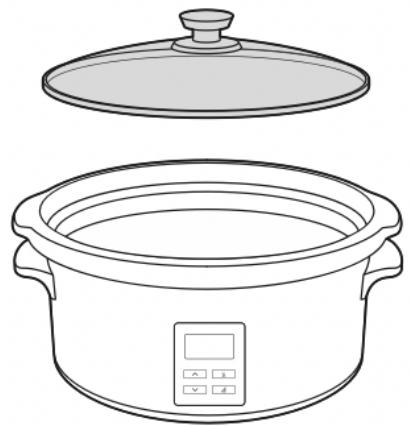

1. Place the glass lid on the ceramic bowl to cover the pot. Fig. 4

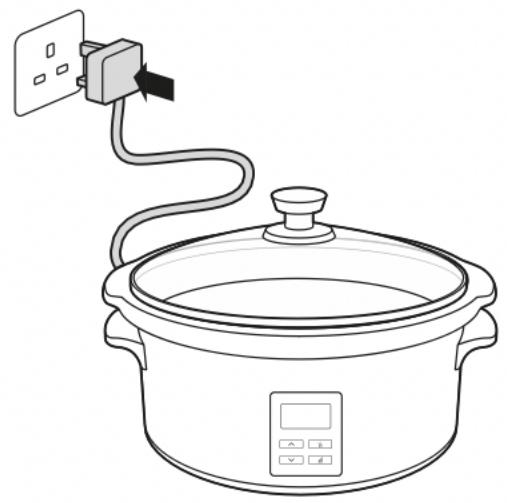

2. Connect the product to the mains and select the desired power level. The power indicator will light up, and the cooker will start to operate. Fig. 5
3. Keep the cooked ingredients inside the cooker on low power to keep them warm until serving.
4. When you have finished cooking, unplug the device from the mains. Fig. 6
5. Remove the glass lid wearing gloves. Make sure that the steam accumulated inside the device is not directed at any body parts to avoid burns. Fig. 7

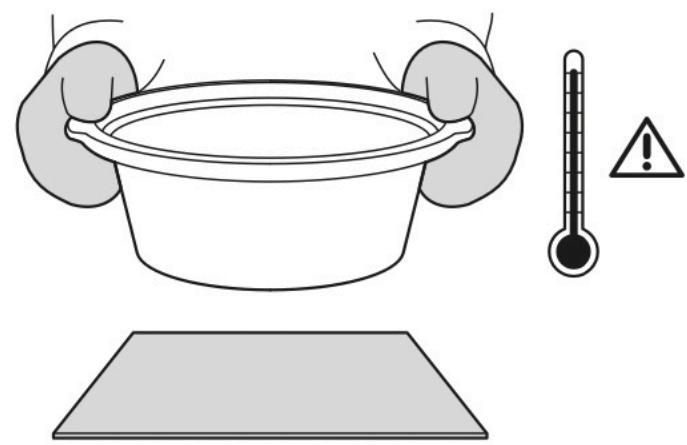

6. Carefully lift and remove the ceramic bowl. Place the ceramic bowl on a heat-resistant surface. Be careful when placing the bowl directly on polished or delicate surfaces, as the base is not enamelled and could scratch or mark them. Fig. 8

Cooking settings

The cooker has 2 cooking powers:

1. Low: allows ingredients to be simmered for long periods of time. It can also be used to keep the ingredients warm until you want to serve the food.
2. High: used for roasting or cooking dried pulses. Cooks the ingredients in half the time as on low power. When using the slow cooker on high power, the cooking process may require a larger amount of water, depending on the type of recipe and cooking time. When cooking on high power, it is important to check the status of the cooking process regularly. The cooking time should vary between 4 and 8 hours.

Keep Warm function

This function keeps pre-cooked food at the ideal temperature until it is ready to be served. Do not attempt to cook food with this function.

Recommendations:

• It is not recommended to use the product with the high temperature function for more than 4 hours.
• When you finish using the slow cooker, disconnect it from the mains.
• If the cooked food is not going to be served immediately, manually select the Keep Warm function.
• In the event of a power failure, the device will turn off and the display will flash when it is turned on again. If it has been switched off for several hours, the food may not be in good condition, and it is not recommended to eat it.

Scheduling

The slow cooker can be programmed in such a way that it will start cooking at the desired time, allowing you to have freshly cooked food when you want it.

1. Press repeatedly until the desired cooking power (high or low) or the Keep Warm function is selected.
2. Use ∧ and ∨ to select the desired cooking time in 30-minute intervals, up to a maximum of 20 hours.
3. If you want the cooking process to start immediately, press 📄 to confirm.
4. If you want the cooker to start cooking at a specific time, hold ⚠️ until the word Delay appears on the display.
5. Use the ∧ and ∨ buttons to select the delay time.
6. Press to confirm.

Example

If you want to program a 6-hour cooking process, and you want it to start in 2 hours, first select 6:00 hours and then increase by 2 hours to the previously set time. The display will show the sum of these times, 8:00 hours.

Please note

Once the set cooking time has elapsed, the cooker will activate the Keep Warm function.

Slow cooking guide

This section is designed to help you adapt your favourite recipes to the slow cooker. Soups and stews are the most common recipes for this type of cooker. Most stews and meats cooked on low power give better results.

Important:

• Allow enough time for cooking.
• Do not add as much liquid as indicated in the original recipe, if following a recipe for conventional cooking pots. Generally, half the amount of liquids is required as compared to conventional cooking methods, as they do not evaporate in the same way. If there is too much liquid at the end of the cooking process, remove the lid and cook on high power until the excess liquid has evaporated.
• Many of the steps in conventional recipes can be ignored, as the vegetables will not be overcooked, so you can put all the ingredients in the slow cooker at once. However, milk or cream should be added during the last hour of cooking.

Cooking time guide

Time of the recipe	Low power	High power
15-30 min	4-6 h	1.5-2 hrs
35-45 min	6-10 h	3-4 h
50 min-3 hrs	8-18 h	4-6 h

These times are approximate and may vary depending on the ingredients and quantities.

Cooking meat and poultry

• When preparing meat, always go for the finest cuts. Cut and remove any visible fat from meat fillets, as slow cooking produces liquid fat. Use skinless chicken if possible. For stew recipes, cut the meat into approximately 2.5 cm thick cubes.
• Less tender meats are ideal for slow cookers because the slow cooking processes make them tender and tasty. The following table shows the types of meat cuts that are suitable.

Meat	Cut
Beef	Flank, shank, round, sirloin, steaks for stew.
Lamb	Neck, front shank, rack.
Pork	Ham, loin, chop.

Browning before cooking

• Browning both meat and poultry before cooking in the slow cooker intensifies the flavour and produces more tasty results.
• It also intensifies the flavour of other foods such as onions, peppers and leeks.
• It may take a little longer to brown the food earlier, but the results are noticeably better. To brown them, use a non-stick frying pan. Use the minimum amount of oil. It is possible that if the food is not browned before cooking in the pan, it may be a little tasteless.

Roast

• Roasting meat in the slow cooker makes it more tender, tasty and easier to slice. The long, slow and covered cooking processes cause the meat's nerves to break down, so the results of the meat dishes are very satisfactory.
• It is not necessary to add liquids for roasting. When cooking braised meat, it is necessary to add a minimum of liquid. Place the meat to be grilled on a heat-resistant plate inside the pot so that the meat does not come into contact with the fat produced by the cooking process itself.

Cuts suitable for roasting

Meat	Cut
Beef	Shoulder, steak, hindquarter, sirloin, round.
Lamb	Leg, tenderloin, shoulder.
Pork	Sirloin, neck, leg, ribs.

Cuts suitable for stewing

Meat	Cut
Beef	Shoulder, steak, lean, sirloin,
Lamb	Hindquarter, leg, shoulder.
Pork	Tenderloin, neck.

Cooking vegetables

• One of the characteristics of slow cooking is that vegetables are generally cooked much more slowly than meat. Most vegetables should be cut into small pieces, placed close to the walls and as close as possible to the base of the ceramic bowl.
• Place the meat on top of the vegetables. Carrots should be peeled and placed where they will be completely covered in liquid. Defrost the vegetables before adding them to the rest of the ingredients.

Pasta and rice

When cooking recipes with tagliatelle, macaroni, etc., cook the pasta until slightly tender and then place it in the slow cooker for the last 30 minutes of cooking time. When cooking rice, mix it with the rest of the ingredients and add 1/4 cup of liquid for every 1/4 cup of rice. Use long grain rice for best results.

Herbs and spices

Most commonly, whole leaves, herbs or spices are used. It is recommended to use half the indicated quantity, as they have a very strong flavour. When using dried or ground herbs or

spices, add them during the last hour of cooking. Always taste and season recipes before serving.

Milk and cream

Both milk and cream are often cut during long cooking processes. If possible, add these ingredients during the last hour of cooking.

4. CLEANING AND MAINTENANCE

Recommendation:

Always disconnect the cooker from the mains before cleaning. Never immerse the cooker body, cord or plug in water or other liquids. Do not use abrasive cleaning agents.

Before cleaning:

• Make sure that the cooker is switched off and disconnected from the mains.
• Allow all parts of the pot to cool completely. To prevent damage to the glass lid or bowl, avoid extreme temperature changes, direct heat or sudden cooling.

Cleaning the ceramic bowl and glass lid

• Remove the ceramic bowl and glass lid. Clean the ceramic bowl and glass lid with soap and warm water. Rinse and dry thoroughly.
• To get rid of stubborn stains and food residues from the ceramic bowl, fill it 2/3 full of warm water with soap and leave it to soak. Rinse and dry well.

Cleaning of the pot body

Part	Dishwasher safe	Oven safe
Lid	Yes	No
Inner pot	Yes	Yes (not for grill)

5. TECHNICAL SPECIFICATIONS

Product: ChupChup Matic/ ChupChup Matic X/ ChupChup Matic M/ ChupChup Matic S/ ChupChup Matic T

Product reference: 02031/ 02057/ 02058/ 02059/ 02060

Power: 240 W

Voltage: 220-240 V

Frequency: 50/60 Hz

Technical specifications may change without prior notification to improve product quality. Made in China | Designed in Spain

6. DISPOSAL OF OLD ELECTRICAL AND ELECTRONIC APPLIANCES

This symbol indicates that, according to the applicable regulations, the product and/or batteries must be disposed of separately from household waste. When this product reaches the end of its shelf life, you should dispose of the batteries/accumulators and take them to a collection point designated by the local authorities.

Consumers must contact their local authorities or retailer for information concerning the correct disposal of old appliances and/or their batteries.

Compliance with the above guidelines will help protecting the environment.

7. TECHNICAL SUPPORT AND WARRANTY

Cecotec shall be liable to the end user or consumer for any lack of conformity that exists at the time of delivery of the product under the terms, conditions, and deadlines established by the applicable regulations.

It is recommended that repairs be carried out by qualified personnel.

If at any moment you detect any problem with your product or have any doubt, do not hesitate to contact the official Cecotec Technical Support Service at [phone].

8. COPYRIGHT

The intellectual property rights over the texts in this manual belong to CECOTEC INNOVACIONES, S.L. All rights reserved. The contents of this publication may not, in whole or in part, be reproduced, stored in a retrieval system, transmitted, or distributed by any means (electronic, mechanical, photocopying, recording or similar) without the prior authorization of CECOTEC INNOVACIONES, S.L.

1. PIÈCES ET COMPOSANTS

Img. 1

Produit : ChupChup Matic/ ChupChup Matic X/ ChupChup Matic M/ ChupChup Matic S/ ChupChup Matic T

Référence : 02031/ 02057/ 02058/ 02059/ 02060

Puissance : 240 W

Voltage : 220-240 V

Produkt: ChupChup Matic/ ChupChup Matic X/ ChupChup Matic M/ ChupChup Matic S/ ChupChup Matic T

Referenz des Gerätes: 02031/ 02057/ 02058/ 02059/ 02060

Leistung: 240 W

Spannung: 220-240 V

Frequenz: 50/60 Hz

Prodotto: ChupChup Matic/ ChupChup Matic X/ ChupChup Matic M/ ChupChup Matic S/ ChupChup Matic T

Codice prodotto: 02031/ 02057/ 02058/ 02059/ 02060

Potenza: 240 W

Tensione: 220-240 V

Frequenza: 50/60 Hz

Produto: ChupChup Matic/ ChupChup Matic X/ ChupChup Matic M/ ChupChup Matic S/ ChupChup Matic T

Referência do produto: 02031/ 02057/ 02058/ 02059/ 02060

Potência: 240 W

Tensão: 220-240 V

Product: ChupChup Matic/ ChupChup Matic X/ ChupChup Matic M/ ChupChup Matic S/ ChupChup Matic T

Referentie van het product: 02031/ 02057/ 02058/ 02059/ 02060

Vermogen: 240 W

Voltage: 220-240 V

Frequentie: 50/60 Hz

Produkt: ChupChup Matic/ ChupChup Matic X/ ChupChup Matic M/ ChupChup Matic S/ ChupChup Matic T

Referencja produktu: 02031/ 02057/ 02058/ 02059/ 02060

Moc: 240 W

Napiecie: 220-240 V

Produkt: ChupChup Matic/ ChupChup Matic X/ ChupChup Matic M/ ChupChup Matic S/ ChupChup Matic T

Reference produktu: 02031/ 02057/ 02058/ 02059/ 02060

Výkon: 240 W

Napětí: 220-240 V

Frekvence: 50/60 Hz

Fig./Img./Abb./Afb./Rys./Obr. 2

Fig./Img./Abb./Afb./Rys./Obr. 3

Fig./Img./Abb./Afb./Rys./Obr. 4

Fig./Img./Abb./Afb./Rys./Obr. 5

Fig./Img./Abb./Afb./Rys./Obr. 7

Fig./Img./Abb./Afb./Rys./Obr. 6

Fig./Img./Abb./Afb./Rys./Obr. 8

www.cecotec.es

Quart de Poblet, Valencia (Spain)

LI01230214
