USER MANUAL Total Iron 8500 Implode CECOTEC

1. Safety instructions 19
2. Parts and components 22
3. Before use 23
4. Operation 23
5. Cleaning and maintenance 26
6. Technical specifications 27
7. Disposal of old electrical appliances 27
8. Technical support service and warranty 28

SOMMAIRE

Fig./Img./Abb./Afb./Rys.1

Fig./Img./Abb./Afb./Rys. 2

Fig./Img./Abb./Afb./Rys. 3

Fig./Img./Abb./Afb./Rys. 4

Fig./Img./Abb./Afb./Rys.5

Fig./Img./Abb./Afb./Rys. 6

Fig./Img./Abb./Afb./Rys. 7

Fig./Img./Abb./Afb./Rys. 8

ESPAÑOL

1. SAFETY INSTRUCTIONS

Read these instructions thoroughly before using the appliance. Keep this instruction manual for future reference or new users.

All safety instructions should be closely followed when using the appliance.

Make sure that the mains voltage matches the voltage stated on the rating label of the appliance and that the wall outlet is grounded.

Do not immerse the cord, plug, or any non-removable part of the appliance in water or any other liquid, nor expose the electrical connections to water. Make sure your hands are dry before handling the plug or switching on the appliance.

Warning: If the appliance falls accidentally in water, unplug it immediately. Do not reach into the water!

Do not twist, bend, strain, or damage the power cord in any way. Protect it from sharp edges and heat sources. Do not let it touch hot surfaces. Do not let the cord hang over the edge of the working surface.

The appliance is not intended to be operated by means of an external timer or separate remote-control system.

Turn off and unplug the appliance from the mains supply when not in use and before cleaning. Pull from the plug, not the cord, to disconnect it from the outlet.

This appliance is designed to iron textiles. It is designed for domestic use only and, therefore, not suitable for commercial use. Do not use it outdoors.

To protect against burns or injuries to persons, do not iron textiles while being worn on the body.

Do not use any accessory that has not been recommended by Cecotec, as they might cause injuries or damage.

The appliance is not intended to be used by children under

TOTAL IRON 8500 IMPLODE / 9000 TURBO-BOOST

ENGLISH

the age of 8. It can be used by children over the age of 8, as long as they are given continuous supervision.

This appliance is not intended to be used by persons with reduced physical, sensory, or mental capabilities, or lack of experience or knowledge, unless they have been given supervision or instruction concerning the use of the appliance in a safe way by a person responsible for their safety, and understand the hazards involved.

Supervise young children to make sure that they do not play with the appliance. Close supervision is necessary when the appliance is being used by or near children.

Keep the appliance and its cord out of reach of children under the age of 8.

Place the appliance on a dry, stable, flat, heat-resistant surface.

The temperature of accessible surfaces may be high while in use and could cause burns. Do not touch hot surfaces

while in use or immediately after.

Unplug the appliance immediately if fire or smoke is observed.

Do not leave the appliance unattended while in use. Unplug it from the mains supply when you finish using it or when you leave the room.

The appliance must not be plugged in when filling or emptying the water tank.

Check the power cord regularly for visible damage. If the cord is damaged, it must be replaced by the official Technical Support Service of Cecotec, in order to avoid any type of danger.

The tank cap must not be open when the appliance is switched on.

The use of tap water is recommended. If the lime content of the tap water is too high, use a mix composed by 50 % of tap water and 50 % of water with low mineral content. Do not use

ENGLISH

only water with low mineral content.

Burns can occur when touching hot metal parts, hot water, or steam. Hot water may leak from the iron. Be careful when filling or turning the steam iron upside down.

To protect against burns or injuries, do not direct steam toward persons or animals when ironing.

The iron must be used and placed on a stable surface. When placing the iron on its stand, make sure that the surface is stable.

Keeping the iron at maximum temperature for too long may cause discolouration, which will not affect the performance of the appliance.

Do not try to repair the appliance by yourself. Contac the official Technical Support Service of Cecotec for advice.

Cleaning and maintenance must be carried out according to this instruction manual to make sure the appliance functions properly. Turn off and unplug the appliance before moving and cleaning it. Make sure the iron has completely cooled down before storing it.

Cleaning and maintenance tasks must not be carried out by children.

Store the appliance and its instruction manual in a safe and dry place when not in use.

Cecotec takes no responsibility for any damage caused by misuse of the appliance. Any misuse or non- compliance with these instructions renders the warranty and Cecotec's liability null and void.

If the power cord is damaged, it must be replaced by the Technical Support Service of Cecotec.

Warning: All our ironing range's products have undergone quality control tests previous to their commercialization.

TOTAL IRON 8500 IMPLODE / 9000 TURBO-BOOST

ENGLISH

These tests consist of filling the water tank in order to check tightness and to ensure correct operating of the device. Once the test has been carried out, the tank is emptied and dried, but there is a slight probability that water could remain inside it.

2. PARTS AND COMPONENTS

Fig.1

1. Fill opening
2. Water tank handle
3. Water tank
4. Unit base
   5.Cord slot
   6.Temperature control
   7.Soleplate
   8.Handle
   9.Steam trigger
   10.Lock button
   11.Shell
5. Heatproof stand
6. Control panel

Temperature dial

Fig. 2.

1.170 °C-225 °C (Maximum)
2.140 °C-210 °C
3.100 °C-160 °C
4.70 °C-120 °C (Minimum)

Buttons and indicators

Fig. 3.

1.ON / OFF indicator
2. Descaling indicator
3. Refill indicator
4.Power switch

22

TOTAL IRON 8500 IMPLODE / 9000 TURBO-BOOST

ENGLISH

5.Low steam rate indicator
6. Medium steam rate indicator
7. High steam rate indicator
8.Steam rate control button

3. BEFORE USE

Take the product out of the box.

Remove any packaging materials, stickers or protective foil from the soleplate.

Clean the soleplate with a soft cloth.

Fill the water tank with water and heat up the iron, and then iron over a piece of damp cloth for several minutes for the purpose of removing any residue on the soleplate.

Warning: Some parts of the steam iron have been slightly greased and as a result, the iron may slightly smoke when switched on for the first time. After a short time, this will cease.

It is normal that strange odor comes out from the unit for the first use. This will cease after a short while.

When you switch on the appliance, the steam generator may produce a pumping sound. This is completely normal; this sound indicates that the water is being pumped into the steam generator.

During the soleplate's heating process, some steam will come out from the soleplate automatically and this phenomenon will continue for about 3 seconds.

4. OPERATION

Water inlet cover

Open the water inlet cover and fill the water tank with water through the filling aperture.

Make sure the water does not exceed the MAX. mark on water tank.

Power switch

For switching the device on, it must be plugged in. Press the power switch button, and the power indicator light will turn on. The low steam rate is the default mode, so its indicator light will turn on. Press the power switch button for about two seconds and the device will turn off.

Steam rate control button

The steam rate can be selected low, medium or high by the steam rate control button.

Whichever is selected, its indicator will flash, and it will flash after having finished preheating.

Temperature dial

TOTAL IRON 8500 IMPLODE / 9000 TURBO-BOOST

ENGLISH

Turn the temperature dial to set the desired ironing temperature based on the garment to be ironed. To activate the steam function, select the temperature range that steam is produced, otherwise steam spray will not be emitted efficiently.

Temperature indicator

When the iron is heating up, the temperature indicator will turn on. Once the iron has reached the selected temperature, it will turn off. The temperature indicator will switch on and off as the iron maintains the selected temperature during ironing.

Lock button

Place the steam station on the heatproof stand of unit base, then push the lock button to lock position in order to leave the iron in the base. To unlock it, push the lock button to unlock position, then you can start ironing. The whole steam station can be lifted up by grasping the iron's handle, provided that the iron is not locked on the unit base (see Fig.4)

Fig.4

Steam trigger

After pressing the power switch and choosing the desired steam rate, it will indicate that the device can be used when the steam rate indicator changes from flashing to steady. Then, press the steam trigger gently so the steam will be sprayed from the soleplate continuously (see Fig.5). When the steam trigger is completely loosened, the appliance can only be used for dry ironing without steam.

Fig. 5

Shot of steam

Press the steam trigger twice within 1 second to activate the shot of steam function. Then you can use the shot of steam to remove the toughest creases.

Refill indicator

When the level of water in the tank is low, the indicator will illuminate, followed by a buzzer and the steam generator will stop working. When this happens, add water into the tank. For this, remove the water tank and refill it with water through the filling aperture (see Fig.6), then put the water tank back in its position.

Fig.6

Descaling indicator

If the descaling indicator light turns on, it means that the steam generator must be cleaned of any mineral deposits. At this point, descale it following the steps on the “Cleaning and maintenance” section. When the system ensures the mineral deposits have been removed, the indicator will switch off.

Cord slot

24

TOTAL IRON 8500 IMPLODE / 9000 TURBO-BOOST

ENGLISH

When it's not being used, the steam supply tube and power cord can be wound along the cord slot for storage.

Automatic power off

The appliance will turn off automatically after 10 minutes of inactivity.

Dry ironing

Place the iron on the heatproof stand of the unit base.

Connect the plug to a wall outlet, the temperature indicator and the indicator of MAX. steam rate will turn on.

Turn temperature dial to select the desired temperature setting depending on the garment's fabric, the iron will start heating up.

When the selected temperature is reached, the temperature indicator will turn off. Then, you can start ironing.

Warning: Do not touch the soleplate before it cools down!

Steam ironing

Grasp the water tank's handle to remove the water tank, then fill it with water through the filling aperture. Use purified water with few calc particles. After this, replace the water tank properly. The max capacity of water tank is 1.8L, the water level should not exceed the MAX mark.

Place the steam station on the thermal insulation stand of the unit base.

Connect the plug to the wall outlet, press the power switch, and the defaulted low steam rate indicator will flash. There are three modes including low, medium and high steam rate, you can select the desired steam rate for each garment according to your requirement. Make sure that there is enough water in the tank.

Turn the temperature dial to desired setting taking into account the fabric, and the temperature indicator will illuminate. The steam station will start emitting heat. Refer to “ironing tips” and “additional table” below when setting the temperature.

The water in the steam generator will be heated, after a few minutes, then the temperature indicator will switch off. This indicates that the soleplate temperature has achieved the selected temperature. When the indicator of defaulted steam rate changes from flashing to illuminating, it indicates that the iron is ready for ironing the garment.

Gently press the steam trigger for steam to be sprayed from the soleplate continuously.

Warning: Never direct the steam at people!

After ironing, press the power switch for about 2 seconds, the appliance will switch off and with it, all the indicators. Remove the plug from the wall socket. Be careful, the soleplate will still be hot, never touch it with your hand. Place it on the heatproof stand until it cools down completely.

Ironing tips

Always check first whether a label with ironing instructions is attached to the article. Follow

TOTAL IRON 8500 IMPLODE / 9000 TURBO-BOOST

ENGLISH

these ironing instructions in any case.

The iron heats up quicker than it cools down, therefore, you should start ironing the articles that require the lowest temperatures such as those made of synthetic fiber.

If the fabric consists of various kinds of fibers, you must always select the lowest ironing temperature to iron the composition of those fibers.

Silk and other fabrics that are likely to become shiny should be ironed on their inner side.

Velvet and other textures that rapidly become shiny should be ironed in one direction with light pressure applied. Always keeps the iron moving at any moment.

Pure wool fabrics (100% wool) may be ironed with the steam iron. Preferably set temperature dial to the third position and use a dry cloth as a mat.

Never iron over zips or rivets in the cloth. This will damage the soleplate.

Warning: When ironing woolen fabrics, shining of the fabric may occur. In this case, it is suggested to turn the article inside out and iron the reverse side.

Setting	Temperature	Fabric
1	70 °C-120 °C	Acetate, elastane, polyamide, polypropylene
2	100 °C-160 °C	Cupro, polyester, silk
3	140 °C-210 °C	Triacetate, viscose, wool
Maximum	170 °C-225 °C	Cotton, flax

5. CLEANING AND MAINTENANCE

Before cleaning the device, disconnect it from the power outlet and let the appliance cools down.

Wipe flakes and any other deposits on the soleplate with a damp cloth or a non-abrasive (liquid) cleaner.

Warning: Do not use chemical, steel, wooden or abrasive cleaners to scrape the soleplate.

Clean the upper part of the device with a soft damp cloth. Wipe the water drop on the unit base and the heatproof stand with a dry cloth.

If there is any fabric adhered to the soleplate, use a damp cloth with vinegar to wipe off the soleplate.

To remove the mineral deposits gathered in the inner steam generator, follow the following steps: in the first place, reverse the unit base and place it on a level surface horizontally, make sure that the unit base is placed stably, then gently prise it up with a screwdriver on the cover

ENGLISH

and remove it. After this, drain the steam generator, then refill it with clean water to clean it correctly. (see Fig. 7)

WARNING: To avoid a risk of scald, make sure the steam generator has been cooled down completely before removing the knob.

Fig.7

After drainage, return the knob to its original position by pressing it down on the orifice in the base.

When the device is not used for a long time, remove the water in the tank, put the iron on the heatproof stand and then push the iron lock to lock position to lock the iron properly.

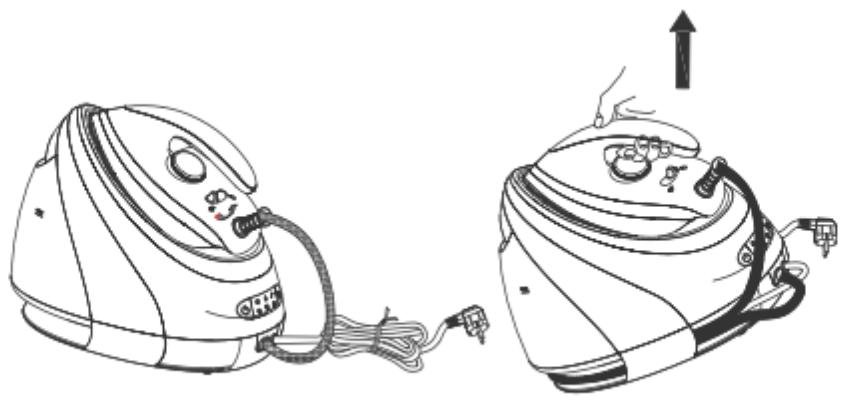

Follow the operation as below to store the supply steam hose and power cord along the cord slot: firstly, fold the steam supply hose in two and wind it along the cord slot, then fix it at the cord slot; secondly, fold the power cord in two and wind it along the cord slot, then fix it at the cord slot (See Fig.8).

Fig.8

6. TECHNICAL SPECIFICATIONS

05502 Total Iron Expert 8500 Implode

2520-3000 W, 220-240 V\~, 50-60 Hz, IPXO

05505 Total Iron Expert 9000 Turbo Boost

2520-3000 W, 220-240 V\~, 50-60 Hz, IPXO

7. DISPOSAL OF OLD ELECTRICAL APPLIANCES

The European directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE), specifies that old household electrical appliances must not be disposed of with the normal unsorted municipal waste. Old appliances must be collected separately, in order to optimize the recovery and recycling of the materials they contain, and reduce the impact on human health and the environment.

The crossed out “wheeled bin” symbol on the product reminds you of your obligation to dispose of the appliance correctly. If the product has a built-in battery or uses batteries, they should be removed from the appliance and disposed of appropriately.

Consumers must contact their local authorities or retailer for information concerning the correct disposal of old appliances and/or their batteries.

TOTAL IRON 8500 IMPLODE / 9000 TURBO-BOOST

ENGLISH

8. TECHNICAL SUPPORT SERVICE AND WARRANTY

This product is under warranty for 2 years from the date of purchase, as long as the proof of purchase is submitted, the product is in perfect physical condition, and it has been given proper use, as explained in this instruction manual.

The warranty will not cover the following situations:

• The product has been used for purposes other than those intended for it, misused, beaten, exposed to moisture, immersed in liquid or corrosive substances, as well as any other fault attributable to the customer.
• The product has been disassembled, modified, or repaired by persons, not authorised by the official Technical Support Service of Cecotec.
- Faults deriving from the normal wear and tear of its parts, due to use.

The warranty service covers every manufacturing defects of your appliance for 2 years, based on current legislation, except consumable parts. In the event of misuse, the warranty will not apply.

If at any moment you detect any problem with your product or have any doubt, do not hesitate to contact Cecotec Technical Support Service at [phone].
