USER MANUAL Titaniumsword 2000 Hand CECOTEC

EN • The coding in this manual is generic and applies to all code variants of the appliance.

KEEP FOR FUTURE REFERENCE

Safe operating practices

1. Training

a) Read the instructions carefully. Familiarise yourself with the correct use and operation of the tool.
b) Never allow children or people unfamiliar with these instructions to use the tool. Local regulations may restrict the age of the operator.
c) Please note that the operator or user is responsible for accidents or hazards that may occur to other people or their property.

2. Preparation

a) Before use, check the power cord and extension cord for signs of damage or wear. If the cord is damaged during use, disconnect it from the power supply immediately. DO NOT TOUCH THE CORD BEFORE DISCONNECTING THE POWER. Do not use the appliance if the cord is damaged or worn.
b) Before use, visually check the tool for damaged, missing or improperly fitted guards or covers.
c) Never operate the tool while people, especially children, or pets are nearby.

3. Operation

a) Keep the power and extension cords away from the cutting head.

b) Always wear eye protection and sturdy footwear while operating the tool.
c) Avoid using the tool in adverse weather conditions, especially when there is a risk of lightning.
d) Use the tool only in broad daylight or in good artificial light.
e) Never operate the tool with damaged guards or covers or without them in place.
f) Start the motor only when hands and feet are away from the cutting head.
g) Always disconnect the tool from the power supply (i.e., remove the mains plug, remove the disabling device or removable battery) whenever it is left unattended, before clearing an obstruction, before checking, cleaning or working on it, after hitting a foreign object or whenever it begins to vibrate abnormally.
h) Be careful not to injure your feet and hands with the blades.
i) Always ensure that the ventilation openings are clear of debris.

4. Maintenance and storage

a) Disconnect the tool from the power supply (i.e. remove the mains plug, remove the disabling device or the removable battery) before carrying out maintenance or cleaning tasks.
b) Use only spare parts and accessories supplied by the manufacturer.
c) Check and clean the tool regularly. Have the tool repaired only by an authorised technician.

WARNING: Read all safety warnings and instructions. Failure to follow all warnings and instructions listed below may result in electric shock, fire and/or serious injury.

Save all warnings and instructions for future reference.

1) Work area safety

a) Keep the work area clean and well illuminated. Cluttered or dark areas may cause accidents.
b) Do not operate power tools in explosive environments, such as in the presence of flammable liquids, gases or dust. Power tools create sparks that can ignite dust or fumes.
c) Keep children and bystanders away while operating a power tool. Distractions can make you lose control of the tool.

2) Electrical safety

a) Power tool plugs must match the socket. Never modify the plug in any way. Do not use any adapter plugs with earthed power tools. Unmodified plugs and matching sockets will reduce the risk of electric shock.
b) Avoid body contact with grounded surfaces, like pipes, radiators, stoves and refrigerators. There is a higher risk of electric shock if your body is in touch with grounded surfaces.
c) Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.
d) Do not misuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep the cord away from heat, oil, sharp edges or moving parts. The

damaged or tangled cables can increase the risk of electric shock.

e) When operating a power tool outdoors, use an extension cord suitable for outdoor use. The use of a cord suitable for outdoor use reduces the risk of electric shock.
f) If operating a power tool in a damp location is unavoidable, use a power supply protected by a residual current device (RCD). The use of an RCD reduces the risk of electric shock.

3) Personal safety

a) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool if you are tired or under the influence of drugs, alcohol or medication. Lack of attention while operating power tools may result in serious personal injury.
b) Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, non-skid safety footwear, helmet or hearing protection, used under appropriate conditions, will reduce personal injuries.
c) Avoid unintentional start-up. Make sure the switch is in the off position before connecting the tool to a power source and/or battery, or before picking it up or transporting it. Carrying power tools with your finger on the switch or plugging in power tools with the switch in the on position may cause accidents.
d) Remove any adjusting key or wrench before turning the power tool on. Leaving a wrench or a key attached to a rotating part of the power tool may result in personal injury.
e) Do not overstretch yourself. Always keep your feet firmly

on the ground and maintain a proper balance. This will provide better control of the power tool in unexpected situations.

f) Wear appropriate clothes. Do not wear loose clothing or jewellery. Keep your hair and clothing away from moving parts. Loose clothes, jewellery or long hair can get caught in moving parts.
g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Dust vacuuming can reduce dust-related hazards.

4) Power tool use and maintenance

a) Do not force the power tool. Use the appropriate power tool for the required application. The proper power tool will do the job better and safer at the rate for which it was designed.
b) Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.
c) Disconnect the plug from the power source and/or remove the battery pack, if detachable, from the power tool before making any adjustments, changing accessories or storing it. These preventive safety measures reduce the risk of starting the power tool accidentally.
d) Store idle power tools out of the reach of children and do not allow people unfamiliar with the power tool or these instructions to operate it. Power tools are dangerous in the hands of untrained users.
e) Maintain power tools and accessories. Check if the moving parts are misaligned or stuck, if there are

broken pieces or any other condition that may affect the power tool's operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.

f) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to jam and are easier to handle.
g) Use the power tool, accessories, etc. according to these instructions, taking into account the working conditions and the work to be carried out. The use of the power tool for operations different from those intended could result in a hazardous situation.

5) Battery tool use and maintenance

a) Only recharge with the charger specified by the manufacturer. Using a charger suitable for one type of battery pack with another type of battery pack may cause a fire.
b) Use power tools only with specifically designated battery packs. Use of any other type of battery packs may create a risk of injury and fire.
c) When the battery is not in use, keep it away from other metal objects, such as paper clips, coins, keys, nails, screws or other small metal objects, which can establish a connection from one terminal to another. A short circuit between the battery terminals may cause burns or fire.
d) Under harsh conditions, liquid may leak from the battery; avoid touching it. In case of accidental contact, rinse the affected part with water. If the liquid comes into contact with eyes, seek additional medical assistance immediately. Liquid leaking from the battery may cause skin irritation or burns.

e) Do not use a damaged or modified battery pack or tool. Do not use a damaged or modified battery pack or tool. Damaged or modified batteries may show unpredictable behaviours leading to fire, explosion or risk of injury.
f) Do not expose a battery pack or tool to fire or excessive temperatures. Exposure to fire or temperatures above 130\ °C may cause an explosion.
g) Follow all charging instructions and do not charge the battery or the tool outside the temperature range specified in the instructions. Charging improperly or at temperatures outside the specified range may damage the battery and increase the risk of fire.

6) Service

a) Have your power tool repaired by a qualified technician using only original replacement parts. This will ensure that the safety of the power tool is maintained.
b) Never repair damaged batteries. Battery maintenance should only be carried out by the manufacturer or an authorised technician.

The symbols used by this tool are shown below. Make sure you understand their meaning before using the tool.

Symbol	Meaning
	Warning.
	Read the instruction manual.

	Danger: Beware of thrown objects.
	The distance between the tool and nearby bystanders must be at least 15 m.Keep bystanders away.
	Please note: The blades will continue to move after the motor has been switched off. Wait for the blades to stop. Risk of injury.
	Noise emission.
	Wear eye, hearing and head protection.
	Wear safety footwear.
	Do not expose to rain.

Hedge trimmer safety instructions

a) Keep all parts of the body away from the blades. Do not remove the cut material or hold the material to be cut when the blades are moving. The blades will continue

to move after switching off the tool. Lack of attention while operating the tool may result in serious personal injury.

b) Carry the hedge trimmer by the handle and make sure it is switched off. Do not transport it with your finger on the trigger. Carrying the tool correctly will reduce the risk of accidental start-up and personal injury caused by the blades.
c) When carrying or storing the hedge trimmer, always put the blade cover back on. Proper handling of the hedge trimmer will reduce the risk of personal injury caused by the blades.
d) When clearing jammed material or cleaning the tool, make sure the power cord is disconnected. Unexpected start-up of the hedge trimmer in these situations may result in serious personal injury.
e) Hold the tool by the insulated gripping surfaces when performing an operation in which the tool may come into contact with hidden cables or even the power cord. The metal parts of the tool must not come into contact with live wires. This may result in electric shock.
f) Keep the power cord and other cables away from the cutting area. Power cords or cables may be hidden in hedges or bushes and may be accidentally cut by the blades.
g) Do not use the tool in adverse weather conditions, especially when there is a risk of lightning. This will reduce the risk of being struck by lightning.

Additional safety instructions for long reach hedge trimmers

a) To reduce the risk of electric shock, never use the long

reach hedge trimmer near power lines. Contact or use near power lines can cause serious injury, electrical shock or even death.

b) Always use both hands when operating the long reach hedge trimmer. Hold the long reach hedge trimmer with both hands to avoid losing control of the tool.
c) Always wear head protection when operating the long reach hedge trimmer overhead. Falling debris may result in serious personal injury.

The use of a residual current device with a tripping current of 30 mA or less is recommended.

Warning: the hedge trimmer is designed to be used by the operator at ground level and not on ladders or any other unstable surface.

Warning: before operating the hedge trimmer, ensure that the locking device(s) on any moving parts (e.g. extended shaft and pivoting part), if fitted, are in the locked position.

CONSIGNES GÉNÉRALES DE SÉCURITÉ POUR LES APPAREILS ÉLECTRIQUES

Important

LISEZ ATTENTIVEMENT AVANT UTILISATION CONSERVEZ CE MANUEL POUR DE FUTURES RÉFÉRENCES

ALGEMENE VEILIGHEIDSWAARSCHUWINGEN VOOR ELEKTRISCHE MACHINES

BELANGRIJK ZORGVULDIG LEZEN VOOR GEBRUIK BEWAREN VOOR TOEKOMSTIG GEBRUIK

The graphics in this manual are schematic representations and may not exactly match the product.

2. BEFORE USE

• This appliance is packaged in a way as to protect it during transport. Take the appliance out of its box and remove all packaging materials. You can keep the original box and other packaging elements in a safe place to prevent damage to the appliance if you need to transport it in the future. In case the original packaging is disposed of, make sure all packaging materials are recycled accordingly.
• Make sure all parts and components are included and in good conditions. If there is any piece missing or in bad conditions, contact the official Cecotec Technical Support Service immediately.

Box content

• Hedge trimmer
• Side cutting head for hedges
• Front cutting head for lawns
• USB Type-C cable
• Instruction manual

Do not remove the serial number of the appliance in order to keep a correct traceability of it in case of assistance.

3. OPERATION

Battery charging (Fig. 2)

• Connect the charger to the tool and plug it into the mains.
• During charging, the indicator light will turn on in red.
• The battery takes 3 to 5 hours to fully charge.
• When the hedge trimmer is fully charged, the indicator light will turn green.

For safety reasons, you cannot use the hedge trimmer while it is charging.

Note: The battery is built-in to the tool. If you ever need to replace it, do not attempt to do so on your own. Contact the official Cecotec Technical Support Service to replace it safely.

When you notice that the power of the hedge trimmer decreases, charge the battery. Do not wait until it is completely discharged, otherwise the battery may be damaged.

First, make sure that there are no stones or other obstacles in the area where the hedge trimmer is to be used.

Please note that the safety lock prevents the tool from operating unintentionally.

WARNINGS:

The blades continue to move for a few seconds after the tool is switched off. For this reason, before cleaning, turn it off and wait until the blades have come to a complete stop. Do not touch the blades under any circumstances, especially when the tool is in operation.

Switching on the hedge trimmer (Fig. 3)

To unlock the tool, push the safety lock and press the trigger at the same time.

Switching off the hedge trimmer

To turn the tool off, simply release the trigger.

The hedge trimming blade (5) is used for cutting hedges and bushes (Fig. 4), while the lawn cutting blade (1) is used for cutting grass and hedges with a higher degree of precision (Fig. 5).

Trimming hedges

Fig. 4

• Hold the tool at a slight angle to the hedge to be cut. First cut both sides of the hedge (bottom to top) and then cut the top.
• Make sure that there are no foreign objects in the hedge, otherwise the blades may be damaged.

Tips

• Generally, hedges that lose their leaves in autumn should be pruned in June and October.
• Evergreen hedges, on the other hand, should be pruned in April and August.

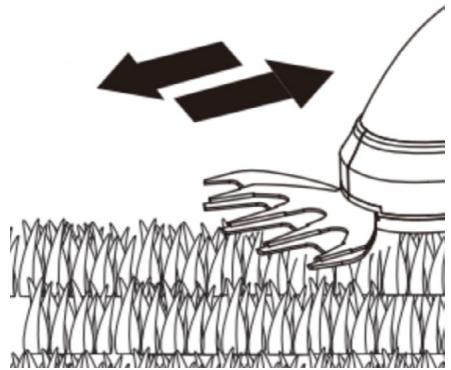

Cutting grass

Fig. 5

• Pass the tool over the grass. Keep in mind that you will get better results if the lawn is dry.
• If you notice that the power of the tool is decreasing, recharge it; do not wait until the battery is completely discharged.

Adjusting the handle angle

Fig. 6

• Press the handle rotation button (9).
• Place the handle (10) in the desired position.
• Release the button (9).

acing the blade

Warning: Risk of injuries. Be careful when replacing the blade.

• To fit or replace the blade, hold the hedge trimmer by the handle.
• Then press the blade release button and pull the blade down as shown in figures 7 and 8.
• To fit a new blade, insert it into the base of the hedge trimmer until it is firmly locked in place.

4. CLEANING AND MAINTENANCE

Cleaning

Make sure that the hedge trimmer is switched off and disconnected from the mains before carrying out any cleaning or maintenance task.

• Keep all safety systems, ventilation openings and motor housing free of dirt and dust as far as possible. Clean the tool with a damp cloth and some mild soap.
• The tool should be cleaned after each use.
• Do not use cleaning products or solvents, as they may damage the plastic parts of the tool. Make sure that no water enters the hedge trimmer.
• You can put a few drops of lubricating oil to improve the performance of the blades. However, the lubricant must be specific for this purpose, no other type of oil should be used.
• To ensure an accurate cut, it is also important to remove any grass debris and dirt that may have accumulated between the upper and lower blades.

WARNINGS:

Do not clean the tool by directly placing it under running water or using a pressure washer.

Store the hedge trimmer in a dry place where it will not be exposed to adverse weather conditions. Also keep it out of the reach of children.

Maintenance

For good results, you must always keep the blades sharp.

Battery removal procedure for proper recycling

This procedure should only be performed when the tool is intended for disposal, and not for battery replacement, as it is a complex process that may damage the product and pose a risk of injury. The following steps are necessary to ensure safe and responsible removal:

1. Disassemble the product by removing the screws that hold the two plastic parts of the main body together.
2. Disconnect the battery and remove it.
3. Properly recycle both the product and the battery.

5. TROUBLESHOOTING

The tool is maintenance-free. If you detect a fault, do not attempt to repair the tool by yourself. Contact the official Cecotec Technical Support Service.

6. TECHNICAL SPECIFICATIONS

Product reference: EU01_102261

Product: TitaniumSword 2000 Hand

Battery: 7.2 V, 2 Ah

To recharge the battery, it is recommended to use an adapter with the following characteristics: Input: 100-240 V\~, 50/60 Hz Output: 5 V\~, 2 A

Technical specifications may change without prior notification to improve product quality. Made in China | Designed in Spain

7. DISPOSAL OF OLD ELECTRICAL AND ELECTRONIC APPLIANCES

This symbol indicates that, according to the applicable regulations, the appliance and/or batteries must be disposed of separately from household waste. When this product reaches the end of its shelf life, you should dispose of the cells/batteries/accumulators and take them to a collection point designated by the local authorities.

Consumers must contact their local authorities or retailer for information concerning the correct disposal of old appliances and/or their batteries.

Compliance with the above guidelines will help to protect the environment.

8. TECHNICAL SUPPORT AND WARRANTY

Cecotec shall be liable to the end user or consumer for any lack of conformity that exists at the time of delivery of the product under the terms, conditions and deadlines established by the applicable regulations.

Repairs should be carried out by qualified personnel.

If at any moment you detect any problem with your product or have any doubt, do not hesitate to contact the official Cecotec Technical Support Service at [phone].

9. COPYRIGHT

The intellectual property rights over the texts in this manual belong to CECOTEC INNOVACIONES, S.L. All rights reserved. The contents of this publication may not, in whole or in part, be reproduced, stored in a retrieval system, transmitted, or distributed by any means (electronic, mechanical, photocopying, recording or similar) without the prior authorization of CECOTEC INNOVACIONES, S.L.

10. DECLARATION OF CONFORMITY

MANUFACTURER: CECOTEC INNOVACIONES S.L

ADDRESS: Av. Reyes Católicos, 60, 46910, Alfafar, Valencia (Spain)

DESCRIPTION: Hedge trimmer

PRODUCT IDENTIFICATION: TitaniumSword 2000 Hand

FUNCTION: Hedge trimmer with battery-powered electric motor

MODEL: EU01_102261

It certifies the appliance described has been designed, manufactured and tested and complies with all applicable provisions.

EU DIRECTIVES IMPLEMENTED:

• Directive 2006/42/CE on machinery.
• Directive 2014/30/EU on the harmonisation of the laws of the Member States relating to electromagnetic compatibility.
• Directive 2011/65/EU and delegated directive (EU) 2015/863 on the restriction of the use of certain hazardous substances in electrical and electronic equipment.

APPLICABLE HARMONISED NORMS:

• EN 62841-1:2015 +A11:2022
• EN IEC 62841-4-2:2021+A11:2021
• EN IEC 55014-1:2021
• EN IEC 55014-2:2021
• IEC 62321-1:2013; EN IEC 62321-2:2021; IEC 62321-3-1:2013; IEC 62321-4:2013+A1:2017; IEC 62321-5:2013; IEC 62321-6:2015; IEC 62321-7-1:2015; IEC 62321-7-2:2017; IEC 62321-8:2017.

1. PIÈCES ET COMPOSANTS

Img. 1

5. PROBLEEMOPLOSSING

Fig./Img./Abb./Afb./Rys.1

Fig./Img./Abb./Afb./Rys.2

Fig./Img./Abb./Afb./ Rys. 3

Fig./Img./Abb./Afb./Rys. 4

Fig./Img./Abb./Afb./ Rys.5

Fig./Img./Abb./Afb./Rys. 6

www.cecotec.es
