USER MANUAL Titaniumsword 2120 Hand Xl CECOTEC

General power tool safety instructions 15

1. Parts and components 132

2. Before use 132

3. Operation 133

4. Cleaning and maintenance 136

5. Troubleshooting 136

6. Technical specifications 136

7. Disposal of old electrical and electronic appliances 137

8. Technical support and warranty 137

9. Copyright 137

10. Declaration of conformity 138

SOMMAIRE

EN · The coding in this manual is generic and applies to all code variants of the appliance.

Safe operating practices

1. Training

a) Read the instructions carefully. Familiarise yourself with the correct use and operation of the tool.
b) Never allow children or people unfamiliar with these instructions to use the tool. Local regulations may restrict the age of the operator.
c) Please note that the operator or user is responsible for accidents or hazards that may occur to other people or their property.

2. Preparation

a) Before use, check the power cord and extension cord for signs of damage or wear. If the cord is damaged during use, disconnect it from the power supply immediately. DO NOT TOUCH THE CORD BEFORE DISCONNECTING THE POWER. Do not use the appliance if the cord is damaged or worn.
b) Before use, visually check the tool for damaged, missing or improperly fitted guards or covers.
c) Never operate the tool while people, especially children, or pets are nearby.

3. Operation

a) Keep the power and extension cords away from the cutting head.

b) Always wear eye protection and sturdy footwear while operating the tool.
c) Avoid using the tool in adverse weather conditions, especially when there is a risk of lightning.
d) Use the tool only in broad daylight or in good artificial light.
e) Never operate the tool with damaged guards or covers or without them in place.
f) Start the motor only when hands and feet are away from the cutting head.
g) Always disconnect the tool from the power supply (i.e., remove the mains plug, remove the disabling device or removable battery) whenever it is left unattended, before clearing an obstruction, before checking, cleaning or working on it, after hitting a foreign object or whenever it begins to vibrate abnormally.
h) Be careful not to injure your feet and hands with the cutting blade.
i) Always ensure that the ventilation openings are clear of debris.

4. Maintenance and storage

a) Disconnect the tool from the power supply (i.e. remove the mains plug, remove the disabling device or the removable battery) before carrying out maintenance or cleaning tasks.
b) Use only accessories recommended by the manufacturer.
c) Check and clean the tool regularly. Have the tool repaired only by an authorised technician.

⚠ WARNING: Read all safety warnings and instructions. Failure to follow all warnings and instructions listed below may result in electric shock, fire and/or serious injury.

Save all warnings and instructions for future reference.

1) Work area safety

a) Keep the work area clean and well illuminated. Cluttered or dark areas may cause accidents.

b) Do not operate power tools in explosive environments, such as in the presence of flammable liquids, gases or dust. Power tools create sparks that can ignite dust or fumes.

c) Keep children and bystanders away while operating a power tool. Distractions can make you lose control of the tool.

2) Electrical safety

a) Power tool plugs must match the socket. Never modify the plug in any way. Do not use any adapter plugs with earthed power tools. Unmodified plugs and matching sockets will reduce the risk of electric shock.

b) Avoid body contact with grounded surfaces, like pipes, radiators, stoves and refrigerators. There is a higher risk of electric shock if your body is in touch with grounded surfaces.

c) Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.

d) Do not misuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep the cord away from heat, oil, sharp edges or moving parts. The

damaged or tangled cables can increase the risk of electric shock.

e) When operating a power tool outdoors, use an extension cord suitable for outdoor use. The use of a cord suitable for outdoor use reduces the risk of electric shock.

f) If operating a power tool in a damp location is unavoidable, use a power supply protected by a residual current device (RCD). The use of an RCD reduces the risk of electric shock.

3) Personal safety

a) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool if you are tired or under the influence of drugs, alcohol or medication. Lack of attention while operating power tools may result in serious personal injury.

b) Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, non-skid safety footwear, helmet or hearing protection, used under appropriate conditions, will reduce personal injuries.

c) Avoid unintentional start-up. Make sure the switch is in the off position before connecting the tool to a power source and/or battery, or before picking it up or transporting it. Carrying power tools with your finger on the switch or plugging in power tools with the switch in the on position may cause accidents.

d) Remove any adjusting key or wrench before turning the power tool on. Leaving a wrench or a key attached to a rotating part of the power tool may result in personal injury.

e) Do not overstretch yourself. Always keep your feet firmly

on the ground and maintain a proper balance. This will provide better control of the power tool in unexpected situations.

f) Wear appropriate clothes. Do not wear loose clothing or jewellery. Keep your hair and clothing away from moving parts. Loose clothes, jewellery or long hair can get caught in moving parts.

g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Dust vacuuming can reduce dust-related hazards.

4) Power tool use and maintenance

a) Do not force the power tool. Use the appropriate power tool for the required application. The proper power tool will do the job better and safer at the rate for which it was designed.

b) Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.

c) Disconnect the plug from the power source and/or remove the battery pack, if detachable, from the power tool before making any adjustments, changing accessories or storing it. These preventive safety measures reduce the risk of starting the power tool accidentally.

d) Store idle power tools out of the reach of children and do not allow people unfamiliar with the power tool or these instructions to operate it. Power tools are dangerous in the hands of untrained users.

e) Maintain power tools and accessories. Check if the moving parts are misaligned or stuck, if there are

broken pieces or any other condition that may affect the power tool's operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.

f) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to jam and are easier to handle.

g) Use the power tool, accessories, etc. according to these instructions, taking into account the working conditions and the work to be carried out. The use of the power tool for operations different from those intended could result in a hazardous situation.

5) Battery tool use and maintenance

a) Only recharge with the charger specified by the manufacturer. Using a charger suitable for one type of battery pack with another type of battery pack may cause a fire.

b) Use power tools only with specifically designated battery packs. Use of any other type of battery packs may create a risk of injury and fire.

c) When the battery is not in use, keep it away from other metal objects, such as paper clips, coins, keys, nails, screws or other small metal objects, which can establish a connection from one terminal to another. A short circuit between the battery terminals may cause burns or fire.

d) Under harsh conditions, liquid may leak from the battery; avoid touching it. In case of accidental contact, rinse the affected part with water. If the liquid comes into contact with eyes, seek additional medical assistance immediately. Liquid leaking from the battery may cause skin irritation or burns.

e) Do not use a damaged or modified battery pack or tool. Do not use a damaged or modified battery pack or tool. Damaged or modified batteries may show unpredictable behaviours leading to fire, explosion or risk of injury.
f) Do not expose a battery pack or tool to fire or excessive temperatures. Exposure to fire or temperatures above 130° C may cause an explosion.
g) Follow all charging instructions and do not charge the battery or the tool outside the temperature range specified in the instructions. Charging improperly or at temperatures outside the specified range may damage the battery and increase the risk of fire.

6) Service

a) Have your power tool repaired by a qualified technician using only original replacement parts. This will ensure that the safety of the power tool is maintained.
b) Never repair damaged batteries. Battery maintenance should only be carried out by the manufacturer or an authorised technician.

The symbols used by this tool are shown below. Make sure you understand their meaning before using the tool.

Symbol	Meaning
	Warning.
	Read the instruction manual.
	Wear eye, hearing and head protection.
	Wear safety footwear.
	Do not expose to rain.

Hedge trimmer safety instructions

a) Keep all parts of the body away from the blade. Do not remove the cut material or hold the material to be cut when the blade is moving. The blade will continue to move after switching off the tool. Lack of attention while operating the tool may result in serious personal injury.
b) Carry the hedge trimmer by the handle and make sure it is switched off. Do not transport it with your finger on the trigger. Carrying the tool correctly will reduce the risk of accidental start-up and personal injury caused by the blade.
c) When carrying or storing the hedge trimmer, always put the blade cover back on. Proper handling of the hedge trimmer will reduce the risk of personal injury caused by the blade.
d) When clearing jammed material or cleaning the tool, make sure the power cord is disconnected. Unexpected start-up of the hedge trimmer in these situations may result in serious personal injury.
e) Hold the tool by the insulated gripping surfaces when performing an operation in which the tool may come into contact with hidden cables or even the power cord. The metal parts of the tool must not come into contact with live wires. This may result in electric shock.
f) Keep the power cord and other cables away from the cutting area. Power cords or cables may be hidden in

hedges or bushes and may be accidentally cut by the blade.

g) Do not use the tool in adverse weather conditions, especially when there is a risk of lightning. This will reduce the risk of being struck by lightning.

Additional safety instructions for long reach hedge trimmers

a) To reduce the risk of electric shock, never use the long reach hedge trimmer near power lines. Contact or use near power lines can cause serious injury, electrical shock or even death.
b) Always use both hands when operating the long reach hedge trimmer. Hold the long reach hedge trimmer with both hands to avoid losing control of the tool.
c) Always wear head protection when operating the long reach hedge trimmer overhead. Falling debris may result in serious personal injury.

The use of a residual current device with a tripping current of 30 mA or less is recommended.

Warning: the hedge trimmer is designed to be used by the operator at ground level and not on ladders or any other unstable surface.

Warning: before operating the hedge trimmer, ensure that the locking device(s) on any moving parts (e.g. extended shaft and pivoting part), if fitted, are in the locked position.

CONSIGNES GÉNÉRALES DE SÉCURITÉ POUR LES APPAREILS ÉLECTRIQUES

Important

LISEZ ATTENTIVEMENT AVANT UTILISATION

CONSERVEZ CE MANUEL POUR DE FUTURES RÉFÉRENCES

ALGEMENE VEILIGHEIDSWAARSCHUWINGEN VOOR ELEKTRISCHE MACHINES

Belangrijk ZORGVULDIG LEZEN VOOR GEBRUIK BEWAREN VOOR TOEKOMSTIG GEBRUIK

Charger rated output/ Salida: 21V 1A

1. Hedge trimming blade
2. Lawn cutting blade
3. Protective guard
4. Rotation button
5. Lock button
6. Trigger
7. Battery release button
8. Battery

NOTE:

The graphics in this manual are schematic representations and may not exactly match the product.

2. BEFORE USE

• This appliance is packaged in a way as to protect it during transport. Take the appliance out of its box and remove all packaging materials. You can keep the original box and other packaging elements in a safe place to prevent damage to the appliance if you need to transport it in the future. In case the original packaging is disposed of, make sure all packaging materials are recycled accordingly.
• Make sure all parts and components are included and in good conditions. If there is any piece missing or in bad conditions, contact the official Cecotec Technical Support Service immediately.

Box content

• Hedge trimmer
• Hedge trimming blade
• Lawn cutting blade
• Protective guard
• Battery
• Charger
• Instruction

manual

- Do not remove the serial number of the appliance in order to keep a correct traceability of it in case of assistance.

3. OPERATION

WARNINGS:

• Make sure that you wear the appropriate protective equipment when using the tool.
  – Ensure that the spray area is well ventilated and free of flammable materials.
• Do not point the hedge trimmer at any part of the body

Fitting and removing the battery

Fig. 2

WARNINGS:

• Always make sure the tool is switched off before installing or removing the battery.
• Hold the battery and the tool firmly when installing or removing it. Failure to do so could cause both elements to fall and cause damage or injury.

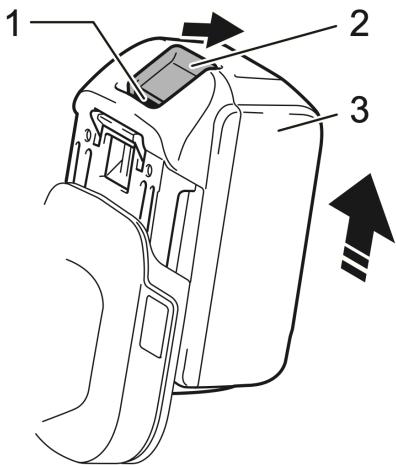

Fig. 2 key:

1. Red indicator light
2. Battery release button
3. Battery

Fitting the battery

Pull the battery out while pressing the battery release button.

Removing the battery

Align the battery fitting piece with the corresponding slot on the tool. Then push the battery all the way in, making sure that it is fully inserted.

If the indicator light on the top of the release part is red, it means that the battery is not completely inserted.

WARNINGS:

• Be sure to insert the battery correctly, until the indicator light is no longer illuminated. If the battery is not fully inserted and is loose, it could accidentally fall out and cause injury.
• Do not use force when inserting the battery. If the battery does not slide in easily, this means that it is not being inserted correctly.

Charging the battery

WARNING: The battery may be damaged due to improper charging.

1. To charge the battery correctly, you must first remove the battery and then insert the charger connector into the charging socket on the removable battery.
2. Once connected, plug the charger power supply into the mains socket.

ENGLISH

1. When the charger is plugged in, the indicator light will light up in red to indicate that the battery is charging.
2. Once the battery is fully charged, the indicator light will turn green.
3. Once charged, disconnect the charger from the mains socket first and then remove the charger connector from the battery.
4. Insert the charged battery back into the tool. Make sure it is correctly aligned and clicks into place until you hear a click.

NOTE: Make sure the connector is firmly in place to ensure a good connection.

Protection system

This system automatically cuts power to the motor to extend tool and battery life. The tool will automatically stop during operation in the following conditions:

Overload: if the battery overloads, the tool will automatically stop working. If this happens, switch it off and stop whatever is causing the overload. Then switch it back on to restart it.
- Overheating: when the tool or battery overheats, the hedge trimmer will stop automatically, and the indicator light will flash. If this happens, allow the tool and battery to cool down before switching it back on.
- Over discharge: when the battery level is low, the tool will stop automatically. If this happens, remove the battery and charge it.

Activating the trigger

Fig. 3

WARNINGS:

• Before inserting the battery into the tool, always check that the trigger can be actuated correctly and that it returns to the off position when released.
• For your safety, this tool is equipped with a lock button that prevents unintentional start-up. Do not use the tool if it is started by pulling the trigger without pressing the lock button.
• Do not press the trigger too hard without pressing the lock button; if you do, it may break.
• To start the tool, press the lock button and then the trigger.
• To stop the tool, release the trigger. The lock button can be pressed from either the right or left side.

Fig. 3 key:

1. Trigger
2. Lock button

Removing and replacing the blade

WARNINGS:

– Before replacing the blade, you must first remove the battery.
- Be careful when handling the blade to avoid getting your fingers caught in the blade.

1. Press and hold both side buttons at the same time to release the blade as shown in figure 4.
2. Remove the blade by sliding it forward as shown in figure 5.
3. If you wish to fit a new blade, insert it diagonally, so that the angle shown in figure 6 is achieved.
4. Then press the buttons on both sides at the same time and insert the blade in place.

Adjusting the cutting angle

Note: This tool has 5 tilt angle levels: 15° down, 0° (horizontal), and 15° , 30° or 45° up.

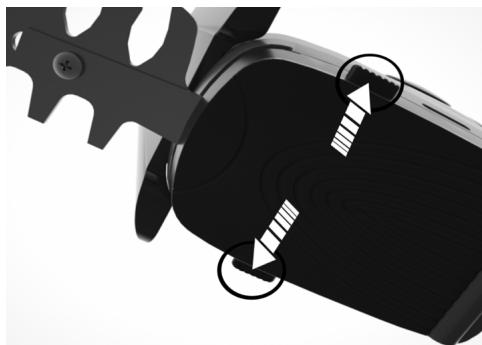

- Press and hold the buttons on both sides of the tool while pulling the upper part up or down as shown in figure 7. The cutting angle will be adjusted.

Fig. 7 key:

• 5 tilt angle levels
• From -15° to 45°

Fitting the lawn cutting blade

Insert the lawn cutting blade as described in the section "Removing and replacing the blade". Be sure to secure the screw. Fig. 8

Trimming hedges with the appropriate blade

If you are trimming the sides of a hedge, cut it from the bottom up. Fig. 9

If you want to give the hedge a rounded shape, trim from the root to the top. Fig. 10

Operation

WARNINGS:

• Before trimming hedges, make sure that there are no obstacles in the area (e.g., sticks or stones). In addition, it is advisable to remove weeds from the area where the hedge trimmer is to be used beforehand.
• Make sure that the blade does not come into contact with fences, trees or other obstacles.

Cutting tall grass

Do not attempt to cut tall grass all at once. This type of grass should be cut in stages. Allow a day or two between cuts until the grass is short. Fig. 11

ENGLISH

Note: If you cut tall grass in a single pass, you could adversely affect the lawn.

WARNINGS:

– Dirt and corrosion can damage the blade, affecting the performance of the tool. Fig. 12
- Do not touch the blade.
- Avoid, as much as possible, using the tool in very hot weather.
– Cut the lawn with the corresponding blade.

Turn the tool on after adjusting the cutting height and hold it so that the bottom of the tool rests on the ground. Gently move it forward. Fig. 13

4. CLEANING AND MAINTENANCE

Cleaning

⚠ WARNING: Before carrying out any maintenance or cleaning task on the tool, make sure that it is switched off and that the battery has been removed.

• After using the hedge trimmer, clean the dust from both sides of the blade with a wire brush, then wipe it with a dry cloth and apply a few drops of lubricating oil. Fig. 14
  – Clean the dust off the tool with a dry or damp cloth with a little soap after each use.
• Never use gasoline, benzine, thinner, alcohol or similar products to clean the tool. Doing so may cause discoloration, deformation or cracking.

Blade maintenance

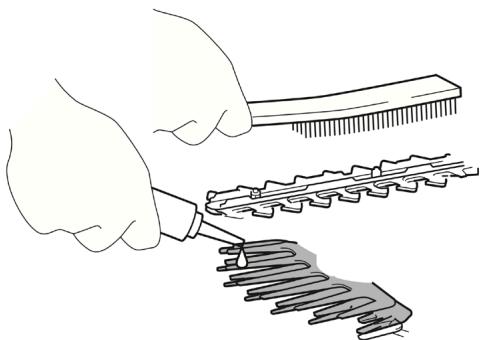

Before using the hedge trimmer, or if it has been in use for more than one hour, apply low viscosity lubricating oil to the blade.

5. TROUBLESHOOTING

The tool is maintenance-free. If you nevertheless detect a fault, do not attempt to repair the tool by yourself. Contact the official Cecotec Technical Support Service.

6. TECHNICAL SPECIFICATIONS

Product reference: EU01_102262

Product: TitaniumSword 2120 Hand XL

Motor power: 200-400 W

Battery: 21 V, 2000 mAh, 42 Wh

Charger model: HGFS210100

Charger rated input: 100-240 V - 50/60 Hz

Charger rated output: 21 V, 1 A

Technical specifications may change without prior notification to improve product quality.

Made in China | Designed in Spain

7. DISPOSAL OF OLD ELECTRICAL AND ELECTRONIC APPLIANCES

This symbol indicates that, according to the applicable regulations, the appliance and/or batteries must be disposed of separately from household waste. When this product reaches the end of its shelf life, you should dispose of the cells/batteries/accumulators and take them to a collection point designated by the local authorities.

Consumers must contact their local authorities or retailer for information concerning the correct disposal of old appliances and/or their batteries.

Compliance with the above guidelines will help protecting the environment.

8. TECHNICAL SUPPORT AND WARRANTY

Cecotec shall be liable to the end user or consumer for any lack of conformity that exists at the time of delivery of the product under the terms, conditions and deadlines established by the applicable regulations.

Repairs should be carried out by qualified personnel.

If at any moment you detect any problem with your product or have any doubt, do not hesitate to contact the official Cecotec Technical Support Service at [phone].

9. COPYRIGHT

The intellectual property rights over the texts in this manual belong to CECOTEC INNOVACIONES, S.L. All rights reserved. The contents of this publication may not, in whole or in part, be reproduced, stored in a retrieval system, transmitted, or distributed by any means (electronic, mechanical, photocopying, recording or similar) without the prior authorization of CECOTEC INNOVACIONES, S.L.

ENGLISH

10. DECLARATION OF CONFORMITY

MANUFACTURER: CECOTEC INNOVACIONES S.L

ADDRESS: Av. Reyes Católicos, 60, 46910, Alfafar, Valencia (Spain)

DESCRIPTION: Hedge trimmer

PRODUCT IDENTIFICATION: TitaniumSword 2120 Hand XL

FUNCTION: Hedge trimmer with battery-powered electric motor

MODEL: EU01_102262

It certifies the appliance described has been designed, manufactured and tested and complies with all applicable provisions.

EU DIRECTIVES IMPLEMENTED:

– Directive 2006/42/CE on machinery.
- Directive 2014/30/EU on the harmonisation of the laws of the Member States relating to electromagnetic compatibility.
– Directive 2011/65/EU and delegated directive (EU) 2015/863 on the restriction of the use of certain hazardous substances in electrical and electronic equipment.

APPLICABLE HARMONISED NORMS:

• EN 62841-1:2015 +A11:2022
• EN IEC 62841-4-2:2021+A11:2021
• EN IEC 55014-1:2021
• EN IEC 55014-2:2021
• IEC 62321-1:2013; EN IEC 62321-2:2021; IEC 62321-3-1:2013; IEC 62321-4:2013+A1:2017; IEC 62321-5:2013; IEC 62321-6:2015; IEC 62321-7-1:2015; IEC 62321-7-2:2017; IEC 62321-8:2017.

1. PIÈCES ET COMPOSANTS

Img. 1

Motor Power: 200-400 W

Bateria: 21V 2000mAh 42Wh

Charger model: HGFS210100

Charger rated input/Entrada: 100-240V - 50/60Hz

Charger rated output/Saída: 21 V, 1 A

5. PROBLEEMOPLOSSING

Charger rated output/ Sortida: 21V 1A

Fig./Img./Abb./Afb./Rys.1

Fig./Img./Abb./Afb./Rys. 2

Fig./Img./Abb./Afb./Rys. 3

Fig./Img./Abb./Afb./Rys. 4

Fig./Img./Abb./Afb./Rys. 5

Fig./Img./Abb./Afb./Rys. 6

5 Gear Angle Adjustment

Fig./Img./Abb./Afb./Rys. 7

Fig./Img./Abb./Afb./Rys. 8

Fig./Img./Abb./Afb./Rys. 9

Fig./Img./Abb./Afb./Rys. 10

Fig./Img./Abb./Afb./Rys. 11

Fig./Img./Abb./Afb./Rys. 12

Fig./Img./Abb./Afb./Rys. 13

Fig./Img./Abb./Afb./Rys. 14

www.cecotec.es
