C711DN - Color laser printer OKI - Free user manual and instructions

Product type	Multifunction color laser printer
Brand	OKI
Model	C711DN
Dimensions (W x D x H)	485 x 432 x 481 mm
Weight	29.5 kg
Power supply	220-240 V, 50/60 Hz
Power consumption (max)	1100 W
Main functions	Color printing, automatic duplex, secure printing, SD card storage
Printing speed (color)	32 pages per minute
Printing speed (black)	36 pages per minute
Maximum resolution	1200 x 1200 dpi
Input tray capacity	530 sheets
Multipurpose tray capacity	100 sheets
Interfaces	USB 2.0, Ethernet 10/100/1000
SD card slot	Yes, for storage and advanced functions
Maintenance and cleaning	Use a soft, dry cloth; replace toner cartridges and waste toner bottle
Security	Secure printing via PIN code, job storage on SD card
Spare parts and repairability	Toner cartridges, fuser unit, drum, transfer belt, maintenance kit
General information	Professional color laser printer with versatile media handling

Frequently Asked Questions - C711DN OKI

How to install an optional SD card on the OKI C711DN printer?

Turn off the printer, unplug the power cord. Open the front and side covers. Insert the SD card into the slot with the beveled corner oriented correctly. Close the covers, reconnect and turn on. Print the configuration page to verify installation.

How to print the printer configuration page?

Press the Enter button, then Menu down and Enter to select Print_info. Select Configuration with Enter, then press Enter again to execute. Once printed, press On Line to exit.

What to do if the printer indicates that the SD card is not recognized?

Check that the card is inserted correctly with the beveled corner in the right direction. Ensure the covers are properly closed. Print the configuration page to confirm detection. If the problem persists, restart the printer.

How to set up secure printing on the OKI C711DN?

Secure printing requires an SD card installed. In the print driver, select Secure Print and set a PIN code. The print job will only be released after entering the code on the control panel.

How to clear a paper jam on the printer?

Open the front and rear covers. Gently remove the jammed paper, avoiding tearing. Check the rollers. Close the covers and press the start button to resume.

What types of paper media can I use?

The printer accepts plain paper, envelopes, labels, cardstock, and transparencies. Use the multipurpose tray for special media and follow the recommended weights.

How to replace a toner cartridge?

Open the front cover. Pull the latch towards you, remove the old cartridge. Unpack the new one, remove the protective film, insert it pushing until it clicks. Close the cover.

How to connect the printer to the network?

Connect an Ethernet cable to the RJ-45 port. On the panel, go to Network Config and assign a static IP address or via DHCP. Install the driver on client computers.

What to do if print quality is poor or shows streaks?

Clean the print heads via the Cleaning menu. Check toner levels. If the problem persists, replace the drum unit or transfer belt.

How to release a held print job?

If the print job was sent in secure mode or held on the SD card, go to the Jobs menu, select the job and enter the PIN code. Press Print.

USER MANUAL C711DN OKI

The optional SD card enables collating of printed pages and can be used to store overlays and macros, fonts, and secure or proof documents waiting to be printed.

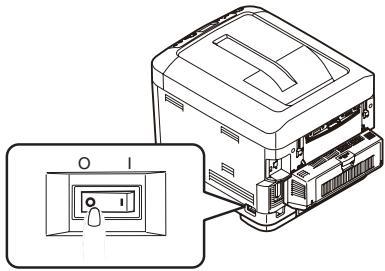

1. Switch the printer off and disconnect the AC power cable.

1. Press the cover release and open the printer's top cover fully.

WARNING!

If the printer has been powered on recently, the fuser will be hot. This area is clearly labelled. Do not touch.

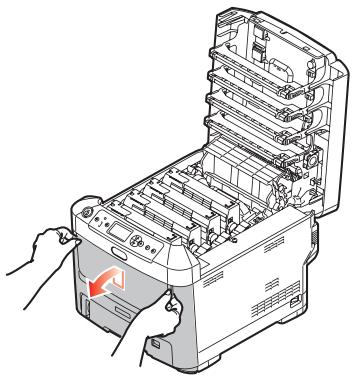

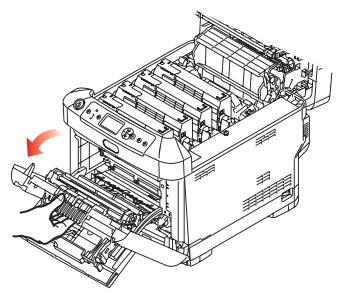

3. Pull down the MP Tray using the depressions. Lift the front cover release lever and lower the front cover.

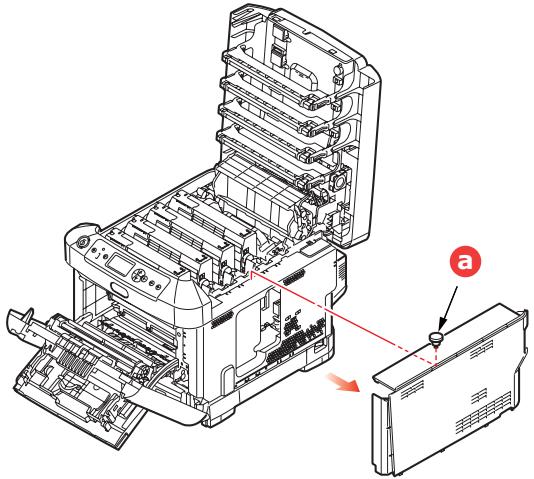

1. Loosen the screw (a) securing the right-hand side cover. Lift the edge of the side cover slightly and pull the cover away from the printer at the top. Lift the cover slightly to detach it from the printer. Place it safely to one side.

1. Notice that the SD card has one champered corner.

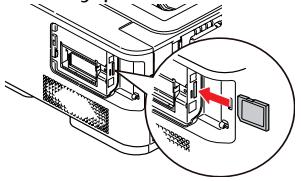

1. Gently push the SD card into the slot as shown.

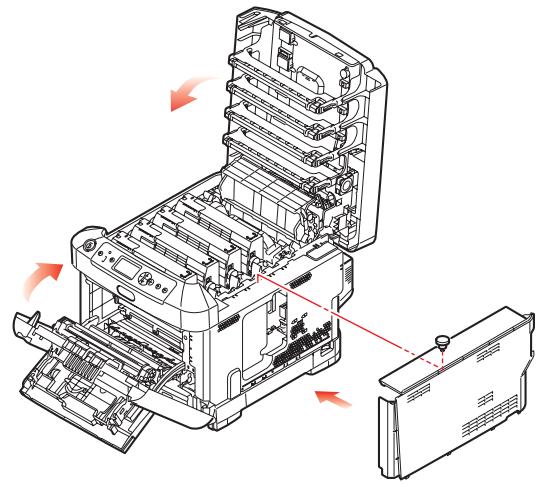

1. Locate the retaining clips at the bottom of the side cover into their rectangular holes near the bottom of the printer.

2. Close the top of the side cover up to the printer and refit the securing screw loosened in step 4.

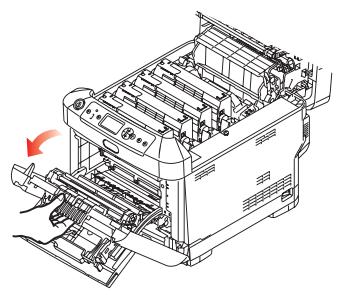

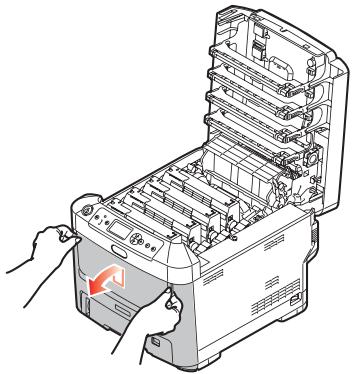

1. Close the front cover and the top cover, pressing down firmly at each side to latch it closed.

2. Reconnect the AC power cable and switch the printer on.

3. When the printer is ready, print a menu map as follows:

(a) Press the Enter button.
(b) Press the Menu down button then the Enter button to select the Print Information menu.
(c) Select Configuration with the Enter button.
(d) Press the Enter button once more to execute the Configuration menu.
(e) When the Configuration map is printed, press On Line to exit the menu system. Examine the first page of the menu map. This should now indicate that the SD card is installed.

CARTE SD (C610/C711)

The optional SD card enables collating of printed pages and can be used to store overlays and macros, fonts, and secure or proof documents waiting to be printed.

1. Switch the printer off and disconnect the AC power cable.

1. Press the cover release and open the printer's top cover fully.

WARNING!

If the printer has been powered on recently, the fuser will be hot. This area is clearly labelled. Do not touch.

3. Pull down the MP Tray using the depressions. Lift the front cover release lever and lower the front cover.

1. Loosen the screw (a) securing the right-hand side cover. Lift the edge of the side cover slightly and pull the cover away from the printer at the top. Lift the cover slightly to detach it from the printer. Place it safely to one side.

1. Notice that the SD card has one champered corner.

1. Gently push the SD card into the slot as shown.

1. Locate the retaining clips at the bottom of the side cover into their rectangular holes near the bottom of the printer.

2. Close the top of the side cover up to the printer and refit the securing screw loosened in step 4.

1. Close the front cover and the top cover, pressing down firmly at each side to latch it closed.

2. Reconnect the AC power cable and switch the printer on.

3. When the printer is ready, print a menu map as follows:

(a) Press the Enter button.
(b) Press the Menu down button then the Enter button to select the Print Information menu.
(c) Select Configuration with the Enter button.
(d) Press the Enter button once more to execute the Configuration menu.
(e) When the Configuration map is printed, press On Line to exit the menu system. Examine the first page of the menu map. This should now indicate that the SD card is installed.
