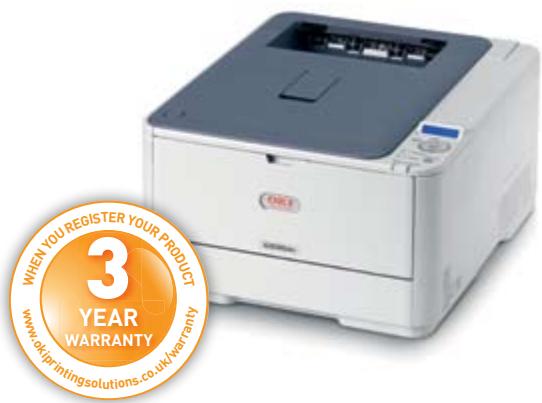

USER MANUAL C500 OKI

Professional in-house colour, delivered faster and more efficiently

A4

Range of media handling

Colour, mono

Print

1-10 users

Why compromise when you can have an OKI?

Perfect for any business with busy workgroups that want the maximum return on their IT investment. The compact low profile C500 Series has a host of essential features as standard, such as double-sided printing, built-in networking and a full three-year warranty, delivering much more than any ordinary office A4 colour printer.

These versatile, efficient and fast devices (up to 26ppm for colour and 30ppm for mono) are built for endurance and allow you to print on a wide range of media so that you can do so much more in-house. The C500 Series is ideal for everyday use in document-intensive environments.

True versatility

High Definition toner produces vibrant, saturated colour with a stylish finish, and an ability to print on a huge range of media (including card stock) puts the production of compelling marketing material within everyone's reach.

Now you can print an impressive variety of high quality single- and double-sided documents, from everyday items through to business cards, banners, and more. A compact, low profile design means that you can conveniently put it on your desk for arms-reach access to all your printed documents.

ProQ2400 multi-level output quality, 1200 × 600 dpi print resolution
- Microfine High Definition toner for maximum print quality

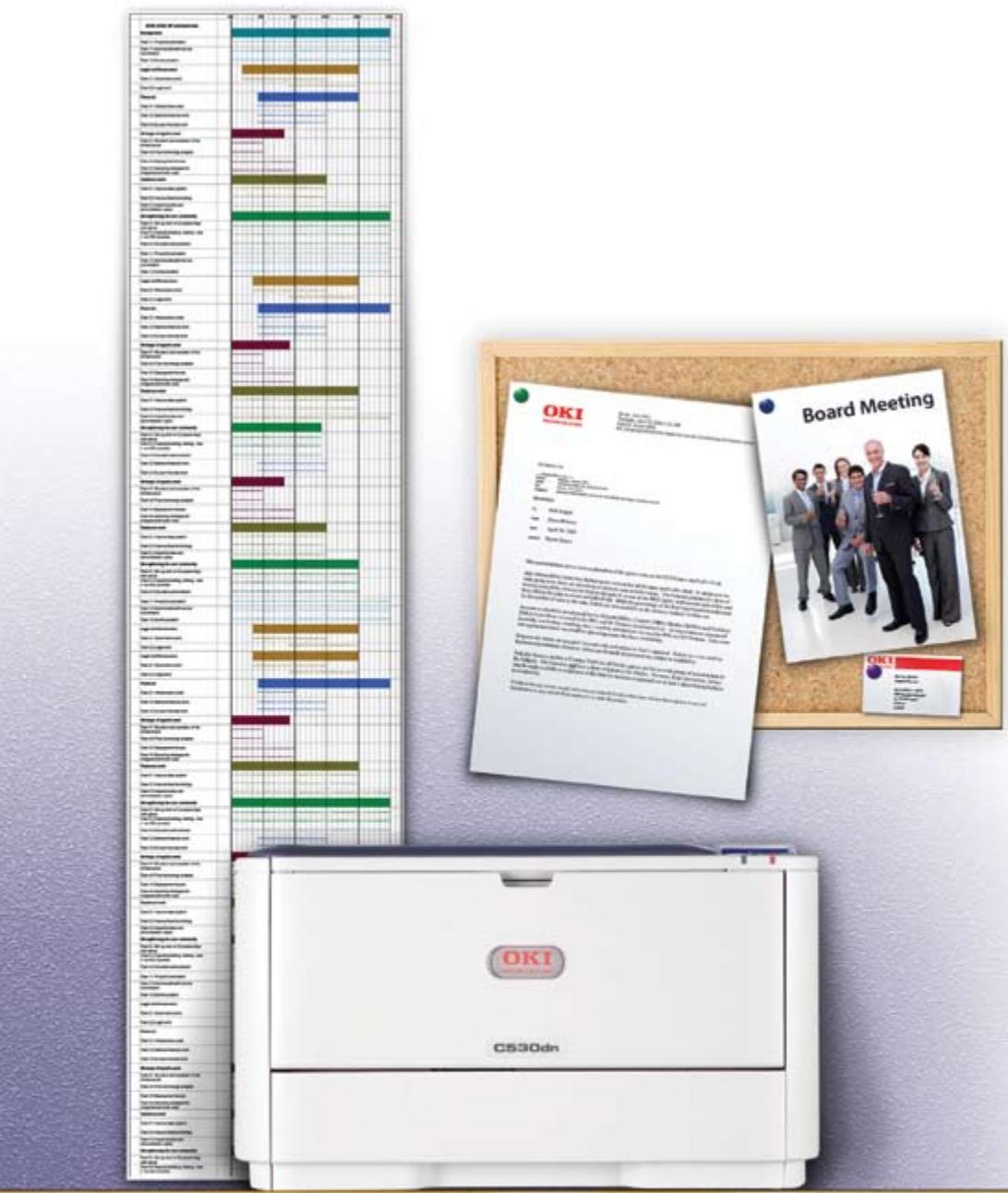

- Flexible media handling: from A6 to 1200mm banners; card stock up to 220gsm
- Compact, low profile design lets you pick up your documents with absolute ease
- OKI Template Manager makes it easy to create and print a range of document types

Effortless efficiency

The C500 Series delivers efficient, affordable printing day after day. High yield toner cartridges and a paper supply that can be expanded to 880 sheets mean longer uninterrupted printing. Plus, automatic two-sided printing comes as standard and a convenient multipurpose tray (MPT) lets you print on specialist media.

The C500 Series is fully networked as standard, allowing it to be shared across many users, and you can even monitor the printer remotely, thanks to OKI's PrintSuperVision software.

• 5,000 page toners and separate drum unit for maximum uptime and lower running costs
• Standard paper supply of 350 sheets, including 100-sheet multi-purpose tray (can expand to 880 sheets)
  Automatic two-sided printing reduces paper consumption and saves money
• Colour Access Policy Manager utility for controlling and monitoring user access rights
  10/100 Ethernet built-in integration with your network, allowing sharing across many users, saving costs

Enhanced productivity

With a fast 'first page out' time and print speeds up to 30ppm, the most difficult deadlines become more manageable. The powerful processor and large memory lets you take on complex jobs with ease and there's an intelligent ECO mode that automatically supports faster throughput on small jobs.

• First page prints in just 8 seconds; continuous colour printing at up to 26ppm (30ppm black & white)
• 532MHz processor and 256MB memory - expandable to 768MB - for superior performance (C530 only).
• ECO mode improves output performance for jobs of only 1 or 2 pages
• PCL and PostScript¹ brings platform flexibility, making it perfect for more graphical applications

Supporting your environmental policies

As you'd expect from OKI, the C500 Series has impressive green credentials. Built in a factory with 'CarbonZero' credentials it comes as standard with automatic double-sided printing which reduces paper use, and an ECO mode to help conserve energy and resources. Importantly when not in use, the 'Deep Sleep' mode reduces power consumption to negligible levels.

• ECO mode reduces energy consumption by keeping fusing temperatures low for one and two page jobs
• Deep Sleep mode saves you money by reducing energy consumption to less than 1.1 ~W^1
  Automatic double-sided printing reduces unnecessary paper usage

Robust and reliable

Look beyond the thoughtful ergonomic design of the C500 Series and you'll see it is tough enough for the most demanding workloads. Our ultra-reliable digital LED technology has fewer moving parts, which means less wear and tear for exceptional reliability. This, plus a robust, built-to-last design, gives us the confidence to offer an extended three-year warranty as standard.

• Ultra-reliable digital LED print technology, pioneered by OKI and proven in use for over 20 years
  Industry-leading three-year warranty as standard

C510dn GDI, duplex, networked

C530dn PCL/PS, duplex, networked

The C500 series features at a glance

A4 Print speed	Colour 26ppm; Mono 30ppm
Time to first print	8 seconds colour / 7.5 seconds mono
Print quality	ProQ2400 Multi-level technology, 1200 x 600dpi
Printer language	GDI Windows/Mac Host-based Printing System (C510dn) PCL/PostScript emulation (C530dn)
Processor speed	266MHz (C510dn); 532MHz (C530dn)
Dimensions (HxWxD)	242 x 410 x 504mm

Paper capacity	Standard: 350 sheets of 80gsm; Maximum: 880 sheets of 80gsm
Paper weight	Up to 220gsm
Paper sizes	A4, A5, B5, A6, banners up to 1,200mm
Duplex	Standard
Memory	Standard RAM: 64MB (C510dn) Standard RAM: 256MB; Maximum RAM: 768MB (C530dn) Optional SDHC Memory Card1: 16GB

Business Printing Specialists

OKI Printing Solutions is a global business-to-business brand dedicated to creating cost effective, professional in-house printing solutions which are designed to increase the efficiency of today's and tomorrow's businesses and their workflows. As pioneers in innovative print technologies from digital LED to High Definition Colour, we have a portfolio of award winning products and solutions enabling businesses to achieve both image focused, vibrant, quality print communications and budget flexibility.

OKI Printing Solutions presents a full range of A3 and A4 colour and mono printers and MFPs, for workgroups and businesses of all sizes with superior media-handling capabilities. In addition our fax, POS and dot matrix printers complete our range of print solutions. These best in class products are designed to be easy to use making the job of in-house print easier.

Considering the Environment

As part of the OKI Group's Charter of Corporate Conduct, OKI Printing

Solutions continually reviews its efforts to provide environmentally sound solutions to its customers:

Our products are designed and manufactured with reducing the impact on the environment in mind.
Increasing the amount of our hardware products and consumables that are recycled is one of our strategic objectives.
We feel responsible for conducting our business in an environmentally sound manner, contributing to conservation and activities within our local communities.

OKI Printing Solutions' Green Leaf symbol, found on all products and packaging, represents our total commitment to collection, recycling and environmental processes.

CarbonZero Manufacturing Facilities

OKI Printing Solutions' three main production facilities, located in

Ayutthaya (Thailand), Shenzen (China) and Fukushima (Japan), which manufacture printers and MFPs for the company's European and broader global markets have been made "CarbonZero" in a bid to slow down global climate change. This initiative is in accordance with our commitment to reduce total Greenhouse Gas Emissions, with an emissions reduction target of 6 per cent by 2012. This target is in line with the United Nations climate change objectives. We have invested in a range of carbon offsetting projects through co2 balance, to offset these factories' carbon emissions making them 'CarbonZero'.

Energy Star

Our printers and MFPs have earned the Energy Star by helping to eliminate

energy waste through particularly energy-efficient designs. They use less energy to perform regular tasks. When not in use, they automatically enter a powersave mode and product features such as, duplex printing, further reduce the wasting of energy and paper resources.

Simply Unique - 3 Year On-Site Warranty

Our devices are manufactured to the highest standards of quality and

technology, which has been confirmed by independent tests. We are so convinced of the high quality of our products that we are offering you an extension of the standard warranty period to 3 years – for free! Simply register your product within 30 days of purchase to be eligible for our unique all inclusive offer. Fully covered by OKI! For further information please visit:

WWW.OKIPRINTINGSOLUTIONS.CO.UK/WARRANTY

High Definition Color

High Definition Color is OKI Printing Solutions' own unique set of market

defining hardware and software technologies. Together, these components deliver unsurpassed colour printing simply, intelligently, and with perfect results.

Great colour starts with

OKI Printing Solutions

20 years of LED Technology

OKI Printing Solutions pioneered the development of digital LED technology in printers over 20 years ago. This innovation delivers High Definition printing – for more accurate, striking printed documents. Thanks to this digital LED technology, our printers are compact, environmentally friendly and energy efficient, using significantly less raw materials in the manufacturing process and consuming less energy. LED print heads have no moving parts, making our LED printers robust and ultra reliable.

550 Dundee Road, Slough

Berkshire, SL1 4LE

United Kingdom

Tel: [phone]

Fax: [phone]

WWW.OKIPRINTINGSOLUTIONS.CO.UK

PRINTER

A4 Print speed	26ppm colour, 30ppm mono
Time to first print	8 seconds colour, 7.5 seconds mono
Warm up time	Up to 60 seconds from power on & up to 32 seconds from power save
Processor speed	266MHz

INTERFACE AND SOFTWARE

Connectivity	USB 2.0 High Speed, 10/100 TX Ethernet
Printer languages	Windows / Mac Host-based Printing System
Network & protocols	All major network protocols supported via ethernet card with internal web server for printer and network card set-up and management. TCP/IP: ARP, IP, ICMP, TCP, UDP, FTP, TELNET, HTTP(IPP), BOOTP, DHCP, SNMPv1, DNS, DDNS, UPnP, Bonjour, WINS, SMTP, SNTP, WSDPrint, LLTD
OS Compatibility1	Windows 2000 / XP Home / XP Professional (32-bit & 64-bit) / Server 2003 (32-bit & 64-bit) / Server 2008 (32-bit & 64-bit) / Server 2008 R2 (64-bit) / Vista (32-bit & 64-bit) / Windows 7 (32-bit & 64-bit); Mac OS X 10.3.9 to 10.6.2
Advanced networking & security	IP Filtering, MAC Filtering
Utility Suite1	Template Manager2, Color Correct, OKI LPR2, Color Swatch Utility, Color Access Policy Manager2, PrintSuperVision.net2, Print Control Server2, Print Control Client, Print Control Report Tool2, Web Driver Installer2, Network Card Setup, Configuration Tool2

PAPER HANDLING

Paper capacity	Tray 1: 250 sheets of 80gsm; Multi-purpose tray: 100 sheets of 80gsm
Paper capacity optional tray	Tray 2: 530 sheets of 80gsm
Maximum paper capacity	880 sheets of 80gsm
Paper sizes	Tray 1: A4, A5, B5, A6; Tray 2: A4, A5, B5; Multi-purpose tray: A4, A5, B5, A6, Envelopes (C5, DL, Com-9, Com-10, Monarch), Index Card (3" x 5") (75 x 125mm), Photo Size (4" x 6", 5" x 7") (100 x 150mm, 125 x 175mm), Custom Size (up to 1200mm length including banners); Duplex: A4, A5, B5
Paper weight	Tray 1/2: 64 to 176gsm; Multi-purpose tray: 64 to 220gsm; Duplex: 64 to 176gsm
Duplex	Standard
Paper output	Face Down: 150 sheets of 80gsm; Face Up: 100 sheets of 80gsm

PRINT QUALITY

Resolution	ProQ2400 Multi-level Technology, 1200x600dpi, 600x600dpi
Enhancements	Auto Color Balance, Photo Enhance via driver

GENERAL FEATURES

Memory	Standard RAM: 64MB; Maximum RAM: 64MB
Environment	Operating temperature/ humidity: 10°C to 32°C (17°C to 27°C recommended) / 20% to 80% RH (50% to 70% RH recommended)
	Storage temperature/humidity: -10°C to 43°C, 10% to 90% RH
Power supply	Single phase 220-240VAC, frequency 50/60Hz +/-2%
Power consumption	Typical: 540W; Max: 1170W; Idle: 80W; Power Save: <9.5W; Deep Sleep: <2.0W
Noise level	Operating: <54dB(A); Standby: 37dB(A); Power save: Inaudible
Dimensions (HxWxD)	242 x 410 x 504mm
Weight³	22kg
Duty cycle	Maximum: 45,000 pages/month; Recommended: Up to 5,000 pages/month
Warranty	3 years extended warranty upon registration within 30 days of purchase
Product order number	C510dn: 01280001

ACCESSORIES (ORDER NUMBERS)

2nd paper tray

44472102

CONSUMABLES (ORDER NUMBERS)

Toner cartridges* (2,000 pages)	Cyan: 44469706; Magenta: 44469705; Yellow: 44469704
Toner cartridges* (3,500 pages)	Black: 44469803
Toner cartridges* (5,000 pages)	Cyan: 44469724; Magenta: 44469723; Yellow: 44469722; Black: 44469804
Image drum** (20,000 pages)	44494202
Transfer Belt (60,000 pages)	44472202
Fuser Unit (60,000 pages)	44472603

Toner: A4 pages yield compliant with ISO/ISC 19798. Printer shipped with toner for 2,000 A4 pages.
*Drum: Average life of 3 pages per job from tray 1 in simplex mode.

¹Check local OKI Printing Solutions website for latest driver releases and OS compatibility; ²Windows only; ³Including all consumables

Consumables Information: For the protection of your printer, and in order to ensure that you benefit from its full functionality, this model has been designed to operate only with genuine OKI Printing Solutions toner cartridges. These can be identified by the OKI trademark. Any other toner cartridge may not operate at all, even if it is described as "compatible", and if it does work, your printer's performance and print quality may be degraded.

Simply Unique - 3 Year Warranty

Our devices are manufactured to the highest standards of quality and technology, which has been confirmed by

independent tests. We are so convinced of the high quality of our products that we are offering you an extension of the

standard warranty period to 3 years – for free! Simply register your product within 30 days of purchase to be eligible for our

unique all inclusive offer. Fully covered by OK! For further information please visit www.okiPRINTINGSOLUTIONS.CO.UK/WARRANTY

Without registration, the standard pan-European 1 year warranty applies.

550 Dundee Road, Slough

Berkshire, SL1 4LE

United Kingdom

T+44(0)1753819819

F + 44(0)1753819899

WWW.OKIPrintINGSOLUTIONS.CO.UK

PRINTER

A4 Print speed	26ppm colour, 30ppm mono
Time to first print	8 seconds colour, 7.5 seconds mono
Warm up time	Up to 60 seconds from power on & up to 32 seconds from power save
Processor speed	532MHz

INTERFACE AND SOFTWARE

Connectivity	USB 2.0 High Speed, 10/100 TX Ethernet
Printer languages	PCL6 (XL3.0 & PCL5c) PostScript 3 emulation, SIDM (IBM-PPR, EPSON-FX, IBM5577)
Network & protocols	All major network protocols supported via ethernet card with internal web server for printer and network card set-up and management. TCP/IP: ARP, IPv4/v6, ICMP4/v6, TCP, UDP, LPR, FTP, TELNET, HTTP(IPP), BOOTP, DHCP, SNMPv1/v3, DNS, DDNS, UPnP, Bonjour, WINS, SSL/TLS, SMTP, POP3, SNTP, WSDPrint, LLTD, JetDirect protocols, NetBIOSOverTCP; NetWare3.x, 4.x, 5.x and 6 with full NDS and NDPS support:- PServer, RPrinter, NDPS supported via dedicated OKI NDPS Gateway; AppleTalk: ELAP, AARP, DDP, AEP, NBP, ZIP, RTMP, ATP, PAP; NetBEUI: SMB, NetBIOS; Other: EAP
OS Compatibility1	Windows 2000 / XP Home / XP Professional (32-bit & 64-bit) / Server 2003 (32-bit & 64-bit) / Server 2008 (32-bit & 64-bit) / Server 2008 R2 (64-bit) / Vista (32-bit & 64-bit) / Windows 7 (32-bit & 64-bit); Mac OS X 10.3.9 to 10.6.2
Advanced networking & security	IPv6, 802.1x authentication, SNMPv3, SSL/TLS, HTTPS encryption, MAC filtering, IP filtering, IPSec
Utility Suite1	Template Manager2, Color Correct, OKI LPR2, Color Swatch Utility, Color Access Policy Manager2, PrintSuperVision.net2, Print Control Server2, Print Control Client, Print Control Report Tool2, Web Driver Installer2, Network Card Setup, Configuration Tool2, PostScript Gamma Utility, Profile Assistant, PDF Direct Print, Storage Device Manager2

PAPER HANDLING

Paper capacity	Tray 1: 250 sheets of 80gsm; Multi-purpose tray: 100 sheets of 80gsm
Paper capacity optional tray	Tray 2: 530 sheets of 80gsm
Maximum paper capacity	880 sheets of 80gsm
Paper sizes	Tray 1: A4, A5, B5, A6; Tray 2: A4, A5, B5; Multi-purpose tray: A4, A5, B5, A6, Envelopes (C5, DL, Com-9, Com-10, Monarch), Index Card (3" x 5") (75 x 125mm), Photo Size (4" x 6", 5" x 7") (100 x 150mm, 125 x 175mm), Custom Size (up to 1200mm length including banners); Duplex: A4, A5, B5
Paper weight	Tray 1/2: 64 to 176gsm; Multi-purpose tray: 64 to 220gsm; Duplex: 64 to 176gsm
Duplex	Standard
Paper output	Face Down: 150 sheets of 80gsm; Face Up: 100 sheets of 80gsm

PRINT QUALITY

Resolution		ProQ2400 Multi-level Technology, 1200x600dpi, 600x600dpi
TYPEFACES	Enhancements	Auto Color Balance, Photo Enhance via driver
	Printer fonts	Scalable: 87 PCL Fonts and 80 PostScript fonts, PCL Bitmap fonts, OCR-A/B
	Barcode	12 types of one dimension with 28 variations: UPC-A, UPC-E, EAN/JAN-8, EAN/JAN13, Interleaved2of5, Code 39, Code 138 EAN/UCC-128, CODABAR, ZIP+4POSTNET, Customer barcode, USPS Zip Barcode, 1 type of two dimensions: PDF417

GENERAL FEATURES

Memory	Standard RAM: 256MB; Maximum RAM: 768MB
	Optional SDHC Memory Carda: 16GB
Environment	Operating temperature/humidity: 10°C to 32°C (17°C to 27°C recommended) / 20% to 80% RH (50% to 70% RH recommended)
	Storage temperature/humidity: -10°C to 43°C, 10% to 90% RH
Power supply	Single phase 220-240VAC, frequency 50/60Hz +/-2%
Power consumption	Typical: 540W; Max: 1170W; Idle: 80W; Power Save: <14W; Deep Sleep: <1.1W
Noise level	Operating: <54dB(A); Standby: 37dB(A); Power save: Inaudible
Dimensions (HxWxD)	242 x 410 x 504mm
Weighta	22kg
Duty cycle	Maximum: 45,000 pages/month; Recommended: Up to 5,000 pages/month
Warranty	3 years extended warranty upon registration within 30 days of purchase
Product order number	C530dn: 01280101

ACCESSORIES (ORDER NUMBERS)

2nd paper tray	44472102
Memory	256MB: 01182907; 512MB: 01182908
SDHC Memory Card3	16GB: 01272701

CONSUMABLES (ORDER NUMBERS)

Toner cartridges* (2,000 pages)	Cyan: 44469706; Magenta: 44469705; Yellow: 44469704
Toner cartridges* (3,500 pages)	Black: 44469803
Toner cartridges* (5,000 pages)	Cyan: 44469724; Magenta: 44469723; Yellow: 44469722; Black: 44469804
Image drum** (20,000 pages)	44494202
Transfer Belt (60,000 pages)	44472202
Fuser Unit (60,000 pages)	44472603

Toner: A4 pages yield compliant with ISO/ISC 19798. Printer shipped with toner for 2,000 A4 pages.
*Drum: Average life of 3 pages per job from tray 1 in simplex mode.

¹Check local OKI Printing Solutions website for latest driver releases and OS compatibility; ²Windows only; ³Secure Digital High Capacity (SDHC) Memory Card supports up to 32GB. OKI is not responsible for any compatibility risk using non OKI genuine SDHC Memory Card; ⁴Including all consumables

Consumables Information: For the protection of your printer, and in order to ensure that you benefit from its full functionality, this model has been designed to operate only with genuine OKI Printing Solutions toner cartridges. These can be identified by the OKI trademark. Any other toner cartridge may not operate at all, even if it is described as "compatible", and if it does work, your printer's performance and print quality may be degraded.
