USER MANUAL GS2KVAXV BAUKNECHT

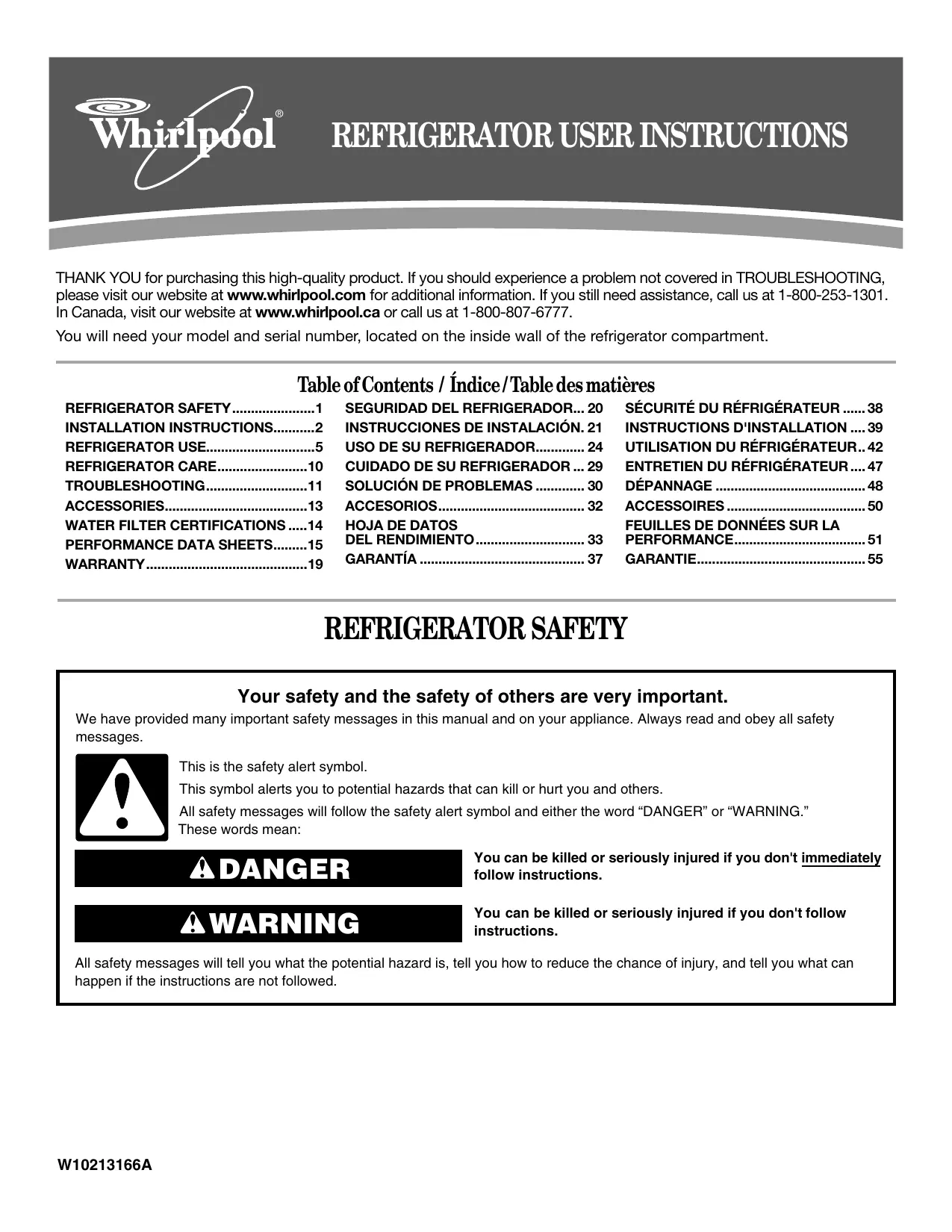

THANK YOU for purchasing this high-quality product. If you should experience a problem not covered in TROUBLESHOOTING, please visit our website at www.whirlpool.com for additional information. If you still need assistance, call us at 1-800-253-1301. In Canada, visit our website at www.whirlpool.ca or call us at 1-800-807-6777. You will need your model and serial number, located on the inside wall of the refrigerator compartment. REFRIGERATOR SAFETY Your safety and the safety of others are very important. We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety messages. This is the safety alert symbol. This symbol alerts you to potential hazards that can kill or hurt you and others. All safety messages will follow the safety alert symbol and either the word “DANGER” or “WARNING.” These words mean: DANGER WARNING You can be killed or seriously injured if you don't immediately follow instructions. You can be killed or seriously injured if you don't follow instructions. All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can happen if the instructions are not followed. W10213166A

IMPORTANT SAFETY INSTRUCTIONS

WARNING: To reduce the risk of fire, electric shock, or injury when using your refrigerator, follow these basic precautions:

Plug into a grounded 3 prong outlet.

Do not remove ground prong.

Do not use an adapter.

Do not use an extension cord.

Keep flammable materials and vapors, such as gasoline, away from refrigerator. Use two or more people to move and install refrigerator.

Disconnect power before servicing.

Replace all parts and panels before operating.

Remove doors from your old refrigerator.

Disconnect power before installing ice maker (on ice maker kit ready models only). Use a sturdy glass when dispensing ice (on some models).

SAVE THESE INSTRUCTIONS

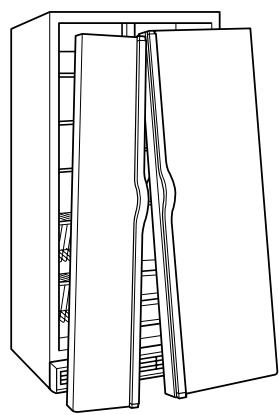

Proper Disposal of Your Old Refrigerator WARNING Before You Throw Away Your Old Refrigerator or Freezer:

Leave the shelves in place so that children may not easily climb inside. Suffocation Hazard Remove doors from your old refrigerator. Failure to do so can result in death or brain damage. IMPORTANT: Child entrapment and suffocation are not problems of the past. Junked or abandoned refrigerators are still dangerous – even if they will sit for “just a few days.” If you are getting rid of your old refrigerator, please follow these instructions to help prevent accidents. INSTALLATION INSTRUCTIONS Unpack the Refrigerator WARNING Excessive Weight Hazard Use two or more people to move and install refrigerator. Failure to do so can result in back or other injury. Remove packaging materials. Do not use sharp instruments, rubbing alcohol, flammable fluids, or abrasive cleaners to remove tape or glue. These products can damage the surface of your refrigerator. For more information, see “Refrigerator Safety.” When Moving Your Refrigerator: Your refrigerator is heavy. When moving the refrigerator for cleaning or service, be sure to cover the floor with cardboard or hardboard to avoid floor damage. Always pull the refrigerator straight out when moving it. Do not wiggle or “walk” the refrigerator when trying to move it, as floor damage could occur.

Important information to know about glass shelves and covers: Do not clean glass shelves or covers with warm water when they are cold. Shelves and covers may break if exposed to sudden temperature changes or impact, such as bumping. Tempered glass is designed to shatter into many small, pebble-size pieces. This is normal. Glass shelves and covers are heavy. Use both hands when removing them to avoid dropping. Location Requirements Electrical Requirements WARNING WARNING Electrical Shock Hazard Explosion Hazard Keep flammable materials and vapors, such as gasoline, away from refrigerator. Plug into a grounded 3 prong outlet. Do not remove ground prong. Failure to do so can result in death, explosion, or fire. To ensure proper ventilation for your refrigerator, allow for ¹⁄₂" (1.25 cm) space on each side and at the top. When installing your refrigerator next to a fixed wall, leave 2" (5.08 cm) minimum on each side (depending on your model) to allow for the door to swing open. If your refrigerator has an ice maker, allow extra space at the back for the water line connections. Do not use an adapter. Do not use an extension cord. Failure to follow these instructions can result in death, fire, or electrical shock. Before you move your refrigerator into its final location, it is important to make sure you have the proper electrical connection. Recommended Grounding Method A 115 Volt, 60 Hz., AC only, 15- or 20-amp fused, grounded electrical supply is required. It is recommended that a separate circuit serving only your refrigerator be provided. Use an outlet that cannot be turned off by a switch. Do not use an extension cord. NOTE: Before performing any type of installation, cleaning, or removing a light bulb, turn the control (Thermostat, Refrigerator or Freezer Control depending on the model) to OFF and then disconnect the refrigerator from the electrical source. When you are finished, reconnect the refrigerator to the electrical source and reset the control (Thermostat, Refrigerator or Freezer Control depending on the model) to the desired setting. See “Using the Controls.”

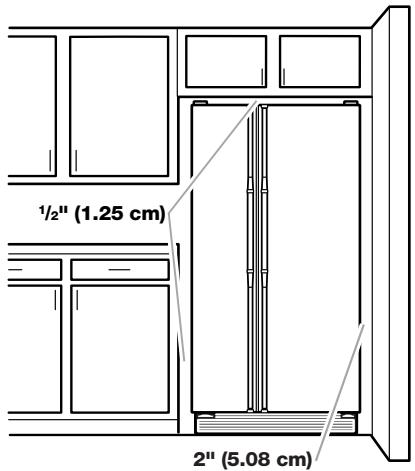

/ " (1.25 cm) 2" (5.08 cm) NOTES: ■ It is recommended that you do not install the refrigerator near an oven, radiator, or other heat source. Do not install in a location where the temperature will fall below 55°F (13°C).

Normal minimum cabinet cut-out width required for product installation is 36" (91.44 cm). However, if the product is placed against an extended wall and the ability to remove the crisper pans is desired, an additional 18" (45.72 cm) of cabinet width is required, so a total cabinet opening width of 54" (137.16 cm) is recommended. Water Supply Requirements Gather the required tools and parts before starting installation. Read and follow the instructions provided with any tools listed here. TOOLS NEEDED:

Flat-blade screwdriver

⁷⁄₁₆" and ¹⁄₂" Open-end or two adjustable wrenches

Cordless drill NOTE: Your refrigerator dealer has a kit available with a ¹⁄₄" (6.35 mm) saddle-type shutoff valve, a union, and copper tubing. Before purchasing, make sure a saddle-type valve complies with your local plumbing codes. Do not use a piercing-type or ³⁄₁₆" (4.76 mm) saddle valve which reduces water flow and clogs more easily. IMPORTANT: ■ All installations must meet local plumbing code requirements.

Use copper tubing and check for leaks. Install copper tubing only in areas where the household temperatures will remain above freezing.

Water Pressure A cold water supply with water pressure of between 30 and 120 psi (207 and 827 kPa) is required to operate the water dispenser and ice maker. If you have questions about your water pressure, call a licensed, qualified plumber. Reverse Osmosis Water Supply IMPORTANT: The pressure of the water supply coming out of a reverse osmosis system going to the water inlet valve of the refrigerator needs to be between 30 and 120 psi (207 and 827 kPa). If a reverse osmosis water filtration system is connected to your cold water supply, the water pressure to the reverse osmosis system needs to be a minimum of 40 to 60 psi (276 to 414 kPa). If the water pressure to the reverse osmosis system is less than 40 to 60 psi (276 to 414 kPa): ■ Check to see whether the sediment filter in the reverse osmosis system is blocked. Replace the filter if necessary.

Allow the storage tank on the reverse osmosis system to refill after heavy usage.

If your refrigerator has a water filter, it may further reduce the water pressure when used in conjunction with a reverse osmosis system. Remove the water filter. See “Water Filtration System.” If you have questions about your water pressure, call a licensed, qualified plumber. Connect Water Supply Read all directions before you begin. IMPORTANT: If you turn the refrigerator on before the water line is connected, turn the ice maker OFF. Connect to Water Line

1. Unplug refrigerator or disconnect power.

2. Turn OFF main water supply. Turn ON nearest faucet long

enough to clear line of water.

3. Locate a ¹⁄₂" (12.70 mm) to 1¹⁄₄" (3.18 cm) vertical cold water

pipe near the refrigerator. IMPORTANT:

7. Slip the compression sleeve and compression nut on the

copper tubing as shown. Insert the end of the tubing into the outlet end squarely as far as it will go. Screw the compression nut onto outlet end with adjustable wrench. Do not overtighten.

8. Place the free end of the tubing in a container or sink, and

turn ON the main water supply. Flush the tubing until water is clear. Turn OFF the shutoff valve on the water pipe. Coil the copper tubing. Connect to Refrigerator Style 1

Make sure it is a cold water pipe.

Horizontal pipe will work, but drill on the top side of the pipe, not the bottom. This will help keep water away from the drill and normal sediment from collecting in the valve.

4. Determine the length of copper tubing you need. Measure

from the connection on the lower rear corner of refrigerator to the water pipe. Add 7 ft (2.1 m) to allow for cleaning. Use ¹⁄₄" (6.35 mm) O.D. (outside diameter) copper tubing. Be sure both ends of copper tubing are cut square.

5. Using a cordless drill, drill a ¹⁄₄" (6.35 mm) hole in the cold

water pipe you have selected.

1. Unplug refrigerator or disconnect power.

2. Attach the copper tube to the valve inlet using a compression

nut and sleeve as shown. Tighten the compression nut. Do not overtighten.

3. Use the tube clamp on the back of the refrigerator to secure

the tubing to the refrigerator as shown. This will help avoid damage to the tubing when the refrigerator is pushed back against the wall.

4. Turn shutoff valve ON.

5. Check for leaks. Tighten any connections (including

connections at the valve) or nuts that leak.

A. Cold water pipe B. Pipe clamp C. Copper tubing D. Compression nut

E. Compression sleeve F. Shutoff valve G. Packing nut

6. Fasten the shutoff valve to the cold water pipe with the pipe

clamp. Be sure the outlet end is solidly in the ¹⁄₄" (6.35 mm) drilled hole in the water pipe and that the washer is under the pipe clamp. Tighten the packing nut. Tighten the pipe clamp screws slowly and evenly so the washer makes a watertight seal. Do not overtighten or you may crush the copper tubing.

A. Tube clamp B. Tube clamp screw C. Copper tubing

6. The ice maker is equipped with a built-in water strainer. If

your water conditions require a second water strainer, install it in the ¹⁄₄" (6.35 mm) water line at either tube connection. Obtain a water strainer from your nearest appliance dealer. Style 2

1. Unplug refrigerator or disconnect power.

2. Remove and discard the black nylon plug from the gray water

tube on the rear of the refrigerator.

3. If the gray water tube supplied with the refrigerator is not long

enough, a ¹⁄₄" x ¹⁄₄" (6.35 mm x 6.35 mm) coupling is needed in order to connect the water tubing to an existing household water line. Thread the provided nut onto the coupling on the end of the copper tubing. NOTE: Tighten the nut by hand. Then tighten it with a wrench two more turns. Do not overtighten. Complete the Installation WARNING Electrical Shock Hazard Plug into a grounded 3 prong outlet. Do not remove ground prong. Do not use an adapter. Do not use an extension cord.

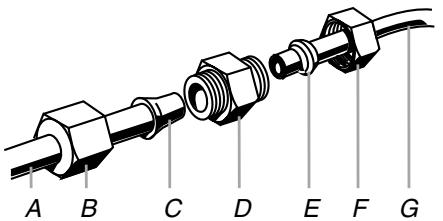

A. Refrigerator water tubing B. Nut (provided) C. Bulb D. Coupling (purchased)

E. Ferrule (purchased) F. Nut (purchased) G. Household water line

4. Turn shutoff valve ON.

5. Check for leaks. Tighten any nuts or connections (including

connections at the valve) that leak. Style 3

1. Unplug refrigerator or disconnect power.

2. Remove and discard the black nylon plug from the gray water

tube on the rear of the refrigerator.

3. Thread the provided nut onto the water valve as shown.

NOTE: Tighten the nut by hand. Then tighten it with a wrench two more turns. Do not overtighten. Failure to follow these instructions can result in death, fire, or electrical shock.

1. Plug into a grounded 3 prong outlet.

2. Flush the water system. See “Prepare the Water System” or

“Water and Ice Dispensers.” NOTE: Allow 24 hours to produce the first batch of ice. Allow 3 days to completely fill ice container. REFRIGERATOR USE Using the Controls Temperature Control Adjustment and Cooling On/Off The refrigerator and freezer control buttons are located on the dispenser panel.

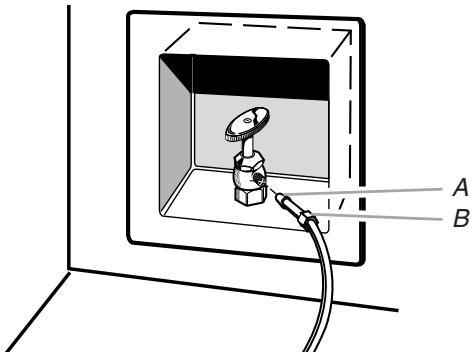

A. Bulb B. Nut (provided)

4. Turn shutoff valve ON.

5. Check for leaks. Tighten any nuts or connections (including

connections at the valve) that leak. To turn cooling off, press and hold the LOCK and FAST ICE/ COOL buttons at the same time for 3 seconds. Press and hold LOCK and FAST ICE/COOL again to turn cooling on. Your refrigerator and freezer will not cool when cooling is off. IMPORTANT: To avoid unintentionally locking the dispenser or changing other settings, be sure to press both buttons at exactly the same time. For your convenience, your refrigerator and freezer controls are preset at the factory. When you first install your refrigerator, make sure that the controls are still set to the “mid-settings.” To view set points, press the TEMPERATURE button on your dispenser panel. The factory recommended set points are 0°F (-18°C) for the freezer and 37°F (3°C) for the refrigerator.

IMPORTANT: ■ Wait 24 hours before you put food into the refrigerator. If you add food before the refrigerator has cooled completely, your food may spoil. NOTE: Adjusting the set points to a higher (colder) than recommended setting will not cool the compartments any faster. CONDITION: TEMPERATURE ADJUSTMENT: If the temperature is too warm or too cold in the refrigerator or freezer, first check the air vents to be sure they are not blocked before adjusting the controls. FREEZER Setting 1° higher

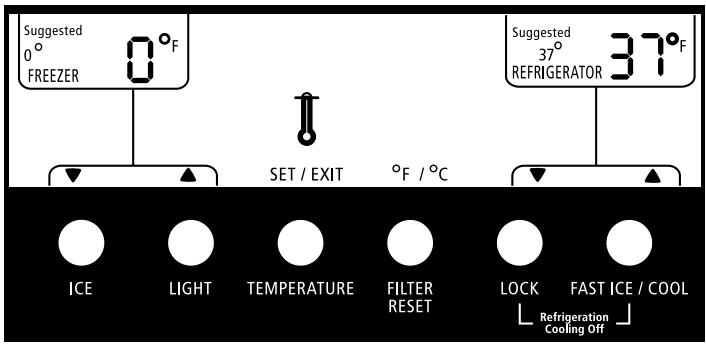

The preset settings should be correct for normal household usage. The controls are set correctly when milk or juice is as cold as you like and when ice cream is firm. FREEZER too warm/too little ice Wait at least 24 hours between adjustments. Recheck the temperatures before other adjustments are made.

The display screen on the dispenser control panel has a backlight, which will turn off automatically when the control buttons have not been used for 30 seconds or more. When the backlight is off, the first press of a control button will only reactivate the backlight, without changing any settings. Within 30 seconds after the backlight has been reactivated, additional presses of control buttons will change the applicable settings. Adjusting the Controls To adjust the set points, press and hold the TEMPERATURE button for 3 seconds. When adjust mode is activated, set points and adjusting information will appear on the display screen. Press TEMPERATURE to exit adjust mode, or allow about 15 seconds of inactivity and adjust mode will turn off automatically. Additional Features NOTE: The display screen on the dispenser control panel has a backlight, which will turn off automatically when the control buttons have not been used for 30 seconds or more. When the backlight is off, the first press of a control button will only reactivate the backlight, without changing any settings. Within 30 seconds after the backlight has been reactivated, additional presses of control buttons will change the applicable settings. Fast Cool and Fast Ice The Fast Cool feature assists with periods of heavy ice usage, full grocery loads, or temporarily warm room temperatures. The Fast Ice feature assists with temporary periods of heavy ice use by increasing ice production over a 24-hour period. ■ Press the FAST ICE/COOL button to turn on the Fast Cool feature. When the feature turns on, the “Fast Cool” animation will appear on the dispenser display. The Fast Cool setting will remain on for 24 hours unless manually turned off.

NOTE: To view Celsius temperatures, press the FILTER button when adjust mode is activated. To return the display setting to Fahrenheit, press FILTER again. Refrigerator Controls When adjust mode is activated, the LOCK and FAST ICE/COOL buttons adjust the refrigerator compartment temperature. The set point range for the refrigerator is 33°F to 45°F (0°C to 7°C). ■ Press LOCK to lower the set point.

Press FAST ICE/COOL to raise the set point. Freezer Controls When adjust mode is activated, the ICE and LIGHT buttons adjust the freezer compartment temperature. The set point range for the freezer is -5°F to 5°F (-21°C to -15°C). ■ Press ICE to lower the set point.

Press LIGHT to raise the set point. Press FAST ICE/COOL again to turn off Fast Cool and turn on the Fast Ice feature. When the feature turns on, the “Fast Ice” animation will appear on the dispenser display. The Fast Ice setting will remain on for 24 hours unless manually turned off.

Press FAST ICE/COOL a third time to activate Fast Cool and Fast Ice at the same time. When the features are activated, both the “Fast Cool” and “Fast Ice” animations will appear on the dispenser display.

Press FAST ICE/COOL a fourth time to turn both Fast Cool and Fast Ice off. When Fast Cool and/or Fast Ice are active, the temperature display will not change. After 24 hours, the refrigerator returns to the previous temperature set points. NOTE: If increased ice production is desired at all times, change the freezer control to a lower setting. Setting the freezer to a colder temperature may make some foods, such as ice cream, harder. 6th Sense™ Temperature Management The 6th Sense™ feature assists with regulating the temperature inside the refrigerator. If a large quantity of warm food is placed in the refrigerator or warm air enters the refrigerator while the door is held open, the 6th Sense™ system activates to quickly restore the temperature to the set point. NOTE: The 6th Sense™ system is always on when your refrigerator is operating. You do not need to press any buttons to activate it. The 6th Sense™ icon on the dispenser display screen indicates that the feature has automatically activated. Temperature Display Always On This feature keeps the temperature display on at all times. ■ Press and hold TEMPERATURE and LOCK at the same time for 3 seconds to turn the feature on. Chilled Door Bin (on some models) Cool air from the freezer is directed to the refrigerator door bin directly beneath the vents. NOTE: The dairy compartment and can rack are not associated with the Chilled Door Bin feature. Chilled Door Bin Control The chilled door bin control is located on the left-hand side of the refrigerator compartment. IMPORTANT: To avoid unintentionally locking the dispenser or changing other settings, be sure to press both buttons at exactly the same time.

Door Ajar Alarm The Door Ajar Alarm feature sounds an alarm when the refrigerator or freezer door is open for 5 minutes and the product cooling is turned on. The alarm will repeat every 2 minutes. Close both doors to turn it off. The feature then resets and will reactivate when either door is left open again for 5 minutes. Disabling Sounds ■ To turn off all dispenser and control sounds, including the Door Ajar Alarm, press and hold ICE and FAST ICE/COOL at the same time for 3 seconds.

Press and hold TEMPERATURE and LOCK at the same time for 3 seconds again to turn the feature off. To turn all sounds back on, press and hold ICE and FAST ICE/ COOL at the same time for 3 seconds again. Convertible Drawer Temperature Control (on some models) The control can be adjusted to properly chill meats or vegetables. The air inside the pan is cooled to avoid “spot” freezing and can be set to keep meats at the National Livestock and Meat Board recommended storage temperatures of 28° to 32°F (-2° to 0°C). The convertible vegetable/meat drawer control comes preset at the lowest meat setting. To store meat: Set the control to one of the three MEAT settings to store meat at its optimal storage temperature. To store vegetables: Set the control to VEG to store vegetables at their optimal storage temperatures. NOTE: If food starts to freeze, move the control to the left (less cold). Remember to wait 24 hours between adjustments. Crisper Humidity Control (on some models) You can control the amount of humidity in the moisture-sealed crisper. Adjust the control to any setting between LOW and HIGH. LOW (open) for best storage of fruits and vegetables with skins. HIGH (closed) for best storage of fresh, leafy vegetables. A. Chilled door bin control

Slide the door chill control to the left to reduce the flow of cold air to the bin and make it less cold.

Slide the door chill control to the right to increase the flow of cold air to the bin and make it colder. Water and Ice Dispensers (on some models) Depending on your model, you may have one or more of the following options: the ability to select either crushed or cubed ice, a special light that turns on when you use the dispenser, or a lock option to avoid unintentional dispensing. NOTES: ■ The dispensing system will not operate when the freezer door is open.

After connecting the refrigerator to a water source, flush the water system. Use a sturdy container to depress and hold the water dispenser lever for 5 seconds, then release it for 5 seconds. Repeat until water begins to flow. Once water begins to flow, continue depressing and releasing the dispenser lever (5 seconds on, 5 seconds off) for an additional 5 minutes. This will flush air from the filter and water dispensing system. Additional flushing may be required in some households. As air is cleared from the system, water may spurt out of the dispenser.

Allow 24 hours for the refrigerator to cool down and chill water.

Allow 24 hours to produce the first batch of ice. Discard the first three batches of ice produced.

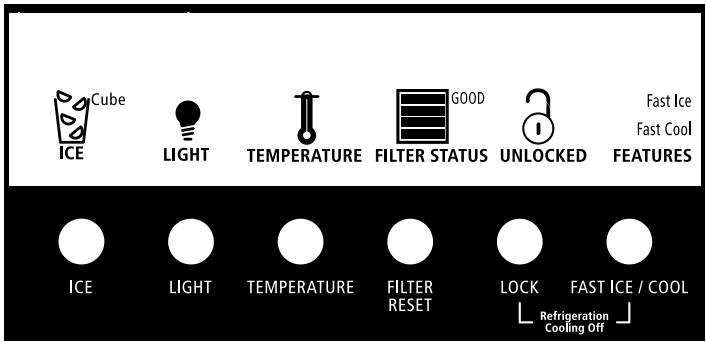

The display screen on the dispenser control panel has a backlight, which will turn off automatically when the control buttons have not been used for 30 seconds or more. When the backlight is off, the first press of a control button will only reactivate the backlight, without changing any settings. Within 30 seconds after the backlight has been reactivated, additional presses of control buttons will change the applicable settings.

The Water Dispenser The Dispenser Light (on some models) IMPORTANT: Dispense enough water every week to maintain a fresh supply. To Dispense Water: When you use the dispenser, the light will automatically turn on. If you want the light to be on continuously, you may choose either ON or DIM. The display screen indicates which mode is selected.

1. Press a sturdy glass against the water dispenser lever.

2. Remove the glass to stop dispensing.

The Ice Dispenser Ice dispenses from the ice maker storage bin in the freezer when the dispenser lever is pressed. The dispensing system will not operate when the freezer door is open. To turn off the ice maker, see “Ice Maker and Storage Bin.” Your ice maker can produce both crushed and cubed ice. Before dispensing ice, select which type of ice you prefer by pressing the ICE button. The display screen indicates which type of ice is selected. DIM OFF ON: Press LIGHT to turn the dispenser light on. DIM: Press LIGHT a second time to select DIM mode. The dispenser light will remain on, but at a lower intensity. OFF: Press LIGHT a third time to turn the dispenser light off. The dispenser lights are LEDs that cannot be changed. If it appears that your dispenser lights are not working, see “Troubleshooting” for more information. The Dispenser Lock (on some models) CRUSHED CUBED For crushed ice, cubes are crushed before being dispensed. This may cause a slight delay when dispensing crushed ice. Noise from the ice crusher is normal, and pieces of ice may vary in size. When changing from crushed to cubed, a few ounces of crushed ice will be dispensed along with the first cubes. The dispenser can be turned off for easy cleaning or to avoid unintentional dispensing by small children and pets. NOTE: The lock feature does not shut off power to the refrigerator, to the ice maker, or to the dispenser light. It simply deactivates the dispenser controls and levers. To turn off the ice maker, see “Ice Maker and Storage Bin.” ■ Press and hold LOCK for 3 seconds to lock the dispenser.

Press and hold LOCK a second time to unlock the dispenser. The display screen indicates when the dispenser is locked. To Dispense Ice:

1. Press the button to select the desired type of ice.

WARNING LOCKED UNLOCKED Ice Maker and Storage Bin (on some models) Turning the Ice Maker On/Off Cut Hazard Use a sturdy glass when dispensing ice. Failure to do so can result in cuts.

2. Press a sturdy glass against the ice dispenser lever. Hold the

glass close to the dispenser opening so ice does not fall outside of the glass. IMPORTANT: You do not need to apply a lot of pressure to the lever in order to activate the ice dispenser. Pressing hard will not make the ice dispense faster or in greater quantities.

3. Remove the glass to stop dispensing.

NOTE: Ice may continue to dispense for up to 10 seconds after removing the glass from the lever. The dispenser may continue to make noise for a few seconds after dispensing.

To turn ON the ice maker, simply lower the wire shutoff arm.

To manually turn off the ice maker, lift the wire shutoff arm to the OFF (arm up) position and listen for the click. Ice can still be dispensed, but no more can be made. NOTE: Your ice maker has an automatic shutoff. As ice is made, the ice cubes will fill the ice storage bin, and the ice cubes will raise the wire shutoff arm to the OFF (arm up) position. Do not force the wire shutoff arm up or down. Style 2 The On/Off switch is located on the top right-hand side of the freezer compartment. Removing and Replacing Ice Storage Bin Style 1

1. Pull the covering panel up from the bottom and then slide it

back toward the rear.

2. Lift the wire shutoff arm so it clicks into the OFF (up) position.

3. Lift up the front of the storage bin and pull it out.

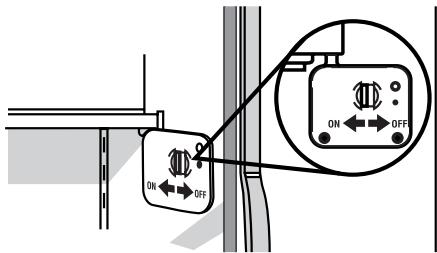

To turn on the ice maker, slide the control to the ON (left) position.

To manually turn off the ice maker, slide the control to the OFF (right) position. NOTE: Your ice maker has an automatic shutoff. The ice maker sensors will automatically stop ice production, but the control will remain in the ON (left) position. REMEMBER: ■ Allow 24 hours to produce the first batch of ice. Discard the first three batches of ice produced.

The quality of your ice will be only as good as the quality of the water supplied to your ice maker. Avoid connecting the ice maker to a softened water supply. Water softener chemicals (such as salt) can damage parts of the ice maker and lead to poor quality ice. If a softened water supply cannot be avoided, make sure the water softener is operating properly and is well maintained.

Do not use anything sharp to break up the ice in the storage bin. This can cause damage to the ice container and the dispenser mechanism.

Do not store anything on top of or in the ice maker or storage bin.

4. Replace the bin by pushing it in all the way or the dispenser

5. To restart ice production, push the wire shutoff arm down to

the ON position. Make sure the door is closed tightly. Style 2

1. Hold the base of the storage bin with both hands and press

the release button to lift the storage bin up and out. NOTE: It is not necessary to turn the ice maker control to the OFF (right) position when removing the storage bin. The sensor cover (“flipper door”) on the left wall of the freezer stops the ice maker from producing ice if the door is open or the storage bin is removed.

2. Replace the storage bin on the door and push down to make

sure it is securely in place. Water Filtration System Do not use with water that is microbiologically unsafe or of unknown quality without adequate disinfection before or after the system. Water Filter Status Light (on some models) The water filter status light will help you know when to change your water filter. When the water filter status display changes from “GOOD” to “ORDER,” this tells you that it is almost time to change the water filter cartridge. Replace the water filter cartridge when the water filter status display changes to “REPLACE.” If water flow to your water dispenser or ice maker decreases noticeably, change the filter sooner. The filter should be replaced at least every 6 months depending on your water quality and usage. After changing the water filter, reset the status light by pressing and holding the FILTER button for 3 seconds. The status light will change from “REPLACE” to “GOOD” when the system is reset. Changing the Water Filter

1. Press the eject button to release the filter from the base grille.

2. Pull the filter straight out.

3. Turn the cap counterclockwise to remove it from the filter.

IMPORTANT: Do not discard the cap. It is part of your refrigerator. Keep the cap to use with the replacement filter.

4. Align the ridge on the cap with the arrow on the new filter and

turn the cap until it snaps into place. NOTE: You can run the dispenser without a filter. Your water will not be filtered. Simply insert the cap all of the way into the base grille and rotate the cap until it is firmly in place.

5. Remove the covers from the O-rings. Be sure the O-rings are

still in place after the covers are removed.

6. Push the filter into the base grille. The eject button will pop

back out when the filter is fully engaged.

7. Flush the water system. See “Water and Ice Dispensers.”

Explosion Hazard Use nonflammable cleaner. Failure to do so can result in death, explosion, or fire. Both the refrigerator and freezer sections defrost automatically. However, clean both sections about once a month to avoid buildup of odors. Wipe up spills immediately. IMPORTANT: Because air circulates between both sections, any odors formed in one section will transfer to the other. You must thoroughly clean both sections to eliminate odors. To avoid odor transfer and drying out of food, wrap or cover foods tightly. To Clean Your Refrigerator: NOTE: Do not use abrasive or harsh cleaners such as window sprays, scouring cleansers, flammable fluids, cleaning waxes, concentrated detergents, bleaches or cleansers containing petroleum products on plastic parts, interior and door liners or gaskets. Do not use paper towels, scouring pads, or other harsh cleaning tools.

1. Unplug refrigerator or disconnect power.

2. Hand wash, rinse, and dry removable parts and interior

surfaces thoroughly. Use a clean sponge or soft cloth and a mild detergent in warm water.

3. Wash stainless steel and painted metal exteriors with a clean

sponge or soft cloth and a mild detergent in warm water.

4. On some models, wash glass door panels with a clean

sponge or soft cloth and a mild detergent in warm water. NOTES:

Do not hit the glass with pots, pans, furniture, toys, or other objects. Scratching, hitting, jarring or stressing the glass may weaken its structure, causing an increased likelihood of breakage at a later date.

Do not close the doors until all shelves, drawers and bins are in place.

5. There is no need for routine condenser cleaning in normal

home operating environments. If the environment is particularly greasy or dusty, or there is significant pet traffic in the home, the condenser should be cleaned every 2 to 3 months to ensure maximum efficiency. If you need to clean the condenser:

Remove the base grille.

Use a vacuum cleaner with a soft brush to clean the grille, the open areas behind the grille and the front surface area of the condenser.

Replace the base grille when finished.

6. Plug in refrigerator or reconnect power.

Changing the Light Bulbs NOTE: Not all bulbs will fit your refrigerator. Be sure to replace the bulb with one of the same size, shape and wattage. On some models, the dispenser light requires a heavy duty 10-watt bulb. All other lights require a 40-watt bulb. Replacement bulbs are available from your dealer.

1. Unplug refrigerator or disconnect power.

2. Remove light shield when applicable.

NOTE: To clean the light shield, wash it with warm water and liquid detergent. Rinse and dry the shield well.

3. Remove light bulb and replace with one of the same size,

4. Replace light shield when applicable.

5. Plug in refrigerator or reconnect power.

TROUBLESHOOTING First try the solutions suggested here or visit our website and reference FAQs (Frequently Asked Questions) to possibly avoid the cost of a service call. In the U.S.A., www.whirlpool.com In Canada, www.whirlpool.ca Refrigerator Operation The refrigerator will not operate WARNING Electrical Shock Hazard The refrigerator is noisy Refrigerator noise has been reduced over the years. Due to this reduction, you may hear intermittent noises from your new refrigerator that you did not notice from your old model. Below are listed some normal sounds with an explanation. ■ Buzzing - heard when the water valve opens to fill the ice maker

Pulsating - fans/compressor adjusting to optimize performance

Rattling - flow of refrigerant, water line, or from items placed on top of the refrigerator

Sizzling/Gurgling - water dripping on the heater during defrost cycle

Popping - contraction/expansion of inside walls, especially during initial cool-down

Water running - may be heard when water melts during the defrost cycle and runs into the drain pan

Creaking/Cracking - occurs as ice is being ejected from the ice maker mold. Plug into a grounded 3 prong outlet. Do not remove ground prong. Do not use an adapter. Do not use an extension cord. Failure to follow these instructions can result in death, fire, or electrical shock.

Power cord unplugged? Plug into a grounded 3 prong outlet.

Is outlet working? Plug in a lamp to see if the outlet is working.

Household fuse blown or circuit breaker tripped? Replace the fuse or reset the circuit breaker. If the problem continues, call an electrician.

Are controls on? Make sure the refrigerator controls are on. See “Using the Controls.”

New installation? Allow 24 hours following installation for the refrigerator to cool completely. The doors will not close completely

Door blocked open? Move food packages away from door.

Bin or shelf in the way? Push bin or shelf back in the correct position. The doors are difficult to open WARNING NOTE: Adjusting the temperature controls to coldest setting will not cool either compartment more quickly. The motor seems to run too much Your new refrigerator may run longer than your old one due to its high-efficiency compressor and fans. The refrigerator may run even longer if the room is warm, a large food load is added, doors are opened often, or if the doors have been left open. Explosion Hazard Use nonflammable cleaner. Failure to do so can result in death, explosion, or fire.

Are the gaskets dirty or sticky? Clean gaskets with mild soap and warm water.

The lights do not work Ice and Water

Is a light bulb loose in the socket or burned out? See “Changing the Light Bulbs.”

Is the dispenser light set to OFF? On some models, the dispenser light will operate only when a dispenser lever/pad is pressed. If you want the dispenser light to stay on continuously, set the dispenser light to ON, or (on some models) NIGHT LIGHT or AUTO or HALF or DIM. See “Water and Ice Dispensers.”

Refrigerator connected to a water supply and the supply shutoff valve turned on? Connect refrigerator to water supply and turn water shutoff valve fully open.

Kink in the water source line? A kink in the line can reduce water flow. Straighten the water source line. Is the dispenser light set to NIGHT LIGHT or AUTO? On some models, if the dispenser is set to the NIGHT LIGHT or AUTO mode, be sure the dispenser light sensor is not blocked. See “Water and Ice Dispensers.”

Ice maker turned on? Make sure wire shutoff arm or switch (depending on model) is in the ON position.

New installation? Wait 24 hours after ice maker installation for ice production to begin. Wait 72 hours for full ice production.

Large amount of ice recently removed? Allow 24 hours for ice maker to produce more ice.

Ice cube jammed in the ice maker ejector arm? Remove ice from the ejector arm with a plastic utensil.

Reverse osmosis water filtration system connected to your cold water supply? This can decrease water pressure. See “Water Supply Requirements.”

Temperature and Moisture Temperature is too warm

New installation? Allow 24 hours following installation for the refrigerator to cool completely.

Door(s) opened often or left open? Allows warm air to enter refrigerator. Minimize door openings and keep doors fully closed.

Large load of food added? Allow several hours for refrigerator to return to normal temperature. Controls set correctly for the surrounding conditions? Adjust the controls a setting colder. Check temperature in 24 hours. See “Using the Controls.”

There is interior moisture buildup NOTE: Some moisture buildup is normal. ■ Humid room? Contributes to moisture buildup.

The ice maker is not producing ice or not enough ice The ice cubes are hollow or small NOTE: This is an indication of low water pressure. ■ Water shutoff valve not fully open? Turn the water shutoff valve fully open.

Kink in the water source line? A kink in the line can reduce water flow. Straighten the water source line.

Reverse osmosis water filtration system connected to your cold water supply? This can decrease water pressure. See “Water Supply Requirements.”

Questions remain regarding water pressure? Call a licensed, qualified plumber. Door(s) opened often or left open? Allows humid air to enter refrigerator. Minimize door openings and keep doors fully closed. Off-taste, odor or gray color in the ice

New plumbing connections? New plumbing connections can cause discolored or off-flavored ice.

Ice stored too long? Discard ice. Wash ice bin. Allow 24 hours for ice maker to make new ice.

Odor transfer from food? Use airtight, moisture-proof packaging to store food.

Are there minerals (such as sulfur) in the water? A water filter may need to be installed to remove the minerals.

Is there a water filter installed on the refrigerator? Gray or dark discoloration in ice indicates that the water filtration system needs additional flushing.

Kink in the home water source line? Straighten the water source line.

New installation? Flush and fill the water system.

Water filter installed on the refrigerator? The filter may be clogged or incorrectly installed.

Is a reverse osmosis water filtration system connected to your cold water supply? See “Water Supply Requirements.” The ice dispenser will not operate properly

Freezer door closed completely? Close the door firmly. If it does not close completely, see “The doors will not close completely.”

Ice bin installed correctly? Be sure the ice bin is firmly in position.

New installation? Wait 24 hours after ice maker installation for ice production to begin. Wait 72 hours for full ice production.

Ice stuck in the delivery chute? Use a plastic utensil to clear the delivery chute.

Has the wrong ice been added to the bin? Use only cubes produced by the current ice maker.

Has the ice melted around the auger (metal spiral) in the ice bin? Empty the ice container. Use warm water to melt the ice if necessary. Water is leaking from the dispenser NOTE: One or two drops of water after dispensing is normal. ■ Glass not being held under the dispenser long enough? Hold the glass under the dispenser for 2 to 3 seconds after releasing the dispenser lever/pad.

New installation? Flush the water system. See “Prepare the Water System” or “Water and Ice Dispensers.”

Recently changed water filter? Flush the water system. See “Prepare the Water System” or “Water and Ice Dispensers.” WARNING The dispenser water is not cool enough NOTE: Water from the dispenser is chilled to only 50°F (10°C). ■ New installation? Allow 24 hours after installation for the water supply to cool completely.

Recently dispensed large amount of water? Allow 24 hours for water supply to cool completely.

Water not been recently dispensed? The first glass of water may not be cool. Discard the first glass of water.

Refrigerator connected to a cold water pipe? Make sure the refrigerator is connected to a cold water pipe. See “Water Supply Requirements.” Cut Hazard Use a sturdy glass when dispensing ice. Failure to do so can result in cuts.

Is the ice dispenser stalling while dispensing “crushed” ice? Change the ice button from “crushed” to “cubed.” If cubed ice dispenses correctly, depress the button for “crushed” ice and begin dispensing again.

Has the dispenser arm been held in too long? Ice will stop dispensing when the arm is held in too long. Wait 3 minutes for dispenser motor to reset before using again. The water dispenser will not operate properly

Freezer door closed completely? Close the door firmly. If it does not close completely, see “The doors will not close completely.”

Refrigerator connected to a water supply and the supply shutoff valve turned on? Connect refrigerator to water supply and turn water shutoff valve fully open.

Is the water pressure at least 30 psi (207 kPa)? The water pressure to the home determines the flow from the dispenser. See “Water Supply Requirements.” ACCESSORIES To order replacement filters, call 1-800-442-9991 and ask for the part number listed below or contact your authorized Whirlpool dealer. In Canada, call 1-800-807-6777. Stainless Steel Cleaner and Polish: Order Part #4396095 Standard Base Filter Cartridge: Order Part #4396841 (T2RFWG2 and P2RFWG2)

PERFORMANCE DATA SHEETS

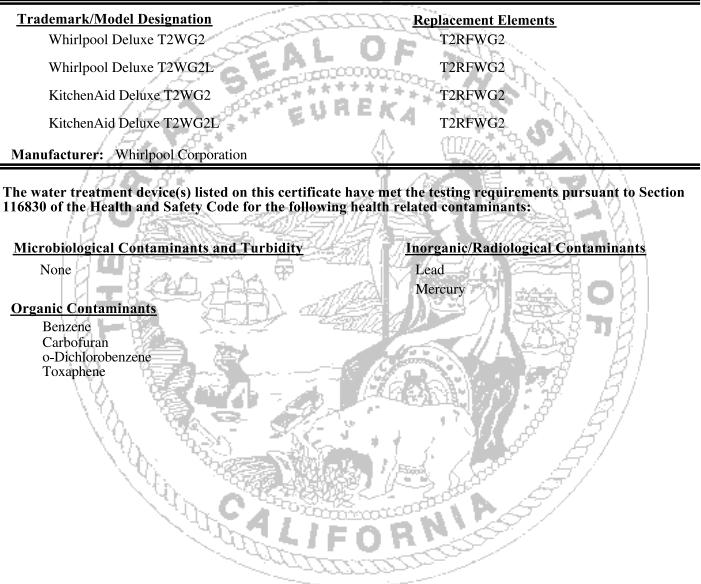

Base Grille Water Filtration System Model T2WG2L/T2RFWG2 Capacity 200 Gallons (757 Liters) Model T2WG2/T2RFWG2 Capacity 200 Gallons (757 Liters) System tested and certified by NSF International against NSF/ANSI Standard 42 for the reduction of Chlorine Taste and Odor, Particulate Class II*; and against NSF/ANSI Standard 53 for the reduction of Mercury, Benzene, Toxaphene, O-dichlorobenzene, and Carbofuran. This system has been tested according to NSF/ANSI Standards 42 and 53 for the reduction of the substances listed below. The concentration of the indicated substances in water entering the system was reduced to a concentration less than or equal to the permissible limit for water leaving the system, as specified in NSF/ANSI Standards 42 and 53. Substance Reduction Aesthetic Effects Chlorine Taste/Odor Particulate Class II* Contaminant Reduction Lead: @ pH 6.5*** Lead: @ pH 8.5*** Mercury: @ pH 6.5 Mercury: @ pH 8.5 Benzene O-Dichlorobenzene Toxaphene Carbofuran Test Parameters: pH = 7.5 ± 0.5 unless otherwise noted. Flow = 0.85 gpm (3.2 Lpm). Pressure = 60 psig (413.7 kPa). Temp. = 68°F to 71.6°F (20°C to 22°C). Rated service capacity = 200 gallons (757 liters). ■ It is essential that operational, maintenance, and filter ■ The product is for cold water use only. replacement requirements be carried out for the product to ■ Do not use with water that is microbiologically unsafe or of perform as advertised. unknown quality without adequate disinfection before or after the ■ Use replacement filter T2RFWG2, part #4396841. system. 2008 suggested retail price of $39.99 U.S.A./$54.95 Canada. ■ Refer to the “Warranty” section for the Manufacturer’s name, Prices are subject to change without notice. address and telephone number. Model T2WG2L: Style 1 – When the filter indicator reads 10%, ■ Refer to the “Warranty” section for the Manufacturer’s limited order a new filter. When the indicator reads 0%, it is warranty. recommended that you replace the filter. Style 2 – When the filter indicator changes from green to yellow, Application Guidelines/Water Supply Parameters order a new filter. When the indicator changes from yellow to red, it is recommended that you replace the filter. Water Supply City or Well Style 3 – When the water filter status display changes from Water Pressure

30 - 120 psi (207 - 827 kPa)

“GOOD” to “ORDER,” order a new filter. When the filter indicator Water Temperature 33° - 100°F (0.6° - 37.8°C) reads “REPLACE,” it is recommended that you replace the filter. Service Flow Rate

0.85 gpm (3.2 Lpm) @ 60 psi

Style 4 – Press FILTER to check the status of your water filter. If the filter indicator light is yellow, order a new filter. If the filter indicator light is red, it is recommended that you replace the filter. Model T2WG2: Change the water filter cartridge every 6 months. If the water flow to the water dispenser or ice maker decreases noticeably before 6 months have passed, replace the water filter cartridge more often. ■ These contaminants are not necessarily in your water supply. While testing was performed under standard laboratory conditions, actual performance may vary. *Class II particle size: 1 um to <5 um **Test requirement is at least 100,000 particles/mL of AC Fine Test Dust. ***Compliant for Lead reduction requirements under NSF/ANSI Standard 53 as tested by Pace Analytical Services, Inc. ® NSF is a registered trademark of NSF International.

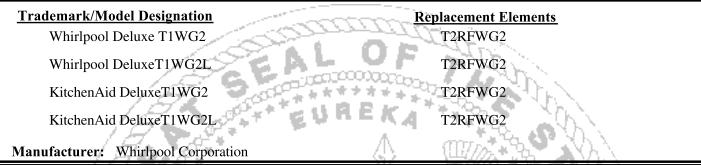

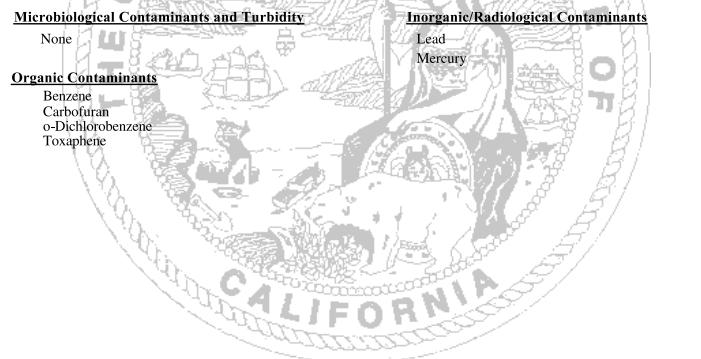

Base Grille Water Filtration System Model T1WG2L/T2RFWG2 Capacity 200 Gallons (757 Liters) Model T1WG2/T2RFWG2 Capacity 200 Gallons (757 Liters) System tested and certified by NSF International against NSF/ANSI Standard 42 for the reduction of Chlorine Taste and Odor, Particulate Class II*; and against NSF/ANSI Standard 53 for the reduction of Mercury, Benzene, Toxaphene, O-dichlorobenzene, and Carbofuran. This system has been tested according to NSF/ANSI Standards 42 and 53 for the reduction of the substances listed below. The concentration of the indicated substances in water entering the system was reduced to a concentration less than or equal to the permissible limit for water leaving the system, as specified in NSF/ANSI Standards 42 and 53. Substance Reduction Aesthetic Effects Chlorine Taste/Odor Particulate Class II* Contaminant Reduction Lead: @ pH 6.5*** Lead: @ pH 8.5*** Mercury: @ pH 6.5 Mercury: @ pH 8.5 Benzene O-Dichlorobenzene Toxaphene Carbofuran Test Parameters: pH = 7.5 ± 0.5 unless otherwise noted. Flow = 0.5 gpm (1.9 Lpm). Pressure = 60 psig (413.7 kPa). Temp. = 68°F to 71.6°F (20°C to 22°C). Rated service capacity = 200 gallons (757 liters). ■ It is essential that operational, maintenance, and filter ■ The product is for cold water use only. replacement requirements be carried out for the product to ■ Do not use with water that is microbiologically unsafe or of perform as advertised. unknown quality without adequate disinfection before or after the ■ Use replacement filter T2RFWG2, part #4396841. system. 2008 suggested retail price of $39.99 U.S.A./$54.95 Canada. ■ Refer to the “Warranty” section for the Manufacturer’s name, Prices are subject to change without notice. address and telephone number. Model T1WG2L: Style 1 – When the filter indicator reads 10%, ■ Refer to the “Warranty” section for the Manufacturer’s limited order a new filter. When the indicator reads 0%, it is warranty. recommended that you replace the filter. Style 2 – When the filter indicator changes from green to yellow, Application Guidelines/Water Supply Parameters order a new filter. When the indicator changes from yellow to red, it is recommended that you replace the filter. Water Supply City or Well Style 3 – When the water filter status display changes from Water Pressure

30 - 120 psi (207 - 827 kPa)

“GOOD” to “ORDER,” order a new filter. When the filter indicator Water Temperature 33° - 100°F (0.6° - 37.8°C) reads “REPLACE,” it is recommended that you replace the filter. Service Flow Rate

0.5 gpm (1.9 Lpm) @ 60 psi

Style 4 – Press FILTER to check the status of your water filter. If the filter indicator light is yellow, order a new filter. If the filter indicator light is red, it is recommended that you replace the filter. Model T1WG2: Change the water filter cartridge every 6 months. If the water flow to the water dispenser or ice maker decreases noticeably before 6 months have passed, replace the water filter cartridge more often. ■ These contaminants are not necessarily in your water supply. While testing was performed under standard laboratory conditions, actual performance may vary. *Class II particle size: 1 um to <5 um **Test requirement is at least 100,000 particles/mL of AC Fine Test Dust. ***Compliant for Lead reduction requirements under NSF/ANSI Standard 53 as tested by Pace Analytical Services, Inc. ® NSF is a registered trademark of NSF International.

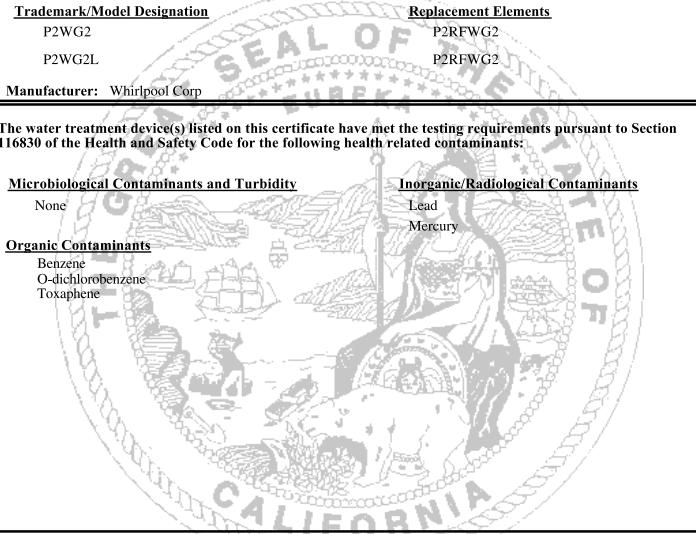

Base Grille Water Filtration System Model P2WG2L/P2RFWG2 Capacity 200 Gallons (757 Liters) Model P2WG2/P2RFWG2 Capacity 200 Gallons (757 Liters) System tested and certified by NSF International against NSF/ANSI Standard 42 for the reduction of Chlorine Taste and Odor, Particulate Class I*; and against NSF/ANSI Standard 53 for the reduction of Lead, Mercury, Benzene, Toxaphene, and O-dichlorobenzene. This system has been tested according to NSF/ANSI Standards 42 and 53 for the reduction of the substances listed below. The concentration of the indicated substances in water entering the system was reduced to a concentration less than or equal to the permissible limit for water leaving the system, as specified in NSF/ANSI Standards 42 and 53. Substance Reduction Aesthetic Effects Chlorine Taste/Odor Particulate Class I* Contaminant Reduction Lead: @ pH 6.5 Lead: @ pH 8.5 Mercury: @ pH 6.5 Mercury: @ pH 8.5 Benzene O-Dichlorobenzene Toxaphene Test Parameters: pH = 7.5 ± 0.5 unless otherwise noted. Flow = 0.85 gpm (3.2 Lpm). Pressure = 60 psig (413.7 kPa). Temp. = 68°F to 71.6°F (20°C to 22°C). Rated service capacity = 200 gallons (757 liters). ■ It is essential that operational, maintenance, and filter ■ The product is for cold water use only. replacement requirements be carried out for the product to ■ Do not use with water that is microbiologically unsafe or of perform as advertised. unknown quality without adequate disinfection before or after the ■ Use replacement filter P2RFWG2, part #4396841. system. 2008 suggested retail price of $39.99 U.S.A./$54.95 Canada. ■ Refer to the “Warranty” section for the Manufacturer’s name, Prices are subject to change without notice. address and telephone number. Model P2WG2L/P2WG2: Style 1 – When the filter indicator ■ Refer to the “Warranty” section for the Manufacturer’s limited reads 10%, order a new filter. When the indicator reads 0%, it is warranty. recommended that you replace the filter. Style 2 – When the filter indicator changes from green to yellow, Application Guidelines/Water Supply Parameters order a new filter. When the indicator changes from yellow to red, it is recommended that you replace the filter. Water Supply City or Well Style 3 – When the water filter status display changes from Water Pressure

30 - 120 psi (207 - 827 kPa)

“GOOD” to “ORDER,” order a new filter. When the filter indicator Water Temperature 33° - 100°F (0.6° - 37.8°C) reads “REPLACE,” it is recommended that you replace the filter. Service Flow Rate

0.85 gpm (3.2 Lpm) @ 60 psi

Style 4 – Press FILTER to check the status of your water filter. If the filter indicator light is yellow, order a new filter. If the filter indicator light is red, it is recommended that you replace the filter. Change the water filter cartridge every 6 months. If the water flow to the water dispenser or ice maker decreases noticeably before 6 months have passed, replace the water filter cartridge more often. ■ These contaminants are not necessarily in your water supply. While testing was performed under standard laboratory conditions, actual performance may vary. *Class I particle size: >0.5 um to <1 um **Test requirement is at least 100,000 particles/mL of AC Fine Test Dust. ® NSF is a registered trademark of NSF International.

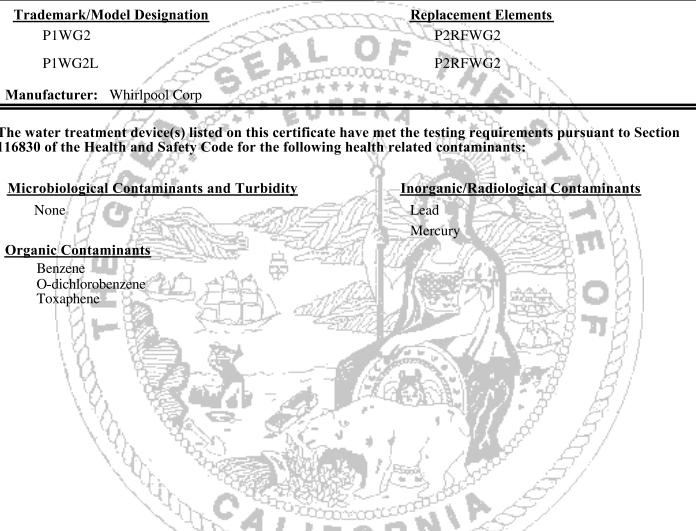

Base Grille Water Filtration System Model P1WG2L/P2RFWG2 Capacity 200 Gallons (757 Liters) Model P1WG2/P2RFWG2 Capacity 200 Gallons (757 Liters) System tested and certified by NSF International against NSF/ANSI Standard 42 for the reduction of Chlorine Taste and Odor, Particulate Class I*; and against NSF/ANSI Standard 53 for the reduction of Lead, Mercury, Benzene, Toxaphene, and O-dichlorobenzene. This system has been tested according to NSF/ANSI Standards 42 and 53 for the reduction of the substances listed below. The concentration of the indicated substances in water entering the system was reduced to a concentration less than or equal to the permissible limit for water leaving the system, as specified in NSF/ANSI Standards 42 and 53. Substance Reduction Aesthetic Effects Chlorine Taste/Odor Particulate Class I* Contaminant Reduction Lead: @ pH 6.5 Lead: @ pH 8.5 Mercury: @ pH 6.5 Mercury: @ pH 8.5 Benzene O-Dichlorobenzene Toxaphene Test Parameters: pH = 7.5 ± 0.5 unless otherwise noted. Flow = 0.5 gpm (1.9 Lpm). Pressure = 60 psig (413.7 kPa). Temp. = 68°F to 71.6°F (20°C to 22°C). Rated service capacity = 200 gallons (757 liters). ■ It is essential that operational, maintenance, and filter ■ The product is for cold water use only. replacement requirements be carried out for the product to ■ Do not use with water that is microbiologically unsafe or of perform as advertised. unknown quality without adequate disinfection before or after the ■ Use replacement filter P2RFWG2, part #4396841. system. 2008 suggested retail price of $39.99 U.S.A./$54.95 Canada. ■ Refer to the “Warranty” section for the Manufacturer’s name, Prices are subject to change without notice. address and telephone number. Model P1WG2L/P1WG2: Style 1 – When the filter indicator ■ Refer to the “Warranty” section for the Manufacturer’s limited reads 10%, order a new filter. When the indicator reads 0%, it is warranty. recommended that you replace the filter. Style 2 – When the filter indicator changes from green to yellow, Application Guidelines/Water Supply Parameters order a new filter. When the indicator changes from yellow to red, it is recommended that you replace the filter. Water Supply City or Well Style 3 – When the water filter status display changes from Water Pressure

30 - 120 psi (207 - 827 kPa)

“GOOD” to “ORDER,” order a new filter. When the filter indicator Water Temperature 33° - 100°F (0.6° - 37.8°C) reads “REPLACE,” it is recommended that you replace the filter. Service Flow Rate

0.5 gpm (1.9 Lpm) @ 60 psi

Style 4 – Press FILTER to check the status of your water filter. If the filter indicator light is yellow, order a new filter. If the filter indicator light is red, it is recommended that you replace the filter. Change the water filter cartridge every 6 months. If the water flow to the water dispenser or ice maker decreases noticeably before 6 months have passed, replace the water filter cartridge more often. ■ These contaminants are not necessarily in your water supply. While testing was performed under standard laboratory conditions, actual performance may vary. *Class I particle size: >0.5 um to <1 um **Test requirement is at least 100,000 particles/mL of AC Fine Test Dust. ® NSF is a registered trademark of NSF International.

WHIRLPOOL CORPORATION MAJOR APPLIANCE WARRANTY

LIMITED WARRANTY For one year from the date of purchase, when this major appliance is operated and maintained according to instructions attached to or furnished with the product, Whirlpool Corporation or Whirlpool Canada LP (hereafter “Whirlpool”) will pay for Factory Specified Parts and repair labor to correct defects in materials or workmanship that existed when this major appliance was purchased. Service must be provided by a Whirlpool designated service company. YOUR SOLE AND EXCLUSIVE REMEDY UNDER THIS LIMITED WARRANTY SHALL BE PRODUCT REPAIR AS PROVIDED HEREIN. This limited warranty is valid only in the United States or Canada and applies only when the major appliance is used in the country in which it was purchased. Proof of original purchase date is required to obtain service under this limited warranty.

ITEMS EXCLUDED FROM WARRANTY

This limited warranty does not cover: 1. Replacement parts or repair labor if this major appliance is used for other than normal, single-family household use or when it is used in a manner that is inconsistent to published user or operator instructions and/or installation instructions. 2. Service calls to correct the installation of your major appliance, to instruct you on how to use your major appliance, to replace or repair house fuses, or to correct house wiring or plumbing. 3. Service calls to repair or replace appliance light bulbs, air filters or water filters. Consumable parts are excluded from warranty coverage. 4. Damage resulting from accident, alteration, misuse, abuse, fire, flood, acts of God, improper installation, installation not in accordance with electrical or plumbing codes, or use of products not approved by Whirlpool. 5. Cosmetic damage, including scratches, dents, chips or other damage to the finish of your major appliance, unless such damage results from defects in materials or workmanship and is reported to Whirlpool within 30 days from the date of purchase.

6. Any food or medicine loss due to refrigerator or freezer product failures.

7. Pickup and delivery. This major appliance is intended to be repaired in your home.

8. Repairs to parts or systems resulting from unauthorized modifications made to the appliance.

9. Expenses for travel and transportation for product service if your major appliance is located in a remote area where service by an authorized Whirlpool servicer is not available. 10. The removal and reinstallation of your major appliance if it is installed in an inaccessible location or is not installed in accordance with Whirlpool's published installation instructions. 11. Replacement parts or repair labor on major appliances with original model/serial numbers that have been removed, altered or cannot be easily determined.

12. Discoloration, rust, or oxidation of stainless steel surfaces.

DISCLAIMER OF IMPLIED WARRANTIES

IMPLIED WARRANTIES, INCLUDING ANY IMPLIED WARRANTY OF MERCHANTABILITY OR IMPLIED WARRANTY OF FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED TO ONE YEAR OR THE SHORTEST PERIOD ALLOWED BY LAW. Some states and provinces do not allow limitations on the duration of implied warranties of merchantability or fitness, so this limitation may not apply to you. This warranty gives you specific legal rights, and you also may have other rights that vary from state to state or province to province. LIMITATION OF REMEDIES; EXCLUSION OF INCIDENTAL AND CONSEQUENTIAL DAMAGES YOUR SOLE AND EXCLUSIVE REMEDY UNDER THIS LIMITED WARRANTY SHALL BE PRODUCT REPAIR AS PROVIDED HEREIN. WHIRLPOOL SHALL NOT BE LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES. Some states and provinces do not allow the exclusion or limitation of incidental or consequential damages, so these limitations and exclusions may not apply to you. This warranty gives you specific legal rights, and you also may have other rights that vary from state to state or province to province. If outside the 50 United States and Canada, contact your authorized Whirlpool dealer to determine if another warranty applies. 6/08 For additional product information, in the U.S.A., visit www.whirlpool.com In Canada, visit www.whirlpool.ca If you do not have access to the Internet and you need assistance using your product or you would like to schedule service, you may contact Whirlpool at the number below. Have your complete model number ready. You can find your model number and serial number on the label, located on the inside wall of the refrigerator compartment. For assistance or service in the U.S.A., call 1-800-253-1301. In Canada, call 1-800-807-6777. If you need further assistance, you can write to Whirlpool with any questions or concerns at the address below: In Canada: In the U.S.A.: Whirlpool Brand Home Appliances Whirlpool Brand Home Appliances Customer eXperience Centre Customer eXperience Center 1901 Minnesota Court 553 Benson Road Mississauga, Ontario L5N 3A7 Benton Harbor, MI 49022-2692 Please include a daytime phone number in your correspondence. Please keep this User Instructions and model number information for future reference.

CONSERVEZ CES INSTRUCTIONS
