| Product type | Built-in electric cooktop |
| Brand | Bauknecht |
| Model | G7CE3055 |
| Dimensions | Width: 76.2 cm (30") |
| Control type | Rotary knobs |
| Surface material | Ceramic glass |

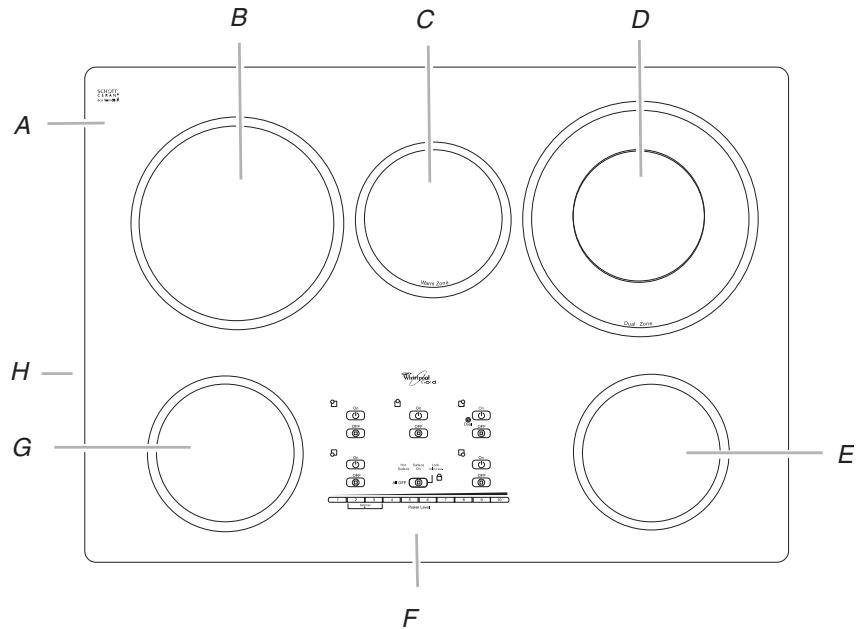

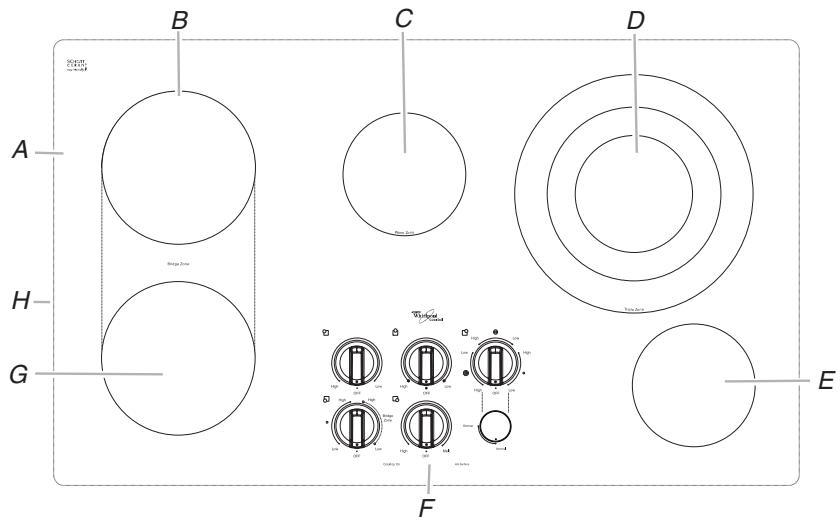

| Number of cooking zones | 4 zones (distribution: left rear, center rear, right rear, right front, left front - as per diagram) |

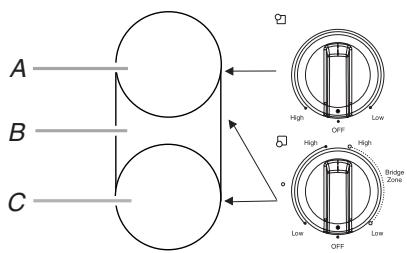

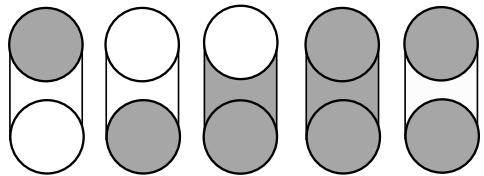

| Special zones | Double/triple element on some zones; keep warm zone; bridge element; ACCUSIMMER function for precise simmering |
| Main functions | All Off, control lock, hot surface indicators, power indicator, component temperature management |
| Power supply | Connection to household mains (240 V / 208 V) by a qualified technician |
| Cleaning | Ceramic glass surface: use a special cleaner and a scraper for stubborn residues. Do not use steel wool or abrasive products. |
| Safety | Control lock (long press 3 s), hot surface indicators, All Off, automatic circuit breaker in case of overheating |
| Recommended accessories | Cooktop polishing cream (no. 31464B), scraper (no. WA906B), care kit (no. 31605) |
| Warranty | 1 year (parts and labor) by Whirlpool Corporation / Whirlpool Canada LP |
| Customer service (Canada) | 1-800-807-6777 |
Frequently Asked Questions - G7CE3055 BAUKNECHT

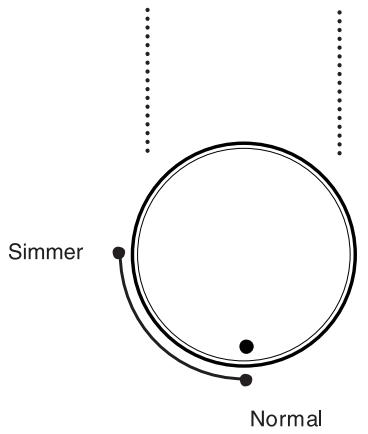

How to use the ACCUSIMMER function?
Turn the ACCUSIMMER knob to Simmer, then adjust the cooking zone between Low and High. Use Low for gentle simmering with lid, Medium for rapid simmering without lid. After cooking, return the knob to Normal.
How to lock the controls?

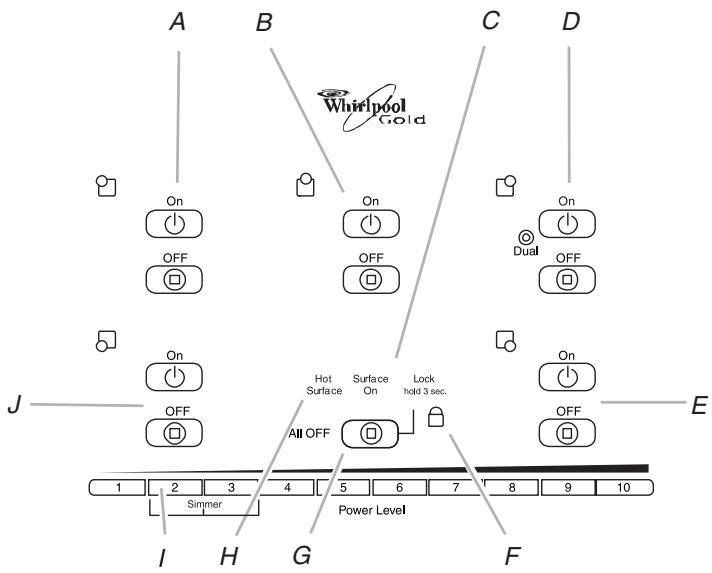

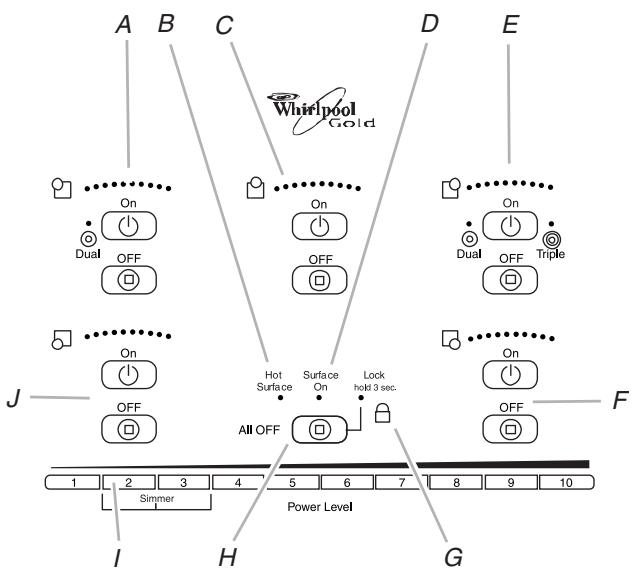

Press the ALL OFF/LOCK key for 3 seconds. The red indicator lights up to confirm locking. To unlock, press and hold for 3 seconds again.
What to do if the cooktop does not heat?
Check that the knob is pressed before turning, that the lock is not activated, and that the circuit breaker has not tripped. If a continuous beep sounds, clean the control panel surface.

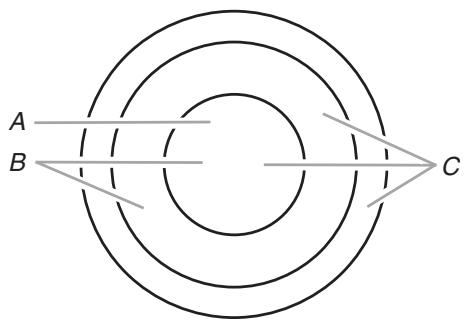

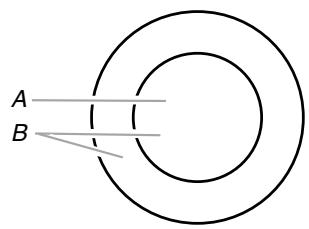

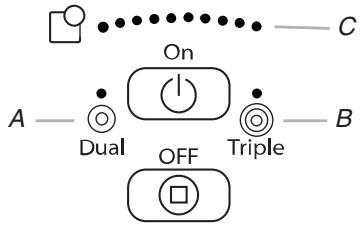

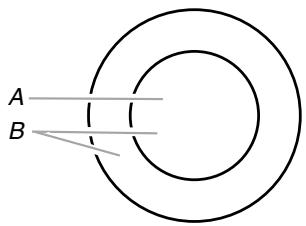

How to use the double/triple element?
Push and turn the knob to the DUAL or TRIPLE position depending on the model. The single zone activates by default; an additional press of ON allows switching between the different sizes.
What cookware is recommended?
Use flat-bottomed pots with a diameter suitable for the zone (overhang max 1.3 cm). Avoid rough bottoms that scratch the ceramic glass. Materials like aluminum or copper leave residual marks.
How to clean burnt sugar residues?
Wait for the cooktop to cool slightly, then scrape with a cooktop scraper (razor blade) held flat. Then apply polishing cream and wipe.

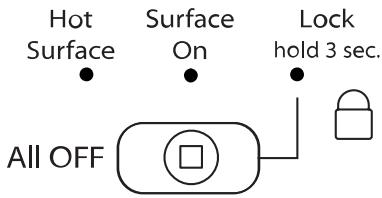

What does the hot surface indicator mean?
The indicator stays on as long as a cooking zone is too hot to touch, even after turning off. It may stay on for up to 45 minutes after a power outage.
How to use the keep warm zone?
Push and turn the Keep Warm zone knob to the desired setting (Low to High). This zone does not glow; the indicator shows it is active. Do not exceed 1 hour for optimal quality.
Can I use pressure canners for canning?
Yes, but center the canner on the largest cooking zone. Do not exceed 1.3 cm overhang. Alternate zones between batches to avoid overheating.
What to do if all indicators flash?
Turn off the cooktop, thoroughly clean the control panel, then disconnect power for 1 minute before restoring. If the problem persists, contact service.
