G7CE3635 - Electric cooktop BAUKNECHT - Free user manual and instructions
Find the device manual for free G7CE3635 BAUKNECHT in PDF.
📄
Document temporarily unavailable
The manual is currently being transferred to our new server. It will be accessible again in a few hours. Thank you for your patience.
Pick your language and provide your email: we'll send you a specifically translated version.
| Product type | Electric cooktop |
| Brand | BAUKNECHT |
| Model | G7CE3635 |
| Dimensions (W x D x H) | 91.4 cm x approx 52 cm x 4 cm (estimated) |
| Cooking surface | Ceramic glass |

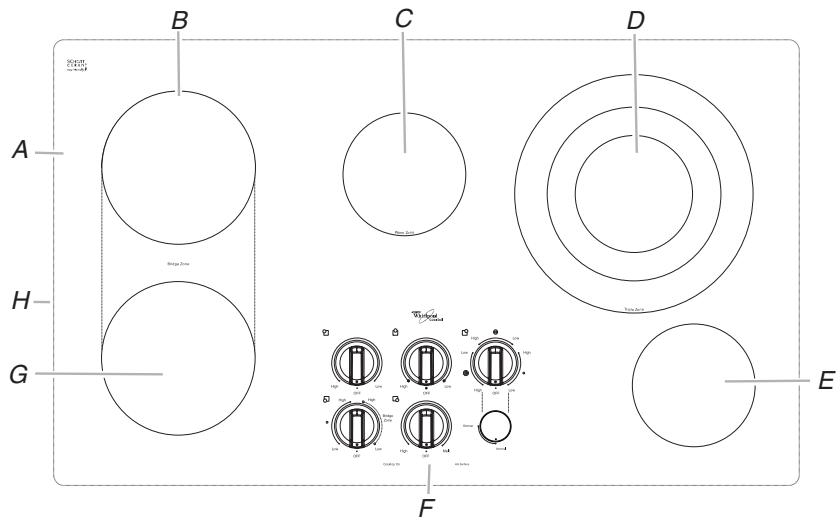

| Number of cooking zones | 5 zones (2 front, 2 rear, 1 center) |
| Zone types | Single, double, triple zones, warming zone, ACCUSIMMER zone |
| Controls | Rotary knobs (push to turn) |
| Indicator lights | Hot surface, table on |
| Power supply | 240 V / 208 V, 60 Hz, single phase (standard estimate) |
| Total power | About 9 kW (estimate) |
| Special functions | Double/Triple element, warming zone, ACCUSIMMER for precise simmering, all off/lock |
| Care and cleaning | Cooktop cleaner and scraper recommended; do not use steel wool |
| Safety | Control lock, hot surface indicator, automatic shut-off after 10 sec without selection |
| Spare parts and accessories | Polishing cream (part no. 31464B), scraper (part no. WA906B), care kit (part no. 31605) |
| Repairability | FSP parts available; Whirlpool Canada after-sales service 1-800-807-6777 |
| Warranty | 1 year parts and labor (conditions: normal use, proper installation) |
| Country of manufacture | Not specified, but brand associated with Whirlpool (Canada/USA) |
| Weight | About 12 kg (estimate for 36" cooktop, not provided) |
Frequently Asked Questions - G7CE3635 BAUKNECHT
How to use the warming zone?
Push and turn the warming zone knob to the desired setting. The zone does not glow, but the hot surface indicator light turns on. Cover food with a lid or aluminum foil. Maximum recommended time: 1 hour.
How to clean the ceramic glass cooktop?
Use a special cooktop cleaner (part no. 31464B) and a scraper (part no. WA906B) for stubborn stains. Clean sugar spills as soon as possible. Do not use steel wool or abrasive cleaners.
What to do if the cooktop does not turn on?
Check that the fuse is not blown or the circuit breaker is not tripped. Make sure the control knob is pressed before turning. If the lock (All Off Lock) is activated, press for 3 seconds to unlock.

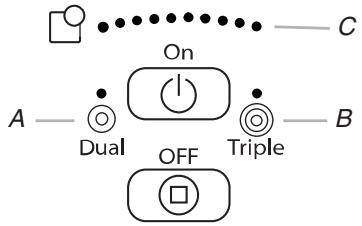

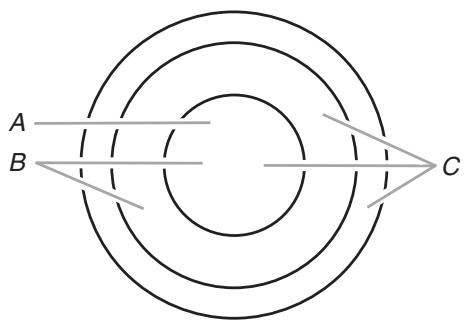

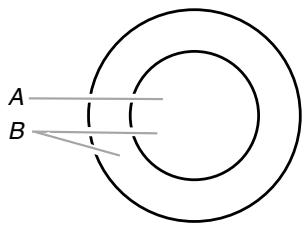

How to use the double or triple element?
For the double/triple element, push and turn the knob to the DUAL or TRIPLE position. The zone adapts to the size of the cookware. To change zones while in use, press the ON button again (for touch models) or turn the knob (for knob models).
What does the hot surface indicator mean?
The hot surface indicator stays on as long as the cooking surface is too hot to touch, even after the zones are turned off. It may stay on for up to 45 minutes after a power outage.

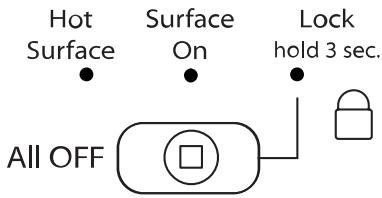

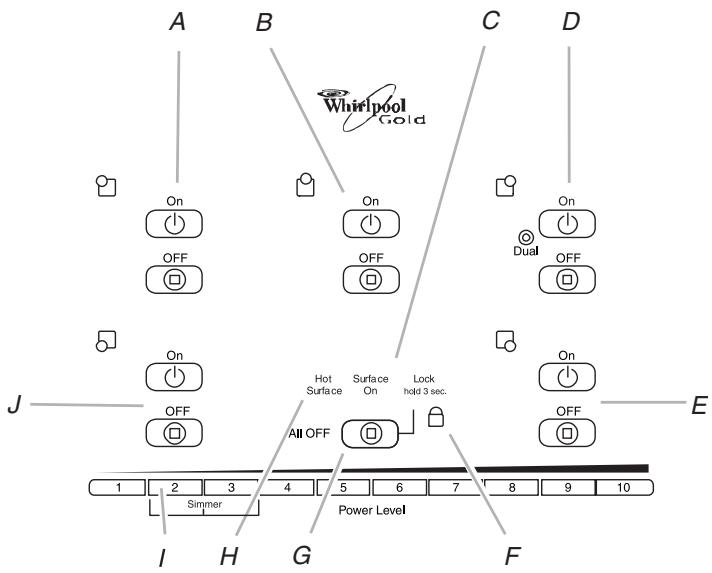

How to lock the controls?
Press the ALL OFF/LOCK key for 3 seconds. The red light turns on to indicate the controls are locked. To unlock, repeat the same operation.
What cookware to use?
Use flat-bottomed cookware with a size suitable for the cooking zone (not exceeding 1.3 cm overhang). Avoid aluminum or copper cookware that may leave marks. Prefer stainless steel, cast iron, or ceramic glass.
Why does the cooktop emit a continuous beep?
This may be due to residues on the control panel. Clean the surface thoroughly. If the problem persists, unplug the appliance for one minute and then plug it back in.

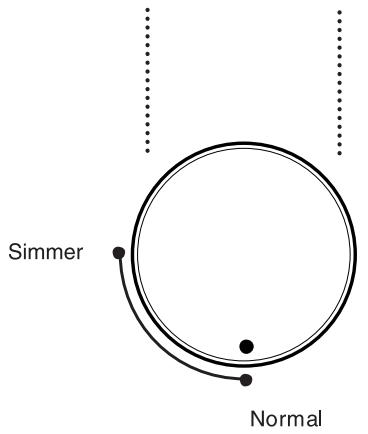

How does the ACCUSIMMER function work?
Turn the ACCUSIMMER knob to SIMMER then adjust the power between Low and High. The zone does not glow, except the outer ring for medium/high simmering. Use Low with a lid, Medium without a lid.
Where to find replacement parts?
Order FSP parts from Whirlpool customer service. In Canada, call 1-800-807-6777. Accessories such as polishing cream (part no. 31464B) and scraper (part no. WA906B) are available.
